User’s Guide
Digital Video Baby Monitor
Models: MBP36S, MBP36S/2, MBP36S/3, MBP36S/4
The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Video Baby Monitor!
Thank you for purchasing the MBP36S, MBP36S/2, MBP36S/3, MBP36S/4.
Now you can see and hear your baby sleeping in another room or you can
monitor your older children in their playroom.
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to provide a
copy of your dated sales receipt to confirm warranty status. Registration is
not required for warranty coverage.
For product related questions, please call:
This User's Guide provides you with all the information you need to get the
most from your product.
Before you can use the baby monitor, we recommend you insert and fully
charge the battery in the parent unit, so that it continues to work if you
disconnect it from the power supply to carry it to another location. Please
read the Safety Instructions on page 6 before you install the units.
Got everything?
• 1 x Parent unit
• 1 x Rechargeable Ni-MH battery pack
• 1 x Power adapter for the Parent unit
In multi-camera packs, you will find one or more additional camera units
with power adapter units and battery packs.
[phone] in Europe
Email: [email protected]
• 1 x Baby unit(Camera)
• 1 x Power adapter(s) for the Baby unit

Overview of the Parent Unit
1. Display (LCD screen)
2. Up Key +
Normal Mode: Tilt Up
Menu Mode: Up
3. Down Key -
Normal Mode: Tilt Down
Menu Mode: Down
4. Left Key <
Normal Mode: Pan Left
Menu Mode: Left
5. Right Key >
Normal Mode: Pan Right
Menu Mode: Right
6. Menu Key M
Press to open the Menu options
7. OK Key O
8. Video ON/OFF Key V
Press to turn OFF the LCD
display
Press again to turn ON the LCD
display
9. Talk Key T
Press and hold to speak to your
baby
10. Power Adapter / Battery LED
BLUE when mains adapter
power on.
RED when battery low.
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green,
Orange, Red, Red)
13. Microphone
14. Power Key P
Press and Hold to turn the unit
ON/OFF
15. Antenna
Lift the antenna for optimal
reception
16. Battery cover
17. Stand
18. Speaker
19. USB power adapter socket
20. AV out / Audio out
POWER
18
15
11
14
13
16
17
19
20
6
7
8
9
2
3
4
5
10 12 1
Parent unit menu icons
Signal Level (5 Levels)
Night Vision Mode (Screen changes to Black/White)
Talk Mode
Battery Level Control (4 Levels)
Pan Left
Pan Right
Tilt Up
Tilt Down

Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and Parent Units together, you must be able to establish a
radio link between them, and the range will be affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or
reinforced concrete between the Baby and Parent Unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like walls, or by radio
or electrical equipment, such as TVs, computers, cordless or mobile phones,
fluorescent lights or dimmer switches.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi®routers), Bluetooth®
systems, or microwave ovens, may cause interference with this product, so keep the
baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if
they appear to be causing interference.
• If the signal is weak, try lifting up the Parent Unit Antenna, moving the Parent and/or the
Baby Unit to different positions in the rooms.
1. Photo Sensor
(Night Vision Mode)
6. Speaker
7. ON/OFF Switch
2. Camera Lens 8. Power Adapter Socket
3. Infrared LEDs 9. Antenna
4. Power LED 10. Temperature Sensor
5. Microphone 11. Pair Key
Parent unit menu icons (cont’d)
Overview of Your Baby Unit
Volume Level Control (8 Levels)
Zoom Level Control (1X, 2X)
Brightness Level Control (8 Levels)
Lullaby Control (5 Song Selections)
Alarm Setting (6h, 4h, 2h, Off )
Temperature Reading (HH ºC / ºF or LL ºC / ºF)
Icon & readings turn RED >29ºC / 84ºF, and reading display
HH ºC / ºF >36ºC / 97 ºF)
Icon & readings turn RED <14ºC / 57ºF, and reading display
LL ºC / ºF <1ºC / 34 ºF)
Cam Control (scan, view, add, delete)
Screen viewing mode control (Single Screen, 4-split Screen)
Set Video On Timer (5 min, 30 min, 60 min)
V
1
9
11
10
8
2
3
6
5
4
7
PAIR

Table of contents 5
ENGLISH
Table of contents
1. Safety Instructions..................................................................................... 6
2. Getting Started.......................................................................................... 8
2.1 Baby Unit Power Supply..............................................................................8
2.2 Parent Unit Battery Installation ....................................................................8
2.3 Parent Unit Power Supply ...........................................................................9
2.4 Registration (Pairing).................................................................................10
2.5 View Video Through TV............................................................................10
3. Using the Baby Monitor........................................................................... 11
3.1 Setting up...................................................................................................11
3.2 Pan and Tilt ................................................................................................ 11
3.3 Night Vision Mode.....................................................................................11
3.4 Talk Mode .................................................................................................. 11
3.5 Video ON/OFF..........................................................................................11
3.6 Temperature Display (HH °C / °F or LL °C / °F)......................................12
4. Parent Unit Menu Options....................................................................... 13
4.1 Volume.......................................................................................................13
4.2 Brightness .................................................................................................. 13
4.3 Lullaby........................................................................................................ 13
4.4 Zoom..........................................................................................................13
4.5 Alarm..........................................................................................................13
4.6 Camera Control ........................................................................................ 14
4.6.1 Add (pair) a camera ..................................................................14
4.6.2 View a camera ...........................................................................14
4.6.3 View multi-cameras on screen ..................................................14
4.6.4 Delete a camera ........................................................................ 15
4.6.5 Scan camera ..............................................................................15
4.7 Temperature..............................................................................................15
4.8 Power Saving mode .................................................................................. 15
5. Disposal of The Device (environment) ................................................... 16
6. Cleaning .................................................................................................. 17
7. Help.......................................................................................................... 18
8. General Information ................................................................................ 20

cot. Secure the cords more than 1 metre
from the cot and out of the baby's reach.
unit and adapter cord more than 1 metre
6Safety Instructions
1. Safety Instructions
WARNING:
STRANGULATION HAZARD - Keep the
NEVER place camera or cords within the
away from the baby's reach. Never use
extension cords with AC Adapters. Only
use the AC Adapters provided.

be more than 1 metre away)
the cot or within reach of the baby
Safety Instructions 7
ENGLISH
WARNING
This digital video baby monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User's Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this user's guide for future reference.
• Do not place the baby unit or cords in
(the unit and cords should
• Keep the cords out of reach of children.
• Do not cover the baby monitor with a towel or blanket.
• Never use extension cords with power adapters. Only use the power
adapters provided.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
CAMERA SET UP & USE:
●Determine a location for the Baby Unit that will provide the best view
●Place the BABY UNIT on a flat surface, such as a dresser, bureau, or
shelf or mount the Unit to a wall securely using the keyhole slots under
the stand.
●
●
of your baby in his/her cot.
NEVER place the Baby Unit or cords within the cot.
Do not place the Baby Unit or cords in the cot or within reach of the
baby (the unit and cords should be more than 1 metre away).

8Safety Instructions
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery
pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to their instructions.

a suitable mains power socket.the other end to
Getting Started 9
ENGLISH
2. Getting Started

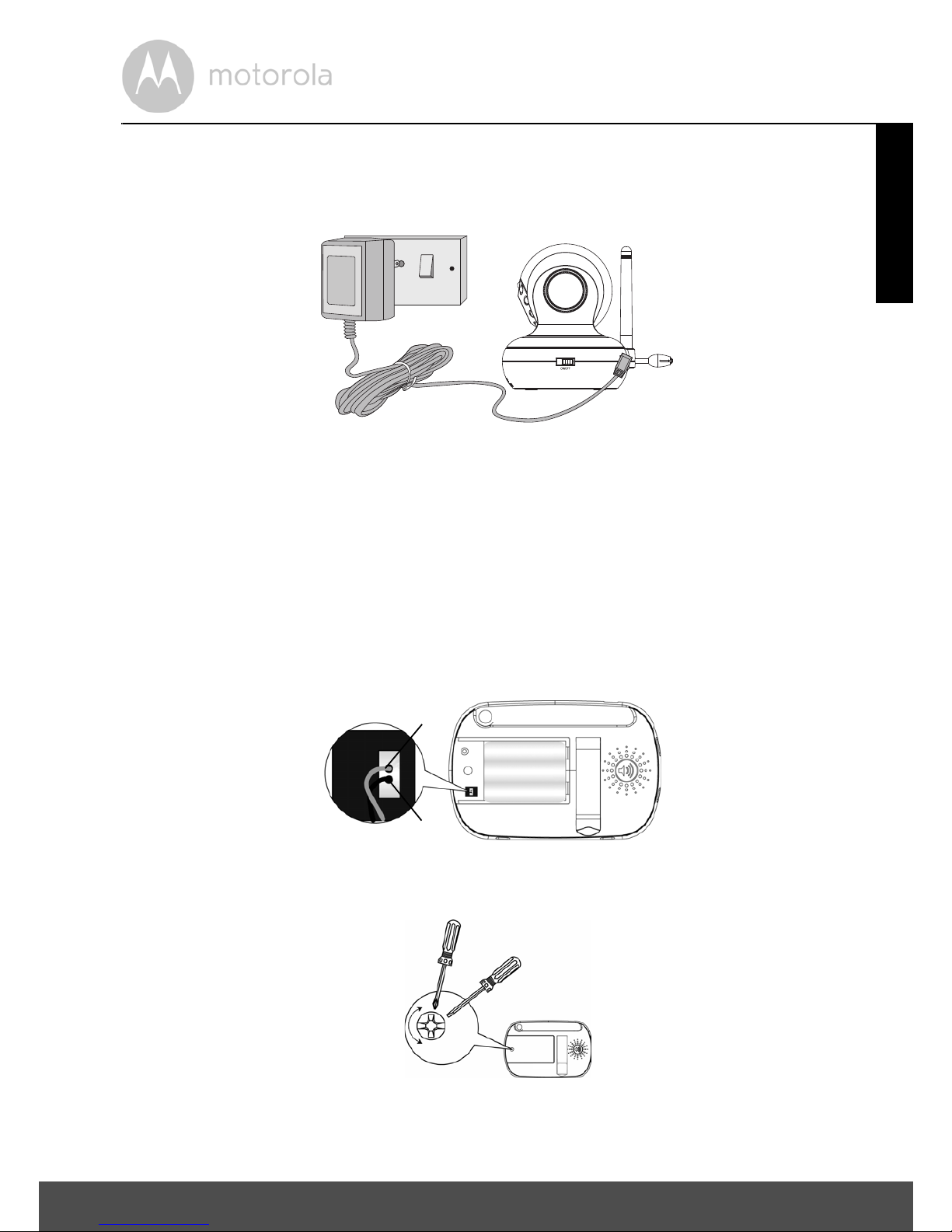

2.1 Baby Unit Power Supply
1. Connect the small plug of the power adapter to the baby unit (camera) and
NOTE
Only use the enclosed power adapter (5V DC / 1000mA).
2. Slide the ON/OFF switch to the ON position. The power LED will light up
in green.
3. Slide the ON/OFF switch to the OFF position to turn the Baby Unit off.
2.2 Parent Unit Battery Installation
1. Insert the wire tab of the rechargeable battery pack into the contact slot as
shown above and fit the battery pack into the compartment.
2. Replace the battery cover over the compartment and gently tighten the
screw in a clockwise direction using a Small cross head or Flat end screw
drivers.
Black
Red
Small cross head or
Flat end screw driver

the baby unit until
unit closer to
and the unit
off,
10 Getting Started
2.3 Parent Unit Power Supply
IMPORTANT
Installing the rechargeable battery pack and charging it fully before use is
recommended. This will allow the unit to operate on battery in the event of a
power failure.
1.
2. Press and hold the PPOWER ON/OFF button for 1 second to turn ON
the parent unit.
3. Once the baby and parent units are switched on, the display on the parent
unit will show the video captured by the baby unit.
4. If there is no connection or you are out of range, the video display will go
the link is re-established.
5. Press and hold the PPOWER ON/OFF button, until the progress bar
finishes scrolling, to turn OFF the parent unit.
NOTE
The battery icon turns RED to indicate that the battery is low, and it gives
a beep every 16 seconds. The battery needs to be recharged. The battery pack
takes about 12 hours to charge fully.
When charging
1. During power OFF, when adapter is plugged in, a adapter logo will display
on screen and then a flashing battery logo will display for 45 sec. The Blue
LED at top left corner light up indicates adapter is plugged in.
Only use the enclosed power
adapter (5V
other end to a suitable mains power socket.
Connect the small plug of the power adapter to the parent unit and the
DC / 600mA) with the slightly smaller DC plug.
will beep every 5 seconds. Move the parent

button to select the desired Camera and press the
, and press the
O
Getting Started 11
ENGLISH
2. During power ON, when adapter is plugged in, the battery icon on screen's
top right corner will show that the battery is charging. The Blue LED at the
top left corner light up indicates adapter is plugged in.
2.4 Registration (Pairing)
The Baby monitor is pre-registered to your Parent Unit. You do not need to
register it again unless the Baby Unit loses its link with the Parent Unit.
To re-register your Baby Unit, or register a new Baby Unit, follow the procedure
below:
1. Press the M button of the parent unit and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan
menu will pop up.
3. Press the +UP button or -DOWN button to select
add
button to confirm.
4.
cam 1
/
cam 2
/
cam 3
/
cam 4
will pop up, press the +UP button or -DOWN
button to start
searching for a camera unit. The green audio level LED will flash rapidly
while searching.
5. Press the button to confirm.
6. Press and hold the PAIR button underneath the baby unit until the parent
unit finds the camera, beeps and the video from the camera appears.
NOTE
If a particular Baby Unit was registered previously, registering this current
Baby Unit again will overwrite the old registration.
2.5 View Video Through TV
Connect a suitable AV cable into the AV OUT socket on the side of the Parent
Unit and into the AV input of the TV. Scroll to select on the Parent unit. Scroll
through the AV inputs on the TV menu until the Baby monitor picture is visible.
AV cable is an optional accessory, which is to be purchased separately.
NOTE
The Monitor's power button must be turned ON and CAM pre-selected before
connecting the AV cable. Once the AV cable is connected, the Monitor's
controls cannot be activated.
You can hear also your baby in mono mode by connecting the 3.5mm plug
wired headset to the AV OUT socket.
O
O

12 Using the Baby Monitor
3. Using the Baby Monitor
3.1 Setting up
• Place the baby unit in a convenient location (e.g. on a table) and point the
camera lens towards the area you want to monitor.
• Adjust the baby unit's head angle by rotating the camera up, down, left and
right until you are satisfied with the image in the parent unit.
NOTE
Do not place the baby unit within the baby's reach! If there is interference with
the picture or sound, try moving the units to different locations, and ensure they
are not close to other electrical equipment.
3.2 Pan and Tilt
The camera can be remotely controlled from the parent unit.
1. Press the +UP button or -DOWN button to tilt upward or downward.
2. Press the <LEFT button or >RIGHT button to pan left or right.
3.3 Night Vision Mode
The baby unit has 8 high-intensity infrared LEDs for picking up clear images in
the dark. When the built-in photo sensor on the top of the unit detects a low level
of ambient light, the LEDs will automatically activate and the screen on the
parent unit will display in black and white. The icon will be displayed at the
top of the screen.
3.4 Talk Mode
Press and hold the T TALK button on the parent unit to talk to your baby through
the baby unit’s loudspeaker. The T icon will be displayed at the top of the LCD
screen.
3.5 Video ON/OFF
Press VVIDEO ON/OFF key to turn the LCD display on or off, but still leave the
audio monitor on.

Using the Baby Monitor 13
ENGLISH
3.6 Temperature Display (HH °C / °F or LL °C / °F)
The temperature reading from the temperature sensor at the back of the Baby
Unit will be displayed at the top of the LCD screen. The readings will turn RED if
the temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading will
change to HH °C / °F if the temperature goes above 36°C / 97°F. The reading
will change to LL °C / °F if the temperature goes below 1°C / 34°F.

after every 6, 4 or 2 hour period.
lullaby OFF)
setting is
individual song is selected it will only play once. (The default
Press on the selected lullabies to select the desired song sound level.
14 Parent Unit Menu Options
4. Parent Unit Menu Options
4.1 Volume
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until is highlighted.
3. Press the +UP button or -DOWN button to select the desired volume
level from level 0 ~ 8. (The default volume level setting is level 4.)
4.2 Brightness
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until is highlighted.
3. Press the +UP button or -DOWN button to select the desired brightness
level from level 1 ~ 8. (The default brightness level setting is level 5.)
4.3 Lullaby
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until is highlighted.
3. Press the +UP button or -DOWN button to select the desired song from
the 5 lullabies available, or the cycle option to play all 5 songs in turn. If an
4.
4.4 Zoom
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until is highlighted.
3. Press the +UP button or -DOWN button to select the
1X
or
2X
Zoom.
(The default setting is 1X.)
4.5 Alarm
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press the +UP button or - DOWN button to select the alarm time (
6h
,
4h
,
2h
). (The default setting is Alarm OFF.)
4. If an alarm time is selected, the parent unit will beep for about 45 seconds
O

Directly press repeatedly to select
button to select desired Camera, and press the button to view the
picture from that camera.
, and press the
button to select the desired Camera, and press the button to start
, and press the
Parent Unit Menu Options 15
ENGLISH
4.6 Camera Control
4.6.1 Add (pair) a camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan
menu will pop up.
3. Press the +UP button or -DOWN button to select
add
button to confirm.
4.
cam 1
/
cam 2
/
cam 3
/
cam 4
will pop up, press the +UP button or -DOWN
searching for a camera unit. The green audio level LED will flash rapidly
while searching.
5. Press and hold the PAIR button underneath the baby unit until the parent
unit finds the camera, beeps and the picture from the camera appears.
NOTE
A camera can only be registered to one parent unit at any one time.
4.6.2 View a camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted and
the
del/add/view/scan
menu pops up.
3. Press the +UP button or -DOWN button to select
view
button to confirm.
4.
cam 1
/
cam 2
/
cam 3
/
cam 4
will pop up, press the +UP button or -DOWN
TIP
Quick Method to View Cameras instead of entering into the menu bar.
cam 1
,
cam 2
,
cam 3
,
cam 4
,
scan
.
4.6.3 View multi-cameras on screen
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until icon is highlighted.
3. Press the +UP button or -DOWN button to select 4-split screen On/Off.
O
O
O
O
O

Directly press repeatedly to select
, and press the
button to select the desired Camera, and press the button to delete
that registration.
, and press the
16 Parent Unit Menu Options
4.6.4 Delete a camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan
menu will pop up.
3. Press the +UP button or -DOWN button to select
del
button to confirm.
4.
cam 1
/
cam 2
/
cam 3
/
cam 4
will pop up, press the +UP button or -DOWN
Note:
You are not allowed to delete the camera if there is only one registered camera
in the system.
4.6.5 Scan camera
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the
del/add/view/scan
menu will pop up.
3. Press the +UP button or -DOWN button to select
scan
button to confirm.
4. The screen will then display images from different registered cameras in a
loop of
cam 1
/
cam 2
/
cam 3
/
cam 4
, changing about every 12 seconds.
TIP
Quick Method to View Cameras instead of entering into the menu bar.
cam 1
,
cam 2
,
cam 3
,
cam 4
,
scan
.
4.7 Temperature
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press the +UP button or -DOWN button to select °C or °F.
4.8 Power Saving mode
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until Vis highlighted.
3. Press the +UP button or -DOWN button to select auto video off after
5 mins, 30 mins or 60 mins if not in charging.
O
O
O
O

Disposal of The Device (environment) 17
ENGLISH
5. Disposal of The Device (environment)
At the end of the product lifecycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user's guide and/or
box indicates this.
Some of the product materials can be reused if you take them to
a recycling point. By reusing some parts or raw materials from used products
you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.

18 Cleaning
6. Cleaning
Clean the MBP36S, MBP36S/2, MBP36S/3, MBP36S/4 with a slightly damp cloth
or with an anti-static cloth.
Never use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the product with thinners or other solvents and
chemicals –- this may cause permanent damage to the product which is not
covered by the warranty.
• Keep your MBP36S, MBP36S/2, MBP36S/3, MBP36S/4 away from hot, humid
areas or strong sunlight, and don't let it get wet.
• Every effort has been made to ensure high standards of reliability for your
MBP36S, MBP36S/2, MBP36S/3, MBP36S/4. However, if something does go
wrong, please do not try to repair it yourself –- contact Customer Service for
assistance.

Help 19
ENGLISH
7. Help
Display
No display
• Try recharging or replacing the battery pack.
• Reset the units. Disconnect the battery pack of the parent unit and unplug
both the units' electrical power, then plug them back in.
• Is the unit turned on?
Press and hold the ON/OFF button Pon the parent unit to turn it ON.
• Is the correct camera selected?
Change the camera number, if necessary.
• Is the video display turned on?
Press the VIDEO ON/OFF button Vto turn it on.
• When operating using batteries only, the Display will go blank after
5 minutes or 30 minutes or 60 minutes to save power (depending on video
on setting). The unit is still active and will give you audio alerts. You can
reactivate the screen by pressing any button.
Registration
If the Baby Unit has lost its link with the Parent Unit
• Try recharging or replacing the battery pack.
• If the Baby Unit is too far away it may be going out of range, so move the
Baby Unit closer to the Parent Unit.
• Reset the units by disconnecting them from the battery and electrical power.
Wait about 15 seconds before reconnecting. Allow up to one minute for the
Baby Unit and the Parent Unit to synchronise.
• See 2.4 Registration (Pairing), if there is a need to re-register the units.

product, so keep the baby monitor away at least 1.5m(5ft) from these types
• Make sure there is at least 1 to 1.5 metre between the
feedback.
2 units to avoid audio
20 Help
Interference
Noise interference on your parent unit
• Your baby and parent units may be too close. Move them farther apart.
• lf the baby unit is too far away it may be out of range, so move the baby unit
closer to the parent unit.
• Make sure the baby and parent units are not near other electrical equipment,
such as a television, computer or cordless/mobile telephone.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi®routers),
Bluetooth®systems, or microwave ovens, may cause interference with this
of products, or turn them off if they appear to be causing interference.
• If the signal is weak, try moving the Parent and/or Baby Unit to different
positions in the rooms.
