Motorola MOTOKRZR K1 User manual

www.motorola.com
MOTOMANUAL
MOTOKRZR K1

Cover.Print.Front.UG.landscape-K1.fm Page 2 Thursday, October 12, 2006 10:22 AM

1
HELLOMOTO
Introducing your new MOTO KRZR™ K1 GSM wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Volume Keys
Charge up or
go handsfree.
Make &
answer calls.
Smart Key
Go online.
Scroll up,
down, left, or
right.
Open menu
and select.
Right Soft Key
Clear/Back Key
Voice
Command Key
Turn on & off,
hang up, exit
menus.

2
Home Screen Main Menu
Press and hold the Power
Key
O for a few
seconds or until the
display lights up to turn
on your phone.
1
Press the Navigation Key
up, down, left, or right
(
S ) to highlight a menu
feature.
3
Press the Center Key
(
s ) to select it.
4
Press the Center Key s
key to open the
Main Menu .
2
Options Main Menu
Service Provider
12/31/09
12:00
Exit Select
Games & Apps

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. Java and all other Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft, Windows and Windows Me are
registered trademarks of Microsoft Corporation; and Windows XP
is a trademark of Microsoft Corporation.
© Motorola, Inc., 2006.
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Manual Number: 6809507A81-A

4
contents
contents
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 12
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 13
store a phone number . 13
call a stored phone
number . . . . . . . . . . . . 14
your phone number . . . 15
main attractions . . . . . . 16
Bluetooth® wireless . . 16
audio player . . . . . . . . . 18
photos . . . . . . . . . . . . . 19
videos . . . . . . . . . . . . . 22
text messages. . . . . . . 23
memory card . . . . . . . . 25
cable connections . . . . 27
phone updates. . . . . . . 29
basics . . . . . . . . . . . . . . . 30
display . . . . . . . . . . . . . 30
text entry . . . . . . . . . . . 33
navigation key . . . . . . . 37
voice commands . . . . . 37
external display . . . . . . 40
handsfree speaker. . . . 40
codes & passwords. . . 40
lock & unlock phone . . 41
customize. . . . . . . . . . . . 42
ring style . . . . . . . . . . . 42
time & date . . . . . . . . . 43
wallpaper . . . . . . . . . . . 43
screen saver . . . . . . . . 44
themes . . . . . . . . . . . . 44
display appearance . . . 45
answer options . . . . . . 45
calls. . . . . . . . . . . . . . . . . 47
turn off a call alert . . . . 47
delay answering. . . . . . 47
recent calls . . . . . . . . . 47
redial . . . . . . . . . . . . . . 49
return a call . . . . . . . . . 49
caller ID . . . . . . . . . . . . 50
emergency calls . . . . . 50
voicemail . . . . . . . . . . . 51
other features . . . . . . . . 52
advanced calling . . . . . 52
phonebook. . . . . . . . . . 55

contents
5
messages . . . . . . . . . . 61
personalizing. . . . . . . . 64
call times & costs . . . . 66
handsfree . . . . . . . . . . 67
data calls . . . . . . . . . . 68
network . . . . . . . . . . . 70
personal organizer . . . 71
security. . . . . . . . . . . . 73
fun & games. . . . . . . . . 74
service and repairs . . . . 79
SAR Data. . . . . . . . . . . . 80
EU Conformance . . . . . 82
Safety Information . . . . 84
Industry Canada Notice 89
FCC Notice . . . . . . . . . . 90
Warranty . . . . . . . . . . . . 91
Hearing Aids . . . . . . . . . 95
WHO Information . . . . . 96
Registration . . . . . . . . . 96
Export Law . . . . . . . . . . 97
Recycling. . . . . . . . . . . . 97
Perchlorate Label . . . . . 98
Driving Safety . . . . . . . . 99
index . . . . . . . . . . . . . . 101

6
menu map
menu map
main menu
n Phonebook
s Recent Calls
• (press the * or # to scroll
through the call lists)
e Messages
• Create Message
•EmailMsgs
• Message Inbox
• Hot Messages
•Voicemail
• Browser Msgs
• Info Services *
• Outbox
•Drafts
• Templates
É To o l s
• SIM Applications *
•Calculator
• Datebook
•AlarmClock
• Dialing Services
• Fixed Dial *
• Service Dial *
•QuickDial
• Activation List *
• World Clock
Q Games & Apps
á Web Access *
•Browser
• Web Shortcuts
• Stored Pages
•History
•GoToURL
•BrowserSetup
• Web Sessions *
h Multimedia
• Themes
•VoiceRecords
•Camera
• Video Camera
•Pictures
• Sounds
• Videos
w Settings
• (see next page)
* optional features
This is the standard main menu layout.
Your phone’s menu may be different.
Tip:
Press D to exit the current menu, or
O to exit all menus.

menu map
7
settings menu
l Personalize
• Home Screen
• Main Menu
•VoiceDialSetup
•Skin
• Greeting
• Wallpaper
• Screen Saver
t Ring Styles
•Style
•(style) Detail
L Connection
• Bluetooth™ Link
• USB Settings
•MOTOSYNC™*
H Call Forward *
• Voice Calls
• Fax Calls
• Data Calls
•CancelAll
• Forward Status
U In-Call Setup
• In-Call Timer
• Call Cost Setup *
• My Caller ID
• Talk and Fax
• Answer Options
• Call Waiting
Z Initial Setup
• Time and Date
• Speed Dial
• Auto Redial
• Display Timeout
• Backlight
• TTY Setup *
•Scroll
• Text Marquee
• Language
• Brightness
•DTMF
• Master Reset
• Master Clear
m Phone Status
• My Tel. Numbers
• Credit Info/Available *
• Active Line *
• Battery Meter
• Download Location
• Storage Devices
• Software Update *
• Other Information
S Headset
• Auto Answer
•VoiceDial
J Car Settings
• Auto Answer
• Auto Handsfree
•Power-OffDelay
• Charger Time
* optional features
% Airplane Mode
• Airplane Mode
• Prompt at Power Up
j Network
•NewNetwork
•NetworkSetup
• Available Networks
• My Network List *
• Service Tone *
• Network Jingle *
• Call Drop Tone
u Security
• Phone Lock
• Lock Application
• Fixed Dial *
• Restrict Calls *
• SIM PIN
•NewPasswords
• Certificate Mgmt *
c Java™ Settings
• Java System
• Delete All Apps
• App Vibration
• App Volume
• App Priority *
• App Backlight

8
Use and Care
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below -10°C/14°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.

9
essentials
essentials
about this guide
This guide shows how to open a menu
feature as follows:
Find it: s > eMessages > Create Message
This means that, from the home screen:
1 Press the center key s to open the
menu.
2 Press the navigation key S to scroll to
eMessages , and press the center key s
to select it.
3 Press the navigation key S to scroll to
Create Message , and press the center key s
to select it.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is network,
SIM card, or subscription
dependent and may not be available
in all areas. Contact your service
provider for more information.

10
essentials
SIM card
Caution: Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.
Your Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
To insert and use a
memory card , see
page 25.
Turn off your phone and remove your
battery before you install or remove a SIM
card.
battery
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
This means a feature requires an
optional accessory.
symbols 12

11
essentials
• New batteries or batteries stored for a
long time may take more time to
charge.
• When charging your battery, keep it
near room temperature.
When storing your battery, keep it
uncharged in a cool, dark, dry place.
• Never expose batteries to
temperatures below -10°C (14°F) or
above 45°C (113°F). Always take your
phone with you when you leave your
vehicle.
• It is normal for batteries to gradually
wear down and require longer charging
times. If you notice a change in your
battery life, it is probably time to
purchase a new battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information” section included in this guide.
battery installation
12
032375o

12
essentials

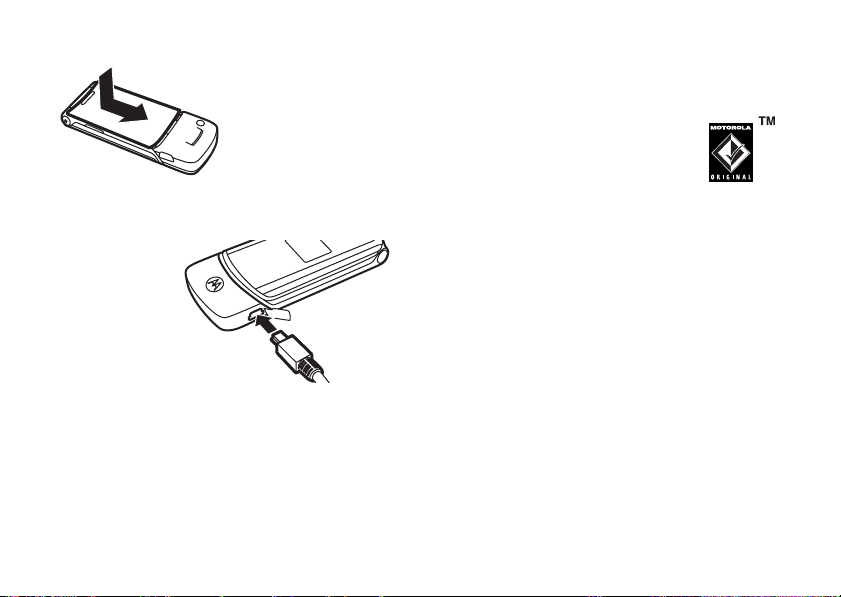

battery charging
New batteries
are not fully
charged. Plug
the battery
charger into
your phone
and an
electrical outlet. Your phone might take
several seconds to start charging the battery.
When finished, your display shows
Charge Complete .
Tip: Relax, you can’t overcharge your battery.
It will perform best after you fully charge and
discharge it a few times.
You can charge your battery by
connecting a
cable from your
phone's mini-USB port to a USB
port on a computer. Both your
phone and the computer must be turned on,
and your computer must have the correct
software drivers installed. Cables and
software drivers are available in
Motorola Original data kits, sold separately.
turn it on & off
Caution: Some phones ask for your SIM card
PIN code when you turn them on. If you enter
an incorrect PIN code three times before the
correct code, your SIM card is disabled, and
your display shows
SIM Blocked . Contact your
service provider.
3

13
essentials
To t u r n o n y o u r
phone
, press and
hold
O for a few
seconds or until the
keypad or display
lights up. If prompted, enter your eight-digit
SIM card PIN code and/or four-digit unlock
code.
To turn off your phone , press and hold O
for a few seconds.
make a call
To make a call , enter a phone number and
press
N . To “hang up,” close the flip or
press
O .
To use voice commands for calling, see
page 37.
answer a call
To answer a call when your phone rings
and/or vibrates, just open the flip or press
N .
To “hang up,” close the flip or press O .
Note: Your phone cannot receive data
over an EDGE network while it is
playing videos or some sound files. The
EDGE
œ status indicator appears at the top of
your display when you can receive data over
an EDGE network.
store a phone number
You can store a phone number in your
Phonebook :
Find it: s > nPhonebook , then press Options
>
Create New > Phone Contact or SIM Contact
Note: You can store new contacts in your
phone’s memory or on your SIM card .

14
essentials
Contacts on the SIM card only have a Name
and
Number .
1 Enter a name and other details for the
phone number. To select a highlighted
item, press the center key
s .
2 Press the Done key to store the number.
To
edit or delete a Phonebook entry, see
page 57.
To s t o re an
email address from the home
screen, press
s > nPhonebook > New Entry .
Enter the new contact’s name and
Email
information.
Shortcut: Enter a phone number in the home
screen, then press the
Store key to create a
contact. To choose whether your phone
stores these contacts in your phone’s
memory or on your SIM card, go back to the
home screen and press
s > nPhonebook ,
then press
Options > Setup > Default Storage
>
Phone or SIM Card .
call a stored phone
number
Find it: s > nPhonebook
1 Scroll to the phonebook entry.
Shortcut: In the phonebook, press
keypad keys to enter the first letters of an
entry you want.
2 Press N to call the entry.
Note: You can show contacts stored in your
phone’s memory or on your SIM card. To
choose which contacts you see, press
s > nPhonebook , then press Options > View .
You can select
Phone &SIM Card , SIM Card , or
Phone Contacts .

15
essentials
To use voice commands for calling, see
page 37.
your phone number
From the home screen, press
the clear key
D then # to see your
number.
Tip: Want to see your phone number while
you’re on a call? Press
Options > My Tel. Number .
You can edit the name and phone
number stored on your SIM card. From
the home screen, press
D# , select an
entry, press the
View key, press the Options key,
and select
Edit . If you don’t know your phone
number, contact your service provider.

16
main attractions
main attractions
You can do much more with your phone than
make and receive calls!
Bluetooth® wireless
Your phone supports Bluetooth wireless
connections. You can connect your phone
with a Bluetooth headset or car kit to make
handsfree calls. You can also connect your
phone with a phone or computer that
supports Bluetooth connections to exchange
files.
Note: The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can’t concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
For maximum Bluetooth security , you
should always connect Bluetooth devices in a
safe, private environment.
use a headset or handsfree car
kit
Before you try to connect your phone with
a handsfree device
, make sure the device is
on and ready in pairing or bonding mode
(see the user’s guide for the device). You can
connect your phone with only one device at a
time.

17
main attractions
Find it: s > wSettings > Connection
>
Bluetooth Link > Audio Devices
>
[Look For Devices]
Your phone lists the devices it finds within
range.
1 Scroll to a device in the list and press the
center key
s .
2 Press the Yes or OK key to connect to the
device.
3 If necessary, enter the device passkey
(such as
0000 ) and press the OK key.
When your phone is connected, the Bluetooth
indicator
O appears in the home screen.
Shortcut: When your phone’s
Bluetooth power is on, your phone can
automatically connect to a handsfree device
you have used before. Just turn on the device,
or move it near the phone. If the device
doesn’t connect, turn it off and back on.
Tip: Want to know more about your headset
or car kit? For specific information about a
device, refer to the instructions that came
with it.
copy files to another device
You can copy a media file, phonebook
entry, datebook event, or Web shortcut
from your phone to a computer or other
device.
Note: You can’t copy some copyrighted
objects.
1 On your phone, scroll to the object that
you want to copy to the other device.
2 Press Options , then select:
• Manage > Copy for media files.
• Send Contact for phonebook entries.
• Send for datebook events.

18
main attractions
3 Select a recognized device name, or
[Look For Devices] to search for the device
where you want to copy the file.
If your phone could not copy the file to the
other device
, make sure the device is on and
ready in discoverable mode (see the user’s
guide for the device). Also, make sure the
device is not busy with another similar
Bluetooth connection.
Note: Once you connect your phone to a
Bluetooth device, that device can start similar
Bluetooth connections with your phone. Your
display shows the Bluetooth indicator
O at
the top when there is a Bluetooth connection.
receive files from another
device
If you do not see the
Bluetooth indicator
O at the top of your
phone display, turn on your phone’s
Bluetooth feature by pressing
s > wSettings
>
Connection > Bluetooth Link > Setup > Power > On .
1 Place your phone near the device, and
send the file from the device.
If your phone and the sending device
don’t recognize each other, place your
phone in discoverable mode so the
sending device can locate it: press
s > wSettings > Connection > Bluetooth Link
>
Find Me .
2 Press the Accept key on your phone to
accept the file from the other device.
Your phone notifies you when file transfer is
complete. If necessary, press the
Store key to
save the file.
audio player
Your phone can play song files:
