1Congratulations
Congratulations
MOTOROLA XT535

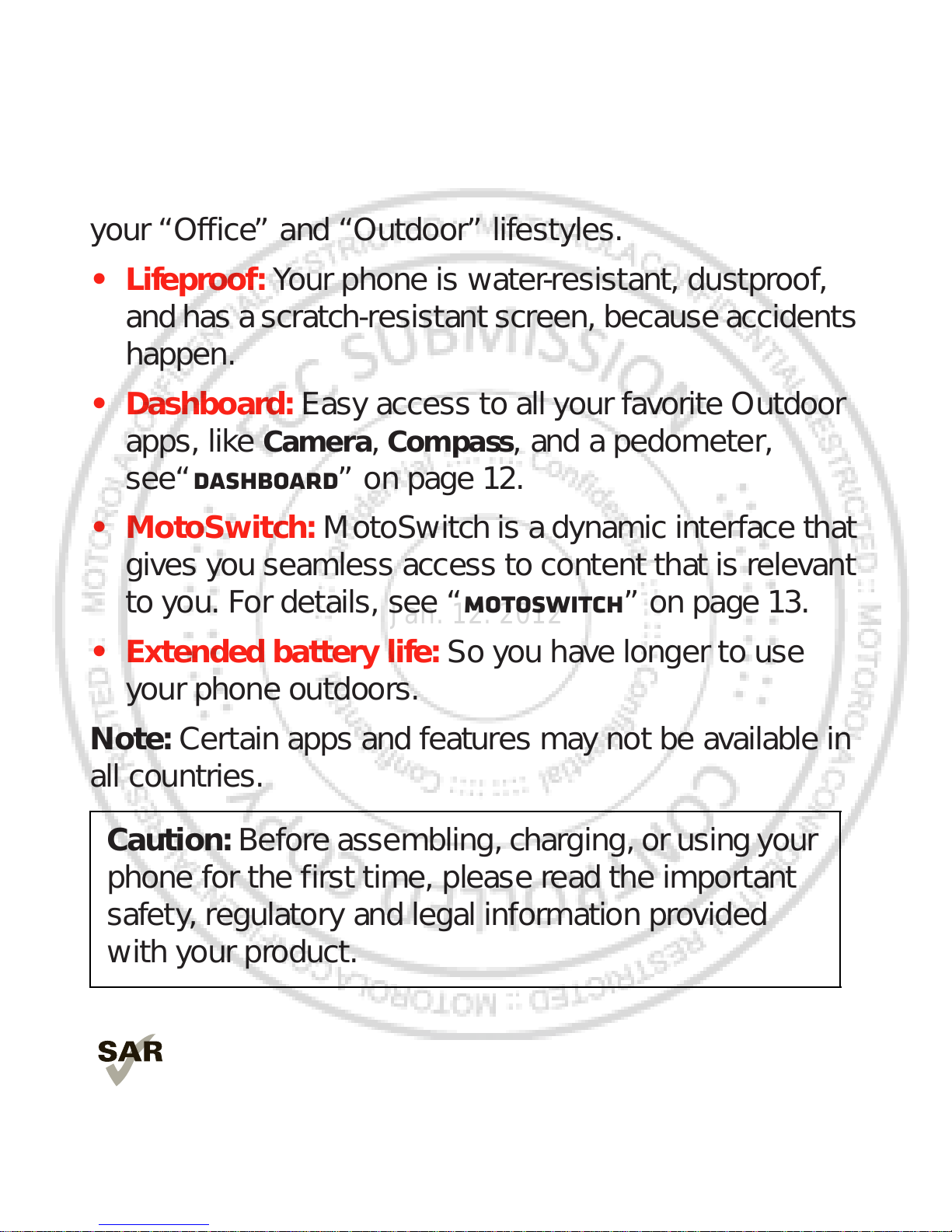

Your MOTOROLA XT535 helps you seamlessly manage
your “Office” and “Outdoor” lifestyles.
• Lifeproof: Your phone is water-resistant, dustproof,
and has a scratch-resistant screen, because accidents
happen.
• Dashboard: Easy access to all your favorite Outdoor
apps, like Camera, Compass, and a pedometer,
see“Dashboard” on page 12.
• MotoSwitch: MotoSwitch is a dynamic interface that
gives you seamless access to content that is relevant
to you. For details, see “motoswitch” on page 13.
• Extended battery life: So you have longer to use
your phone outdoors.
Note: Certain apps and features may not be available in
all countries.
This product meets the applicable limit for
exposure to radio waves (known as SAR) of
2.0 W/kg (ICNIRP). The limits and guidelines
Caution: Before assembling, charging, or using your
phone for the first time, please read the important
safety, regulatory and legal information provided
with your product.
Jan. 12. 2012

2Congratulations
include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health.
The highest SAR values measured for this device are
listed in the regulatory information packaged with your
product.
Note: When using the product while worn on your body,
either use an approved accessory such as a holster or
maintain a distance of 2.5 cm (1 inch) from the body to
ensure compliance with SAR requirements. Note that
the product may be transmitting even if you are not
making a phone call.
Want more?
More help, more accessories, more free stuff. We’re
here to help.
• Updates: Phone updates, PC software, user’s guides,
online help, and more at www.motorola.com/support.
• Accessories: Find more for your phone at
www.motorola.com/products.
•Social:The latest news, tips & tricks, videos, and so
much more—join us on:
YouTube™ www.youtube.com/motorola
Facebook™ www.facebook.com/motorola
Twitter www.twitter.com/motomobile
Jan. 12. 2012

3Your phone
Your phone

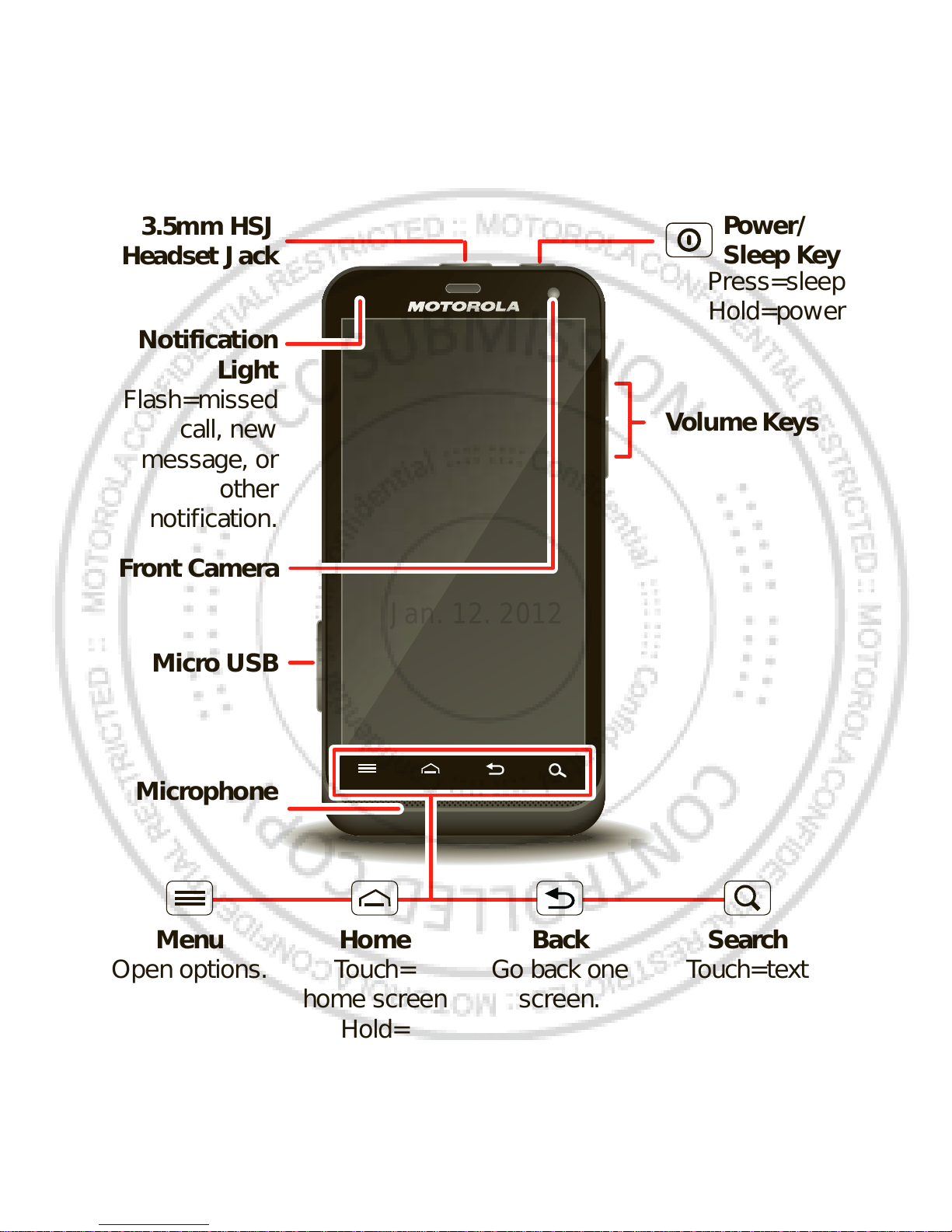

the important keys & connectors
Front Camera
Notification
Light
Flash=missed
call, new
message, or
other
notification.
Microphone
Volume Keys
Micro USB
3.5mm HSJ
Headset Jack
Menu
Open options. Home Touch=
home screen
Hold=
recent apps
Search
Touch=text
Back
Go back one
screen.
Power/
SleepKey
Press=sleep
Hold=power
Jan. 12. 2012

4Your phone
Note: Tohelp protectyour phone, always make sure that
the battery cover and any connector covers are closed
and secure.
Camera
Cover Lock
Jan. 12. 2012

5Contents
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Bluetooth™, Wi-Fi, & cable connections . . . . . . . . . . . . . . . . . 38
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Jan. 12. 2012

6Let’s go
Let’s go
let’s get you up and running
Assemble & charge
1Cover off 2SIM in
3microSD in (may
already be inserted) 4Battery in
5Cover on 6Charge up
1
2
3
3
1
2
3H
Jan. 12. 2012

7Let’s go
Caution: Please read “Battery Use & Safety” on page 43.
Set up & go
Note: This phone supports apps and services that use a
lot of data, so make sure your data plan meets your
needs. Contact your service provider for details.
When you turn on your new phone, you can create or
enter a Google™ account so that you can download
apps, use Gmail™, and much more:
1Press and hold Power to turn
on your phone.
2Touch the Android™ image to
begin setup.
3Touch a button to Create a Google
account, Sign in with one you have, or Skip.
You can log into your account from a computer at
accounts.google.com.
4When your phone confirms the account, it shows
account sync options.
•To change whetheryour phoneshows the Google
account’s contacts, Gmail™, and calendar, touch
the Google account name.
•To add another account, touch Add account. For
details, see “Email” on page 24.
•To exit setup, touch Home .
Power Key
Jan. 12. 2012

8Let’s go
If your phone cannot connect, touch Menu > WLAN
settings to change mobile network settings.
Rugged
Your MOTOROLA XT535 stands up to water, dust and
life. Now your investment is safe and protected from
life’s little challenges, like that sudden rain shower and
other everyday mishaps.
Of course, your phone isn’t indestructible, so to avoid
damage from natural elements, such as water, sand, and
dust intrusion, always make sure that the battery door
cover and connector covers are closed and secure.
If your phone gets wet and/or dirty:
•Wipe with a soft cloth and shake to remove excess
water from the entire phone, especially the display
screen, speaker, and microphone ports.
•Allow your phone to air-dry for at least 1 hour before
using it again.
•Always make sure to clean all dirt and debris from the
battery door cover/seals and connector covers.
Note: Your phone is not designed to float, or work
underwater.
Jan. 12. 2012

9Let’s go
sleep & wake up
Your screen sleeps when you hold it to your ear during a
call, or when it is inactive. To change the sleep delay,
touch Menu > Settings > Display > Screen timeout.
To unlock the screen, drag to the
outer circle.

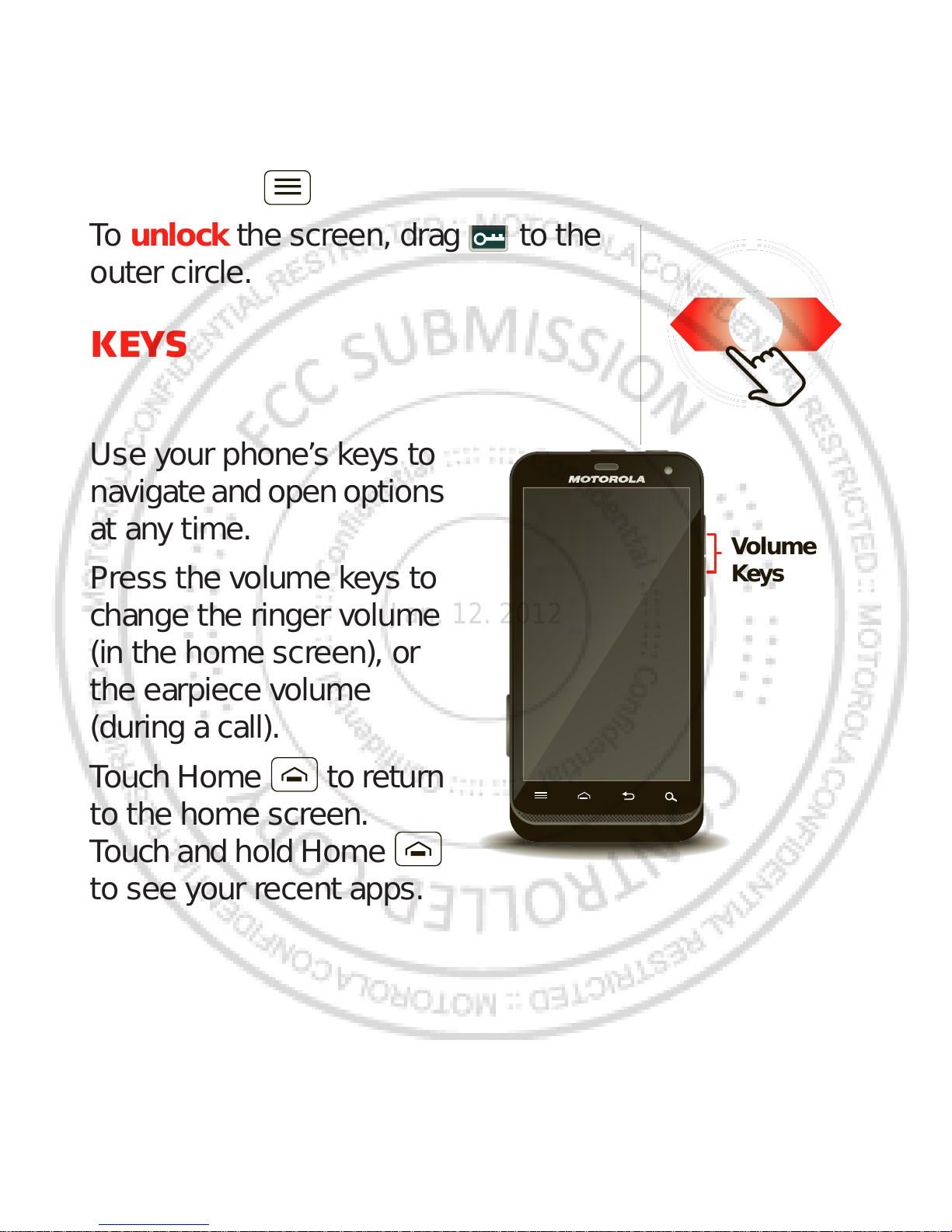

Keys
Use your phone’s keys to
navigateandopenoptions
at any time.
Press the volume keys to
change the ringer volume
(in the home screen), or
the earpiece volume
(during a call).
Touch Home to return
to the home screen.
Touch and hold Home
to see your recent apps.
Volume
Keys
Jan. 12. 2012

10 Home screen & apps
Home screen & apps
a few essentials

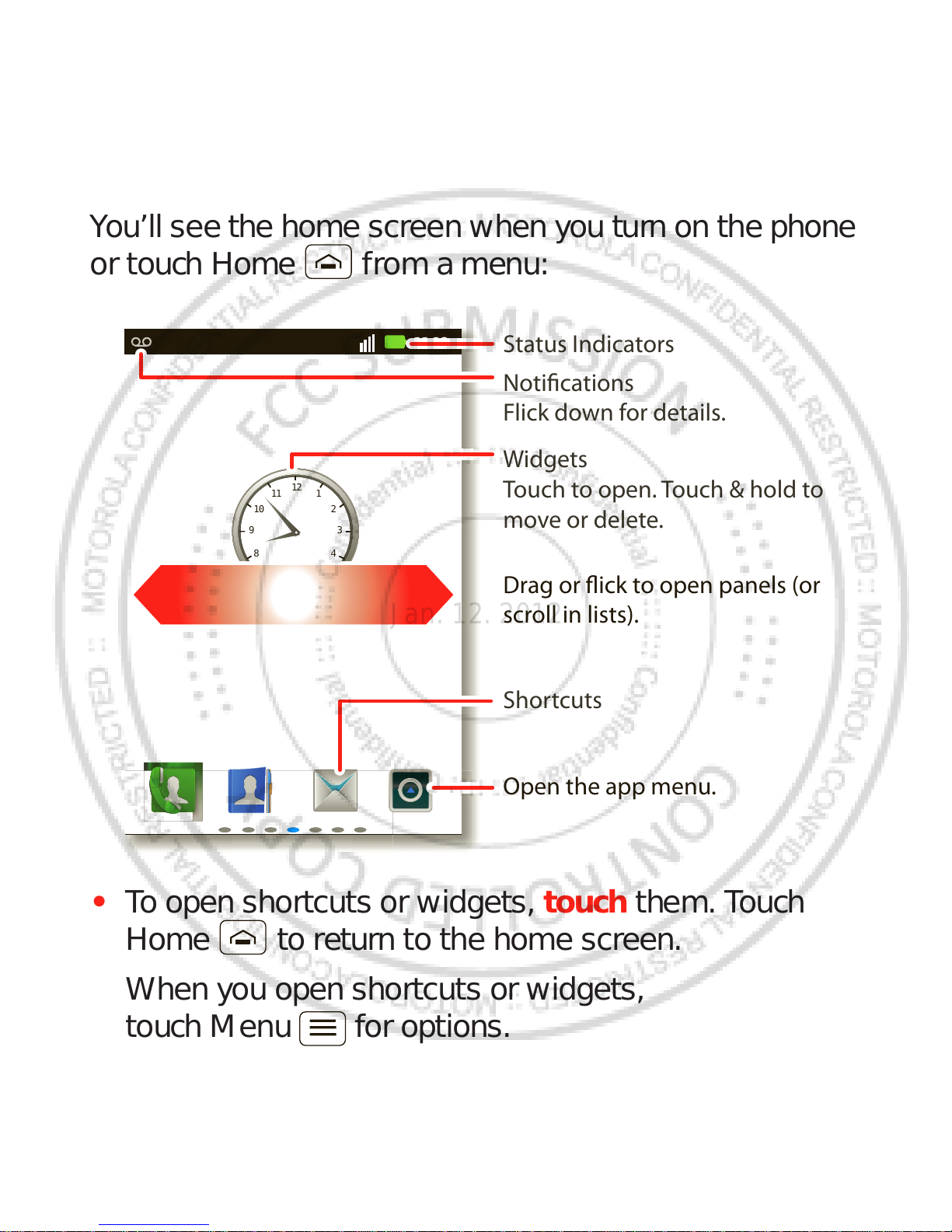

Quick start: Home screen
You’ll see the home screen when you turn on the phone
or touch Home from a menu:
•To open shortcuts or widgets, touch them. Touch
Home to return to the home screen.
When you open shortcuts or widgets,
touch Menu for options.
11:19
12
6
111
57
210
48
39
Notications
Flick down for details.
Status Indicators
Shortcuts
Open the app menu.
Widgets
Touch to open. Touch & hold to
move or delete.
Drag or ick to open panels (or
scroll in lists).
Jan. 12. 2012

11Home screen & apps
•To move or delete shortcuts or widgets, touch and
hold them until you feel a vibration, then drag it to
another spot, another panel, or at the top.
In lists like Contacts, touch and hold list items for
options.
•To add shortcuts, widgets, or wallpaper, touch and
hold an empty spot until you see the menu. You can
also add a folder to organize your shortcuts.
•To show more panels, drag or flick right or left. Touch
Home to show panel thumbnails.
In lists like Contacts, drag or flick to scroll.
To change your ringtone, display brightness, and more,
touch Menu > Settings > Sound or Display. For
details, see “Personalize” on page 17.
Tip: From the home screen, touch Menu > Themes
to design different home screens for Work, Home, or
Weekend. Your changes are stored in each profile.
Jan. 12. 2012

12 Home screen & apps

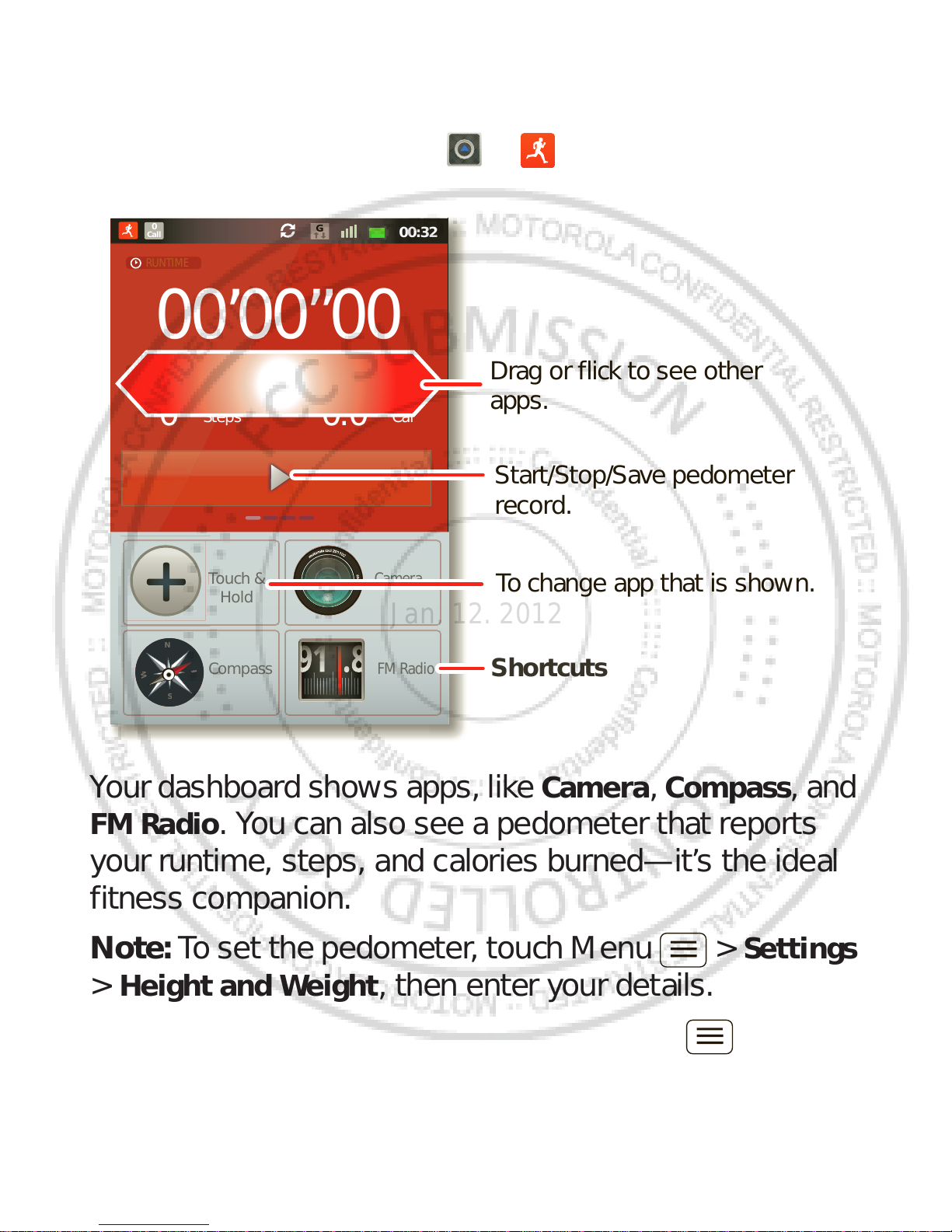

Dashboard
You can access the outdoor apps on your phone, with
the dashboard, just touch > DashBoard.
Your dashboard shows apps, like Camera, Compass, and
FM Radio. You can also see a pedometer that reports
your runtime, steps, and calories burned—it’s the ideal
fitness companion.
Note: To set the pedometer, touch Menu > Settings
> Height and Weight, then enter your details.
To view or share your records, touch Menu > My
Record or Share.
00:32
Call
0
00’00”00
0Steps
Touch &
Hold
Compass
Camera
FM Radio
Cal
0.0
R
U
NTIM
E
PE
DO
ME
TE
R
C
AL
O
RI
E
9
1.
8
N
W
E
S
T
Shortcuts
Drag or flick to see other
apps.
Start/Stop/Save pedometer
record.
To change app that is shown.
Jan. 12. 2012

13Home screen & apps
motoswitch
Jump right to your favorite apps from the lock screen!
To set up your lock screen apps:
To go to a favorite app from the lock screen, drag the
app towards the lock icon .
Note: For toggle apps, such as Bluetooth or Flight
Mode, the screen will remain locked.
11:19
http
http://
ttp://ww
//ww
//www
www
htt
w
.
.
h
ht
htt
ht
Calendar Camera Contacts Email Gmail
00:32
Drag to scroll.
Touch & hold between
the two rings to show
your most used apps
at the bottom.
Most used apps. Drag an app to
the outer ring to add it to your
favorites.
Your favorites.
Jan. 12. 2012

14 Home screen & apps

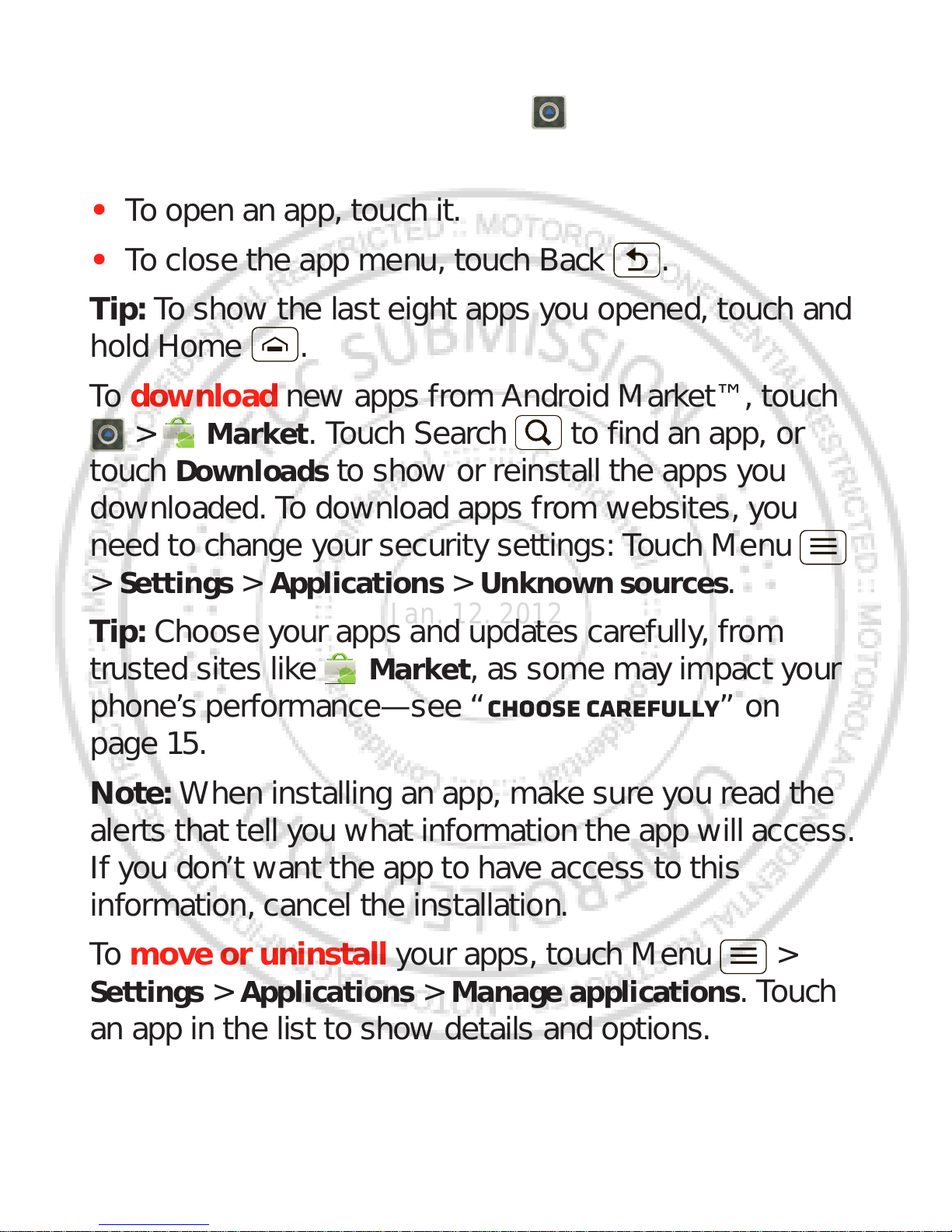

Apps
To show your app menu, touch .
•To scroll, flick up or down.
•To open an app, touch it.
•To close the app menu, touch Back .
Tip: To show the last eight apps you opened, touch and
hold Home .
To download new apps from Android Market™, touch
> Market. Touch Search to find an app, or
touch Downloads to show or reinstall the apps you
downloaded. To download apps from websites, you
need to change your security settings: Touch Menu
> Settings > Applications > Unknown sources.
Tip: Choose your apps and updates carefully, from
trusted sites like Market, as some may impact your
phone’s performance—see “Choose carefully” on
page 15.
Note: When installing an app, make sure you read the
alerts that tell you what information the app will access.
If you don’t want the app to have access to this
information, cancel the installation.
To move or uninstall your apps, touch Menu >
Settings > Applications > Manage applications. Touch
an app in the list to show details and options.
Jan. 12. 2012

15Home screen & apps
On your computer, you can browse and manage appsfor
all your devices powered by Android™ at
market.android.com.

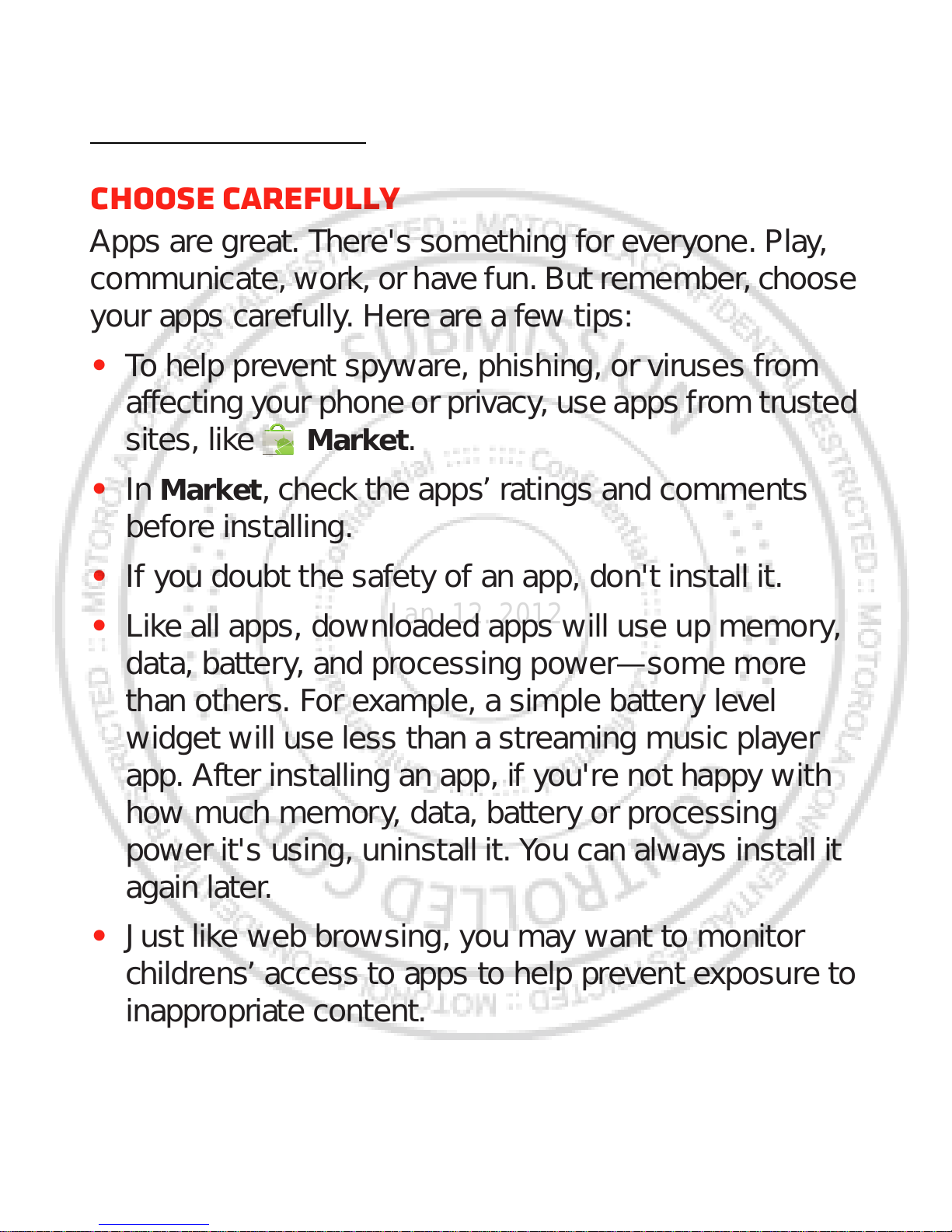

Choose carefully
Apps are great. There's something for everyone. Play,
communicate, work, or have fun. But remember, choose
your apps carefully. Here are a few tips:
•To help prevent spyware, phishing, or viruses from
affecting your phone or privacy, use apps from trusted
sites, like Market.
•In Market, check the apps’ ratings and comments
before installing.
•If you doubt the safety of an app, don't install it.
•Like all apps, downloaded apps will use up memory,
data, battery, and processing power—some more
than others. For example, a simple battery level
widget will use less than a streaming music player
app. After installing an app, if you're not happy with
how much memory, data, battery or processing
power it's using, uninstall it. You can always install it
again later.
•Just like web browsing, you may want to monitor
childrens’ access to apps to help prevent exposure to
inappropriate content.
Jan. 12. 2012

16 Home screen & apps
•Certain apps may not provide completely accurate
information. Take care, especially when it comes to
personal health.
Phone status & notifications
In the status bar at the top of
your screen, the right side
shows phone status. The left
side shows new messages or
events (for details, flick the
bar down).
network strength battery strength
new voicemail new text message
Bluetooth™ on Bluetooth
connected
Wi-Fi connected airplane mode
USB connected alarm set
silent ringer silentringer,vibrate
on
mute call speakerphone
Clear
Notifications
10:32
New voicemail
Dial (Your Voicemail Number)
11:19
Jan. 12. 2012

17Personalize
Personalize
add your personal touch
Quick start: Personalize
From the home screen, touch Menu > Settings >
Sound or Display.
Display settings
Brightness
Screen timeout
All window animations are shown
Animation
Auto-rotate screen
Adjust the delay before the screen
automatically turns off
Sound settings
General
Incoming calls
Only in Silent mode
Vibrate
Volume
Silent mode
Silence all sounds except media &
alarms
Phone ringtone
Notifications
Notification ringtone
Screen timeout
Choose separate volume
settings for incoming calls,
media, alarms, and notifications.
Call & Message Notifications
Turn on or off menu animations.
Jan. 12. 2012

18 Calls
Calls
it’s good to talk
Quick start: Calls
From the home screen, touch .
Tip: For quick access to contacts, see “Favorites” on
page 21.
DialpadEnd
Add call
SpeakerMute
Record
Christine Fanning
Home 222-333-4444
Contacts FavoritesPhone Call log
ABC DEF
MNO
WXYZ
JKL
TUV
GHI
PQRS
+
11:19
11:19
11:19
11:19
00:32
00:32
00:32
Hold
Contacts FavoritesPhone Call log
Christine F...
222-333-4444
29 matches
0101
Add cal
l
Record
Open a list, then touch an entry
to call.
Shows matching numbers, flick
down to see more.
Hang up.
Start a conference call.
Call.
Jan. 12. 2012
