Motorola XT605 User manual

APPLICANT:MOTOROLA MOBILITY, INC. FCC ID: IHDT56NA1
INSTRUCTION MANUAL
A representative version of the user's manual follows:
Exhibit 8

MOTOROLA XT605
EN
January 10, 2012

January 10, 2012

1Congratulations
Congratulations
MOTOROLA XT605
Stay connected, organize your life, and absolutely own
the web with MOTOROLA XT605.
• Direct Connect calls. Keep in touch with your family,
friends, and colleagues with the simple touch of a
button.
• Organization. Check your email, calendar, and
contacts wherever you are.
•Browsing.Get more from the web with a huge
screen. Search, browse, everything you want to do,
all made easier.
• Maps, entertainment, and more. The latest
technology and apps. Google Maps™ to find your
way. YouTube™ to stay entertained. Easy access to
Google™ and thousands of Android™ apps to expand
your world.
Note: Certain apps and features may not be available in
all countries.
Caution: Before assembling, charging, or using your
phone for the first time, please read the important
legal and safety information packaged with your
product.
This product meets the applicable SAR limits of
1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The
limits and guidelines include a substantial safety
margin designed to assure the safety of all persons,
regardless of age and health. The highest SAR values
measured for this device are listed in the regulatory
information packaged with your product.
Note: When using the product while worn on your body,
either use an approved accessory such as a holster or
maintain a distance of 2.5 cm (1 inch) from the body to
ensure compliance with SAR requirements. Note that
the product may be transmitting even if you are not
making a phone call.
More
•Answers:Touch > Help Center .
• Updates: Smartphone updates, computer software,
user guides, online help, and more at
www.motorola.com/myXT605.
• Accessories: Find accessories for your smartphone at
www.motorola.com/products.
January 10, 2012

2Your phone
Your phone
the important keys & connectors
Note: Your phone might look a little different.
11:58
Add a social network
Add a social
network
HAPPENINGS
UNIVERSAL
INBOX
No recent unseen
messages
64˚
WOODSTOCK
64˚
WOODSTOCK
Press=Sleep/
Wake up.
Hold=Turn on/off.
Speaker
Key
Home Key
Back Key
Menu Key
Micro USB
Connector
Charge or
connect to PC.
Volume
Keys
Search Key
DC Button
Programmable
Key
Touchscreen
Power/Screen
Lock Key
3.5mm Headset Jack
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Direct Connect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Social networking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Personalize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Apps for all. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Bluetooth™ wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Memory card & file management . . . . . . . . . . . . . . . . . . . . . . . . 49
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
January 10, 2012

3Contents

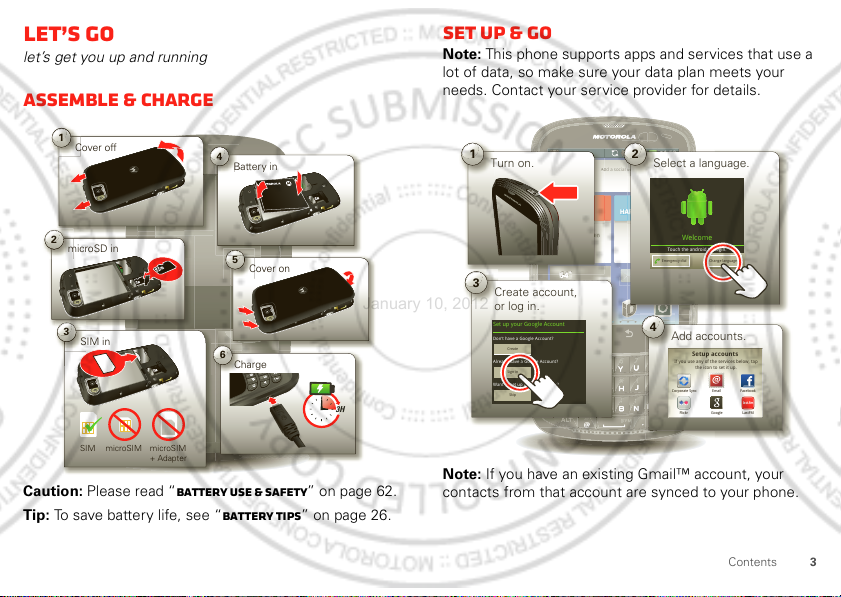

Let’s go
let’s get you up and running
Assemble & charge
Caution: Please read “Battery Use & Safety” on page 62.
Tip: To save battery life, see “Battery tips” on page 26.
1Cover off
2
microSD in
3SIM in
5Cover on
6Charge
Battery in
B
4
3H
SIM microSIM microSIM
+ Adapter
Set up & go
Note: This phone supports apps and services that use a
lot of data, so make sure your data plan meets your
needs. Contact your service provider for details.
Note: If you have an existing Gmail™ account, your
contacts from that account are synced to your phone.
11:58
Add a social network
Add a social
network
HAPPENINGS
UNIVERSAL
INBOX
No recent unseen
messages
64˚
WOODSTOCK
64˚
WOODSTOCK
d
d a soci
HA
6
64
64
A
Ad
e
e
en
n
n
˚
˚
6
6
6
4
4
˚
˚
64
˚
1Turn on.
AP
1
1
58
al
n
n
ne
n
2Select a language.
64
64
64
3Create account,
or log in.
Kim Vonesh
Welcome
Touch the android to begin.
Emergency dial Change language
Set up your Google Account 4Add accounts.
Don’t have a Google Account?
Already have a Google Account?
Want to set up an account later?
Create
Sign in
Skip
If you use any of the services below, tap
the icon to set it up.
Email
Google LastFMFlickr
Corporate Sync Facebook
Setup accounts
last.fm
January 10, 2012

4Touchscreen & keys
Wi-Fi connect
If you want to use a Wi-Fi network for even faster
Internet access, touch >
Settings > Wireless &
networks
> Wi-Fi settings . Touch Wi-Fi to search for and
connect to wireless networks. There’s more in “Wi-Fi”
on page 47.
Cool content & more
Browse and download thousands of the coolest apps on
the planet from Android Market™. See “Browse &
install apps” on page 44.
Your phone can use a microSD memory card (sold
separately)—you can load it up with photos, videos, and
music from your computer (see “Memory card” on
page 49).
Touchscreen & keys
a few essentials
Touch tips
Here are some tips on how to navigate around your
phone.
Touch
To ch oos e an ic on or
option, touch it.
Touch & hold
To open special options,
touch and hold an icon or
other item. Try it: In the
home screen, touch
>
Contacts , then touch
and hold a contact to open
options.
SCREEN NOT YET AVAILABLE
SCREEN NOT YET AVAILABLE
January 10, 2012

5Touchscreen & keys
Drag
To scroll through a list or move
slowly, drag across the
touchscreen. Try it: Touch >
Contacts , then drag your
Contacts list up or down.
Flick
To scroll through a list or move
quickly, flick across the
touchscreen (drag quickly and
release).
Tip: When you flick a long list,
touch the screen to stop it from
scrolling.
Zoom
Get a closer look at Google Maps™ or web pages. To
zoom in, double-touch (tap twice quickly) the screen. To
zoom out, double-touch the screen again.
You can also zoom in or out by pinching your fingers
together or moving them apart on the screen.
Touchscreen on/off
Your touchscreen is on when you need it and off when
you don’t.
•To make your touchscreen sleep or wake up, just
press Power/Lock .
•When you hold the phone to your ear during calls,
your touchscreen sleeps to prevent accidental
touches.
Messaging
a
cker Dr
M
a
rborn St
N Micigan Ave
W Lake St W Lak
e
E Wacker Pl
State/Lake
Lake Randolph/
Wabash
W
ashington-Blue
E S
M
M
M
R
andolph St
Messaging
N Clark St
Wacker Dr
M
E Ohio St
N Rush St
N Wabash Ave
N Dearborn St
E Grand Av
N Micigan Ave
N Micigan Ave
W Lake St W Lake St
E Wacker Pl
State/Lake
Grand Red
Lake
Randolph
St Metra
Randolph/
Wabash
Washington-Blue
E S WaterSt
M
M
M
M
E Randolph St
Ontario St E Ontario St
Pinch to zoomout.
January 10, 2012

6Touchscreen & keys
•To change how long your phone waits before the
screen goes to sleep, touch >
Settings
>
Display > Screen timeout .
•To make the screen lock when it goes to sleep, use
“Screen lock” on page 59. To unlock the screen,
press Power/Lock or open the phone. Then, drag
to the right.
Note: Your touchscreen might
stay dark if the sensor just
above it is covered. Don't use
covers or screen protectors
(even clear ones) that cover
this sensor.
Key tips
Menu, home, back, & search
Touch Home to close any menu or app and return to
the home screen. In the home screen, touch and hold
Home to show the last eight apps you used, then
touch an app to open it.
11:58
Add a social network
HAPPENINGS
UNIVERSAL
INBOX
Menu
Key
Back
Key
Home
Key
Search
Key
Touch Search for text search, or touch and hold for
voice search.
Touch Menu to open menu options, or touch
Back to go back.
Power key menu
Press and hold Power/Lock to open the power key
menu, where you can turn off your phone (
Power off ), or
turn
Airplane mode or Silent mode on or off.
Adjust volume
Press the volume keys to change the
ring volume (in the home screen) or
the earpiece volume (during a call).
When playing music or video files,
press the volume keys to adjust media
volume.
Rotate the screen
In many apps, the touchscreen can rotate to stay
right-side up when you turn your phone sideways:
Find it: >
Settings > Display > Auto-rotate
screen
January 10, 2012

7Home screen & apps
Home screen & apps
quick access to the things you need most
Quick start: Home screen
The home screen gives you all your latest information in
one place. It’s what you see when you turn on the phone
or touch Home from a menu. It’s basically like this:
Note: Your home screen might look a little different.
SCREEN NOT YET AVAILABLE
The home screen extends to give you room for adding
shortcuts, widgets, and more. Flick the home screen left
and right to see more panels or to add widgets or
shortcuts.
Use & change your home screen
On your home screen, shortcuts are icons that open
your favorite apps, Web bookmarks, contacts, mail
labels, or music playlists. Widgets show you news,
weather, messages, and other updates right on your
homescreen without having to open a separate app or
web page.
•To open something, touch it. Touch Home to
return to the home screen.
SCREEN NOT YET AVAILABLE
January 10, 2012

8Home screen & apps
Tip: When you open a widget, touch Menu to see
any options or settings (you can choose accounts for
Messages , Social Networking , or Calendar widgets).
There’s more about social networking widgets in
“Your social networking account” on page 37.
•To resize Motorola widgets,
touch and hold a corner
until you feel a vibration,
then drag.
•To add something or
change your wallpaper,
touch and hold an empty
spot until you see the
Add
to Home screen
menu.
Tip: You can add a folder to organize your shortcuts.
•The dock holds apps and is always at the bottom of
the home screen. To change one of the shortcuts in
the dock at the bottom of the home screen (except for
the app menu icon ), touch and hold a dock
shortcut for a few seconds, and select an app from
the
Add to Dock menu.
8
3pm
Budget Meeting
THU
JUL
3
pm
Bud
g
et Meetin
g
THU
JUL
SCREEN NOT YET AVAILABLE
•To move or delete something, touch and hold it until
you feel a vibration, then drag it to another spot,
another panel, or the trash at the top of the
screen.
Search
Touch Search , or use a Search widget on your home
screen.
Touch here to enter text.
Touch for more
search options.
Touch to search
by voice.
January 10, 2012

9Home screen & apps

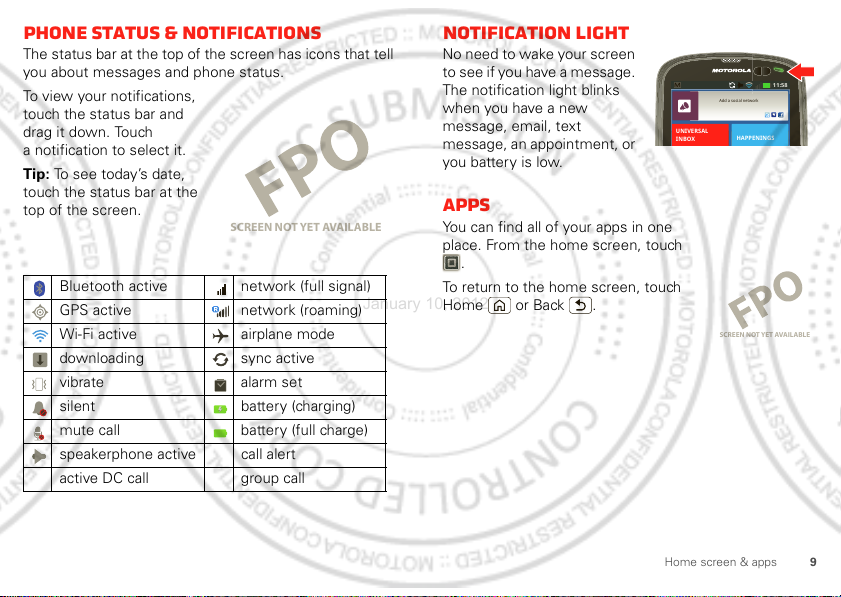

Phone status & notifications
The status bar at the top of the screen has icons that tell
you about messages and phone status.
To view your notifications,
touch the status bar and
drag it down. Touch
a notification to select it.
Tip: To see today’s date,
touch the status bar at the
top of the screen.
Bluetooth active network (full signal)
GPS active network (roaming)
Wi-Fi active airplane mode
downloading sync active
vibrate alarm set
silent battery (charging)
mute call battery (full charge)
speakerphone active call alert
active DC call group call
SCREEN NOT YET AVAILABLE
Notification light
No need to wake your screen
to see if you have a message.
The notification light blinks
when you have a new
message, email, text
message, an appointment, or
you battery is low.
Apps
You can find all of your apps in one
place. From the home screen, touch
.
To return to the home screen, touch
Home or Back .
11:58
Add a social network
HAPPENINGS
UNIVERSAL
INBOX
1
1:
5
8
SCREEN NOT YET AVAILABLE
January 10, 2012

10 Calls

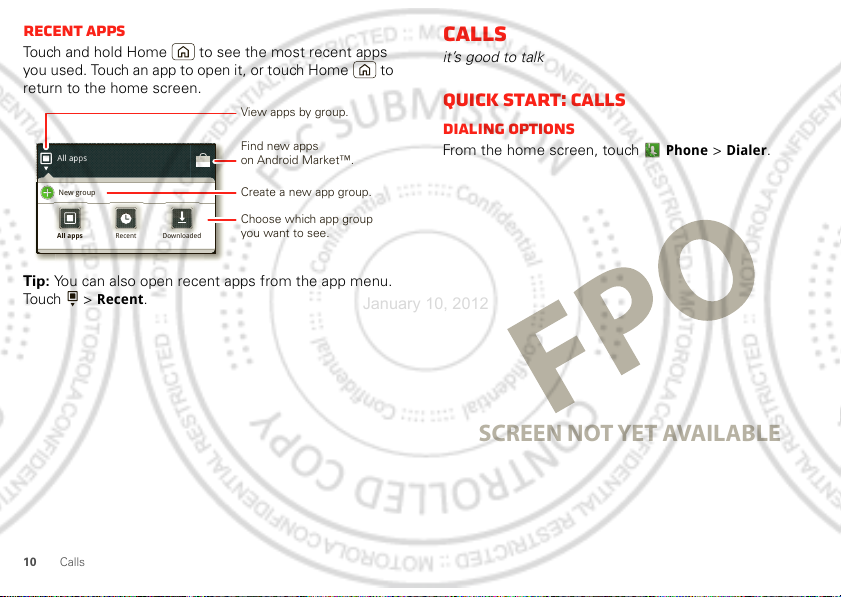

Recent apps
Touch and hold Home to see the most recent apps
you used. Touch an app to open it, or touch Home to
return to the home screen.
Tip: You can also open recent apps from the app menu.
Touch >
Recent .
All apps
New group
All apps
All apps
Recent
Rece
nt
Downloaded
Download
ed
View apps by group.
Choose which app group
you want to see.
Create a new app group.
Find new apps
on Android Market™.
Calls
it’s good to talk
Quick start: Calls
Dialing options
From the home screen, touch Phone > Dialer .
SCREEN NOT YET AVAILABLE
January 10, 2012

11Calls
In-call options
To use a Bluetooth™ device, touch Bluetooth . (Be sure
the device is turned on and paired—see “Connect new
devices” on page 46.)
Note: Using a mobile device or accessory while driving
may cause distraction and may be illegal. Always obey
the laws and drive safely.
SCREEN NOT YET AVAILABLE
Tip: You can touch Home or Back to leave the
active call display. To reopen it, touch Home
>
Phone , or flick down the Notifications bar and
touch the Current Call notification.
Make & answer calls
To make a call, touch Phone > Dialer , enter a
number, then touch .
Tip: If the screen is locked, drag to the right.
To answer a call while the display is active, touch
Answer
. When the display is not active, answer by
dragging to the right.
Note: When you hold the phone to your ear, the display
goes dark to prevent accidental touches. When you
move your phone away from your ear, the display lights
up again.
To ignore a call, touch
when the display is active.
Touch if the display is not
active.
If you ignore a call, your phone
gives you the option to send a
text message to the caller.
Select a message and touch
Ok
to send it or touch
Cancel to exit
without sending a message.
Answer
Create new message
”Sorry I was unable to
answer your call”
”Please call me again
in a few minutes”
Turn off text message
reply
Ok Cancel
”I will call you back in
a few minutes”
Text Message Reply
Ignore
January 10, 2012

12 Calls
You can enable or disable text message reply for ignored
calls, touch >
Settings > Call settings > Text
message reply
and check or uncheck the check mark
next to
Text message reply .
To create or edit a preset text message reply, touch
Edit
messages
.
End calls
Tou ch End Call .
Missed phone call
If you recieve a phone call during a Direct Connect call,
and don’t answer it, you’ll receive a missed call
notification. To return the phone call, touch
End DC Call ,
and then
Return call when prompted. To continue the
Direct Connect call, touch
Dismiss .
Recent calls
Find it: Phone > Call log
•To call a number, touch .
•To send a text message, create a contact, view a
contact, or other options, touch and hold an entry.
•To clear the list, touch Menu >
Clear list .
End call
Frequent calls
Find it: Phone > Favorites
•To call a number, touch .
•To send a text message, view a contact, or other
options, touch and hold an entry.
•To add a contact to
Favorites , select the contact, and
touch the star in the upper right corner. The star turns
green.
Three way calls
To start a conference call, call the first number. After the
call connects, touch
Add Call . Dial the next number, or
select it from contacts or favorites. When the next
number answers, touch
Merge .
Your phone number
Find it: > Settings > About phone > Status > My
Phone number
Emergency calls
Note: Your service provider programs one or more
emergency phone numbers that you can call under any
circumstances, even when your phone is locked.
Emergency numbers vary by country. Your
pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot
January 10, 2012

13Direct Connect
be placed due to network, environmental, or
interference issues.
1Touch Phone > Dialer (if your phone is locked,
touch
Emergency Call at the bottom of the screen).
2Enter the emergency number.
3Touch to call the emergency number.
Note: Your phone can use location based services (GPS
and AGPS) to help emergency services find you. See
“Location Services” on page 67.
Cool down
In very limited circumstances, such as where your
phone has been exposed to extreme heat, you may see
“Cool Down” messages. To avoid possible damage to
your battery and phone, you should follow these
instructions until the phone is within its recommended
temperature range. When your phone is in “Cool Down”
mode, only emergency calls can be made.
Direct Connect
one or more, talk to them all
Direct Connect calls
Direct Connect calls are calls between two people.
Make and answer Direct Connect calls
To make a Direct Connect call:
•Touch
Phone > Dialer , and enter
the recipient’s DC (Direct Connect)
number.
•Touch >
Contacts , and select
a contact that has a DC number.
•Touch
Phone > Call log or
Favorites , and select an entry that
has a DC number.
To talk, press and hold the DC (Direct Connect) Button.
To listen, release the DC Button.
To answer a Direct Connect call, press the DC Button
after the caller has stopped talking.
To add a person to a call, touch
Add member .
To end a Direct Connect call, do nothing. The call will
end after a few seconds.
January 10, 2012

14Direct Connect
DC resume
You can extend the automatic timeout of a DC call by
about 30 seconds.
Find it: >
Settings > Call settings > Direct
Connect settings
> Resume DC
One touch DC
You can customize the DC Button for quick access to
Direct Connect functions.
Find it: >
Settings > Call settings > Direct
Connect settings
> One Touch DC
Options
Off Turn off One Touch DC .
Launch DC
Contacts List
Open a list of Direct Connect
contacts on your phone.
Launch DC Call
log list
Open the DC Call log list.
DC selected
contact
Start a Direct Connect call with
the selected contact.
DC most recent
number
Start a Direct Connect call with
the most recent DC number in
the
Call log .
Tip: To add a quick switch for One Touch DC , touch and
hold a blank spot on your home screen, then touch
Motorola Widgets > One Touch DC .
Alerts
Use alert to tell someone you want to speak to them.
To send a call alert:
•Touch
Phone > Dialer , enter a DC number, and
press Menu >
Send Alert . When prompted,
press the DC Button.
•Touch >
Contacts , select a contact containing a
DC number, touch [Call Alert Icon], and press the DC
Button when prompted.
When you receive a call alert, you can:
•Answer:Press the DC Button to begin a Direct
Connect call with the sender.
• Later: Store the call alert to
Notifications .
•Dismiss:Dismiss the call alert.
Note: Alerts are moved to
Notifications after a few
minutes of inactivity. You won’t be able to make
phone calls or Direct Connect calls until the call alert
is moved, or you’ve chosen an option.
January 10, 2012

15Direct Connect

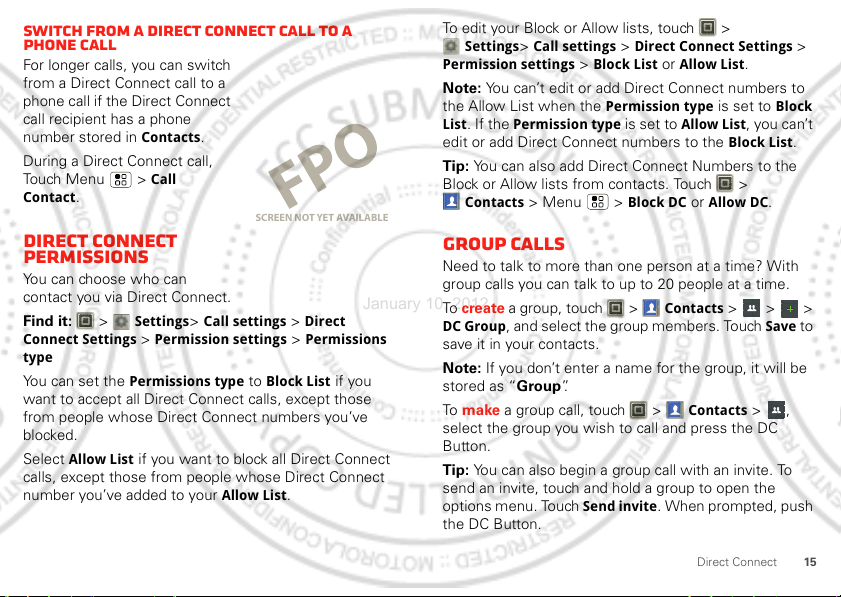

Switch from a Direct Connect call to a
phone call
For longer calls, you can switch
from a Direct Connect call to a
phone call if the Direct Connect
call recipient has a phone
number stored in
Contacts .
During a Direct Connect call,
Touch Menu >
Call
Contact
.
Direct Connect
permissions
You can choose who can
contact you via Direct Connect.
Find it: >
Settings > Call settings > Direct
Connect Settings
> Permission settings > Permissions
type
You can set the Permissions type to Block List if you
want to accept all Direct Connect calls, except those
from people whose Direct Connect numbers you’ve
blocked.
Select
Allow List if you want to block all Direct Connect
calls, except those from people whose Direct Connect
number you’ve added to your
Allow List .
SCREEN NOT YET AVAILABLE
To edit your Block or Allow lists, touch >
Settings > Call settings > Direct Connect Settings >
Permission settings > Block List or Allow List .
Note: You can’t edit or add Direct Connect numbers to
the Allow List when the
Permission type is set to Block
List
. If the Permission type is set to Allow List , you can’t
edit or add Direct Connect numbers to the
Block List .
Tip: You can also add Direct Connect Numbers to the
Block or Allow lists from contacts. Touch >
Contacts > Menu > Block DC or Allow DC .
Group calls
Need to talk to more than one person at a time? With
group calls you can talk to up to 20 people at a time.
To create a group, touch >
Contacts > > >
DC Group , and select the group members. Touch Save to
save it in your contacts.
Note: If you don’t enter a name for the group, it will be
stored as “Group”.
To make a group call, touch >
Contacts > ,
select the group you wish to call and press the DC
Button.
Tip: You can also begin a group call with an invite. To
send an invite, touch and hold a group to open the
options menu. Touch
Send invite . When prompted, push
the DC Button.
January 10, 2012

16 Contacts
Interrupts
When you want to break into a conversation during a
Direct Connect or group call, you can send the person
talking an interrupt request.
To send an interrupt request, a Direct Connect or group
call, touch Menu >
Interrupt .
Missed calls, invites, & alerts
If you recieve a Direct Conect or Group call, an alert, or
an invite, you’ll receive a missed DC call notification. To
return the missed call, accept the invite, or reply to the
alert, touch
Hold current call , and then press the DC
Button.
Set Direct Connect speaker
You can listen to Direct Connect calls
through your phone’s speaker or
earpiece. Press Speaker to turn the
speaker on or off.
Contacts
contacts like you’ve never had before
Quick start: Contacts
Find it: > Contacts
SCREEN NOT YET AVAILABLE
January 10, 2012

17Contacts

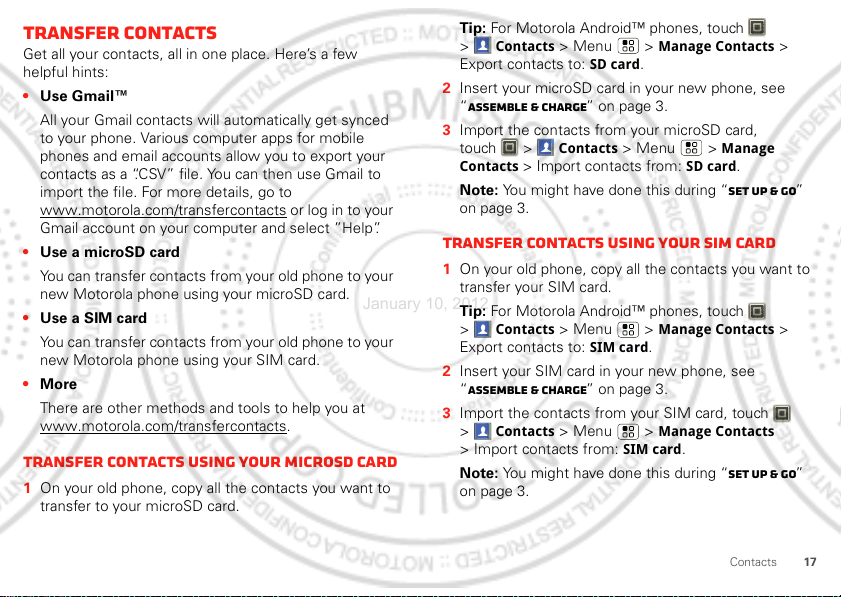

Transfer contacts
Get all your contacts, all in one place. Here’s a few
helpful hints:
•Use Gmail™
All your Gmail contacts will automatically get synced
to your phone. Various computer apps for mobile
phones and email accounts allow you to export your
contacts as a “.CSV” file. You can then use Gmail to
import the file. For more details, go to
www.motorola.com/transfercontacts or log in to your
Gmail account on your computer and select ”Help”.
•Use a microSD card
You can transfer contacts from your old phone to your
new Motorola phone using your microSD card.
•Use a SIM card
You can transfer contacts from your old phone to your
new Motorola phone using your SIM card.
•More
There are other methods and tools to help you at
www.motorola.com/transfercontacts.
Transfer contacts using your microSD card
1On your old phone, copy all the contacts you want to
transfer to your microSD card.
Tip: For Motorola Android™ phones, touch
>
Contacts > Menu > Manage Contacts >
Export contacts to:
SD card .
2Insert your microSD card in your new phone, see
“Assemble & charge” on page 3.
3Import the contacts from your microSD card,
touch >
Contacts >Menu > Manage
Contacts
> Import contacts from: SD card .
Note: You might have done this during “Set up & go”
on page 3.
Transfer contacts using your SIM card
1On your old phone, copy all the contacts you want to
transfer your SIM card.
Tip: For Motorola Android™ phones, touch
>
Contacts > Menu > Manage Contacts >
Export contacts to:
SIM card .
2Insert your SIM card in your new phone, see
“Assemble & charge” on page 3.
3Import the contacts from your SIM card, touch
>
Contacts >Menu > Manage Contacts
> Import contacts from: SIM card .
Note: You might have done this during “Set up & go”
on page 3.
January 10, 2012
