Motorola XT615 User manual

TM
MOTOROLA XT615
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page -1 Wednesday, Nov

IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 0 Wednesday, Nove

1Congratulations
Congratulations
MOTOROLA XT615
Your MOTOROLA XT615 phone delivers more for your
work and play!
•Search: Touch Search to search across your apps,
contacts, web, and maps—or just enter the address for a
place or a web page.
•Apps: Open Market to download games for fun,
social networking apps to keep in touch (like Facebook™
or Twitter), or find something else you like with “Apps”
on page 10.
•Touchscreen: Browse the web and pinch-to-zoom on the
touch display in “Web” on page 33.
•Camera: Capture photos and videos with the 8MP
auto-focus camera in “Photos & videos” on page 38.
Note: Some apps and features might not be available in all
countries.
Caution: Before assembling, charging, or using your
phone for the first time, please read the important legal
and safety information packaged with your product.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 1 Wednesday, Nove

2Congratulations
More
•Support: Phone updates, PC software, online help and
more at www.motorola.com/support.
•Accessories: Find accessories for your phone at
www.motorola.com/products.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 2 Wednesday, Nove

3Your phone
Your phone
the important keys & connectors
Press = sleep/
wake up.
Hold = turn on/o
.
3.5mm
Headset
Jack
Back Key
Menu Key
Home Key
Touchscreen
Power/
Lock Key
Volume Keys
Touch to open
menu options.
Camera Key
Search
Key
Micro USB
Connector
Microphone
Front Camera
Notication
Light
Flash=missed
call, new
message, or
other
notication.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 3 Wednesday, Nove

4Your phone
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Personalize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Bluetooth™, Wi-Fi, & cable connections . . . . . . . . . . . . . . . . 43
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 4 Wednesday, Nove

5Let’s go
Let’s go
let’s get you up and running

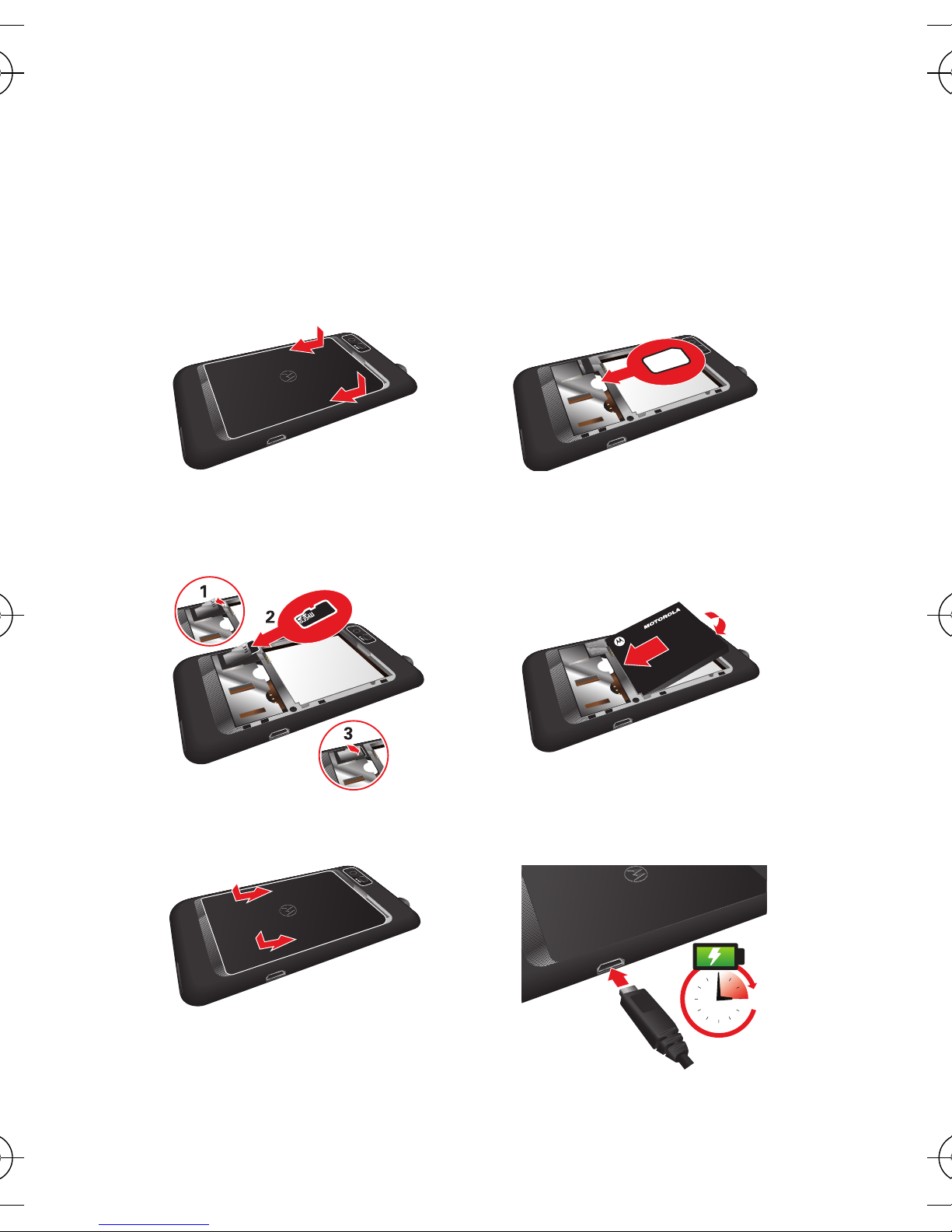

Assemble & charge
1Cover off 2SIM in
3microSD in (may
already be inserted)
4Battery in
5Cover on 6Charge up
3
H
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 5 Wednesday, Nove

6Let’s go
Caution: Please read “Battery Use & Safety” on page 53.
Set up & go
Note: This phone supports data-intensive apps and services.
It is strongly recommended that you purchase a data plan
that meets your needs. Contact your service provider for
details.
When you turn on your new phone, you can create or enter a
Google™ account so that you can download apps, use
Gmail™, and much more:
1Press and hold
Power to turn on
your phone.
2Touch the Android™
image to begin setup.
3Touch a button to
Create a Google
account, Sign in with
one you have, or Skip.
You can log into your account from a computer at
accounts.google.com.
4Enter details to create or sign into your account. When
your phone confirms the account, it shows account sync
options.
Press = sleep/
wake up.
Hold = turn on/o.
Power/
Lock Key
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 6 Wednesday, Nove

7Let’s go
•To change whether your phone shows the Google
account’s contacts, Gmail™, and calendar, touch the
Google account name.
•To add another account, touch Add account. For
details, see “Email” on page 25.
•To exit setup touch Home .
If your phone cannot connect, you can touch Menu >
Wireless settings to change mobile network settings.
sleep & wake up
Your screen sleeps when you hold it to your ear during a
call, or when it is inactive. To change the sleep delay, touch
Menu > Settings > Display > Screen timeout.
To unlock the screen, drag to
the big circle.
Tip: To quickly access all your
home screen shortcuts, touch and
hold the small circle.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 7 Wednesday, Nove

8Let’s go
Keys
Use your phone’s keys to
navigate and open options
at any time.
Press the volume keys to
change the ringer volume
(in the home screen), or the
earpiece volume (during a
call).
From any screen, press the
camera key on the right side
of the phone to open the
camera.
Touch Home to return to the home screen. Touch and
hold Home to see your recent apps.
Volume Keys
Camera Key
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 8 Wednesday, Nove

9Home screen & apps
Home screen & apps
a few essentials
Use your home screen for quick access to apps, search, and
more. Download social networking apps (like Facebook™
or Twitter) to keep in touch!
Quick start: Home screen
You’ll see the home screen when you turn on the phone or
touch Home from a menu:
Note: All screen images simulated
11:19
Browser Market
Notifications
Flick down for details.
Status Indicators
Shortcuts
Open the app menu.
Widgets
Touch to open. Touch & hold
move or delete.
Drag or flick to open panels
(
scroll in lists).
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 9 Wednesday, Nove

10 Home screen & apps
•To open shortcuts or widgets, touch them. Touch
Home to return to the home screen.
When you open shortcuts or widgets, touch Menu for
options.
•To move or delete shortcuts or widgets, touch and hold
them until you feel a vibration, then drag it to another
spot, another panel, or at the top.
In lists like Contacts, touch and hold list items for
options.
•To add shortcuts, widgets, or wallpaper, touch and hold
an empty spot until you see the menu. You can also add a
folder to organize your shortcuts.
•To show more panels, drag or flick right or left. Touch
and hold to show panel thumbnails.
In lists like Contacts, drag or flick to scroll.
To change your ringtone, display brightness, and more,
touch Menu > Settings > Sound or Display. For details,
see “Personalize” on page 14.
Apps
Tip: Choose your apps and updates carefully, from trusted
sites like Market, as some may impact your phone’s
performance—see “Choose carefully” on page 12.
Note: When installing an app, make sure you read the alerts
that tell you what information the app will access. If you
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 10 Wednesday, Nov

11Home screen & apps
don’t want the app to have access to this information, cancel
the installation.
To show your app menu, touch .
•To scroll through the menu, flick up or down.
•To open an app, touch an icon.
•To close the app menu, touch Back .
Tip: To show the last eight apps you opened, touch and hold
Home .
To download new apps from Android Market™, touch >
Market. Touch Search to find an app, or touch My
Apps to show or reinstall the apps you downloaded. To
download apps from websites, you need to change your
security settings: Touch Menu > Settings >
Applications > Unknown sources.
Warning: Apps downloaded from the web can be from
unknown sources. To protect your phone and personal data,
only download apps from sources you trust.
To move or uninstall your apps, touch Menu > Settings
> Applications > Manage applications. Touch an app in
the list to show details and options.
On your computer, you can browse and manage apps for all
your devices powered by Android™ at market.android.com.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 11 Wednesday, Nov

12 Home screen & apps
Choose carefully
Apps are great. There's something for everyone. Play,
communicate, work, or have fun. But remember, choose
your apps carefully. Here are a few tips:
•To help prevent spyware, phishing, or viruses from
affecting your phone or privacy, use apps from trusted
sites, like Market.
•In Market, check the apps’ ratings and comments before
installing.
•If you doubt the safety of an app, don't install it.
•Like all apps, downloaded apps will use up memory, data,
battery, and processing power—some more than others.
For example, a simple battery level widget will use less
than a streaming music player app. After installing an
app, if you're not happy with how much memory, data,
battery or processing power it's using, uninstall it. You
can always install it again later.
•Just like web browsing, you may want to monitor
childrens’ access to apps to help prevent exposure to
inappropriate content.
•Certain apps may not provide completely accurate
information. Take care, especially when it comes to
personal health.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 12 Wednesday, Nov

13Home screen & apps
Phone status & notifications
In the status bar at the top of
your screen, the right side
shows phone status. The left
side shows new messages or
events (for details, flick the bar
down).
network strength battery strength
Bluetooth™ on new text message
Wi-Fi connected Bluetooth connected
USB connected airplane mode
silent ringer alarm set
mute call silent ringer, vibrate on
speakerphone
Clear
Notifications
10:32
New voicemail
Dial (Your Voicemail Number)
11:19
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 13 Wednesday, Nov

14 Personalize
Personalize
add your personal touch
Customize your phone’s sounds and appearance to make it
unique to you!
Quick start: Personalize
From the home screen, touch Menu > Settings > Sound
or Display.
Display settings
Brightness
Screen timeout
All window animations are shown
Animation
Auto-rotate screen
Adjust the delay before the screen
automatically turns o
Sound settings
General
Incoming calls
Only in Silent mode
Vibrate
Volume
Silent mode
Silence all sounds except media &
alarms
Phone ringtone
Notications
Notication ringtone
Choose separate volume settings
for incoming calls, media, alarms,
and notications.
Call & Message Notications
Turn on or o menu animations.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 14 Wednesday, Nov

15Personalize
•To choose a ringtone or vibration for calls and
messages, touch Menu > Settings > Sound, then
choose Phone ringtone, Notification ringtone, or
Vibrate.
•To change the volume, touch Menu > Settings >
Sound > Volume.
•To turn dialpad sounds on or off, touch Menu >
Settings > Sound > Audible touch tones.
•To turn menu selection sounds on or off, touch Menu
> Settings > Sound > Audible selection.
•To change your wallpaper, touch and hold an empty spot
on the home screen, then touch Wallpapers.
•To change shortcuts and widgets on your home screen,
touch and hold them. For details, see “Home screen &
apps” on page 9.
•To set display brightness, touch Menu > Settings >
Display > Brightness.
•To control whether some apps rotate the screen when you
rotate your phone, touch Menu > Settings >
Display> Auto-rotate screen.
•To turn on or off animations that make your menus look
smoother, touch Menu > Settings > Display >
Animation.
•To calibrate the sensors used by some games or
navigation apps, touch Menu > Settings > Display >
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 15 Wednesday, Nov

16 Personalize
G-Sensor Calibration (movement) or E-Compass
Calibration (direction).
Language & region
To set your menu language and region, touch Menu >
Settings > Language & keyboard > Select language
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 16 Wednesday, Nov

17Calls
Calls
it’s good to talk
Dial numbers, see recent calls, combine calls, or set up
forwarding, restrictions, and more.
Quick start: Calls
From the home screen, touch .
Search for a contact by entering one of the
following: First letter(s) of name, name or phone
number
Contacts Favorites Phone Call log
11:19
Dial PadAdd call
SpeakerMuteBluetooth
End
Christine Fanning
Home 222-333-4444
Dialling
05:32
ABC DEF
MNO
WXYZ
JKL
TUV
GHI
PQRS
+
Open a list, then touch an entry to
call.
Send a text message.
Use a connected Bluetooth™
device.
Hang up.
Start a conference call.
Call.
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 17 Wednesday, Nov

18 Calls
•To make a call, touch , enter a number, then
touch .
To enter the international dialing code, touch and
hold .
•To answer a call, drag to the right.
•During a call, touch Home or Back to hide the
active call display (to reopen it, touch ).
Note: Using a mobile device or accessory while driving
may cause distraction and may be illegal. Always obey
the laws and drive safely.
•To use the speakerphone during a call, touch Speaker.
•To enter numbers during a call, touch Dialpad.
•To mute or unmute a call, touch Mute.
•To end a call, touch .
•To ignore an incoming call, drag to the left.
Tip: For quick access to contacts, see “Favorites” on
page 22.
Conference calls
To start a conference call, call the first number. After they
answer, touch Add call and call the next number. When the
next number answers, touch Merge calls. To remove
individual callers, touch Manage.
End call
IronMAX.GSG.ASIAEMARA.FINAL.2011.10.14.fm Page 18 Wednesday, Nov
