Motorola GP330 User manual

Portable Radio
GP330

7
1
5
39
8
6
4
2

1English
CONTENTS
CONTENTS
Computer Software Copyright . . . . . . . . 2
Radio Overview . . . . . . . . . . . . . . . . . . . . 3
Operation and Control Functions . . . . . . . 3
Radio Controls . . . . . . . . . . . . . . . . . . . 3
Programmable Buttons . . . . . . . . . . . . 3
Audio Signal Tones . . . . . . . . . . . . . . . 5
Getting Started . . . . . . . . . . . . . . . . . . . . 7
Battery Information . . . . . . . . . . . . . . . . . . 7
Battery Care and Tips . . . . . . . . . . . . . 7
Recycling or Disposal of Batteries . . . 8
Charging the Battery . . . . . . . . . . . . . . 8
Accessory Information . . . . . . . . . . . . . . . . 9
Attaching the Battery . . . . . . . . . . . . . . 9
Removing the Battery . . . . . . . . . . . . . . 9
Attaching the Antenna . . . . . . . . . . . . 10
Removing the Antenna . . . . . . . . . . . . 10
Attaching the Belt Clip . . . . . . . . . . . . .11
Removing the Belt Clip . . . . . . . . . . . .11
Turning The Radio On or Off . . . . . . . . . .12
Adjusting the Radio’s Volume . . . . . . . . . .12
Selecting a Radio Channel . . . . . . . . . . . .12
Sending a Call . . . . . . . . . . . . . . . . . . . . .12
Receiving a Call . . . . . . . . . . . . . . . . . . . .12
Radio Calls . . . . . . . . . . . . . . . . . . . . . . .13
Selective Call . . . . . . . . . . . . . . . . . . . . . .13
Making a Selective Call . . . . . . . . . . . .13
Receiving a Selective Call . . . . . . . . . .14
Emergency call . . . . . . . . . . . . . . . . . . . . .14
Lone Worker . . . . . . . . . . . . . . . . . . . . . . .15
Features . . . . . . . . . . . . . . . . . . . . . . . . . .16
Transmit Power . . . . . . . . . . . . . . . . . . . .16
GP330_UG.book Page 1 Thursday, September 6, 2007 11:51 AM

2
English
COMPUTER SOFTWARE
COPYRIGHT
Whisper . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Call forward . . . . . . . . . . . . . . . . . . . . . . . 17
Voice Operated Transmit (VOX) . . . . . . . 18
Safety Information . . . . . . . . . . . . . . . . . 19
Product Safety and RF Exposure
Compliance . . . . . . . . . . . . . . . . . . . . . . . 19
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
COMPUTER SOFTWARE COPYRIGHT
The products described in this manual may include copyrighted
computer programmes stored in semiconductor memories or other
media. Laws in the United States of America and other countries
preserve for Motorola Europe and Motorola Inc. certain exclusive
rights for copyrighted computer programmes, including the right to
copy or reproduce in any form the copyrighted computer
programme. Accordingly, any copyrighted computer programmes
contained in the products described in this manual may not be
copied or reproduced in any manner without the express written
permission of the holders of the rights.
Furthermore, the purchase of these products shall not be deemed
to grant either directly or by implication, estoppel, or otherwise, any
licence under the copyrights, patents, or patent applications of the
holders of the rights, except for the normal non-exclusive royalty
free licence to use that arises by operation of the law in the sale of
the product.
GP330_UG.book Page 2 Thursday, September 6, 2007 11:51 AM

3English
RADIO OVERVIEW
RADIO OVERVIEW
This user guide covers the operation of the GP330
Portable Radio.
Please read page 19 before using this radio.
OPERATION AND CONTROL FUNCTIONS
Radio Controls
The numbers below refer to the illustrations on the
inside front cover.
1. Channel Selector Knob
Used to switch the radio to different channels.
2. On-Off/Volume Knob
Used to turn the radio on or off, and to adjust
the radio’s volume.
3. Side Button 1 (Programmable)
4. Push to Talk Button (PTT)
Press and hold down this button to talk, release
it to listen.
5. Side Button 2 (Programmable)
6. LED Indicator
Green: Successful power up.
Red: Radio transmitting.
Blinking Red:Channel busy – when receiving.
Yellow: Radio call.
Blinking Yellow:Radio call reminder alert.
Blinking Red: Low battery warning – when
transmitting.
7. Microphone
Speak clearly into the microphone when
sending a message.
8. Antenna
9. Accessory Connector
Connects headsets, remote speaker/
microphones and other accessories.
Replace attached dust cap when not in use.
Programmable Buttons
The two side buttons on your radio can be
programmed to activate the radio features.
The following table shows the features that can be
assigned to these buttons.
GP330_UG.book Page 3 Thursday, September 6, 2007 11:51 AM

4
English
RADIO OVERVIEW
Feature Description
Monitor/Cancel
To monitor the selected channel for any activity.
OR
To cancel a current outgoing or incoming call.
Radio Call To make an individual or group selective call.
Transmit Power To toggle your radio’s transmit power level between High and Low power
Emergency To activate the Emergency alarm call.
Lone Worker To identify yourself as a lone worker. Radio enters emergency sequence unless you
respond when prompted by pressing any radio button.
Call Forward To transfer calls automatically to another radio if you are unable to take the call.
Whisper To increase the microphone gain to allow you to speak quietly.
GP330_UG.book Page 4 Thursday, September 6, 2007 11:51 AM

5English
RADIO OVERVIEW

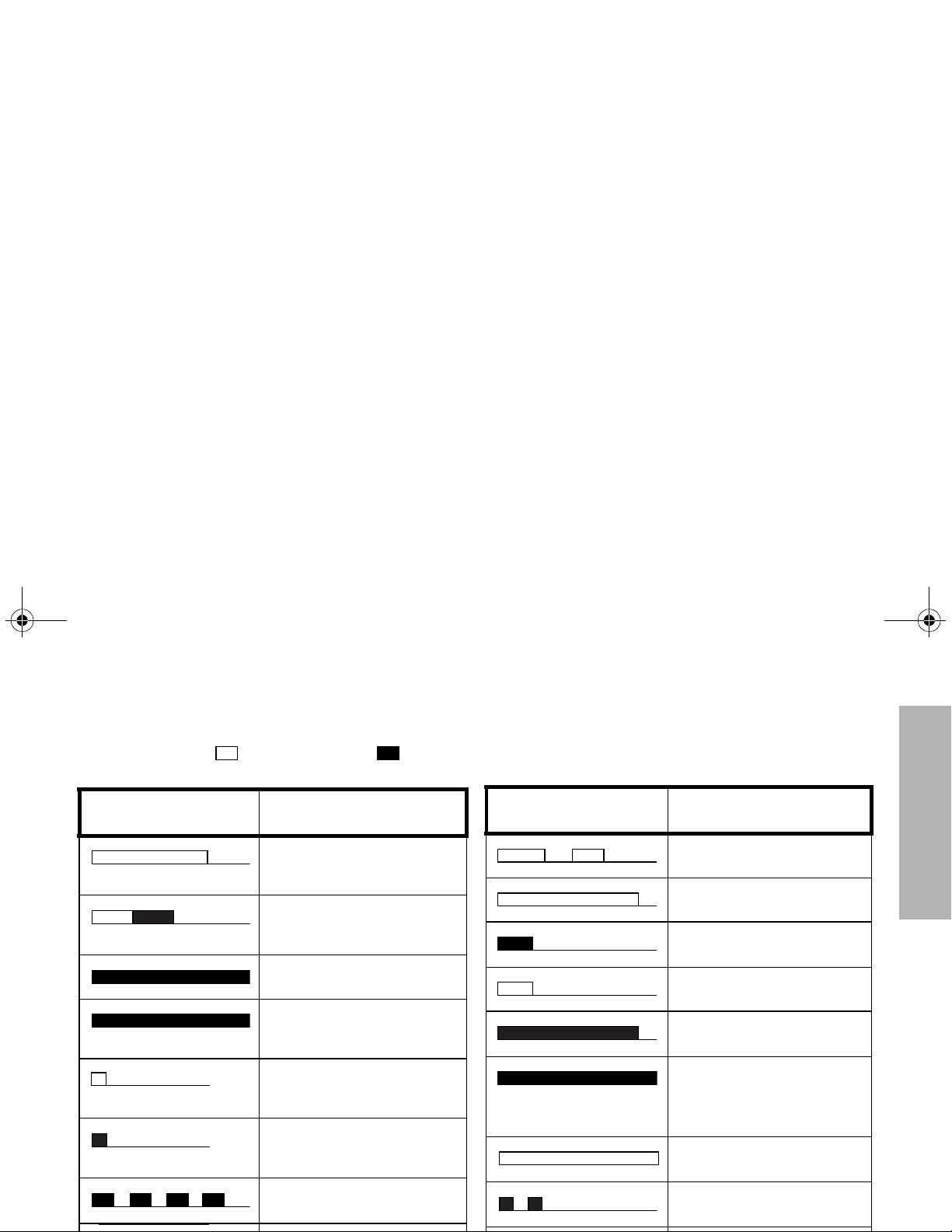

Audio Signal Tones
High pitched tone Low pitched tone
Tone Description
Power Up – Radio self-
test successful
Power Up – Radio self-
test failed
Button Error
Force Monitor (PTT
pressed)
Feature Enable Side
Buttons
Feature Disable Side
Buttons
Channel Busy/Engaged
Individual Call Alert
Tone Description
Call Reminder
Group Call Alert
TOT Pre Alert
Monitor Alert
Call Failed
Hardware error – tone
continues until valid
operation
Lone Worker Reminder
Low Battery
Incoming Ringing Tone
GP330_UG.book Page 5 Thursday, September 6, 2007 11:51 AM

6
English
RADIO OVERVIEW

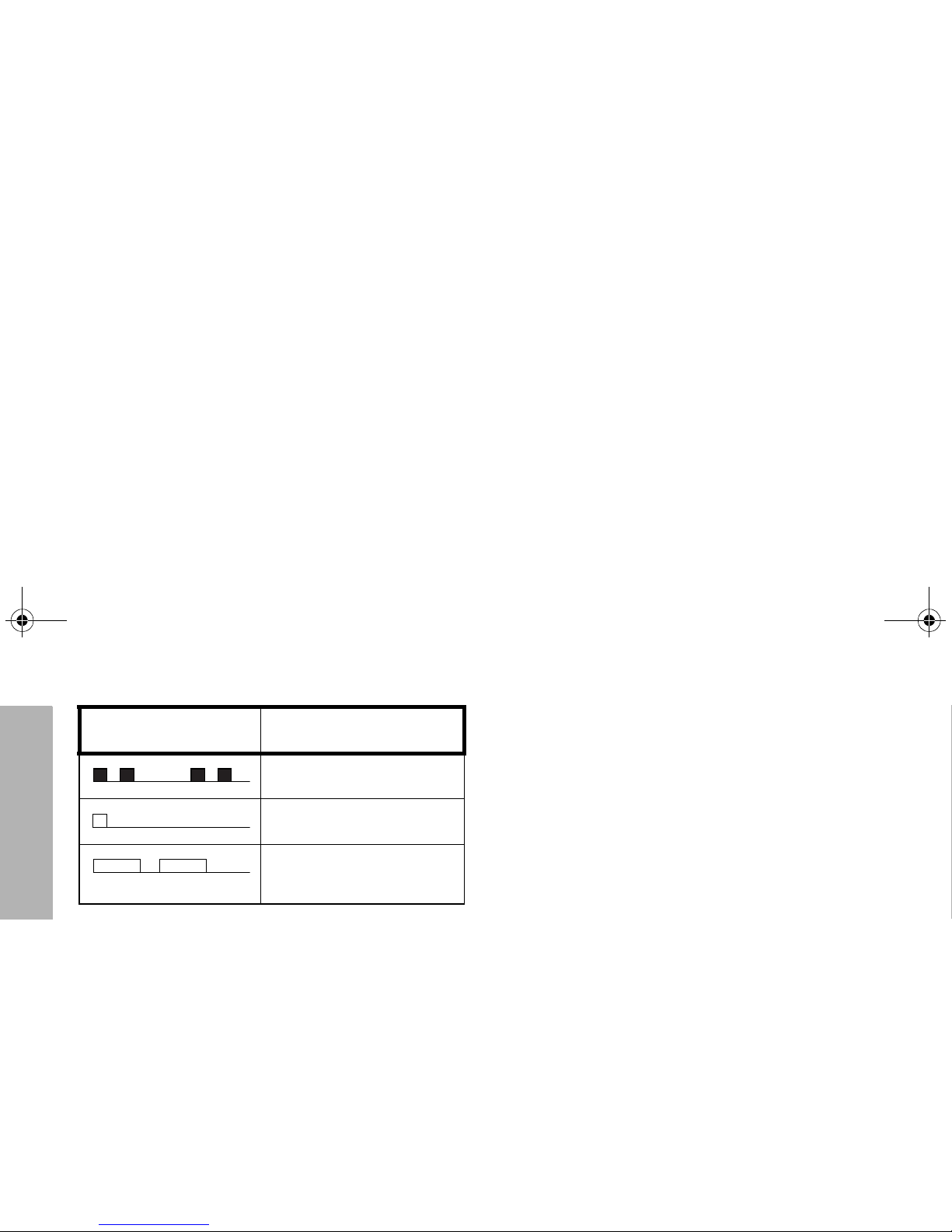

Outgoing Ringing Tone
Channel Free Beep
Incoming Emergency
Alert
Tone Description
GP330_UG.book Page 6 Thursday, September 6, 2007 11:51 AM

7English
GETTING STARTED
GETTING STARTED
BATTERY INFORMATION
Battery Care and Tips
This product is powered by a nickel-cadmium (NiCd),
nickel-metal-hydride (NiMH), or lithium-ion
rechargeable battery.
The following battery tips will help you obtain the
highest performance and longest cycle life from your
Motorola rechargeable battery.
• Charge your new battery overnight (14 – 16
hours) before using it to obtain maximum
battery capacity and performance.
• Charging in non-Motorola equipment may lead
to battery damage and void the battery warranty.
• When charging a battery that is attached to the
radio, turn the radio off to ensure a full charge.
• The battery should be at about 25°C (room
temperature) whenever possible. Charging a
cold battery (below 10°C) may result in leakage
of electrolyte and ultimately, in failure of the
battery.
• Charging a hot battery (above 35°C) results in
reduced discharge capacity, affecting the
performance of the radio. Motorola rapid-rate
battery chargers contain a temperature-sensing
circuit to ensure that the battery is charged
within these temperature limits.
• New batteries can be stored up to two years
without significant cycle loss. Store new/unused
batteries, at room temperature, in cool dry area.
• Batteries which have been in storage should be
charged overnight.
• Do not return fully charged batteries to the
charger for an “extra boost”. This action will
significantly reduce cycle life.
• Do not leave your radio and battery in the
charger when not charging. Continuous charging
will shorten battery life. (Do not use your charger
as a radio stand.)
• For optimum battery life and operation use only
Motorola brand chargers. They were designed to
operate as an integrated energy system.
GP330_UG.book Page 7 Thursday, September 6, 2007 11:51 AM

8
English
GETTING STARTED
Recycling or Disposal of Batteries
At the end of its useful life, the NiCd battery can be
recycled. However, recycling facilities may not be
available in all areas.
Motorola endorses and encourages the recycling of all
rechargeable batteries. Contact your local Motorola
dealer for further information.
Charging the Battery
If a battery is new, or its charge level is very low, you
will need to charge the battery before you can use it in
your radio.
Please contact your dealer for further information.
Note: Batteries are shipped uncharged from the
factory. New batteries could prematurely
indicate full charge, charge a new battery
for 14 – 16 hours before initial use.
1. Place the radio with the battery attached, or the
battery alone, in the charger.
2. The charger’s LED indicates the charging
progress.
Battery chargers will charge only the Motorola
authorised batteries listed below; other batteries will
not charge.
FM – Factory mutual
NiCd
Charger LED Status
Red Battery is charging
Green Battery is fully charged
Blinking Red * Battery is unchargeable
Blinking Yellow Charger is getting ready to charge
Blinking Green Battery is 90% charged
*
Battery is damaged. Please contact your dealer.
Part No. Description
HNN9008
HNN9009
HNN9010
HNN9011
HNN9012
HNN9013
High-Capacity NiMH
Ultra-High-Capacity NiMH
Ultra-High-Capacity FM NiMH
High-Capacity FM NiCd
High-Capacity NiCd
Lithium-Ion
GP330_UG.book Page 8 Thursday, September 6, 2007 11:51 AM

9English
GETTING STARTED
ACCESSORY INFORMATION
Attaching the Battery
1. Fit the extensions at the bottom of the battery
into the slots at the bottom of the radio’s body.
2. Press the top part of the battery towards the
radio until you hear a click.
Removing the Battery
1. Turn off the radio, if it is turned on.
2. Slide the battery latches, on both sides of the
battery, downwards.
3. Pull the top part of the battery away from the
radio’s body, and remove the battery.
Slots
1
Battery
Latches
2
3
GP330_UG.book Page 9 Thursday, September 6, 2007 11:51 AM

10
English
GETTING STARTED
Attaching the Antenna
1. Align the threaded end of the antenna with the
radio’s antenna connector.
2. Turn the antenna clockwise to fasten it.
Removing the Antenna
1. Turn the antenna counterclockwise until you
can remove it.
GP330_UG.book Page 10 Thursday, September 6, 2007 11:51 AM

11 English
GETTING STARTED

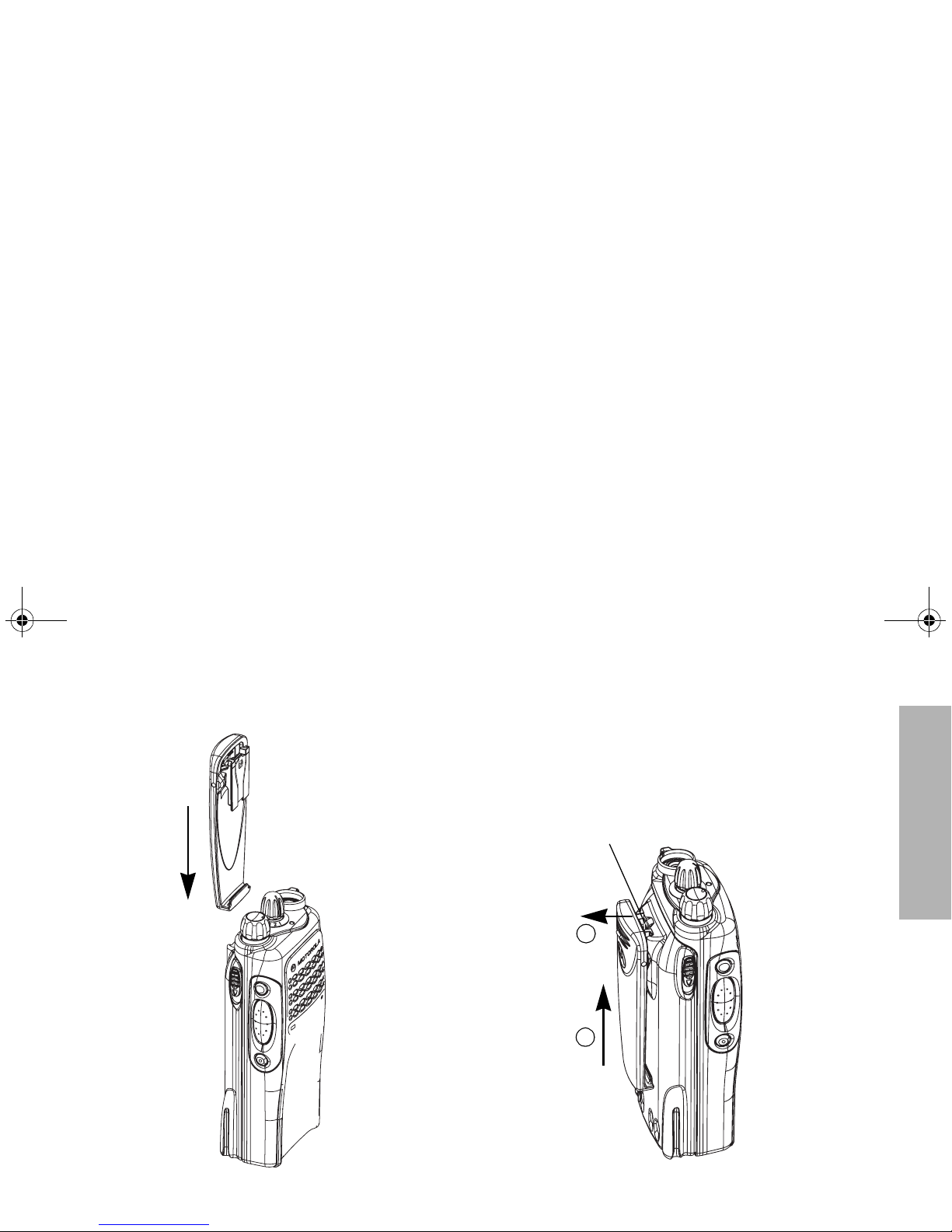

Attaching the Belt Clip
1. Align the grooves of the belt clip with those of
the battery.
2. Press the belt clip downwards until a click is
heard.
Removing the Belt Clip
1. Use a key to press the belt clip tab away from
the battery.
2. Slide the belt clip upwards to remove it.
Belt Clip Tab
1
2
GP330_UG.book Page 11 Thursday, September 6, 2007 11:51 AM

12
English
GETTING STARTED

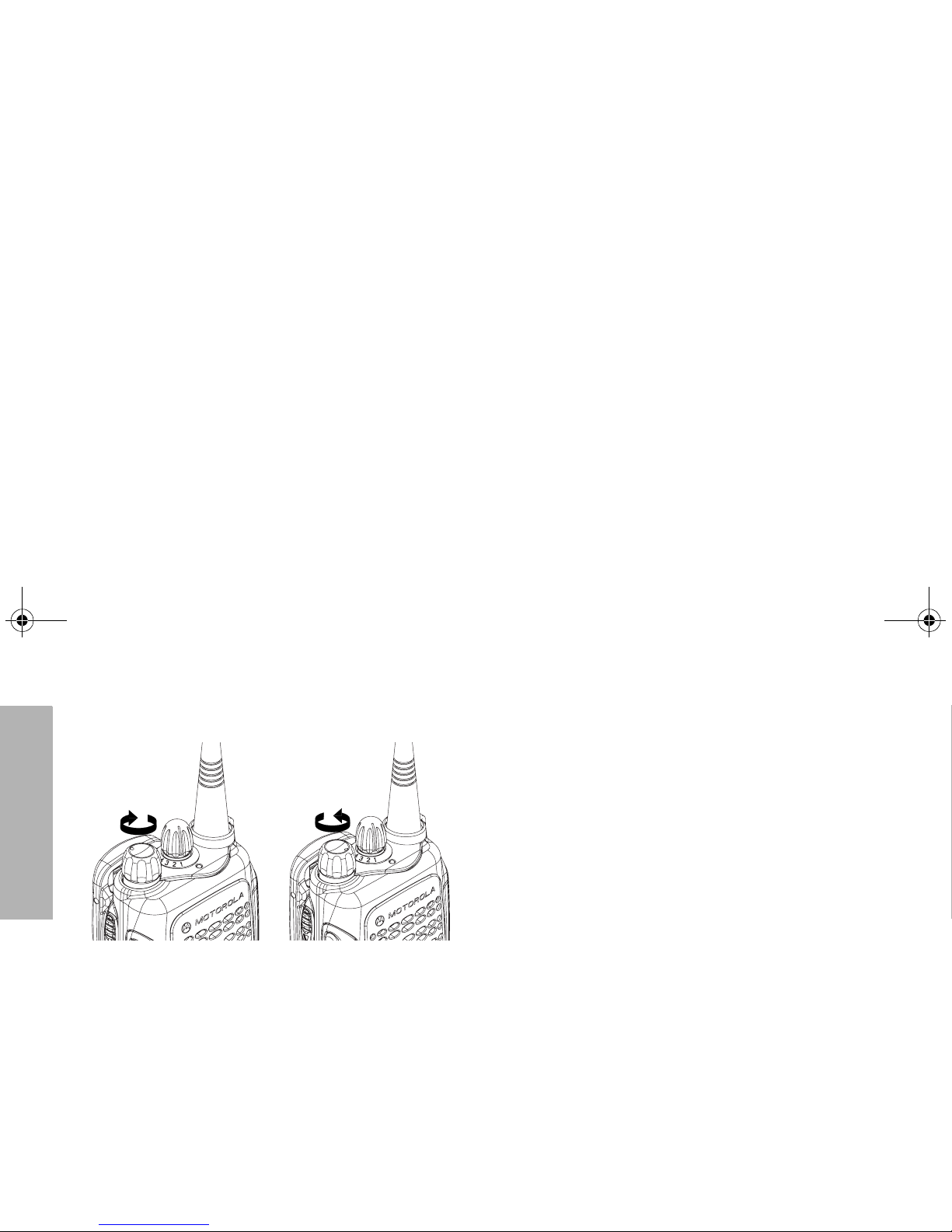

TURNING THE RADIO ON OR OFF
• To turn the radio on, turn the On-Off/Volume
Control knob clockwise.
• To turn the radio off, turn the On-Off/Volume
Control knob counterclockwise until you hear a
click.
ADJUSTING THE RADIO’S VOLUME
• Turn the On-Off/Volume Control knob to adjust
the volume level.
SELECTING A RADIO CHANNEL
Your radio offers four (4) channels for easy access
to required conventional channels. Some channels
on your radio may not be programmed. Check with
your dealer for more information.
• Turn the Channel Selector knob clockwise or
counterclockwise until you reached the desired
channel.
SENDING A CALL
1. Press the PTT button and speak clearly into the
microphone. Your mouth should be about 2.5 to
5 cm away from the microphone.
2. Release the PTT button when you finish
speaking.
RECEIVING A CALL
1. Turn your radio on and adjust the volume level
2. If, at any time, a call is received, you will hear
the call at the volume level you have set.
ON OFF
GP330_UG.book Page 12 Thursday, September 6, 2007 11:51 AM

13 English
RADIO CALLS
RADIO CALLS
SELECTIVE CALL
Making a Selective Call
You can make a selective call, to a particular radio,
known as an individual call, or group of radios, known
as a group call.
To make a Selective Call:
1. Press the PTT or Call Button (depending on the
way your radio has been programmed by your
dealer) to set up the call.
2. Wait until the conversation has been set up,
which means you are authorised to use the
system.
3. Talk with your mouth 2.5 – 5 cm from the
microphone. Release PTT to listen.
4. The red indicator lights up when the radio is
transmitting.
Your radio may be configured for ‘Transmit Inhibit’
under certain conditions (e.g. when the channel is in
use by others) in which case, the channel busy tone
will sound when you press the PTT or call button to
indicate that transmission is inhibited.
When the channel is free, the Channel Free beep
will sound, and you can make a
call.
If your radio is equipped with a transmit time out
timer (TOT), a warning tone will
sound a few seconds before the transmission is cut
off. Your radio may be programmed to inhibit
retransmission within a preset time.
GP330_UG.book Page 13 Thursday, September 6, 2007 11:51 AM

14
English
RADIO CALLS
Receiving a Selective Call
When you receive a selective call, you will hear
either an individual call alert tone
or a group call alert tone
. The LED Indicator lights up
(yellow).
To answer the call:
1. Press the PTT button or Call button.
2. The call terminates automatically when the
conversation ends or when the the Monitor
button is pressed.
EMERGENCY CALL
Your radio can be programmed to give you a one-
button quick access to call a particular radio or
centre (predefined by your dealer) in emergency
situations. This is the Emergency Call.
When you make an Emergency call, your radio goes
into an Emergency state, which can be programmed
to:
• continually give audio feedback,
• give no audio feedback; the radio can receive
and transmit.
1. Press the Emergency button to initiate an
Emergency call.
2. Emergency can be stopped by the following:
• Switching the radio Off and On again.
•Areset message is received by your radio.
• The emergency time duration is reached.
Note: The emergency time duration and reset
message are programmed into your radio
by your dealer.
Should you receive an Emergency call, the
incoming emergency alert tone
will sound.
GP330_UG.book Page 14 Thursday, September 6, 2007 11:51 AM

15 English
RADIO CALLS
LONE WORKER
The Lone Worker feature enables you to work alone
with added safety.
To use this feature:
1. Press the Lone Worker button.
2. The feature enable alert will
sound.
You will be reminded at intervals that Lone Worker
is switched on by the sound of a high pitched alert
.
•Pressany button to respond and cancel the
alert, if you do not the radio will enter the
Emergency state.
To switch off this feature:
1. Press the Lone Worker button. The feature
disable alert will sound.
OR
Change the channel.
OR
Switch the radio off and on again.
GP330_UG.book Page 15 Thursday, September 6, 2007 11:51 AM

16
English
FEATURES
FEATURES
The features described below are programmed into
your radio by your dealer and are accessible via the
radio’s programmable buttons.
TRANSMIT POWER
You can transmit your calls at different transmit power
levels. A higher level means you can reach a radio
that is farther away. A lower power level conserves
battery power.
You are advised to transmit as frequently as possible
on low power, and use high power only when
needed.
To use this feature:
1. Press the Tx Power button to switch to high
power. The feature enable alert
will sound.
2. Press the Tx Power button again to switch to
low power. The feature disable alert
will sound.
GP330_UG.book Page 16 Thursday, September 6, 2007 11:51 AM

17 English
FEATURES
WHISPER
Whisper allows you to talk quietly into the radio
microphone when making a call.
To switch on Whisper:
1. Press the Whisper button once.
2. The feature enable alert will
sound.
To switch off Whisper:
1. Press the Whisper button again.
2. The feature disable alert will
sound.
CALL FORWARD
You can call forward calls to your radio to another
radio if you are unable to take calls or are away from
your radio.
To enable Call Forward:
1. Press the Call Forward button once.
2. The feature enable alert will
sound.
To disable Call Forward:
1. Press the Call Forward button again.
2. The feature disable alert will
sound.
GP330_UG.book Page 17 Thursday, September 6, 2007 11:51 AM

18
English
FEATURES
VOICE OPERATED TRANSMIT (VOX)
When the VOX headset/microphone is connected,
your radio may be used with hands-free operation.
To start the VOX feature:
1. Connect the VOX headset onto the accessory
connector of the radio.
2. Switch on the radio.
You can disable the VOX feature by pressing the
PTT button on the radio. This allows you to use the
VOX headset. However, you must press the radio
PTT to transmit.
To re-enable the VOX feature:
1. Switch the OFF and ON again with the headset
connected to the accessory connector.
2. Change channel with the VOX headset
connected.
GP330_UG.book Page 18 Thursday, September 6, 2007 11:51 AM
