GENERAL INFORMATION
This user guide covers the basic operation of the
GP344/GP344R Portable Radio. Please consult your
dealer for further, more detailed information which is
contained in a full feature user guide 6864110B98.
ATTENTION!
This radio is restricted to occupational use only to
satisfy ICNIRP RF energy exposure requirements.
Before using this product, read the RF energy aware-
ness information and operating instructions in the
Product Safety and RF Exposure booklet (Motorola
Publication part number 6864117B25) to ensure
compliance with RF energy exposure limits.
For a list of Motorola-approved antennas, batteries,
and other accessories, visit the following web site
which lists approved accessories:
http://www.motorola.com/governmentandenterprise
Before using this product, read the
operating instructions for safe usage
contained in the Product Safety and RF
Exposure booklet 6864117B25 enclosed
with your radio.
!
C a u t i o n
6864110B54-B GP344 Basic User Guide.book Page 2 Thursday, March 8, 2007 9:08 PM

3English
BASIC USER GUIDE
OPERATION AND CONTROL FUNCTIONS
Radio Controls

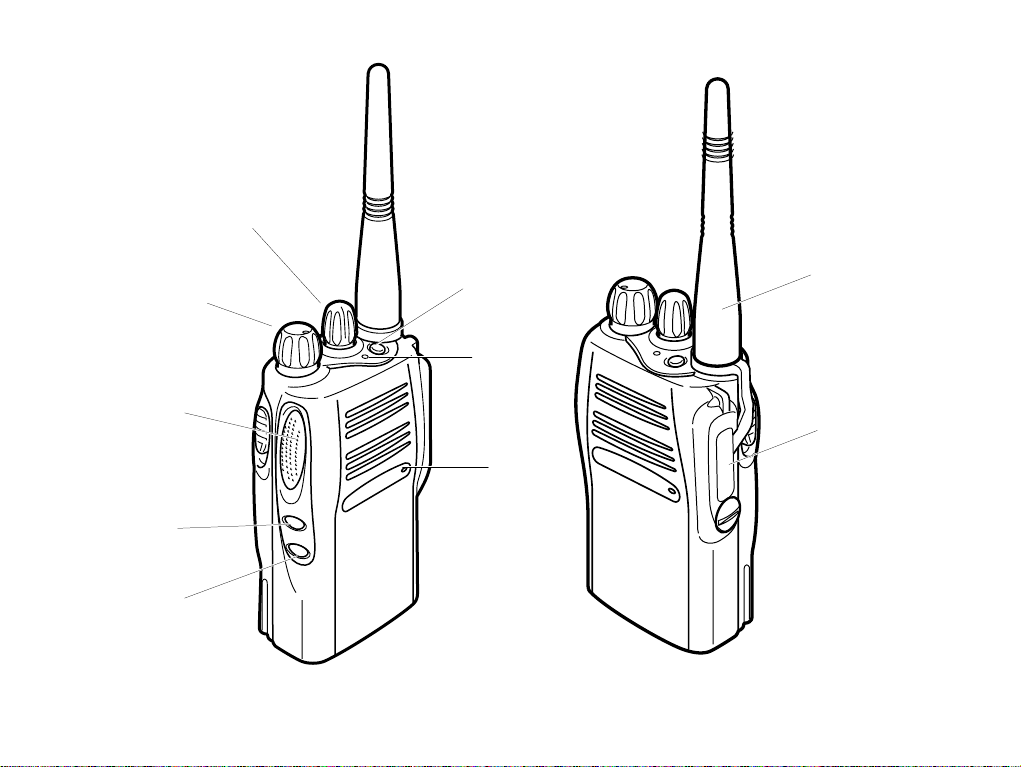

The numbers below refer to the illustrations on the
inside front cover.
1. Channel Selector Knob (16 Position)
Switches the radio to different channels.
2. On-Off / Volume Knob
Used to turn the radio on or off, and to adjust
the radio’s volume.
3. Push to Talk Button (PTT)
Press and hold down this button to talk, release
it to listen.
4. Side Button 1 (programmable)
Recommended for Monitor/Cancel Button.
5. Side Button 2 (programmable)
6. Top Button (programmable)
Recommended for Emergency Button.
7. LED Indicator
Green: Successful power up.
Green Flashing: Radio scanning.
Red: Radio transmitting.
Red Flashing: Channel busy - when receiving.
Yellow: Radio called.
Yellow Flashing: Radio call reminder alert.
Red Flashing: Low battery warning - when
transmitting.
8. Microphone
Speak clearly into the micorphone when
sending a message.
9. Antenna
10. Accessory Connector
Connects headsets, remote speaker/
microphones and other accessories. Replace
attached dust cap when not in use.
6864110B54-B GP344 Basic User Guide.book Page 3 Thursday, March 8, 2007 9:08 PM

4
English
BASIC USER GUIDE
Audio Signal Tones
High pitched tone
Low pitched tone
High pitched tones generally are positive
indicators used for example to inform you of
incoming calls, starting a feature and good status
(e.g. radio power up OK).
Low pitched tones generally are negative
indicators used for example to inform you of time
restrictions, stopping a feature and bad status (e.g.
error conditions).
Audio Indicators for Programmable Buttons
Some programmable buttons function as toggles,
alternating between two different choices. These
buttons use audio tones to indicate the change.
Programmable
Buttons
High Pitched
Tone
Low Pitched
Tone
Scan Start Scan
operation
Stop Scan
operation
Tx Power Radio transmits
at high power
Radio transmits
at low power
Monitor/Cancel Radio operates in
Monitor 1or 2
Radio forced to
monitor prior to
transmitting
Call Forward
On - transfers
your calls to
another radio if
you are absent
Off - Disables
call forward when
you return
Lone Worker Enables Lone
Worker function
Disables Lone
Worker function
Repeater/
Talkaround
Radio does not
use the repeater
Radio does use
the repeater
Whisper mode
On - allows you
to talk quietly into
microphone
Off - allows you
to talk normally
into microphone
6864110B54-B GP344 Basic User Guide.book Page 4 Thursday, March 8, 2007 9:08 PM

5English
BASIC USER GUIDE
GETTING STARTED
Radio On-Off/Volume Control
To turn the radio on, turn the On-Off/Volume
Control knob clockwise.
To turn the radio off, turn the On-Off/Volume
Control knob counterclockwise until you hear a
click.
Adjusting the Radio’s Volume
Turn the On-Off/Volume Control knob to adjust the
volume level.
Selecting a Radio Channel
Turn the Channel Selector knob clockwise or
counterclockwise until you reach the desired
channel indicated on the Channel Selector knob
graduation.
Sending a Call
1. Use the Channel Selector knob to change to
the required channel.
2. Press the PTT button and speak clearly into the
microphone.
Your mouth should be about 2.5 to 5 cm away
from the microphone.
3. Release the PTT button when you finish
speaking.
Receiving a Call
1. Turn your radio on and adjust the volume level.
2. Switch to the desired channel.
3. If, at any time, a call is received, you will hear
the call at the volume level you have set.
6864110B54-B GP344 Basic User Guide.book Page 5 Thursday, March 8, 2007 9:08 PM

6
English
BASIC USER GUIDE
BATTERY INFORMATION
Battery Care and Tips
This product is powered by a nickel-metal-hydride
(NiMH) or a lithium-ion rechargeable battery.
The following battery tips will help you obtain the
highest performance and longest cycle life from your
Motorola rechargeable battery.
•Charge your new battery overnight (14-16 hrs)
before using it to obtain maximum battery
capacity and performance.
•Charging in non-Motorola equipment may lead
to battery damage and void the battery warranty.
•When charging a battery that is attached to the
radio, turn the radio off to ensure a full charge.
•The battery should be at about 25°C/77°F (room
temperature) whenever possible. Charging a
cold battery (below 10°C/50° F) may result in
leakage of electrolyte and ultimately, in failure of
the battery.
•Charging a hot battery (above 35°C/95°F)
results in reduced discharge capacity, affecting
the performance of the radio. Motorola rapid-rate
battery chargers contain a temperature-sensing
circuit to ensure that the battery is charged
within these temperature limits.
•New batteries can be stored up to two years
without significant cycle loss. Store new/unused
batteries in cool dry area.
•Batteries which have been in storage should be
charged overnight.
•Do not return fully charged batteries to the
charger for an “extra boost”. This action will
significantly reduce battery life.
•Do not leave your radio and battery in the
charger when not charging. Continuous charging
will shorten battery life. (Do not use your charger
as a radio stand.)
•For optimum battery life and operation use only
Motorola brand chargers. They were designed to
operate as an integrated energy system.
6864110B54-B GP344 Basic User Guide.book Page 6 Thursday, March 8, 2007 9:08 PM

7English
BASIC USER GUIDE
Recycling or Disposal of Batteries
Motorola endorses and encourages the recycling of all
re-chargeable batteries. Contact your dealer for further
information.
Charging the Battery
If a battery is new, or its charge level is very low, you
will need to charge the battery before you can use it in
your radio.
Note: Batteries are shipped uncharged from the
factory. New batteries could prematurely
indicate full charge, charge a new battery for
14-16 hrs before initial use.
1. Place the radio with the battery attached, or the
battery alone, in the charger.
2. The charger’s LED indicates the charging
progress.
Battery chargers will charge only the Motorola
authorized batteries listed below; other batteries will
not charge.
Charger LED Status
Red Battery is charging
Green Battery is fully charged
Flashing Red * Battery is unchargeable
Flashing Yellow Charger is getting ready to charge
Flashing Green Battery is 90% charged
*Battery is damaged. Please contact your dealer.
GP344 IP54 Portable Radio Battery List
Part No. Description
JMNN4023_
JMNN4024_
JMNN4025_
Li-Ion, IP54 1000 mAh, 7.5V
High Capacity Li-Ion, IP54 1320mAh. 7.5V
NiMH, IP54 700mAh, 7.5V FM Approved
Note: Do not use IP54 batteries with IP67 radios.
6864110B54-B GP344 Basic User Guide.book Page 7 Thursday, March 8, 2007 9:08 PM

8
English
BASIC USER GUIDE
IP67 water submersible radios MUST be fitted with
Motorola authorized IP67 batteries, listed below, to
ensure proper functionality.
The following label is attached to IP67 batteries:
ACCESSORY INFORMATION

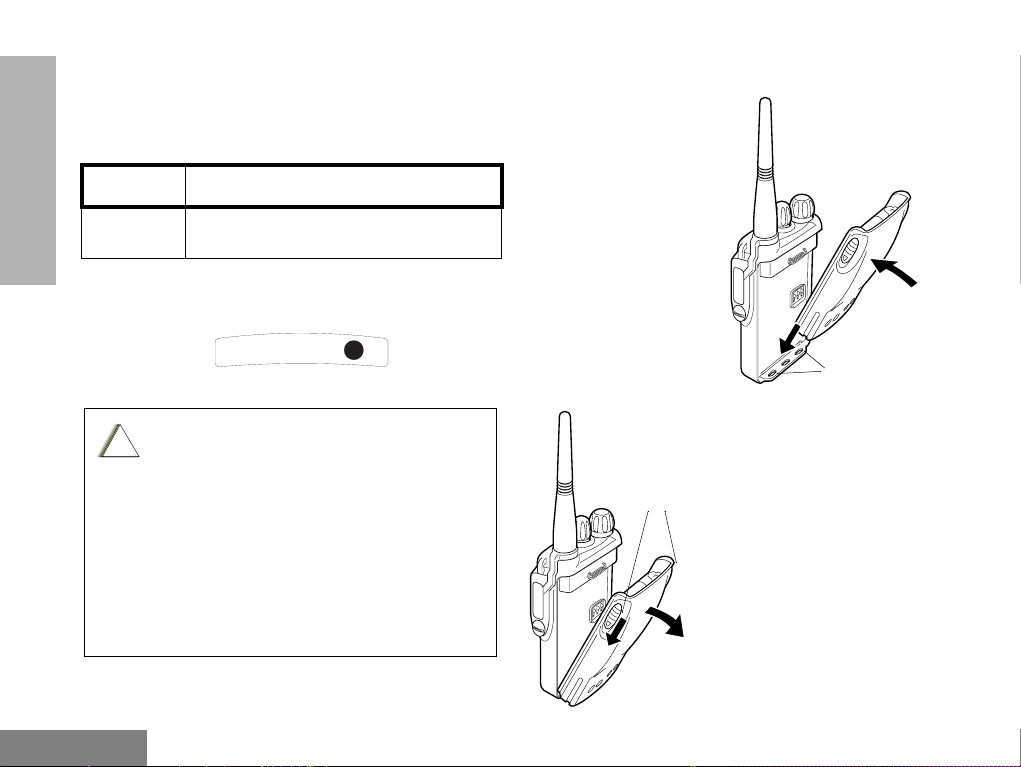

Attaching the Battery
1. Fit the extensions at
the bottom of the bat-
tery into the slots at
the bottom of the
radio’s body.
2. Press the top part of
the battery towards
the radio until you
hear a click.
Removing the Battery
1. Ensure radio is switched
off.
2. Slide the battery latches,
on both sides of the
battery, downwards.
3. Pull the top part of the
battery away from the
radio’s body, and remove
the battery.
GP344R IP67 Portable Radio Battery List
Part No. Description
PMNN4073_
PMNN4074_
Li-Ion, IP67 FM Approved
Li-Ion, IP67
The battery charger is not waterproof.
For your safety and proper operation of the
charger, IP67 radios with battery (or
standalone battery) MUST be dry prior to
placing in the battery charger for charging.
Do NOT operate the charger, when your
hands are wet or while holding a wet IP67
radio/battery. Do NOT touch the battery
contacts, when your hands are wet. Do NOT
put the battery into water, as this may cause
the IP67 metal contacts to corrode.
IP67
!
C a u t i o n
Slots
Battery
Latches
6864110B54-B GP344 Basic User Guide.book Page 8 Thursday, March 8, 2007 9:08 PM

@6864110B54@
6864110B54-B
MOTOROLA and the Stylized M Logo are
registered in the U.S. Patent and Trademark Office.
All other product or service names are the property
of their respective owners.
© 2007 Motorola, Inc.
All rights reserved. March 2007.
www.motorola.com
