1
English
CONTENTS
Product Safety and RF Exposure
for Portable Two-Way Radios . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Control and Functions . . . . . . . . . . . . . . . 4
Package Contents . . . . . . . . . . . . . . . . . . 5
Install the Battery . . . . . . . . . . . . . . . . . . . 5
Battery Level and Low Battery Alert . . . . . 5
Using the Radio . . . . . . . . . . . . . . . . . . . . 5
Turning the Radio on and Adjusting the
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting the Sound (Key Beeps) . . . . . . 6
Talking on Your Radio . . . . . . . . . . . . . . . 6
Navigating through the Menu . . . . . . . . . . 6
Choosing a Channel . . . . . . . . . . . . . . . . . 7
Channel Scan Feature . . . . . . . . . . . . . . . 7
Monitor Mode Feature . . . . . . . . . . . . . . . 8
Transmitting a Call Alert Tone . . . . . . . . . 8
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . 8
Automatic Power Save Feature . . . . . . . . 8
Roger Beep . . . . . . . . . . . . . . . . . . . . . . . 8
Specifications . . . . . . . . . . . . . . . . . . . . . . 9
Frequency Chart . . . . . . . . . . . . . . . . . . . . 9
Warranty Information . . . . . . . . . . . . . . . 10
What is Not Covered by the Warranty . . 10
Copyright Information . . . . . . . . . . . . . . . 11
TLKR_T3.book Page 1 Monday, September 3, 2007 1:56 PM

English
2
Product Safety and
RF Exposure for Portable
Two-Way Radios
ATTENTION!
Before using this product, read the RF energy
awareness information and operating instruc-
tions in the Product Safety and RF Exposure
booklet to ensure compliance with RF energy
exposure limits.
Before using this product, read the
operating instructions for safe
usage contained in the Product
Safety and RF Exposure booklet
enclosed with your radio.
!
C a u t i o n
TLKR_T3.book Page 2 Monday, September 3, 2007 1:56 PM

3
English
Features
• 8 PMR Channels
• Up to 5 km Range*
• Roger Beep
• Battery Level Meter
• Channel Monitor
• Channel Scan
• Keypad Lock
* Range may vary depending on environmental and/or
topographical conditions
Display
1. Volume Indicator
2. Transmit/Receive Indicator
3. Keypad Lock Indicator
4. Scan Indicator
5. Battery Level Meter
6. Channel Indicator
1
2
3
4
6
5
TLKR_T3.book Page 3 Monday, September 3, 2007 1:56 PM

English
4

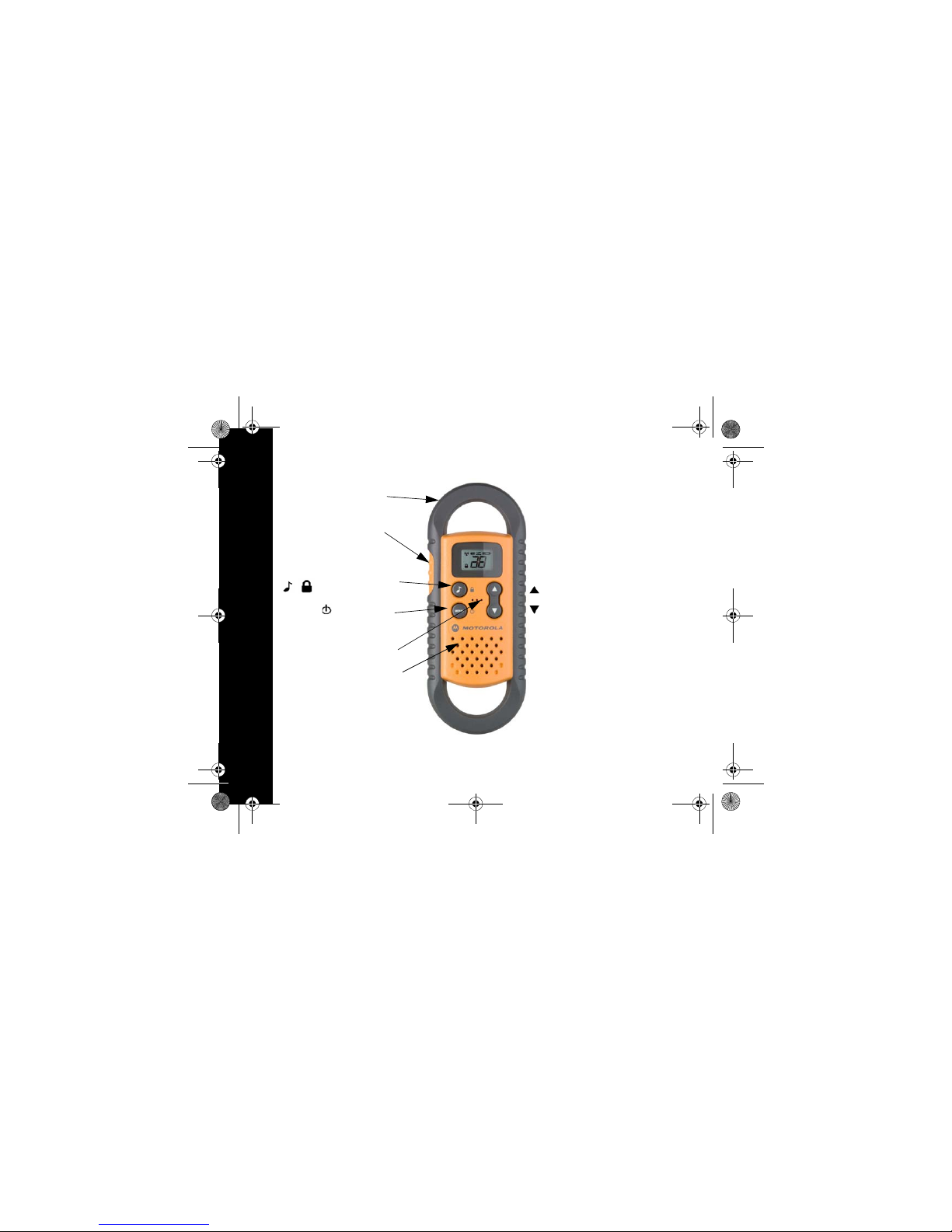

Control and Functions
Antenna
PTT (Push-To-Talk) Key
(Volume/Channel up) Key
Microphone
Speaker
MENU/ (Menu/Power) Key
/ (Call) Key
(Volume/Channel down) Key
* “2” is not displayed on the actual display
TLKR_T3.book Page 4 Monday, September 3, 2007 1:56 PM

5
English
Congratulations on your purchase of the PMR
( P r i v a t e M o b i l e R a d i o ) L o w T i e r r a d i o .
This product is a lightweight, palm-sized radio.
Use it at sporting events to stay in contact with
family and friends, hiking, skiing, outdoors, or in
a neighborhood watch for vital communication.
This compact, state-of-the-art device is
equipped with many features.
Package Contents
Your package contains two TLKR T3 radios,
two belt clips and this reference guide. You may
operate the unit 3 AAA alkaline batteries (not
included).
Install the Battery
Your TLKR T3 radio uses 3 AAA alkaline
batteries (not included). If alkaline batteries are
used, we recommend using high quality
alkaline batteries.
To install the alkaline batteries:
1) Make sure your radio is OFF.
2) Remove the battery compartment door by
pressing on the mark and sliding the
compartment door, and remove the cover.
3) Install the 3 AAA batteries (not included) into
the battery compartment. Be certain to follow
the + and – symbols in the compartment.
Installing the batteries incorrectly will prevent
the unit from operating.
4) Replace the battery compartment door by
sliding the door into place.
Battery Level and Low Battery Alert
This unit has a battery level meter on the dis-
play to indicate the status of the batteries.
When the battery in the unit is low, the battery
level meter icon will flash. Replace the
alkaline batteries immediately.
Using the Radio
In order to get the most out of your new radio,
read this reference guide completely before
attempting to operate the unit.
TLKR_T3.book Page 5 Monday, September 3, 2007 1:56 PM

English
6
Turning the Radio On and Adjusting the
Volume
1. Press and hold the MENU/ key to turn the
radio ON, and increase the volume by
pressing the key. To decrease the
volume, press the key.
2. Press and hold the MENU/ key again to
turn the radio OFF.
Adjusting the Sound (Key Beeps)
Your radio emits a beep each time one of the
keys (except for the PTT key) is pressed.
To turn this sound OFF, press and hold the
key while turning the radio ON. To turn this
sound ON, turn the radio OFF and ON again
without pressing the key.
Talking on Your Radio
To talk to others using the radio:
Press and hold the PTT key and speak in a
clear, normal voice about 5-8 cms away from
the microphone. While you are transmitting, the
icon will appear on the display. To avoid cut-
ting off the first part of your transmission, pause
slightly after pressing the PTT button before
you start talking.
When you have finished speaking, release the
PTT key. You can now receive incoming calls.
While receiving, the icon will appear on the
display.
Navigating through the Menu
To access the advanced features of the PMR
Low Tier, your radio has a Menu function.
1. To enter the Menu, press the MENU/ key.
2. Additional presses of the MENU/ key will
advance you through the Menu until exiting
to "Normal" operating mode.
3. Other methods of exiting the Menu function
are:
a. Press and hold the MENU/ key.
b. Press the PTT key.
c. Wait 10 seconds until the unit automatically
returns to "Normal" mode.
TLKR_T3.book Page 6 Monday, September 3, 2007 1:56 PM

7
English
Choosing a Channel
In order to speak to someone, each of you must
set to the same channel.
To choose a channel:
Enter the Menu. Press the or key to
increase or decrease the channel number
displayed. If you press and hold the or
key, the channel number increase or decrease
continuously.
Press PTT button to select channel.
Channel Scan Feature
Your PMR Low Tier radio has a channel scan
feature that allows you to easily scan all 8
channels. When an active channel is detected,
the radio will pause on that channel until the
channel is clear. Then after a 2 second pause,
the radio will continue scanning. Pressing the
PTT key while the scan is paused on a channel
will allow you to transmit on that channel.
To turn the channel scan ON:
Enter the Mode Menu. Advance through the
menu until icon blinks. Press / key.
To turn the channel scan OFF:
Press the MENU/ or PTT key.
Normal Channel Scan Mode Monitor Mode Normal
Start
Scanning
Start
Monitoring
TLKR_T3.book Page 7 Monday, September 3, 2007 1:56 PM

English
8
Monitor Mode Feature
Your PMR Low Tier radio allows you to listen for
weak signals on the current channel at the
press of a key.
To turn the Monitor Mode ON:
Enter the menu. Advance through the menu
until the icon blinks.
- Press / for continuous listening.
The icon continues to blink.
To turn the Monitor Mode OFF:
Press MENU/ key to return the “Normal”
mode, and the icon stops blinking.
Transmitting a Call Alert Tone
Your TLKR T3 radio is equipped with a call tone
that will be transmitted when the / key is
pressed. To transmit a call tone, tap the /
key. The tone will be transmitted.
Key Lock
To Lock the keypad:
Press and hold the / key. The icon
appears.
To Unlock the keypad:
Press and hold the / key. The icon
disappears.
Automatic Power Save Feature
Your PMR Low Tier radio has a unique circuit
designed to dramatically extended the life of the
batteries. If there is no transmission nor an
incoming call within 3 seconds, your radio
switches to the Power Save mode. The radio is
still able to receive transmissions in this mode.
Roger Beep
Roger Beep is a BEEP that is sent to notify the
end of transmission (PTT transmission). Roger
Beep can be heard through the speaker when
Key Beep is on. Roger Beep is transmitted
even if Key Beep is turned off. However, Roger
Beep will not be heard from the speaker.
