Motorola I670 - Nextel - IDEN Phone User manual

Motorola
iDEN
Digital Multi-service Data-capable Phone
i670 Phone User’s Guide
SIGNOFF DRAFT
@NNTN6806A@
NNTN6806A

IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR PHONE
The SIM card provided in this kit is intended for use with
the phone provided in this package.
Loss of certain features will result when using a SIM
card from one of the following models: i30sx, i35s,
i50sx, i55sr, i58s, i60c, i80s, i85s, i88s, i90c, i95cl
series, and the i2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden/support.
Defects or damage to your Motorola phone that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited One Year warranty located in
this user’s guide for complete details.

i
Contents
Getting Started........................................... 1
Locating Your SIM Card....................................3
Battery...............................................................3
Activating Service..............................................6
Powering On and Off.........................................6
Enabling Over-the-Air Security..........................7
Phone Programming .........................................7
Finding Your Phone Number and Private ID.....7
Phone Basics ....................................................8
SIM Card Security...........................................12
Antenna...........................................................17
Accessories.....................................................17
For More Information.......................................18
Making Calls............................................. 19
Phone Calls.....................................................19
Private Calls....................................................19
Receiving Calls................................................19
Ways to Enter Calls.........................................20
Missed Phone Calls.........................................22
Using Speakerphone.......................................23
Using Mute......................................................23
Making Emergency Phone Calls.....................23
MOTOtalkTM ..............................................25
Channels and Codes.......................................26
Private MOTOtalk Calls...................................28
Making Emergency Calls while in
MOTOtalkTM Mode......................................29
Setup Options .................................................29
Call Alerts..................................................31
Sending Call Alerts..........................................31
Receiving Call Alerts.......................................31
Using the Call Alert Queue..............................31
Recent Calls..............................................33
Calls and Call Alerts........................................33
My Info From Other Phones............................33
Contact Information From Other Phones ........34
Viewing the Recent Calls List..........................34
Storing Items to Contacts................................35
Deleting Items.................................................35
Making Calls From the Recent Calls List ........35

ii
Contacts ................................................... 37
Viewing Contacts.............................................38
Creating Entries...............................................39
Storing Numbers From the Idle Screen...........40
Editing Entries.................................................41
Deleting Entries...............................................41
Checking Capacity ..........................................41
Creating Pauses and Waits.............................42
International Numbers.....................................42
Accessing Contacts with GSM Phones...........43
Call Forwarding........................................ 44
Forwarding All Calls ........................................44
Turning Off Call Forwarding............................45
Forwarding Missed Calls.................................45
Viewing Call Forwarding Settings....................46
Advanced Calling Features..................... 47
Call Waiting.....................................................47
Switching Between Calls.................................47
Putting a Call on Hold......................................48
Calling 2 People..............................................48
Creating Pauses and Waits While Dialing.......49
Making International Calls...............................49
Setting One Touch PTT ..................................49
Setting Flip Actions .........................................50
Call Timers......................................................51
Using Your Phone as a Modem ......................52
Features for the Hearing Impaired ..................53
Group Calls and
Selective Dynamic Group Calls...........56
Group Calls .....................................................56
Selective Dynamic Group (SDG) Calls ...........58
Memo.........................................................63
Ring Tones................................................64
Setting Your Phone to Vibrate.........................64
Ring and Vibrate .............................................65
Assigning Ring Tones to Contacts..................65
Viewing Ring Tone Assignments ....................65
Downloading More Ring Tones.......................66
Managing Memory ..........................................66
Deleting Custom Ring Tones ..........................66

iii
Entering Text............................................ 67
Using Alpha Mode...........................................67
Using Word Mode............................................67
Special Function Keys.....................................68
Using Numeric Mode.......................................69
Using Symbols Mode ......................................69
Messages ................................................. 70
Message Notifications.....................................70
Message Center..............................................71
Voice Mail Messages............................... 72
Receiving a Message......................................72
Accessing Voice Mail from
the Message Center ...................................72
Sending Unanswered Calls to Voice Mail .......72
MOSMS Messages................................... 73
Setting Up........................................................73
Receiving a Message......................................73
Reading from the Message Center .................74
Creating and Sending Messages....................74
Sorting Messages............................................77
Managing Memory...........................................77
My Pictures ...............................................78
Viewing Pictures..............................................78
Getting File Information...................................78
Deleting Pictures.............................................78
Managing Memory ..........................................78
My Info.......................................................79
Viewing My Info...............................................79
Editing My Info ................................................79
Setting Sending Options .................................80
Using Send via PTT..................................81
Sending a Picture............................................81
Receiving a Picture.........................................82
Sending My Info and Contact Information.......83
Datebook...................................................85
Viewing Datebook ...........................................85
Creating Events...............................................86
Editing Events .................................................88
Deleting Events...............................................88
Receiving Reminders......................................89
Making Calls From Datebook..........................89
Customizing Datebook Setup..........................90

iv
Digital Rights Management (DRM)......... 92
Managing Items...............................................92
Java Applications.................................... 94
Installing Applications......................................94
Running Applications.......................................94
Suspending Applications.................................94
Resuming Applications....................................95
Ending Applications.........................................95
Downloading Applications...............................95
Deleting Applications.......................................95
Managing Memory...........................................96
Shortcuts on the Main Menu ...........................96
Java Applications and GPS Enabled...............97
GPS Enabled.......................................... 100
IMPORTANT: Things to Keep in Mind ..........100
Making an Emergency Call ...........................101
Viewing Your Approximate Location .............102
Enhancing GPS Performance.......................103
Updating Satellite Almanac Data...................105
Setting Privacy Options.................................106
Using GPS with Map Software......................107
Voice Records ........................................110
Creating Voice Records ................................110
Playing Voice Records..................................110
Labeling Voice Records ................................110
Deleting Voice Records.................................111
Locking Voice Records .................................111
Managing Memory ........................................111
Customizing Your Phone.......................112
Setting the Volume........................................112
Setting Your Phone to Vibrate.......................112
Changing the Look of Your Phone................112
Airplane Mode—
Temporarily Turning Off Calls...................114
Using Settings...............................................114
Profiles ....................................................119
Viewing Profiles.............................................119
Switching Profiles..........................................119
How Changing Settings Affects Profiles........119
Temporary Profiles........................................120
Creating Profiles............................................121
Editing Profiles ..............................................121

v
Deleting Profiles............................................121
Setting Call Filtering......................................122
Shortcuts................................................ 124
Creating a Shortcut .......................................124
Using a Shortcut............................................124
Editing a Shortcut..........................................125
Deleting Shortcuts.........................................125
Using a Headset..................................... 126
Attaching a Headset......................................126
Using a Remote PTT Button .........................126
Understanding Status Messages......... 127
Safety and General Information ........... 129
RF Operational Characteristics.....................129
Portable Radio Product Operation and
EME Exposure..........................................129
Electromagnetic Interference/Compatibility...132
Medical Devices............................................132
Operational Warnings....................................133
Operational Cautions.....................................134
Accessory Safety Information........................135
Hearing Aid Compatibility .....................137
Caring for the Environment by
Recycling.............................................138
Disposal of your Mobile Telephone and
Accessories ..............................................138
MOTOROLA LIMITED WARRANTY.......139
Patent and Software Provisions....................142
Limited Warranty
Motorola Communication Products
(International)......................................144
Patent and Trademark Information.......148
Index........................................................149
Driving Safety Tips.................................155

vi
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 [phone]
Hereby declares that the product:
Product Name: i670
Model Number: H91XAN6RR4AN
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a),
15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device
complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Note: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.

1
Getting Started
volume
controls
Push-To-Talk (PTT)
button
audio jack
speaker
(in back)
retractable
antenna
microphone
option keys
earpiece internal
display
power
button
back key space key
accessory
connector

2
Getting Started
To start using your i670 phone:
•Make sure your SIM card is in place.
•Charge the battery.
•Activate your service.
•Enable over-the-air security if you are prompted
to.

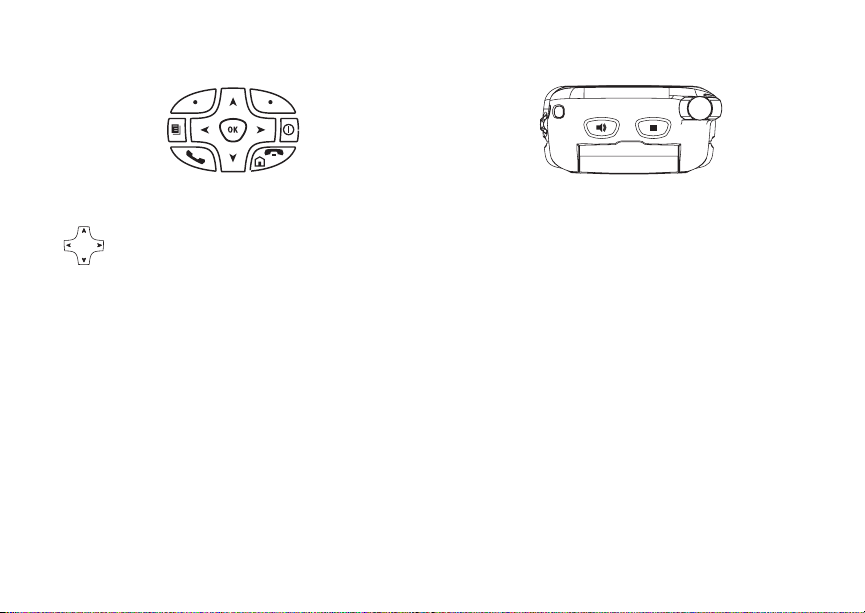

pPower button.
Navigation key — press the arrows to
scroll through menus and lists.
OOK key — selects highlighted item;
answers calls.
mMenu key — accesses context-sensitive
menus.
AOption key — selects the option
appearing above it on the display.
sSend key — places phone calls.
eEnd key — ends phone calls; returns to
idle screen.
tTurns speaker on; used with voice names
and voice records.
.Sends incoming calls to voice mail.

8
Getting Started
• Private — Your Private ID is the number that
others use to contact you using Private calls.
It is filled in when you receive your first Private
call.
•GroupID— the number of the Talkgroup you
have joined.
• Carrier IP — the IP address assigned to your
service provider. It is filled in when you
register for packet data services.
• IP1 Address and IP2 Address — the IP
addresses you use to access the Internet with
your phone.
• Circuit Data— Your circuit data number is the
number you use if you want to use your phone
to transfer circuit data. See “Using Your
Phone as a Modem” on page 52. You receive
this number from your service provider.
Note: The context-sensitive menu under My Info
contains information that may be used by
your service provider if there is a problem
with your phone.
Phone Basics

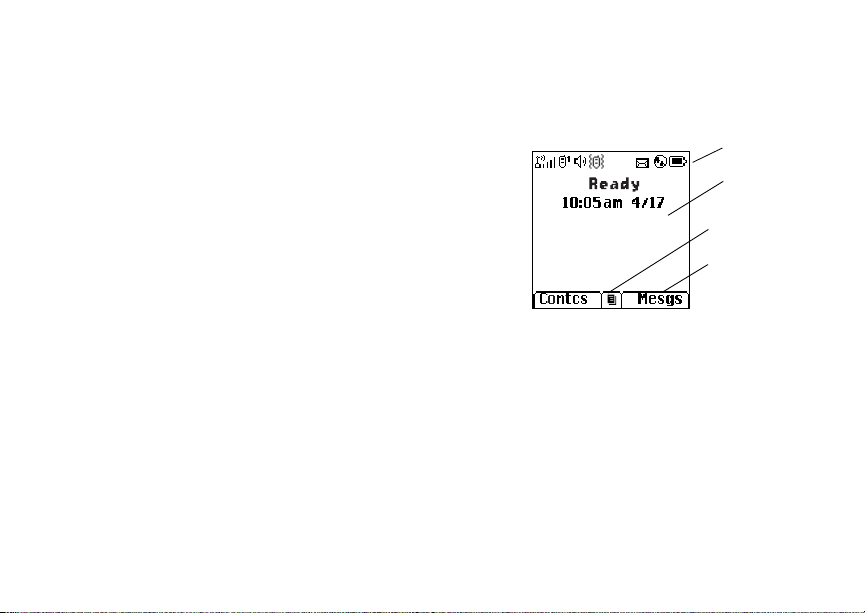

Any time your phone is powered on, the display
provides you with information and options.
The screen shown is the idle screen. The text that
appears on your idle screen depends on your
service provider. The idle screen appears when
your phone is on, but not engaged in any activity.
Text Area
This area displays menus, messages, names,
phone numbers, and other information.
status icons
text area
menu icon
display options

9
Phone Basics
Display Options
Two display options appear at the bottom of most
screens. You select a display option by pressing
the option key below it.
Menus and Lists
Your phone’s features are arranged in menus,
submenus, and lists.
To access the items in a menu or list, scroll using
the navigation key at the top of your keypad. This
key lets you scroll up, down, left, or right. Holding
down the appropriate part of the navigation key
speeds up scrolling.
In this guide, this symbol >tells you to select a
menu or list item. For example, Settings >
Security means:
1Scroll to Settings on the main menu.
2Press Oto see the Settings screen.
3Scroll to Security.
4Press Oto see the Security screen.
Quick Access to Main Menu Items
Each arrow in the navigation key and Ocan be
used to access a main menu item from the idle
screen. Each of these keys is assigned to a main
menu item when you receive your phone. To
assign different main menu items, see “Personalize
Features” on page 116.
OK Key
Pressing O:
•Selects the highlighted menu item or list item
•Sets options
•Confirms actions
•Places and answer calls
Menu Key
Many features provide context-sensitive menus
that let you access related features and actions.
This icon Sappears any time a context-sensitive
menu is available. Press mto access the menu.

10
Getting Started
Main Menu
All your phone’s features can be accessed through
the main menu. You can set the main menu to
appear as a list or as large icons.
aBrowser Browse the Web.
qJava Apps Java applications on your
phone. See page 94.
bSettings Customize your phone. See
page 112.
mRing Tones Assign ring tones and turn
ringer off. See page 64.
[My Pictures Access stored pictures. See
page 78.
cVoiceRecord Record and play audio
messages. See page 110.
jMy Info View personal phone
information, including phone
number and Private ID. See
page 7.
lGPS Find your approximate
geographical location. See
page 100.
dContacts Create, view, store, edit
Contacts and SDG lists. See
page 37.
eMessages Access messages. See
page 70.
fCall Forward Set call forwarding options.
See page 44.
oDatebook Schedule appointments. See
page 85.
gMemo Store a number to access
later. See page 63.
hCall Timers Phone usage information.
See page 51.
iRecent Calls Lists recent calls. See
page 33.
sShortcuts Create shortcuts to screens.
See page 124.
pProfiles Groups of settings you apply
together. See page 119.

11
Phone Basics
Status Icons
Status icons appear at the top of the display. Some
appear at all times. Others appear only when your
phone is engaged in certain activities or when you
have activated certain features.
kCall Alert Lists call alerts. See page 31.
mMOTOtalk/MT
Options Launch/Exit MOTOtalk Access MOTOtalk Setup and
Help. See page 25.
Note: MOTOtalk may not
be offered by your
service provider.
abcd
efgd
Battery Strength — A fuller battery
indicates a greater charge.
opqr
sSignal Strength — More bars next
to the antenna indicate a stronger
signal.
APhone In Use — Your phone is
active on a phone call.
BPrivate In Use — Your phone is
active on a Private call.
CTalkgroup In Use — Your phone is
active on a group call.
SSDG Call In Use— Your phone is
active on a SDG call.
Note: Selective Dynamic Group
Calling (SDGC) may not
be offered by your service
provider.
12Active Phone Line — 1 indicates
phone line 1 is ready to make calls;
2 indicates phone line 2 is ready to
make calls.
mMOTOtalk — Your phone is set to
MOTOtalk mode.
GJ
HK
I
L
Call Forward — Your phone is set
to forward calls. See page 44.
uMQ
Ringer Off — Your phone is set not
to ring. See page 64.
wxT
yz
Messages — You have one or
more messages. See page 70.
DE Internet — You are ready to
browse the internet.

12
Getting Started
SIM Card Security
Your SIM card protects your personal information.
The SIM card stores all your Contacts information.
Since this information is stored on your SIM card,
not in your phone, you can remove the information
by removing your SIM card.
Note: Except for making emergency calls, your
phone will not function without the SIM
card.
To prevent unauthorized use of your phone, your
SIM card may be protected by a PIN that you enter
each time the phone is powered on. You can
change the PIN or turn off the requirement that it
be entered.
Entering the PIN
You may be required to enter a SIM PIN when you
first use your phone.
When you receive your phone, the SIM PIN is
0000. Change your PIN to prevent fraudulent use
of the SIM card.
Important: If you enter your PIN incorrectly 3 times,
your SIM card is blocked. To unblock
your SIM card, you must contact your
service provider. See “Unblocking the
PIN” on page 13.
1When the Enter SIM PIN Code screen appears,
enter your SIM PIN. An asterisk appears for
each character entered.
2Press Aunder Ok.
Changing the PIN
1From the main menu, select Settings >
Security > Change Password > SIM PIN.
2At the Enter Old SIM PIN screen, enter the
current SIM PIN.
UAirplane Mode — Your phone is
set to airplane mode. See
page 114.
YZPacket Data — You are ready to
transfer packet data or are
transferring packet data. See
page 52.
N O TTY — You are ready to use your
phone to make calls using a
teletypewriter device. See page 54.
tRoaming — You are using your
phone outside your carrier's
network.

53
Features for the Hearing Impaired
To use these services, you must install the iDEN
Wireless Data Services software (available
separately). For more information on setting up
your computer and your i670 phone for packet and
circuit data calls, refer to the Wireless Data
Services User’s Guide or contact your service
provider.
Features for the Hearing
Impaired
Using Your Phone With a Hearing Aid
Setting your phone for use with a hearing aid
affects sounds from the phone’s earpiece when
you are in a phone call.
Choosing Your Hearing Air Setting
Note: Your phone may not include this feature.
1From the main menu, select Settings > Phone
Calls > Hearing Aid.
2Set this option to Telecoil. Telecoil coupling is
now optimized. -or-
Set this option to Microphone. Microphone
coupling is now optimized.
If Your Hearing Aid Is Equipped With a Telecoil
Activate the telecoil setting for your behind the ear
hearing aid (BTE). Once the telecoil is activated
your hearing aid will be adjusted for optimum
handset use. When the telecoil is active the
microphone is inactive eliminating any chance of
feedback (squeal). The handset is inductively
coupled directly to your hearing aid enabling clear,
feedback free telephone usage.
Note: Please refer to your hearing aid user
guide to find out if your hearing is
equipped with a telecoil.
Approximate telecoil location is
within 6-13 mm of this location.
Approximate telecoil location,
check hearing aid user guide
for specific location.
Off - Shut off
M - Microphone
T - Telecoil

54
Advanced Calling Features
Optimize Your Handset Orientation
Slide your phone up and down, left and right, then
rotate for the best coupling alignment of the telecoil
in the hearing aid with the telecoil in the phone.
Making TTY Calls
Note: This feature may not be offered by your
service provider.
To use your phone to make phone calls using a
teletypewriter (TTY) device:
1Connect one end of a 2.5mm cable into the
audio jack on your phone. Connect the other
end of the cable to your TTY device.
2Make sure that your phone’s TTY feature is on
and select the TTY mode you want to use.
3Use your phone to enter phone numbers and
make calls.
When you make a TTY call, these icons appear on
the phone’s display:
TTY device features such as Turbo-Code,
High-Speed, and Interruption are not supported by
your phone. These features must be turned off or
disabled to use your TTY device with your phone.
Turning On the TTY Feature
Your phone’s TTY feature must be on if you want
to make TTY calls, set the TTY mode, or change
the TTY baud rate. To make sure the TTY feature
is on:
From the main menu, select Settings > Phone
Calls > TTY > Use TTY. This field must say On.
Choosing a Mode
Your phone supports these TTY modes:
•TTY— You type and read text on your TTY
device.
•VCO(Voice-Carry-Over) — You speak into your
phone and read text replies on your TTY device.
NPhone call is active.
OPhone call is on hold.

55
Features for the Hearing Impaired
• HCO (Hearing-Carry-Over) — You type text on
your TTY device and listen to voice replies on
your phone speaker.
To change mode while not in a call:
1From the main menu, select Settings > Phone
Calls > TTY > Type.
2Select the TTY mode you want.
When you make a TTY call, the call begins in the
TTY mode you last selected.
To change mode during a call using your phone:
1Press m.
2Select In Call Setup > TTY > Type.
3Select the mode you want.
To change mode during a call using your TTY
device, issue one of the following commands:
•“VCO please” — to select VCO mode
•“HCO please” — to select HCO mode
•“HCO off please” — to turn off HCO mode
Important: When you are using HCO, the sound
coming from your phone speaker may
be uncomfortably loud. Use caution
when putting the phone to your ear.
(For information on setting the volume
of your phone speaker, see “Setting the
Volume” on page 112.)
Changing the TTY Baud Rate
By default, your phone’s TTY baud rate is set to
45.45, the baud rate required for TTY calls within
the U.S. To make calls outside the U.S., set your
TTY baud rate to 50.0.
To change the TTY baud rate:
1From the main menu, select Settings > Phone
Calls > TTY > Baud.
2Select the baud rate for your location.
