Motorola APX 4500 User manual

APXTM TWO-WAY RADIOS
INTERACTIVE ENDUSERTOOLKIT(IEUTK)
BERKS COUNTY
APX 4500 MODEL 02

APX 4500 O2 CH
2 NEXT >< PREVCONTENTS
DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola Solutions, Inc.
Address: Motorola Solutions, Inc., 1303 EastAlgonquin Road Schaumburg, IL60196, U.S.A.
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: APX 4500
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.

APX 4500 O2 CH
3 NEXT >< PREVCONTENTS
DECLARATION OF CONFORMITY
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

APX 4500 O2 CH
4 NEXT >< PREVCONTENTS
DECLARATION OF CONFORMITY
Additional FCC Notes to Users
The following FCC information applies to Bluetooth radio options
IC Model Name: PMHN4193A
Description: O2 Bluetooth Option Board
FCC ID: AZ492FT6002
IC: 109U-92FT6002
Conforms to the following regulations: FCC Part 15, Section 15.19, 15.12, and 15.105
Note: Changes or modifications not expressly approved by Motorola may void the users authority, as authorized by the FCC,
to operate this device and should not be made. See 47 CFR Part 15.21. Information to user. The users manual or instruction
manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. See 47 CFR Part. 15.19(3).
This device has been tested and found to comply with the limits of Part 15.15 of the FCC rules. Parties responsible for
equipment compliance should note that the limits specified in this part will not prevent harmful interference under all
circumstances.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. See Part 15.105b These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.

APX 4500 O2 CH
5 NEXT >< PREVCONTENTS
DECLARATION OF CONFORMITY
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Statements:
This Class B digital apparatus complies with ICES-003 and Radio Standards Specification (RSS) 210.

APX 4500 O2 CH
6 NEXT >< PREVCONTENTS
PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE
Before using this product, read the operating instructions for safe usage contained in the Product Safety and
RF Exposure booklet enclosed with your radio.
ATTENTION!
This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements.
Before using this product, read the RF energy awareness information and operating instructions in the Product Safety and RF
Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C99) to ensure compliance with RF
energy exposure limits.
For a list of Motorola-approved antennas and other accessories, visit the following website: http://www.motorola.com/APX

APX 4500 O2 CH
7 NEXT >< PREVCONTENTS
COPYRIGHTS & DISCLAIMER
Computer Software Copyrights
The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor
memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for
copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted
computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in
this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express
written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by
implication, estoppels, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the
normal non-exclusive license to use that arises by operation of law in the sale of a product.
Documentation Copyrights
No duplication or distribution of this document or any portion thereof shall take place without the express written permission of
Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or
mechanical, for any purpose without the express written permission of Motorola.
Disclaimer
The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is
assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve
readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or
circuit described herein; nor does it cover any license under its patent rights, nor the rights of others.

APX 4500 O2 CH
8 NEXT >< PREVCONTENTS
GETTING STARTED
The following special notations identify certain items:
Additional Performance Enhancement
The following are some of the latest creations designed to enhance the security, quality and efficiency of APX radios.
Dynamic System Resilience (DSR)
DSR ensures the radio system is seamlessly switched to a backup master site dynamically in case of system failure. DSR also provides
additional indication e.g. failure detection, fault recovery, and redundancy within the system to address to the user in need. Mechanisms
related to the Integrated Voice and Data (IV & D) or data centric are all supported by DSR.
CrossTalk Prevention
This feature prevents crosstalk scenario from happening, especially when a wideband antenna is used. This feature allows the adjustment
of the Trident Transmitting SSI clock rate in the radio to be varied from the Receiving Frequency. This subsequently reduced the possibilities
of radio frequency interfering spurs and prevents the issues of crosstalk.
Encrypted Integrated Data (EID)
EID provides security encryption and authentication of IV & D data bearer service communication between the radio and the Customer
Enterprise Network.
SecureNet
SecureNet allows user to perform secured communications on an Analog or Motorola Data Communication (MDC) channel.
The MDC OTAR feature will allow users to perform OTAR activities on an MDC channel.
Example Description
Home button or Buttons and keys are shown in bold print or as an icon.
Zone Menu entries are shown similar to the way they appear on the radio’s display.
This means “Press the right side of the 4-way Navigation button.”

APX 4500 O2 CH
9 NEXT >< PREVCONTENTS
O2 Control Head
RADIO PARTS AND CONTROLS
Emergency
Button
Menu Select
Buttons
Up & Down
Buttons
Dimmer
Button Multi-function
Knob
Power Button
Home
Button Bluetooth
Indicator
LED
Indicators
Accessory Port
(Microphone)

APX 4500 O2 CH
10 NEXT >< PREVCONTENTS
Radio Parts and Controls
Push-to-Talk
(PTT) Button
Scan On or Off
Not Programmed
Not Programmed

APX 4500 O2 CH
11 NEXT >< PREVCONTENTS
Radio Parts and Controls
Keypad
Mode Select
0-9
Data Feature Button
Home Button
Navigation Button
Zone Up or Zone Down
Cancel Button ( )
Okay/Select Button ( )
Speaker
PTT Button

APX 4500 O2 CH
12 NEXT >< PREVCONTENTS
Turning on/off the Radio
PREPARING YOUR RADIO FOR USE
Press the Power Button briefly to power on the radio.
After a short time, the red, yellow and green LEDs light up.
The display then shows Zone and channel text, and menu
items display on the screen.
The backlight will turn on to the last selected dim level.
Note:
Pressing the Power Button before the LED lights up will
be ignored.
If FAIL ##/## appears in the display, the radio will not
function until the condition has been corrected.
If ERROR ##/## appears, some non-critical data has been
changed.
If the power-up test is unsuccessful, you see Error XX/YY
(XX/YY is an alphanumeric code).
Turn off the radio, check the battery, and turn the radio
back on. If the radio fails the power-up test again, record
the Error XX/YY code and contact your dealer.
If CH MISMATCH appears, means that either the Control
Head has been connected to an incompatible transceiver,
or vice versa.
If your radio does not power up, contact your dealer.
To turn off the radio, press the Power Button after the LEDs
light up.
Power Button

APX 4500 O2 CH
13 NEXT >< PREVCONTENTS
Validating Compatibility During Power Up
PREPARING YOUR RADIO FOR USE
The radio validates and updates the software and hardware of your control head(s) during power up.
Follow the procedure below when your radio runs this task.
Procedure:
1 The display shows Maintenance mode remote device; promptly followed by other maintenance statuses.
2 The display shows Update done please reset upon completion.
OR
The display shows Update failed please reset when it fails to update.
3 Press the Power Button to reset.
The radio runs the usual power up operation if the software updates are complete.
OR
The radio runs the Maintenance Mode if the updates are not complete and repeat step 1.

APX 4500 O2 CH
14 NEXT >< PREVCONTENTS
Adjusting the Volume
PREPARING YOUR RADIO FOR USE

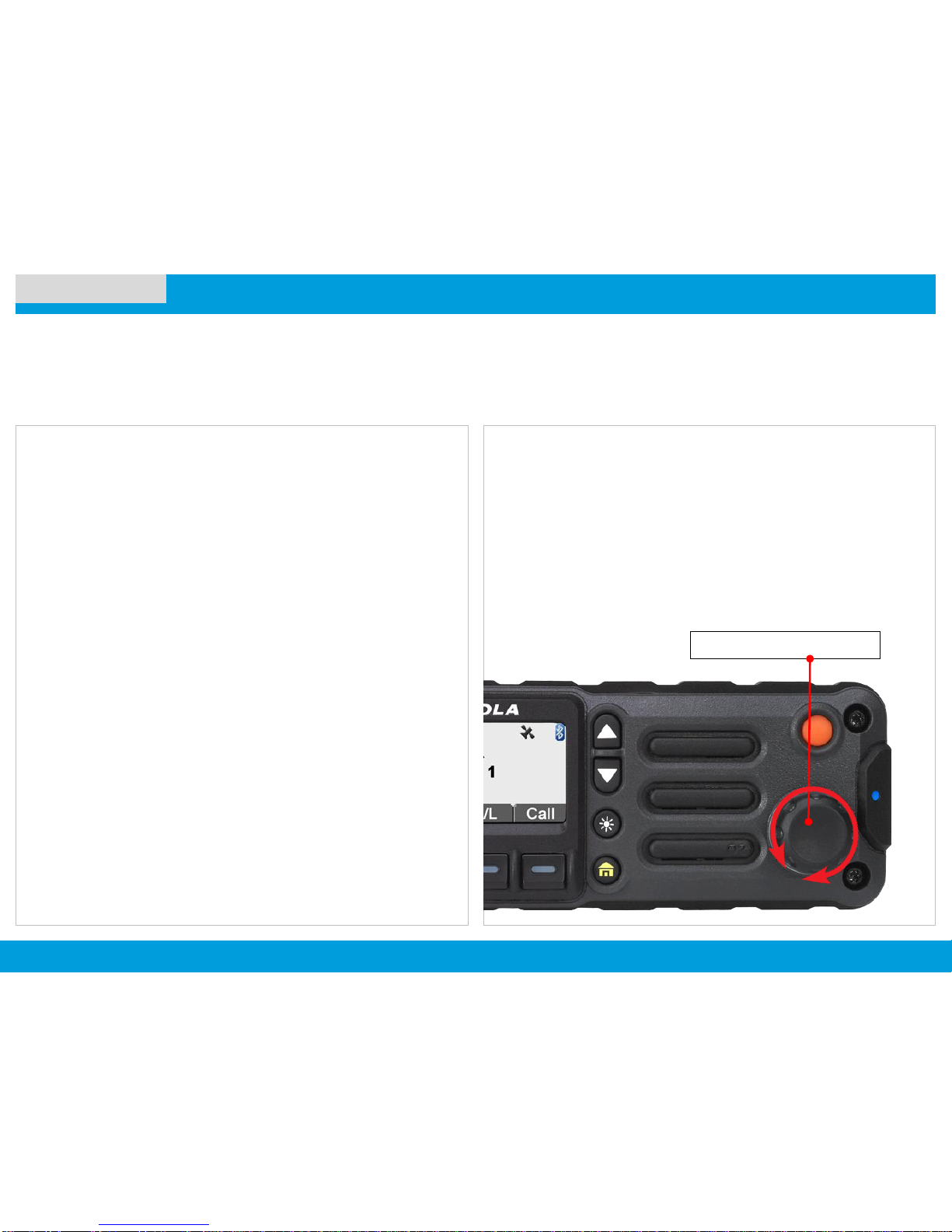

To increase the volume, rotate the Multi-function Knob
(MFK) clockwise.
The display shows volume bars and volume level when you
change the volume.
To decrease the volume, rotate the Multi-function Knob
counterclockwise.
Multi-function Knob (MFK)

APX 4500 O2 CH
15 NEXT >< PREVCONTENTS
Programmable Features
IDENTIFYING RADIO CONTROLS
Any reference in this manual to a control that is
“preprogrammed” means that the control must be
programmed by a dealer or a qualified radio technician using
the radio’s programming software, in order to assign a feature
to that control.
The programmable buttons can be programmed as shortcuts
to radio functions or preset channels/groups depending on
the duration of a button press:
• Press –Pressing and releasing rapidly.
• Long press –Pressing and holding for the programmed
duration (between 0.25 seconds and 3.75 seconds).
• Hold down –Keeping the button pressed.
One Touch Button
Each of the four Menu Select buttons, the Emergency
button and the three Accy buttons on the microphone are
programmable buttons which can be preprogrammed by a
qualified radio technician to a default function which is
activated upon a short press.

APX 4500 O2 CH
16 NEXT >< PREVCONTENTS
Accessing the Preprogrammed Functions
IDENTIFYING RADIO CONTROLS
You can access various radio functions through one of the following ways:
• A short or long press of the relevant programmable buttons.
OR
• Use the Menu Select Buttons ( ).

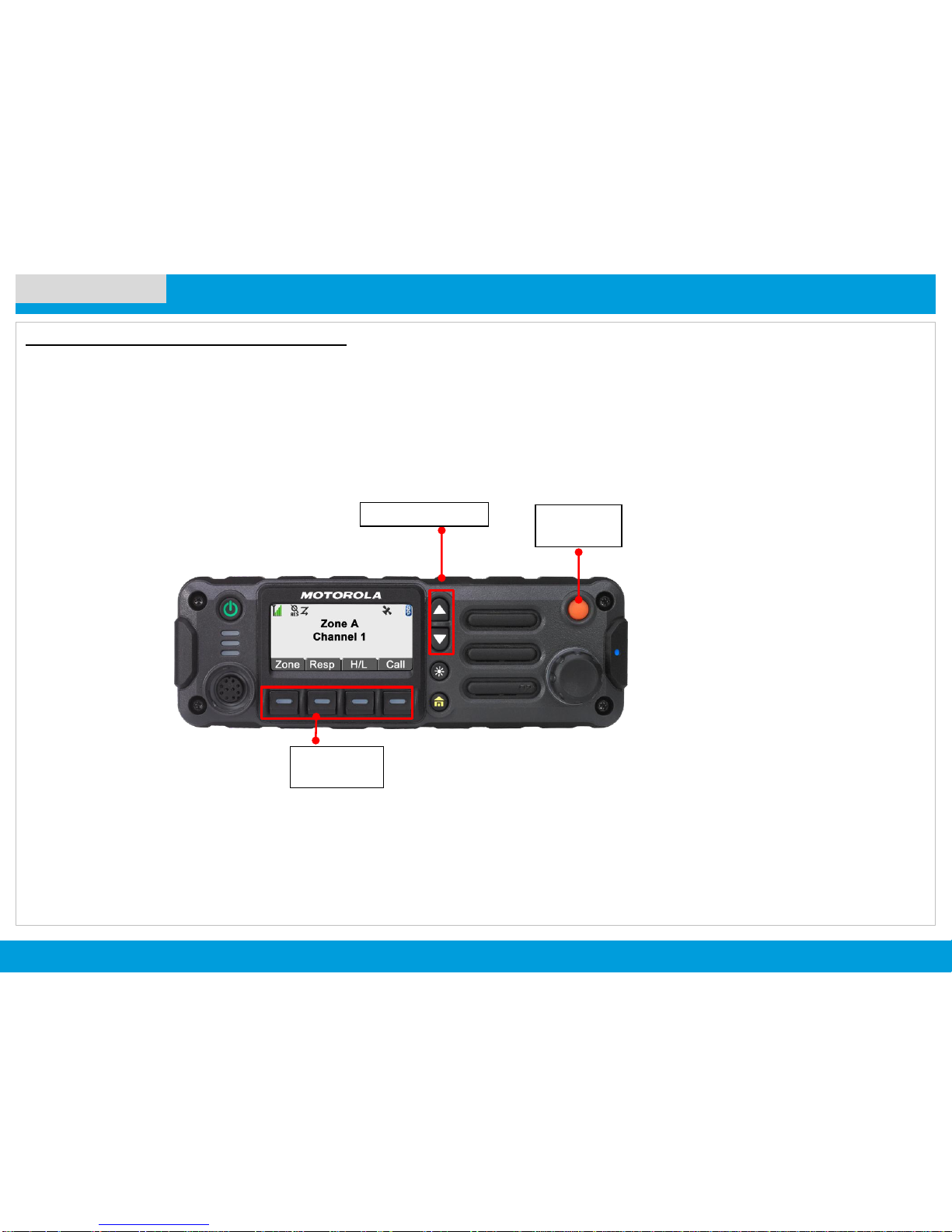

Using the Menu Select Buttons
The Menu Select Buttons allow to access the menu entries of features.
Note: Check with your dealer or system administrator for the list of features activated in your radio.
Your radio may be preprogrammed differently from the following example, but the steps for selecting a zone may appear as
shown below:
• Press the Menu Select button ( ) directly below Zone.

APX 4500 O2 CH
17 NEXT >< PREVCONTENTS
IDENTIFYING RADIO CONTROLS
Using the Advance Programmable Buttons
This feature is to help you to shorten the process of applying certain common features.
(Quick Access) One Touch Button –Enters a menu with a short press on the preprogrammed One Touch button. Features
assigned to these buttons are Call, CallAlert, Phone, RepeaterAccess, MDC RTT ButtonAccess, Status and Message.
Emergency
Button*
Menu Select
Buttons*
* These programmable buttons support the One Touch Button feature.
Up & Down Buttons*

APX 4500 O2 CH
18 NEXT >< PREVCONTENTS
IDENTIFYING RADIO CONTROLS
Using the Navigation Buttons
Home Button
The button returns you to the Home (default) screen. In most cases, this is the current mode.
For selected radio features, the button is also used to save user-edited radio settings or information before returning you to
the Home screen.
Note: Some features do not require you to press to go to the Home screen. Refer to the individual feature sections in this
manual for further details on saving user-edited radio settings or information.
Dimmer Button
Use this button to adjust the brightness of the display.
Long press to toggle between day and night mode.
Up and Down Buttons
By default, the and buttons are used as up and down arrow input. These buttons are programmable.
They can be programmed to navigate through zones, channels and to increase and decrease the volume of the radio.
4-Way Navigation Button (on keypad mic)
Use this button to scroll up , down , left or right .
Press and release one of the button to scroll from one entry to the next one.
Press and hold one of the button to have the radio toggles through the list automatically (release the button to stop).

APX 4500 O2 CH
19 NEXT >< PREVCONTENTS
IDENTIFYING RADIO CONTROLS
Multi-function Knob (MFK)
The MFK button on your radio is programmable to the
following features :
Mode Change –Press the MFK once and turn
clockwise to scroll the channel list.
Volume Change –Turn the MFK clockwise or
counterclockwise to adjust the volume level of the speaker.
The volume level can be adjusted in 16 steps or 32 steps. A
fast turn of the MFK adjusts the volume level in 16 steps with
large
increments in volume level. A slow turn of the MFK adjusts
the volume level in 32 steps with small increments in volume
level.
The display shows the volume level and bars to indicate the
current level. The level of last selected volume when your
radio
powers down remains the same when the radio powers up.
The main display shows the icon of the secondary feature.
The main display does not show the icon of primary feature.
Your radio by default is set to use the primary feature. Short
press the MFK to toggle it to work on either the secondary or
primary feature.
The concentric ring LED on the multi-function knob will blink
in green when the knob is set to secondary feature.
The secondary feature has an inactivity timer. This timer
starts when the secondary feature is idle. The radio returns to
primary
feature when the timer expires.
If the MFK is set to operate only one feature, it is
recommended that it be set to Volume Change.
Consult your dealer or system administrator for the best
option available for MFK.
Multi-function Knob (MFK)

APX 4500 O2 CH
20 NEXT >< PREVCONTENTS
Using the Keypad (on Keypad Mic)
Keypad Characters –Uppercase Mode
IDENTIFYING RADIO CONTROLS
Number of Times Key is Pressed
Key 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
1 . , ? ! ; @ _ - * # & $ / + = \ " ( )
A B C
D E F
G H I
J K L
M N O
P Q R S
T U V
W X Y Z
Toggle between mixed case mode, uppercase mode, and lowercase mode.
Space
Toggle between numeric and letter mode.
