Models RDU2080d, RDV2080d, RDU4160d
Radio models shown are RDU2080d & RDV2080d
User Guide
RDX Series™
Two-Way Radios
BRUS_display.book Page 1 Monday, January 16, 2012 5:28 PM

BRUS_display.book Page 2 Monday, January 16, 2012 5:28 PM

CONTENTS
English
1
CONTENTS
Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Batteries and Chargers
Safety Information. . . . . . . . . . . . . . . . . . . . 6
Operational Safety Guidelines. . . . . . . . . . . . .7
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package Contents. . . . . . . . . . . . . . . . . . . . . .8
FCC Licensing Information . . . . . . . . . . . 10
Interference Information . . . . . . . . . . . . . . . .10
Radio Overview . . . . . . . . . . . . . . . . . . . . .12
Parts of the Radio . . . . . . . . . . . . . . . . . . . . .12
On/Off/Volume Knob. . . . . . . . . . . . . . . .13
Accessory Connector . . . . . . . . . . . . . . .13
Model Label . . . . . . . . . . . . . . . . . . . . . .13
Microphone . . . . . . . . . . . . . . . . . . . . . . .13
Antenna. . . . . . . . . . . . . . . . . . . . . . . . . .13
LED Indicator . . . . . . . . . . . . . . . . . . . . .13
Front Buttons . . . . . . . . . . . . . . . . . . . . . 13
Side Buttons . . . . . . . . . . . . . . . . . . . . . 14
The Lithium-Ion (Li-Ion) Battery . . . . . . . 14
Battery Features. . . . . . . . . . . . . . . . . . . . . . 16
About the Li-Ion Battery . . . . . . . . . . . . . 16
Battery Recycling and Disposal . . . . . . . 17
Installing the Lithium-Ion (Li-Ion) Battery 18
Removing the Lithium-Ion
(Li-Ion) Battery . . . . . . . . . . . . . . . . . . . . 18
Alkaline Battery Pack
(Optional Accessory) . . . . . . . . . . . . . . . 19
Installing Alkaline Batteries . . . . . . . . . . 19
Removing Alkaline Batteries . . . . . . . . . 19
Attaching and Removing Antenna . . . . . 20
Attaching the Antenna . . . . . . . . . . . . . . 20
Removing the Antenna . . . . . . . . . . . . . 20
Installing Spring Action Belt Clip . . . . . . 21
Power Supply, Adaptor
and Drop-in Tray Charger . . . . . . . . . . . 21
Battery Life Information . . . . . . . . . . . . . 22
Alkaline Battery Life . . . . . . . . . . . . . . . . 23
Charging the Battery . . . . . . . . . . . . . . . 25
BRUS_display.book Page 1 Monday, January 16, 2012 5:28 PM

CONTENTS
English 2
Getting Started . . . . . . . . . . . . . . . . . . . . . .32
Turning radio ON/OFF. . . . . . . . . . . . . . . . . .32
Adjusting volume. . . . . . . . . . . . . . . . . . . . . .32
Reading the Display . . . . . . . . . . . . . . . . . . .32
Selecting a Channel . . . . . . . . . . . . . . . . . . .33
Talking and Monitoring . . . . . . . . . . . . . . . . .33
Receiving a Call . . . . . . . . . . . . . . . . . . . . . .33
Signal Strength Indicator and
Channel Busy Indicators. . . . . . . . . . . . .34
Talk Range . . . . . . . . . . . . . . . . . . . . . . . . . .34
Radio LED Indicators . . . . . . . . . . . . . . . . . .36
Hands-Free Use/VOX . . . . . . . . . . . . . . . . . .37
With Compatible VOX Accessories. . . . .37
Hands Free without
Accessories (iVOX). . . . . . . . . . . . . . . . .38
Battery Save . . . . . . . . . . . . . . . . . . . . . .38
Reset to Factory Defaults . . . . . . . . . . . .38
End of Transmission Tone
(Roger Beep Tone) . . . . . . . . . . . . . . . . .39
Keypad Beeps. . . . . . . . . . . . . . . . . . . . .39
Keypad Lock/Unlock . . . . . . . . . . . . . . . .39
MENU Options . . . . . . . . . . . . . . . . . . . .39
Setting VOX / iVOX sensitivity . . . . . . . .40
Programming Features . . . . . . . . . . . . . . . 42
Entering Programming Mode . . . . . . . . . . . . 42
Programming RX (Reception) Frequencies . 43
Programming RX (Reception) Codes
(CTCSS/DPL). . . . . . . . . . . . . . . . . . . . . . . . 44
Programming Scramble . . . . . . . . . . . . . 44
Programming Maximum
Number of Channels . . . . . . . . . . . . . . . . . . 45
Programming Call Tones . . . . . . . . . . . . . . . 46
Programming Microphone Gain Level . . . . . 47
Programming Microphone
Accessory Gain Level . . . . . . . . . . . . . . . . . 47
Other Programming Features . . . . . . . . . . . 48
Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Programming Buttons . . . . . . . . . . . . . . . . . 50
Editing Channel Alias Name . . . . . . . . . . . . 50
Nuisance Channel Delete . . . . . . . . . . . . . . 52
CPS (Computer Programming Software). . . 52
Bandwidth Select . . . . . . . . . . . . . . . . . . 53
Time-Out Timer . . . . . . . . . . . . . . . . . . . 53
Power Select . . . . . . . . . . . . . . . . . . . . . 53
Battery Type Setting . . . . . . . . . . . . . . . 54
Call Tones . . . . . . . . . . . . . . . . . . . . . . . 54
BRUS_display.book Page 2 Monday, January 16, 2012 5:28 PM

CONTENTS
English
3
Scramble. . . . . . . . . . . . . . . . . . . . . . . . .54
Reverse Burst . . . . . . . . . . . . . . . . . . . . .54
Cloning Radios . . . . . . . . . . . . . . . . . . . . . . .54
Cloning with a Multi-Unit
Charger (MUC) . . . . . . . . . . . . . . . . . . . .55
Cloning Radios using the
Radio to Radio (R2R) Cloning
Cable (optional accessory) . . . . . . . . . . .56
Cloning Radios using the CPS
(Computer Programming Software) . . . .58
Repeater Capabilities . . . . . . . . . . . . . . .58
Troubleshooting . . . . . . . . . . . . . . . . . . . . .61
Use and Care . . . . . . . . . . . . . . . . . . . . . . . .65
Frequency and Code Charts . . . . . . . . . . .66
RDX VHF Frequencies Chart . . . . . . . . . . . .66
RDV2080d- VHF Default
Frequencies Chart. . . . . . . . . . . . . . . . . . . . .68
RDX UHF Frequencies Chart . . . . . . . . . . . .69
RDU2080d - UHF Default
Frequencies Chart . . . . . . . . . . . . . . . . . . . . 73
RDU4160d - UHF Default
Frequencies Chart . . . . . . . . . . . . . . . . . . . . 74
CTCSS and PL/DPL Codes . . . . . . . . . . . . . 76
Programming Customized Frequencies
on 4W/5W RDX models . . . . . . . . . . . . . . . . 80
Motorola Limited Warranty for
the United States and Canada . . . . . . . . . 81
Accessories . . . . . . . . . . . . . . . . . . . . . . . . 85
Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Audio Accessories . . . . . . . . . . . . . . . . . . . . 85
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Carry Accessories . . . . . . . . . . . . . . . . . . . . 86
Power Supplies AC Pin Adaptors. . . . . . . . . 86
Software Applications. . . . . . . . . . . . . . . . . . 86
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
BRUS_display.book Page 3 Monday, January 16, 2012 5:28 PM

CONTENTS
English 4
Power Supplies . . . . . . . . . . . . . . . . . . . . . . .87
RDX Series™ Features Summary . . . . . . .88
Programmable Buttons Chart . . . . . . . . . .98
Icons Chart. . . . . . . . . . . . . . . . . . . . . . . . . .99
BRUS_display.book Page 4 Monday, January 16, 2012 5:28 PM

SAFETY
English
5
SAFETY
PRODUCT SAFETY AND RF
EXPOSURE COMPLIANCE
ATTENTION!
This radio is restricted to occupational use only
to satisfy FCC RF energy exposure
requirements.
For a list of Motorola-approved antennas,
batteries, and other accessories, visit the
following website which lists approved
accessories:
www.motorolasolutions.com/RDX
Before using this product,
read the operating
instructions and RF energy
awareness information
contained in the Product
Safety and RF Exposure
booklet enclosed with your
radio.
!
Caution
BRUS_display.book Page 5 Monday, January 16, 2012 5:28 PM

BATTERIES AND CHARGERS
SAFETY INFORMATION
English 6
BATTERIES AND
CHARGERS SAFETY
INFORMATION
This document contains important safety and
operating instructions. Read these instructions
carefully and save them for future reference.
Before using the battery charger, read all the
instructions and cautionary markings on
• the charger,
• the battery, and
• the radio using the battery.
1. To reduce risk of injury, charge only the
rechargeable Motorola-authorized batteries.
Other batteries may explode, causing personal
injury and damage.
2. Use of accessories not recommended by
Motorola may result in risk of fire, electric
shock, or injury.
3. To reduce risk of damage to the electric plug
and cord, pull by the plug rather than the cord
when disconnecting the charger.
4. An extension cord should not be used unless
absolutely necessary. Use of an improper
extension cord could result in risk of fire and
electric shock. If an extension cord must be
used, make sure that the cord size is 18AWG
for lengths up to 6.5 feet (2.0 m), and 16AWG
for lengths up to 9.8 feet (3.0 m).
5. To reduce risk of fire, electric shock, or injury, do
not operate the charger if it has been broken or
damaged in any way. Take it to a qualified
Motorola service representative.
6. Do not disassemble the charger; it is not
repairable and replacement parts are not
available. Disassembly of the charger may
result in risk of electrical shock or fire.
7. To reduce risk of electric shock, unplug the
charger from the AC outlet before attempting
any maintenance or cleaning.
BRUS_display.book Page 6 Monday, January 16, 2012 5:28 PM

BATTERIES AND CHARGERS
SAFETY INFORMATION
English
7
OPERATIONAL SAFETY
GUIDELINES
• Turn the radio OFF when charging battery.
• The charger is not suitable for outdoor use. Use
only in dry locations/conditions.
• Connect charger only to an appropriately fused
and wired supply of the correct voltage (as
specified on the product).
• Disconnect charger from line voltage by removing
main plug.
• The outlet to which this equipment is connected
should be nearby and easily accessible.
• Maximum ambient temperature around the power
supply equipment must not exceed 40°C (104°F).
• Power output from the power supply unit must not
exceed the ratings stated on the product label
located at the bottom of the charger.
BRUS_display.book Page 7 Monday, January 16, 2012 5:28 PM

INTRODUCTION
English 8
INTRODUCTION
Thank you for purchasing the Motorola RDX
Series™ Radio. This radio is a product of
Motorola's 75 plus years of experience as a
world leader in the designing and
manufacturing of communications equipment.
The RDX Series™ radios provide cost-effective
communications for businesses such as retail
stores, restaurants, schools, construction sites,
manufacturing, property and hotel
management and more. Motorola Business
two-way radios are the perfect communications
solution for all of today's fast-paced industries.
Note: Read this user guide carefully to ensure you
know how to properly operate the radio
before use.
Business Radios,
RPSD 1C15, Motorola
8000 West Sunrise Boulevard
Plantation, Florida 33322
PACKAGE CONTENTS
• Radio
• Antenna (only for RDU4160d)
• Spring Action Belt-Clip
• Lithium-Ion Battery
• Power Supply
• User Guide
• Warranty Card
• Drop-in Tray Charger
• Product Safety & RF Exposure Booklet
BRUS_display.book Page 8 Monday, January 16, 2012 5:28 PM

INTRODUCTION
English
9
For a copy of a large-print version of this user
guide or for product-related questions, contact:
1-800-448-6686 in the USA
1-800-461-4575 in Canada
1-866-522-5210 on your TTY (Text
Telephone)
For product information visit us at:
www.motorolasolutions.com/RDX
BRUS_display.book Page 9 Monday, January 16, 2012 5:28 PM

FCC LICENSING
INFORMATION
English 10
FCC LICENSING
INFORMATION
INTERFERENCE INFORMATION
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful
interference.
RDX Series™ Business two-way radios
operate on radio frequencies that are regulated
by the Federal Communications Commission
(FCC). To transmit on these frequencies, you
are required to have a license issued by the
FCC. Application is made available on FCC
Form 601 and Schedules D, H, and Remittance
Form 159.
To obtain these FCC forms, request document
000601 which includes all forms and
instructions. If you wish to have the document
faxed, mailed or have questions, use the
following contact information.
Faxed contact the
Fax-On- Demand
system at:
Mailed call the FCC forms hotline at: Questions regarding FCC
license contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676 1-888-CALL-FCC 1-888-225-5322
Or: http://www.fcc.gov
BRUS_display.book Page 10 Monday, January 16, 2012 5:28 PM

FCC LICENSING
INFORMATION
English
11
Before filling out your application, you must
decide which frequency(ies) you can operate
on. See “Frequencies and Code Charts”. For
questions on determining the radio frequency,
call Motorola Product Services at:
1-800-448-6686
Changes or modifications not expressly
approved by Motorola may void the user’s
authority granted by the FCC to operate this
radio and should not be made. To comply with
FCC requirements, transmitter adjustments
should be made only by or under the
supervision of a person certified as technically
qualified to perform transmitter maintenance
and repairs in the private land mobile and fixed
services as certified by an organization
representative of the user of those services.
Replacement of any transmitter component
(crystal, semiconductor, etc.) not authorized by
the FCC equipment authorization for this radio
could violate FCC rules.
Use of this radio outside the country where it
was intended to be distributed is subject to
government regulations and may be prohibited.
BRUS_display.book Page 11 Monday, January 16, 2012 5:28 PM

RADIO OVERVIEW
English 12
RADIO OVERVIEW
PARTS OF THE RADIO
On/Off/
Volume
Knob
Antenna
Microphone
LED Indicator
Accessory
Connector
Model Label
Use and to scroll up/
down through channels and
menu setting
Front Buttons
PTT (Push-to-Tal
Button
SB1 –Monitor
Button
SB2 – Nuisance
Channel Delete
Lithium-Ion
Battery
Use ‘Menu’ button to
lock keypad
BRUS_display.book Page 12 Monday, January 16, 2012 5:28 PM

RADIO OVERVIEW
English
13
On/Off/Volume Knob
Used to turn the radio ON or OFF and to adjust
the radio’s volume.
Accessory Connector
Used to connect compatible audio accessories.
Model Label
Indicates the model of the radio.
Microphone
Speaks clearly into the microphone when
sending a message.
Antenna
For Models RDU2080d and RDV2080d, the
antennas are non-removable antenna. For
RDU4160d, the antenna is removable.
LED Indicator
Used to give battery status, power-up status,
radio call information and scan status.

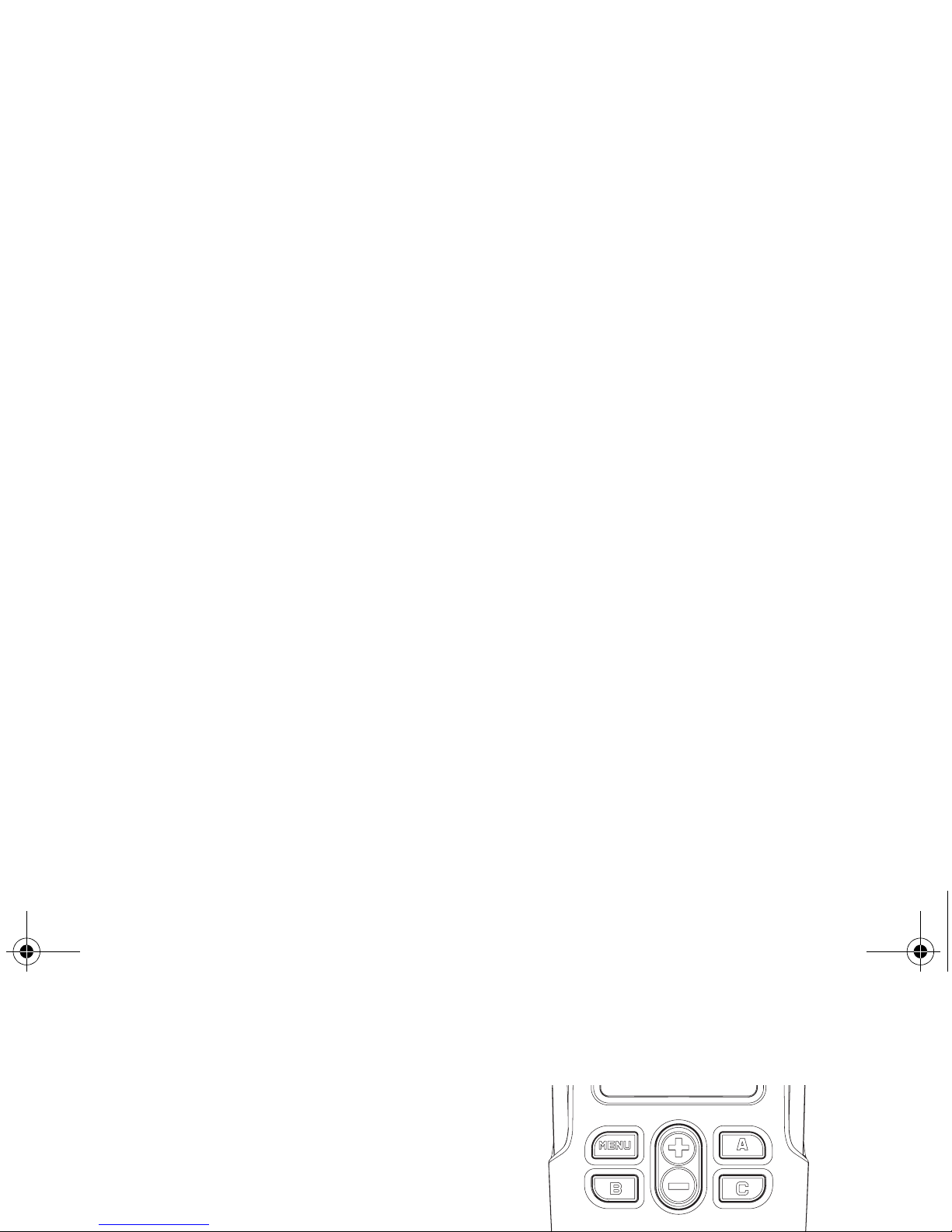

Front Buttons
•Button
This button give you access to set up features
like VOX/ iVOX levels, battery type, etc. It also
allows you to move through all the features
while in Programming Mode.
• Toggle up / down buttons
Allows you to change channels and to scroll up/
down menu options or set up programming
values. These buttons are not programmable
buttons.
MENU
BRUS_display.book Page 13 Monday, January 16, 2012 5:28 PM

RADIO OVERVIEW
English 14
•Programmable Button
Configured as Preset Channel 1.
•Programmable Button
Configured as Preset Channel 2.
•Programmable Button
Configured as Tx Power Selection.
Note: A short press of either preset button (A or B)
tunes the radio to the preset channel and
the radio will play a good chirp. You can
assign different functions to these buttons
via the CPS. For example: Backlight Time
Out, Reverse Burst, Power Select, Scan/
Nuisance Channel Delete, Monitor and Call
Tones. To learn more about how to program
these buttons refer to “Entering
Programming Mode” on page 42 and “CPS
(Computer Programming Software)” on
page 52.
Side Buttons
Push-to-Talk (PTT) Button
Press and hold down this button to talk, release
it to listen.
Side Button 1 (SB1)
The Side Button 1 is a general button that can
be configured by the CPS. The default setting
of the SB1 button is ‘Monitor’.
Side Button 2 (SB2)
The Side Button 2 is a general button that can
be configured by the CPS. The SB2 button
default setting is ‘Scan/Nuisance Channel
Delete’.
The Lithium-Ion (Li-Ion) Battery
RDX Series™ provides different types of
batteries. For more information, see “Battery
Features” on page 16.
A
B
C
BRUS_display.book Page 14 Monday, January 16, 2012 5:28 PM

RADIO OVERVIEW
English
15
This User Guide covers multiple RDX Series™
models, and may detail some features your
radio does not have. The radio’s model is
shown on the front of the radio, underneath the
speaker, and tells you the following information:
Model Frequency
Band
Transmit
Power (Watts)
Number of
Channels Antenna
RDV2080d VHF 2 8 Non-removable
RDU2080d UHF 2 8 Non-removable
RDU4160d UHF 416 Removable
BRUS_display.book Page 15 Monday, January 16, 2012 5:28 PM

RADIO OVERVIEW
English 16
BATTERY FEATURES
RDX Series™ radios provide Lithium-Ion
batteries that come in different capacities that
will define the battery life. It also offers the
option to use Alkaline batteries.
About the Li-Ion Battery
The RDX Series™ radio comes equipped with
a rechargeable Li-Ion battery. This battery
should be charged before initial use to ensure
optimum capacity and performance.
Battery life is determined by several factors.
Among the more critical are the regular
overcharge of batteries and the average depth
of discharge with each cycle. Typically, the
greater the overcharge and the deeper the
average discharge, the fewer cycles a battery
will last. For example, a battery which is
overcharged and discharged 100% several
times a day, lasts fewer cycles than a battery
that receives less of an overcharge and is
discharged to 50% per day. Further, a battery
which receives minimal overcharging and
averages only 25% discharge, lasts even
longer.
Motorola batteries are designed specifically to
be used with a Motorola charger and vice
versa. Charging in non-Motorola equipment
may lead to battery damage and void the
battery warranty. The battery should be at
about 77°F (25°C) (room temperature),
whenever possible. Charging a cold battery
(below 50° F [10°C]) may result in leakage of
electrolyte and ultimately in failure of the
battery. Charging a hot battery (above 95°F
[35°C]) results in reduced discharge capacity,
affecting the performance of the radio.
Motorola rapid-rate battery chargers contain a
temperature-sensing circuit to ensure that
batteries are charged within the temperature
limits stated above.
BRUS_display.book Page 16 Monday, January 16, 2012 5:28 PM

RADIO OVERVIEW
English
17
Battery Recycling and Disposal
Li-Ion rechargeable batteries can be recycled.
However, recycling facilities may not be
available in all areas. Under various U.S. state
laws and the laws of several other countries,
batteries must be recycled and cannot be
disposed of in landfills or incinerators. Contact
your local waste management agency for
specific requirements and information in your
area. Motorola fully endorses and encourages
the recycling of Li-Ion batteries. In the U.S. and
Canada, Motorola participates in the
nationwide Rechargeable Battery Recycling
Corporation (RBRC) program for Li-Ion battery
collection and recycling.
Many retailers and dealers participate in this
program. For the location of the drop-off facility
closest to you, access RBRC's Internet web
site at:
www.rbrc.com
or call:
1-800-8-BATTERY
This internet site and telephone number also
provides other useful information concerning
recycling options for consumers, businesses
and governmental agencies.
BRUS_display.book Page 17 Monday, January 16, 2012 5:28 PM

RADIO OVERVIEW
English 18

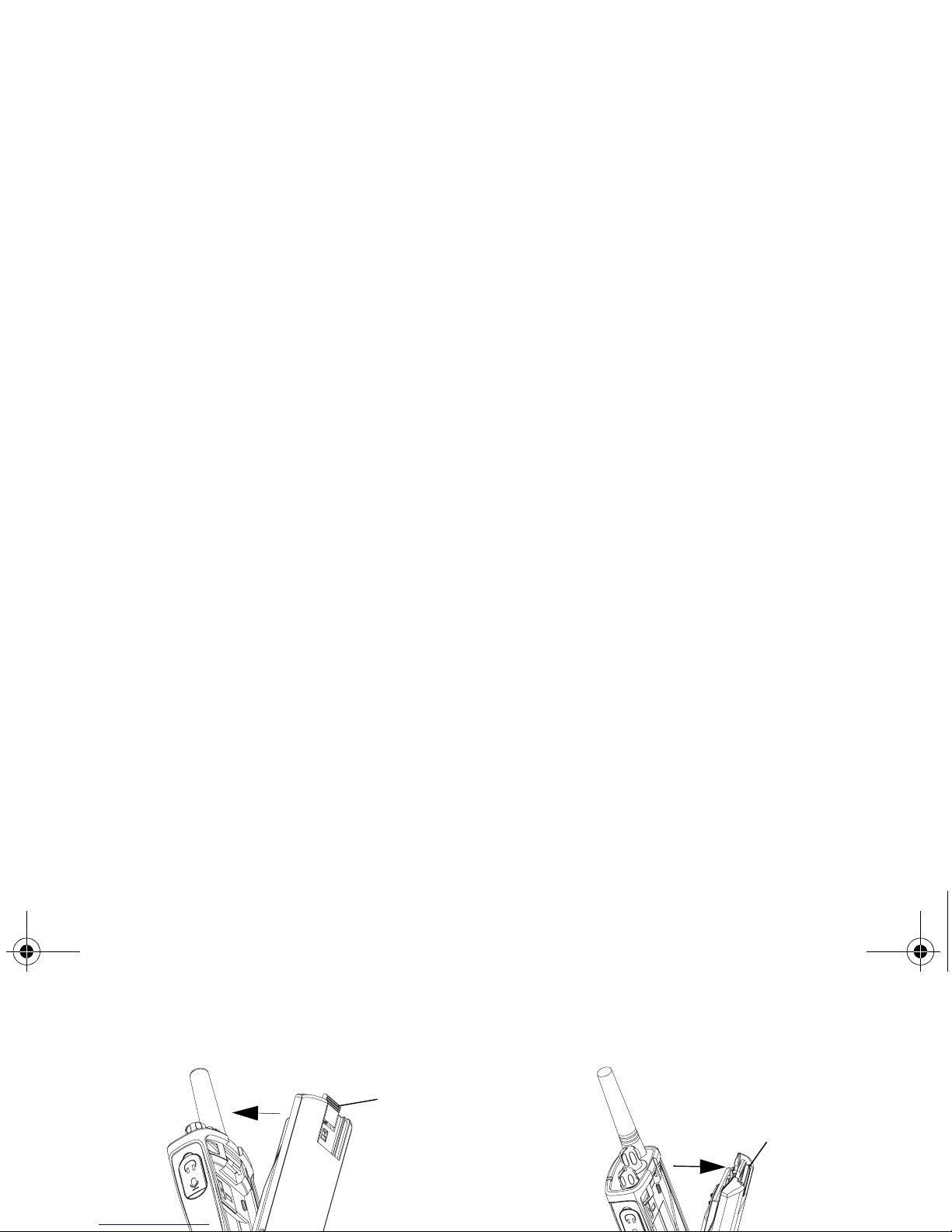

Installing the Lithium-Ion (Li-Ion) Battery
1. Turn OFF the radio.
2. With the Motorola logo side up on the battery
pack, fit the tabs at the bottom of the battery
into the slots at the bottom of the radio’s body.
3. Press the top part of the battery towards the
radio until a click is heard.
Note: To learn about the Li-Ion Battery Life
features, refer to “About the Li-Ion Battery”
on page 16.
Removing the Lithium-Ion (Li-Ion) Battery
1. Turn OFF the radio.
2. Push down the battery latch and hold it
depressed while removing the battery.
3. Pull the battery away from the radio.
Battery
Latch
slots
Battery
Latch
BRUS_display.book Page 18 Monday, January 16, 2012 5:28 PM
