Motrona DX020 User manual

Operating Manual
motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. [phone], Fax [phone], [email protected], www.motrona.com
DX020

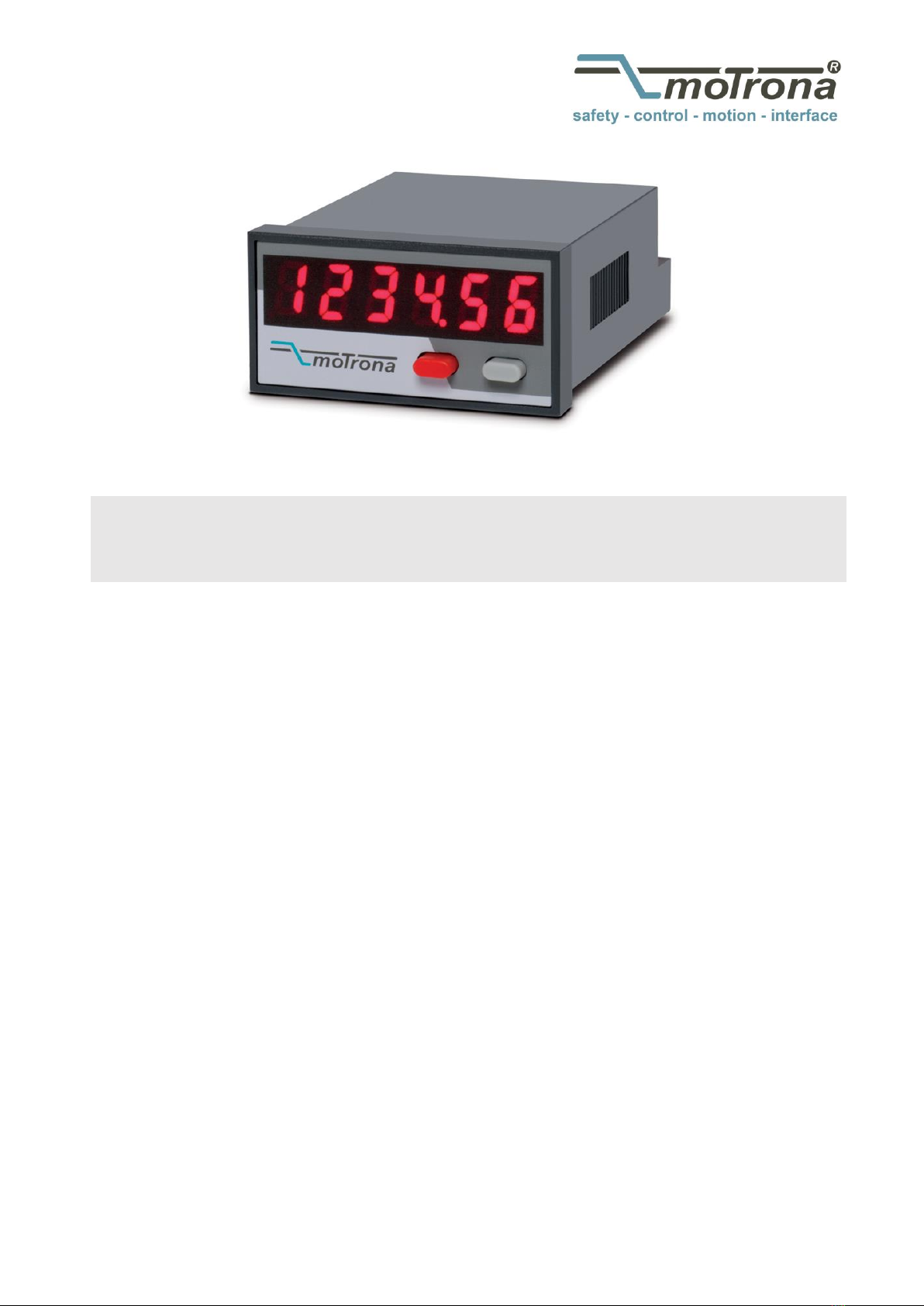

Miniature Tachometer and Frequency Counter
Product features:
Small housing dimensions of 48 x 24 mm (1.890 x 0.945’’)
Bright LED display 6 decades/ 8mm (0.315’’)
Add-on frame for 50 x 25 mm (1.969 x 0.984’’)
10 to 30 VDC power supply
60 kHz of counting frequency with 24 VDC power input
Selectable filter for mechanical inputs
Adjustable multiplier and divider
Protection class IP65 on front
Easy to set up by menu support

Dx020_02d_oi_e.doc / Apr-16 Page 2 / 10
Version:
Description:
DX02001b/K/hk/Jan02
Valid for models until August, 2006
DX02002a/K/hk/Dec06
60 kHz, divider, brochure A5 format
DX02002b/hk/Aug07
Modification of temperature range
Dx020_02c_oi/ag/July15
- “Chapter 2.”updated (setup procedure has been changed)
- “Safety instructions”and “Legal Notices”supplemented
- “Technical Specifications”updated
Dx020_02d_oi/ag
Correction of the temperature range
Legal notices:
All contents included in this manual are protected by the terms of use and copyrights of motrona GmbH. Any
reproduction, modification, usage or publication in other electronic and printed media as well as in the internet
requires prior written authorization by motrona GmbH.
Table of Contents
1. Safety Instructions and Responsibility ......................................................... 3
1.1. General Safety Instructions...................................................................................3
1.2. Use according to the intended purpose ................................................................3
1.3. Installation.............................................................................................................4
1.4. Cleaning, Maintenance and Service Notes...........................................................4
2. Front Key Operation..................................................................................... 5
2.1. Enter the Setup Mode ...........................................................................................5
2.2. Parameter Settings................................................................................................5
3. Operational parameters ............................................................................... 6
3.1. Input polarity .........................................................................................................6
3.2. Input filter..............................................................................................................6
3.3. Scaling factors.......................................................................................................6
3.4. Decimal point ........................................................................................................6
3.5. Display mode.........................................................................................................7
3.6. Maximum waiting time .........................................................................................7
3.7. End of program ......................................................................................................7
4. Terminal Assignment................................................................................... 8
5. Delivery includes ......................................................................................... 8
6. Technical Specifications .............................................................................. 9
7. Dimensions................................................................................................ 10
7.1. Mounting without use of add-on frames ............................................................10
7.2. Bezel 50 x 25 mm (1.969 x 0.984’’) for clip mounting .........................................10
7.3. Bezel 50 x 25 mm (1.969 x 0.984’’) for screw mounting .....................................10

Dx020_02d_oi_e.doc / Apr-16 Page 3 / 10
1. Safety Instructions and Responsibility
1.1. General Safety Instructions
This operation manual is a significant component of the unit and includes important rules and
hints about the installation, function and usage. Non-observance can result in damage and/or
impairment of the functions to the unit or the machine or even in injury to persons using the
equipment!
Please read the following instructions carefully before operating the device and observe all
safety and warning instructions! Keep the manual for later use.
A pertinent qualification of the respective staff is a fundamental requirement in order to use
these manual. The unit must be installed, connected and put into operation by a qualified
electrician.
Liability exclusion: The manufacturer is not liable for personal injury and/or damage to property
and for consequential damage, due to incorrect handling, installation and operation. Further
claims, due to errors in the operation manual as well as misinterpretations are excluded from
liability.
In addition the manufacturer reserve the right to modify the hardware, software or operation
manual at any time and without prior notice. Therefore, there might be minor differences
between the unit and the descriptions in operation manual.
The raiser respectively positioner is exclusively responsible for the safety of the system and
equipment where the unit will be integrated.
During installation or maintenance all general and also all country- and application-specific
safety rules and standards must be observed.
If the device is used in processes, where a failure or faulty operation could damage the system
or injure persons, appropriate precautions to avoid such consequences must be taken.
1.2. Use according to the intended purpose
The unit is intended exclusively for use in industrial machines, constructions and systems. Non-
conforming usage does not correspond to the provisions and lies within the sole responsibility
of the user. The manufacturer is not liable for damages which has arisen through unsuitable
and improper use.
Please note that device may only be installed in proper form and used in a technically perfect
condition (in accordance to the Technical Specifications, see chapter 6).
The device is not suitable for operation in explosion-proof areas or areas which are excluded by
the EN 61010-1 standard.

Dx020_02d_oi_e.doc / Apr-16 Page 4 / 10
1.3. Installation
The device is only allowed to be installed and operated within the permissible temperature
range. Please ensure an adequate ventilation and avoid all direct contact between the device
and hot or aggressive gases and liquids.
Before installation or maintenance, the unit must be disconnected from all voltage-sources.
Further it must be ensured that no danger can arise by touching the disconnected voltage-
sources.
Devices which are supplied by AC-voltages, must be connected exclusively by switches,
respectively circuit-breakers with the low voltage network. The switch or circuit-breaker must
be placed as near as possible to the device and further indicated as separator.
Incoming as well as outgoing wires and wires for extra low voltages (ELV) must be separated
from dangerous electrical cables (SELV circuits) by using a double resp. increased isolation.
All selected wires and isolations must be conform to the provided voltage- and temperature-
ranges. Further all country- and application-specific standards, which are relevant for structure,
form and quality of the wires, must be ensured. Indications about the permissible wire cross-
sections for wiring are described in the Technical Specifications (see chapter 6).
Before first start-up it must be ensured that all connections and wires are firmly seated and
secured in the screw terminals. All (inclusively unused) terminals must be fastened by turning
the relevant screws clockwise up to the stop.
Overvoltages at the connections must be limited to values in accordance to the overvoltage
category II.
For placement, wiring, environmental conditions as well as shielding and earthing/grounding of
the supply lines the general standards of industrial automation industry and the specific
shielding instructions of the manufacturer are valid.
Please find all respective hints and rules on www.motrona.com/download.html
--> “[General EMC Rules for Wiring, Screening and Earthing]”.
1.4. Cleaning, Maintenance and Service Notes
To clean the front of the unit please use only a slightly damp (not wet!), soft cloth. For the rear
no cleaning is necessary. For an unscheduled, individual cleaning of the rear the maintenance
staff or assembler is self-responsible.
During normal operation no maintenance is necessary. In case of unexpected problems, failures
or malfunctions the device must be shipped for back to the manufacturer for checking,
adjustment and reparation (if necessary). Unauthorized opening and repairing can have
negative effects or failures to the protection-measures of the unit.

Dx020_02d_oi_e.doc / Apr-16 Page 5 / 10
2. Front Key Operation
2.1. Enter the Setup Mode
There are two different ways to enter the setup mode:
a) keep both front keys pressed when powering on
b) keep both front keys pressed for 5 seconds, if the power is already on
2.2. Parameter Settings
With an activated setup mode, the display shows:
After releasing the keys, the display shows:
In order to cancel the setup hold the left key pressed and additionally press the right one
By pressing the right key, the display changes to:
To jump into the first parameter, hold the left key pressed and additionally press the right one
After releasing the keys, the display alternates between the parameter title and the setting of
the parameter. After pressing any key, only the parameter value for setting is displayed.
Press the right key, to jump into the next parameter.
For numerical inputs select the decade with the left key and change the value by the right one
To jump into the next parameter, hold the left key pressed and additionally press the right one
After reaching the last menu item “Endpro“, two selections can be done:
„Yes“: will store all new entries, before the unit automatically switches to normal operation.
„No“: will repeat the setup routine. The latest values will remain without saving and can be
checked or modified before they are permanently stored.

Dx020_02d_oi_e.doc / Apr-16 Page 6 / 10
3. Operational parameters
Please enter all of the subsequent parameters, like shown in section 2.

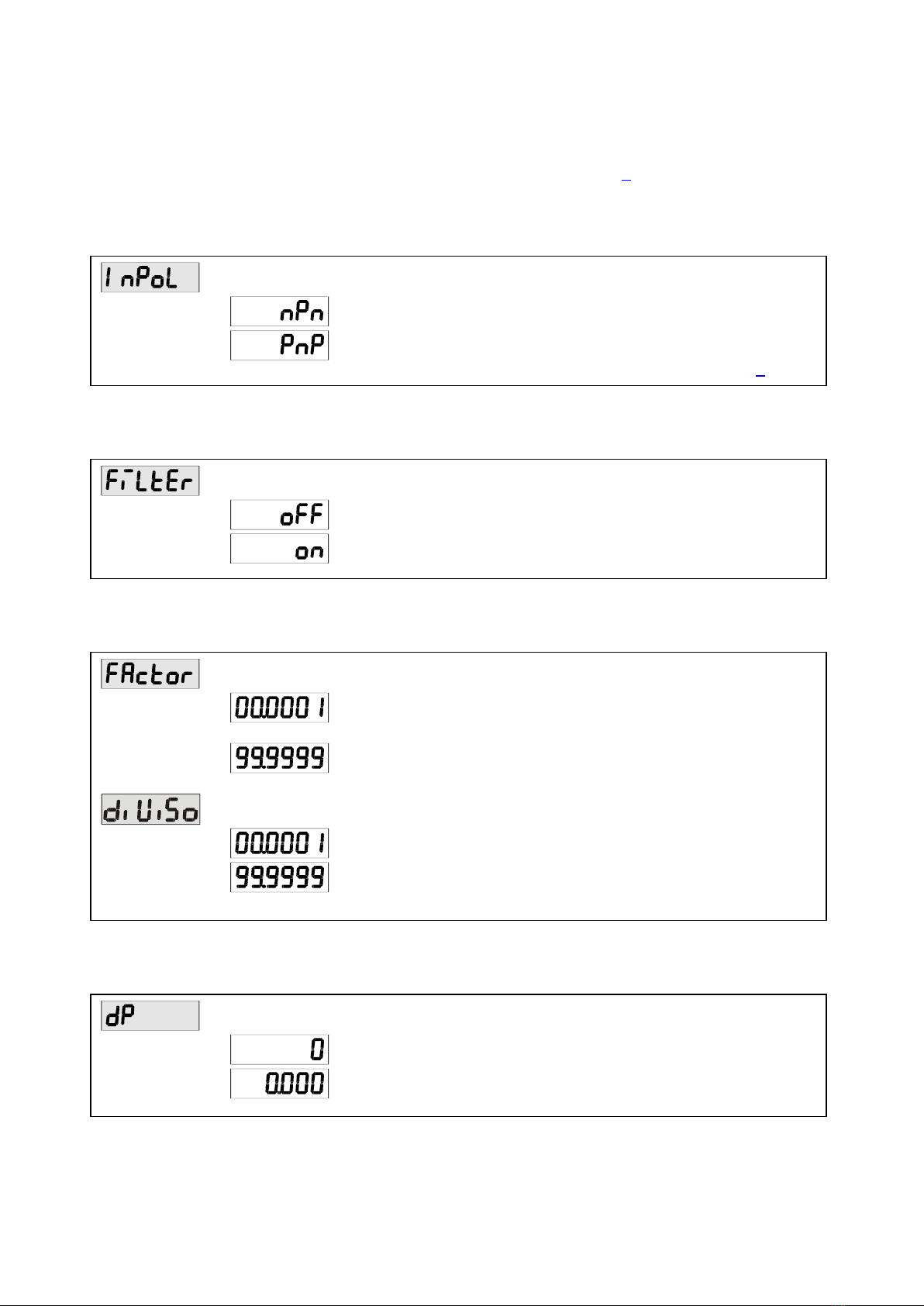

3.1. Input polarity
InPol
nPn
NPN: The count input must switch to“0“
PnP
PNP: The count input must switch to “+“.
Namur: Set to NPN. Learn more in section 4.
3.2. Input filter
Filter
oFF
Filter off: maximum input frequency 60 kHz
On
Filter on: maximum input frequency 30 Hz
3.3. Scaling factors
Factor
00.0001
Multiplies the input frequency with the factor
setting.
99.9999
Range 0.0001 to 99.9999.
Setting “0“ will not be accepted.
Divider
00.0001
Divides the input frequency by the divider setting.
99.9999
Setting range 0.0001 to 99.9999.
Setting “0“ will not be accepted.
3.4. Decimal point
dP
0
Adjustable between no decimal position and max.
3 decimal positions. This setting does not affect
the numeric value of the frequency display.
0.000

Dx020_02d_oi_e.doc / Apr-16 Page 7 / 10
3.5. Display mode

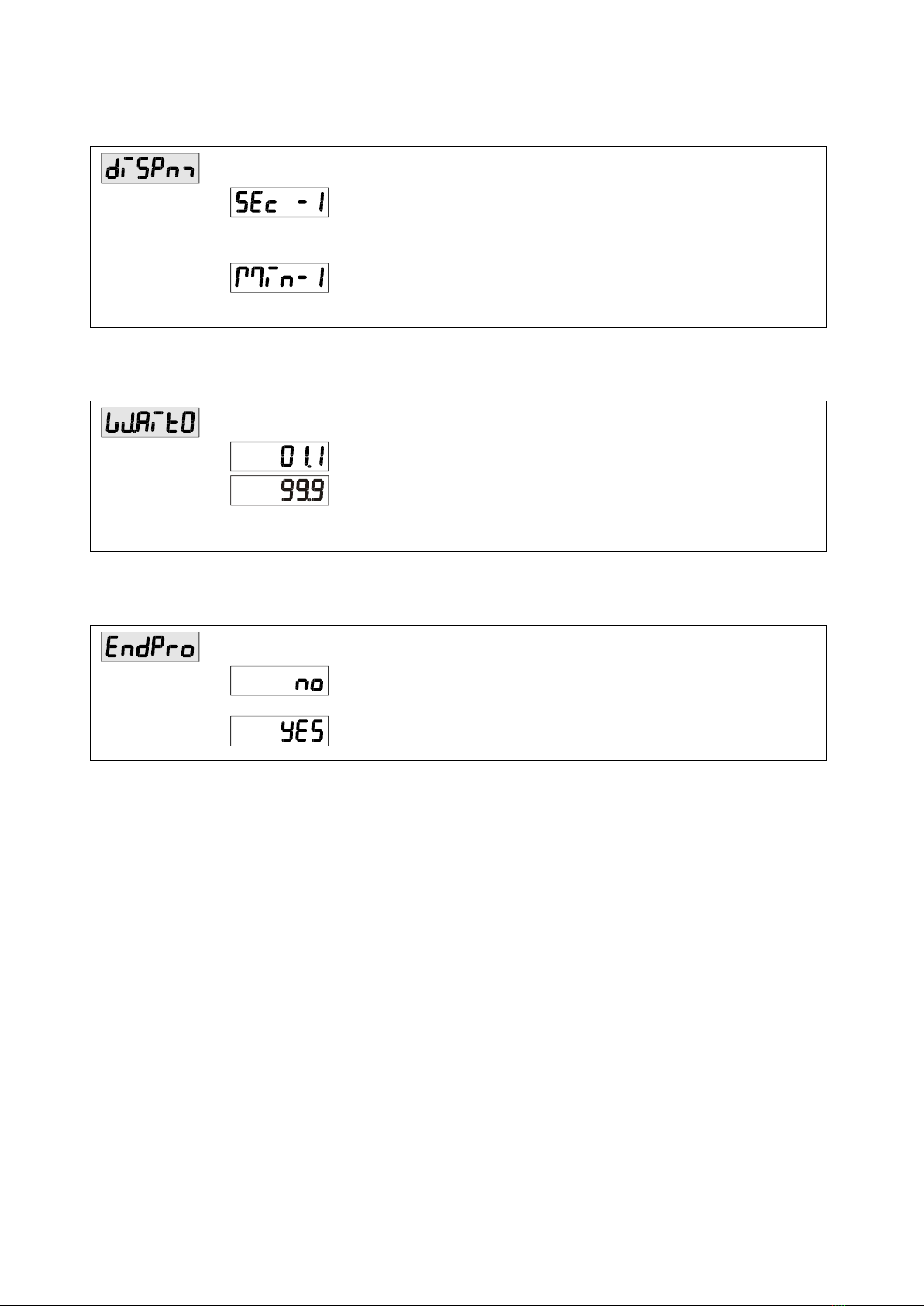

diSPm
Sec -1
The unit displays the frequency as number of
impulses per second (Hz). (With factor setting
1.0000)
Min -1
The unit displays the frequency as number of
impulses per minute. (With factor setting 1.0000).
3.6. Maximum waiting time
WAit0
01.1
This setting specifies the maximum waiting time
from one input impulse to the next, before the
display sets to zero.
Range 1.1 sec to 99.9 sec
99.9
3.7. End of program
EndPro
No
Select “No“ to return to the beginning of the menu
for verification of settings.
YES
Select “Yes“ to store data and exit the menu.

Dx020_02d_oi_e.doc / Apr-16 Page 8 / 10
4. Terminal Assignment
(also printed to the top of the unit)
+10...30VDC *
0V (GND)
Input
NC
1 2 3 4 5
NC +-
( Namur )
*With use of Namur sensors,
the minimum supply voltage
is 18 Volts.
5. Delivery includes
Panel mounting clip
Bezel for screw mount with panel cut out 50 x 25mm
Bezel for clip mount with panel cut out 50 x 25mm
Sealing

Dx020_02d_oi_e.doc / Apr-16 Page 9 / 10
6. Technical Specifications
Power supply:
Input voltage:
Protection circuit:
Consumption:
10 … 30 VDC
reverse polarity protection
max. 50 mA
Connections:
Type of connection
screw terminal, 1.5 mm² / AWG 16
Inkremental-Eingang:
Characteristic:
Channels:
Signal levels:
Pulse form:
Internal resistance:
Input frequency:
NPN / PNP / Namur
single track
LOW = 0 V.....0.2 x UB, HIGH = 0.6 x UB...30V
arbitrary (Schmitt-Trigger)
Ri ≈10 kOhm
max. 20 kHz with 12 V power supply
max. 60 kHz with 24 V power supply
max. 30 Hz with activated filter
Accuracy:
Measurement error:
< 0.1 %
Power down memory:
Data retention:
Storage Cycles:
10 years (EEPROM)
106
Display:
Type:
Digit height:
Range:
6 digit LED, red
8 mm / 0.3149 inch
0 … 999999
Housing:
Material:
Mounting:
Dimensions:
Miscellaneous:
Protection class:
Weight:
plastic
panel
cut out (w x h):
45 x 22 mm / 1.772 x 0.866 inch
outer dimensions (w x h x d):
48 x 24 x 59 mm / 1.889 x 0.9449 x 2.323 inch
additional bezels for clip or screw
mounting are included in the delivery
front: IP 65 / rear: IP20
approx. 50 g
Ambient temperature:
Operation:
Storage:
-20°... + 55° C / -4° ... 131° F (not condensing)
-25°... + 70° C / -13° ... 158° F (not condensing)
Conformity & standards:
EMC 2004/108/EC:
RoHS 2011/65/EU:
EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
EN 50581

Dx020_02d_oi_e.doc / Apr-16 Page 10 / 10
7. Dimensions
7.1. Mounting without use of add-on frames
7.2. Bezel 50 x 25 mm (1.969 x 0.984’’) for clip mounting
7.3. Bezel 50 x 25 mm (1.969 x 0.984’’) for screw mounting
max. 19.3
4,0 (0.157’’)
6,5 (0.256’’)
59,0 (2.323’’)
22 x45
48,0 (1.890’’)
24,0 (.945’ ’)
22,2 (+0,3)
45,0 (+0,6)
1.772’’ (+ 0.024 )
0.874’’ (+ 0.012)
max. 0.7 6’’
25 ,0 x 50,0
53,0 (2.087’’)
26,0 (1.024’’)
1,0 (0 .039’’)
4,0 (0 .157’’)
25,0 +0,5
50,0 +0,6
(0.984 x 1.969 ’’)
(1.969 +0.024’’)
0.984 +0.020 ’’
56,0 (2.205’’)
32,0 (1.260’’)
M3
40,0 (1.575’’)
32,0 + 0,1
25,0 x 50,0
1,0 (0.039’’)
4,0 (0.157’ ’)
(0.984 x 1.969’’)
25,0 +0,5
0.984 +0.020’’
50,0 +0,6
(1.969 +0.0 24’’)
(1.260 +0 .004)
M3
A= Senkung Af3, DIN 74
Counterbore Af3, DIN 74
A
A
