Chapter 1 Introduction
The W300 series is a line of wireless RISC-based embedded computers that features 802.11a/b/g
WLAN, RS-232/422/485 serial ports, and an Ethernet port in a small, rugged chassis. In addition,
all models feature an SD slot, and the W341 features two USB 2.0 hosts and one relay output
channel.
Your W300 series embedded computer is ideal for diverse, machine-to-machine embedded
applications. It enables wireless operation for traditionally wired networks and serial devices. The
W300 series not only provides transparent data transfers, but also numeric computing, protocol
conversion, data processing and even data encryption. You will find it easier to build embedded
systems for distributed peer-to-peer communication, turn wired devices into wireless devices, and
introduce higher mobility and more intelligence to your system. In this chapter, you will learn
about the capabilities of this embedded computer.
This chapter covers the following topics:
Overview
Package Checklist
Product Features
Product Hardware Specifications
Hardware Block Diagram
¾W311
¾W321
¾W341

W311/321/341 Hardware User’s Manual Introduction
Overview
The W300 Series wireless embedded computer is designed around the Moxa ARTARM9 32-bit
RISC processor. Unlike the X86 CPU, which uses a CISC design, the Moxa ARTARM9 uses
RISC architecture and modern semiconductor technology to provide a powerful computing engine
without generating significant heat. The processor also integrates UART and LAN functions to
provide exceptional communication performance, but without the bus bandwidth limitations
associated with general ARM-based communication products.
On-board NOR Flash ROM and SDRAM provides ample storage capacity, and for select models,
the SD slot gives applications extra room to expand. The built-in WLAN function supports the
802.11a/b/g standard, providing transmission security with WEP, WPA and WPA2. The backup
LAN port not only provides an alternative solution for networking but also supports Ethernet
clients, allowing any network device to plug in and connect to the WLAN. The built-in
RS-232/422/485 serial ports support a wide range of serial devices, making this platform suitable
for data acquisition and protocol conversion applications.
The Linux-based operating system comes pre-installed and ready to run, providing an open
platform for software development. Software written for desktop PCs can easily be ported to
W300 Series embedded computers by using a common complier, so little time is spent modifying
existing software code. In addition, the operating system, device drivers, and user-developed
software can all be stored in the built-in flash memory.
Package Checklist
The W300 Series includes the following models:
W311-LX
A small, RISC-based, ready-to-run, wireless embedded computer with WLAN, one serial port,
Ethernet, SD slot, and Linux OS
W321-LX
A small, RISC-based, ready-to-run, wireless embedded computer with WLAN, two serial ports,
Ethernet, SD slot, and Linux OS
W341-LX
A RISC-based, ready-to-run, wireless embedded computer with WLAN, four serial ports, Ethernet,
SD slot, USB port, relay output, and Linux OS
Each model is shipped with the following items:
yW300 Series wireless embedded computer
yQuick Installation Guide
yDocumentation & Software CD
y100 cm RJ45-to-RJ45 Ethernet cross-over cable
y100 cm console port cable (CBL-4PINDB9F-100)
yUniversal PowerAdaptor
yProduct Warranty Statement
Optional Accessories
y35 mm DIN-rail mounting kit (DK-35A)
NOTE: Notify your sales representative if any of the above items are missing or damaged.
1-2

W311/321/341 Hardware User’s Manual Introduction
Product Features
W300 Series computers have the following features:
yMoxa ART 32-bit ARM9 industrial communication processor
y32 MB on-board RAM (64 MB for W341)
y16 MB built-in flash memory
y802.11a/b/g Wireless LAN
yWEP, WPA and WPA2 encryption
yInfrastructure mode andAd-Hoc mode
yRS-232/422/485 serial ports with software selectable interface
yBaudrates between 50 and 921.6 Kbps; supports non-standard baudrates
y10/100M Ethernet for backup networking
ySD card slot for storage expansion
yWithstands 5G continuous vibration and 50G shock
yLED indicators for status, serial transmission, and wireless signal strength
yReady-to-run Linux platform
yInstallation on DIN-rail or wall
yFanless design for increased ruggedness
Product Hardware Specifications
System
CPU Moxa ART ARM9 32-bit RISC CPU, 192 MHz
DRAM W311: 32 MB W321: 32 MB W341: 64 MB
Flash W311: 16 MB W321: 16 MB W341: 64 MB
Storage Expansion W311: SD slot x 1 W321: SD slot ×1 W341: SD slot ×1
USB W341: USB 2.0 host ×2
Relay Output Form C, SPDT ×1
Normal switching: 2A @ 30 VDC
Capacity: 60W max.
Switching power: 220 VDC max.
Switching voltage: 2A max.
Switch current: 4 ms @ 20°C
Operation time: 100 Mohm max.
Initial contact resistance:
Console Port RS-232 ×1 (TxD, RxD, GND), 4-pin header output, “115200, n, 8, 1”
Button Reset button ×1, supports “Reset to Factory Default”
Others RTC, buzzer, Watchdog Timer
OS Built-in Embedded Linux with MMU support, based on Linux Kemel
2.6
1-3

W311/321/341 Hardware User’s Manual Introduction
WLAN Communication
Standard Compliance 802.11a/b/g
Radio Frequency Type DSSS, CCK, OFDM
Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)
Modulation 802.11a/g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11b: DSSS
(DBPSK, DQPSK, CCK)
Transmission Power
(Typical)
5.15 to 5.35 GHz: 15 dBm @6 Mbps; 12 dBm @54 Mbps
5.725 to 5.825 GHz: 15 dBm @6 Mbps; 12 dBm @54 Mbps
USA: 2.412 to 2.462 GHz (IEEE802.11g): 19 dBm @6 Mbps;
EU: 2.412 to 2.472 GHz 17 dBm @54Mbps
2.412 to 2.462 GHz (IEEE802.11b): 18 dBm@ 1 to 11 Mbps
Receiver Sensitivity
(Typical)
5.15 to 5.35 GHz: 6 Mbps @ -90 dBm; 54 Mbps @ -72 dBm
5.47 to 5.725 GHz: 6 Mbps @ -90 dBm; 54 Mbps @ -72 dBm
5.725 to 5.825 GHz: 6 Mbps @ -89 dBm; 54 Mbps @ -72 dBm
USA: 2.412 to 2.462 GHz (IEEE802.11g): 6 Mbps @ -90 dBm;
EU: 2.412 to 2.472 GHz 54 Mbps @ -73 dBm
USA: 2.412 to 2.462 GHz (IEEE802.11b): 11 Mbps @ -87 dBm;
EU: 2.412 to 2.472 GHz 1 Mbps @ -94 dBm
Transmission Rate 54 Mbps with auto fallback (54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1
Mbps)
802.11b supported rates: 1, 2, 5.5, 11 Mbps
802.11a/g supported rates: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmission Distance 100 meters at 11 Mbps (with no obstructions)
Security WEP 64-bit/128-bit, WPA, WPA2 data encryption
Antenna Connector Reverse SMA
Antenna External 2 dBi dipole antenna
WLAN Mode Infrastructure, Ad-Hoc
Network Communication
LAN 10/100 Mbps RJ45 × 1, auto-sensing
Protection 1.5 KV built-in magnetic isolation protection
Serial Communication
Serial Port W311: RS-232/422/485 DB9 male × 1
W321: RS-232/422/485 DB9 male × 2
W341: RS-232/422/485 DB9 male × 4
Protection 15 KV built-in ESD protection for all signals
Data bits 5, 6, 7, 8
Stop bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF, RS-485 ADDC™
Speed 50 bps to 921.6 Kbps; supports non-standard baudrates
LEDs
System Ready, SD activity
WLAN Enable, signal strength
1-4

W311/321/341 Hardware User’s Manual Introduction
LAN 10 M/Link, 100 M/Link (RJ45 connector)
Serial TxD, RxD
Power Requirements
Power Input 12 to 48 VDC
Power Consumption W311: 400 mA @ 12 VDC
W321: 400 mA @ 12 VDC
W341: 600 mA @ 12 VDC with no USB devices attached
1.2A @ 12 VDC with USB devices on each port at max spec
500 mA @ 5 VDC
Mechanical
Dimension
(W ×D ×H) (without wall mount ear or antenna) W311: 77 ×111 ×26 mm
W321: 77 ×111 ×26 mm
W341: 150 ×100 ×38 mm
Antenna 110 mm
Construction Material W311: aluminum, 1 mm
W321: aluminum, 1 mm
W341: aluminum, 1 mm / SECC, 1 mm for rear panel
Mounting DIN-rail, wall
Environmental
Operating Temperature -10 to 60°C (14 to 140°F), 5 to 95% RH
Storage Temperature -20 to 80°C (-4 to 176°F), 5 to 95% RH
Regulatory Approvals
EMC FCC, CE (Class A)
Safety TUV, UL, cUL
Others RoHS, CRoHS, WEEE
Warranty 5 years
1-5

W311/321/341 Hardware User’s Manual Introduction

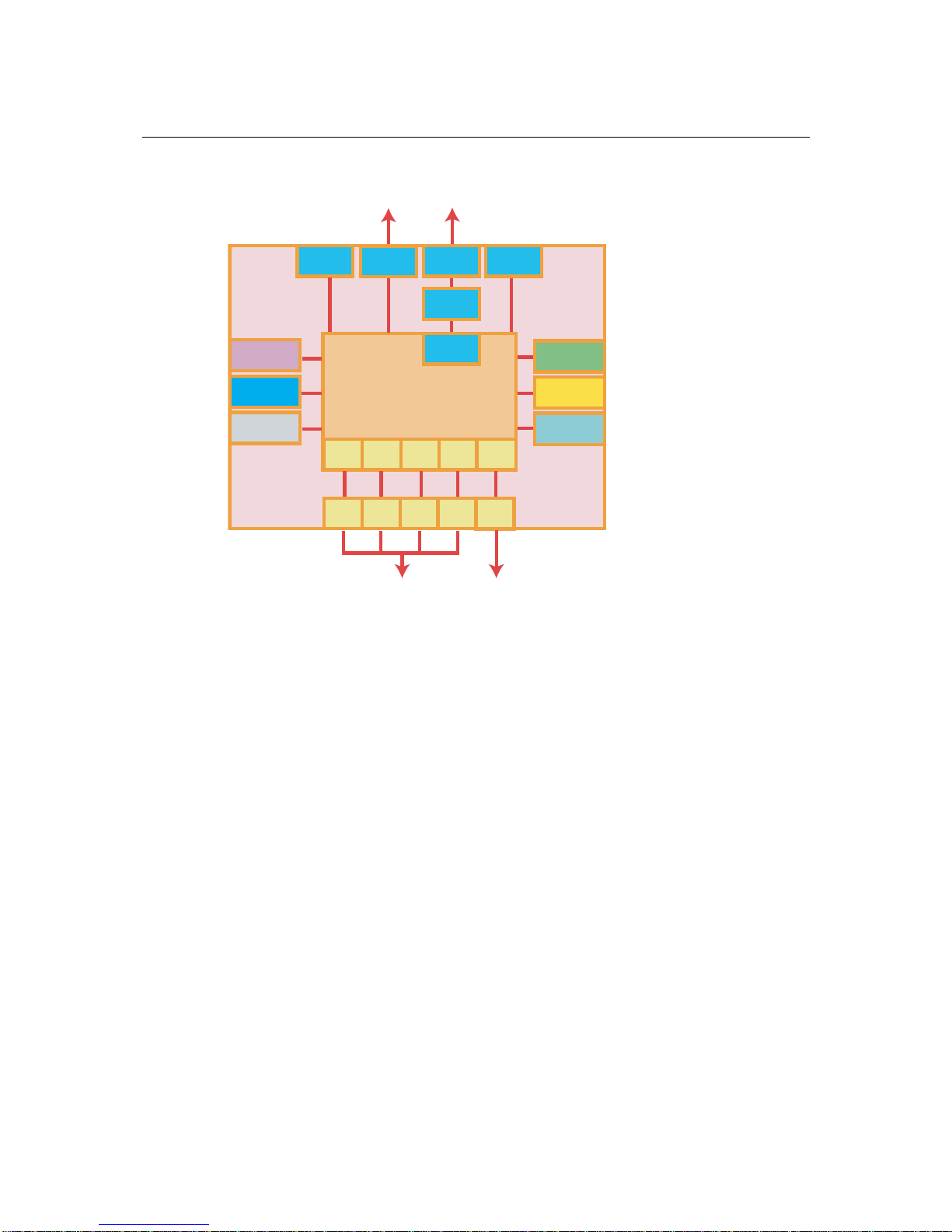

Hardware Block Diagram
W311
UART
MOXA ART CPU
32-bit ARM9
192 MHz
16MB
RAM
8MB
Flash
Power
Circuit
RTC
Watchdog
Serial
Port 1
LAN
MAC
PHY
Ethernet
WLAN
802.11a/b/g
SD
Function
UART
Console
Port
RS-232/422/485 RS-232
W321
UART
MOXA ART CPU
32-bit ARM9
192 MHz
16MB
RAM
8MB
Flash
Power
Circuit
RTC
Watchdog
Serial
Port 1
LAN
MAC
PHY
Ethernet
UART
Serial
Port 2
WLAN
802.11a/b/g
SD
Function
UART
Console
Port
RS-232/422/485 RS-232
1-6

W311/321/341 Hardware User’s Manual Introduction
W341
MOXA ART CPU
32-bit ARM9
192 MHz
16MB
RAM
8MB
Flash
Power
Circuit
RTC
Watchdog
LAN
MAC
PHY
Ethernet
UART UARTUART UART
Serial
Port 1 Serial Port 2 Serial Port 3 Serial Port 4
Relay
Output
SD
Function
WLAN
USB 2.0
Host x 2
802.11a/b/g
UART
Console
Port
RS-232
RS-232/422/485
1-7

2
2
Chapter 2 Hardware Introduction
The W300 series hardware is compact, well-designed, and built rugged for industrial applications.
LED indicators help you monitor the performance and identify trouble spots. Multiple ports allow
the connection of different devices for wireless operation. With the reliable and stable hardware
platform that is provided, you may devote your attention to the development of your application.
In this chapter, learn the basics about the embedded computer hardware and its different parts.
This chapter covers the following topics:
Appearance
¾W311
¾W321
¾W341
Dimensions
¾W311
¾W321
¾W341
LED Indicators
Reset Button
Real Time Clock

W311/321/341 Hardware User’s Manual Hardware Introduction
Appearance
W311
Ethernet
(10/100BaseTx)
12 to 48 VDC
Wireless LAN
Antenna
Internal SD Slot for
Storage Expansion
(remove cover to access)
Serial Port
(RS-232/422/485)
Serial
Console Port
P1
W321
Ethernet
(10/100BaseTx)
12 to 48 VDC
Wireless LAN
Antenna
Internal SD Slot for
Storage Expansion
(remove cover to access)
Serial Port 2
(RS-232/422/485)
Serial Port 1
(RS-232/422/485)
Serial
Console Port
2-2

W311/321/341 Hardware User’s Manual Hardware Introduction
W341
Top View
Wireless LAN
antenna
Relay OutputReset Button Internal SD Slot for
Storage Expansion
(remove cover to access)
Reset
RELAY
12-48V
LAN
ON MOCCN
USB
12 to 48 VDC
Ethernet
10/100BaseTX
USB 2.0 Host
Front View
Wireless LAN
Antenna
Serial
Console Port
Ethernet
(10/100BaseTx)
12 to 48 VDC
Internal SD Slot for
Storage Expansion
(remove cover to access)
Serial Port 1 to 4
(RS-232/422/485)
Relay Output
USB 2.0 Host x 2
Bottom View
Serial Port x 4
(RS-232/422/485)
2-3

W311/321/341 Hardware User’s Manual Hardware Introduction
Dimensions
100 mm (3.94 in)
77 mm (3.03 in)
25 mm
(0.98 in)
43 mm (1.69 in)
148.1 mm (5.83 in)
111 mm (4.37 in)
26 mm
(1.02 in)
88 mm (3.46 in)
W311
2-4

W311/321/341 Hardware User’s Manual Hardware Introduction
100 mm (3.94 in)
77 mm (3.03 in)
25 mm
(0.98 in)
43 mm (1.69 in)
148.1 mm (5.83 in)
111 mm (4.37 in)
26 mm
(1.02 in)
88 mm (3.46 in)
W321
2-5

W311/321/341 Hardware User’s Manual Hardware Introduction
W341
173 mm (6.81 in)
150 mm (5.91 in)
137.1 mm (5.40 in)
100 mm (3.93 in)
38 mm
(1.50 in)
40.5 mm (1.59 in)
161 mm (6.34 in)
Reset
RELAY
12-48V
LAN
NO
COM
NC
USB
25 mm
(0.98 in)
35 mm (1.38 in)
2-6

W311/321/341 Hardware User’s Manual Hardware Introduction
LED Indicators
Please note that the W311 does not include an SD slot, so it will not have an SD LED.
LED Name LED Color LED Function
Green Power is on and functioning normally
Ready Off Power is off or there is another power error
Green SD card is detected
SD Off No SD card is detected
ON: WLAN is ready
Green Blinking: Conflict with WLAN IP or no response from
DHCP server
WLAN
Off WLAN is not ready or function error
Green
Number of glowing LEDs indicates signal strength
5: Excellent
4: Very good
3: Good
2: Fair
1: Bad
Signal Strength
Off No signal or WLAN connection failed
Orange 10 Mbps Ethernet link
Green 100 Mbps Ethernet link
LAN Off Disconnected or short circuit
Green Serial ports P1-P4 transmitting data
TxD P1-P4 Off Serial ports P1-P4 not transmitting data
Yellow Serial ports P1-P4 receiving data
RxD P1-P4 Off Serial ports P1-P4 not receiving data
Reset Button
Hold the reset button down for 5 seconds to load the factory default configuration. After loading
the factory defaults, the system will reboot automatically. We recommend that you use this
function only if the software is not working properly. To reset the Linux system software, always
use the software reboot command (“reboot”) to protect the integrity of data.
The reset button is NOT designed as a hard reboot for the embedded computer.
ATTENTION
Restoring default settings preserves your data
Resetting the embedded computer to factory defaults will NOT format the user directory and will
NOT erase the user’s data. The reset button only loads a configuration file. All files in the /etc
directory will revert to their factory defaults, but all other user data will remain intact in the Flash
ROM.
Please note that if there is a problem with the /etc directory, the embedded computer may be
unable to restore the factory default settings.
2-7

W311/321/341 Hardware User’s Manual Hardware Introduction
Real Time Clock
The embedded computer’s real-time clock is powered by a lithium battery. We strongly
recommend that you NOT replace the lithium battery on your own. If the battery needs to be
changed, please contact the Moxa RMAservice team.
ATTENTION
There is a risk of explosion if the wrong type of battery is used. To avoid this potential danger,
always be sure to use the correct type of battery. Contact the Moxa RMA service team for battery
replacement.
2-8

3
3
Chapter 3 Hardware Connection Description
W300 Series wireless embedded computers are equipped for multiple types of connections.
WLAN, Ethernet, and multiple serial interfaces are built into every model, including a serial
console port for monitoring of bootup messages. Select models also include an SD slot for storage
expansion, USB ports for additional device and storage options, and relay output connections.
With the open-source Linux kernel, you are free to develop custom applications for remote,
wireless operation of your device. In this chapter, learn how to connect the embedded computer to
the network and to various devices.
This chapter covers the following topics:
Wiring Requirements
¾Connecting the Power
¾Grounding the Unit
Connecting Data Transmission Cables
¾Connecting to the Network
¾Connecting to the WLAN
¾Connecting to a Serial Device
¾Serial Console Port
SD Slot
USB (W341 only)
Relay Output (W341 only)

W311/321/341 Hardware User’s Manual Hardware Connection Description
Wiring Requirements
This section describes how to connect serial devices to the embedded computer.
You should heed the following common safety precautions before proceeding with the installation
of any electronic device:
yUse separate paths to route wiring for power and devices. If power wiring and device wiring
paths must cross, make sure the wires are perpendicular at the intersection point.
NOTE: Do not run signal or communication wiring and power wiring in the same wire conduit.
To avoid interference, wires with different signal characteristics should be routed separately.
yUse the type of signal transmitted through a wire to determine which wires should be kept
separate. The rule of thumb is that wiring that shares similar electrical characteristics can be
bundled together.
yKeep input wiring and output wiring separate.
yIt is advisable to label the wiring to all devices in the system.
ATTENTION
Safety First!
Be sure to disconnect the power cord before installation and/or wiring.
Watch Electrical Current!
Calculate the maximum possible current in each power wire and common wire. Observe all
electrical codes dictating the maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could overheat, causing serious
damage to your equipment.
Watch Temperature!
Be careful when handling the unit. When the unit is plugged in, the internal components generate
heat, and consequently the outer casing may feel hot to the touch.
Connecting the Power
Connect the “live-wire” end of the 12-48 VDC power adapter to the embedded computer’s
terminal block. When power is properly supplied, the “Ready” LED will glow a solid green after a
25 to 30 second delay.
Grounding the Unit
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Before connecting any devices, run a ground wire from the ground screw to the grounding
surface.
3-2
