Moxa Technologies VPort 364 Series User manual

2011 Moxa Inc. All rights reserved.
P/N: 1802003640010
VPort 364 Series
Quick Installation Guide
Moxa Industrial Video Encoder
First Edition, January 2011

- 2 -
Overview
The VPort 364 is a 4-channel industrial video encoder that supports the
H.264 video compression algorithm, which provides the best video quality
on the market while requiring less bandwidth compared to other video
compression standards. In addition, the VPort 364 supports simultaneous
dual video streams with different formats: H.264 and MJPEG. The two
video streams can be used for different purposes, such as viewing,
recording, or analysis. In addition, the rugged industrial design with -40
to 75°C operating temperature, built-in fiber Ethernet ports, IP30-rated
form factor, and industrial certifications, make the VPort 364 highly
suitable for use in harsh environments.
Package Checklist
The VPort 364 ships with the following items:
•VPort 364.
•Two 5-pin terminal blocks for 2 power inputs and 2 relay outputs.
•8-pin terminal block for 4 DIs (Digital Inputs).
•5-pin terminal block for the RS-232/422/RS-485 PTZ control port.
•Quick installation guide.
•Documentation & Software CD
•Warranty Card.
Note: If any of these items are missing or damaged, please contact your
customer service representative for assistance.
NOTE This product must be installed in compliance with your local laws
and regulations.
Features
High Performance Audio-Video Networking Solution
•Compatible with NTSC/PAL analog video cameras
•H.264 and MJPEG video compression standards
•Dual simultaneous video streams (1 H.264 and 1 MJPEG)
•Lower latency, under 200 ms
•4 BNC video inputs
•Single video stream up to 30 frames/sec in Full D1 (720 x 480)
resolution in NTSC, and 25 frames/ sec in Full D1 (720 x 576)
resolution in PAL
•Select between Full D1/ 4CIF/ VGA/ CIF/ QCIF resolutions
•1 audio input and 1 audio output for 2-way voice communication
•TCP, UDP, and HTTP network transmission modes
•Modbus/TCP for easy communication with SCADA systems
•Standard RTSP (Real-time streaming protocol) for easy integration
•DynaStream™ for automatic frame rate adjustment to control IP
video traffic
•Multicast (IGMP) protocols for efficient network transmission
•QoS (TOS) for priority transmission
•SNMP V1/V2c/V3 for network management
•Built-in web server and RS-232 console for remote access and
configuration
•One auto-sensing 10/100BaseT(X) or 100BaseFX (SC connector)
Ethernet port

- 3 -
•8 output video streams and 8 client connections
•50 multicast clients for receiving multicast video streams
•Multicast push for all the clients
•Video quality in CBR (constant bit rate) or VBR (variable bit rate)
•Supports one RS-232/RS-422/RS-485 5-pin PTZ port for controlling
a PTZ (PAN/TILT/ZOOM) motorized camera via a TCP/IP network
•UPnP and IP filtering
Rugged Industrial Design
•Two 12/24 VDC and 24 VAC redundant power inputs with LED
indicators
•-40 to 75°C operating temperature for harsh industrial environments
(“T” models)
•35 mm DIN-Rail mounting or panel mounting installation
(with optional accessory)
•IP30-rated form factor
•CE, FCC, and UL508(pending)
Intelligent Alarm Trigger Capability
•Supports system alarms, including power failure and network link
•Supports event alarms, including video motion detection (VMD),
video loss, digital input, and CGI event
•Equipped with 4 DIs and 2 relays (DO) for external sensors and
alarms.
•Pre, trigger, and post alarm snapshot images provided.
•Supports sequential snapshot images
•Messages with snapshot images can be sent via FTP and email.
•Capable of setting an alarm schedule
Video Management and Control
•Free Moxa VPort SDK Plus (software development kits) supported
with flexible interface and sample codes for customized application or
system integration.
•Moxa SoftNVR-IA IP surveillance software supported for the video
recording and management solution.
NOTE If you are interested in the VPort SDK PLUS, visit
Moxa’s website
(www.moxa.com) to download the software, or contact a Moxa
sales representative for more information.
NOTE If you are interested in SoftNVR-IA IP surveillance software, visit
Moxa’s website (www.moxa.com) to download the trial version.

- 4 -
VPort 364 Panel Layout
1. RS-232 console port
2. Hardware reset button
3. 8-pin terminal block for DI 1 to DI 4
4. 5-pin terminal block for Relay 2 and
power input 2 (PWR2)
5. Grounding screw
6. 5-pin terminal block for Relay 1 and
power input 2 (PWR1)
7. Heat dissipation orifices
8. LEDs for STAT, PWR1, PWR2, and
FAULT
9. LEDs for V1 to V4
10. AUDIO OUTPUT port for external
speakers
11. AUDIO INPUT port for mic-in and
line-in connection
12. 4 BNC connector for V1 to V4 video
inputs
13. RJ45 10/100BaseTX Ethernet port
with 10/100 Mbps LED
14. 100BaseFX fiber optic port with 100
Mbps LED
15. RS-232/422/485 PTZ port with 5-pin
terminal block for PTZ camera control
16. Model name
17. Screw hole for wall mounting
18. Screw hole for DIN-Rail mounting

- 5 -
First-Time Installation and Configuration
Before installing the VPort 364, check to make sure that all the items in
the package checklist are in the box. In addition, you will need access to
a notebook computer or PC equipped with an Ethernet port.
Step 1: Select the Power Source
The VPort 364 can be powered by a DC power input from 12 to 32 VDC, or
an AC power input from 18 to 30 VAC. Two power inputs are provided for
redundancy. Users can check the LED status located in the front panel to
see if the power inputs are connected appropriately. If one of the power
inputs fails, the FAULT LED will light up in red if the power failure alarm is
enabled.
NOTE The VPort 364 series supports power input specifications of 12-
32
VDC for 12/24 VDC power input, or 18-
30 VAC for 24 VAC power
input (note that this is different from Moxa EDS switch’s 12-45
VDC power input).
Step 2: Connect the VPort 364 to a Network
The VPort 364 has one auto-sensing 10/100 Mbps RJ45 Ethernet or 100
Mbps fiber optic port (multi mode or single mode). An LED indicator
located on the side of each port indicates a 10 Mbps or 100 Mbps Ethernet
connection.
Step 3: Connect the VPort 364 to cameras and an audio source
The VPort 364 has four VIDEO INPUT ports (V1, V2, V3, and V4). Use the
BNC connector (1.0 Vpp, 75Ω) and coaxial cable to connect video
cameras to the VPort to input analog video signals.
The VPort 364 has one audio input and one audio output. A microphone or
an amplifier can be plugged directly into the AUDIO INPUT port, and a
speaker can be plugged into the AUDIO OUTPUT port.
NOTE The four LEDs (V1, V2, V3, and V4) located on the VPort 364’s
front panel indicate the video signal transmission status for vid
eo
inputs. You may refer to these LEDs to verify video signal status.
ATTENTION
A ground loop isolator is recommended to be used between the
camera and the VPort to avoid a sudden current, which is
generated by the electric potential difference between these two
device’s ground power, to burn out the VPort’s chips and boards.
Step 4: Connecting motorized PTZ cameras and serial devices
The VPort 364 has an RS-232/422/485 PTZ port with 5-pin terminal block
connector. It can be used for connecting PTZ control cables for controlling
PTZ cameras over the TCP/IP network.
To enable PTZ control, users should configure the PTZ control protocol in
the web-based manager (web console).

- 6 -
NOTE The PTZ control protocol is not standardiz
ed. To use a particular
PTZ control protocol, the video server must support the driver for
that protocol. Currently, the VPort 364 supports PTZ control
protocol drivers for:
1. Pelco D
2. Pelco P
3. DynaColor DynaDome
4. Cohu
If you need to use a protocol that is not on the list, contact the
manufacturer of the camera to get the PTZ control commands,
and then program its PTZ control using the VPort 364’s Custom
Camera function.
NOTE The VPort 364 comes with a PTZ driver upload function for
implementing new PTZ drivers. Please contact a Moxa sales
representative if you need assistance from Moxa’s R&D
department to create a new PTZ driver.
NOTE
The “Transparent PTZ Control” function in the camera driver list is
used to transmit the PTZ control signal over a TCP/IP n
etwork to
the VPort D361 video decoder or PC (additional driver required).
The PTZ control panel or keyboard can directly control the PTZ
camera or device, eliminating the need for a PTZ camera driver
and allowing the use of PTZ cameras with the VPort encoder.
Step 5: Configure the VPort 364’s IP address
After powering on the VPort 364, wait a few seconds for the POST (Power
On Self Test) to run. The STAT LED turns green to indicate that the POST
process has completed. The IP address will be assigned when the 10/100
Mbps NETWORK LED blinks. The IP address assigned after the POST is
completed depends on the network environment.
Network Environment with DHCP Server
In this case, the IP address of the VPort 364 is assigned by a DHCP Server.
Use the DHCP Server’s IP address table, or use the Moxa utility to
determine the IP address that was assigned by the DHCP Server.
NOTE After powering on the VPort 364
, wait a few seconds for the POST
(Power On Self Test) to run. The IP address will be assigned when
the 10/100 Mbps NETWORK LED blinks.
Using the Moxa VPort and EtherDevice Configurator Utility
(edscfgui.exe)
1. Run the edscfgui.exe program to search for the VPort IP video
products and EDS switches. After the Utility window opens, select or
click on Broadcast Search, which is located under the List Server
menu, to initiate a search (note that you can also click on Broadcast
Search icon to initiate a search).
NOTE You may download the VPort and EtherDevice Configurator
software from Moxa’s website at www.moxa.com.

- 7 -
2. The Broadcast Search window will show a list of all switches and
VPorts located on the network. The progress of the search will also
be indicated.
3. When the search has ended, the Model Name, MAC address, and IP
address of the EDS switches and VPorts will be listed in the Utility
window.

- 8 -
NOTE Broadcast Search can only search for devices connected to the
same LAN subnet as the VPort. If your devices are located on a
different LAN subnet, use the “Specify IP Address” function to
search for the device by keying in the IP address.
4. Double click the selected VPort, or use Internet Explorer to access
the VPort’s web-based manager (web console).
Network Environment without a DHCP Server
If your VPort 364 is connected to a network that does not have a DHCP
server, then you will need to configure the IP address manually. The
default IP address of the VPort 364 is 192.168.127.100 and the default
subnet mask is 255.255.255.0. Note that you may need to change your
computer’s IP address and subnet mask so that the computer is on the
same subnet as the VPort.
To change the IP address of the VPort manually, access the VPort’s web
server, and then navigate to the System Configuration Network 
General page to configure the IP address and other network settings.
Select the Use fixed IP address checkbox to ensure that the IP address
you assign is not deleted each time the VPort is restarted.
Step 6: Log on to the VPort 364 web-based manager (web
console)
Type the IP address in the web browser’s address input box and then
press enter.
Step 7: Install the ActiveX Control Plug-in
A security warning message will appear the first time you access the
VPort’s web-based manager. The message is related to installing the
VPort ActiveX Control component to your PC or notebook. Click on Yes to
install this plug-in to enable the ability to view video in the IE web
browser.

- 9 -
NOTE For Windows XP SP2 or later operating systems, the ActiveX
Control component will be blocked for system security reasons.
In this case, the VPort’s security warning message window may
not appear. Users should unblock the ActiveX control function or
disable the security configuration to enable the installation of
VPort’s ActiveX Control component.
Step 8: Accessing the homepage of the VPort 364’s web-based
manager
After installing the ActiveX Control component, the homepage of the
VPort 364’s web-based manager will appear. Check the following items to
make sure the system was installed properly:
1. Video Images.
2. Audio Sound (make sure your PC’s or notebook’s sound is turned
on).
3. Video Information.
Step 9: Accessing the VPort’s System Configuration
Click on System Configuration to access the overview of the system
configuration to change the configuration. Model Name, Server Name, IP
Address, MAC Address, Firmware Version, and LED Status appear in the
green bar near the top of the page. Use this information to check the
system information and installation.
For details of each configuration, check the User’s Manual on the software
CD.

- 10 -
NOTE After accessing the VPort 364’s web-based manager,
administrators should access System configuration > System >
Account to set up the administrator’s password and enable the
authentication function. The administrator account name is
admin. An authentication window will pop up requesting the
account name and password each time the VPort 364 is accessed.

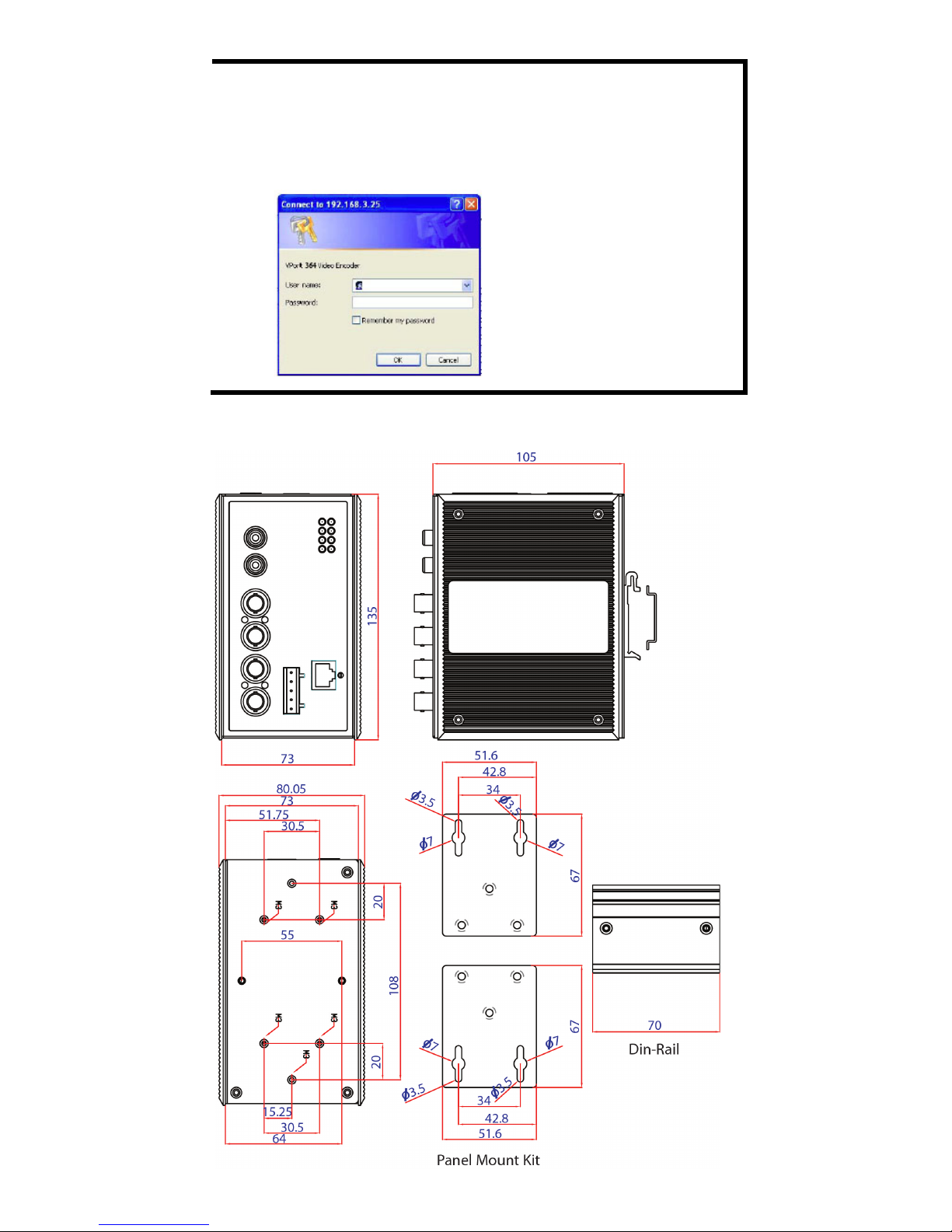

Mounting Dimensions (unit = mm)

- 11 -
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be attached to
the back panel of the VPort 364 when you take it out of the box. If you
need to reattach the DIN-Rail attachment plate to the VPort 364, make
sure the stiff metal spring is situated towards the top, as shown in the
figures below.

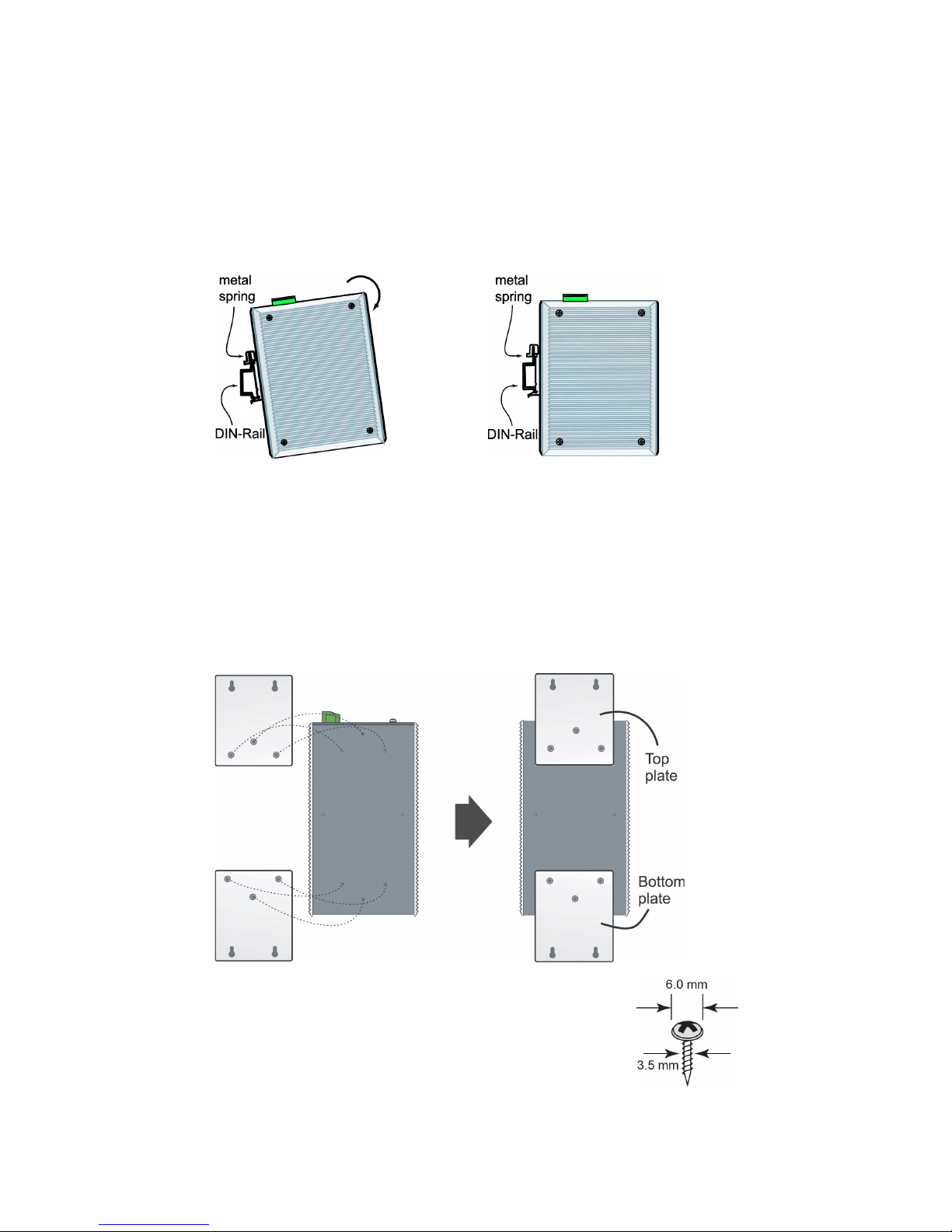

STEP 1: Insert the top of the
DIN-Rail into the slot just below
the stiff metal spring.
STEP 2: The DIN-Rail attachment
unit will snap into place as shown
below.
To remove the VPort 364 from the DIN-Rail, simply reverse Steps 1 and 2
above.
Wall Mounting (optional)
For some applications, you will find it convenient to mount the VPort 364
on a wall, as illustrated below.
STEP 1:
Remove the aluminum DIN-Rail attachment plate from VPort 364, and
then attach the wall mount plates, as shown in the diagrams below.
STEP 2:
Mounting VPort 364 on the wall requires 4 scr
ews. Use the
VPort 364, with wall mount plates attached, as a guide to
mark the correct locations of the 4 screws. The heads of
the screws should be less than 6.0 mm in diameter, and
the shafts should be less than 3.5 mm in diameter, as
shown in the figure at the right.
Do not screw the screws in all the way—
leave a space of
about 2 mm to allow room for sliding the wall mount panel
between the wall and the screws.

- 12 -
NOTE Test the screw head and shank size by inserting the screw into
one of the keyhole sha
ped apertures of the wall mounting plates,
before it is screwed into the wall.
STEP 3:
Once the screws are fixed in the wall, insert the four screw heads through
the large parts of the keyhole-shaped apertures, and then slide the VPort
364 downwards, as indicated below. Tighten the four screws for added
stability.
Wiring Requirements
WARNING
Safety First!
Be sure to disconnect the power cord before installing and/or
wiring your Moxa VPort 364.
Calculate the maximum possib
le current in each power wire and
common wire. Observe all electrical codes dictating the
maximum allowable current for each wire size.
If the current goes above the maximum ratings, the wiring could
overheat, causing serious damage to your equipment.
You should also pay attention to the following items:
•Use separate paths to route wiring for power and devices. If power
wiring and device wiring paths must cross, make sure the wires are
perpendicular at the intersection point.
NOTE Do not run signal or communications wiring and power wiring in
the same wire conduit. To avoid interference, wires with different
signal characteristics should be routed separately.
•You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. The rule of thumb is
that wiring that shares similar electrical characteristics can be
bundled together.
•Keep input wiring and output wiring separated.
•It is strongly advised that you label wiring to all devices in the system.

- 13 -
Grounding the Moxa VPort 364
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting devices.
ATTENTION
This product is intended to be mounted to a well-grounded
mounting surface, such as a metal panel.
Wiring the Redundant Power Inputs
The VPort 364 has two sets of power input, power input 1 and power input
2, which are located on the two 5-pin terminal block connectors. Top and
front views of the terminal block connectors are shown here.
STEP 1: Insert the negative/positive DC or
AC wires into the V-/V+ terminals.
STEP 2: To keep the DC or AC wires from
pulling loose, use a small flat-blade
screwdriver to tighten the wire-
clamp screws
on the front of the terminal block connector.
STEP 3: Insert the plastic terminal block
connector prongs into the terminal block
receptor, which is located on the VPort 364’s
top panel.
ATTENTION
The power for this product is intended to be supplied by a Listed
Power Unit, with output marked LPS, and rated to deliver
12 to 32
VDC at a maximum of 510
mA (at 12VDC), or 18 to 30 VAC at a
maximum of 512 mA (at 18VAC). The maximum power
consumption is 7.5W.
ATTENTION
Before connecting the VPort to the AC/DC power inputs, make
sure the DC power source voltage is stable.

- 14 -
Wiring the Relay Output
The VPort 364 has two sets of relay output, relay 1 and relay 2, which are
located on the two 5-pin terminal block connectors. Each relay output
consists of the 3 contacts of the terminal block on the VPort 364’s top
panel.
The relay output can be set up for:
1. System alarm: Power failure and Network disconnected.
2. Event alarm: VMD (Video Motion Detection) , Video loss, Digital
Inputs and CGI Event
ATTENTION
The current and power capacity of the relay output is a maximum
of 24 VDC @ 1A. You should be careful not to exceed this power
specification.
Wiring the Digital Inputs
VPort 364 has four sets of digital input, DI1
, DI2, DI3
and DI4. Each DI consists of two contacts of the
10-pin terminal block connector on VPort
’s top panel.
Top and front views of one of the terminal block
connectors are shown here.
STEP 1: Insert the negative (ground)/positive DI
wires into the ┴/I1 terminals.
STEP 2:
To keep the DI wires from pulling loose, use
a small flat-blade screwdriver to tighten the
wire-
clamp screws on the front of the terminal block
connector.
STEP 3: Insert the plastic terminal block connector prongs into the
terminal block receptor, which is located on VPort 364’s top panel.
Communication Connections
VPort 364 models have one RJ45 console port (RS-232 interface), and 2
10/100BaseT(X) Ethernet port or 1 100BaseFX (SC-type connector) fiber
port.

- 15 -
RS-232 Console Port Connection
VPort 364 has one RS-232 (10-pin RJ45) console port, located on the top
panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable (see the cable
following wiring diagrams) to connect VPort 364’s console port to your
PC’s COM port.
You may then use a console terminal program, such as the Moxa PComm
Terminal Emulator, to access VPort 364’s console configuration utility.

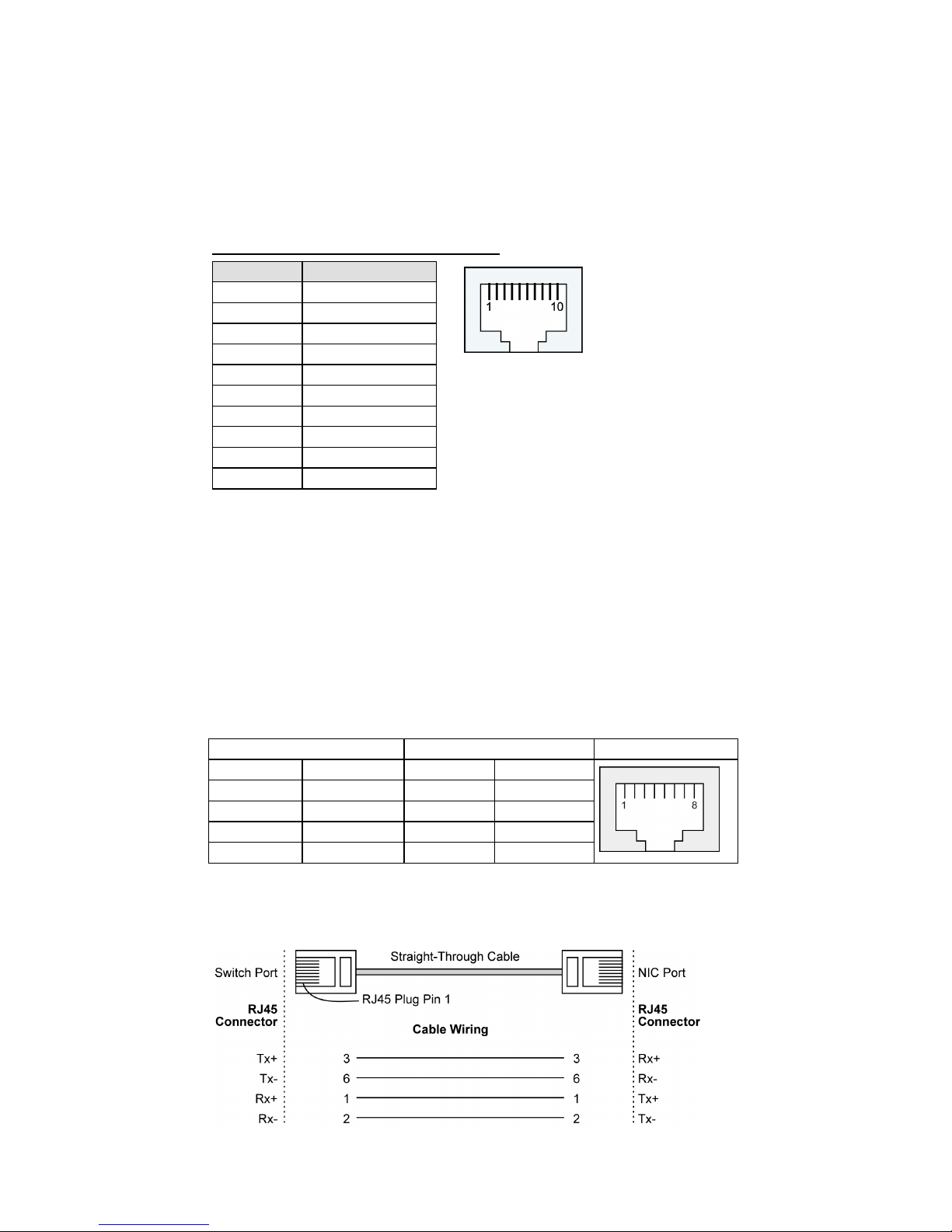

RJ45 (10-pin) Console Port Pinouts
Pin
Description
1
–
2
DSR
3
–
4
GND
5
TxD
6
RxD
7
GND
8
–
9
DTR
10
–
10/100BaseT(X) Ethernet Port Connection
The 10/100BaseT(X) port located on the VPort 364’s front panel is used to
connect to Ethernet-enabled devices.
Pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type)
ports are illustrated below, along with cable wiring diagrams for
straight-through and cross-over Ethernet cables.
The 10/100BaseT(X) port of the VPort 364 is an MDI port, which means
that you should use a cross-over Ethernet cable to connect to the MDI NIC
port, and a straight-through Ethernet cable to connect to the MDI-X
HUB/Switch port.
MDI Port Pinouts
MDI-X Port Pinouts
8-pin RJ45
Pin
Signal
Pin
Signal
1
Tx+
1
Rx+
2
Tx-
2
Rx-
3
Rx+
3
Tx+
6
Rx-
6
Tx-
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable
Wiring

- 16 -
RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring
100BaseFX Ethernet Port Connection
The concept behind the SC port and cable is quite straightforward.
Suppose that you are connecting devices I and II. Contrary to electrical
signals, optical signals do not require a circuit in order to transmit data.
Consequently, one fiber optic cable is used to transmit data from device I
to device II, and the other fiber optic cable is used transmit data from
device II to device I, for full-duplex transmission.
Remember to connect the Tx (transmit) port of device I to the Rx (receive)
port of device II, and the Rx (receive) port of device I to the Tx (transmit)
port of device II. If you make your own cable, we suggest labeling the two
sides of the same line with the same letter (A-to-A and B-to-B, as shown
below, or A1-to-A2 and B1-to-B2).
SC-Port Pinouts SC-port to SC-port Cable Wiring
PTZ port
A PTZ port is located on the VPort 364’s front panel. The port is used to
connect a PTZ motorized camera or device so that the camera or device
can be controlled from the VPort over the IP network. The PTZ port
supports RS-232 or RS-422/485 signals through a terminal block. The
PTZ port pin assignments are shown in the following table.
PIN RS-422/485 RS-232
1 GND GND
2 R- ---
3 R+ RxD
4 T-\D- ---
5 T+\D+ TxD

- 17 -
LED Indicators
The front panel of Moxa’s VPort 364 contains several LED indicators. The
function of each LED is described in the table below.
LED Color State Description
STAT Green/Red
Steady
Red
Hardware initialization stage.
Flashing
Red Software initialization stage.
Steady
Green
System has booted up and is ready to
run.
Flashing
Green Firmware is being upgraded.
PWR1 AMBER
On Power is being supplied through power
input PWR1.
Off Power is not being supplied through
power input PWR1.
PWR2 AMBER
On Power is being supplied through power
input PWR2.
Off Power is not being supplied through
power input PWR2.
FAULT RED
On
One of the following 3 conditions is
met:
One of the 2 power inputs is
disconnected.
Video loss.
Network disconnected.
Users can configure these alarm
settings on the system alarm page of
system configuration.
Off
Both power inputs are connected and
are working properly, there is no video
loss and the network is connected.
V1, V2,
V3, V4 GREEN On Video signal is detected
Off Video signal is not detected
10/100
AMBER
On 10 Mbps link is active
Blinking Data is being transmitted at 10
Mbps
Off
10 Mbps link is inactive
GREEN
On
100 Mbps link is active
Blinking Data is being transmitted at 100
Mbps
Off 100 Mbps link is inactive
Hardware Reset
A recessed RESET button is provided for restoring the system to the
factory default settings. When the system fails to install properly, or
operates abnormally, use the RESET button located on the top panel of
the VPort 364 to restore the factory defaults.
To do this, use a pointed object such as a straightened paper clip or
toothpick, to depress the reset button continuously. Release the reset
button when the STAT LED stops flashing in red. At this point, the POST
process will run, and the VPort will reboot. The STAT LED will light in
green when the VPort has finished rebooting.

- 18 -
Specifications
Video
Video Compression H.264 (MPEG4 Part 10, AVC), MJPEG
Video Streams 2 (1 H.264 and 1 MJPEG)
Video Inputs 4, BNC connector (1 Vpp, 75 ohms)
Video Latency Under 200 ms
NTSC/PAL Manual
Video Resolution and FPS (frames per second):
NTSC PAL
Size Max. FPS Size Max. FPS
QCIF 176 x 112 30 176 x 144 25
CIF 352 x 240 30 352 x 288 25
VGA 640 x 480 30 640 x 480 25
4CIF 704 x 480 30 704 x 576 25
Full D1 720 x 480 30 720 x 576 25
NOTE
When enabling simultaneous H.264 and MJPEG video streaming
at Full D1 resolution, the total FPS of these 2 video streams will
be about 30 FPS. For example, if MJPEG is set as 10 FPS, then
H.264 must be set as 20 FPS.
Video Viewing •DynaStream™ for automatic frame rate
adjustment
•Adjustable image size and quality
•Timestamp and text overlay
Audio
Audio Input 1 Line-in or MIC-in, RCA connector
Audio Output 1 Line-out, RCA connector
Network
Protocols TCP, UDP, HTTP, SMTP, FTP, Telnet, NTP, DNS,
DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS (ToS),
SNMP (V1/V2c/V3), DDNS, Modbus/TCP
Ethernet 1 10/100BaseT(X) auto negotiation speed RJ45 port,
or 1 100BaseFX fiber port (SC connector)
Optical Fiber
100BaseFX
Multi Mode Single Mode
Wavelength 1300 nm 1310 nm
Max. TX -10 dBm 0 dBm
Min. TX -20 dBm -5 dBm
RX Sensitivity -32 dBm -34 dBm
Link Budget 12 dB 29 dB
Typical Distance 5 km
a
4 kmb40 kmc
Saturation -6 dBm -3 dBm
a.50/125μm, 800 MHz*km fiber optic cable
b.62.5/125μm, 500 MHz*km fiber optic cable
c. 9/125μm, 3.5 PS/(nm*km) fiber optic cable

- 19 -
Serial Port
PTZ port 1 port, RS-232 or RS-422/485 terminal block
connector, 115.2 Kbps max. baudrate
Console port
1 RS-232 RJ45 port
GPIO
Digital Inputs 4, max. 8 mA
High: +13V to +30V
Low: -30V to +3V
Relay Output
2 (max. 24 VDC @ 1A)
LED Indicators
STAT
Indicates if system has booted up properly
PWR1
Power 1
PWR2
Power 2
FAULT Can be configured for system alarm, includes
power
failure and network down.
V1, V2, V3, V4 Video input signal active
Power
Inputs 2 12/24 VDC or 24 VAC for redundancy
Consumption Approximately 7.5W
Mechanical
Casing IP30 protection, metal case
Dimensions 80.2 x 135 x 105 mm (3.17 x 5.31 x 4.13 in.)
Weight 1100 g
Installation DIN-Rail or wall mounting
Environmental
Operating
Temperature
0 to 60°C (32 to 140°F)
-40 to 75°C (-40 to 167°F) for -T models
Storage
Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative
Humidity
5 to 95% (non-condensing)
Regulatory Approvals
Safety
UL 508 (Pending)
EMI
FCC Part 15, CISPR (EN55022) class A
EMS EN61000-4-2 (ESD), Level 2
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 3
EN61000-4-5 (Surge), Level 3
EN61000-4-6 (CS), Level 3
EN61000-4-8
EN61000-4-11
Shock
IEC60068-2-27
Freefall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
5 years
Alarm Features
•Video Motion detection with sensitivity tuning
•Video loss alarm.
•Daily repeat timing schedule.
•JPEG snapshots for pre/trigger/post alarm images.
•Automatic transfer of stored images via email or FTP with
event-triggered actions.
•HTTP event servers and CGI commands for setting customized alarm
actions.

- 20 -
PAN/TILT/ZOOM
•PTZ camera is controlled through RS-232/422/485.
•PTZ Control Functions: PAN, TILT, ZOOM, FOCUS, moving speed,
preset position (max. 25 positions), and 24 custom commands.
•Supported devices and protocols: Dynacolor DynaDome, Pelco
D-protocol, Pelco P, Cohu, and Custom Camera.
•PTZ driver upload.
•Transparent PTZ Control for controlling the PTZ camera with legacy
PTZ control panel or keyboard.
Security
•User level password protection
•IP address filtering
Recommended Minimum Viewing System Requirements
•Pentium 4, 2.4 GHz
•512 MB memory
•Windows XP/2000 with SP4
•Internet Explorer 6.x
•DirectX 9.0c
Software Bundled Free
VPort SDK PLUS Includes CGI commands and ActiveX Control for
customized applications or system integration for
third-party developers
Technical Support Contact Information
www.moxa.com/support
Moxa Americas:
Toll-free: 1-888-669-2872
Tel: [phone]
Fax: [phone]
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel: [phone]
Fax: [phone]
Moxa Europe:
Tel: [phone]
Fax: [phone]
Moxa Asia-Pacific:
Tel: [phone]
Fax: [phone]
