NPort 5600-8-DT Series
Quick Installation Guide
Second Edition, December 2008
1. Overview
The following models comprise the NPort 5600-8-DT Series:
NPort 5610-8-DT: 8 ports, RS-232, DB9
NPort 5610-8-DT-J: 8 ports, RS-232, RJ45
NPort 5650-8-DT: 8 ports, RS-232/422/485, DB9
NPort 5650-8-DT-J: 8 ports, RS-232/422/485, RJ45
NPort 5650I-8-DT: 8 ports, RS-232/422/485, DB9, optical isolation.
2. Package Checklist
The NPort 5600-8-DT package should contain the following items:
yNPort 5600-8-DT 8-port serial device server
yNPort Document & Software CD
yNPort 5600-8-DT Quick Installation Guide
yPower cord and adaptor
yDIN-rail kit
Optional Accessories:
yDK-35A: DIN-rail mounting kit (35 mm)
yCBL-RJ45M9-150: 8-pin RJ45 to male DB9 cable, 150 cm
yCBL-RJ45F9-150: 8-pin RJ45 to female DB9 cable, 150 cm
yCBL-RJ45M25-150: 8-pin RJ45 to male DB25 cable, 150 cm
yCBL-RJ45F25-150: 8-pin RJ45 to female DB25 cable, 150 cm
yNP21101: DB25-M to DB9-F RS-232 cable, 30 cm
Please notify your sales representative if any of the above items are
missing or damaged.
3. Hardware Introduction
Top and Rear View
Port 7
Port 8
Port 5
Port 6
Port 3
Port 4
Port 1
Port 2
Reset
Console
LCM display panel
Input buttons
Indicator LEDs
RS-232 Console port
Reset button
Front View (NPort 5610-8-DT, 5650-8-DT, 5650I-8-DT)
V+ V-
ETH1
12-48 VDC
Port 7
Port 8
Port 5
Port 6
Port 3
Port 4
Port 1
Port 2
LAN ETH2
Male DB9 serial ports
Power input
RJ45 10/100 Mbps Ethernet ports
Terminal Block power input
Power switch
Front View (NPort 5610-8-DT-J, 5650-8-DT-J)
V+ V-
12-48 VDC
LAN
RJ45 Serial ports
Power input
RJ45 10/100 Mbps Ethernet ports
Terminal Block power input
ETH2
ETH1
Serial Ports
1 2 3 4 5 6 7 8
Power switch
Reset Button
The reset button is used to load the factory defaults. Use a pointed object
to hold the reset button down for five seconds. You may release the reset
button when the Ready LED stops blinking.
LED Indicators
The LED indicators on the top panel are used to display status as follows:
Name Color Function
red Power is on.
PWR off Power is off.
green Steady: NPort is operational
Blinking: NPort is responding to NPort
Administrator “Locate” function
Ready
off Power is off or fault condition exists.
red IP conflict or DHCP or BOOTP server did not
respond properly.
Fault
off No fault condition detected.
green Steady: Network is connected, no data is
being transmitted.
Blinking: Network is connected, data is
being transmitted.
Link
off Ethernet cable is disconnected or has a short.
green Serial port has been opened by server side
software.
InUse
(P1 to P8) off Serial port is not currently opened by server side
software.
green (Tx) Serial device is transmitting data.
orange (Rx) Serial device is receiving data.
Tx/Rx
(P1 to P8) off No data is flowing to or from the serial port.
4. Hardware Installation
STEP 1: After removing the NPort 5600-8-DT from the box, place it on a
desktop or other horizontal surface. Connect the 12-48 VDC power
adaptor to the NPort 5600-8-DT’s power input when using an AC power
source, or connect the NPort 5600-8-DT’s terminal block directly to a DC
power source.
STEP 2: Use an Ethernet cable to connect the NPort 5600-8-DT to a
network hub or switch. You can also connect directly to your computer’s
Ethernet port, which is convenient for initial configuration or testing.
STEP 3: Connect the NPort 5600-8-DT’s serial port to a serial device.
Wall or Cabinet Mounting
The NPort 5600-8-DT comes with two metal attachment plates to allow
installation on a wall or the inside of a cabinet. First, attach the brackets
to the back of the NPort with screws. Next, mount the unit on a wall or
cabinet with screws. Screws should be less than 6.0 mm in head diameter,
and less than 3.5 mm in shaft diameter.
7t
r
o
P
8
t
roP
5t
roP
6tr
o
P
3
t
roP
4troP
1
t
roP
2 troP
mm0.6
mm5.3
DIN-Rail Mounting
DIN-rail attachments can be purchased separately to attach the product to
a DIN-rail. The DIN-rail attachments should be oriented with the metal
springs on top.
Standard Attachment
TerminationResistor for the RS-485 Port
t
e
s
e
R
e
l
o
s
n
o
C
DK-35AAttachment
7troP
8
t
roP
5
t
roP
6tro
P
3
t
roP
4troP
1tr
o
P
2
t
roP
P/N: 1802056001011

— 4 — — 5 — — 6 —
5. Pull High/Low Resistors for RS-485
Use the set of DIP switches on the bottom panel to set the pull high/low
resistor values for each serial port. To access the switches, remove the
screws holding the DIP switch cover in place and flip open the cover.
There are three DIP switches for each port’s pull high/low resistors:
1 2 3
SW Pull High Pull Low Terminator
ON 1KΩ1KΩ120Ω
DefaultÆOFF 150KΩ150KΩ---
6. Software Installation Information
To install NPort Administration Suite, insert the NPort Document &
Software CD into your PC’s CD-ROM drive. Locate and run the setup
program and follow the on-screen instructions. The setup program will be
named Npadm_Setup_[Version]_Build_[DateTime].exe (e.g., “Npadm
_Setup_Ver1.8_Build_07041316.exe”). For more information about
NPort Administration Suite, please refer to the NPort 5600-8-DT User’s
Manual.

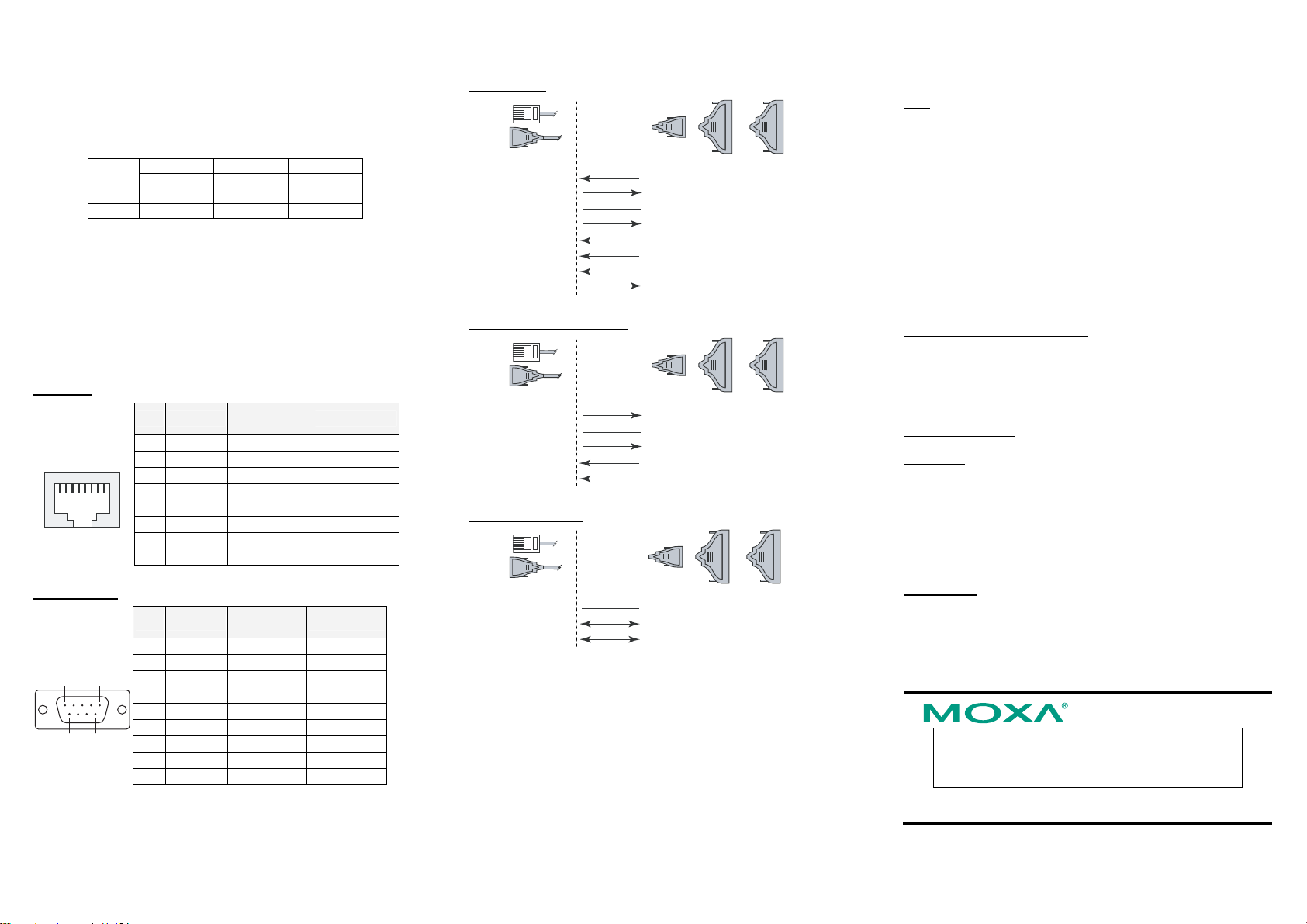

7. Pin Assignments and Cable Wiring
RJ45 Ports (NPort 5610-8-DT-J, 5650-8-DT-J)
Pin RS-232 RS-422
4-wire RS-485 2-wire RS-485
1 DSR --- ---
2 RTS TxD+ ---
3 GND GND GND
4 TxD TxD- ---
5 RxD RxD+ Data+
6 DCD RxD- Data-
7 CTS --- ---
8
1
8 DTR --- ---
Note: The NPort 5610-8-DT-J supports RS-232 only.
DB9 Male Ports (NPort 5610-8-DT, 5650-8-DT, 5650I-8-DT)
Pin RS-232 RS-422
4-wire RS-485 2-wire RS-485
1 DCD TxD-(A) ---
2 RxD TxD+(B) ---
3 TxD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
5 GND GND GND
6 DSR --- ---
7 RTS --- ---
8 CTS --- ---
15
69
9 --- --- ---
Note: The NPort 5610-8-DT supports RS-232 only.
RS-232 Cables
NPort
Serial
Device
RJ45 DB9(F) DB9(M) DB25(M) DB25(F)
DSR 1 6 4 6 20 DTR
RTS 2 7 8 4 5 CTS
GND 3 5 5 7 7 GND
TxD 4 3 2 2 3 RxD
RxD 5 2 3 3 2 TxD
DCD 6 1 1 8 8 DCD
CTS 7 8 7 5 4 RTS
DTR 8 4 6 20 6 DSR
RS-422, 4-wire RS-485 Cables
NPort
Serial
Device
RJ45 DB9(F) DB9(M) DB25(M) DB25(F)
TxD+ 2 2 3 3 2 RxD+
GND 3 5 5 7 7 GND
TxD- 4 1 1 8 8 RxD-
RxD+ 5 3 2 2 3 TxD+
RxD- 6 4 6 20 6 TxD-
2-wire RS-485 Cables
NPort
Serial
Device
RJ45 DB9(F) DB9(M) DB25(M) DB25(F)
GND 3 5 5 7 7 GND
Data+ 5 3 2 2 3 Data+
Data- 6 4 6 20 6 Data-
8. Specifications
LAN
Ethernet Ports 2 × 10/100 Mbps (RJ45)
Protection Built-in 1.5 KV magnetic isolation
Serial Interface
RS-232 NPort 5610-8-DT, 5610-8-DT-J
RS-232/422/485 NPort 5650-8-DT, 5650-8-DT-J, 5650I-8-DT
Serial Ports 8 (DB9-M or RJ45 connectors)
Isolation 2K VDC isolation (NPort 5650I-8-DT)
Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD,
GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485 (2-wire) Data+, Data-, GND
RS-485 (4-wire) Tx+, Tx-, Rx+, Rx-, GND
Serial Line Protection 15KV ESD for all signals
RS-485 Data Direction ADDC™ (Automatic Data Direction Control)
Serial Communication Parameters
Parity None, Even, Odd, Space, Mark
Data Bits 5, 6, 7, 8
Stop Bit(s) 1, 1.5, 2
Flow Control RTS/CTS, DSR/DTR (for RS-232 only),
XON/XOFF
Transmission Speed 50 bps to 921.6 Kbps
Power Requirements
Power Input 12 to 48 VDC
Mechanical
Operating Temperature 0 to 55°C (32 to 131°F), 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 185°F), 5 to 95% RH
Material SECC sheet metal (0.8 mm)
Dimensions (W × D × H) 197 × 44 × 125 mm
229 × 46 × 125 mm (with wall-mount)
197 × 52.8 × 135.43 mm (with DIN-rail kit)
Power Line Protection 4 KV Burst (EFT), EN61000-4-4
2 KV Surge, EN61000-4-5
Certifications
Regulatory Approvals FCC Class A, CE Class A, UL, CUL, TÜV
Warranty 5 years
