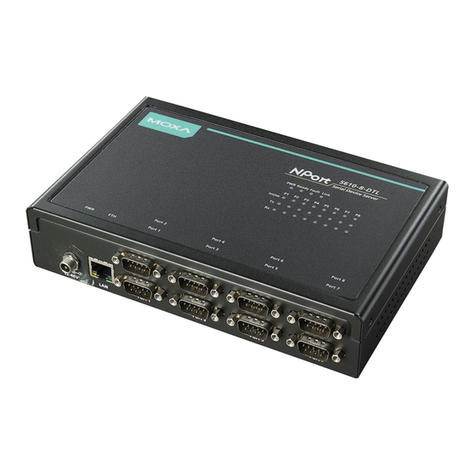

NPort 5600 Series
Quick Installation Guide
Edition 5.0, November 2015
Technical Support Contact Information
www.moxa.com/support
Moxa Americas:
Toll
-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa China (Shanghai office):
Toll
-free: 800-820-5036
Tel:
[phone]
Fax:
[phone]
Moxa Europe:
Tel:
[phone]
Fax:
[phone]
Moxa Asia-Pacific:
Tel:
[phone]
Fax:
[phone]
Moxa India:
Tel:
[phone]
Fax:
[phone]

2015 Moxa Inc. All rights reserved.

- 2 -
Overview
Welcome to the Moxa NPort 5600 Series. The NPort 5610-8/16 have 8 or
16 RS-232 ports, the NPort 5630-8/16 have 8 or 16 RS-422/485 ports,
and the NPort 5650-8/16 have 8 or 16 RS-232/422/485 ports.
NPort 5600 Series Models
The NPort 5600 Series includes the following models: NPort 5610-8,
NPort 5610-16, NPort 5610-8-48V, NPort 5610-16-48V, NPort 5630-8,
NPort 5630-16, NPort 5650-8, NPort 5650-8-T, NPort 5650-8-HV-T,
NPort 5650-16-HV-T, NPort 5650-16, NPort 5650-16-T, NPort
5650-8-M-SC, NPort 5650-16-M-SC, NPort 5650-8-S-SC, and NPort
5650-16-S-SC.
Package Checklist
The NPort 5600 package should contain the following items:
•1 NPort 5600 series serial device server
•Power cord (AC models only)
•NPort Documentation & Software CD
•NPort 5600 Quick Installation Guide
Optional Accessories:
•CBL-RJ45M9-150: 8-pin RJ45 to DB9 male cable, 150 cm
•CBL-RJ45F9-150: 8-pin RJ45 to DB9 female cable, 150 cm
•CBL-RJ45M25-150: 8-pin RJ45 to DB25 male cable, 150 cm
•CBL-RJ45F25-150: 8-pin RJ45 to DB25 female cable, 150 cm
Note: Please notify your sales representative if any of the above items is
missing or damaged.
Hardware Introduction
NOTE
The wide temperature model does not come with LCM display
panels or push buttons. All of the LCM descriptions below apply
only to standard temperature models.
The front and rear panels are shown below:

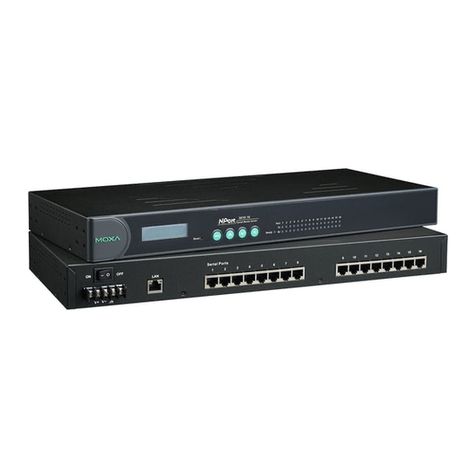

Front panel of the NPort 5600 Series
Rear panel of the NPort 5610/5630/5650 (AC Power)
Rear panel of the NPort 5650 (Fiber Model)
Rear panel of the NPort 5610 (DC Power)

- 3 -
Front panel of the NPort 5650-T Series
Reset Button—press the Reset button continuously for 5 sec to load
factory defaults: Use a pointed object to press the reset button. Release
the button after the Ready LED stops blinking.
LED Indicators on the Front Panel—the front panels of the NPort 5600
have several LED indicators, as described in the following table.
Name
Color
Function
Ready
Off
Power is off, or power error condition exists.
Red
Steady on: Power is on and the NPort is booting up.
Blinking: Indicates an IP conflict, or DHCP or
BOOTP server did not respond properly.
Green
Steady on: Power is on and the NPort is
functioning
normally.
Blinking: The NPort has been located by NPort
Administrator’s Location function.
1 to 16
Orange
Serial port is receiving data.
Green
Serial port is transmitting data.
Off
No data is being transmitted or received through
the serial port.
LCM Display Panel—If the NPort is working properly, the LCM panel will
display a green color. The red Ready LED will also light up, indicating that
the NPort is receiving power. After the red Ready LED turns green, you
will see a display similar to:
N
P
5
6
1
0
-
1
6
3
8
1
9
2
.
1
6
8
.
1
2
7
.
2
5
4
This is where:
•NP5610-16 is the NPort’s name
•38 is the NPort’s local sequence number
•192.168.127.254 is the NPort’s IP address
LCM Panel Operation—There are four buttons on the NPort 5600’s front
panel. These buttons are used to operate the server’s LCM panel. Going
from left to right, the buttons are:
Button
Action
MENU
Activates the main menu, or returns to a lower level.
︿
Scrolls up through a list of items shown on the LCM panel’s
second line.
﹀Scrolls down through a list of items shown on the LCM
panel’s second line.
SEL
Selects the option listed on the LCM panel’s second line.
Detailed LCM Panel Operating instructions can be found in the NPort 5600
Series User’s Manual on the CD-ROM.

- 4 -
Link Indicator on the rear panel of the NPort 5650 fiber
model—the rear panels of the NPort 5650 have a link indicator, as
described in the following table.
LED Name
LED Color
LED Function
Link
Off
Fiber disconnected.
Green
Fiber connected, data not transmitting.
Blinking
Fiber connected, data is transmitting.
Hardware Installation
STEP 1: After removing the NPort 5600 from the box, the first thing you
should do is attach the power adapter.
STEP 2: Connecting the Power.
AC: Connect the NPort 5600’s 100-240 VAC power cord to the AC
connector. The “Ready” LED will show a solid red color until the system is
ready, at which time it will change to a green color.
DC: Connect the NPort 5600 VDC’s power cord to the DC connector, and
then follow the steps given below:
Take NPort 5610-8-48V as an example. Loosen the
screws on the V+ and V
- terminals of the NPort
5610
-8-48V’s terminal block. Connect the power
cord’s 48 VDC or -48 VDC wire to the terminal block’s
V+ terminal, and the power cord’s DC Power Ground wire to the terminal
block’s V
- terminal, and then tighten the terminal block screws. (Note:
The NPort
5610-8-48V can still operate even if the 48V/-48V and DC
Power Ground are reversed.)
The “Ready” LED will show a solid red color until the system is ready, at
which time it will change to a green color.
Grounding the NPort 5600 VDC:
Grounding and wire routing help limit the effects of
noise due to electromagnetic interference (EMI). Run
the ground connection from the ground screw to the
grounding surface prior to connecting devices. The
Shielded Ground (sometimes called Protected Ground)
contact is the second contact from the right of the
5-pin power terminal block connector located on the rear panel of the
NPort 5610-8-48V. Connect the SG wire to the Earth ground.
STEP 3: Connect the NPort 5600 to a network. Use a standard
straight-through Ethernet cable to connect to a hub or switch. When
setting up or testing the NPort 5600, you might find it convenient to
connect directly to your computer’s Ethernet port. In this case, use a
cross-over Ethernet cable.
STEP 4: Connect the NPort 5600’s serial port to a serial device.
Placement Options: You can place the NPort 5600 on a desktop or other
horizontal surface.

- 5 -
Software Installation Information
To install NPort Administration Suite, insert the NPort Document &
Software CD into your computer’s CD-ROM drive. Once the NPort
Installation CD window opens, click on the INSTALL UTILITY button,
and then follow the instructions on the screen.
To view detailed information about NPort Administration Suite, click
on the DOCUMENTS button, and then select “NPort 5600 Series User’s
Manual” to open the PDF version of this user’s guide.
Pin Assignments and Cable Wiring
Serial Port Pinouts
for the NPort 5610
Serial Port Pinouts
for theNPort 5630
Pin
RS-232
1
DSR (in)
2
RTS(out)
3
GND
4
TxD(out)
5
RxD(in)
6
DCD(in)
7
CTS(in)
8
DTR(out)
Pin
RS-422/
RS-485-4W
RS-485-2W
1
–
–
2
–
–
3
TxD+
–
4
TxD-
–
5
RxD-
Data-
6
RxD+
Data+
7
GND
GND
8
–
–
Serial Port Pinouts for the NPort 5650
Pin
RS-232
RS-422/RS-485-4W
RS-485-2W
1
DTR
–
–
2
RTS
TxD+
–
3
GND
GND
GND
4
TxD
TxD-
–
5
RxD
RxD+
Data+
6
DCD
RxD-
Data-
7
CTS
–
–
8
DTR
–
–
Serial Cables for the NPort 5630 (2-wire RS-485)

- 6 -
Serial Cables for the NPort 5630 (RS-422/4-wire RS-485)
Serial Cables for the NPort 5610/5650 (RS-232)
Serial Cables for the NPort 5650 (RS-422/4-wire RS-485)
Serial Cables for the NPort 5650(2-wire RS-485)
