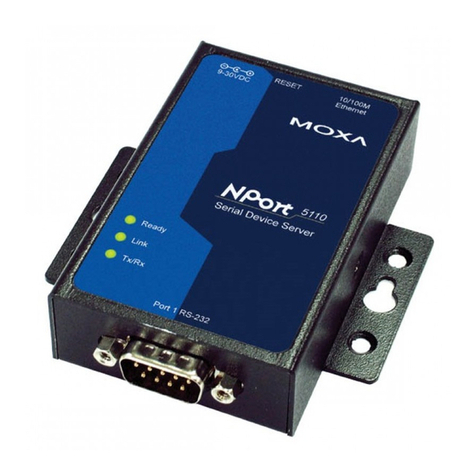

Moxa Technologies NPort 5100 Series User manual

Moxa Tech Note Fixed TTY Driver for NPort
Copyright © 2008 Moxa Inc. Released on July 15, 2008
About Moxa
Moxa manufactures one of the world’s leading brands of device networking solutions. Products include serial
boards, USB-to-serial hubs, media converters, device servers, embedded computers, Ethernet I/O products,
terminal servers, Modbus gateways, industrial switches, and Ethernet-to-fiber converters. Our products are key
components of many networking applications, including industrial automation, manufacturing, POS, and medical
treatment facilities.
How to Contact Moxa
Tel: [phone]
Fax: [phone] Web: www.moxa.com Email: [e-mail]
This document was produced by the Moxa Technical Writing Center (TWC). Please send your comments or
suggestions about this or other Moxa documents to [e-mail].
Fixed TTY Driver for NPort
Moxa Technical Support Team
[email protected]
This Tech Note applies to the following NPort device server models:
•NPort DE-211
•NPort DE-311
•NPort DE-311M
•NPort 5100 series
•NPort 5200 series
•NPort 5400 series
•NPort 5600 series
•NPort IA5150
•NPort IA5250
•NPort 6000 series
•NPort W2150
•NPort W2150 Plus
•NPort W2250
•NPort W2250 Plus
All of these products support the following UNIX operating systems:
•SCO UNIX
•SCO OpenServer 5
•SCO OpenServer 6
•UnixWare 7
•Solaris 10
•QNX4.25
•QNX6
•FreeBSD 5.x
•FreeBSD 6

Moxa Tech Note Fixed TTY Driver for NPort
Copyright © 2008 Moxa Inc. Page 2 of 4
What is the Fixed TTY Driver for NPort?
After installing the fixed TTY driver on your UNIX machine, a UNIX TTY device can
be redirected to an NPort serial port. In other words, a device attached to the
NPort can be treated as a local TTY device on the UNIX PC.
PC with TTY
(termio) program
Ethernet
NPort
Serial
Device
Installing the Fixed TTY Driver for NPort
Before performing the following steps, restore the NPort's default settings by
holding down the reset button for 10 seconds.
1. Make sure that DIP switch 1 is set to OFF (applies to DE-211 and DE-311).
2. Modify the DIP switch settings for serial communication as required for your
device.
3. Turn on the NPort. The Ready LED should turn green.
4. Make sure that the NPort and the host PC are properly connected to the
network.
5. Adjust the NPort's IP settings so that it is on the same subnet as your PC.
You may also need to modify the host PC's IP configuration. Ping from the
PC to the NPort to verify that they are on the same subnet.
Note: The IP addresses of the NPort and the PC must be on the same subnet.
If one IP address is modified, you may need to modify the other IP address
as well.
6. Configure the NPort for Real COM Mode and then configure the serial
interface and communication parameters. Refer to instructions in the
NPort's Quick Installation Guide or User's Manual for details.
7. Log into UNIX and create a directory for the Moxa fixed TTY driver. For
example, execute the following command to create the directory
/user/etc:
# mkdir /usr/etc
8. Use the following commands to copy moxattyd.tar to the new directory:
# cp moxattyd.tar /usr
# cd /usr/etc

Moxa Tech Note Fixed TTY Driver for NPort
Copyright © 2008 Moxa Inc. Page 3 of 4
9. Use the following commands to extract the source files:
# tar xvf moxattyd.tar
# cd /usr/etc/moxattyd
10. Follow your operating system's instructions for compiling and linking the
source files:
QNX4 # make qnx4
QNX6 # make qnx6
SCO OpenServer 6 # make sco6
SCO OpenServer 5 # make sco
Solaris # make sun
FreeBSD # make freebsd
UnixWare 7 # make svr5
11. Verify that the configuration is correct by using a text editor (vi, for example)
to open the text file moxattyd.cf, which is located in the directory that
contains the moxattyd deamon. The IP:port mapping for TTY devices will
appear as shown below:
ttyp11 192.168.127.254 950
12. Use the following command to start the moxattyd daemon:
# /usr/etc/moxattyd/moxattyd –t 1
The optional "-t" parameter is used to indicate the connection timeout value,
measured in minutes.
13. To start the moxattyd daemon automatically on system bootup, add an
entry to the appropriate system file. For SCO OpenServer 5 and 6, Solaris,
and UnixWare 7, add the following entry to the file /etc/inittab:
ts:234:respawn:/usr/etc/moxattyd/moxattyd -t 1
For QNX4, QNX6, and FreeBSD, add an entry to the appropriate system file
as follows:
OS File Add this entry
QNX4 /etc/Config/sysinit.1
QNX6 /etc/rc.d/rc.local
FreeBSD /etc/rc.local /usr/etc/moxattyd/moxattyd –t 1

Moxa Tech Note Fixed TTY Driver for NPort
Copyright © 2008 Moxa Inc. Page 4 of 4
Testing Fixed TTY Ports
1. After installing the Fixed TTY driver as described above, enter the following
command to verify that a TTY port is available:
# sty –a < /dev/ttyp1
2. If the system responds with some serial parameter(s), the TTY port is
available and can be accessed by other programs.
