Moxi 4 MOMS User manual
moxi™
instruction manual
ENGLISH
3
IMPORTANT! KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
RECOMMENDED SEATING POSITIONS
DO NOT USE:
USE LIMITATIONS
Discontinue use when the child reaches a weight of 55 lbs (24 kg).
Carriage mode [3] should only be used in the most reclined position
1 2 3
ENGLISH
5
TABLE OF CONTENTS
Use Limitations......................................................................................3
Recommended Seating Positions......................................................3
Parts ......................................................................................................7
Stroller Overview..................................................................................8
Dashboard Overview........................................................................30
4moms Mobile App Overview..........................................................33
Battery Overview...............................................................................34
Troubleshooting & Frequently Asked Questions .............................36
Care and Maintenance ...................................................................37
Product Warnings ..............................................................................38
Registration ........................................................................................41
Warranty.............................................................................................41
Compliance.......................................................................................42
ESPAÑOL ........................................................................................... 44
ENGLISH
7
PARTS
3
2
8
9
6
7
5
4
x2
x2
1
ENGLISH
98
WHEELS ON
21
1
Pull wheel to verify connection
WHEELS OFF
21
1
Pull wheel to verify connection
ENGLISH
1110
OPENING
2
1
FOLDING
ENGLISH
1312

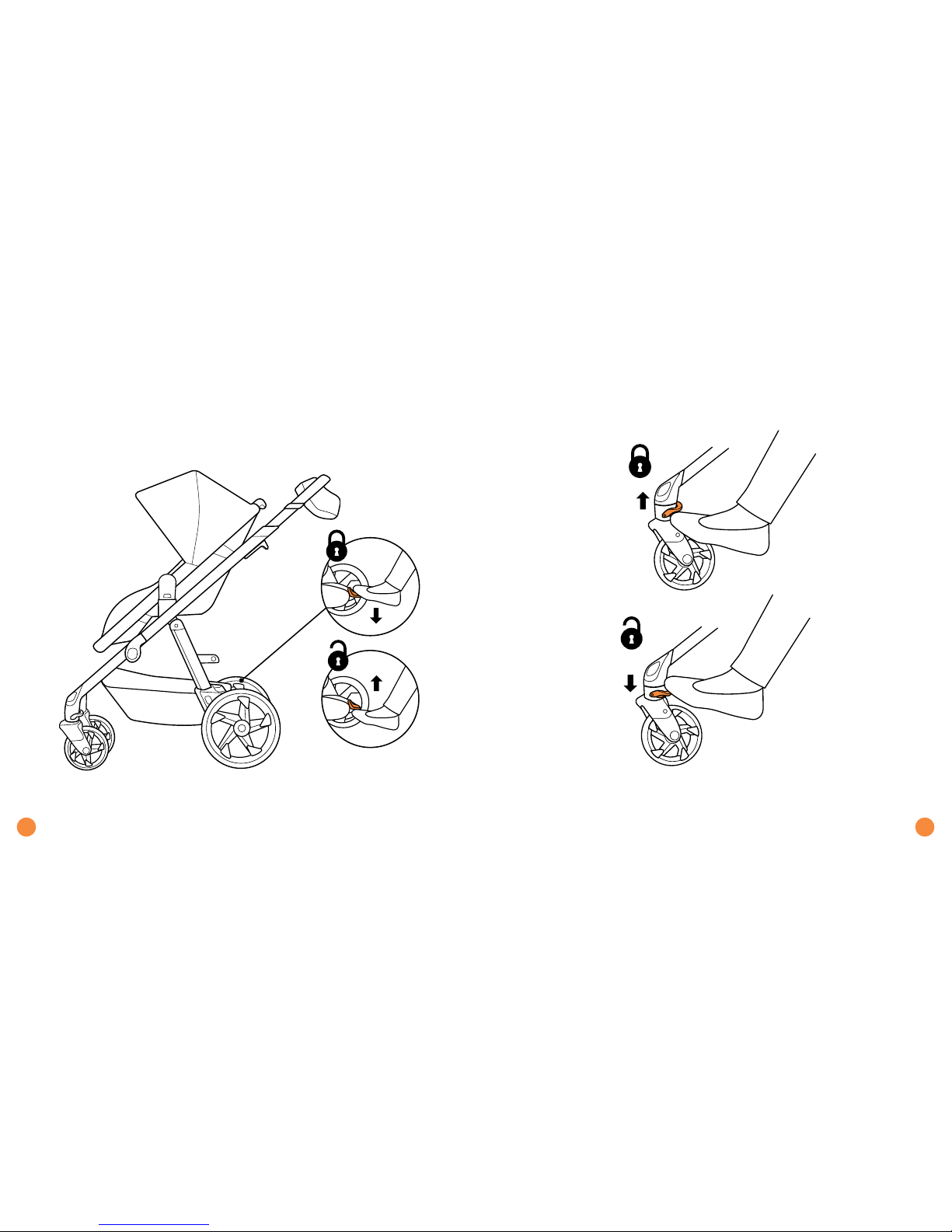

BRAKES
Locked position ideal for use in snow and gravel.
x2
x2
SWIVEL LOCKS
ENGLISH
1514
SEAT ATTACHMENT
1
2
OR
Lift seat to verify connection
1
2
3
x2
ENGLISH
1716

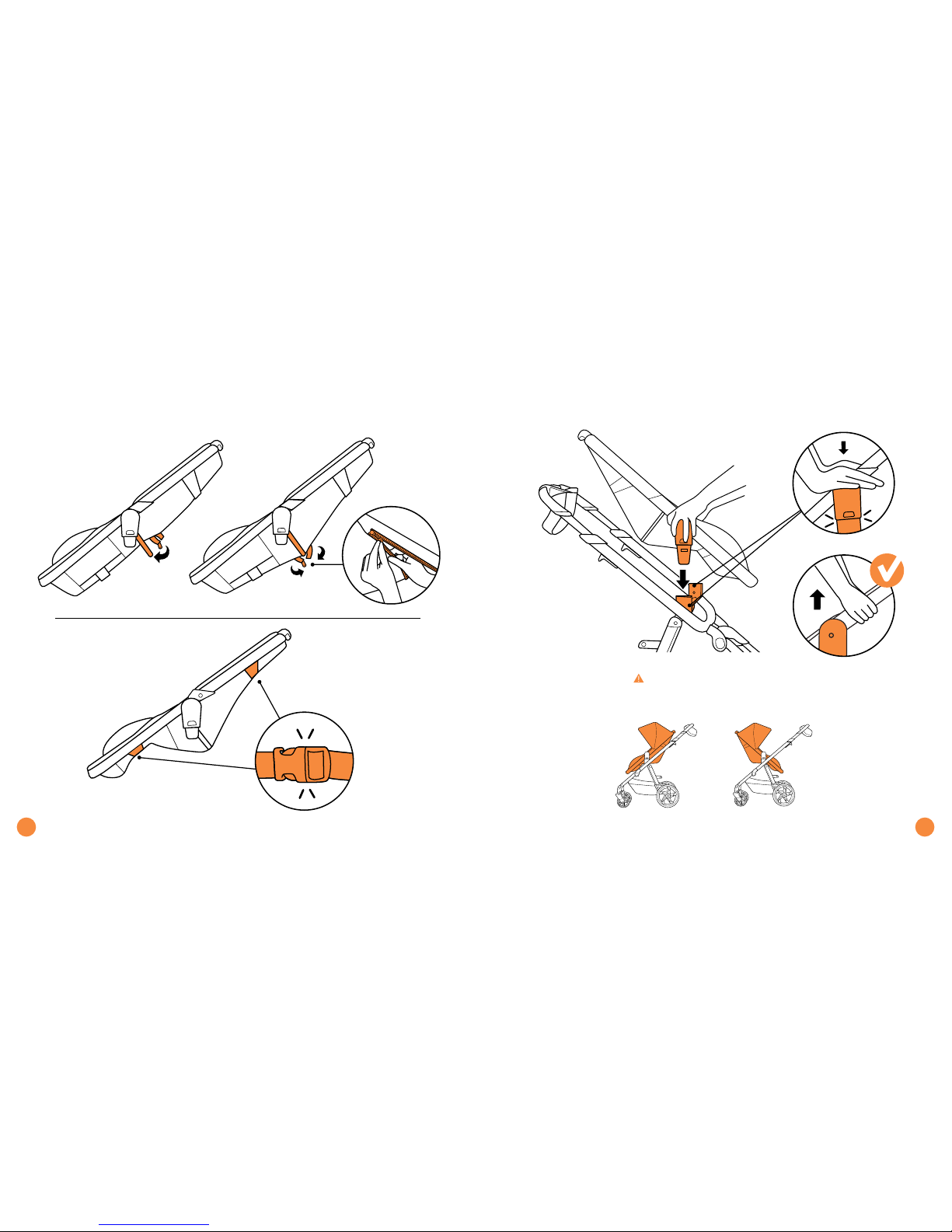

SEAT REMOVAL
x2

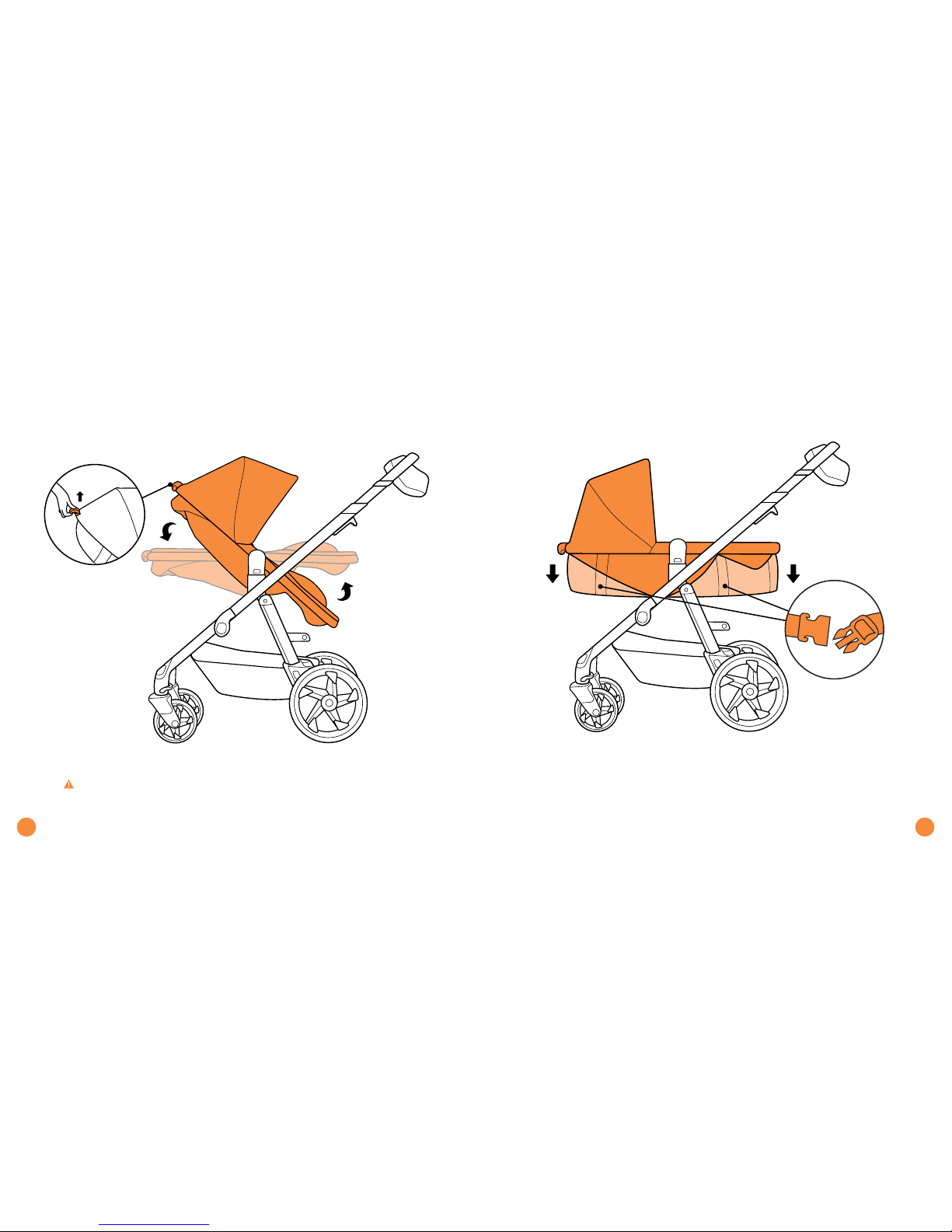

CARRIAGE MODE
Carriage mode should not be used after the child can sit up unassisted,
roll over, or push itself up onto its hands and knees. Maximum weight in
this conguration: 19 lbs (9 kg).
NEVER add a pad, blanket, pillow or mattress in the stroller. ONLY use
accessories that are provided by 4moms specically for the moxi stroller.
18 19
Make sure seat is parent-facing and in most reclined seat position
1
2
ENGLISH
2120
SEAT FABRIC REMOVAL
1
Remove for cleaning or for covering
harness in carriage mode.
1
2
2
x2
4
3
ALWAYS cover harness with seat insert
when in carriage mode.
ENGLISH
2322

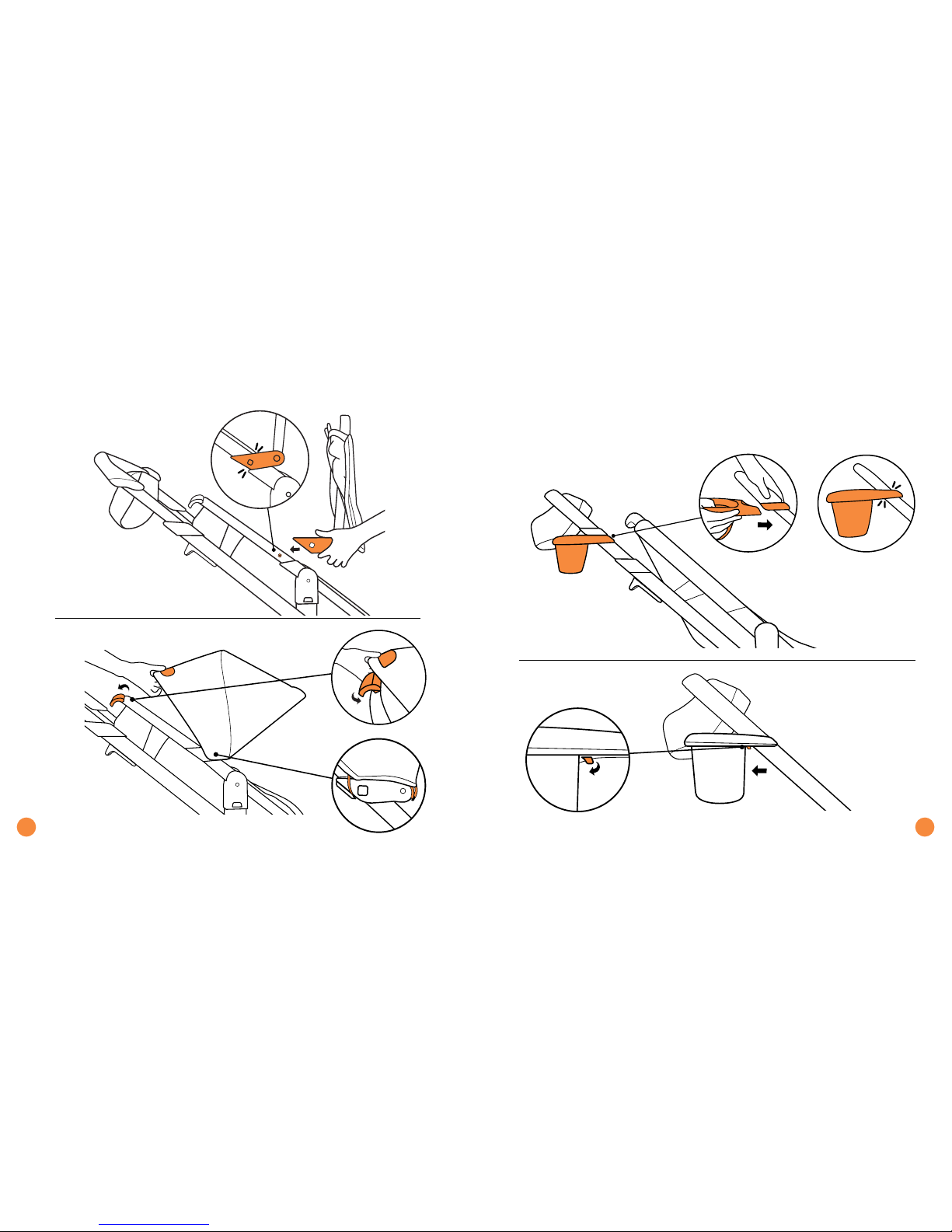

MAX WEIGHT: 2 lb (.9 kg)

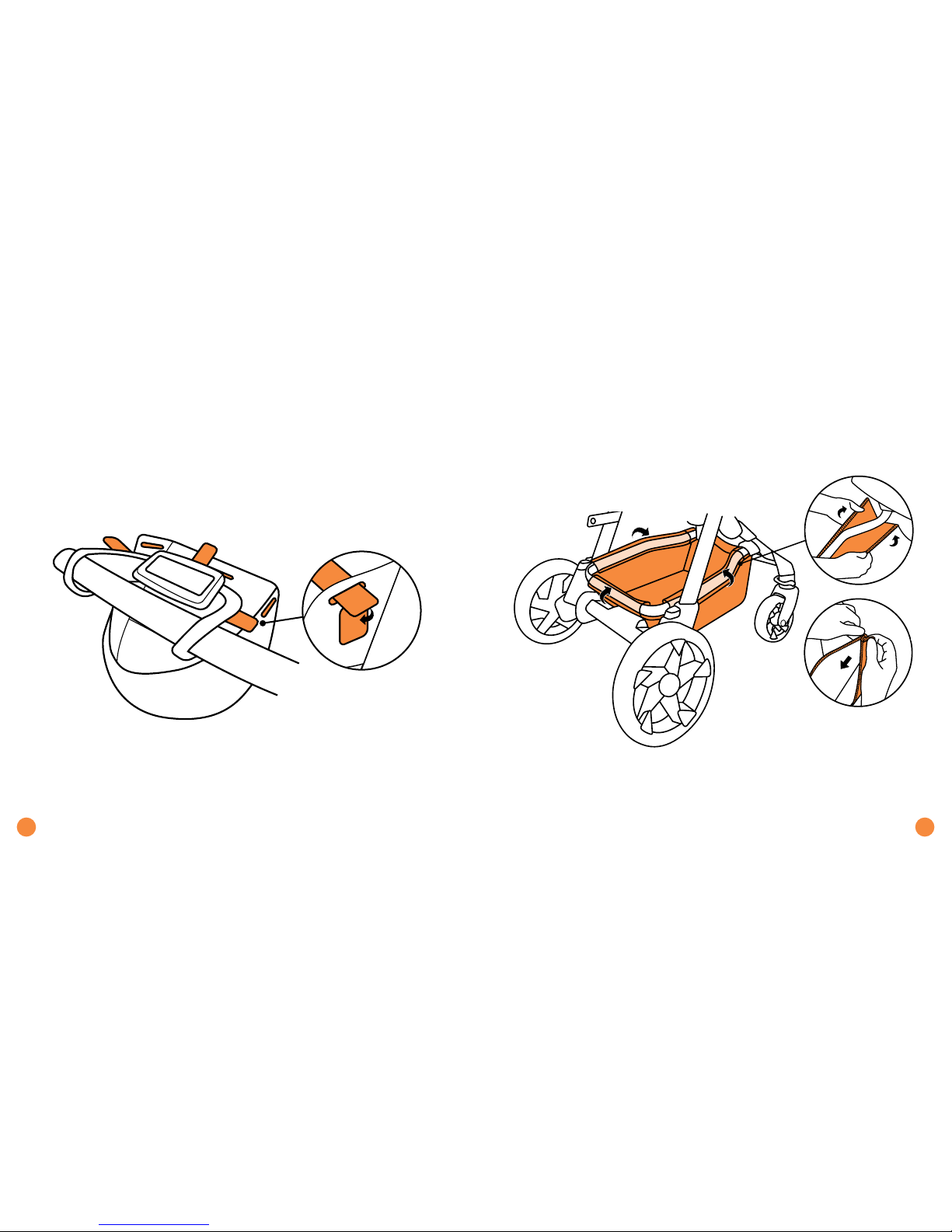

DASHBOARD BAG
x3
MAX WEIGHT: 8 lb (3.6 kg)
2
x3
1
x3
STORAGE BAG
ENGLISH
2524
1
x2
2
SUNSHADE CUP HOLDER
MAX WEIGHT: 2 lb (.9 kg)
1
1
2
2
TO REMOVE
x2
ENGLISH
2726
HANDLEBAR HEIGHT
x2
x2
21
HARNESS
1
2
x2
ENGLISH
2928
RELEASING HARNESS
1
Press button to toggle lights
LIGHTS
ENGLISH
3130

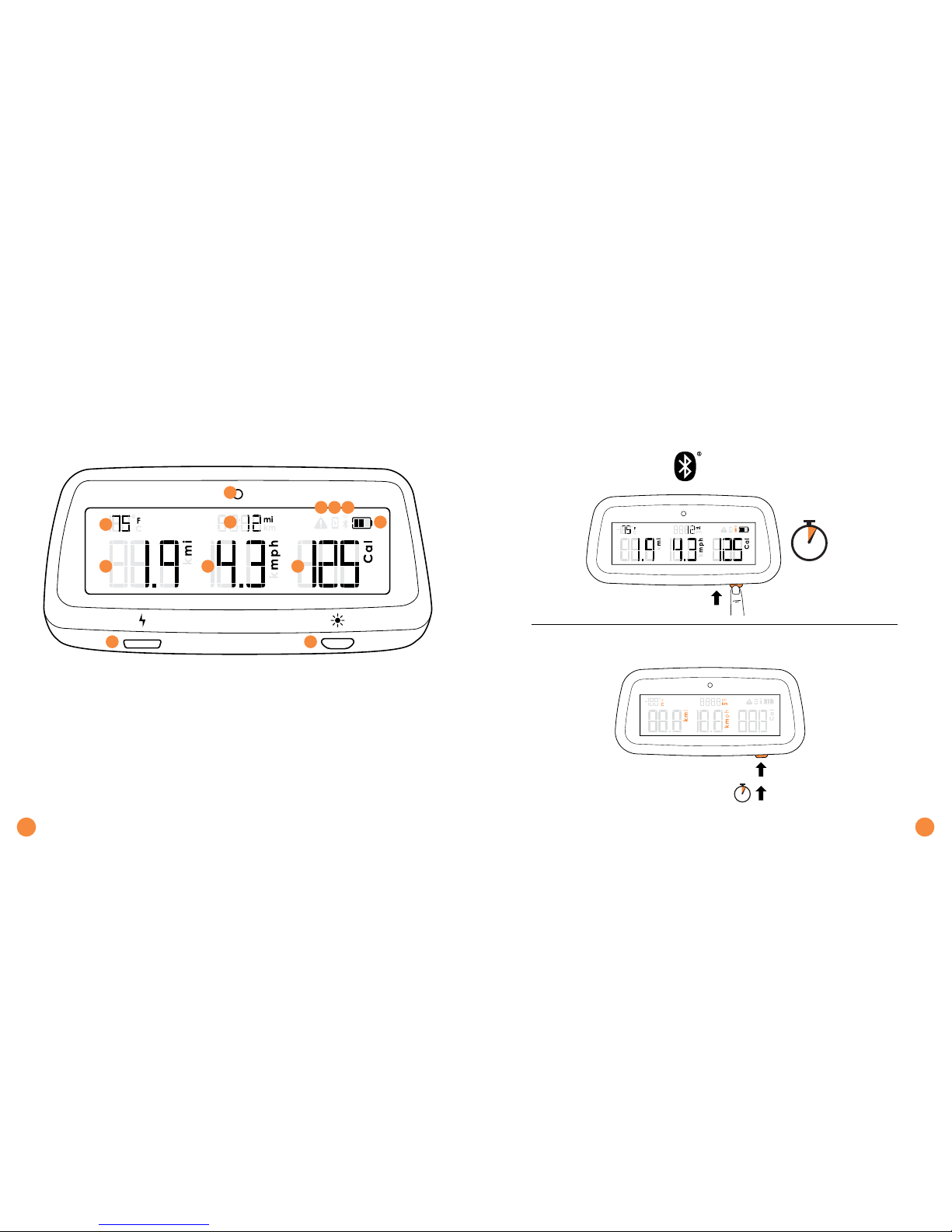

DASHBOARD OVERVIEW
C
G
D E F
A
H I
B
J
LK
KEY
A. Outside Temperature
B. Lifetime Odometer/Clock
C. Ambient Light Sensor
D. Error Alert
E. Phone Charging
F. Bluetooth Pairing
G. Stroller Battery Level
H. Trip Odometer
I. Speed
J. Trip Calories
K. USB Port
L. Button
Bluetooth Pairing
3s
3s
Single press
Press / hold for 3 seconds
Changing Units (miles – km/ ºF – ºC)
ENGLISH
3332
Error Alert
If an error screen occurs, check the app for details or
please contact 4moms® customer care.
Low Battery (Stroller)
See page 50 for charging instructions
4MOMS MOBILE APP OVERVIEW
Download the 4moms mobile app and pair it with your stroller.
view trip
history
adjust stroller
settings
customize
calorie burn
ENGLISH
3534
CHARGING THE BATTERY
WARNING:
NEVER use anything
EXCEPT a 4moms
approved power
supply to charge the
moxi™stroller.
BATTERY WARNING:
• The stroller contains a Lithium Polymer battery
pack. Use only battery pack 4M-106-11-000101 or
a 4moms approved equivalent.
• NEVER use non-rechargeable batteries in the
stroller. Failure to follow instructions or use of non-
approved batteries could cause permanent
damage to the battery and its surroundings, and
cause bodily harm. Use only the charger supplied
by 4moms.
• NEVER disassemble or modify battery pack wiring
in any way or puncture cells.
• NEVER allow the battery temperature to exceed
140 °F/60°C.
• NEVER short battery, trickle charge, or discharge
below 2.5V per cell.
• NEVER leave unattended or place on
combustible materials during charge.
• ALWAYS keep battery pack out of reach of
children.
ENGLISH
3736
CARE AND MAINTENANCE
Wheels and Power Pod
The stroller is designed to handle many types of ground and rough
terrain. However, to keep the stroller in peak condition, keep the wheel
bearings free of sand and abrasive grit, and wipe water off the Power
Pod after use. Do not submerge any part of the stroller or use running
water to clean it.
Battery
Extremely low temperatures can decrease the battery life of the stroller,
or prevent the battery from working at all. We recommend you not
store the stroller below freezing temperatures, or use it in temperatures
of less than zero degrees (0º F or -18º C).
Frame
To clean the plastic parts or aluminum parts of the stroller, wipe with
a solution of mild soap and water. Do not use bleach. Keep the
handlebar, frame, and seat ring frame free of sand and abrasive grit.
Avoid getting oil or lubricants on the plastic parts, as this can chemically
degrade the plastic.
Storage Bag and Seat Insert
The storage bag, dashboard bag and seat insert are machine
washable. Wash cold on gentle cycle. Air dry.
If you have any further questions or comments not covered here,
please visit www.4moms.com/support or contact Customer Care at
1-888-614-6667.
Problem Solution
Troubleshooting & Frequently Asked Questions
The stroller will automatically go into
power-saving mode after a few
minutes sitting still. Push it forward to
wake it up.
Check the app for details, or contact
4moms Customer Care.
The stroller’s battery health is declining.
Replace battery soon.
The stroller’s battery health is poor.
Replace battery now.
When the stroller is charging, the
battery indicator in the upper right
corner of the LCD will cycle from
empty to full repeatedly. Charging
stops when the stroller is stationary.
You must be walking at a sufcient
pace for the stroller’s battery to
charge. The faster you walk, the faster
the battery will charge.
If you frequently use the stroller’s
headlights, or if you use the stroller
to charge your phone, you might
be using more power than you are
generating by walking. For best results,
plug the stroller into a wall outlet to
charge it periodically.
The LCD is off.
The LCD is showing Err or my alert icon
[] is on.
The LCD is showing Err 001.
The LCD is showing Err 002.
How do I know the stroller is charging
as I walk?
When I’m walking, I don’t see the
battery icon cycling.
Why is the stroller’s battery draining?
ENGLISH
3938
• Be aware of the environment in which you are
using the stroller. Do not stroll over obstacles in
your path, and be especially careful on uneven,
slippery, unstable, or steep terrain, as this may
increase the stroller’s likelihood of tipping or rolling
away from you.
• Make sure your child’s arms and legs are inside
the stroller before moving, as obstructions striking
the stroller could cause injury.
• NEVER use the stroller on stairs or escalators, or in
any other environment where you could suddenly
lose control of the stroller and cause injury to
yourself or others.
• Securely fasten the harness straps when in use.
A snug strap will not allow any slack. It lies in a
relatively straight line, without sagging.
• Check that the pram body or seat unit or car
seat attachment devices are correctly engaged
before use.
• Keep the stroller balanced. Stroller may become
unstable if more than 55 lbs is placed in the
seat, or if weight, such as a parcel bag or rack, is
added to the stroller (except for those produced
for or included with the 4moms moxi stroller).
WARNING:
• Read these instructions carefully before use.
Failure to follow these instructions may result in
damage to the product or injury to the child
occupant.
• For your child’s safety, make sure anyone using the
stroller reads and understands these instructions
before using it.
• Immediately discontinue use of the stroller
should it become damaged or broken or if the
LCD screen presents an “Err” message. Contact
4moms Customer Care at 1-888-614-6667 if this
occurs.
• Avoid serious injury from falling or sliding out.
ALWAYS use harness when not using the carriage
mode.
• NEVER leave your child unattended. A wheeled
vehicle can roll unpredictably, so always stay
within arm’s reach of the stroller.
• Use the brake every time you stop to prevent
unexpected movement, especially on inclines.
• DO NOT let your child play with or push this
product.
