MOXTEK MAGNUM X-ray Source User manual

MOXTEK®
50kV 10 Watt MAGNUM®X-ray Source
Manual
Contents
• MAGNUMX-raySourceCharacteristics
• InitialInspectionandHandling
• TubeSetup
• OperatingConditions
• OperatingPrecautionsandWarnings
• OperatingaMAGNUMwithoutaMoxtekFTC-200Controller
• OperatingaMAGNUMwithaMoxtekFTC-200Controller
2
3
3
4
5
5
5
1
TUB-MAN-1001,RevA
Subjecttotechnicalchangewithoutnotice
X-ray
Sources

TUB-MAN-1001,RevA
Subjecttotechnicalchangewithoutnotice
MOXTEK®
Mechanical Specications X-ray Tube Characteristics
Tube Type:
Cathode Type:
Operating Temperature:
Storage Temperature:
Cooling:
HV Insulation:
Weight:
Available Targets:
Metal-ceramic
Tungstenlament
-10°to+50°C
-40°to+60°C
Air
Siliconepotting
1.1lb.(500g)
Ag,W,Pd,Rh,Ta,Au
HV Polarity:
High Voltage:
Beam Current:
Maximum Power:
Window:
Input Power:
Warranty:
Groundedanode
-10to-50kV
0to0.20mA
10watts
Beryllium,0.25mmthick
20Wmax(9-12VDC)
Oneyear
2
MAGNUM 10 Watt X-ray Source Characteristics
TheMAGNUM®x-raytubeissmall,lightweight,andcanbepackagedintocustomenclosures.TheMAGNUMx-raytube
packageincludesanx-raytubeandahighvoltagepowersupplythatoperatesatupto50kVand200μA.TheMAGNUMtubeis
idealforbattery-poweredapplications.Thetubeanodeisgroundedallowingplacementclosetothesample.

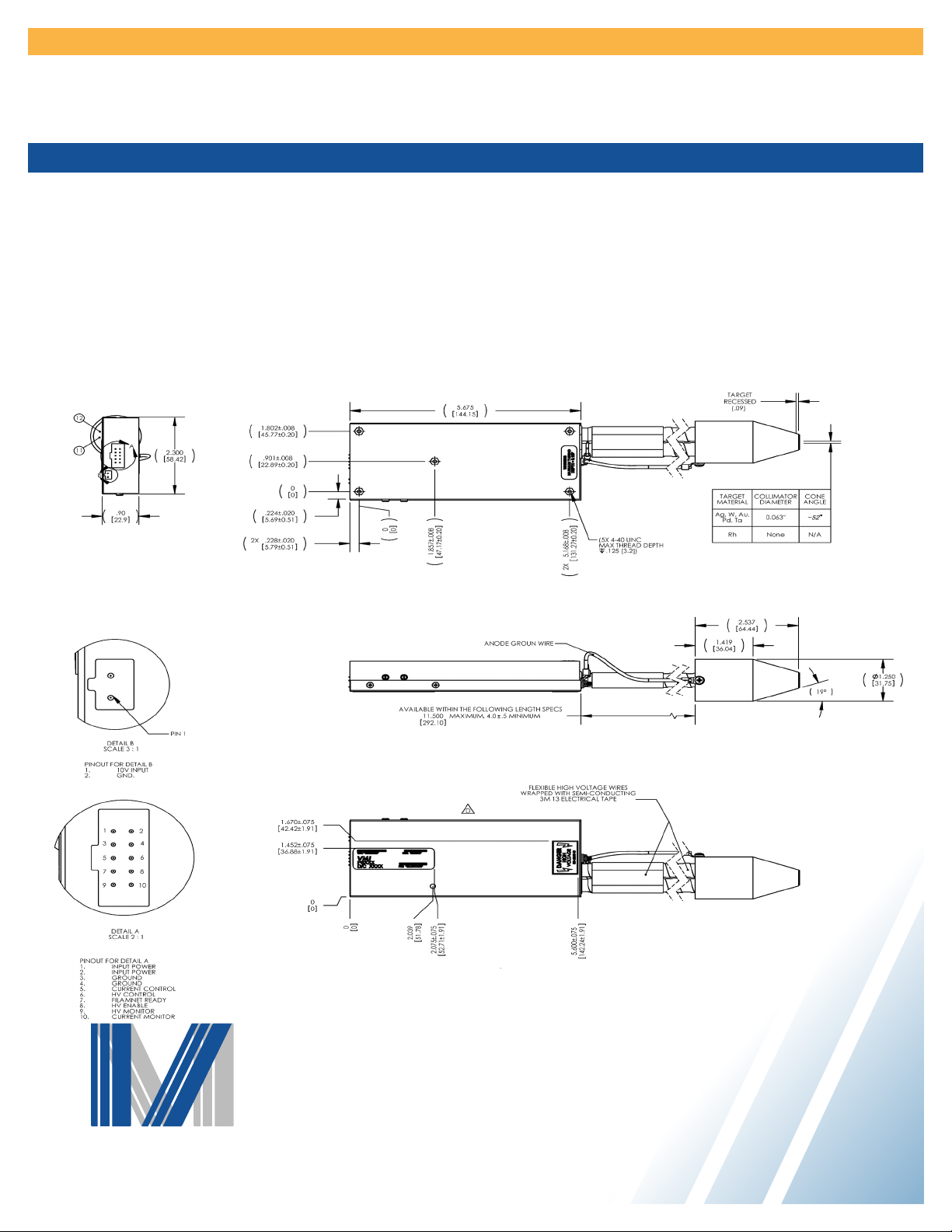

Drawing1MAGNUMX-raysourcedimensions(ininches[millimeters])

MOXTEK®
3
TUB-MAN-1001,RevA
Subjecttotechnicalchangewithoutnotice
Figure2MAGNUMSource
Temperature
Maxanodeshield
temperature=100ºC
WhenaMAGNUMtubeisreceived,itshouldbeunpackedandinspectedassoonaspossible.AstandardMAGNUMtubeis
packagedinabrassshield.Thisshieldisconnectedtoahighvoltagepowersupplyviatwowhitehighvoltagewiresandone
greengroundwire(Figure1).Inspectthehighvoltagepowersupplyandthetubeshieldassemblyforanydamagethatmayhave
occurredduringshipping.Ifatubehasbeendamaged,pleasecontactMoxekimmediately.Theserialnumberislocatedonthe
highvoltagepowersupply.Pleasedonottouchtheberylliumwindow.Donopullonorbendthehighvoltagewires.
Careshouldbetakenwhenhandlingthetubeandthehighvoltagepowersupply.Liftthepowersupplyandthetubewithboth
handstoavoiddamagingthehighvoltagewiresorpottingmaterial.Preventthetubefromstrikinganysurface.Caremustbetaken
tonotdamagetheberylliumwindoworhighvoltagewires.
Initial Inspection
Handling
Figure1MAGNUMSource
HighVoltage
PowerSupply GroundedWire
SourceandShield
Assembly
HighVoltage
Wire
Pin Assignment for Ribbon Wire DB9 Connector
Function Pin # I/O Value Response
Input power N/A +6to+12V Inputpower
Input power 1+6to+12V Inputpower
Ground 2 Ground Ground
HV control 3 +0.32Vto+4.0V -10to50kV
HV enable 4 0.0Vor+5VTTL
input
0Disabled,+5
Enabled
Current
Monitor
50.0Vor+5VTTL
output
-4kVto-50kV
Ground 6 Ground 0Notready+5
Ready
Current
Control
70.0Vor+4V 0Disabled,+5
Enabled
Filament
ready
80.0Vto+5V
output
Proportionalto-4
kVto-50kV
HV monitor 9 +0.32Vto+4V
output
Proportionalto0
to200µA
Table 1 Pin Assignment
Figure4:2-PinSecondaryCable
(ASM00364)
Manufacturer:BELDEN
PartNumber:R216-2500
Manufacturer:MOLEX
PartNumber:50-57-9202
Manufacturer:MOLEX
PartNumber:516-02-0103
Manufacturer:3M
PartNumber:3473-7600
Manufacturer:OKIElectricalCable
PartNumber:R000-50-ND
Figure3:RibbonCable(ASM00362)

MOXTEK®
9
10
7
8
5
6
3
4
2
1
4
TUB-MAN-1001,RevA
Subjecttotechnicalchangewithoutnotice
Mechanical
TheshieldedMAGNUMtubeassemblymaybemountedwiththeexitcollimatorfacinganydirection.Careshouldbetakennot
tostrainthehighvoltagewires.Minimumhighvoltagewirebendradiusis1.25inches.Thehighvoltagepowersupplyhasthree
threadedholesonbothsidesofthemetalcase.Theseholesmaybeusedformounting(seeDrawing1).
Cooling
TheMAGNUMtubedoesnotrequireforcedconvectionorliquidcooling.Thetubeshouldbeoperatedinanenvironmentthat
allowsfreeconvectionorconductiontosecondaryparts.Pleaserefertopage2ofthismanualforambientandstoragetemperature
specications.Themaximumambienttemperature,asmeasuredatthesurfaceofthepowersupplyenclosure,is+10°C.The
maximumoperatinganodeshieldtemperatureis100degreesCelsius(seeFigure2).
Electrical
Outputpowerbelow4W:Moxtekrecommendsusingthe2-pinoptionalsecondarycable(ASM00364)whileoperatingthe50kV
MagnumTube(Figure4).ThepinassignmentisshowninDrawing1andinTable1.
Outputpowerabove4W:2-pinsecondarycableisrequiredfortubeoutputandstability(Figure4).
Attachthe2pinsecondarypowercabletothebacksideofthehighvoltagepowersupplycase.RefertoFigure3andTable1for
pinidenticationandelectricalspecications.Attachthe2barewireleadstoa6to10VDCpowersupplyortoaMoxtekFTC-200
x-raytubecontroller.
Thehighvoltagepowersupplyalsohasa10pinIDCconnector.Thisconnectorisusedtopower,control,andmonitorthex-ray
tube(Figure6).
A10leadribboncableisavailablefromMoxtek(Figure3).Thisribboncablehasa10pinIDCconnectorononesidethat
connectstothehighvoltagepowersupplyandaDB9connectorontheotherendthatconnectstotheMoxtekFTC-200controller.
Thepinassignmentforthe10pinIDCisshowninDrawing1andthepin-outfortheDB9connectorisshowninTable1.
Safety
Toassuresafetubeoperation,a5voltTTLsignalissenttothepowersupplytoenablex-raygeneration.Moxtekrecommendsthe
useofasafetyinterlockswitchwhenoperatingtheMAGNUMx-raytube.Connectthehighvoltageenablepin(seeTable1)tothe
customersuppliedsafetyinterlockswitch.
Source Setup
Figure5:2PinSecondaryPower
Connector
Figure6:10PinICDConnector
12
MoxtekPN:ASM00364
Length:6ft±5inches

5
ThehighvoltagepowersupplyusesDCvoltagesandsignalstooperatethetube.TooperatethetubewithoutusingaMoxtekFTC-
200controller,refertoDrawing1forthe10pinhighvoltagepowersupplyconnectorpinouts.
MAGNUMtubeanodesaregroundedtoametalshield(Figure1).Theshieldisgroundedtothepowersupplyviaagreenwire.
Makesurethatthegreengroundwireissecurelyconnectedfromthetubeshieldtothegroundingterminalonthehighvoltage
powersupplycase.DONOTdisconnectthegreengroundwirefromthetubeshieldorthehighvoltagepowersupply.Itwill
damagethetubeand/orpowersupplyifthegroundcableislooseordamaged;donotoperatethetubeuntilthegroundcableis
securedorreplaced.Isolateallgroundsforthex-raytube.
Whenoperatingthe50kVMAGNUMx-raytube,adheretothemaximumsetting:50kV,0.20mAmax.Failuretoadheretothese
limitsmaycausedamagethex-raytubeand/orhighvoltagepowersupply.Failuretoadheretothisparameterwillforfeitthetube
warranty.
WhenoperatingtheMAGNUMx-raytube,wait2secondsafterthetubehasbeenpoweredoffbeforepoweringthetubeonagain.
Failuretowait2secondsmaydamagethelament.Failuretoadheretothisparameterwillforfeitthetubewarranty.
CAUTION: VerifythatthetubeandthehighvoltagepowersupplyareproperlygroundedbeforepoweringontheFTC-200tube
controller.AlsoverifythattheFTC-200controllerisproperlygroundedtothepoweroutlet.IfyouarenotusingtheFTC-200
Controllerandusingacustomcontroller,makesurethetubeandthehighvoltagepowersupplyareproperlygrounded.
CAUTION: MAGNUMX-raytubescontainBeryllium.InhalingBerylliumdustmaycauselungdisease–refertotheMSDS.
Undernormaluse,Berylliumdustisnotgenerated.IftheBerylliumwindowisbroken,averysmallamountofdustmightbe
generated.IfthisoccursfollowtheinstructionsontheMSDSforcleanup.
WARNING: MAGNUMX-raytubesmaybecomeveryhotduringoperation.
WARNING: MAGNUMX-raytubesproducex-rayradiation.MAGNUMtubesareshieldedwithametalshieldandhigh-Z
pottingmaterials.Extrashieldingmayberequireddependingontheapplication.ONLYOPERATEX-RAYTUBESIN
PROPERLYSHIELDEDENCLOSURES.Itistheresponsibilityoftheoperatortoensurethatallapplicablesafetyprecautionsare
takenandobserved.
WARNING: MAGNUMX-raytubesoperateathighvoltages.Refertotubehandlinginstructionsonpage3.Precautionsshould
betakentoprotecttheoperatorwhileapplyinghighvoltagestoavoidseriousinjuryordeath.
TheFTC-200controllerisdesignedtopower,monitor,andcontroltheMAGNUMx-raytube.Thiscontrollercontainsallofthe
necessaryelectronicstooperatethehighvoltagepowersupply.TheFTC-200controllerprovidesinputpowertothehighvoltage
powersupply.TheFTC-200controlsthehighvoltageandemissioncurrentsettingsonthex-raytube.TheFTC-200controller
includesbuilt-inmetersforconvenientmonitoringanddisplayofthehighvoltageandemissioncurrent.RefertotheFTC-200
OperationManualforoperatinginstructions.
Operating Conditions
Operating Precautions and Warnings
Operating a MAGNUM Source without a Moxtek FTC-200 Controller
Operating the MAGNUM X-ray Source with a Moxtek FTC-200 Controller
TUB-MAN-1001,RevA
Subjecttotechnicalchangewithoutnotice
