MQ Multiquip FX User manual

OPERATION MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
MODEL FX
VIBRATOR
(Used with FU162A High Frequency Inverter)
Revision #0 (05/12/22)
To find the latest revision of this publication or
associated parts manual, visit our website at:
www.multiquip.com

PAGE 2 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
PROPOSITION 65 WARNING

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 3
Grinding/cutting/drilling of masonry, concrete, metal and
other materials with silica in their composition may give
off dust or mists containing crystalline silica. Silica is a
basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Repeated and/or
substantial inhalation of airborne crystalline silica can
cause serious or fatal respiratory diseases, including
silicosis.Inaddition, California and some other
authorities have listed respirable crystalline silica as a
substance known to cause cancer. When cutting such
materials, always follow the respiratory precautions
mentioned above.
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and
other materials can generate dust, mists and fumes
containing chemicals known to cause serious or fatal
injury or illness, such as respiratory disease, cancer,
birth defects or other reproductive harm. If you are
unfamiliar with the risks associated with the particular
process and/or material being cut or the composition of
the tool being used, review the material safety data
sheet and/or consult your employer, the material
manufacturer/supplier, governmental agencies such as
OSHA and NIOSH and other sources on hazardous
materials. California and some other authorities, for
instance, have published lists of substances known to
cause cancer, reproductive toxicity,or other harmful
effects.
Control dust, mist and fumes at the source where
possible. In this regard use good work practices and
follow the recommendations of the manufacturers or
suppliers, OSHA/NIOSH, and occupational and trade
associations.Water should be used for dust
suppression when wet cutting is feasible. When the
hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should
always wear a respirator approved by NIOSH/MSHA for
the materials being used.
WARNING
SILICOSIS WARNING RESPIRATORY HAZARDS
SILICOSIS/RESPIRATORY WARNINGS

PAGE 4 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
TABLE OF CONTENTS
FX Series Vibrators
Proposition 65 Warning ........................................... 2
Silicosis/Respiratory Warnings ................................ 3
Safety Information ................................................ 6-9
Specifications ........................................................ 10
Dimensions............................................................ 11
General Information............................................... 12
Components .......................................................... 13
Setup And Inspection ............................................ 14
Operation............................................................... 15
Maintenance..................................................... 16-17
Troubleshooting ..................................................... 18
NOTICE
Specifications and part numbers are subject to change
without notice.

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 5
NOTES

PAGE 6 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others.The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION
or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
Burn hazards
Symbol Safety Hazard
Electric shock hazards
Earth Ground
Protected against splashing
water
IPX-4
To reduce risk of injury user
must read instruction manual

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 7
SAFETY INFORMATION
GENERAL SAFETY
CAUTION

NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.

Avoid wearing jewelry or loose fitting clothes that may
snag on the controls or moving parts as this can cause
serious injury.

NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.

NEVER operate this equipment under the
influence of drugs or alcohol.

ALWAYS clear the work area of any debris, tools, etc.
that would constitute a hazard while the equipment is
in operation.

Keep work area well lit.

No one other than the operator is to be in the working
area when the equipment is in operation.

DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE

This equipment should only be operated by trained and
qualified personnel 18 years of age and older.

Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.

Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
NEVER
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fire extinguisher.
ALWAYS know the location of the nearest
first aid kit.
ALWAYS know the location of the nearest phone or
keep
a phone on the job site.
Also, know the phone numbers
of the nearest ambulance, doctor and
fire department.
This information will be invaluable in the case of an
emergency.

PAGE 8 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
SAFETY INFORMATION
VIBRATOR MOTOR SAFETY
DANGER

ALWAYS wear rubber insulated gloves and boots when
holding the flexshaft during operation. The possibility of
electrocution exists causing equipment damage and
severe bodily harm even death!
DANGER

If applicable, periodically check insulation resistance
as referenced in maintenance section. The possibility
of electrocution exists causing equipment damage and
severe bodily harm even death!
WARNING

NEVER attempt to run the core outside the casing
assembly for any reason.
CAUTION

DO NOT overreach. Keep proper footing and balance at
all times.

DO NOT carry plugged-in motor with finger on the switch.

NEVER carry the motor by the cord. Use the carrying
handle.

ALWAYS check the vibrator motor for loosened hardware
such as nuts and bolts before starting.

Keep the cord from heat, oil, and sharp objects.

DO NOT overload the motor. It will do a better and safer
job at the rate for which it was designed.

DO NOT expose vibrator motor to rain.

DO NOT use vibrator motor in damp or wet locations
without proper electrical circuits.

ALWAYS keep clear of rotating or moving parts while
operating the vibrator motor.

NEVER leave the machine unattended while running..
ALWAYS disconnect the motor from the power source
when not in use, before servicing, and when changing
flexible shafting and vibrator heads.
Allow the vibrator motor to cool before
servicing. Contact with hot components can
cause serious burns.
Before each use, ALWAYS check the motor
to make certain that there are no damaged parts and that
all parts function properly (such as switch, cord housing).
If any damage or malfunctioning parts are found, have
them repaired or replaced by an authorized service facility.
NOTICE

Secure forms. Make sure the form work is well made and
braced to withstand the stresses made by vibration.

Keep vibrator motor clean for better and safer operation.
ALWAYS
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
Use only factory-authorized replacement parts.

Store idle vibrator motor. When not in use, motor should
be stored in a dry, safe storage area.
ELECTRICAL SAFETY
CAUTION

Prevent body contact with grounded surfaces such as
pipes, reinforcing bar, etc.

When applicable, use a protection wiring device, such
as a Ground Fault Circuit Interrupter, for the protection
of personnel.

Operate electric motor only at the specified voltage
indicated on the nameplate.
DO NOT spray water onto electric motor.
DO NOT
yank the cord to disconnect it from the
receptacle. Grasp the plug itself to disconnect it.
ALWAYS
make sure the ON/OFF switch on the electric
motor is in the OFF position when not in use and before
inserting the power plug into an AC receptacle.

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 9
SAFETY INFORMATION
Before plugging the motor into a power source, ALWAYS
remove any wrenches or other tools from the motor,
shaft, and head that were used for assembly.
Power Cord/Cable Safety
DANGER

ALWAYS use a grounded 3-wire extension cord that has
a 3-prong grounding plug, and a 3-pole receptacle that
accepts the plug on the concrete vibrator motor. DO NOT
REMOVE THE GROUNDING PIN FROM THE PLUG!

NEVER let power cords or cables lay in water.

NEVER use damaged or worn cables or cords when
connecting equipment to generator. Inspect for cuts in
the insulation.

NEVER grab or touch a live power
cord or cable with wet hands. The
possibility exists of electrical shock,
electrocution or death.

Make sure power cables are securely connected.
Incorrect connections may cause electrical shock and
damage to the vibrator motor.
CAUTION

Ensure that cables and cords will not be tripped over.
NOTICE

ALWAYS make certain that proper power or extension
cord has been selected for the job.

Use only extension cords that are intended for outdoor
use and so marked.
Use only the gauge wire and length of cord recommended
for the motor size.If in doubt, go to the next heavier gauge.
(The smaller the gauge number, the heavier the cord.)
ENVIRONMENTAL SAFETY/DECOMMISSIONING
NOTICE
DO NOT
pour waste or oil directly onto the ground, down
a drain or into any water source.

Contact your country's Department of Public Works or
recyling agency in your area and arrange for proper
disposal of any electrical components, waste or oil
associated with this equipment.
When the life-cycle of this equipment is
over it is recommended that the head
casing and all other metal parts be sent
to a recycling center.

PAGE 10 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
SPECIFICATIONS
Table 1. FX Vibrator Specifications
Model FX30E6 FX40G6 FX50G6 FX60E6
Voltage 48 V 48 V 48 V 48 V
Amperage 4 A 6 A 9.5 A 18 A
Hz 200/240 200/240 200/240 200/240
Vibration 12,000/14,000 VPM 12,000/14,000 VPM 12,000/14,000 VPM 12,000/14,000 VPM
Shipping Weight 23 lb (10.3 kg) 30 lb (13.7 kg) 36 lb (16.5 kg) 44 lb (19.9 kg)

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 11
DIMENSIONS

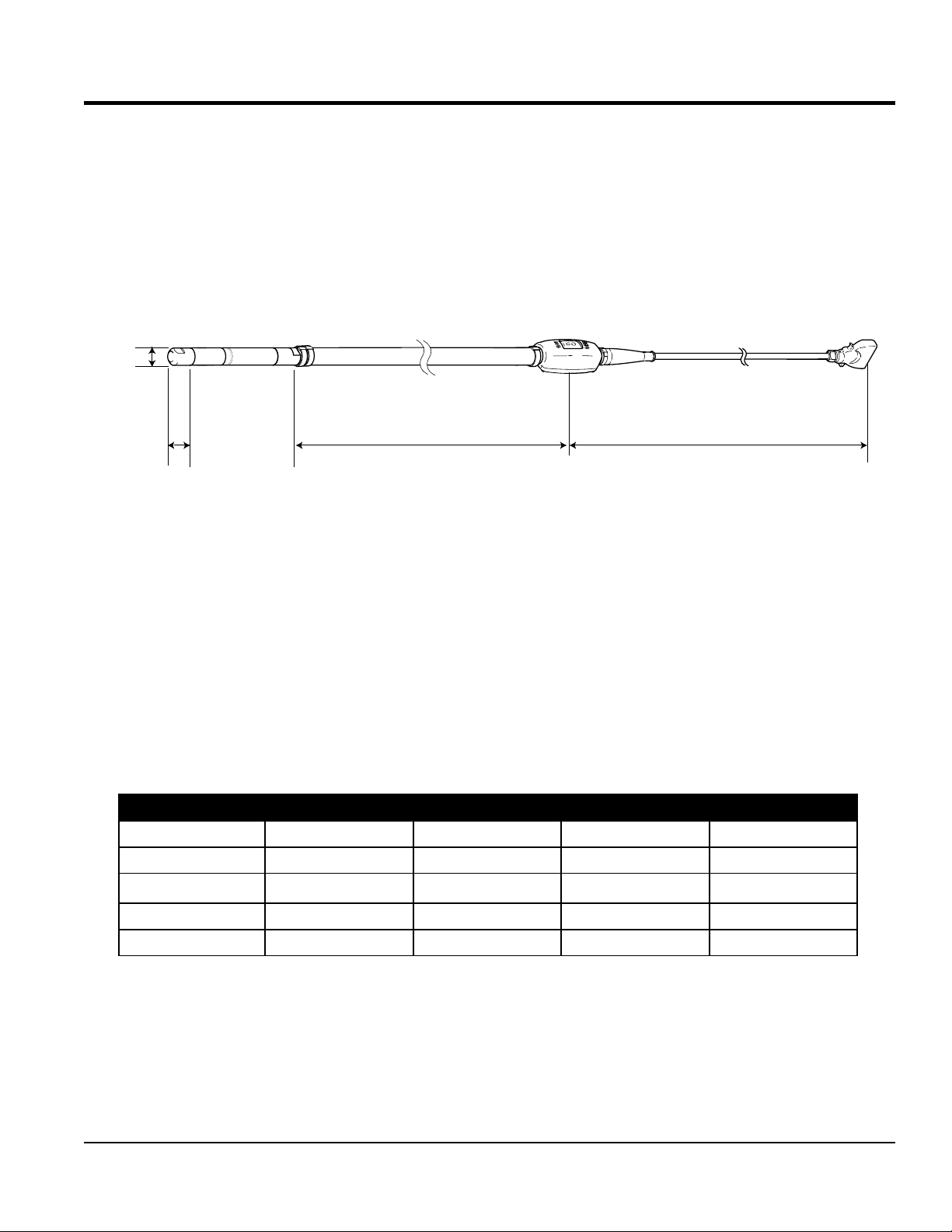

Figure 1. Vibrator Dimensions
(FX30E6 shown)
A
B C D
Table 2. FX Vibrator Dimensions
Model FX30E6 FX40G6 FX50G6 FX60E6
Head Diameter (A) 1.25 in (32 mm) 1.70 in (43 mm) 2 in (52 mm) 2.4 in (61 mm)
Head Length (B) 15.6 in (396 mm) 15.6 in (396 mm) 16.3 in (413 mm) 19.1 in (485 mm)
Hose Length (C) 20 ft (6 m) 20 ft (6 m) 20 ft (6 m) 20 ft (6 m)
Cord Length (D) 50 ft (15 m) 50 ft (15 m) 50 ft (15 m) 50 ft (15 m)

PAGE 12 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
GENERAL INFORMATION
The FX high-frequency vibrator is a bar type vibrator
that is inserted directly into fresh concrete (freshly-mixed
concrete) to provide vibration for concrete consolidation.
For consolidation of fresh concrete, the end of the machine,
after being inserted in the concrete, gives appropriate
vibration directly to the concrete. This helps the concrete
fill in the form without any gap and discharges air bubbles
contained in the concrete, resulting in finely consolidated
beautiful finish of concrete with high strength.
If the power cord is extended, the machine can be used
easily for concrete casting at deep areas or any location
far from the power outlet. Its light weight allows long hours
of operation and handling such as moving of the machine
easily and safely.
The FX vibrator is widely used for general concrete casting
in civil engineering and construction, and is offered in
several types with four different vibration head diameters
ranging from 1.25 to 2.4 inches, hose length of 20 feet, and
a standard cord length of 50 feet.
STRUCTURE
THE FX vibrator has a vibration head that generates
strong vibration at the end. Inside the vibration head, high
frequency motor is directly connected to the eccentric
weight that generates vibration by rotation.
This high-frequency motor is a three phase induction motor
with high frequency power source specification (low voltage:
48V and high frequency: 240Hz).
The wire to run the high frequency motor is connected to
the hose that is connected to the vibration head and the
pipe, then via the power cord to the power plug.The switch
box for turning on/off the high frequency motor is inside the
switch box between the hose and power cord.
TIPS
Keep the bending radius of the flexible hose to a
minimum during use.
CAUTION
When operating the FX vibrator, ALWAYS wear rubber
insulated gloves and boots. Safety glasses and ear
protection are also recommended.
Avoid starting the unit with the vibrator head immersed in
the concrete mix. After the engine has started, immerse
the vibrator head into concrete mix.
Excessive wear to the vibrating head can result from
misuse. DO NOT allow the head to vibrate against already
hardened concrete or steel used for reinforcement.
NEVER drop or knock the vibrator head against any
hard objects. This can damage the eccentric end bell
assembly or bearings contained within the head.
ALWAYS rinse or wipe off any wet concrete before it
dries or hardens on any part of the unit (shaft, or head).
EXTENSION CORDS
When extension cords are used, refer to Table 3 for the
correct size and lengths needed. Using an extension
cord with a wire gauge smaller than or longer than
the recommended size could result in reduced motor
performance and/or damage to the motor or extension
cord due to overheating.
WARNING
Before operating this vibrator, the
operator must read and understand
the contents of the operation manual.
Failure to read this manual may result
in severe bodily harm and damage to
the equipment.
Table 3. Extension Cord Sizes (AWG)
Ampere
Rating
Range
Volts Length of Cord in Feet
115V 25 ft. 50 ft. 100 ft. 150 ft. 200 ft. 250 ft.
230V 50 ft. 100 ft. 200 ft. 300 ft. 400 ft. 500 ft.
0 - 2 18 18 18 16 16 14
2 - 3 18 18 16 14 14 12
3 - 4 18 18 16 14 12 12
4 - 5 18 18 14 12 12 10
5 - 6 18 16 14 12 10 10
6 - 8 18 16 12 10 10 8
8 - 10 18 14 12 10 8 8
10 - 12 16 14 10 8 8 6
12 - 14 16 12 10 8 6 6
14 - 16 16 12 10 8 6 6
16 - 18 14 12 8 8 6 4
18 - 20 14 12 8 6 6 4

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 13
COMPONENTS
1. Vibrating Head — Generates vibration via an eccentric
rotator that consolidates the concrete by removing air
pockets. Different sizes for different models depending
on vibrating need.
2. Eccentric Case — Holds eccentric weight and together
with head, comprise the vibrating head assembly.
3. Motor Case — Holds the motor than runs the vibrator.
4. Hose — Holds the electrical wire that connects the high
frequency motor to the power plug via the power cord.
5. Switch box — Holds switch to turn vibrator on and off.
6. Push Cover — Covers the switch box.
7. Cord Armor — Protects power cord connection to
the switch box.
8. Power Cord — Connects vibrator to power source
(high-frequency inverter).
9. Plug — Used to connect power cord to power source.
10. Hose Coupling — Attaches the hose/head assembly
to the motor.
11. Hose Clamp (original) — Clamps hose securely to
motor.
12. Hose Clamp (repaired) — Replacement. Clamps hose
securely to motor.
13. Case Joint — Secures eccentric case to motor case.
Figure 2. Vibrator Components
FX40G6
FX30E6
FX50G6
FX60E6
2
9
10
8
7
6
5
4
3
311
12
13
2
1
1

PAGE 14 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
SETUP AND INSPECTION
SELECTION OF VIBRATOR
Select the vibrator model to be used and the number of
vibrators needed for the work based on the size of slump
and rough aggregate (gravels) of the (freshly mixed)
concrete as well as the cast amount and the casting method
at the construction and civil engineering site. See Table 4.
For a pump truck generally used to transport fresh concrete
at construction work site, prepare two to three sets of
vibrators. With one set placed after the pump tube outlet
of construction site floor (slab), the second set to fill and
compact the discharged fresh concrete into the form, and
the third set of small diameter for finish of wall surface with
lots of rebar. Normally three sets of vibrators are used at
one pump truck tube location.
There are various applications for civil engineering projects,
and each case varies from one another, but construction
procedures are established, such that more than three sets
of vibrators are required for bridge work and other public
work projects.
The above is just a guideline, and for various jobs ranging
from construction work to civil engineering projects, a
combination of vibrators with necessary diameter must be
evaluated based on the scale of fresh concrete casting to
be done on each job site.
POWER SOURCE
The FX Vibrators use the FU162A high-frequency inverter
as the power source. Refer to the FU162A Operation
Manual for more information.
Table 4. Vibrator Selection
Type of Work
Size of
Coarse
Aggregate
Slump
Vibrator
Head
Diameter
CONSTRUCTION 0.79 - 0.98 in
(20 - 25 mm)
7.0 - 8.7 in
(18 - 22 cm)
1.18 - 1.57 in
(30 - 40 mm)
CIVIL
ENGINEERING
1.57 - 2.36 in
(40 - 60 mm)
3.15 - 5.9 in
(8-15 cm)
1.57 - 2.36 in
(40 - 60 mm)
EXTENSION CORDS
When using extension cords between the high-frequency
inverter and vibrator, or between commercial power source
(single phase 100V and three phase 200V) and the high-
frequency inverter, if the size of the cord is too small,
voltage is lowered, resulting in burnout of vibrator motor
or weakening of vibration. Refer to Table 3 for extension
cord sizes.
INSPECTION
1. The high frequency vibrator gets cooled after being
inserted inside the fresh concrete. Do not run the
vibrator in the air needlessly.
2. If used with the commercial power source within the
work site, make sure the outlet is compatible with the
plug. If incorrectly connected, it could cause the motor
to burn out. Danger of death or injury by electrocution
might occur.
3. Check the form to be used with the high frequency
vibrator. Make sure it is well tightened and strong before
casting the fresh concrete.

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 15
OPERATION
1. Under colder climate, warm up the motor for 2 to 3
minutes before use.
2. Plug the vibrator to the power source and turn on motor
switch properly and quickly.
3. Insert the vibrator head into the concrete.
4. Immerse the head for 5 to 10 seconds, until air stops
rising, then withdraw the head slowly to let the
concrete fill the void left by the vibrator head.
5. The vibrator should be inserted at an interval of 11.8
to 19.7 inches (30 to 50 cm) for about 30 seconds.
WARNING
DO NOT attempt to operate the vibrator
until the Safety, General Information,
and Inspection sections of this manual
have been read thoroughly and understood.
NOTICE
To keep the vibrator head cool, make sure it is kept
completely below the concrete surface while vibrating.
SHUTDOWN
Normal Shutdown
1. Take out the vibration head from the fresh concrete.
2. Turn off the motor switch.
NOTICE
The vibrator head is cooled by the concrete. Operation
of the vibrator head in the air (instead of concrete) for
longer than two minutes will cause overheating of the
bearings and premature head failure.
OPERATION

PAGE 16 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
MAINTENANCE
CHECKING SWITCH AND LEAD WIRE
1. Open the switch box to make sure there is no water
or mortar inside.
2. Check for looseness of bolt at the switch terminal.
3. Check conduction of power cord between the plug
and the switch. Check for any short circuits (with the
switch turned off.)
4. Turn the switch on and off.
5. Turn the switch on and check conduction between
terminals using a mega-ohmmeter (Figure 3).

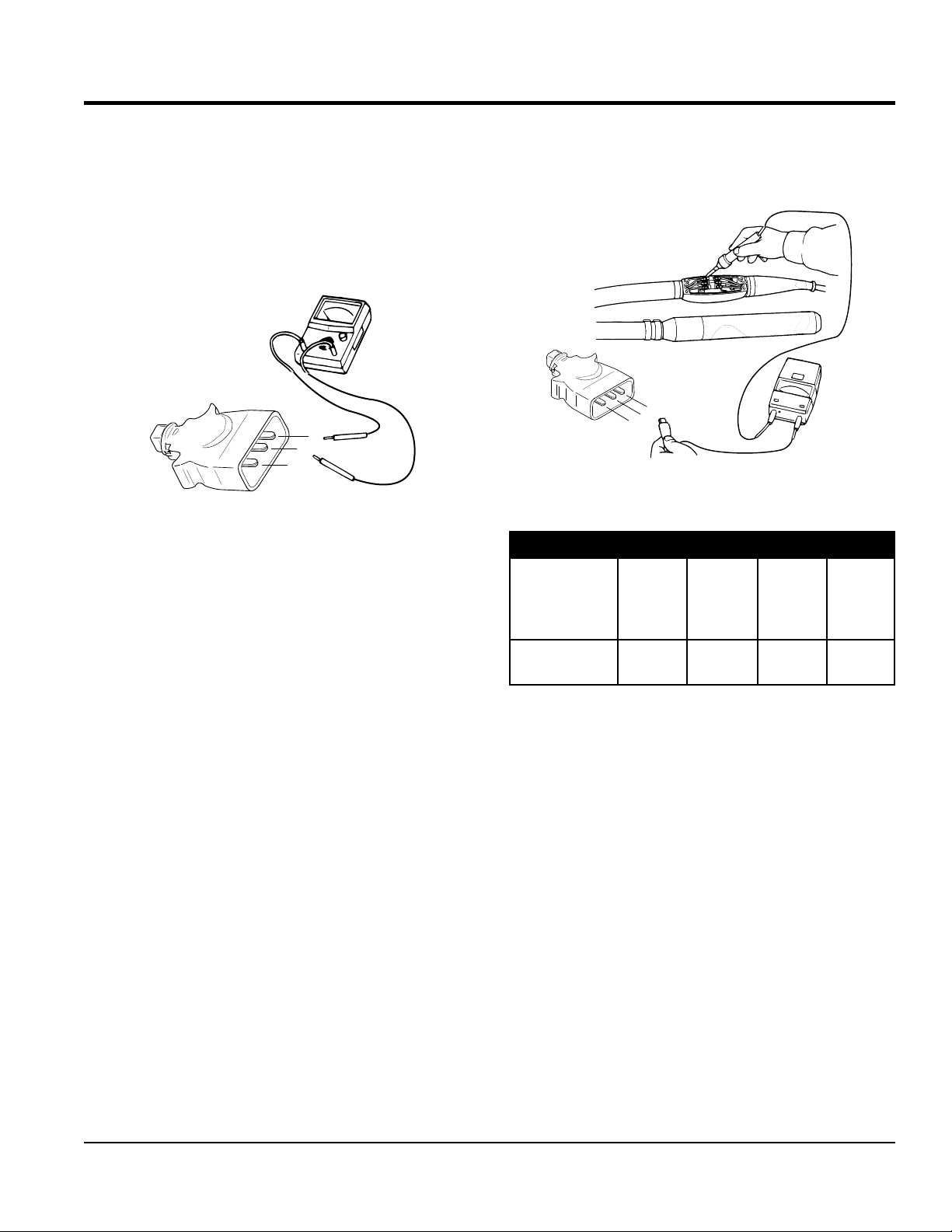

Figure 3. Switch Conduction Check
6. Turn the switch off and check the insulation resistance
between the terminals.
Figure 4. Switch Insulation Resistance Check
7. Check conduction and short circuit of lead wire from
the switch to the motor side (with switch turned off).
See Figure 5.
Figure 5. Conduction and Short Circuit of Lead
Wire (Switch to Motor Side)
8. If any abnormalities are detected in the tests above,
repair unit promptly.
VIBRATOR HEAD CHECK
1. Check the insulation of the motor with a mega-
ohmmeter.
2. The allowable insulation resistance is greater than
20 MW.
VIBRATOR HEADS BEARINGS
1. The bearings on the vibrator heads should be checked
and serviced every 200 hours of operation.
CHECKING WORKING PARTS
1. Put wet waste over the motor case of the vibration head
and run for 15 to 30 seconds.
2. After trial run, measure the current with no load. See
Table 5 for acceptable readings.
Table 5. Current Measurements
MODEL FX30E6 FX40G6 FX50G6 FX60E6
CURRENT 4 - 4.5 A
or less
6 - 7 A
or less
9 - 10 A
or less
17A
or less

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 17
MAINTENANCE
3. Check vibration and noise to make sure they are
normal.
4. With the switch turned on, use a mega-ohmmeter to
check for conduction between R-S, S-T, and T-R at the
plug terminal (Figure 6).
5. With the switch turned off, check non-conduction
between R-S, S-T, and T-R at the plug terminal.
Figure 6. Conduction Test of Plug Terminals
6. With the switch turned on, check the insulation
resistance between the plug terminal and vibration
head assembly (Figure 7).
7. With the switch turned on, check the insulation
resistance between the plug terminal and vibration
switch box.
8. With the switch turned off, check the insulation
R
S
T
resistance between R-S, S-T, and T-R at the plug
terminal.
9. Refer to Table 6 for acceptable resistance readings.
Figure 7. Insulation Resistance Test
Ｒ
Ｓ
Ｔ
(A)
(B)
(C)
Table 6. Coil Resistance
MODEL FX30E6 FX40G6 FX50G6 FX60E6
RESISTANCE 3.5
ohms
0.88
ohms
0.422
ohms
0.189
ohms

PAGE 18 — FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22)
TROUBLESHOOTING
Troubleshooting (Vibrator)
Symptom Possible Problem Solution
Plug not working properly.
Moisture on plug? Wipe and dry plug.
Mortar attached? Clean or replace plug.
Terminal broken or bended? Correct or replace.
Groove of terminal is closed? Use screwdriver or other tool to open.
Power cord problems.
Power cord deteriorated? Cut off bad portion and reconnect.
Power cord broken? Replace.
Power cord armor broken? Replace.
Switch box not working.
Push covers deterioratedor broken? Replace.
Switch box broken? Replace.
Hose problems.
Broken or worn? Replace.
Front or back of hose worn? Replace.
Problems with pendulum case and head cap. Worn? Replace.
Not vibrating
Wire contact problem? Repair.
Plug problem? Repair or replace.
Power cord wire broken or short circuit? Repair.
Lead wire breakage or short circuit? Repair.
Switch problem? Repair or replace.
Bearing breakage? Replace.
Wear at pendulum and rotor joint? Replace.
Stator burnout? Replace.
Power source problem? Replace.
Week vibration or elevated temperature of
vibration head.
Plug problem? Replace.
Extension cord voltage drop? Adjust.
Power source voltage low? Adjust.
Use of commercial bearing causing grease lying
out in short time or insufficient clearance? Replace.
Stator half burn? Replace.
Insulation problem (stator, switch, etc.) and
single phase operation? Repair or replace.
Power source overload (vibrator used more than
specified)? Adjustment.
Low temperature? Warm up.
Bearing problem? Replace.
Contact with rotor and stator? Replace.
High noise level.
Bearing wear? Replace.
Deformation of vibration head? Replace.
Wear of pendulum and rotor joint part? Replace.
Wear of motor case bearing mating surface? Replace.
Wear of case joint bearing mating surface? Replace.

FX VIBRATOR • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 19
NOTES

OPERATION MANUAL
Your Local Dealer is:
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
© COPYRIGHT 2022, MULTIQUIP INC.
Multiquip Inc
,
the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property
of their respective owners and used with permission.
This manual
MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.
The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published
in this publication at any time without notice and without incurring any obligations.
UNITED STATES
Multiquip Inc.
(310) 537- 3700
6141 Katella Avenue Suite 200
Cypress, CA 90630
E-MAIL: [e-mail]
WEBSITE: www.multiquip.com
CANADA UNITED KINGDOM
Multiquip Multiquip (UK) Limited Head Office
[phone]
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
E-MAIL: [e-mail]
0161 339 2223
Unit 2, Northpoint Industrial Estate,
Globe Lane,
Dukinfield, Cheshire SK16 4UJ
E-MAIL: [e-mail]
