OPERATION MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Revision #5 (10/07/20)

SERIES

MODEL MT-65H

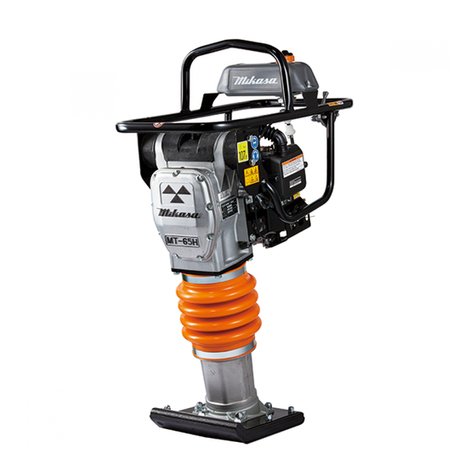

TAMPING RAMMER

(HONDA GASOLINE ENGINE)

To ﬁnd the latest revision of this publication or

associated parts manual, visit our website at:

www.multiquip.com

PAGE 2 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

MT-65H — PROPOSITION 65 WARNING

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 3

NOTE PAGE

PAGE 4 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

MT-65H — TABLE OF CONTENTS

MULTIQUIP TAMPING

RAMMER MT-65H

Table Of Contents .....................................................4

Safety Message Alert Symbols ............................. 5-6

Rules For Safe Operation ..................................... 7-8

Operation and Safety Decals ....................................9

General Information ................................................10

Specifications ..........................................................11

Controls and Components ......................................12

Basic Engine ...........................................................13

Operation .......................................................... 14-16

Maintenance ...........................................................17

Troubleshooting Guide ...................................... 18-19

Specification and part number are

subject to change without notice.

NOTE

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 5

Safety precautions should be followed

at all times when operating this

equipment. Failure to read and

understand the Safety Messages and

Operating Instructions could result in

injury to yourself and others.

FOR YOUR SAFETY AND THE SAFETY OF OTHERS!

This Owner's Manual has been

developed to provide complete

instructions for the safe and efficient

operation of the MQ Mikasa, Model

MT-65HTamping Rammer. Refer to

the engine manufacturers instructions

for data relative to its safe operation.

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you

about potential hazards that could injure you or others. The

Safety Messages specifically address the level of exposure to

the operator, and are preceded by one of three words: DANGER,

MT-65H — SAFETY MESSAGE ALERT SYMBOLS

NOTE

You WILL be

KILLED

SERIOUSLY INJURED

if you DO NOT follow these directions.

You CAN be KILLED or

SERIOUSLY INJURED

you DO NOT follow these directions.

You CAN be

INJURED

if you DO NOT follow

these directions.

DANGERDANGER

DANGER

WARNINGWARNING

WARNING

Lethal Exhaust Gases

HAZARD SYMBOLS

Potential hazards associated with the operation of a

MT-74F

Tamping Rammer

will be referenced with Hazard Symbols

which appear throughout this manual, and will be referenced

in conjunction with Safety Message Alert Symbols.

Engine exhaust gases contain

poisonous carbon monoxide. This gas

is colorless and odorless, and can

cause death if inhaled. NEVER operate

this equipment in a confined area or

enclosed structure that does not provide

ample free flow air.

Gasoline is extremely flammable, and

its vapors can cause an explosion if

ignited. DO NOT start the engine near

spilled fuel or combustible fluids.

DO NOT fill the fuel tank while the engine is running or

hot. DO NOT overfill tank, since spilled fuel could ignite if

it comes into contact with hot engine parts or sparks from

the ignition system. Store fuel in approved containers, in

well-ventilated areas and away from sparks and flames.

Engine components can generate extreme

heat. To prevent burns, DO NOT touch

these areas while the engine is running or

immediately after operations. Never

operate the engine with heat shields or heat

guards removed.

ALWAYS wear approved

respiratory

protection when required.

Lethal Exhaust Gas Hazards

WARNINGWARNING

WARNING

Explosive Fuel Hazards

WARNINGWARNING

WARNING

Burn Hazards

WARNINGWARNING

WARNING

Respiratory Hazards

WARNINGWARNING

WARNING

Before using this rammer,ensure that the operating

individual has read and understands all instructions in this

manual.

CAUTICAUTI

CAUTION

015110051

PAGE 6 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

MT-65H — SAFETY MESSAGE ALERT SYMBOLS

ALWAYS place the ON/OFF switch in

the OFF position when the rammer is

not in use.

ALWAYS wear approved eye and

hearing protection.

NEVER operate equipment with covers,

or guards removed. Keep fingers, hands,

hair and clothing away from all moving

parts to prevent injury.

Rotating Parts Hazards

CAUTIONCAUTION

CAUTION

Accidental Starting Hazards

CAUTIONCAUTION

CAUTION

Eye and Hearing Hazards

CAUTIONCAUTION

CAUTION

Other important messages are provided throughout this

manual to help prevent damage to your light tower, other

property, or the surrounding environment.

Equipment Damage

Hazards

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

CAUTION

Lifting Handle

Before starting operation, check the lifting handle to

make sure there is no damage on the bolts, no cracks

or breakage on the handle, and no fissure on the surface.

This handle is for

manual lifting only

. Use handle to

lift the shoe part of the rammer with the body laid down

on the ground or truck bed. Use proper lifting techniques

to avoid back injury.

Do not use this rammer as a rammer lift point. Use the

lifting point on top of the rammer.

Do not move the rammer with the lifting handle and the

front rollers more than 5 meters.

NEVER refuel rammer when placed in truck bed with

plastic liner.The possibility exists of explosion due to static

electricity. When adding fuel, remove rammer from truck

bed and place on ground.

Refueling Hazard

DANGERDANGER

DANGER

CAUTION - Read Manual

Before attempting to operate

the pump, and to avoid

serious injury to personnel,

always read and understand

operation manual. Failure to

read and understand

operation manual could

result in serious harm or

even death!

CAUTIONCAUTION

CAUTION

Read Manual

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 7

The following safety guidelines should always be used when

operating the MT-65H Tamping Rammer:

GENERAL SAFETY

■

DO NOT operate or service this

equipment before reading this entire

manual.

■

This equipment should not be operated by persons under

18 years of age.

■

NEVER operate this equipment without proper protective

clothing, shatterproof glasses, steel-toed boots and other

protective devices required by the job.

■

High Temperatures – Allow the engine to cool before

adding fuel or performing service and maintenance

functions. Contact with

hot!

components can cause serious

burns.

■

The engine section of this rammer requires an adequate

free flow of cooling air.

NEVER

operate the rammer in

any enclosed or narrow

area where free flow of the

air is restricted. If the air

flow is restricted it will

cause serious damage to

the rammer or engine and

may cause injury to people.

Remember the rammer's

engine gives off

DEADLY

carbon monoxide gas.

■

ALWAYS refuel in a well-ventilated area, away from

sparks and open flames.

■

ALWAYS use extreme caution when working with

flammable liquids. When refueling, stop the engine and

allow it to cool. DO NOT

smoke

around

or near the machine. Fire or explosion

could result from fuel vapors, or if fuel

is spilled on a hot engine.

■

NEVER operate the rammer in an

explosive atmosphere or near

combustible materials. An explosion or fire could result

causing severe

bodily harm or even death.

DANGERDANGER

DANGER

Failure to follow instructions in this manual may lead

to serious injury or even death! This equipment is to

be operated by trained and qualified personnel only!

This equipment is for industrial use only.

■

NEVER operate this equipment under the influence of

drugs

alcohol

Read this manual!

■

NEVER touch the hot exhaust

manifold, muffler or cylinder. Allow

these parts to cool before servicing

engine or rammer.

■

ALWAYS wear proper respiratory (mask),

hearing and eye protection equipment when

operating the rammer.

■

Whenever necessary, replace nameplate, operation and

safety decals when they become difficult read.

■

Manufacturer does not assume responsibility for any

accident due to equipment modifications.

■

NEVER use accessories or attachments, which are not

recommended by Multiquip for this equipment. Damage

to the equipment and/or injury to user may result.

■

NEVER operate this equipment when not

feeling well due to fatigue, illness or taking

medicine.

MT-65H — RULES FOR SAFE OPERATION

■

Topping-off to filler port is dangerous, as it tends to spill

fuel.

■

Stop the engine when leaving the rammer unattended.

■

Maintain this equipment in a safe operating condition at

all times.

■

DO NOT

smoke

around or near the

machine. Fire or explosion could result

from fuel vapors, or if fuel is spilled on a

hot engine.

PAGE 8 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

■

ALWAYS stop the engine before servicing, adding fuel and

oil.

■

NEVER run engine without air filter. Severe engine may

occur.

■

ALWAYS service air cleaner frequently to prevent carburetor

malfunction.

■

ALWAYS check the machine for loosened threads or bolts

before starting.

■

ALWAYS be sure the operator is familiar with proper safety

precautions and operations techniques before using rammer.

■

ALWAYS store equipment properly when it is not being used.

Equipment should be stored in a clean, dry location out of

the reach of children.

■

DO NOT operate this equipment unless all guards and

safety devices are attached and in place.

■

CAUTION must be exercised while servicing this equipment.

Rotating and moving parts can cause injury if contacted.

■

Keep all

inexperienced

and

unauthorized

people away

from the equipment at all times.

■

Unauthorized equipment modifications will void all

warranties.

■

NEVER pour or spray water over the engine.

■

Test the engine ON

/OFF

switch before operating. The

purpose of this switch is to shut down the engine of the

rammer.

■

Refer to the

HONDA Engine Owner's Manual

for engine

technical questions or information recommended by

Multiquip for this equipment.

TRANSPORTING

■

ALWAYS shutdown engine before transporting.

■

Tighten fuel tank cap securely and close fuel cock to

prevent fuel from spilling.

■

Drain fuel when transporting rammer over long distances

or bad roads.

■

When placing the rammer inside a truck-bed for transport,

always tie-down the rammer

MAINTENANCE

■

NEVER lubricate components or attempt service on a

running rammer.

■

ALWAYS allow the rammer a proper amount of time to

cool before servicing.

■

Keep the rammer in proper running condition.

■

Fix damage to the rammer immediately and always

replace broken parts.

■

Dispose of hazardous waste properly. Examples of

potentially hazardous waste are used motor oil, fuel

and fuel filters.

■

DO NOT use food or plastic containers to dispose of

hazardous waste.

MT-65H — RULES FOR SAFE OPERATION

■

In emergencies

always

know the location of

the nearest phone or

keep a phone on the job

site

. Also know the phone numbers of the

nearest

ambulance

doctor

and

fire

department

. This information will be invaluable

in the case of an emergency.

EMERGENCIES

■

ALWAYS know the location of the nearest

fire

extinguisher

and first aid kit.

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 9

MT-65H — OPERATION AND SAFETY DECALS

PAGE 10 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

Definition of Tamping Rammer

The Mikasa MT-65H tamping rammer is a powerful

compacting tool capable of applying a tremendous force in

consecutive impacts to a soil surface. Its applications include

soil compacting for road, embankments and reservoirs as

well as backfilling for gas pipelines, water pipelines and cable

installation work.

The impact force of the MT-65H levels and uniformly compacts

voids between soil particles to increase dry density.

Circular motion is converted to create impact force.The MT-

65H tamping rammer develops a powerful compacting force

at the foot of the rammer. To maintain optimum performance,

proper operation and service are essential.

Construction of Tamping Rammer

The Mikasa MT-65H is equipped with an air cooled, four-

cycle gasoline engine.Transmission of the power takes place

by increasing the engine speed to engage the centrifugal

clutch.

Rammer Gearbox and Spring Cylinder

The Mikasa MT-65H uses an oil bath lubrication system.

Always check the oil level through the oil level sight glass at

the rear of the tamper foot.

Controls

Before starting the MT-65H Tamping Rammer identify and

understand the function of the controls. See Figure 1 on

page 13.

MT-65H — GENERAL INFORMATION

Handle Operation

CAUTIONCAUTION

CAUTION

Before starting operation check the lifting

handle to:

1. Make sure that there is no damage on the bolts.

2. Make sure that there is no crack or breakage on handle.

3. Make sure that there is no fissure on the surface. If there

is any abnormality or damage, replace with new one.

For operation:

This handle is to be used to lift up the shoe part of the machine

with the body laid down on the ground or truck bed.

1. Use proper lifting techniques to avoid back injury. This

handle is for manual lifting only.

2. Do not use this handle as a rammer lift point. Use the

lifting point on the top of the machine.

3. Do not move the rammer with the lifting handle and the

front rollers more than 16 feet (5 meters).

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 11

MT-65H — SPECIFICATIONS

NOTE

Specifications are general and are subject to change without notice. If exact

measurements are required, equipment should be weighed and measured.

noitacificepSremmaRH56-TM.1elbaT

LEDOMH56-TM

thgieHllarevO)mm460,1(.ni9.14

htdiWllarevO)mm073(ni6.41

htgneLrevO)mm927(ni1.92

eziSeohS)mm033x972

(.ni0.31x0.11

etunim/swolB596~095

)thgieHpmuJ(ekortS)mm63.68(.ni4.3

deepSlevarT)nim/sretem21(nim/.tf93

ecroF

tcapmI wolb/.sbl009,2~054,2

)wolb/gk513,1~111,1(

hctulClagufirtneCcitamotuA

yticapaCknaTleuF)sretil89.1(.tq

2.2

noitcapmoCfoaerAxaM.rh/.tf.qs541,2

thgieWgnitarepO)gk66(.sbl641

snoitacificepSenignE.2elbaT

ledoMenignEBRK001XGadnoH

epyT ,tfahsmacdaehrevO,ekortS4delooC-riA

.enigneenilosagrednilycelgnis

tnemecalps

iDnotsiP)cc89(.ni.uc0.6

tuptuO.xaM)WK2.2(mpr006,3/ph0.3

daoLoN,deepSdenrevoG.xaMmpr006,3

metsySgnilooCdelooC

-riA

yticapaCliOenignE)sretil82.0(.tq03.

leuFenilosagdedaelnU

noitpmusnoCleuF )hSP/g042,hWk/g723(hph/bl45.0

metsySgnitratSretratSlioceR

epyTgulPkrapS BSH5RC:GKN

BU-RSF61U:OSNED

PAGE 12 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

Figure 1 shows the location of the controls and components

for the MT-65H Tamping Rammer. The functions of each

control is described below:

L1. A Returned Material Authorization must be approved by Multiquip prior to shipment. A copy of the Authorization must

accompany the shipment to the designated Warehouse. A copy of the original Multiquip invoice to the customer must

also accompany the shipment.

1. Throttle Lever – Used to adjust engine speed (rpm). Move

lever forward

(SLOW)

to reduce engine speed, move lever

back toward operator

(FAST

) to increase speed.

2. Fuel Shut-OffValve – Supplies fuel from the fuel tank to

the engine.To begin fuel flow move the fuel shut-off valve

downward.

3. Oil Bath Fill Plug – Open this plug to add oil to the oil

bath reservoir.

4. Drain Valve – Open this valve to remove oil from the

bellows.

5. Primary Air Cleaner – Pre-cleans (first stage) dirt and

other debris from entering the engine.

6. Foot– Laminated wood with tempered steel plate for

superior shock absorption.

7. Oil Level Sight Glass – Indicates the level of oil in the oil

bath reservoir.

Figure 1. MT-65H Rammer

MT-65H — CONTROLS AND COMPONENTS

8. FuelTank/Cap –Remove this cap to add unleaded gaso-

line to the fuel tank.Make sure cap is tightened securely.DO

NOT over fill.

Adding fuel to the tank should be accomplished only

when the engine is stopped and has had an

opportunity to

cool down.

In the event of a fuel spill,

DO NOT attempt to start the engine until the fuel

residue has been completely wiped up, and the area surrounding

the engine is dry.

9. Bellows – Reservoir for oil bath.

10. Handle – To operate rammer

GRIP

handle assembly

firmly on both sides.

11. Nameplate – Displays information regarding the rammer.

WARNING

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 13

MT-65H — BASIC ENGINE

Figure 6. Engine Controls and Components

INITIAL SERVICING

The engine (Figure 6) must be checked for proper lubrication and

filled with fuel prior to operation. Refer to the manufacturer's Engine

manual for instructions and details of operation and servicing.

1. Secondary Air Cleaner – Prevents dirt and other debris

from entering the fuel system. Remove wing-nut on top of

air filter cannister to gain access to filter element.

2. Choke Lever –Used when starting the engine. Normally

used in cold weather conditions. In cold weather turn the

choke lever to the fully closed position, in warm weather

set choke lever half way or completely open.

3. Spark Plug – Provides spark to the ignition system. Set

spark plug gap to 0.6 - 0.7 mm (0.024 - 0.028 inch). Clean

spark plug once a week.

4. Engine ON/OFF Switch – Controls the starting and

stopping of the engine. Switch must be in the "ON" position

when starting the engine.

Operating the engine without an air

filter, with a damaged air filter, or a filter

in need of replacement will allow dirt

to enter the engine, causing rapid

engine wear.

7. Dipstick/Oil Filler Cap – Remove this cap to determine if

the engine oil is low. Add oil through this filler port as

recommended in Table 3.

8. Oil Drain Plug – Remove this plug to remove oil from the

engine's crankcase.

5. Recoil Starter (pull rope) – Manual-starting method. Pull

the starter grip until resistance is felt, then pull briskly and

smoothly.

6. Muffler – Used to reduce noise and emissions.

WARNING

Engine components can generate extreme heat.

To prevent burns, DO NOT touch these areas

while the engine is running or immediately after operating. NEVER

operate the engine with the muffler removed.

NOTE

PAGE 14 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

Failure to understand the operation of the MT-65H Tamping

Rammer could result in severe damage to the trowel or

personal injury.

Rammer Gearbox and Spring Cylinder Oil Bath

This unit uses an oil bath lubrication system. Perform the following:

1. Check the oil level through the oil level sight glass (Figure 2)

at the rear of the tamper foot.

This section is intended to assist the operator with the initial

start-up of the MT-65H Tamping Rammer. It extremely important

that this section be read carefully before attempting to operate

the rammer.

DO NOT use your rammer until this section is thoroughly

understood.

The oil level should be kept at the

half way point of the sight glass.

2. Low levels of oil may result in engine seizure due to high

levels of consumption during operations.

3. Check the engine oil level and if the engine oil level is low, it

should be refilled. Use the proper motor oil as suggested in

the Table 3 below.

Figure 4. Engine Oil Dipstick

Figure 2. Foot Housing Sight Glass

2. If oil is not visible, add 10W-30 SE, SF or higher grade motor

oil into the oil fill plug opening (Figure 2).The bath contains

approximately 1.7 pints (800 cc.)

Figure 3. Fuel Tank

Engine

1. Fill the fuel tank (Figure 3 ) with unleaded gasoline. At the

same time, check the engine oil and make it a habit to

replenish it often.

MT-65H — OPERATION

edarGliOrotoM3elbaT

erutarepmeTronosaeS liorotomfoedarG

)ssalcSMnahtrehgih(

nmutuAroremmuS,gnirpS

F°51+otF°021+ 03EAS

retniW

F°5

1+otF°04+ 03EAS

F°51+woleB03-W01EAS

NOTE

CAUTICAUTI

CAUTION

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 15

MT-65H — OPERATION

Inspection

1 . Check all nuts, bolts fasteners for tightness. Retighten as

necessary.

2. Clean any dirt from the recoil starter and foot pedestal. Wipe

the entire unit clean before operating.

3. Replace any missing or damaged Safety Operation decals.

4. Adjust height of handle. Adjust handle by loosening nuts and

moving handle to suit operation. Retighten nuts.

Initial Start-up

When starting the MT-65H Tamping Rammer perform the

following:

1. Open the

fuel shut- off valve

by moving the

fuel cock

lever to the

open

position (Figure 5).

3. Close the choke lever Figure 7 and move the throttle lever

to the "Full Open" position. Turning the choke lever 90

degrees clockwise closes the choke .In cold weather, start the

unit with choke fully closed. In warm weather or when the

engine is warm, the unit can be started with choke halfway

or completely open.

Figure 6. On Off Switch

Figure 5. Fuel Shut-Off Valve (ON)

2. Set the engine ON/OFF switch (Figure 6) to the "ON"

position (start).

Figure 7. Choke Lever

4. Grip the recoil starter (Figure 8 ) handle and pull it until you

feel a slight resistance.Then pull sharply and quickly.Return

the recoil starter handle to the starter case before releasing.

5. If engine fails to start, move the choke lever (Figure 7) to the

half open position to avoid flooding.

6. Repeat steps 1 thru 4.

7. If the engine does not start after repeated attempts,

check the spark plug for excess fuel. Clean and replace

the spark plug as needed.

Figure 8. Recoil Starter

PAGE 16 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

Operation

1. To start the rammer tamping action, move the throttle lever

(Figure 9)

quickly

from IDLE (close) to the FULL OPEN

position . DO NOT move the throttle lever slowly as this may

cause damage to the clutch or spring.

Stopping The Engine

Normal Shutdown

1. Move throttle lever quickly from the FULL OPEN to IDLE

position (Figure 10) and run the engine for three minutes at

low speed. After the engine

cools

, turn the engine start/stop

switch to the “STOP” position (Figure 11).

MT-65H — OPERATION

Make sure that the throttle lever is moved to the FULL OPEN

position. Operating the rammer at less than full speeds can

result in damage to the clutch springs or foot.

2. The MT-65H Tamping rammer is designed to run at 3,600

rpm. At optimum rpm the foot hits at the rate between 590 ~

695 impacts per minute. Increasing throttle speed past

factory set rpm does not increase impacts and may damage

unit.The MT-65H is designed to advance while tamping.For

faster advance, pull back slightly on the handle so that rear

of foot contacts soil first.

3. To stop the tamping action, move throttle lever quickly from

the FULL OPEN to IDLE position.

Figure 10. Throttle Lever (Idle)

Figure 9. Throttle Lever (Full Open)

Figure 11. ON/OFF Switch (Off Position)

2. Close the

fuel shut- off valve

(Figure 12) by moving the fuel

cock lever to the CLOSED position.

Emergency Showdown

1. Move the throttle lever quickly to the

IDLE

position, and turn

the engine start/stop switch to the

STOP

position.

Figure 12. Fuel Shut-OFF Valve (Off Position)

CAUTICAUTI

CAUTION

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 17

Maintenance

Perform the scheduled maintenance procedures as indicated:

DAILY

■

Thoroughly remove dirt and oil from the engine and control

area. Clean or replace the air cleaner elements as necessary.

Check and retighten all fasteners as necessary. Check the

spring box and bellows for oil leaks. Repair or replace as

needed.

WEEKLY

■

Remove the fuel filter cap and clean the inside of the fuel

tank.

■

Remove or clean the filter at the bottom of the tank.

■

Remove and clean the spark plug, then adjust the spark gap

to 0.02~0.03 inch (0.6~0.7 mm). This unit has electronic

ignition, which requires no adjustments.

■

Clean air cleaner cover.

150 HOURS (Pre-Cleaner)

■

Remove the element from the pre-cleaner (Figure 11) at the

top of the crankcase (body side) and clean it with cleaning oil

(kerosene). Check daily if rammer is used in a dusty area.

MT-65H — MAINTENANCE

Figure 11. Primary Air Filter

■

Lubricate the top element (yellow) with 2~5 cc of engine oil

SAE-30.

■

Lubricate bottom element (gray) with 13~15 cc of engine oil

SAE-30 and completely squeeze out the excess oil from the

element before installing.

■

Tap the paper filter element (Figure 12 ) several times on a

hard surface to remove dirt, or blow compressed air [not

exceeding 30 psi (207 kPa, 2.1 kgf/cm2)] through the filter

element from the air cleaner case side.

NEVER

brush off dirt.

Brushing will force dirt into the fibers. Replace the paper filter

element if it is excessively dirty.

150 HOURS (Oil Bath)

■

Drain oil reservoir on foot housing (Figure 13). Refill with

approximately 1.7 pt. (800 cc.) of 10W-30 SE, SF or higher

grade motor oil. Oil should be midway in sight glass. Break in

oil should be changed after first 50 hours.

Figure 12. Engine Air Cleaner

Yearly

■

Check the fuel line and the oil line regularly for damage and

to ensure that there are no leaks.

■

Replace the oil and fuel lines every two years to maintain the

performance and flexibility lines.

Long Term Storage

■

Drain fuel from fuel tank, fuel line and carburetor.

■

Remove spark plug and pour a few drops of motor oil into

cylinder. Crank engine 3 to 4 times so that oil reaches all

internal parts.

■

Clean exterior with a cloth soaked in clean oil.

■

Store unit covered with plastic sheet in moisture free and

dust free location out of direct sunlight

Figure 13. Foot Housing Drain Plug

PAGE 18 — MT-65H — OPERATON MANUAL — REV. #5 (10/07/20)

MT-65H —TROUBLESHOOTING GUIDE

GNITOOHSELBUORTENIGNE.4ELBAT

MOTPMYS MELBORPELBISSOP NOITULOS

tratsottluciffiD

gulpkrapstubelbaliavasileuF

elbaliavarewoP(.etingitonlliw

.)elbacnoisnethgihta

?egdirbgniebgulpnoitingI .metsysnoitingikcehC

?noitingitatisopednobraC .noitingiecalperronaelC

evitcefedoteudtiucrictrohS

?srotalusni

.srotalusniecalpeR

?pagkrapsreporpmI .pagtcerrocehtotpaggulpkrapsteS

gulpkrapstubelbaliavasileuF

rewoP(.etingitonlliw TON

.)elbacnoisnethgihtaelbaliava

?hctiwspotstatiucrictrohS .evitcefedfihctiwspotsecalpeR.tiucrichctiwspotskcehC

?evitcefedliocnoitingI .liocnoitingiecalpeR

gulpkrapsdnaelbaliavasileuF

noisserpmoc(setingi )lamron .

nobrachtiwdeggolcrelffuM

?stisoped

.relffumecalperronaelC

siytilauqleufdexiM

?etauqedani

.erutximliootleufkcehC

,retaw(etauqedaniesunileuF

?)tsud

.leufhserfhtiwecalperdnametysleufhsulF

?deggolcrenaelCriA .renaelcriaecalperronaelC

gulpkrapsdnaelbaliavasileuF

noisserpmoc(setingi wol .)

?teksagdaehrednilycevitcefeD .teksagdaehecalperrostlobdaehrednilycnethgiT

?nrowrednilyC .rednilycecalpeR

?esoolgulpkrapS .gulpkrapsnehgiT

yrotcafsitastonnoitarepO

elbaliavarewophguonetoN

-ssimon,lamronnoisserpmoc(

.)gnirif

?deggolcrenaelcriA

?enilleufniriA .enilleufmorf)riaevomer(deelB

taolfrotaerubracnilevelleuF

?reporpmirebmahc taolfrotaerubractsujdA

?rednilycnistisopednobraC rednilycecalperronaelC

elbaliavarewophguonetoN

-ssim,lamronnoisserpmoc(

.)gnirif

?evitcefedliocnoitingI .leufhserfhtiwecalperdnametysleufhsulF

?strohsnetfogulpnoitingI .noitinginaelc,seriwnoitingiecalpeR

,retaw(etauqedaniesunileuF

?)tsud

.leufhserfhtiwecalperdnametysleufhsulF

.staehrevoenignE

siytilauqleufdexiM

?etauqedani

.erutximliootleufkcehC

ninoitsopednobracevissecxE

?rebmahcnoitsubmoc

.esacknarcecalperronaelC

htiwdeggolcrelffumrotsuahxE

.nobrac

.relffumecalperronaelC

?tcerrocnieulavtaehgulpkrapS .gulpkrapsepyttcerrochtiwgulpkrapsecalpeR

MT-65H — OPERATON MANUAL — REV. #5 (10/07/20) — PAGE 19

MT-65H —TROUBLESHOOTING GUIDE

ENGINEENGINE

ENGINE

deunitnoc(GNITOOHSELBUORTENIGNE.4ELBAT )

MOTPMYS MELBORPELBISSOP NOITULOS

yrotcafsitastonnoitarepO

.setautculfdeepslanoitatoR

?reporpmitnemtsujdaronrevoG .reveltcerrocotronrevogtsujdA

?evitcefedgnirpsronrevoG .noitingiecalperronaelC

?citarrewolfleuF .enilleufkcehC

noitcushguorhtninekatriA

?enil

.enilnoitcuskcehC

gnikrowtonretratslioceR

.ylreporp

?trapgnitatornitsuD .ylbmessaretratsliocernaelC

?eruliafgnirpsgnirpS .gnirpslairpsecalpeR

GNITOOHSELBUORTREMMAR.5ELBAT

MOTPMYS MELBORPELBISSOP NOITULOS

spmujremmartubsnurenignE

..llatatonroyllacitarre

revelelttorhtfodeepsgnitarepO

?tesyltcerrocnisi

.noitisoptcerrocotrevelelttorhtteS

?ssecxeniliO .leveltcerrocotgnirB.liossecxeniarD

?spilshctulC .hctulctsujdaroecalpeR

?eruliaFgnirpS .gnirpslairpsecalpeR

?reporpmienignefodeepS .gnittesMPRgnitarepotcerrocotdeepsenignetsujdA

?detcapmoc-revolioS .liostsetdnaenihcamnwod-tuhS

OPERATION MANUAL

Your Local Dealer is:

HERE’S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER ON-HAND WHEN CALLING

UNITED STATES

Multiquip Inc.

(310) 537- 3700

6141 Katella Avenue Suite 200

Cypress, CA 90630

E-MAIL: mq@multiquip.com

WEBSITE: www.multiquip.com

CANADA UNITED KINGDOM

Multiquip Multiquip (UK) Limited Head Ofﬁce

(450) 625-2244

4110 Industriel Boul.

Laval, Quebec, Canada H7L 6V3

E-MAIL: infocanada@multiquip.com

0161 339 2223

Unit 2, Northpoint Industrial Estate,

Globe Lane,

Dukinﬁeld, Cheshire SK16 4UJ

E-MAIL: sales@multiquip.co.uk

Multiquip Inc

, the MQ logo and the Mikasa logo

are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks

are the property of their respective owners and used with permission.

This manual

MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and speciﬁcations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in

this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change speciﬁcations, design or the information published
