MQ Power WHISPERWATT DCA-500SSK User manual

© COPYRIGHT 2001, MULTIQUIP INC.
PARTS AND OPERATION MANUAL
Revision #1 (06/04/01)
MULTIQUIP INC. PARTS DEPARTMENT:
18910 WILMINGTON AVE. 800-427-1244
CARSON, CALIFORNIA 90746 FAX: [phone]
310-537-3700
SERVICE DEPARTMENT:
800-421-1244 800-835-2551
FAX:[phone] FAX:[phone]
E-mail:[email protected] •www:multiquip.com
MQ POWER
MODEL DCA-500SSK
WHISPERWATT
TM
GENERATOR
(Standard)
PARTS AND OPERATION MANUAL
PARTS LIST NO C4872300004

PAGE 2 — DCA-500SSK — PARTS AND OPERATION MANUAL (STD) — REV. #1 (04/14/01)

DCA-500SSK — PARTS AND OPERATION MANUAL (STD)— REV. #1 (04/14/01) — PAGE 3
HERE'S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL NUMBER
ON-HAND WHEN CALLING
PP
PP
PARAR
ARAR
ARTS DEPTS DEP
TS DEPTS DEP
TS DEP
ARAR
ARAR
ARTMENTTMENT
TMENTTMENT
TMENT
800/427-1244 or 310/537-3700
FAX: [phone] or 310/637-3284
SERSER
SERSER
SERVICE DEPVICE DEP
VICE DEPVICE DEP
VICE DEPARAR
ARAR
ARTMENTTMENT
TMENTTMENT
TMENT
800/835-2551 or 310/537-3700
FAX: [phone]
WW
WW
WARRANTY DEPARRANTY DEP
ARRANTY DEPARRANTY DEP
ARRANTY DEPARAR
ARAR
ARTMENTTMENT
TMENTTMENT
TMENT
800/835-2551 or 310/537-3700
FAX: [phone]
MAINMAIN
MAINMAIN
MAIN
800/421-1244 or 310/537-3700
FAX: 310 - 537-3927

PAGE 4 — DCA-500SSK — PARTS AND OPERATION MANUAL (STD) — REV. #1 (04/14/01)
TABLE OF CONTENTS
Here's How To Get Help ............................................ 3
Table Of Contents ..................................................... 4
Parts Ordering Procedures ....................................... 5
Rules For Safe Operation ...................................... 6-9
Towing ..................................................................... 10
Trailer Safety Guidelines .................................... 11-17
Trailer Wiring Diagram............................................. 18
Air Brake Troubleshooting ....................................... 19
Operation And Safety Decals ............................. 20-24
Specifications .......................................................... 26
General Information ................................................ 27
MQ Power DCA-500SSK
AC Generator
Major Components ................................................. 28
Dimensions (Top, Side, Front, and Rear) .......... 30-31
Control Panel...................................................... 32-33
Engine Operating Panel ..................................... 34-35
Output Terminal Panel ........................................ 36-41
Installation .......................................................... 42-43
Pre-Setup ........................................................... 44-47
Load Application ..................................................... 48
Generator Start-Up Procedure (Manual) ........... 49-52
Generator Start-Up Procedure (Auto) .................... 53
Generator Shut-Down Procedure ........................... 54
Maintenance ...................................................... 56-59
Generator Wiring Diagram ...................................... 60
Engine Wiring Diagram ...................................... 62-63
Troubleshooting (Engine) ................................... 64-65
Troubleshooting (Engine/Generator) ...................... 66
Troubleshooting MPEC ........................................... 67
Explanation Of Codes In Remarks Column ............ 68
Suggested Spare Parts ........................................... 69 NOTE
Specification and partSpecification and part
Specification and partSpecification and part
Specification and part
number are subject tonumber are subject to
number are subject tonumber are subject to
number are subject to
change without noticechange without notice
change without noticechange without notice
change without notice..
..
.
Generator Assembly .......................................... 70-73
Control Box Assembly ........................................ 74-79
Engine Radiator Assembly ................................. 80-83
Engine Operating Panel Assembly .................... 84-85
Output Terminal Assembly ................................. 86-89
Battery Assembly ............................................... 90-91
Muffler Assembly ............................................... 92-93
Fuel Tank Assembly ........................................... 94-95
Enclosure #1 Assembly...................................... 96-97
Enclosure #2 Assembly.................................... 98-101
Enclosure #3 Assembly.................................. 102-103
Enclosure (Rubber Seals) .............................. 104-105
Name Plate and Decals ................................. 106-109
Terms and Conditions Of Sale — Parts ................ 110

DCA-500SSK — PARTS AND OPERATION MANUAL (STD)— REV. #1 (04/14/01) — PAGE 5
PARTS ORDERING PROCEDURES
Get special freight allowances
when you order 10 or more
line items via FAX!**
■ UPS Ground Service at no charge for freight
■ PS Third Day Service at one-half of actual freight cost
No other allowances on freight shipped by any other carrier.
**Common nuts, bolts and washers (all items under $1.00 list price)
do not count towards the 10+ line items.
*DISCOUNTS ARE SUBJECT TO CHANGE*
Fax order discount and UPS special programs revised June 1, 1995
For faxed orders only
UPS
Special
Earn Extra Discounts when
you order by FAX!
All parts orders which include complete part numbers
and are received by fax qualify for the following extra
discounts:
Number of
line items ordered Additional Discount
1-9 items 3%
10+ items** 5%
Now! Direct TOLL-FREE access
to our Parts Department!
Toll-free nationwide:
800-421-1244
Toll-free FAX:
800/6-PARTS-7 • 800-672-7877
■Dealer account number
■Dealer name and address
■Shipping address (if different than billing address)
■Return fax number
■Applicable model number
■Quantity, part number and description of each part
■Specify preferred method of shipment:
•UPS Ground
•UPS Second Day or Third Day*
•UPS Next Day*
•Federal Express Priority One (please provide us with your Federal
Express account number)*
•Airborne Express*
•Truck or parcel post
*Normally shipped the same day the order is received, if prior to 2PM west coast time.
Extra Fax Discount
for Domestic USA
Dealers Only

PAGE 6 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
RULES FOR SAFE OPERATION
■ NEVER touch the hot exhaust
manifold, muffler or cylinder. Allow
these parts to cool before servicing
engine or generator.
■ The engine of this generator requires an adequate free flow
of cooling air. Never operate the generator in any enclosed or
narrow area where free flow of the air is restricted. If the air
flow is restricted it will cause serious damage to the generator
or engine and may cause injury to people. The generator
engine gives off DEADLY carbon monoxide gas.
■ HighTemperatures –Allow the engine to cool before adding
fuel or performing service and maintenance functions.
Contact with
hot components can cause serious burns.
CAUTION:
Failure to follow instructions in this manual may
lead to serious injury or even death! This
equipment is to be operated by trained and
qualified personnel only! This equipment is for
industrial use only.
The following safety guidelines should always be used when
operating the DCA-500SSK portable generator:
GENERAL SAFETY
■ DO NOT operate or service this equipment before reading
this entire manual.
■ This equipment should not be operated by
persons under 18 years of age.
■ NEVER operate this equipment without proper
protective clothing, shatterproof glasses, steel-
toed boots and other protective devices required
by the job.
■ NEVER operate this equipment when not feeling
well due to fatigue, illness or taking medicine.
■ NEVER operate this equipment under the
influence or drugs or alcohol.
■ NEVER use accessories or attachments, which are not
recommended by MQ Power for this equipment. Damage to
the equipment and/or injury to user may result.
■ Manufacturer does not assume responsibility for any accident
due to equipment modifications.
■ Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
■ Always check the machine for loosened threads or bolts before
starting.
CAUTION:
■ Always use extreme caution when
working with flammable liquids. When
refueling, stop the engine and allow it to
cool. DO NOT smoke around or near the
machine. Fire or explosion could result from
fuel vapors, or if fuel is spilled on a hot
engine.
■ NEVER operate the generator in an explosive atmosphere or
near combustible materials. An explosion or fire could result
causing severe
bodily harm or even death.
■ Topping-off to filler port is dangerous, as it tends to spill fuel.
Always refuel in a well-ventilated area, away
from sparks and open flames.

DCA-500SSK —PARTS AND OPERATION MANUAL (STD)—REV. #1 (04/14/01) —PAGE 7
RULES FOR SAFE OPERATION
CAUTION:
CAUTION:
■ Backfeed to a utility system can cause electrocution
and/or property damage. Do not connect to any
building's electrical system except through an
approved device or after building main switch is
opened.
CAUTION:
Never use damaged or worn cables when
connecting power tools or equipment to the
generator.Make sure power connecting cables
are securely connected to the generator’s
output terminals, insufficient tightening of the
terminal connections may cause damage to
the generator and electrical shock.
CAUTION:
DO NOT touch or open any of the below
mentioned components while the generator
is running. Always allow sufficient time for
the engine and generator to cool before
performing maintenance.
Radiator
1. Radiator Cap - Removing the radiator cap while the
engine is hot will result in high pressurized, boiling
water to gush out of the radiator, therefore causing
severe scalding to any persons in the general area
of the generator.
2. Coolant Drain Plug - Removing the coolant drain
plug while the engine is hot will result in hot coolant
to gush out of the coolant drain plug, therefore
causing severe scalding to any persons in the
general area of the generator.
3. Engine Oil Drain Plug - Removing the engine oil
drain plug while the engine is hot will result in hot oil
to gush out of the oil drain plug, therefore causing
severe scalding to any persons in the general area
of the generator.
■ NEVER touch output terminals during operation. This is
extremely dangerous. Always stop the machine when
contact with the output terminals.

PAGE 8 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
■ NEVER Run engine without air filter. Severe engine damage
may occur.
■ Always service air cleaner frequently to prevent carburetor
malfunction.
■ Always disconnect the battery before performing service on
the generator.
■ Always be sure the operator is familiar with proper safety
precautions and operations techniques before using generator.
■ Always store equipment properly when it is not being used.
Equipment should be stored in a clean, dry location out of the
reach of children.
■ DO NOT leave the generator running in the manual mode
unattended.
■ DO NOT allow unauthorized people to operate this
equipment.
■ Always read, understand, and follow procedures in Operator’s
Manual before attempting to operate equipment.
■ Always be sure the operator is familiar with proper safety
precautions and operations techniques before using generator.
■ Refer to the
KK
KK
Komatsu Engine Owner's Manomatsu Engine Owner's Man
omatsu Engine Owner's Manomatsu Engine Owner's Man
omatsu Engine Owner's Manualual
ualual
ual for engine
technical questions or information.
Loading and Unloading (Crane)
■ Before lifting, make sure the generator's lifting hook is secure
and that there is no apparent damage to the generator itself
(loose screws, nuts and bolts). If any part is loose or damaged,
please take corrective action before lifting.
■ Always drain fuel prior to lifting.
■ Always make sure crane or lifting device has been properly
secured to the hook of guard frame on generator.
■ NEVER lift the machine while the engine is running.
■ Use adequate lifting cable (wire or rope) of sufficient strength.
■ When lifting the generator, always use the balanced center-
point suspension hook and lift straight upwards.
■ NEVER allow any person or animal to stand underneath the
machine while lifting.
■ When loading the generator on a truck, be sure to use the
front and back frame bars as a means to secure the generator
during transport.
Battery
Never over fill the battery with water above
the upper limit.
CAUTION:
The battery contains acids that can cause injury to the eyes and
skin. To avoid eye irritation, always wear safety glasses. Use
well insulated gloves when picking up the battery. Use the
following guidelines when handling the battery:
RULES FOR SAFE OPERATION
1. DO NOT drop the battery. There is the possibility of risk
that the battery may explode.
2. DO NOT expose the battery to open flames, sparks,
cigarettes etc. The battery contains combustible gases
and liquids. If these gases and liquids come in contact
with a flame or spark, an explosion could occur.
3. Always keep the battery charged. If the battery is not
charged a buildup of combustible gas will occur.
4. Always keep battery charging and booster cables in good
working condition. Repair or replace all worn cables.
5. Always recharge the battery in an open air environment,
to avoid risk of a dangerous concentration of combustible
gases.
6. In case the battery liquid (dilute sulfuric acid) comes in
contact with
clothing or skinclothing or skin
clothing or skinclothing or skin
clothing or skin , rinse skin or clothing
immediately with plenty of water.
7. In case the battery liquid (dilute sulfuric acid) comes in
contact with your eyes, rinse eyes immediately with
plenty of water, then contact the nearest doctor or hospital,
and seek medical attention.

DCA-500SSK —PARTS AND OPERATION MANUAL (STD)—REV. #1 (04/14/01) —PAGE 9
Transporting
■ Always shutdown engine before transporting.
■ Tighten fuel tank cap securely.
■ Drain fuel when transporting generator over long distances
or bad roads.
■ Always tie-down the generator during transportation by
securing the generator.
■ If generator is mounted on a trailer, make sure trailer complies
with all local and state safety transportation laws. See page
10 for basic towing procedures.
Emergencies
■ Always know the location of the nearest
fire extinguisherfire extinguisher
fire extinguisherfire extinguisher
fire extinguisher
and
first aid kitfirst aid kit
first aid kitfirst aid kit
first aid kit . Know the location of the nearest telephone.
Also know the phone numbers of the nearest
ambulanceambulance
ambulanceambulance
ambulance
,
doctordoctor
doctordoctor
doctor and
fire departmentfire department
fire departmentfire department
fire department .
RULES FOR SAFE OPERATION
Maintenance Safety
■ NEVER lubricate components or attempt service on a running
machine.
■ Always allow the machine a proper amount of time to cool
before servicing.
■ Keep the machinery in proper running condition.
■ Fix damage to the machine immediately and always replace
broken parts.
■ Dispose of hazardous waste properly. Examples of potentially
hazardous waste are used motor oil, fuel, and fuel filters.
■ DO NOT use plastic containers to dispose of hazardous
waste.
■ DO NOT pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.

PAGE 10 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
To reduce the possibility of an accident while transporting
the generator on public roads, always make sure the trailer
(Figure 1) that supports the generator and the towing vehicle
are in good operating condition and both units are
mechanically sound.
The following list of suggestions should be used when towing
your generator:
CAUTION :
Towing Safety Precautions
■ ALWAYS attach trailer's safety chain to bumper of towing
vehicle.
■ ALWAYS make sure the vehicle and trailer directional,
backup, brake, and trailer lights are connected and working
properly.
■ Remember the maximum speed unless otherwise posted for
highway towing is 45 MPH. Recommended off-road towing
is not to exceed 10 MPH or less depending on type of terrain.
■ Place chocked blocks underneath wheel to prevent
rollingrolling
rollingrolling
rolling,
while parked.
■ Place support blocks underneath the trailer's bumper to
prevent
tippingtipping
tippingtipping
tipping , while parked.
■ Use the trailer's hand winch to adjust the height of the trailer,
then insert locking pin to lock wheel stand in place, while
parked.
■ Avoid sudden stops and starts.This can cause skidding, or
jackknifing. Smooth, gradual starts and stops will improve
gas milage.
■ Avoid sharp turns to prevent rolling.
■ Remove wheel stand when transporting.
■ DO NOT transport generator with fuel in tank.
Check with your county or state safety towing
regulations department before towing your
generator.
■ Make sure the hitch and coupling of the towing vehicle are
rated equal to, or greater than the trailer "gross vehicle weight
rating" (GVWR).
■ ALWAYS inspect the hitch and coupling for wear. NEVER
tow a trailer with defective hitches, couplings, chains etc.
■ Check the tire air pressure on both the towing vehicle and
the trailer. Also check the tire tread wear on both vehicles.
■ ALWAYS make sure the trailer is equipped with a "Safety
Chain".
DCA-500SSK —TOWING
Figure 1. Generator and Trailer

DCA-500SSK —PARTS AND OPERATION MANUAL (STD)—REV. #1 (04/14/01) —PAGE 11
Explanation of Chart:
This section is intended to provide the user with trailer ser-
vice and maintenance information. The service and mainte-
nance guidelines referenced in this section apply a wide range
of trailers. Remember periodic inspection of the trailer will
ensure safe towing of the equipment and will prevent dam-
age to the equipment and personal injury.
It is the purpose of this section to cover the major mainte-
nance components of the trailer. The following trailer com-
ponents will be discussed in this section:
 Brakes
 Tires
 Lug Nut Torquing
 Suspension
 Electrical
 Brake Troubleshooting Tables
Use the following definitions with reading Table 1.
1. Fuel Cell - Provides an adequate amount of fuel for the
equipment in use. Fuel cells must be empty when trans-
porting equipment.
2. Braking System - System employed in stopping the
trailer. Typical braking systems are electric, surge, hy-
draulic, hydraulic-surge and air.
3. GVWR- Gross Vehicle Weight Rating (GVWR), is the
maximum number of pounds the trailer can carry, in-
cluding the fuel cell (empty).
DCA-500SSK —TRAILER-SAFETY GUIDELINES
4. Frame Length - This measurement is from the ball
hitch to the rear bumper (reflector).
5. Frame Width - This measurement is from fender to
fender.
6. Jack Stand - Trailer support device with maximum
pound requirement from the tongue of the trailer.
7. Coupler - Type of hitch used on the trailer for towing.
8. Tire Size - Indicates the diameter of the tire in inches
(10,12,14, etc.), and the width in millimeters
(175,185,205, etc.). The tire diameter must match the
diameter of the tire rim.
9. Tire Ply - The tire ply (layers) number is rated in
letters; 2-ply,4-ply,6-ply, etc.
10. Wheel Hub - The wheel hub is connected to the
trailer’s axle.
11. Tire Rim - Tires mounted on a tire rim. The tire rim must
match the size of the tire.
12. Lug Nuts - Used to secure the wheel to the wheel hub.
Always use a torque wrench to tighten down the lug
nuts. See Table 4 and Figure 5 or lug nut tightening and
sequence.
13. Axle - Indicates the maximum weight the axle can sup-
port in pounds, and the diameter of the axle expressed
in inches (see Table 3). Please not that some trailers
have a double axle. This will be shown as 2-6000 lbs.,
meaning two axles with a total weight capacity of 6000
pounds.
14. Suspension - Protects the trailer chassis from shocks
transmitted through the wheels. Types of suspension
used are leaf, Q-flex, and air ride.
15. Electrical - Electrical connectors (looms) are provided
with the trailer so the brake lights and turn signals can
be connected to the towing vehicle.
16. Application - Indicates which units can be employed
on a particular trailer.
CAUTION:
ALWAYS make sure the trailer is in good
operating condition. Check the tires for
proper inflation and wear. Also check the
wheel lug nuts for proper tightness.

PAGE 12 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
snoitacificepS.1elbaT
LEDOM NOITACILPPA LEUF
LLEC
EKARB
METSYS
RWVG EMARF
HTGNEL
EMARF
HTDIW
KCAJ
DNATS
W01-RLRT ,522WDS
003WLT,052WGS
ONONSBL0091"69"05.BL008
LEEHWTLITLLUF
01-RLRT ,21GLT,01ACD
51-ACD
ONONSBL0091"69"05.BL008
LEEHWTLITLLUF
FX01-RLRT ,21-GLT,01ACD
003-WLT,51ACD
LAG25ONSBL0091"69"05.BL008
LEEHWTLITLLUF
W522-RLRT ,SREDLEW
SS0007AD
ONONSBL0022"58"24.BL008
LEEHWTLITLLUF
004WLB-RLRT 004-WLBONCIRTCELESBL0072"451TSAM/W
"421O/W
"55
)LLAT"87(
.BL008
LEEHWTLITLLUF
X05-RLRT 52-ACDONONSBL0072"421"55.BL008
LEEHWTLITLLUF
FX05-RLRT 52-ACDLAG14ONSBL0072"421"55.BL008
LEEHWTLITLLUF
W07-RLRT 07,06-,54-ACDONEGRUSSBL0007"681"77.BL0002
DAPTALF
X07-RLRT 07,06-,54-ACDTPOEGRUSSBL0007"831"66.BL0002
DAPTALF
FX07-RLRT 07,06-,54-ACDLAG35EGRUSSBL0007"831"66.BL0002
DAPTALF
FX001-RLRT 521,001-ACDLAG051EGRUSCILUARDYHSBL0007"091"67.BL0002
DAPTALF
521/58-RLRT ,001,58-ACD
521
LAG541CILUARDYHSBL00001"681"77.BL0002
DAPTALF
FX051-RLRT 081,051-ACDLAG002EGRUSCILUARDYHSBL06111"402"48.BL0005
DAPTALF
FX022-RLRT 022-ACDLAG052EGRUSCILUARDYHSBL00041"222"38.BL0005
DAPTALF
FX003-RLRT 003-ACDLAG052EGRUSCILUARDYHSBL00081"832"38.BL0005
DAPTALF
FX004-RLRT 004-ACDLAG053CIRTCELESBL00081"832"38.BL0005
DAPTALF
FX006-RLRT 008,006-ACDLAG055RIASBL00003"483"69.BL0005
DAPTALF
XS008-RLRT 008,006-ACDLAG055RIASBL00003"483"69.BL0005
DAPTALF
DCA-500SSK —TRAILER-SPECIFICATIONS

DCA-500SSK —PARTS AND OPERATION MANUAL (STD)—REV. #1 (04/14/01) —PAGE 13
)t'noC(snoitacificepS.1elbaT
LEDOM RELPUOC SERIT SLEEHW ELXA SBUH NOISNEPSUS LACIRTCELE
W01-RLRT SSALCLLAB"2
ELBATSUJDA2
C31-571"05.4X"312X2#0022GUL5FAEL3/WMOOLERIW4
TALFELOP4
01-RLRT SSALCLLAB"2
ELBATSUJDA2
C31-571"5.4X"312X2#0022GUL5FAEL3TALFELOP4
FX01-RLRT SSALCLLAB"2
ELBATSUJDA2
C31-571"5.4X"312X2#0022GUL5FAEL3TALFELOP4
W522-RLRT SSALCLLAB"2
ELBATSUJDA2
B31-571"5.4X312X2#0022GUL5XELFQTALFELOP4
WLB-RLRT
004
SSALCLLAB"2
ELBATSUJDA2
C31-571"5.4X312X2#0022GUL5FAEL3TALFELOP4
X05-RLRT SSALCLLAB"2CRL31-87B"05.4X"31.sbl0053
"8/3-2
GUL5FAEL4REBBURELOP4
TALF
FX05-RLRT SSALCLLAB"2CRL31-87B"05.4X"31.sbl0053
"8/3-2
GUL5FAEL4REBBURELOP4
TALF
W07-RLRT SSALCLLAB"2
ELBATSUJDA"3
C41-502
)4(SAIB
"5X"41.sbl0053
"3
GUL5FAEL5REBBURELOP4
TALF
X07-RLRT SSALCLLAB"2
ELBATSUJDA"3
C41-502
)4(SAIB
"5X"41sbl0053
"3
GUL5FAEL5REBBURELOP4
TALF
FX07-RLRT SSALCLLAB"2
ELBATSUJDA"3
C41-502
)4(SAIB
"5X"41.sbl0053
"3
GUL5FAEL5REBBURELOP4
TALF
FX001-RLRT 6/5-2ELBATSUJDA
EYE"3TPO
C51-502
)4(SAIB
"5.5X"41sbl0053
"3
GUL5FAEL5MOOLERIW4
521/58-RLRT 6/5-2ELBATSUJDA
EYE"3TPO
D51R57/522TS
)4(LAIDAR
"6x"41sbl0006-)2(GUL6FAEL7MOOLERIW4
FX051-RLRT EYELLAB"3E61-057
)4(SAIB
"7X"61sbl0006-)2(GUL8FAEL7MOOLERIW4
FX022-RLRT EYE"3
ELBATSUJDA
E61R58/532TS
)4(LAIDAR
"7X"61sbl0007-)2(GUL8XELFQMOOLERIW4
FX003-RLRT EYE"3
ELBATSUJDA
E61R58/532TS
)6(LAIDAR
"7X"61sbl0006-)2(GUL8XELFQMOOLERIW4
FX004-RLRT EYE"3
ELBATSUJDA
E61R58/532TS
)6(LAIDAR
"7X"61.sbl0007-)3(GUL8XELFQMOOLERIW4
FX006-RLRT LEEHWHT5H5.71R57/512TS
)8(LAIDAR
"7X"61sbl00001-)3(GUL8FAEL7MOOLERIW6
RA008-RLRT LEEHWHT5H5.71R57/512TS
)8(LAIDAR
"7X"61sbl00001-)3(GUL8EDIR-RIAMOOLERIW6
DCA-500SSK —TRAILER-SPECIFICATIONS

PAGE 14 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
DCA-500SSK —TRAILER SAFETY GUIDELINES
Brakes
If your trailer has a braking system, the brakes should be
inspected the first 200 miles of operation. This will allow the
brake shoes and drums to seat properly. After the first 200
mile interval, inspect the brakes every 3,000 miles. If driving
over rough terrain, inspect the brakes more frequently.
Electric Brakes
Electrically actuated brakes (Figure 2) are similar to hydraulic
brakes. The basic difference is that hydraulic brakes are
actuated by an electromagnet.
Listed below are some of the advantages that electric brakes
have over hydraulic brakes:
 Brake system can be manually adjusted to provide the
corrected braking capability for varying road and load
conditions
 Brake system can be modulated to provide more or less
braking force, thus easing the brake load on the towing
vehicle
 Brake system has very little lag time between the time
the vehicle’s brakes are actuated and the trailer’s brakes
are actuated
 Brake system can provide an independent emergency
brake system
Remember in order to properly synchronize the tow vehicle’s
braking to the trailer’s braking, can only be accomplished by
road testing. Brake lockup, grabbiness or harshness is due
to lack of synchronization between the tow vehicle and the
trailer being towed or under-adjusted brakes.
Before any brake synchronizations adjustments can be made,
the trailer brakes should be burnished-in by applying the
brakes 20-30 times with approximately a 20 m.p.h. decrease
in speed, e.g. 40 m.p.h. to 20 m.p.h. Allow ample time for
brakes to cool between application. This allows the brake
shoes to slightly be seated into the brake drum surface.
Figure 2 displays the major electric brake components that
will require inspection and maintenance. Please inspect these
components as required.
Electric Brake Adjustment
1. Place the trailer on jack stands. Make sure the jack
stands are placed on secure level ground.
2. Check the wheel and drum for free rotation.
3. Remove the adjusting hole cover from the adjusting slot
at the bottom brake backing plate.
4. With a screwdriver or standard adjusting tool, rotate the
star wheel of the adjuster assembly to expand the brake
shoes.
5. Adjust the brake shoes outward until the pressure of the
lining against the wheel drum makes the wheel difficult
to turn.
6. Rotate the star wheel in the opposite direction until the
wheel rotates freely with slight lining drag.
7. Replace the adjusting hole cover and lower the trailer to
the ground.
8. Repeat steps 1 through 6 on the remaining brakes.

DCA-500SSK —PARTS AND OPERATION MANUAL (STD)—REV. #1 (04/14/01) —PAGE 15
DCA-500SSK —TRAILER SAFETY GUIDELINES
Hydraulic/Air/Surge Brakes
Hydraulic brakes (Figure 3) should not require any special
attention with the exception of routine maintenance such as
shoe and lining replacement. These brakes can be adjusted
in the same manner as electric brakes. Brake lines should
be periodically checked for cracks, kinks, or blockage.
Figure 3 below displays the major hydraulic/air/surge brake
components that will require inspection and maintenance.
Please inspect these components as required using steps 1
through 6 as referenced in the electric brake adjustments
section.
Figure 2. Electrical Brake Components
Figure 3. Hydraulic Brake Components

PAGE 16 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
Tires/Wheels/Lug Nuts
Tires and wheels are a very important and critical
components of the trailer. When specifying or replacing the
trailer wheels it is important the wheels, tires, and axle are
properly matched.
CAUTION:
DO NOT attempt to repair or modify a
wheel. DO NOT install in inner tube to
correct a leak through the rim. If the
rim is cracked, the air pressure in the
inner tube may cause pieces of the rim
to explode (break off) with great force
and cause serious eye or bodily injury.
Tire Wear/Inflation
Tire inflation pressure is the most important factor in tire life.
Pressure should be checked cold before operation DO NOT
bleed air from tires when they are hot. Check inflation
pressure weekly during use to insure the maximum tire life
and tread wear.

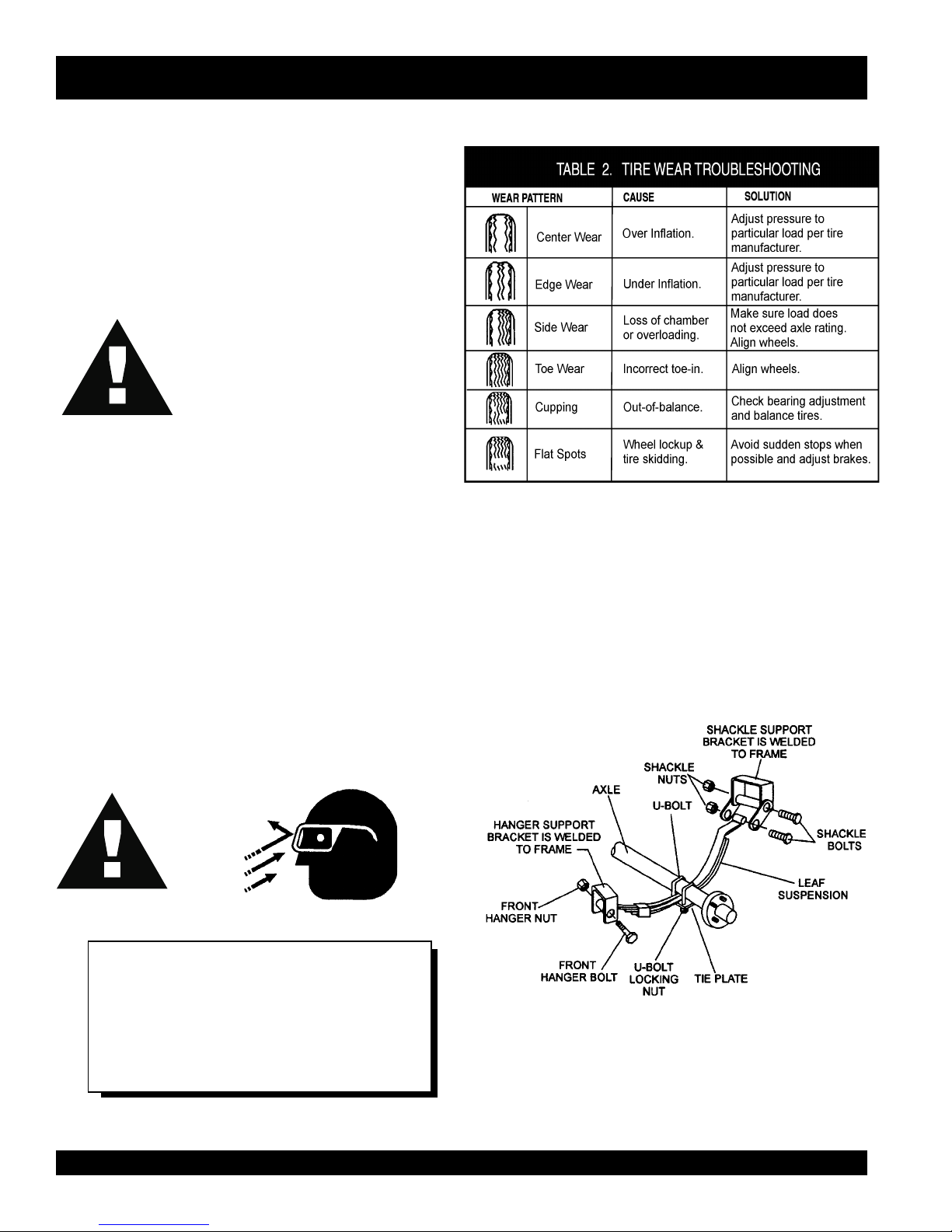

Table 2 (Tire Wear Troubleshooting) will help pinpoint the
causes and solutions of tire wear problems.
CAUTION:
NOTE
ALWAYS wear safety glasses when removing
or installing force fitted parts. Failure to comply
may result in serious injury.
DCA-500SSK —TRAILER SAFETY GUIDELINES
Figure 4. Major Suspension Components
Suspension
The leaf suspension springs and associated components
(Figure 4) should be visually inspected every 6,000 miles for
signs of excessive wear, elongation of bolt holes, and
loosening of fasteners. Replace all damaged parts
(suspension) immediately. Torqued suspension components
as detailed in Table 3.

DCA-500SSK —PARTS AND OPERATION MANUAL (STD)—REV. #1 (04/14/01) —PAGE 17
stnemeriuqeReuqroTnoisnepsuS.3elbaT
metI ).sbL-.tF(euqroT
TLOB-U"8/353-XAM03-NIM
TLOB-U"61/706-XAM54-NIM
TLOB-U"2/106-XAM54-NIM
SHACKLE BOLT
SPRING EYE BOLT
SNUG FIT ONLY
. PARTS MUST ROTATE FREELY .
LOCKING NUTS OR COTTER PINS A RE PROVID ED
TO RETAIN NUT
- BOLT ASSEMBLY .
SHOULDER TYPE
SHACKLE BOLT
05-XAM03-NIM
stnemeriuqeReuqroTeriT.4elbaT
eziSleehW ssaPtsriF
SBL-TF
dnoceS
ssaP
SBL-TF
ssaPdrihT
SBL-TF
"2152-0204-5356-05
"3152-0204-5356-05
"4152-0206-05021-09
"5152-0206-05021-09
"6152-0206-05021-09

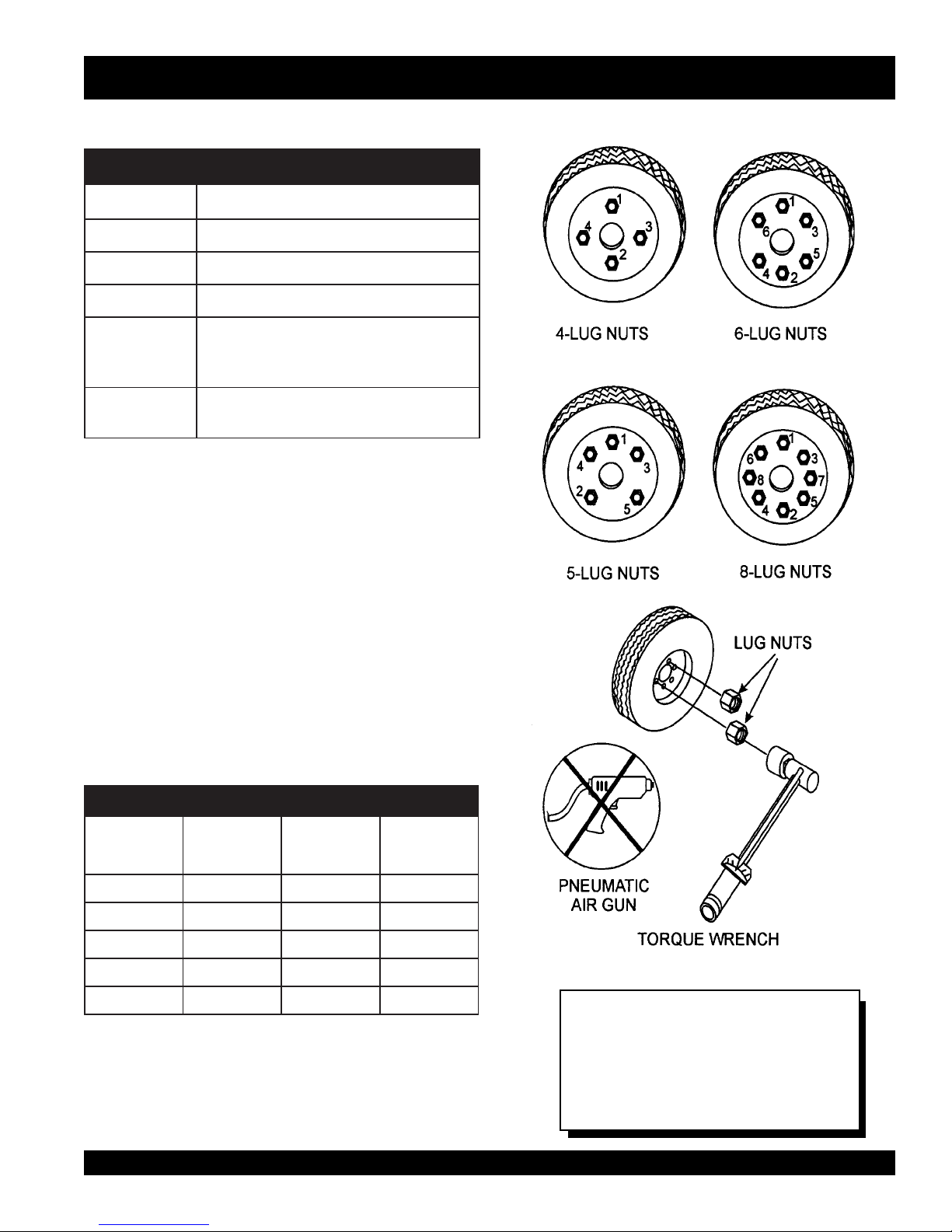

Lug Nut Torque Requirements
It is extremely important to apply and maintain proper wheel
mounting torque on the trailer. Be sure to use only the
fasteners matched to the cone angle of the wheel. Proper
procedure for attachment of the wheels is as follows:
1. Start all wheel lug nuts by hand.
2. Torque all lug nuts in sequence. See Figure 5. DO NOT
torque the wheel lug nuts all the way down. Tighten
each lug nut in 3 separate passes as defined by Table 4.
3. After first road use, retorque all lug nuts in sequence.
Check all wheel lug nuts periodically.
NOTE
NEVER use an pneumatic air gun to
tighten wheel lug nuts.
DCA-500SSK —TRAILER SAFETY GUIDELINES
Figure 5. Wheel Lug Nuts Tightening Sequence

PAGE 18 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
DCA-500SSK —TRAILER-WIRING DIAGRAM

DCA-500SSK —PARTS AND OPERATION MANUAL (STD)—REV. #1 (04/14/01) —PAGE 19
gnitoohselbuorTekarBriA.6elbaT
motpmyS esuaCelbissoP noituloS
sekarBoN?deknikronekorbenilekarB.ecalperroriapeR
sekarBrosekarBkaeW
ediSenOotlluP
?dezalggninilekarB.ecalperrohsinrubeR
?dedaolrevoreliarT.thgiewtcerroC
?devoorgroderocssmurdekarB.ecalperroenihcaM
?tcerrocerusserperiT.yllauqeseritllaetalfnI
?elxaemasehtnodehctamnuseriT.serithctaM
sekarBgnikcoLrotneb,esoolstnenopmocekarB
?nekorb
.stnenopmocecalpeR
?dnuor-fo-tuosmurdekarB.ecalpeR
sekarBysioN?detacirbulmetsyS.etacirbuL
?tcerrocstnenopmocekarB.tcerrocdnaecalpeR
sekarBgniggarDnirotcerrocssenkcihtgninilekarB
?noitisopgnorwthgir
dnaseohswenllatsnI
.sgninil
?diulftcerrocrodiulfekarbhguonEstraprebburecalpeR
.diulf4todhtiwllif
DCA-500SSK —TRAILER BRAKESTROUBLESHOOTING

PAGE 20 —DCA-500SSK —PARTS AND OPERATION MANUAL (STD) —REV. #1 (04/14/01)
Machine Safety Decals
The DCA-500SSK generator is equipped with a number of safety decals.These decals are provided for operator safety
and maintenance information.The illustrations below and on the preceding pages shows the decals as they appear on the
machine.Should any of these decals become unreadable, replacements can be obtained from your dealer.
DCA-500SSK —OPERATION AND SAFETY DECALS
