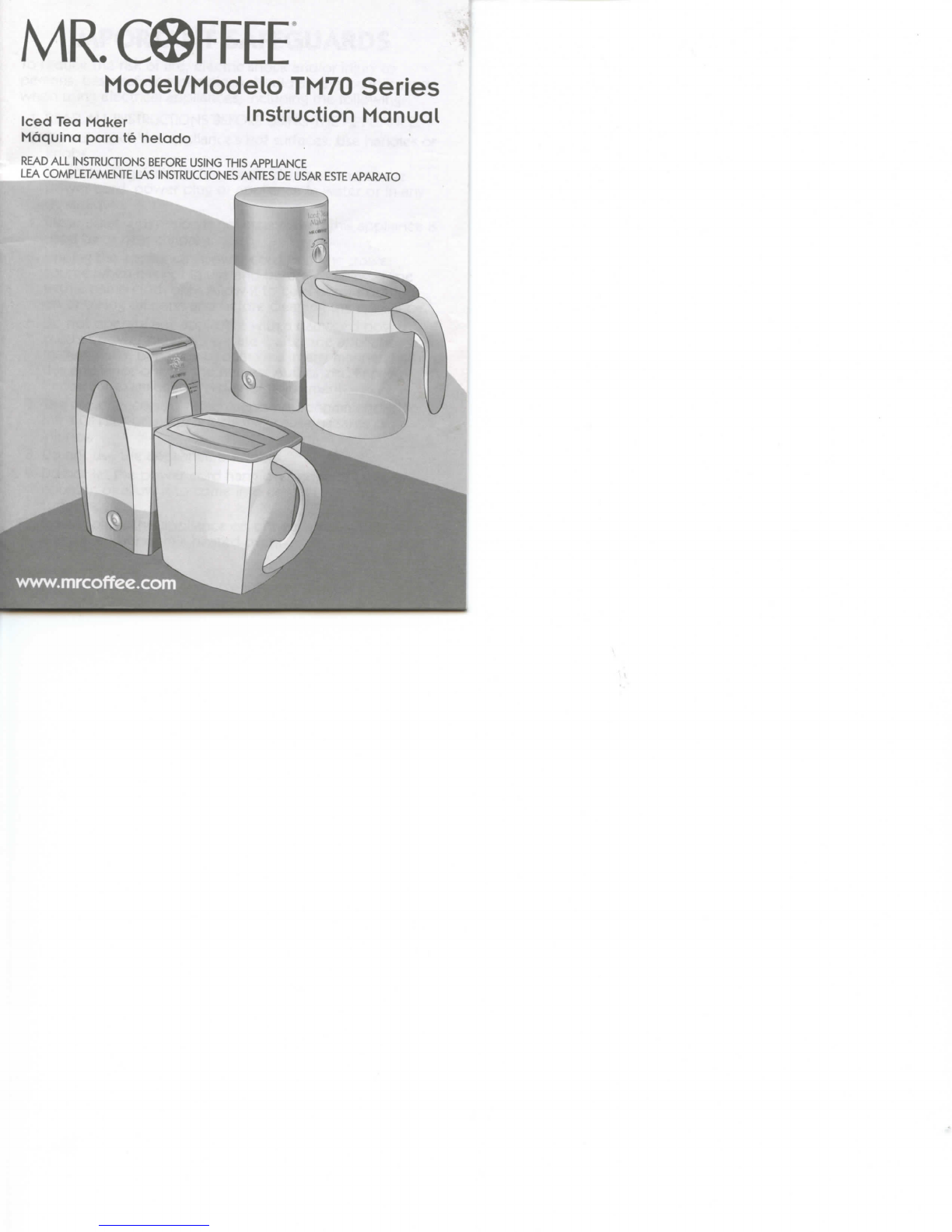

Mr. Coffee TM70 Series User manual

MR. C©FFEE
Model/Modelo TM70 Series
.ced Tea Maker Instruction Manual
Mdquina para te helado
READ ALL INSTRUCTIONSBEFORE USING THIS APPLIANCE
LEA COMPLETAMENTE LAS INSTRUCCIONESANTES DE USAR ESTE APARATO

IMPORTANT SAFEGUARDS
To reduce the risk of fire, electricshockand/orinjury to
persons, basic safetyprecautionsshould always be followed
whenusingelectricalappliances,including the following:
1. READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
2. Donot touch the appliance's hot surfaces. Use handles or
knobs.
3. To protect againstelectricshock, donot immerse the
power cord, power plug or appliance in water orinany
other liquid.
4. Close adult supervision is necessary whenthisappliance is
used byor nearchildren.
5. Unplug the appliance's power cord from the power
sourcewhen itisnotinuseand beforecleaning.Wipe
with a damp cloth only.Allow itto coolbefore putting
onor taking off parts and beforecleaning the appliance.
6. Donot operate any appliance with a damagedpower
cord or power plug, or operate it after the appliance
malfunctions, orhas beendamaged inany manner. Return
this applianceonly tothe nearest Authorized Service
Center for examination,repair or adjustment.
7. Theuseof accessory attachments not recommended for
MR. COFFEE® brand products may cause hazards or
injuries.
8. Donotusethe appliance outdoors.
9. Donotletthe power cord hangoveredge of table or
counter, or allow itto come into contact with hot
surfaces.
10. Donot placethisappliance onor near a hotgasor
electric burner orina heatedoven.
©

11. To disconnect the appliance,remove the powerplugfrom
the powersupply.
12. This appliance is designed for household use only.
13. Place the appliance ona hard, flatlevel surface only to
avoid interruption of airflowunderneath it.
14. Pitcher Useand Care
The pitcher may break ifthe following instructions arenot
followed:
a. This pitcher is designed foruse with thisiced tea maker
and thus must never be used ona rangetop orinany
oven,includingmicrowaveovens.
b.Donotusea crackedpitcher.
c. Donot clean the pitcherwith cleansers, steel wool
pads or other abrasive materials.
d. Avoidsharpblows, scratches or roughhandling.
15. Donotuse appliance for otherthan intended use.
16. Scalding may occur ifthelidis removedduringbrewing
cycles.
WARNING! To reduce the risk of fire or electricshock, donot
remove any service covers. There are no user
serviceable partsinside.Onlyauthorized
personnel shouldrepair the appliance.
Please read ALLofthe instructions in thismanualcarefully
before you begin touse thisappliance.Proper care and
maintenance will ensure a longlife anda trouble-free
operation for this appliance. Pleasesave these instructions and refer
to them frequently for cleaning and care tips.
©
ADDITIONAL PRECAUTIONSWHEN USING
THE ICED TEA MAKER
• Place the appliancewellbackfrom the edge ofthe
counter.
• Avoidappliance areas which may become hotor emit steam
when the iced tea maker ison, particularly the steeping/brew
basket andthe waterreservoir.
•The waterreservoir lid must beonatall times while
the appliance is brewing.
•DONOT operate the iced tea maker unless the pitcher has
its lidonandis fitted snuglyagainst the appliance.
•DONOT move the appliancewhile inuseor until ithas
cooledoff. Steam may escapefrom the steeping/brew
basket while the appliance is cooling.
•DONOT place a tablecloth or otherfabricunderneath the
appliance or otherwiserestrictairflowbeneath it.
•DO NOT jerk or pull onthe powercordwhenunplugging
the appliance, grasp the moldedplug to unplug it.
• Never reheat a beverage by passing it through the appliance's
brewing system.
•DONOT immerse the appliance in water. This may cause
electrocution or shock, damage it permanently and void
the warranty.
SPECIALCORD SET INSTRUCTIONS
1. A shortpowersupplycord is provided to reduce
the hazards resultingfrom a person orpet becoming
entangled in,or tripping over, a longercord.
©

2. An extension cord maybe purchased and used if care is
exercised inits use.
3.Ifan extension cord is used, the markedelectricalrating of
the extension cord must beat least 10 amps and 120 volts.
The resulting extended cord must be arranged so that it will
not drapeover a countertop or tabletop where itcanbe
pulled onby children or tripped overaccidentally.
This appliance hasa polarizedplug(oneblade is wider than
the other). To reduce the risk of electricshock,thisplug will fit
in a polarized outlet only one way. Ifthe plug does notfit fully
in the outlet, reverse the plug. Ifit stilldoes not fit,contact a
qualifiedelectrician. Donot modify the plug inany way.
SAVE THESE INSTRUCTIONS
PARTS DIAGRAM
1. Water
Reservoir Lid
2. Water
Reservoir
3. Removable
Tea Brew
Basket
6. Pitcher Lid
7. 3-Quart
Pitcher
8. WaterLevel
Markings
9. On/OffButton
and Indicator
Lisht
©
4. Rotating
ShowerHead 10. ,ce Leve,
5. AdjustableMarkings
Tea Steeping
Control
Refer to www.mrcoffee.com or 1-800-MR COFFEE
(1-800-672-6333) for replacementparts
ICED TEA MAKERFEATURES AND BENEFITS
Your newMR. COFFEE® Iced Tea Maker hasthe following
features:
• 3-QuartIced Tea BrewingCapacity.
• Adjustable Tea Steeping Control - Adjusts the brewing time
to create a morefull-flavoredtea.
• Water Window - Showsamount of water inthe reservoir for
accurate filling.
• 3-QuartPitcher - Keeps iced tea cold.
• RemovableBrew Basket - The brew basketlifts outofthe
iced tea makerhousing for fast and easy cleaning and filling.
• On/Off Button and IndicatorLight - Lets you know when
youriced tea maker is "on".
• AutomaticShut-Off - Turns off youriced tea maker when
steeping/brewing cycle is complete.
• Water andIce Markings on Pitcher - Showamount of water
to measure for pouring into iced tea makerreservoir and
ice needed inthe pitcher fora perfect glass of icedtea.
• Uses Teabags or LooseTea.
• Optional WaterFiltration System - Great tastrng tea begins
with greatwater!Improves the taste of your teaby
removing 97%ofthe chlorinefrom the water youusefor
brewing, (seedetails on page 8)
CLEAN YOUR ICED TEA MAKERBEFORE
USING THE FIRST TIME
Make sureyourfirst glass of iced teaisas good ascanbeby
cleaningyour MR. COFFEE® Iced Tea Makerbeforeusing itfor
the firsttime.Just follow thesesimplesteps:
I
0

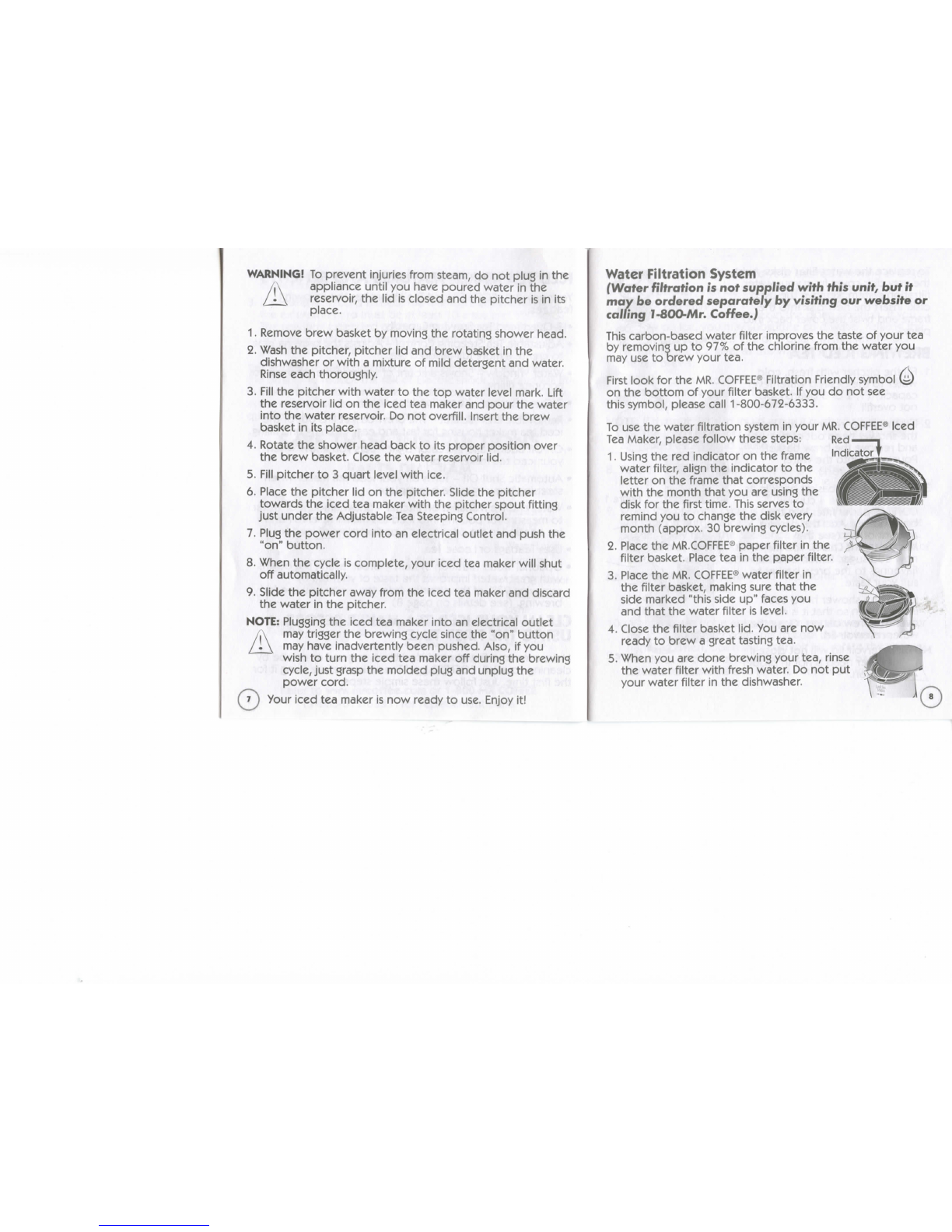

WARNING! To preventinjuriesfrom steam, donot plug inthe
appliance until you have pouredwater inthe
reservoir, thelidis closed andthe pitcher isinits
place.
1. Remove brewbasket by moving the rotatingshowerhead.
2. Wash the pitcher,pitcher lidand brewbasket inthe
dishwasher or with a mixture of milddetergent and water.
Rinse each thoroughly.
3. Fill the pitcher with water tothetop water level mark. Lift
the reservoir lidonthe iced tea maker and pour the water
into the water reservoir. Donot overfill.Insert the brew
basket inits place.
4. Rotate the showerheadback toits proper position over
the brewbasket. Close the waterreservoirlid.
5. Fill pitcher to3 quart level with ice.
6. Place the pitcher lidonthe pitcher.Slide the pitcher
towards the iced tea maker with the pitcherspoutfitting
just under the Adjustable Tea SteepingControl.
7. Plug the power cord into an electrical outlet and push the
"on" button.
8. When the cycle is complete,youriced tea maker will shut
off automatically.
9. Slide the pitcher away from the iced tea maker and discard
the water inthe pitcher.
NOTE: Plugging the iced tea maker into an electrical outlet
may trigger the brewing cycle since the "on" button
may have inadvertentlybeenpushed.Also, ifyou
wish to turn the iced tea maker off during the brewing
cycle, just grasp the moldedplug and unplug the
power cord.
f 7 J Your iced tea maker isnow ready to use. Enjoy it!
Water Filtration System
(Water filtration isnot supplied with this unit, but if
maybe ordered separately by visiting our website or
calling 1-800-Mr. Coffee.)
This carbon-basedwaterfilterimproves the taste of your tea
by removing upto97%ofthe chlorinefrom the water you
may useto brew yourtea.
First look fortheMR. COFFEE® Filtration Friendly symbol
onthe bottom of yourfilterbasket. Ifyoudonotsee
this symbol, please call 1-800-672-6333.
To usethe waterfiltration system in your MR. COFFEE® Iced
Tea Maker,please follow these steps:
1 . Using thered indicator onthe frame
water filter, align the indicator tothe
letter onthe frame thatcorresponds
with the monththat youare using the
disk forthe firsttime. This serves to
remind youto change the disk every
month(approx. 30 brewing cycles).
2. Place the MR.COFFEE® paperfilter inthe
filterbasket. Place teainthe paperfilter.
3. Place theMR. COFFEE® waterfilter in
the filter basket, making sure that the
side marked"thisside up" faces you
and that the waterfilter is level.
4. Close the filterbasketlid. You arenow
ready to brew a great tastingtea.
5. When youare donebrewingyourtea, rinse
the waterfilter with fresh water. Donotput
your waterfilter inthe dishwasher.

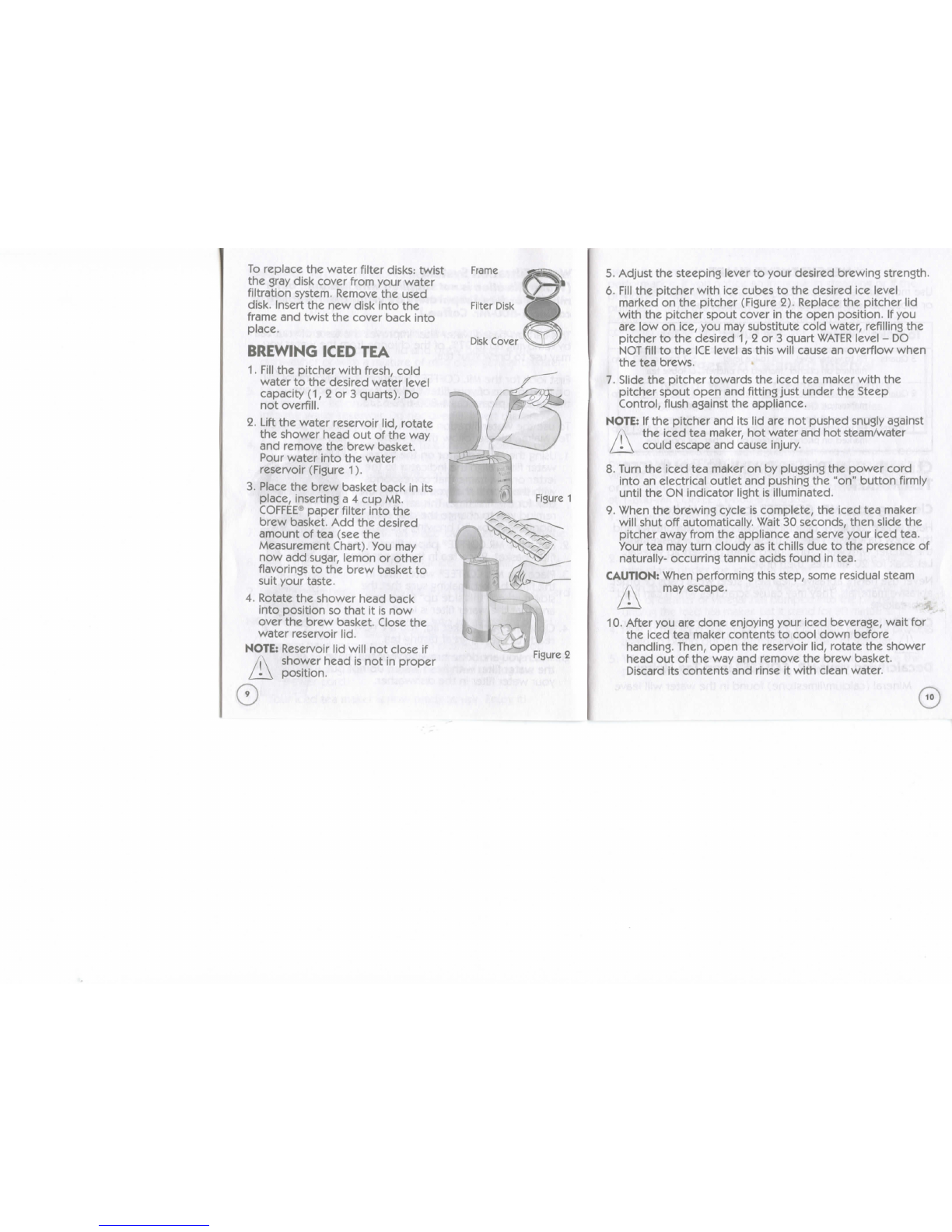

To replace the waterfilter disks: twist
the gray diskcoverfromyourwater
filtration system. Remove the used
disk. Insert thenew disk into the
frame and twist the coverbackinto
place.
BREWING ICED TEA
1. Fill the pitcher with fresh, cold
water tothe desiredwaterlevel
capacity (1, 2 or3 quarts). Do
not overfill.
2. Lift the waterreservoir lid, rotate
the showerhead outoftheway
and remove the brewbasket.
Pour water into the water
reservoir (Figure 1).
3. Place the brewbasketback inits
place,inserting a 4 cupMR.
COFFEE® paperfilter into the
brewbasket. Addthe desired
amount oftea (see the
Measurement Chart). You may
nowadd sugar, lemon or other
flavorings tothe brewbasket to
suit your taste.
4. Rotate the showerheadback
into position so that itisnow
over the brewbasket. Close the
water reservoir lid.
NOTE: Reservoir lid will not close if
showerhead isnotin proper
position.
Frame
Filter Disk
Disk Cover
Figure 2
0
5. Adjust the steepinglever to yourdesiredbrewingstrength.
6. Fill the pitcher with ice cubes tothe desired ice level
marked onthe pitcher (Figure 2). Replace the pitcher lid
with the pitcherspoutcover inthe open position. Ifyou
are lowon ice, youmay substitutecoldwater,refilling the
pitcher tothe desired 1, 2 or3 quart WATER level - DO
NOT fill tothe ICE level as this will cause an overflowwhen
thetea brews.
7. Slide the pitchertowards the iced tea maker with the
pitcher spout open and fitting just under the Steep
Control,flush against the appliance.
NOTE: Ifthe pitcher anditslidarenot pushed snugly against
the iced tea maker, hot water andhot steam/water
could escape and cause injury.
8. Turn the iced tea maker onby plugging the power cord
into an electrical outlet and pushing the "on" button firmly
until theON indicatorlight is illuminated.
9. When the brewingcycle is complete, the iced tea maker
willshut off automatically. Wait 30 seconds,thenslide the
pitcher away from the appliance and serve youricedtea.
Your teamay turncloudy asit chills duetothe presence of
naturally- occurringtannicacids found in tea.
CAUTION: Whenperformingthisstep,someresidual steam
A\y escape.
10. After youare doneenjoyingyouricedbeverage,wait for
the iced tea maker contents to cool down before
handling. Then, open the reservoirlid,rotate the shower
head outofthewayand remove the brewbasket.
Discard its contents and rinse it with clean water.

MEASUREMENT CHART
Use more or less tea according to taste. Additional tea bass
or loose teamaybe used to brew herbaltea.
To Make
3 Quarts
2 Quarts
1 Quarts
Water
Fill to waterlevel
marked on pitcher
Fill to water level
marked on pitcher
Fill to waterlevel
marked on pitcher
Ice Cubes
Fill toice level
marked on pitcher
Fill toice level
marked on pitcher
Fill toice level
marked on pitcher
Tea
5-7 bass or2-3 tbsp
of loose tea
3-5 bass or1 -2 tbsp
of loose tea
1-3 bass or 1/2-1 tbsp
of loose tea
CLEANING AND MAINTAINING YOUR ICED
TEA MAKER
Cleaning your MR. COFFEE® Iced Tea Maker
Hardwater can leavemineral deposits inside the pitcher and
the brew basket. To removethese, fill the brew basket and
the pitcher with warm, undiluted white household vinegar.
Let soak for20 minutes, then rinse.
Never use harsh,abrasivecleansers,steel wool pads or other
abrasive materials. They may cause scratches which can lead
to breakage.
CAUTION!Neverimmerse the iced tea maker itself in water,
in any other liquid orinthe dishwasher.
Decalcifying your MR. COFFEE® Iced Tea Maker
Mineral(calcium/limestone) found inthe water will leave
deposits in your iced tea maker and will affect its
performance. Ifyou notice an increase in steaming orifthe
pumping action stops before allofthe water has been
pumped outofthe appliance, it's time to clean it.The
frequency of cleaningdepends onthe hardness(mineral
content) of your tap water. Please seethe following chart:
SuggestedCleaningInterval
Type of Water Cleaning Frequency
Every 80 BrewCycles
Every 40 Brew Cycles
SoftWater
HardWater
It's recommended that you regularlyremovemineraldeposits
by using MR. COFFEE® Cleaner or undiluted, white household
vinegar. MR. COFFEE® Cleaner is available at manyretailstores
orby calling theMR. COFFEE® Consumer Service Department
at 1-800-MR COFFEE (1-800-672-6333).
1. Followpackage instructions to prepare one batch of MR.
COFFEE® Cleaner.Pour the mixture orone quart of undiluted,
white household vinegar into the waterreservoir.
2. Place the pitcher lidonthe pitcher and slide the pitcher
into place under the iced tea maker.
3. Push the "on" button to begin the brewing cycle.After one
cupof cleaner or vinegar has pumped into the pitcher,
unplug the iced tea maker. Letit stand for30 minutes.
4. Plug inthe iced tea makeragain.Continue brewing process
again to pump outthe remainingcleaner or vinegar.
5. When the iced tea makershutsoff, unplug it, remove the
pitcher and discard the cleaning solution.

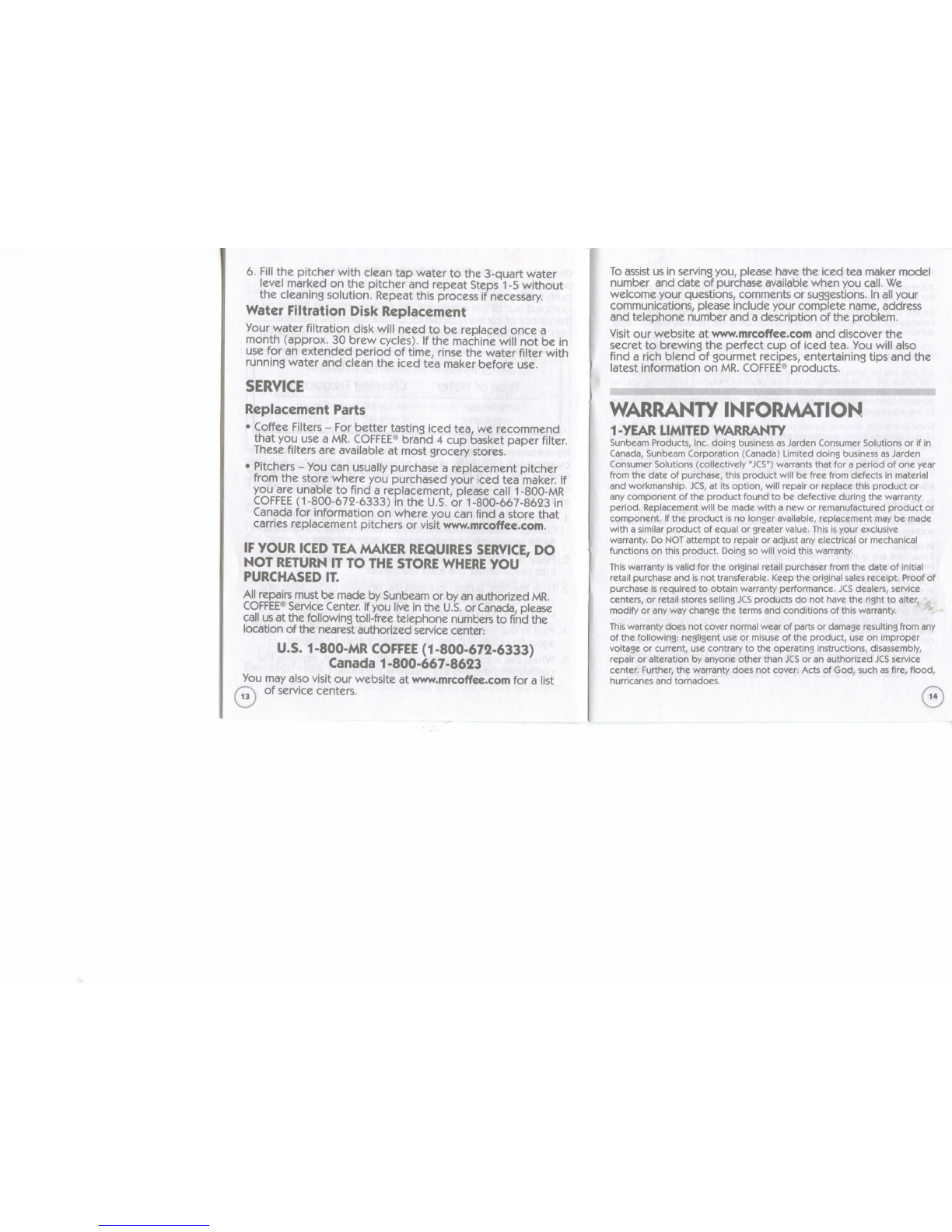

6. Fill the pitcher with clean tap water tothe 3-quart water
level marked onthe pitcher and repeat Steps 1 -5 without
the cleaningsolution. Repeat thisprocess if necessary.
Water Filtration Disk Replacement
Your waterfiltrationdisk will need tobe replacedonce a
month(approx. 30 brew cycles). Ifthe machinewill notbein
use foran extended period of time, rinse the waterfilter with
runningwater and clean the iced tea maker beforeuse.
SERVICE
Replacement Parts
• Coffee Filters - For bettertastingiced tea, we recommend
that youusea MR. COFFEE® brand 4 cup basketpaperfilter.
These filters are available at mostgrocerystores.
• Pitchers - You can usually purchase a replacementpitcher
from the storewhere you purchasedyouriced tea maker. If
youare unable to find a replacement,please call 1 -800-MR
COFFEE (1-800-672-6333) inthe U.S. or 1-800-667-8623 in
Canada for information on where youcan find a storethat
carries replacementpitchers or visit www.mrcoffee.com.
IF YOUR ICED TEA MAKER REQUIRES SERVICE, DO
NOT RETURN ITTOTHE STOREWHERE YOU
PURCHASED IT.
All repairs must be made by Sunbeam orbyan authorized MR.
COFFEE® Service Center. Ifyou live inthe U.S. or Canada, please
call usatthe followingtoll-freetelephonenumbers tofindthe
location ofthe nearest authorized service center:
U.S. 1-800-MR COFFEE (1-800-672-6333)
Canada 1-800-667-8623
You may also visit our website at www.mrcoffee.com fora list
of service centers.
To assist usin serving you, please have the iced tea maker model
number and date of purchase available when you call. We
welcome yourquestions,comments or suggestions. Inall your
communications, please includeyourcompletename, address
and telephonenumber anda description ofthe problem.
Visit our website at www.mrcoffee.com and discover the
secret to brewing the perfect cupof icedtea. You will also
find a rich blend of gourmetrecipes,entertainingtips andthe
latest information onMR. COFFEE® products.
WARRANTY INFORMATION
1-YEAR LIMITED WARRANTY
Sunbeam Products,Inc. doing business as Jarden Consumer Solutions orifin
Canada, SunbeamCorporation (Canada) Limited doing business as Jarden
Consumer Solutions(collectively "JCS") warrants that fora period ofone year
from the date of purchase,this product will be freefromdefects in material
and workmanship. JCS, atits option, will repair or replacethis product or
any component ofthe product found tobe defective during the warranty
period. Replacement will be made with a newor remanufactured product or
component. Ifthe product isno longeravailable,replacement maybe made
with a similar product of equal or greatervalue. This is your exclusive
warranty. DoNOT attempt to repair or adjust any electrical or mechanical
functions on this product. Doing so willvoidthiswarranty.
This warranty is valid forthe originalretailpurchaserfrom the date of initial
retailpurchase andisnot transferable.Keep the original sales receipt.Proof of
purchase is required to obtain warrantyperformance. JCS dealers,service
centers, or retailstoresselling JCS products donot have the right to alter,
modify oranyway change the terms and conditions of thiswarranty.
This warrantydoes not covernormalwear of parts or damageresultingfrom any
ofthe following: negligent useor misuse ofthe product, useon improper
voltage or current, use contrary tothe operatinginstructions, disassembly,
repair or alteration by anyone other than JCS oran authorized JCS service
center. Further, the warrantydoes not cover:Acts of God,such as fire, flood,
hurricanes and tornadoes.

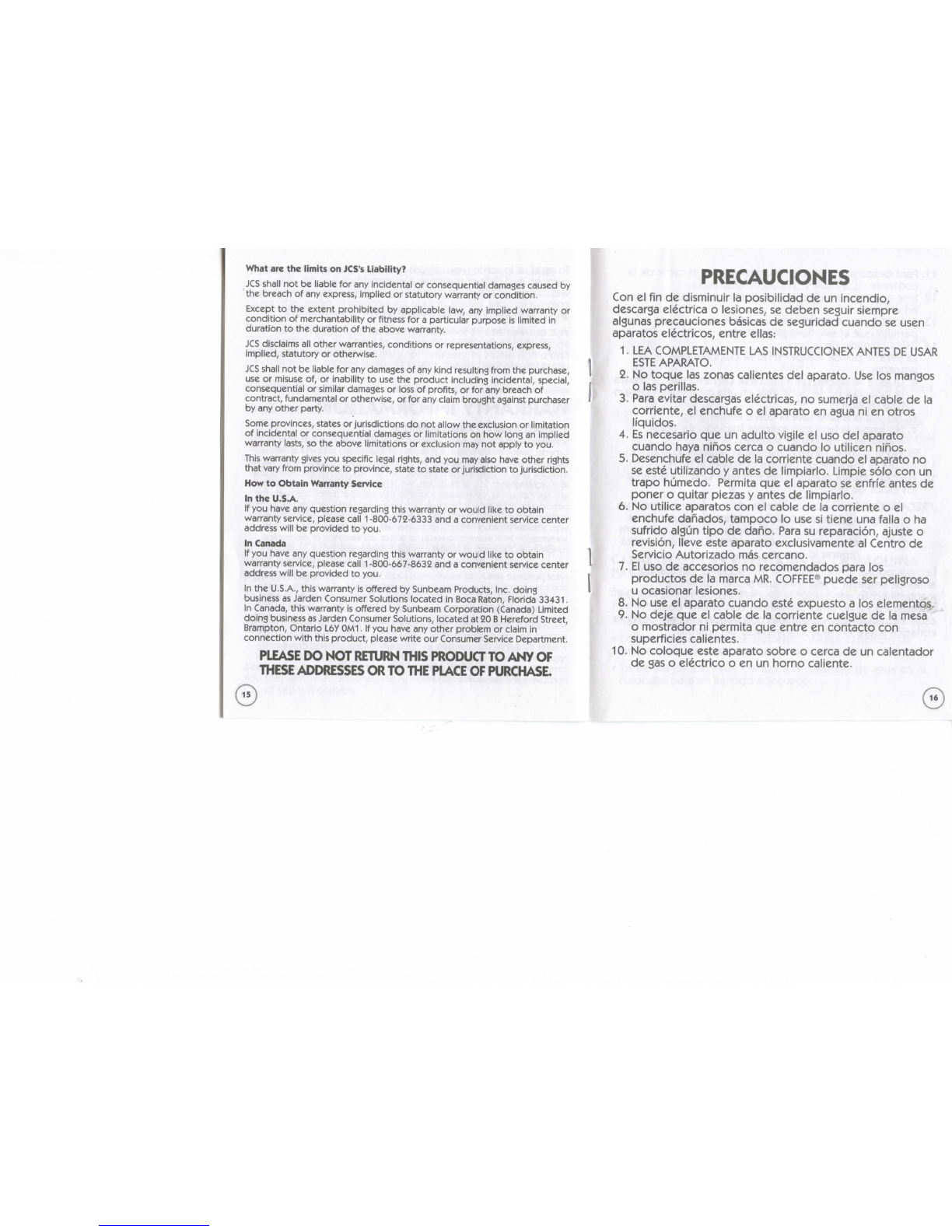

What arethe limits on JCS's Liability?
JCS shall notbe liable forany incidental or consequential damases caused by
the breach ofany express, implied or statutorywarranty or condition.
Except tothe extent prohibited by applicablelaw, any impliedwarranty or
condition of merchantability or fitness fora particularpurpose is limited in
duration tothe duration ofthe abovewarranty.
JCS disclaims all otherwarranties,conditions or representations, express,
implied,statutory or otherwise.
JCS shall notbe liable forany damages ofany kind resultingfrom the purchase,
use or misuse of,or inability tousethe product includingincidental, special,
consequential or similar damages or loss of profits, orforany breach of
contract,fundamental or otherwise, orforany claim brought against purchaser
byany otherparty.
Some provinces, states or jurisdictions donot allow the exclusion or limitation
of incidental or consequential damages or limitations onhow long an implied
warranty lasts, sothe abovelimitations or exclusion maynot apply to you.
This warranty gives you specificlegalrights, andyoumay alsohave other rights
that vary fromprovince to province, state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A
If you have any question regardingthiswarranty or would like to obtain
warranty service, please call 1-800-672-6333 anda convenient service center
address will be provided to you.
In Canada
If you have any question regardingthiswarranty or would like to obtain
warranty service, please call 1 -800-667-8632 anda convenient service center
address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products,Inc.doing
business as Jarden Consumer Solutionslocated in Boca Raton,Florida 33431.
In Canada, thiswarranty is offered by SunbeamCorporation (Canada) Limited
doing business as Jarden Consumer Solutions,located at20B Hereford Street,
Brampton, Ontario L6Y OM1. Ifyou have any otherproblem or claim in
connectionwith this product, please write our Consumer Service Department.
PLEASE DONOT RETURNTHISPRODUCT TO ANY OF
THESE ADDRESSES OR TOTHE PUCE OF PURCHASE.
PRECAUCIONES
Con elfinde disminuir la posibilidad deun incendio,
descarga electrica o lesipnes, se deben seguir siempre
algunas precauciones basicas de seguridad cuando se usen
aparatos electricos, entre ellas:
1. LEA COMPLETAMENTE LAS INSTRUCCIONEXANTES DE USAR
ESTE APARATO.
2. No toque las zonascalientes del aparato. Use los mangos
olas perillas.
3. Para evitar descargas electricas, no sumerja el cable dela
corriente, el enchufe o el aparato en agua nien otros
liquidos.
4. Es necesario queun adulto vigile elusodel aparato
cuando haya ninoscerca o cuando lo utilicen ninos.
5. Desenchufe el cable dela corrientecuando el aparato no
se este utilizando y antes de limpiarlo.Limpiesolo conun
trapo humedo. Permita queel aparato se enfrie antes de
poner o quitar piezas y antes de limpiarlo.
6. No utiliceaparatos conel cable dela corriente o el
enchufe danados, tampoco lousesi tiene una falla o ha
sufridp algun tipo de dano. Para su reparacion, ajuste o
revision, lleve esteaparatoexclusivamente al Centra de
Servicio Autorizado mas cercano.
7. Elusode accesorios no recomendadospara los
productos dela marca MR. COFFEE® puede ser peligroso
u ocasionarlesiones.
8.Nouseel aparatocuandoesteexpuesto a los elementos.
9.No deje queel cable dela corrientecuelgue dela mesa
o mostrador ni permita que entre en contacto con
superficies calientes.
10. No coloque esteaparatosobre o cerca deun calentador
degaso electrico o enun horno caliente.
