MSA SORDIN SUPREME Pro 3+ User manual

MSA-Sordin AB. Rörläggarvägen 8. SE-331 53 Värnamo. Sweden. Tel [phone]. Fax [phone]. inf[email protected]
www.msa-sordin.com
PM 080-02
Digital electronics system
Over 600 hours of battery life - battery save
function
Waterproof battery compartment
AUX input
Cable - 3,5 mm mono - included
PM080-02.qxp 06-02-28 12.32 Sida 1

2
B1
A
B5
B2 B3 B4
C
A
F
E
C1
E1
F1
F2
E2
C2
DD1
D2
B
PM080-02.qxp 06-02-28 12.32 Sida 2

SUPREME Pro 3+
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SE
DE
CAUS
GB
3
PM080-02.qxp 06-02-28 12.32 Sida 3

4
PRODUCT FEATURES
The Supreme ear muffs features foldable headband and are designed to be
worn over-the-head. This product is equipped with two microphones that
pick-up and reproduce external sound in the speakers located on the inside
of the ear muffs, and a keyboard which controls the electronic functions.
The Supreme has one audio input for connection to an external source such as a com-
munication/hunting radio, cellular telephone, CD player/radio etc.
The use´s instructions apply to Sordin Supreme.To be really satisfied with the product it
is important that you read through all the user´s instructions.
USER INFORMATION SUPREME
PRODUCT FEATURES

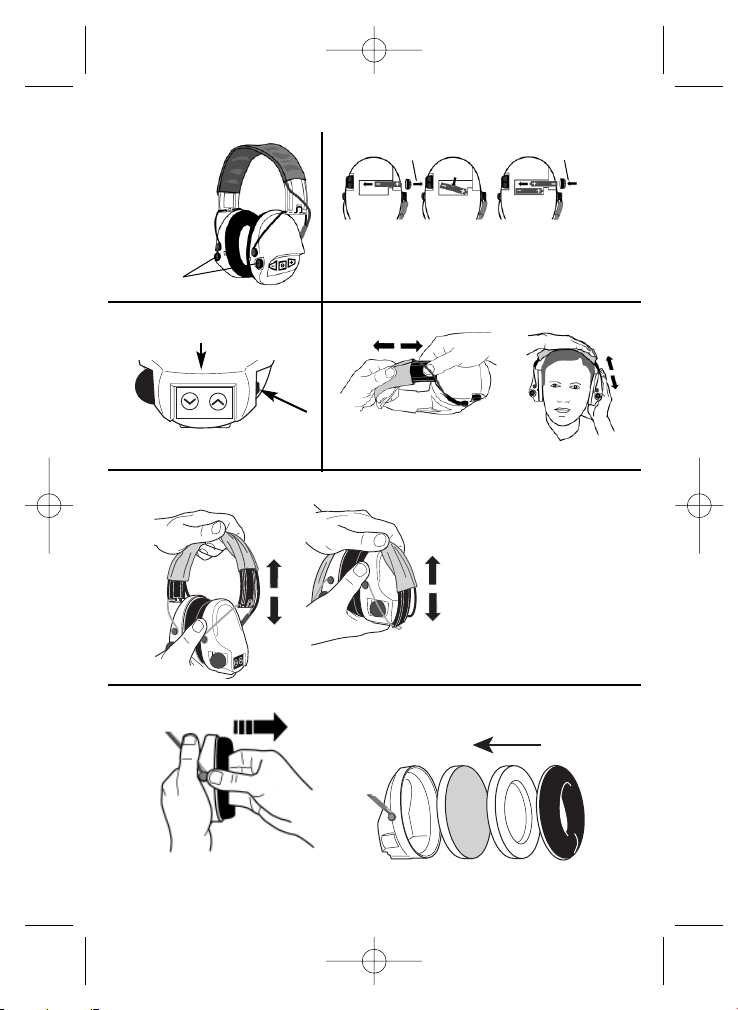

The Supreme ear muffs features foldable headband (fig. A), and are designed to be worn
over-the-head. This product is equipped with two microphones (fig. A) that pick-up and
reproduce external sound in the speakers located on the inside of the ear muffs, and a
keyboard which controls the electronic functions(fig. A).
BATTERY INSTALLATION / REPLACEMENT (fig. B)
The product is equipped with two standard 1.5 V AAA/LR03 batteries. Rechargeable bat-
teries, for example NiMH 1.2 V or NiCd 1.2 V, should not be used as they may significant-
ly reduce the operation life of the product. The batteries, which are completely enclosed
to protect against moisture and dirt, are housed in the unique battery compartment
located in the cup which does not feature the keyboard. When installing or replacing
batteries follow the instructions below (fig. B):
• Hold the cup upside down. Unscrew the battery cover (fig. B1).
• Insert the first battery with the (-) pole facing inwards (fig. B2).
• Shake the cup lightly so that the battery falls into place and may not be visible (fig. B3).
• Insert the second battery with the (+) pole facing inwards (fig. B4).
• Refit the battery cover (fig. B5).
Note! Ensure the battery poles (+ /-) are correctly aligned.
FUNCTION KEYS (fig. C1)
On and off
To switch-on the electronics, press any of the volume buttons or and hold for one
second. The volume automatically defaults to the setting when the ear muffs are last
switched-off.
To switch-off the electronics press BOTH the and buttons at the same time and
hold for two seconds. An acceptance tone is heard when electronics is switched on or
off. See ’Tone Signals’ below.
GB
PM080-02.qxp 06-02-28 12.32 Sida 4

Volume
Adjust the volume up by pressing button and down by pressing the button.Each
pressing adjusts the volume in one step, equal to 6 dB per second. If the button is
pressed and held for more than one second, the volume is adjusted in 6dB steps. A short
confirmation tone is heard at each volume adjustment. Upon reaching the minimum or
maximum volume setting, the tone signal characteristics will vary.
LOW BATTERY WARNING
When the remaining battery life reaches approximately 40 hours, one long warning
tone is heard approximately 10 seconds after the electronic function is switched-on.
See ’Tone Signals’ below.
BATTERY SAVE FUNCTION
To maximise battery life the Supreme is equipped with a special battery save function.
If no control buttons are pressed, the battery save function comes into effect after 4
hours and the electronic function is automatically switched-off. However, approximate-
ly 1 minute before the shutdown a short tone is heard as a warning that the ear muffs
will be switched-off.
See ’Tone Signals’ below.
Press any of the control buttons ( or ) to_prolong active mode for a further four
hours.
FITTING INSTRUCTIONS (fig. D)
The Supreme is designed to be worn in over-the-head mode and adjusted for size by
pulling the headband (fig. D1). Brush excess hair out from beneath the cushions with
your hand. Place the cups over your ears and adjust the headband and cups to a com-
fortable position (fig. D2). Be certain that the cushions seal tightly around the ears with
no interference from objects such as respirator headband or arms of glasses in order to
obtain the best performance. Make sure the headband is not stored in a stretched posi-
tion and that the cushions are not pressed together when the ear muffs are not in use.
UNFOLDING AND FOLDING THE EAR MUFFS (fig. E)
To unfold, pull the headband up to it’s maximum position whilst holding the cups (fig.
E1).
To fold, press on top of the headband until the headband touches the top of the cups
(fig. E2).
AUDIO INPUT (fig. C2)
The Supreme has one audio input, a 3.5 mm stereo jack (fig. C2), for connection to an
external source such as a communication/hunting radio, cellular telephone, CD play-
er/radio etc.
When the audio signal does not exceed 102 mVrms (rms = the equivalent average power
5
PM080-02.qxp 06-02-28 12.32 Sida 5

of the signal), the noise level inside the cup will not exceed 82 dB(A).
CAUTION:
1. When the specified limits are exceeded there may be a risk of hearing impairment.
2. This hearing protector may not be used to restore entertainment sound.
MAINTENANCE
• The user must ensure that:
- The ear muffs are fitted, adjusted and maintained in accordance with the manufactur-
er’s instructions.
- The ear muffs are worn at all times in a noise hazard environment.
• Ear muffs and in particular cushions may deteriorate with use and should be examined
at frequent intervals for cracking and leakage, for example.
• At the beginning of each shift the cushions of the ear muffs should be inspected for
damage or distortion. If any distortion or damage is observed the cushions must be
replaced (fig. F). Replacement cushions and special inserts are contained in the Sordin
60084 hygiene pack. Finally, check the headband to ensure it is flexible and still main-
tains sufficient force to hold the ear cups firmly to the side of the head.
• If the ear muffs can not be cleaned or damaged component can not be replaced, dis-
pose of the ear muffs and obtain a new set.
• Long term use of the ear muffs may create some moisture build-up inside the cups.
Although the circuit board is specially coated to help prevent any possibility of corrosion
damage it is advisable to remove the inserts regularly to allow the electronic compo-
nents to dry out overnight (fig. F)
• Do not subject the product to rough handling which can damage the electronics.
• NOTE! The cups must not be immersed in water.
STORAGE
When not in use, store the ear muffs in a clean dry atmosphere, away from direct sun-
light.
The product shall be stored within the temperature range -20˚C to +70˚C.
If the product is stored for a prolonged period it is recommended to remove the batter-
ies from the battery compartment to prevent damage. Store the product in an unfolded
position in order to avoid damage to the cushions.
WARNING!
• The Supreme Ear Muffs is provided with level-dependent attenuation. The wearer
should check correct operation before use. If distortion or failure is detected the wearer
should refer to the manufacturers advice for maintenance and replacement of the bat-
tery.
• Performance may deteriorate with battery usage.The typical period of continuous use
that can be expected from the ear muff battery is in the region of 600 – 700 hours.
• The output of the level-dependent circuit of Supreme may exceed the external sound
6
PM080-02.qxp 06-02-28 12.32 Sida 6

level.
• When calculating the effective attenuation of the Supreme Ear Muffs, consideration
should be given to the output signals of the restoration system. The calculated A-
weighted sound level inside the ear cup should not exceed 85dB.
• Hearing protectors can interfere with vital communication and emergency sound.
Always ensure the product is matched to the wearer and the work environment.
• This product may be adversely affected by certain chemical substances. Further infor-
mation should be sought from the manufacturer.
• In order to avoid long-term damage to the cushions this hearing protector should be
stored in an unfolded position.
• If the manufacturer’s instructions are not strictly followed the protection afforded by
the ear muffs may be severely impaired.
• The product as well as the batteries should be disposed of in accordance with nation-
al legislation.
BASIC FAULT FINDING
If the electronics cease to function please check the following:
• Remove the battery cover (fig B1) and hold for at least ten seconds to clear the memo-
ry of the electronic circuit board. Refit the battery cover (fig B5).
• Replace batteries if necessary.
• Check that the batteries are correctly installed and that poles are correctly aligned.
If the above actions do not help, contact your retailer.
NOTE. This product should not be modified or serviced other than as described in the
manufacturer’s instructions.
SOUND LEVEL LIMITATION
The output of the electronic sound reproduction system does not exceed the current val-
ues known to constitute a risk to hearing. The sound output of the speakers is limited to
a maximum value of 82 dB(A) equivalent sound level.
TESTS AND APPROVAL
The Supreme ear muffs meet the Basic Safety Requirements as laid out in Annex II of the
European Community Directive 89/686EEC and the requirements of the EMC directive
89/336/EEC for CE marking in accordance with EN50081-1, EN50082-2, prEN352-4 : 1994
and EN352-1 : 1993. The product has been examined at the design stage by
Berufsgenossenschaftliches Institut fur Arbeitssicherheit, Postfach 2043, Alte Heerstr,
111-D-53757 St Augustin, Germany (0121).
ATTENUATION VALUES
Attenuation values according to EN 24869-1 (with electronics switched off).
7
PM080-02.qxp 06-02-28 12.32 Sida 7

Attenuation values to EN 24869-1 (with electronics switched off).
Frequency (Hz)
63 125 250 500 1000 2000 4000 8000
Mf (dB) 15.1 14.2 20.0 28.7 32.5 28.1 38.4 38.1
sf (dB) 3.3 2.9 3.0 3.5 2.2 2.5 2.2 4.3
Mf – sf (dB) 11.8 11.3 17.0 25.2 30.3 25.6 36.2 33.8
SNR= 28 dBH=29 dB M=26 dB L=18 dB
Key:
Mf = Mean attenuation
sf = Standard deviation
H = High-frequency attenuation value (predicted noise level reduction for noise with LC
- LA = - 2 dB)
M = Medium-frequency attenuation value (predicted noise level reduction for noise with
LC - LA = + 2 dB)
L = Low-frequency attenuation value (predicted noise level reduction for noise with LC -
LA = + 10 dB)
SNR = Single Number Rating (the value which is subtracted from the measured C-
weighted sound pressure level, LC, in order to estimate the effective A-weighted sound
pressure level inside the ear).
MASS: 333 g
TONE SIGNALS
- Short tone, each time a button is pressed
------ Repetition tone when a button is pressed and held down
------ Short quiet tones at the end position of the volume
- Short tone when switching 0n/Off
- Short tone 1 minute before the automatic switch off
_____ Long tone, 10 seconds after switching on. This is heard when the
remaining battery life reaches approximately 40 hours
8
PM080-02.qxp 06-02-28 12.32 Sida 8

9
60
65
70
75
80
85
90
60 70 80 90 95 100 105 110
M-noise
L-noise
Cr iter io n le ve ls:
M = 110 dB(A)
L = 1 0 5 dB(A)

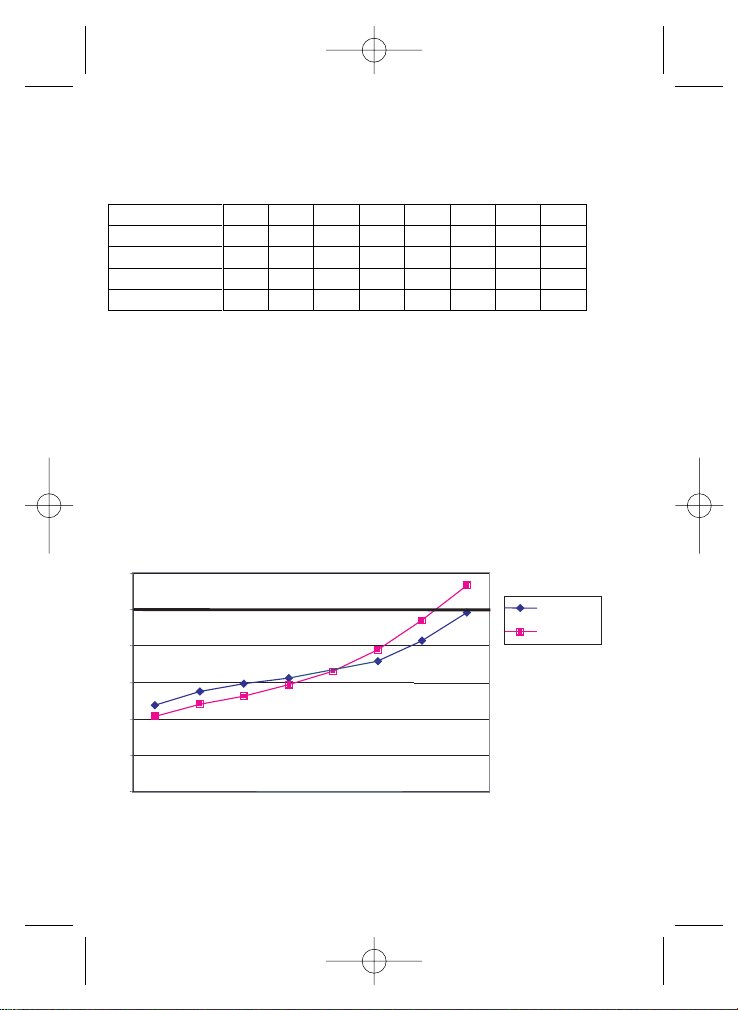

CRITERION LEVELS
The table below shows performance characteristics of the Supreme in accordance with
Annex A of prEN 352-4:1994 with volume control set to maximum level.
External Sound Pressure Level dB(A)
60 70 80 90 95 100 105 110
M-noise (Mf) dB 71,8 73,7 74,7 75,5 - 77,8 80,7 84,5
M-noise (Sf) dB 1,9 1,7 1,6 1,6 - 1,1 0,9 1,0
L-noise (Mf) dB 70,2 71,9 73,1 74,6 76,4 79,4 83,5 88,3
L-noise (Sf) dB 2,0 1,9 1,7 1,4 1,2 1,8 2,1 2,3
M-noise = Medium-frequency sound pressure level (LC-LA = 2 dB)
L-noise = Low-frequency sound pressure level (LC-LA = 6 dB)
Mf = Mean Value; Sf = Standard Deviation
PM080-02.qxp 06-02-28 12.32 Sida 9

PRODUKT EIGENSCHAFTEN
Die Supreme Gehörschutzkapseln sind mit einem faltbaren Kopfbügel
ausgestattet und werden "Über-Kopf" getragen. Dieses Produkt ist mit
zwei Mikrophonen ausgerüstet, die Aussen-Geräusche aufnehmen und über die in den
Kapsel befindlichen Lautsprecher wiedergegeben und mit einem Bedienfeld, dass die
elektronischen Funktionen regelt.
Supreme hat einen Audio Eingang für den Anschluss an externe Quellen wie z.B.
Kommunikation/Jagd Funkgeräte, Mobiltelefone, CD-Player/Radio etc.
Die Gebrauchsanleitung findet Anwendung auf Sordin Supreme.
Für den sicheren Gebrauch dieses Produktes ist es wichtig, dass Sie diese
Gebrauchsanleitung vollständig lesen und verstehen.
BENUTZER INFORMATION SORDIN SUPREME
PRODUKT EIGENSCHAFTEN
Die Supreme Gehörschutzkapseln sind mit einem faltbaren Kopfbügel ausgestattet (Bild
A) und werden "Über-Kopf" getragen. Dieses Produkt ist mit zwei Mikrophonen aus-
gerüstet, (Bild A) die Aussen- Geräusche aufnehmen und über die in den Kapsel befind-
lichen Lautsprecher wiedergegeben und mit einem Bedienfeld, dass die elektronischen
Funktionen regelt. (Bild A).
EINSETZEN DER BATTERIEN / AUSTAUSCH (Bild B)
Das Produkt ist für zwei Standardbatterien Typ 1.5 V AAA/LR03 eingerichtet.
Wiederaufladbare Akkus,z.B. NiMH 1.2 V oder NiCd 1.2 V, sollten nicht benutzt werden,da
diese die Laufzeit des Produktes deutlich verringern. Die Batterien, die vollständig
eingeschlossen sind, um diese gegen Feuchtigkeit und Schmutz zu schützen, befinden
sich in dem einzigartigem Batteriefach, dass sich in der Kapsel ohne Bedienfeld befind-
et. Beim Einsetzen oder Austauschen der Batterien folgende Anweisungen beachten
(Bild B):
• Kapsel verkehrt herum halten. Batteriefachdeckel losschrauben (Bild B1).
• Die erste Batterie mit dem Minuspol voran einsetzen (Bild B2).
• Kapsel leicht schütteln damit die Batterie in Position rutscht und nicht mehr sichtbar
ist (Bild B3).
• Die zweite Batterie mit dem Pluspol voran einsetzen (Bild B4).
• Batteriefachdeckel aufschrauben (Bild B5).
ACHTUNG! Stellen Sie sicher, dass die Batteriepole (+ /-) richtig ausgerichtet sind.
FUNKTION TASTEN (Bild C1)
Ein- und Ausschalten
Um die Elektronik einzuschalten, einen Lautstärke Taster ( ) oder ( ) betätigen und
für ca. eine Sekunde gedrückt halten. Die Lautstärke stellt sich automatisch auf die
Einstellung beim letzten Abschalten ein.
Zum Ausschalten der Elektronik beide Taster gleichzeitig für zwei Sekunden gedrückt
10
DE
PM080-02.qxp 06-02-28 12.32 Sida 10
