Introduction
Thank you for choosing the 848P Neo-V/865PE Neo2-V Series (MS-6788 v2.X) ATX mainboard. The 848P
Neo-V/865PE Neo2-V Series is based on Intel® 848P/865PE & ICH5 chipsets for optimal system efficiency.
Designed to fit the advanced Intel ® Pentium ® 4 processors in 478 pin package, the 848P Neo-V/865 PE
Neo2-V Series delivers a high performance and professional desktop platform solution.
Layout
Intel
865PE
chipset
SOCKET478
SYSFAN 1
CPUFAN1
JS P1
JAUD1
JDB1
ATX Pow er
Supply
ID E 1
ID E 2
Winbond
W83627THF
Re altek
8110S/8100C
To p : P ara l l el Por t
Bottom:
COM A
To p : mo us e
Bo t t om: k e yb oa r d
T:L A N jac k ( Op t io nal)
B: US B po rt s
T:S PDI F O u t
B: US B p o rt s
CD1
JPW1
JB AT1
Code c
T:L ine- In
M:
B: Mi c
Li n e -O ut
FDD 1
AGP Slot
USB2 US B3 JFP1
SATA 1
SATA2
JFP 2
BATT
+
I CH 5
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
DIMM 1
DIMM 3
BIOS
DIMM 2

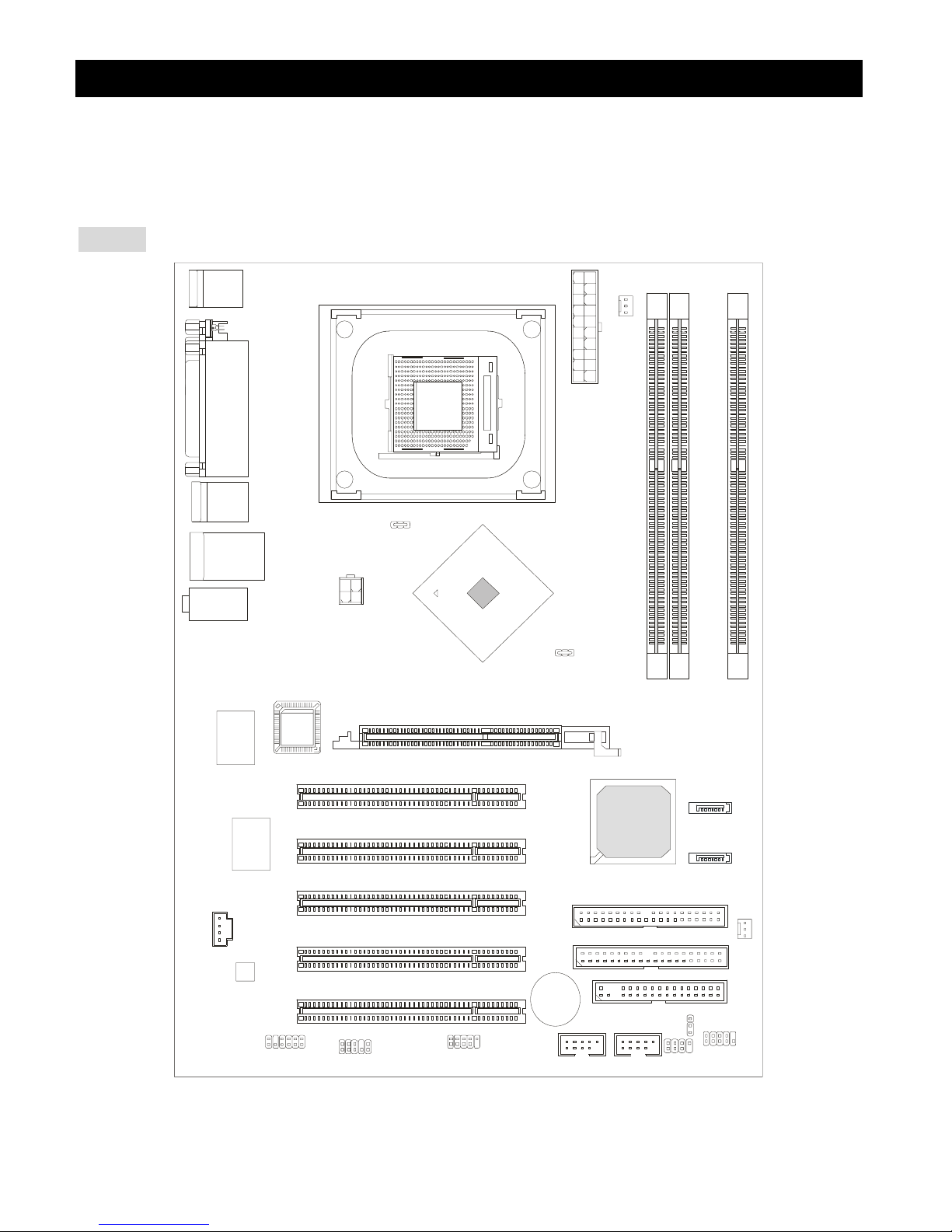

865PE Neo2-V

2
Intel
848P
chi pset
SOCK ET478
SYSFAN1
CP UFA N1
JS P1
JAUD1
JD B1
ATX Power
Supply
IDE 1
IDE 2
Winbond
W83627THF
Realtek
8110S/8100C
Top : P ara llel Po rt
Bottom:
COM A
To p : mo u s e
Bottom: keyboard
T: LA N j a ck (O pt iona l)
B : US B p or t s
T:SPDIF Out
B:USB ports
CD1
JPW1
JBAT1
Co de c
T:Line-In
M:
B:Mic
Line -Ou t
FDD1
AGP Slot
USB2 USB3 JFP1
SATA1
SATA2
JF P 2
BATT
+
ICH 5
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
DIMM 1
BIOS
DIMM 2

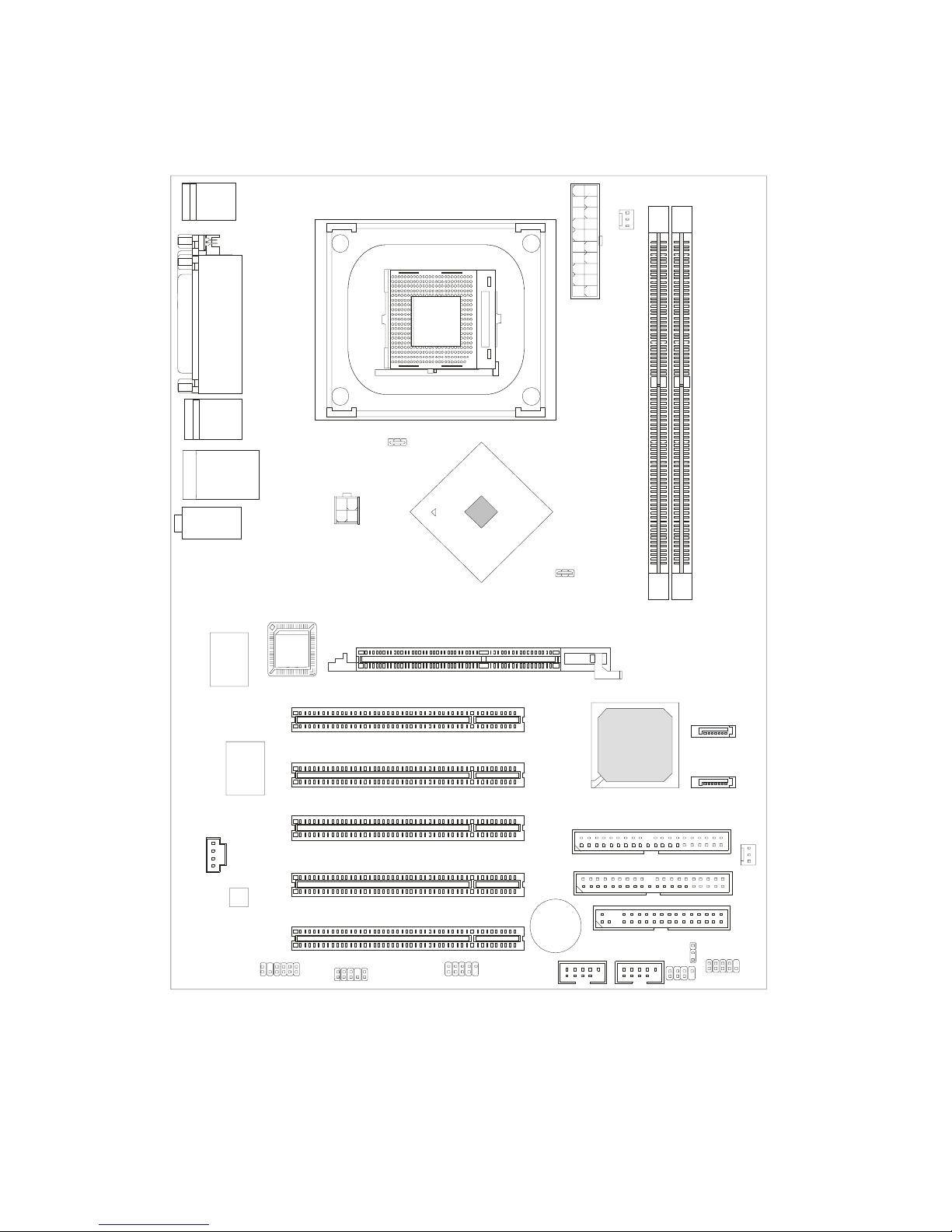

848P Neo-V

3
Specifications
CPU
zSupports Intel®P4 Northwood / Prescott (Socket 478) processors.
zFSB 400MHz (for Northwood only) / 533MHz / 800MHz depending on the North Bridge integrated.
zSupports up to 3.4GHz or higher speed P4 processor.
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php)
Chipset
zIntel® 865PE / 848P chipset
- Supports 400/533/800MHz Intel NetBurst micro-architecture bus.
- Supports AGP 8X/4X interface.
- Supports DDR266/333/400 memory interface.
zIntel® ICH5 chipset (376 BGA)
- 8 Hi-Speed USB ports (USB2.0/1.1) controller, 480Mb/sec.
- 2 Serial ATA/150 ports.
- 2 channel Ultra ATA 100 bus Master IDE controller.
- PCI Master v2.3.
- I/O APIC.
- Supports both ACPI and legacy APM power management.
Main Memory
zSupports bandwidth up to 3.2 GB/s (DDR 400) for single-channel mode and 6.4GB/s (DDR 400) for
dual-channel mode (for 865PE only).
zSupports two (for 848P) / three (for 865PE) unbuffered DIMM of 2.5 Volt DDR SDRAM.
zSupports up to 2GB (for 848P) / 3GB (for 865PE) memory size without ECC.
zSupports only x8, x16 DDR devices.
zSupports Dual-channel (for 865PE only) DDR 266/333/400 (based on DIMM 1.3).
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.)
Slots
zOne AGP slot supports 8x/4x.
zFive 32-bit v2.3 Master PCI bus slots (supports 3.3v/5v PCI bus interface).

4
On-Board IDE
zDual Ultra DMA 66/100 IDE controllers integrated in ICH5.
- Supports PIO, Bus Master operation modes and can connect up to four Ultra ATA drives.
zSerial ATA/150 controller integrated in ICH5.
- Up to 150MB/sec transfer rate and can connect up to 2 Serial ATA drives.
On-Board Peripherals
zOn-Board Peripherals includes.
- 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1 serial port COM1
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0 ports (Rear * 4/ Front * 4)
- 1 Line-In/Line-Out/Mic-In port
- 1 RJ45 LAN jack (Optional)
- 1 RCA SPDIF Out.
Audio
zAC97 link controller integrated in ICH5.
z6 channels software audio codec ALC655.
- Compliance with AC97 v2.2 Spec and meet PC2001 audio performance requirement.
LAN (Optional)
zRealtek® 8110S/8100C Dual layout.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s, 100Mb/s & 1000Mb/s (it’s only for Realtek 8110S) auto-negotiation operation.
- Compliant with PCI v2.2.
- Supports ACPI Power Management.
BIOS
zThe mainboard BIOS provides Plug & Play®BIOS which detects the peripheral devices and expansion
cards of the board automatically.
zThe mainboard provides a Desktop Management Interface (DMI) function which records your
mainboard specifications.
Dimension
zATX Form Factor: 29.5 cm (L) x 21.0 cm (W).
Mounting
z6 mounting holes..

5
Back Panel
The back panel provides the following
connectors:
Hardware Setup
This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to
setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral devices,
such as the mouse, keyboard, etc. While doing the installation, be careful in holding the components and
follow the installation procedures.
Central Processing Unit: CPU
The mainboard supports Intel®Pentium®4 processors in the 478 pin package. The mainboard uses a CPU
socket called PGA478 for easy CPU installation. When you are installing the CPU, make sure the CPU has
a heat sink and a cooling fan attached on the top to prevent overheating. If you do not have the heat sink
and cooling fan, contact your dealer to purchase and install them before turning on the computer.
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php)
Example of CPU Core Speed Derivation Procedure
Memory Speed/CPU FSB Support Matrix
Memory
FSB
DDR 266 DDR333 DDR 400
400MHz OK N/A N/A
533MHz OK OK N/A
800MHz N/A OK OK
If CPU Clock = 200MHz
Core/Bus ratio = 12
then CPU core speed = Host Clock x Core/Bus ratio
= 200MHz x 12
= 2.4 GHz
Mouse
Parallel SPDIF-Out LAN
(O pt i ona l )
L-in
Keyboard COMA USB Ports US B Ports
L-out
Mic

6
CPU Installation Procedures for Socket 478
1. Please turn off the power and unplug the power cord before installing the CPU.
2. Pull the lever sideways from the socket. Make sure to raise the lever up to a 90-degree angle.
3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only fit in
the correct orientation.
4. If the CPU is correctly installed, the pins should be completely embedded into the socket and can not
be seen. Please note that any violation of the correct installation procedures may cause permanent
damages to your mainboard.
5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the
lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to
make sure the CPU is properly and completely embedded into the socket.
Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance, thermal management becomes
increasingly important. To dissipate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:
1. Locate the CPU and its retention mechanism on the motherboard.
2. Position the heatsink onto the retention mechanism.
3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in the holes of
the retention mechanism.
4. Press the two levers down to fasten the fan. Each can only be pressed down in ONE-way.
5. Connect the power cable from the mounted fan to the 3-pin fan power connector on the board.
MSI Reminds You...
Overheating will seriously damage the CPU and system, always make sure the cooling fan can work
properly to protect the CPU from overheating.
While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power cord
from grounded outlet first to ensure the safety of CPU.

7
Memory
The mainboard provides 2/3 slots for 184-pin, 2.5V DDR DIMM modules and supports the memory size up
to 2 GB/3GB without ECC. You can install DDR266/DDR333/DDR400 DDR SDRAM modules on the DDR
DIMM slots. To operate properly, at least one DIMM module must be installed.
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.)
1. The DDR DIMM has only
one notch on the center of
module. The module will only fit in
the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden finger
on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power supply
connector, always make sure all components installed properly and ensure no damage to be caused.
ATX 20-Pin Power Connector: ATX1
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power
supply is inserted in the proper orientation and the pins are aligned.
Then push down the power supply firmly into the connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
NotchVo l t
1
11
3. 3V
3. 3V
3. 3V
-12V
GND
GND
GND
GND
GND
GND
GND
PW_OK
-5V
5V _ SB
5V
5V
12 V 5V
PS_ON
5V
10
20
1
3
2
4
GNDGND
12 V 12 V

8
CD-In Connector: CD1
The connector is for CD-ROM audio connector.
S-Bracket Connector: JSP1 (Optional)
The connector allows you to connect a S-Bracket for Sony & Philips Digital Interface
(SPDIF). The S-Bracket offers 2 SPDIF jacks for digital audio transmission (one for
optical fiber connection and the other for coaxial), and 2 analog Line-Out jacks for 4-channel audio output.
To attach the fiber-optic cable to optical SPDIF jack, you need to remove the plug from the jack first. The
two SPDIF jacks support SPDIF output only.
Fan Power Connectors: CPUFAN1/SYSFAN1
The CFAN1 (processor fan) and SFAN1 (system fan) support system cooling fan
with +12V. They support three-pin head connector. When connecting the wire to the connectors, always
take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground
and should be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you
must use a specially designed fan with speed sensor to take advantage of the CPU fan control.
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFAN1 supports the fan control. You can install the PC Alert utility that will automatically control the
CPU fan speed according to the actual CPU temperature.
IDE Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100 controller that provides PIO mode
0~5, Bus Master, and Ultra DMA 33/66/100 function. You can connect up to four hard disk drives, CD-ROM,
120MB Floppy and other devices. These connectors support the provided IDE hard disk cable.
IDE1 (Primary IDE Connector):
The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive. You
must configure second hard drive to Slave mode by setting the jumper accordingly.
IDE2 (Secondary IDE Connector): IDE2 can also connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its
jumper. Refer to the hard disk document supplied by hard disk vendors for jumper setting instructions.
+12V
GND SENSOR
GND
L
R
1
211
12
VDD3
VC C5
SPDFO
SPDFO
GND
LFE -OU
T
SO UT-R
CET-O U T
SOUT-L
GND
GND

9
Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for electrical connection
to the front panel switches and LEDs. JFP1 is compliant with Intel®Front
Panel I/O Connectivity Design Guide.
Front Panel Audio Connector: JAUD1
The front panel audio connector allows you to connect to the front panel audio and is compliant with Intel ®
Front Panel I/O Connectivity Design Guide.
MSI Reminds You...
Not to connect to the front audio header, pins 5 & 6, 9 & 10 should jumper in order to have signal output
directed to the rear audio ports. Otherwise, the Line-Out connector on the back panel will not function.
Front USB Connector: USB2&USB3
The mainboard provides two USB 2.0 pin headers JUSB2 & JUSB3 that are compliant
with Intel®I/O Connectivity Design Guide. USB 2.0 technology increases data transfer
rate up to a maximum throughput of 480Mbps, which is 40 times faster than USB 1.1,
and is ideal for connecting high-speed USB interface peripherals such as USB HDD,
digital cameras, MP3 players, printers, modems and the like.
Clear CMOS Jumper: JBAT1
There is a CMOS RAM on board that has a power supply from external battery to keep the data of system
configuration. With the CMOS RAM, the system can automatically boot OS
every time it is turned on. If you want to clear the system configuration, use the
JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions aside to clear the data:
MSI Reminds You...
You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will damage the mainboard.
Serial ATA HDD Connectors: SATA1, SATA2
The mainboard provides dual high-speed Serial ATA interface ports. The ports support 1st
generation Serial ATA data rates of 150MB/s and are fully compliant with Serial ATA 1.0
specifications. Each Serial ATA connector can connect to 1 hard disk drive.
5
6
10
9
11
3
Kee pData Clear D ata
1
3
GND
TXN
RXN
GN D
TX P
GN D
RXP
1
7
Power
LED
Speaker
17
28
HD D
LED
Power
LED
Reset
Switch
Power
Swi t ch
19
210
JFP
1
JFP
2
19
210
GND
US BOC
KE Y
GND
VCC
VCC
USB0-
USB1-
US B 0 +
US B1+

10
MSI Reminds You...
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise, the loss of data may occur
during transmission.
D-Bracket™2 Connector: JDB1 (Optional)
The mainboard comes with a JDB1 connector for you to connect to D-Bracket™2.
D-Bracket™2 is a USB Bracket that supports both USB1.1 & 2.0 spec. It integrates
four LEDs and allows users to identify system problem through 16 various
combinations of LED signals.
AGP (Accelerated Graphics Port) Slot
The AGP slot allows you to insert the AGP graphics
card. AGP is an interface specification designed for the throughput demands of 3D graphics. It
introduces a 66MHz, 32-bit channel for the graphics controller to directly access main memory. The slot
supports 8x/4x AGP card.
PCI (Peripheral Component Interconnect) Slots
The PCI slots allow you to insert the expansion cards to meet
your needs. When adding or removing expansion cards, make sure that you unplug the power supply first.
Meanwhile, read the documentation for the expansion card to make any necessary hardware or software
settings for the expansion card, such as jumpers, switches or BIOS configuration. The orange PCI slot
(PCI5) also works as a communcation slot, which allows you to insert the communcation card.
PCI Interrupt Request Routing
The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices
can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus
INT A# ~ INT D# pins as follows:
Order1 Order2 Order3 Order4
PCI Slot 1 INT B# INT C# INT D# INT A#
PCI Slot 2 INT C# INT D# INT A# INT B#
PCI Slot 3 INT D# INT A# INT B# INT C#
PCI Slot 4 INT B# INT C# INT D INT A#
PCI Slot 5 INT A# INT B# INT C# INT D#
.
91
210
DB R1
DB R2
DBR3
DBR4
NC
DB G1
DB G2
DB G3
DB G4

11
BIOS Setup
Power on the computer and the system will start POST (Power On Self Test) process. When the
message below appears on the screen, press <DEL> key to enter Setup. DEL: Setup F11: Boot
Menu F12: Network boot TAB: Logo … If the message disappears before you respond and you still
wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You
may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.
Main Page
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of AMI® special enhanced features.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system performance.
Power Management Features
Use this menu to specify your settings for power management.
PNP/PCI Configurations
This entry appears if your system supports PnP/PCI.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
PC Health Status
This entry shows your PC health status.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Set Supervisor Password

12
Use this menu to set Supervisor Password.
Set User Password
Use this menu to set User Password.
Load High Performance Defaults
Use this menu to load the BIOS values for the best system performance, but the system stability may
be affected.
Load BIOS Setup Defaults
Use this menu to load factory default settings into the BIOS for stable system performance operations.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.
Frequency/Voltage Control
Dynamic OverClocking
Dynamic Overclocking Technology is the automatic overclocking function, included in the MSITM
newly developed CoreCellTM Technology. It is designed to detect the load balance of CPU while
running programs, and to adjust the best CPU frequency automatically. When the motherboard detects
CPU is running programs, it will speed up CPU automatically to make the program run smoothly and
faster. When the CPU is temporarily suspending or staying in the low load balance, it will restore the
default settings instead. Usually the Dynamic Overclocking Technology will be powered only when
users' PC need to run huge amount of data like 3D games or the video process, and the CPU
frequency need to be boosted up to enhance the overall performance. Setting options:

13
[Disabled] Disable Dynamic Overclocking.
[Private] 1st level of overclocking.
[Sergeant] 2nd level of overclocking.
[Captain] 3rd level of overclocking, also default of Load High Performance Defaults.
[Colonel] 4th level of overclocking.
[General] 5th level of overclocking.
[Commander] 6th level of overclocking.
Performance Mode
Allows you to control the MAT (memory acceleration technology) function of CPU. MAT is MSITM
exclusive technology, specialized in optimizing the data transfer rate among CPU, N/B chip and
memory, and also in procuring better memory performance and bandwidth up to 10%. Selecting [Fast]
enables MAT. Note that not every memory is compatible with MAT. If the system fail to reboot for four
times, the BIOS will be restored to the Default value ([Normal]). Setting options: [Normal], [Fast].
CPU Ratio Selection
This setting controls the multiplier that is used to determine the internal clock speed of the processor
relative to the external or motherboard clock speed.
DRAM Frequency
Use this field to configure the clock frequency of the installed DRAM. Settings are:
PSB 400: [100-355MHz] PSB 533: [133-500MHz] PSB 800: [200-500MHz]
Spread Spectrum
When the motherboard clock generator pulses, the extreme values (spikes) of the pulses creates
EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by
modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have
any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if
you are plagued by EMI, activate the Spread Spectrum for EMI reduction. Remember to disable
Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost
in clock speed which may just cause your overclocked processor to lock up. Options: [Disabled],
[Enabled].
Adjust CPU Bus Clock (Mhz)
This item allows you to select the CPU Bus clock frequency (in MHz) and overclock the processor by
adjusting the FSB clock to a higher frequency. Also the setting you choose will change color for
warning if the value is of over the specifications.
DDR Clock (Mhz)
This read-only item allows you to view the current DDR clock.

14
Adjust AGP/PCI Clock (Mhz)
This item allows you to select the AGP/PCI clock frequency (in MHz) by adjusting the AGP/PCI clock
to a higher frequency.
CPU Vcore Adjust
The setting allows you to adjust the CPU Vcore voltage. Available options: [Yes], [No].
CPU Vcore
The setting is adjustable if you set the CPU Vcore Adjust to [Yes] .
MSI Reminds You...
Changing CPU Ratio/Vcore could result in the instability of the system; therefore, it is NOT
recommended to change the default setting for long-term usage.
DDR Power Voltage
Adjusting the DDR voltage can increase the DDR speed. Any changes made to this setting may cause
a stability issue, so changing the DDR voltage for long-term purpose is NOT recommended.
AGP Power Voltage
AGP voltage is adjustable in the field, allowing you to increase the performance of your AGP display
card when overclocking, but the stability may be affected.
MSI Reminds You...
The settings shown in different color in CPU Vcore (V), DDR Power Voltage (V) and AGP Power
Voltage (V) helps to verify if your setting is proper for your system.
White: Safe setting.
Yellow: High performance setting.
Red: Not recommended setting and the system may be unstable..

15
Einleitung
Vielen Dank für den Kauf 848P Neo-V/865PE Neo2-V (MS-6788 v2.X) Serie ATX Mainboard. Die 848P
Neo-V/865PE Neo2-V Serie sind Mainboards basiert auf Intel® 848P/865PE & ICH5 Chipsatz für optimale
Systemeffizienz. Entwickelt, für den für fortschrittlichen Intel ® Pentium ® 4 Prozessor im 478 Pin Ge-
häuse, liefert 848P Neo-V/865 PE Neo2-V Series hohe Perfomance für eine proffessionelle Desktop-PC
Lösung.
Layout
Intel
865PE
chipset
SOCKET478
SYSFAN 1
CPUFAN1
JS P1
JAUD1
JDB1
ATX Pow er
Supply
ID E 1
ID E 2
Winbond
W83627THF
Re altek
8110S/8100C
To p : P ara l l el P or t
Bottom:
COM A
To p : mo us e
Bo t t om: k ey b oa r d
T:L A N jac k ( Op t io n al)
B: US B po rt s
T:S PDI F O u t
B: US B po r t s
CD1
JPW1
JB AT1
Code c
T:L ine- In
M:
B: Mi c
Li n e -O ut
FDD 1
AGP Slot
USB2 US B3 JFP1
SATA 1
SATA2
JFP 2
BATT
+
I CH 5
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
DIMM 1
DIMM 3
BIOS
DIMM 2
865PE Neo2-V

16
Intel
848P
chi pset
SOCK ET478
SYSFAN1
CP UFA N1
JS P1
JAUD1
JD B1
ATX Power
Supply
IDE 1
IDE 2
Winbond
W83627THF
Realtek
8110S/8100C
Top : P ara llel Po rt
Bottom:
COM A
To p : mo u s e
Bottom: keyboard
T: LA N j a ck (O pt iona l)
B : US B p or t s
T:SPDIF Out
B:USB ports
CD1
JPW1
JBAT1
Co de c
T:Line-In
M:
B:Mic
Line -Ou t
FDD1
AGP Slot
USB2 USB3 JFP1
SATA1
SATA2
JF P 2
BATT
+
ICH 5
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
DIMM 1
BIOS
DIMM 2
848P Neo-V
