MSI MAG B365M MORTAR User manual

1
Quick Start
Quick Start
Thank you for purchasing the MSI®MAG B365M MORTAR motherboard. This Quick
Start section provides demonstration diagrams about how to install your computer.
Some of the installations also provide video demonstrations. Please link to the URL to
watch it with the web browser on your phone or tablet. You may have even link to the
URL by scanning the QR code.

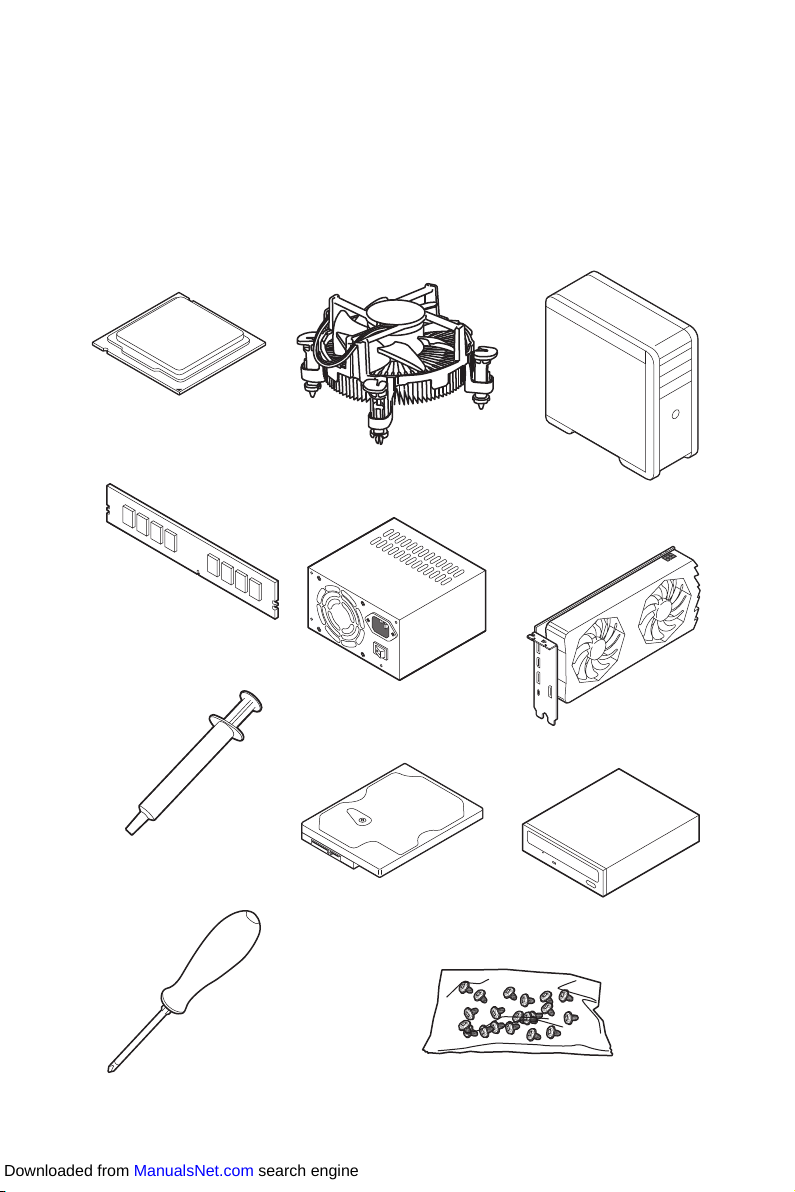

Preparing Tools and Components
DDR4 Memory
Graphics Card
SATA Hard Disk Drive SATA DVD Drive
Phillips Screwdriver
Chassis
Power Supply Unit
A Package of Screws
Thermal Paste
CPU Fan
Intel®LGA 1151 CPU
Downloaded from ManualsNet.com search engine

2Quick Start
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on the
PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place anything
over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.
Downloaded from ManualsNet.com search engine

3
Quick Start
https://youtu.be/4ce91YC3Oww
Installing a Processor
1
2
3
6
45
7
8
9
Downloaded from ManualsNet.com search engine

4Quick Start
Installing DDR4 memory
http://youtu.be/T03aDrJPyQs
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2
Downloaded from ManualsNet.com search engine

5
Quick Start
HDD LED
RESET SW
Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
Downloaded from ManualsNet.com search engine

6Quick Start
BAT1
Installing the Motherboard
1
2
Downloaded from ManualsNet.com search engine

7
Quick Start
Connecting the Power Connectors
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1
Downloaded from ManualsNet.com search engine

8Quick Start
Installing SATA Drives
http://youtu.be/RZsMpqxythc
1
23
4
5
Downloaded from ManualsNet.com search engine

9
Quick Start
1
Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
2
3
4
5
6
Downloaded from ManualsNet.com search engine

10 Quick Start
Connecting Peripheral Devices
Downloaded from ManualsNet.com search engine

11
Quick Start
Power On
4
3
12
Downloaded from ManualsNet.com search engine

12 Contents
Contents
Quick Start ............................................................................................................. 1
Preparing Tools and Components.......................................................................... 1
Safety Information .................................................................................................. 2
Installing a Processor............................................................................................. 3
Installing DDR4 memory ........................................................................................ 4
Connecting the Front Panel Header....................................................................... 5
Installing the Motherboard..................................................................................... 6
Connecting the Power Connectors......................................................................... 7
Installing SATA Drives............................................................................................. 8
Installing a Graphics Card...................................................................................... 9
Connecting Peripheral Devices ............................................................................ 10
Power On............................................................................................................... 11
Specifications....................................................................................................... 14
Package contents ................................................................................................ 18
Block Diagram .................................................................................................... 19
Rear I/O Panel ..................................................................................................... 20
LAN Port LED Status Table................................................................................... 20
Audio 7.1-channel Configuration ......................................................................... 20
Realtek Audio Console ......................................................................................... 21
Overview of Components .................................................................................... 22
CPU Socket ........................................................................................................... 24
DIMM Slots............................................................................................................ 25
PCI_E1~3: PCIe Expansion Slots.......................................................................... 26
M2_1: M.2 Slot (Key M)......................................................................................... 26
SATA1~6: SATA 6Gb/s Connectors ....................................................................... 27
JFP1, JFP2: Front Panel Connectors................................................................... 27
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 28
CPU_FAN1, SYS_FAN1~2: Fan Connectors.......................................................... 29
JUSB3: USB 3.1 Gen1 Connector ......................................................................... 30
JUSB1~2: USB 2.0 Connectors............................................................................. 30
JAUD1: Front Audio Connector ............................................................................ 31
JCOM1: Serial Port Connector ............................................................................. 31
JLPT1: Parallel Port Connector ........................................................................... 31
JCI1: Chassis Intrusion Connector....................................................................... 32
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 33
EZ Debug LED....................................................................................................... 33
JRGB1: RGB LED connector................................................................................. 34
Downloaded from ManualsNet.com search engine

13
Contents
JRAINBOW1: Addressable RGB LED connectors................................................. 35
Installing OS, Drivers & Utilities ......................................................................... 36
Installing Windows®10......................................................................................... 36
Installing Drivers .................................................................................................. 36
Installing Utilities ................................................................................................. 36
BIOS Setup ........................................................................................................... 37
Entering BIOS Setup............................................................................................. 37
Resetting BIOS...................................................................................................... 38
Updating BIOS....................................................................................................... 38
EZ Mode ................................................................................................................ 39
Advanced Mode .................................................................................................... 41
SETTINGS.............................................................................................................. 42
Advanced............................................................................................................... 42
Boot....................................................................................................................... 48
Security................................................................................................................. 49
Save & Exit............................................................................................................ 50
OC.......................................................................................................................... 51
M-FLASH .............................................................................................................. 57
OC PROFILE.......................................................................................................... 58
HARDWARE MONITOR.......................................................................................... 59
Intel®Optane™ Memory Configuration .............................................................. 60
System Requirements ......................................................................................... 60
Installing the Intel®Optane™ memory ................................................................ 60
Removing the Intel®Optane™ memory ............................................................... 62
Troubleshooting .................................................................................................. 63
Regulatory Notices.............................................................................................. 64
Downloaded from ManualsNet.com search engine

14 Specifications
Specifications
CPU Supports 9th/ 8th Gen Intel®Core™/ Pentium®Gold/
Celeron®processors for LGA 1151 socket
Chipset Intel®B365 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB
ySupports DDR4 2666/ 2400/ 2133 MHz
ySupports Dual-Channel mode
ySupports non-ECC, un-buffered memory
ySupports Intel®Extreme Memory Profile (XMP)
* Please refer www.msi.com for more information on compatible memory.
Expansion Slot y1x PCIe 3.0 x16 slot
y2x PCIe 3.0 x1 slots
Onboard Graphics y1x HDMI™ port 1.4, supports a maximum resolution of
4096x2160@30Hz
Storage
Intel®B365 Chipset
y6x SATA 6Gb/s ports*
y1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/
2280/ 22110 storage devices
Intel®Optane™ Memory Ready**
* SATA1 port will be unavailable when installing SATA M.2 SSD in M.2 slot.
** Before using Intel®Optane™ memory modules, please ensure that you have
updated the drivers and BIOS to the latest version from MSI website.
USB
Intel®B365 Chipset
y6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on
the back panel, 2 ports available through the internal USB
connector)
y6x USB 2.0 (High-speed USB) ports (2 ports on the
back panel, 4 ports available through the internal USB
connectors)
Audio yRealtek®ALC892 Codec
y7.1-Channel High Definition Audio
LAN 1x Intel I219-V Gigabit LAN controller
Continued on next page
Downloaded from ManualsNet.com search engine

15
Specifications
Continued from previous page
Back Panel
Connectors
y1x PS/2 mouse port
y1x PS/2 keyboard port
y2x USB 2.0 ports
y1x HDMI port
y1x LAN (RJ45) port
y3x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen1 Type-C port
y3x audio jacks
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y6x SATA 6Gb/s connectors
y1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1
Gen1 ports)
y2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
y1x 4-pin CPU fan connector
y2x 4-pin system fan connectors
y1x Front panel audio connector
y2x Front panel connectors
y1x Serial port connector
y1x Parallel port connector
y1x 3-pin RAINBOW LED connector
y1x 4-pin RGB LED connector
y1x TPM module connector
y1x Chassis Intrusion connector
y1x Clear CMOS jumper
I/O Controller NUVOTON NCT6797 Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yMicro-ATX Form Factor
y9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
Continued on next page
Downloaded from ManualsNet.com search engine

16 Specifications
Continued from previous page
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 6.1, SMBIOS 2.8
yMulti-language
Software
yDrivers
yDRAGON CENTER
yCPU-Z MSI GAMING
yMSI App Player (BlueStacks)
yGoogle Chrome™ ,Google Toolbar, Google Drive
yNorton™ Internet Security Solution
Dragon Center
Features
yGRAGON OPTIMIZATION
yHardware Monitor
yEyerest
yLAN Manager
yMystic Light
yLive Update
Please refer to
http://download.msi.com/manual/
mb/DRAGONCENTER2.pdf
for more details.
Special Features
yAudio
Audio Boost
yNetwork
GAMING LAN with Gaming LAN Manager
yStorage
Turbo M.2
Intel®Optane Memory Ready
yFan
Smart Fan Control
yLED
Mystic Light
Mystic Light (RGB)
Mystic Light (RAINBOW)
Mystic light SYNC
EZ DEBUG LED
Continued on next page
Downloaded from ManualsNet.com search engine

17
Specifications
Continued from previous page
Special Features
yProtection
PCIe Steel Armor
Pre-install IO
yPerformance
DDR4 Boost
Core Boost
USB with type A+C
yStability
7000+ Quality Test
yVR
VR Ready
yGamer Experience
GAMING HOTKEY
GAMING MOUSE Control
APP Player
yBIOS
Click BIOS 5
yCertification
GAMING Certified
Downloaded from ManualsNet.com search engine

18 Package contents
Package contents
Please check the contents of your motherboard package. It should contain:
Motherboard MAG B365M MORTAR
Cable SATA 6Gb/s Cables 2
RGB LED Extension Cable 80cm 1
8.5H M.2 screws 1
Case Badge 1
Product Registration Card 1
Application DVD Driver DVD 1
Documentation User Manual 1
Quick Installation Guide 1
Important
If any of the above items are damaged or missing, please contact your retailer.
Downloaded from ManualsNet.com search engine

19
Block Diagram
Block Diagram
LPC Bus
2 Channel DDR4 Memory
6 x USB 3.1 Gen1
1 x M.2
6 x USB 2.0
PCI-E Bus
PCI Express Bus
P/S2 Mouse / Keyboard Audio Jacks
B365
CPU
NV6797
Super I/O Realtek ALC892
x1
PCI Express Bus
HDMI
Switch
x1 PCIe x1 slot
PCIe x1 slot
6 x SATA 6Gb/s
Downloaded from ManualsNet.com search engine

20 Rear I/O Panel

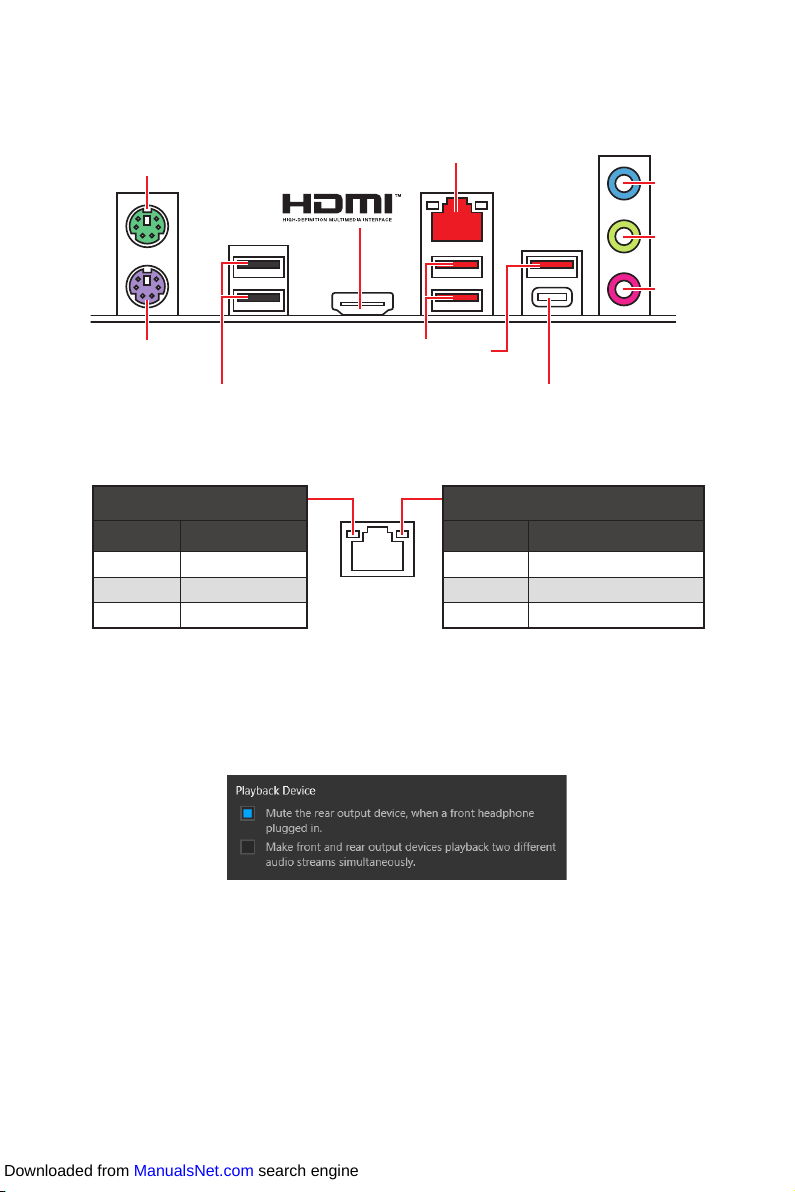

Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
PS/2 Mouse
PS/2 Keyboard
LAN
Mic-In
USB 3.1 Gen 1 Type-A
USB 3.1 Gen 1 Type-C
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek Audio Console > Advanced Settings to open the dialog below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device is
current connected.
USB 2.0
Line-In
Line-Out
Downloaded from ManualsNet.com search engine
