MSI B350M MORTAR ARCTIC User manual

1

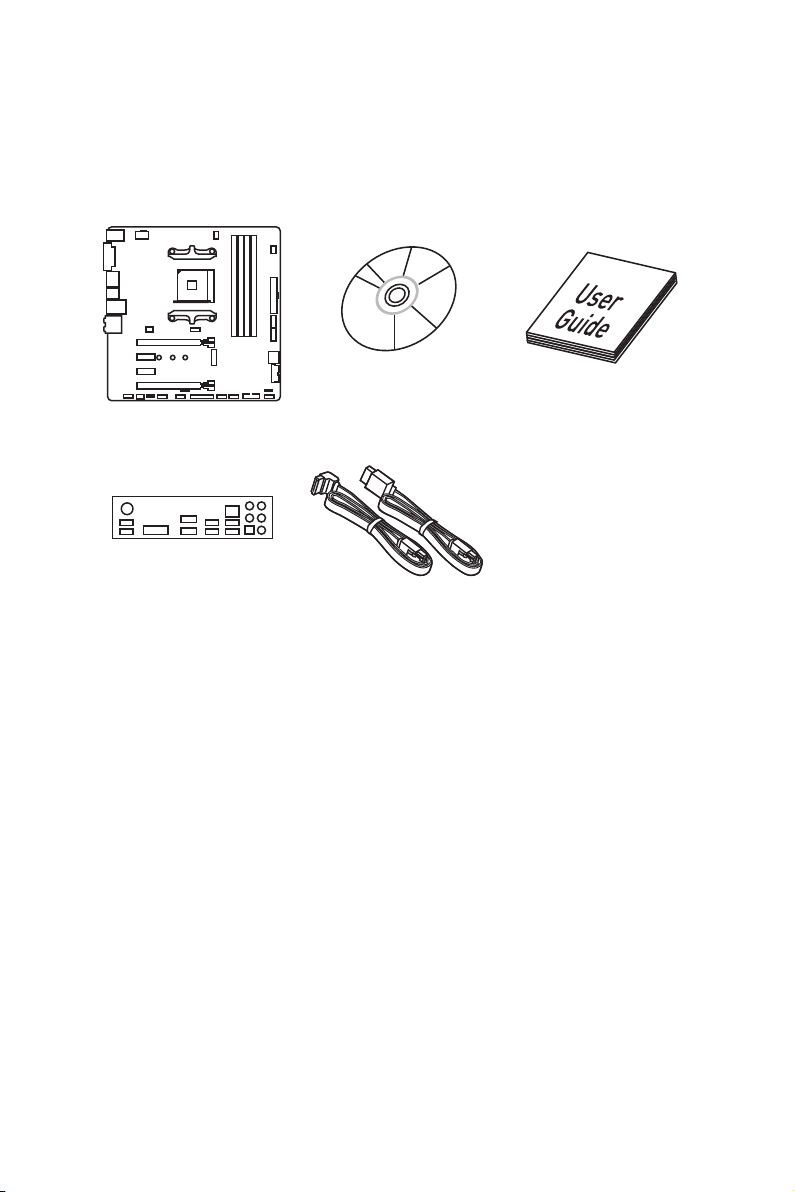

Unpacking
Unpacking
Thank you for buying the MSI®B350M MORTAR ARCTIC motherboard. Check to make
sure your motherboard box contains the following items. If something is missing,
contact your dealer as soon as possible.
SATA Cable x2
Drivers & Utilities
Disc Motherboard User
Guide
I/O Shield
Motherboard

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Quick Start
DDR4 Memory
Graphics Card
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
Chassis
Power Supply Unit
CPU Fan
Thermal Paste
Quick Start
Preparing Tools and Components
AMD®AM4 CPU

4Quick Start
Installing a Processor
1
2
3
6
4
5
7
8
9
https://youtu.be/Xv89nhFk1vc

5
Quick Start
Installing DDR4 memory
http://youtu.be/T03aDrJPyQs
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1
1
2
2
3

6Quick Start
Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

7
Quick Start
Installing the Motherboard
1
2

8Quick Start
Installing SATA Drives
http://youtu.be/RZsMpqxythc
1
23
4
5

9
Quick Start
1
Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
2
3
4
5
6

10 Quick Start
Connecting Peripheral Devices

11
Quick Start
Connecting the Power Connectors
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

12 Quick Start
Power On
1
4
2
3

13
Contents
Contents
Unpacking .............................................................................................................. 1
Safety Information................................................................................................. 2
Quick Start ............................................................................................................. 3
Preparing Tools and Components.......................................................................... 3
Installing a Processor............................................................................................. 4
Installing DDR4 memory ........................................................................................ 5
Connecting the Front Panel Header....................................................................... 6
Installing the Motherboard..................................................................................... 7
Installing SATA Drives............................................................................................. 8
Installing a Graphics Card...................................................................................... 9
Connecting Peripheral Devices ............................................................................ 10
Connecting the Power Connectors....................................................................... 11
Power On............................................................................................................... 12
Specifications....................................................................................................... 15

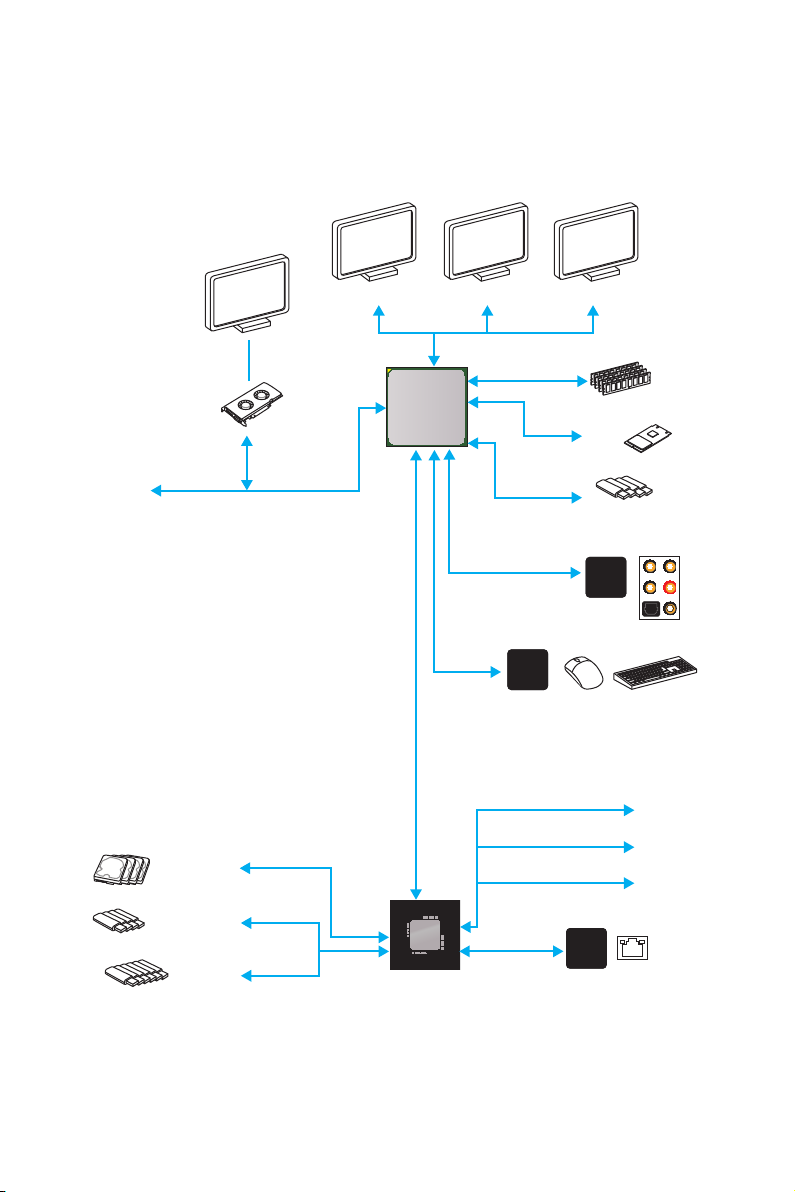

Block Diagram .................................................................................................... 19

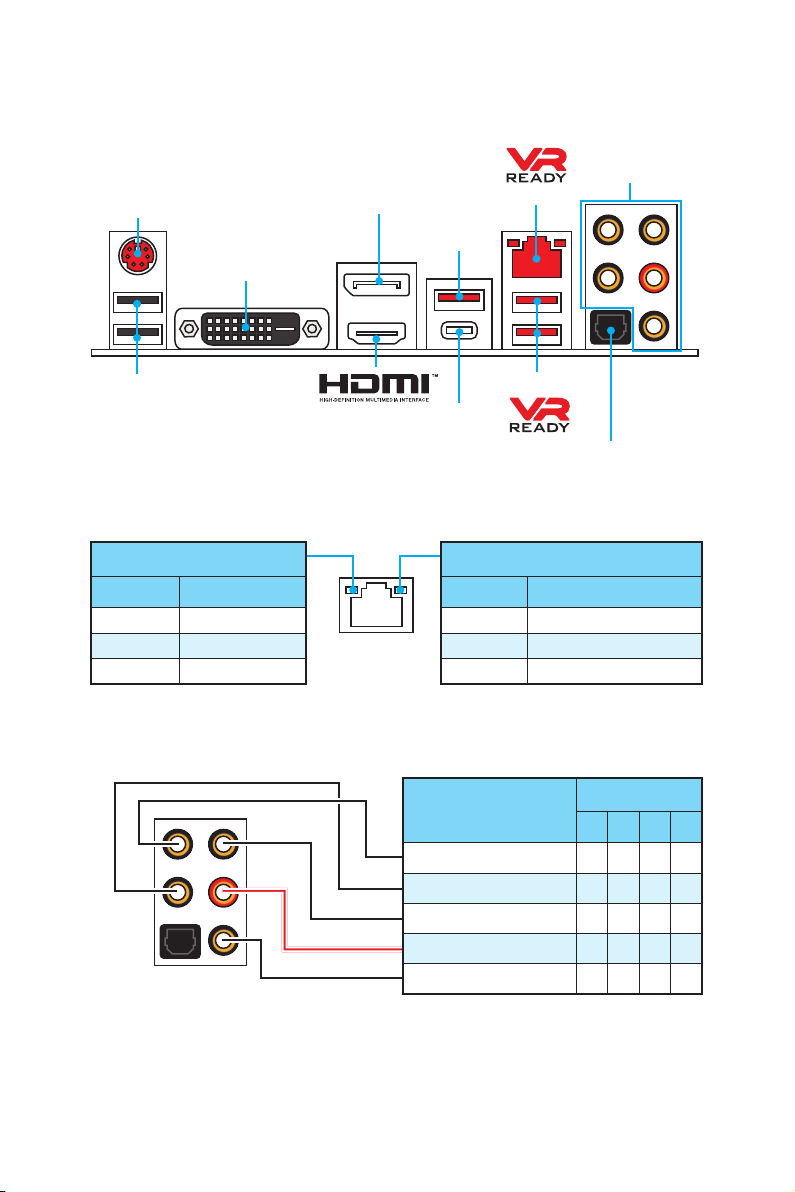

Rear I/O Panel ..................................................................................................... 20
LAN Port LED Status Table................................................................................... 20
Audio Ports Configuration.................................................................................... 20
Realtek HD Audio Manager .................................................................................. 21
Overview of Components .................................................................................... 23
CPU Socket ........................................................................................................... 25
DIMM Slots............................................................................................................ 26
PCI_E1~4: PCIe Expansion Slots.......................................................................... 27
M2_1: M.2 Slot (Key M)......................................................................................... 28
SATA1~4: SATA 6Gb/s Connectors ....................................................................... 29
JFP1, JFP2: Front Panel Connectors................................................................... 29
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 30
JUSB1~2: USB 2.0 Connectors............................................................................. 31
JUSB3~4: USB 3.1 Gen1 Connectors ................................................................... 31
CPU_FAN1, SYS_FAN1~3: Fan Connectors.......................................................... 32
JAUD1: Front Audio Connector ............................................................................ 33
JCI1: Chassis Intrusion Connector....................................................................... 33
JTPM1: TPM Module Connector........................................................................... 34
JCOM1: Serial Port Connector ............................................................................. 34
JLPT1: Parallel Port Connector ........................................................................... 35
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 35

14 Contents
JLED1: RGB LED connector ................................................................................. 36
EZ Debug LED....................................................................................................... 36
BIOS Setup ........................................................................................................... 37
Entering BIOS Setup............................................................................................. 37
Resetting BIOS...................................................................................................... 38
Updating BIOS....................................................................................................... 38
Advanced Mode .................................................................................................... 41
SETTINGS.............................................................................................................. 42
Advanced............................................................................................................... 42
Boot....................................................................................................................... 48
Security................................................................................................................. 48
Save & Exit............................................................................................................ 49
OC.......................................................................................................................... 51
M-FLASH .............................................................................................................. 54
OC PROFILE.......................................................................................................... 55
HARDWARE MONITOR.......................................................................................... 56
Software Description........................................................................................... 57
Installing Windows®7 64-bit/ Windows®10 64-bit............................................... 57
Installing Drivers .................................................................................................. 57
Installing Utilities ................................................................................................. 57
LIVE UPDATE 6...................................................................................................... 58
COMMAND CENTER ............................................................................................. 60
GAMING APP......................................................................................................... 64
RAMDISK............................................................................................................... 69
X-BOOST ............................................................................................................... 70
MSI SMART TOOL ................................................................................................. 72
GAMING LAN MANAGER ...................................................................................... 74
DRAGON EYE ........................................................................................................ 76
XSplit Gamecaster V2 ........................................................................................... 77
SteelSeries Engine 3 ............................................................................................ 81
CPU-Z.................................................................................................................... 83
Troubleshooting .................................................................................................. 84
Regulatory Notices.............................................................................................. 85

15
Specifications
Specifications
CPU Supports AMD®RYZEN series processors and 7th Gen
A-series/ Athlon™ processors for Socket AM4
Chipset AMD® B350 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/
3200(OC)+ Mhz *
yDual channel memory architecture
ySupports non-ECC UDIMM memory
ySupports ECC UDIMM memory (non-ECC mode)
* 7th Gen A-series/ Athlon ™ processors support a maximum of 2400 MHz.
Please refer www.msi.com for more information on compatible memory.
Expansion Slots
y1x PCIe 3.0 x16 slot
RYZEN series processors support x16 mode
7th Gen A-series/ Athlon™ processors support x8 mode
y1x PCIe 2.0 x16 slot (supports x4 mode)
y2x PCIe 2.0 x1 slots*
* PCI_E2 slot will be unavailable when an expansion card has been installed in
the PCI_E3 slot.
Onboard Graphics
y1x DVI-D port, supports a maximum resolution of
1920x1200@60Hz*
y1x HDMI™ 1.4 port, supports a maximum resolution of
4096x2160@24Hz*
y1x DisplayPort, supports a maximum resolution of
4096x2160@60Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processor
Multi-GPU
Supports 2-Way AMD®CrossFire™Technology
yRYZEN series processors support x16/x4 mode
y7th Gen A-series/ Athlon™ processors support x8/x4 mode
Storage
AMD®B350 Chipset
y4x SATA 6Gb/s ports*
y1x M.2 port (Key M)
M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor)
or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors)
and SATA 6Gb/s 2242/ 2260 /2280 storage devices
ySupports RAID 0, RAID 1, RAID 10
Continued on next page

16 Specifications
Continued from previous page
USB
yAMD®B350 Chipset
4x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal USB connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB connectors)
yAMD®CPU
4x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A and
1 Type-C ports on the back panel)
Audio yRealtek®ALC892 Codec
y7.1-Channel High Definition Audio
LAN y1x Realtek®8111H Gigabit LAN controller
Back Panel
Connectors
y1x PS/2 keyboard/ mouse combo port
y2x USB 2.0 Type-A ports
y1x DVI-D port
y1x DisplayPort
y1x HDMI™port
y1x LAN (RJ45) port
y3x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen1 Type-C port
y5x OFC audio jacks
y1x Optical S/PDIF OUT connector
Internal Connectors
y1x 24-pin ATX 12V power connector
y1x 8-pin ATX 12V power connector
y4x SATA 6Gb/s connectors
y2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
y2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y3x 4-pin system fan connectors
y1x RGB LED connector
y1x TPM module connector
y1x Front panel audio connector
y2x System panel connectors
y1x Chassis Intrusion connector
y1x Serial port connector
y1x Parallel port connector
y1x Clear CMOS jumper
Continued on next page

17
Specifications
Continued from previous page
I/O Controller NUVOTON NCT6795D-M Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yATX Form Factor
y9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 5.0, PnP 1.0a, SM BIOS 2.8
yMulti-language
Software
yDrivers
yCOMMAND CENTER
yLIVE UPDATE 6
ySMART TOOL
yDRAGON EYE
yGAMING APP
yX-BOOST
yRAMDISK
yGAMING LAN MANAGER
yXSplit Gamecaster V2
ySteelSeries Engine 3
yCPU-Z MSI GAMING
yNorton™Internet Security Solution
yGoogle Chrome™,Google Toolbar, Google Drive
Continued on next page

18 Specifications
Continued from previous page
Special Features
yAudio Boost
yGAMING LAN with Gaming LAN Manager
yTurbo M.2
ySmart Fan Control
yMystic Light Extension
yGaming DNA with bottom LED
yMystic light SYNC
yEZ Debug LED
yPCI-E Steel Armor
yDDR4 Boost
yGAME Boost
yUSB with type A+C
yMilitary Class 4
y7000+ Quality Test
yVR Ready
yGAMING HOTKEY
yGAMING MOUSE Control
yClick BIOS 5
yAMD FreeSync™ Ready
yAMD OverDrive™ Ready
yGAMING Certified
ySteelSeries Certified
yWTFast*
* This offer is valid for a limited period only, for more information please visit
www.msi.com

19
Block Diagram
Block Diagram
2 Channel DDR4 Memory
4 x USB 3.1 Gen1
1 x M.2
6 x USB 2.0
P/S2 Mouse / Keyboard
Audio Jacks
PCIex4
B350
NV6795
Super I/O
Realtek
ALC892
x1
PCI Express Bus
HDMI DisplayPort DVI-D
PCIe x1 slot
PCIe x4 slot
4 x SATA 6Gb/s
4 x USB 3.1 Gen1
CPU
x1 PCIe x1 slot
Realtek
8111H
x4

20 Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Rear I/O Panel
PS/2 LAN
USB 2.0
DVI-D
DisplayPort
USB 3.1 Gen1
USB 3.1 Gen1
Type-C
USB 3.1 Gen1
Audio Ports
Optical S/PDIF-Out
Audio Ports Configuration
Audio Ports Channel
2468
Center/ Subwoofer Out ● ●
Rear Speaker Out ●●●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ●●●●
Mic In
(●: connected, Blank: empty)
Other manuals for B350M MORTAR ARCTIC
1
Table of contents
Other MSI Motherboard manuals

MSI
MSI H410I PRO WIFI User manual

MSI
MSI 970A GAMING PRO CARBON User manual

MSI
MSI MS-6368 User manual

MSI
MSI Z68A-G45 Series User manual

MSI
MSI H410M PRO-C User manual

MSI
MSI X99S MPOWER User manual

MSI
MSI MPG B550I GAMING EDGE WIFI User manual

MSI
MSI 3200 Master Series User manual

MSI
MSI H110M GAMING User manual

MSI
MSI H410M PRO User manual

MSI
MSI H67MA-E35 series User manual

MSI
MSI MS-6507 User manual

MSI
MSI A320M PRO-E User manual

MSI
MSI B250M PRO-VH User manual

MSI
MSI Z790 EDGE WIFI User manual

MSI
MSI B350M MORTAR User manual

MSI
MSI MPG Z490M GAMING EDGE WIFI User manual

MSI
MSI X79A-GD45 (8D) series User manual

MSI
MSI TRX40 PRO 10G User manual

MSI
MSI 990FXA User manual
