MSI 845 Ultra User manual

i
Version 1.1
G52-MA00512
MS-6398 (v1.X) ATX Mainboard
MSI
MICRO-STAR INTERNATIONAL
845 Ultra
845 Ultra-AR
845 Ultra-ARU

ii
Manual Rev: 1.1
Release Date: Nov. 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-Star International MS-6398
Tested to comply
with FCC Standard
For Home or Office Use

iii
Edition
Nov. 2001
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks used in this manual are the property of their respective owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95/98/2000 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision Revision History Date
V1.1 First release Nov. 2001

iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged
zLiquid has penetrated into the equipment
zThe equipment has been exposed to moisture
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged
zIf the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED,STORAGETEMPERATUREABOVE600 C(1400F),IT
MAY DAMAGE THE EQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

v
CONTENTS
Chapter 1. Getting Started ........................................................................ 1-1
Mainboard Specification ...................................................................... 1-2
Mainboard Layout ............................................................................... 1-4
Quick Components Guide .................................................................... 1-7
Key Features ........................................................................................ 1-8
MSI Special Features ........................................................................... 1-9
Fuzzy Logic™ III ........................................................................... 1-9
PC Alert™ III ............................................................................... 1-10

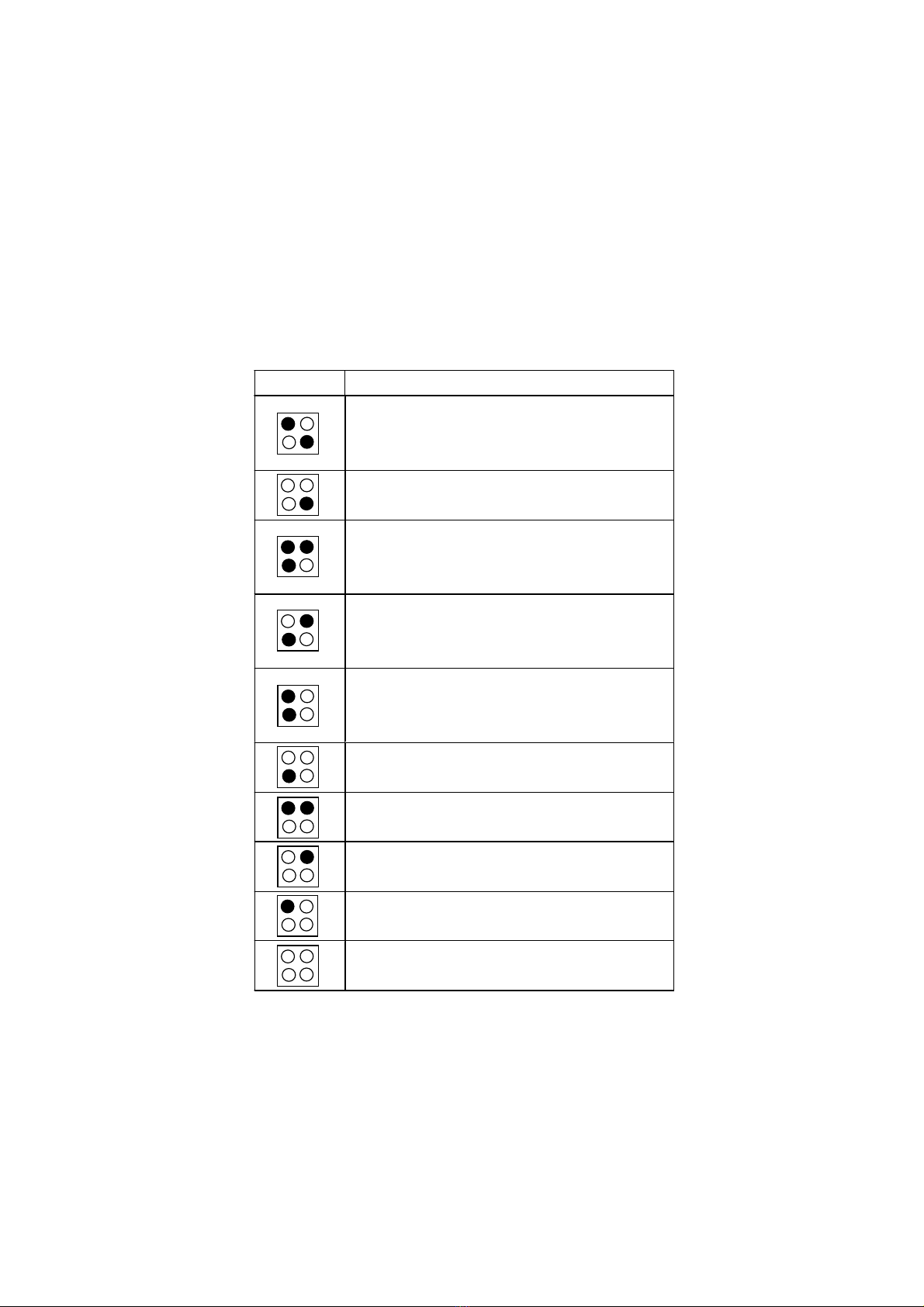

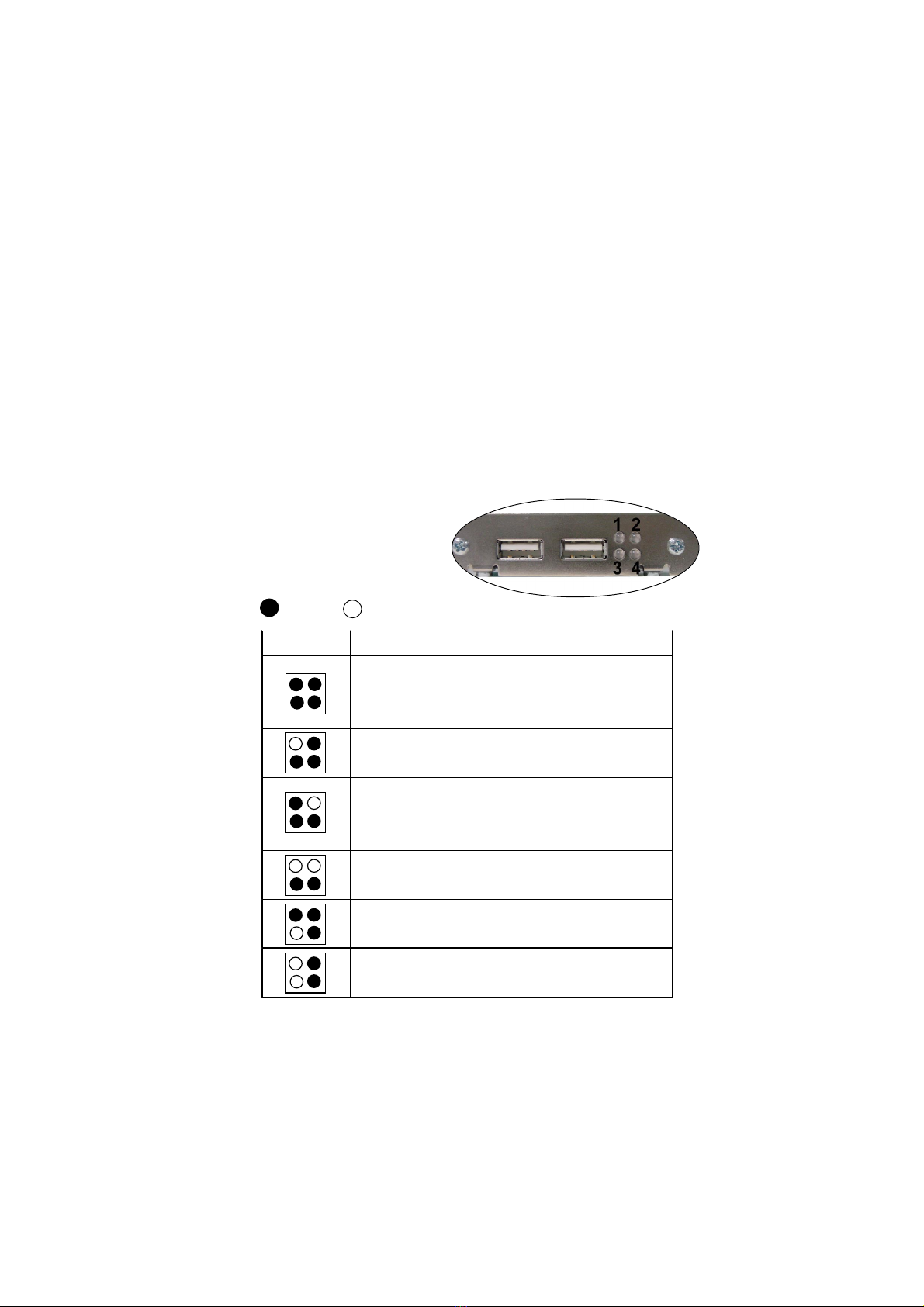

D-Bracket™ ................................................................................. 1-12
Live BIOS™/Live Driver™ .......................................................... 1-14
Chapter 2. Hardware Setup ....................................................................... 2-1
Central Processing Unit: CPU .............................................................. 2-2
CPU Installation Procedures ......................................................... 2-2
Installing the CPU Fan .................................................................. 2-3
CPU Core Speed Derivation Procedure ......................................... 2-4
Memory ................................................................................................ 2-5
Introduction to DDR SDRAM ....................................................... 2-5
DDR Module Combination ............................................................ 2-6
Installing DDR Modules ............................................................... 2-6
Power Supply ....................................................................................... 2-7
ATX 20-Pin Power Connector: JWR1 ............................................ 2-7
ATX 12V Power Connector: JPW1 ................................................ 2-7
Back Panel ............................................................................................ 2-8
Mouse Connector: JKBMS1 ......................................................... 2-8
Keyboard Connector: JKBMS1 ..................................................... 2-9
USB Connectors ............................................................................ 2-9
Serial Port Connector: COM A & COM B ................................... 2-10
Joystick/Midi Connectors ........................................................... 2-10

vi
Audio Port Connectors ............................................................... 2-10
Parallel Port Connector: LPT1 ...................................................... 2-11
Connectors ......................................................................................... 2-12
Floppy Disk Drive Connector: FDD1 ........................................... 2-12
IrDA Infrared Module Header: IR2 .............................................. 2-12
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-13
ATA133 RAID Connectors: IDE3 & IDE4 ................................... 2-14
CD-In Connector: JCD1 ............................................................... 2-15
Aux Line-In Connector: JAUX1 .................................................. 2-15
Modem-In Connector: JPHN1 ..................................................... 2-15
Fan Power Connectors: CFAN1/SFAN1/J7 .................................. 2-16
Wake On Ring Connector: JMDM1 ............................................. 2-17
Wake On LAN Connector: JWOL1 .............................................. 2-17
Front Panel Connector: JFP1 or F_P2 .......................................... 2-18
Front Panel Audio Connector: JAU1 ........................................... 2-19
Front USB Connectors: JUSB2/3/4 & USB3 ................................ 2-20
D-Bracket™ Connector: J10 ........................................................ 2-23
Jumpers .............................................................................................. 2-24
Clear CMOS Jumper: JBAT1 ........................................................ 2-24
Slots ................................................................................................... 2-25
AGP (Accelerated Graphics Port) Slot ......................................... 2-25
PCI Slots ...................................................................................... 2-25
CNR (Communication Network Riser) ......................................... 2-26
PCI Interrupt Request Routing .................................................... 2-26
Chapter 3. BIOS Setup .............................................................................. 3-1
Entering Setup ...................................................................................... 3-2
Selecting the First Boot Device ..................................................... 3-2
Control Keys ................................................................................. 3-3
Getting Help .................................................................................. 3-3

vii
The Main Menu ................................................................................... 3-4
Standard CMOS Features .................................................................... 3-6
Advanced BIOS Features .................................................................... 3-8
Advanced Chipset Features ............................................................... 3-12
Power Management Setup ................................................................. 3-14
PNP/PCI Configurations ..................................................................... 3-18
Integrated Peripherals ........................................................................ 3-20
Hardware Monitor Setup .................................................................... 3-23
Load High Performance/BIOS Setup Defaults .................................... 3-25
Supervisor/User Password ................................................................. 3-27
IDE HDD AUTO Detection ................................................................ 3-29
Appendix A: Using 4-/6-channel Audio Function ..................................... A-1
Installing C-Media Drivers .................................................................. A-2
Hardware Configuration ...................................................................... A-2
Software Configuration ....................................................................... A-3
Appendix B: MSI Smart Key ..................................................................... B-1
Installing MSI Smart Key .................................................................... B-2
Using MSI Smart Key ......................................................................... B-3
Glossary .................................................................................................... G-1

Getting Started
1-1
Chapter 1. Getting Started
TOPICS
Mainboard Specification 1-2

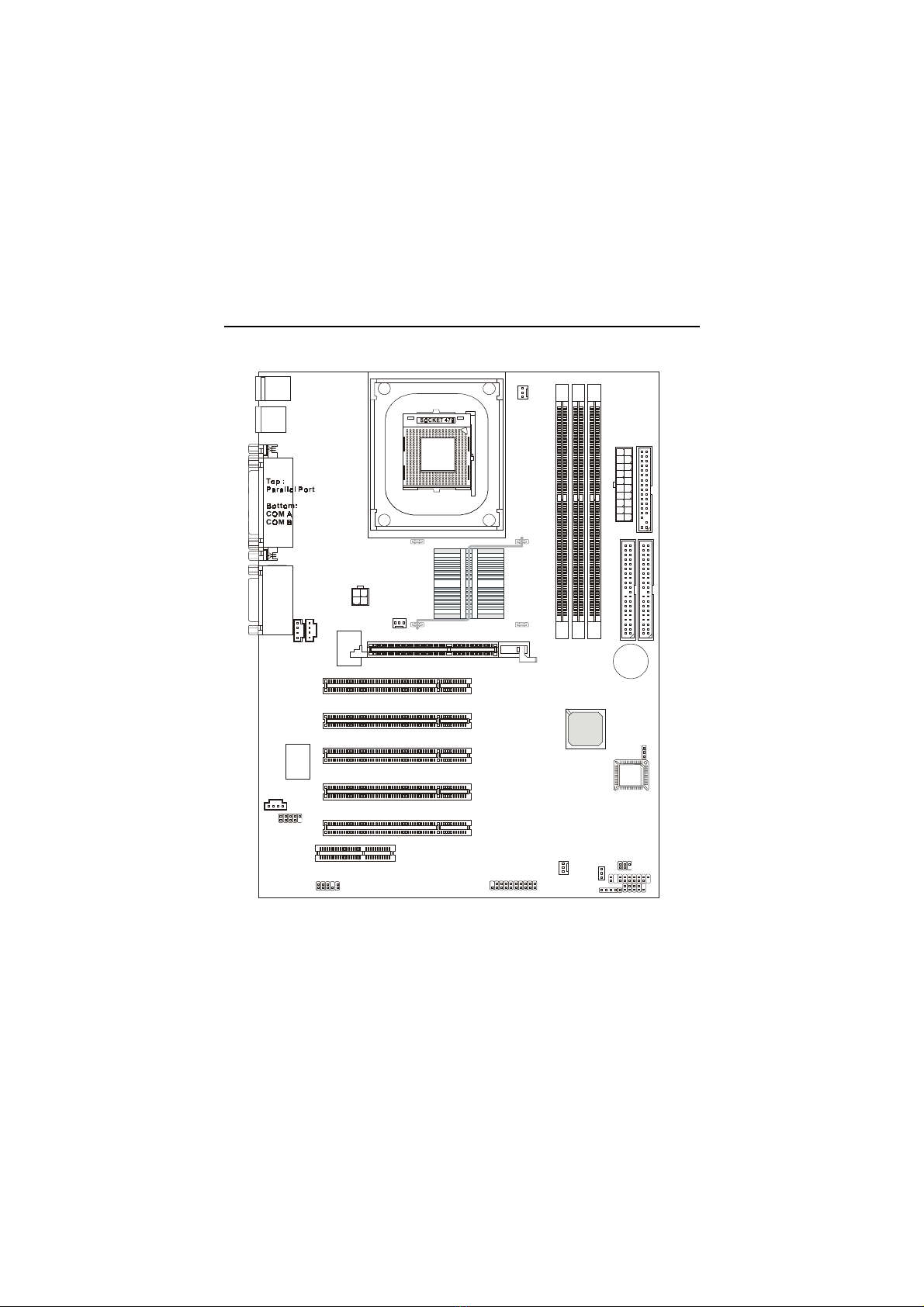

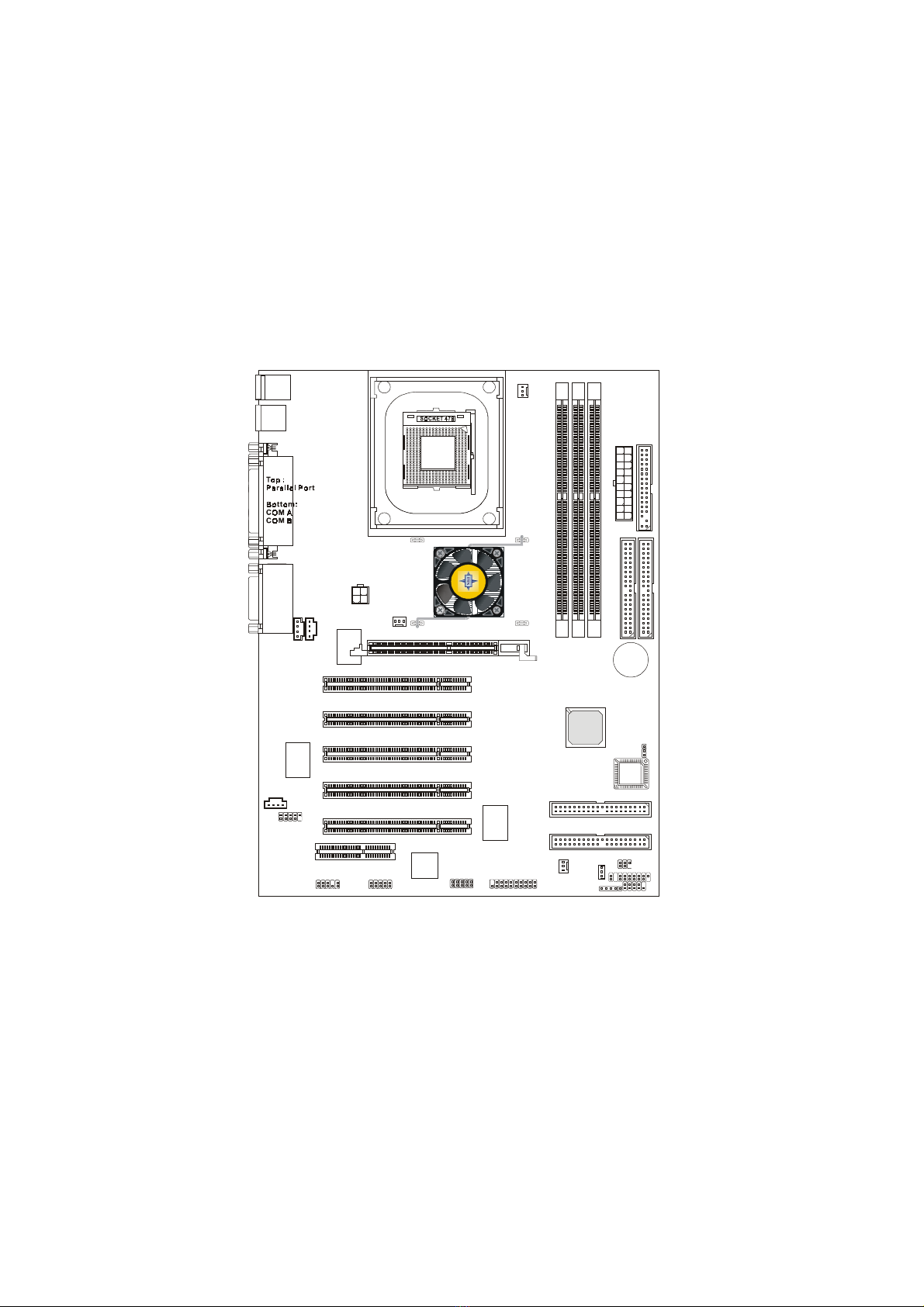

Mainboard Layout 1-4
Quick Components Guide 1-7
Key Features 1-8
MSI Special Features 1-9
1
Getting Started
Thank you for purchasing the MS-6398 v1.X ATX mainboard. The MS-
6398 v1.X series include 845 Ultra, 845 Ultra-AR, and 845 Ultra-ARU mainboards.
The 845 Ultra is a standard version. In addition to standard features, the 845
Ultra-AR offers ATA133 RAID interface and the 845 Ultra-ARU supports
ATA133 RAID and USB 2.0 technology. All three models are based on Intel®
82845 & 82801BA chipsets for optimal system efficiency. Designed to fit the
advanced Intel®Pentium®4 processors in the 478 pin package, the MS-6398
delivers a high performance and professional desktop platform solution.

Chapter 1
1-2
CPU
Supports Intel®Pentium®4 processor in 478 pin package.
Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.2GHz
and up.
Chipset
Intel®845 chipset (593 FC-BGA)
- Supports DDR SDRAM at 200/266MHz operation (DDR200/DDR266).
- AGTL+ host bus with integrated termination supporting 32-bit host
addressing.
- 1.5V AGP interface with 4x data transfer and 4x fast write capability.
- 8-bit, 66MHz 4x hub interface to the Intel ICH2.
Intel®ICH2 chipset (360 EBGA)
- Upstream hub interface for access to the Intel MCH.
- 2-channel Ultra ATA/100 Bus Master IDE controller.
- USB controller 1.1 (expanded capabilities for 4 ports).
- I/O APIC.
- SMBus controller.
- FWH interface.
- LPC interface.
- AC’97 2.1 interface.
- PCI 2.2 interface.
- Integrated system management controller.
MainMemory
Supports four memory banks using three184-pin DDR DIMM.
Supports up to 2GB PC2100/PC1600 DDR SDRAMs.
Supports 2.5v DDR SDRAM.
Slots
One AGP (Accelerated Graphics Port) 4x slot (1.5V only).
Five PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI bus interface).
One CNR (Communication Network Riser) slot.
Mainboard Specification
Note: The AGP slot DOES NOT support 3.3V AGP card. Use of
3.3V AGP card may cause damage to the mainboard.

Getting Started
1-3
On-BoardIDE
An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66/100 operation modes.
Can connect up to four IDE devices.
ATA133 RAID supported by Promise PDC20276 (for 845 Ultra-AR & 845
Ultra-ARU only).
USB Interface
845 Ultra/ 845 Ultra-AR
- 4 USB 1.1 ports (Rear * 2/ Front * 2).
845 Ultra-ARU
- 4 USB 2.0 ports (Front * 4/ optional USB 2.0 Bracket available upon request,
please refer to Chapter 2. Hardware Setup for further details).
- 4 USB 1.1 ports (Rear * 2/ Front * 2).
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial ports (COM A + COM B).
- 1 parallel port supports SPP/EPP/ECP mode.
- 1 IrDA connector for SIR/ASKIR/HPSIR.
- 1 D-Bracket™ pin header.
- 1 audio/game port.
Audio
C-Media CMI8738 / PCI-6ch supports 2/4/6 ch speaker.
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
ATX Form Factor 30.5cm x 23cm.
Mounting
6 mounting holes.

Chapter 1
1-4
Mainboard Layout
CFAN1
SFAN1
+BATT
ICH 2
DDR1
DDR2
DDR3
ATXPowerSupply
JWOL1
JMDM1
FWH
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
IDE2
Winbond
W83627HF-AW
CNR
USB
ports
Top : mous e
Bottom: keyboard
JCD1
CMI8738
JPW1
JBAT1
JAUX1
JPHN1
J10
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD1
JUSB2
USB3
AGP Slot
Intel
845
chipset
J7
JAU1
IR2JFP1
(optional)
F_P2
(optional)
845 Ultra (MS-6398 v1.X) ATX Mainboard

Getting Started
1-5
CFAN1
SFAN1
+BATT
ICH 2
DDR1
DDR2
DDR3
ATXPowerSupply
JWOL1
JMDM1
FWH
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
IDE2
IDE 3
IDE 4
Promise
PDC20276
Winbond
W83627HF-AW
CNR
USB
ports
Top : mous e
Bottom: keyboard
JCD1
CMI8738
JPW1
JBAT1
JAUX1
JPHN1
J10
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD1
JUSB2
USB3
AGP Slot
Intel
845
chipset
J7
JAU1
IR2JFP1
(optional)
F_P2
(optional)
845 Ultra-AR (MS-6398 v1.X) ATX Mainboard

Chapter 1
1-6
CFAN1
SFAN1
+BATT
ICH 2
DDR1
DDR2
DDR3
ATXPowerSupply
F_P2
(optional)
JWOL1
JMDM1
FWH
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
IDE2
IDE 3
IDE 4
Promise
PDC20276
Winbond
W83627HF-AW
CNR
USB
ports
Top : mous e
Bottom: keyboard
JCD1
CMI8738
JPW1
JBAT1
JAUX1
JPHN1
J10
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD1
JUSB3
NEC
USB 2.0
JAU1 JUSB4
JUSB2
USB3
AGP Slot
Intel
845
chipset
IR2
J7
JFP1
(optional)
845 Ultra-ARU (MS-6398 v1.X) ATX Mainboard

Getting Started
1-7
Quick Components Guide
Component Function Reference
JWR1 ATX 20-pin power connector See p. 2-7
JPW1 ATX 12V power connector See p. 2-7
JKBMS1 Mouse connector See p. 2-8
JKBMS1 Keyboard connector See p. 2-9
USB Connectors Connecting to USB devices See p. 2-9
COM A & COM B Serial port connector See p. 2-10
LPT1 Parallel port connector See p. 2-11
FDD1 Floppy disk drive connector See p. 2-12
IR2 IrDA infrared module connector See p. 2-12
IDE1~ IDE2 Hard disk connectors See p. 2-13
IDE3~IDE4 ATA133 RAID connectors See p. 2-14
JCD1 CD-in connector See p. 2-15
JAUX1 Aux line-in connector See p. 2-15
JPHN1 Modem-in connector See p. 2-15
CFAN1/SFAN1 Fan power connectors See p. 2-16
JMDM1 Wake on ring connector See p. 2-17
JWOL1 Wake on LAN connector See p. 2-17
JFP1/F_P2 Front panel connector See p. 2-18
JAU1 Front panel audio connector See p. 2-19
JUSB2/3/4 & USB3 Front USB connectors See p. 2-20
J10 D-Bracket connector See p. 2-23
JBAT1 Clear CMOS jumper See p. 2-24
AGP Slot Connecting to AGP cards See p. 2-25
PCI Slots Connecting to expansion cards See p. 2-25
CNR Slot Connecting to expansion cards See p. 2-26

Chapter 1
1-8
ATX Form Factor
CPU: Intel®Pentium®4 processor in the 478 pin package
ATA133 RAID supported by Promise PDC20276 (for 845 Ultra-AR & 845
Ultra-ARU only).
USB 2.0 technology (for 845 Ultra-ARU only)
C-Media CMI8738/PCI-6ch supports 2/4/6 channel speaker
Fuzzy Logic™ III
Live BIOS™ / Live Driver™
Smart Key™ - the best solution to prevent unauthorized access to your PC
PC Alert™ III system hardware monitor
D-Bracket™
LAN Wake Up Function
Modem (Internal/External) Ring Wake Up Function
Suspend to RAM/Disk
PC2001 Compliant
Key Features

Getting Started
1-9
MSI Special Features
Fuzzy Logic™III
The Fuzzy Logic™ III utility allows users to overclock the CPU FSB
(Front Side Bus) frequency in the Windows environment. Select the CPU fre-
quency you prefer and click Go to apply the frequency or click Save allowing
the system to run at the specified frequency each time when the system is
powered on.
Features:
zDisplay Current System Status
- CPU Fan
- CPU Temp.
- Vcore
- Vio
- Memory Clock
- CPU Clock
- AGP Clock
- PCI Clock
zAdjust CPU FSB Frequency

Chapter 1
1-10
PC Alert™ III
The PC AlertTM III is a utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can detect the following PC hardware
status during real time operation:
* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion
If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown until users disable the warning.
Note: Items shown on PC Alert III vary depending on your system’s
status.

Getting Started
1-11
Features:
zNetwork Management
- Monitoring & remote control
zBasic System Utilities
- Scandisk & Defragment to maintain your HDD
z3D Graphics Design
- Enables a more friendly user interface
zSofware Utilities
- SoftCooler Optimized Cooling

Chapter 1
1-12
D-Bracket™
D-Bracket™ is an external USB bracket integrating four Diagnostic LEDs,
which use graphic signal display to help users understand their system. The
LEDs provide up to 16 combinations of signals to debug the system. The 4
LEDs can debug all problems that fail the system, such as VGA, RAM or other
failures. This special feature is very useful for the overclocking users. These
users can use the feature to detect if there are any problems or failures.
D-Bracket™
D-Bracket Description
System Power ON
- The D-LED will hang here if the processor is damaged or
not installed properly.
Early Chipset Initialization
Memory Detection Test
- Testing onboard memory size. The D-LED will hang if
the memory module is damaged or not installed properly.
Decompressing BIOS image to RAM for fast booting.
Initializing Keyboard Controller.
Testing VGA BIOS
- This will start writing VGA sign-on message to the screen.
1 2
3 4
Red Green

Getting Started
1-13
D-Bracket Description
Processor Initialization
- This will show information regarding the processor (like
brand name, system bus, etc…)
Testing RTC (Real Time Clock)
Initializing Video Interface
- This will start detecting CPU clock, checking type of video
onboard. Then, detect and initialize the video adapter.
BIOS Sign On
- This will start showing information about logo, processor
brand name, etc….
Testing Base and Extended Memory
- Testing base memory from 240K to 640K and extended
memory above 1MB using various patterns.
Assign Resources to all ISA.
Initializing Hard Drive Controller
- This will initialize IDE drive and controller.
Initializing Floppy Drive Controller
- This will initializing Floppy Drive and controller.
Boot Attempt
- This will set low stack and boot via INT 19h.
Operating System Booting
1 2
3 4
