Thank you for purchasing the MD-5000 M-ATX
mainboard. The MD-5000 mainboard is based on SiS®648
North Bridge & 963 South Bridge chipsets for optimal system
efficiency. Designed to fit the advanced Intel®Pentium 4/Celeron
processors in the 478 pin package, the MD-5000
mainboard delivers a high performance and professional desktop
platform solution.
Getting Started

1-2
MD5000 M-ATX Mainboard
Mainboard Specifications
CPU
hSupports Socket 478 for P4/Celeron processors (Willimate and Northwood
core) with 400/533 MHz
hCore Frequency from 1.3 GHz to 2.8 GHz and up
Chipset
hSiS®648 chipset
- Supports Intel Pentium 4 processors with data transfer rate up to 533 MHz
- Supports 64-bit high performance DDR333+/DDR333/DDR266 memory
controller
- Supports AGP 8X/4X interface
- Supports bi-directional 16-bit data bus with 1 GHz bandwidth MuTIOL
hSiS®963 chipset
- Supports Dual-IDE ATA 66/100/133
- Integrated audio controller with AC97 interface
- Low pin count interface for SIO
- Advanced power management and PC2001 compliance
MainMemory
hSupports two 184-pin DDR DIMMs
hSupports up to 2GB PC2700/2100/1600 DDR SDRAMs
hSupports 2.5v DDR SDRAM
Slots
hOne AGP (Accelerated Graphics Port) 4x/8x slot.
hThree 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-BoardIDE
hDual-IDE controller integrated in SiS 963 chipset
hSupports PIO, Bus Master and Ultra DMA133/100/66/33 operation modes
hCan connect up to four IDE devices.
On-Board Peripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 1 serial port

1-3
Getting Started

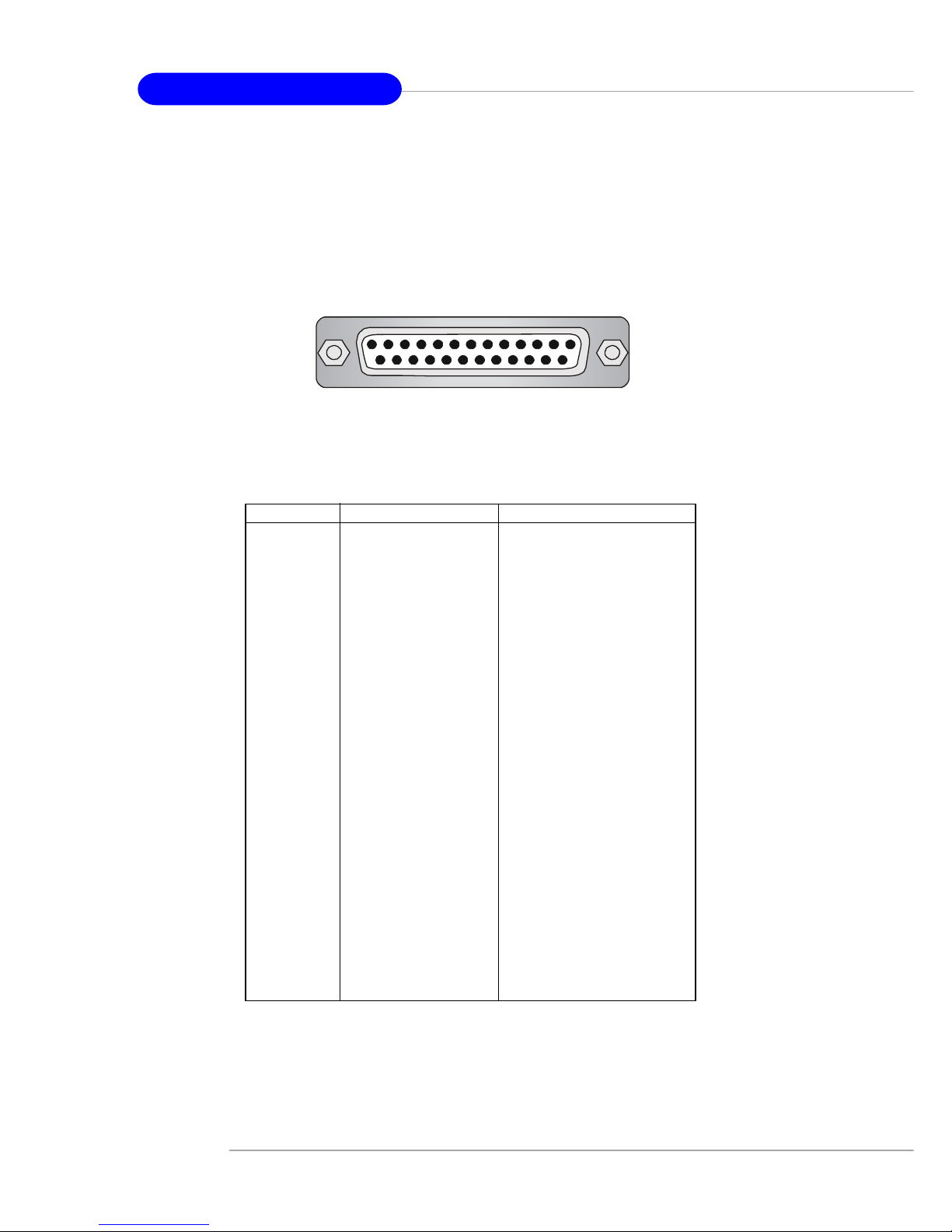

- 1 parallel port
- Audio * 3 in vertical for 6 channels Line-out, 2 in vertical for MIC & Line-
in
- 1 standard 1394 connector
- 1 mini 1394 connector
- 5 USB ports (3 front + 2 rear)
- 1 RJ-45 Lan Jack (optional)
- PS2 KB/Mouse
OnboardIEEE1394
hIntegrated in SiS 963 SB
hAGREE FW803
Audio
hS/W RealTek ALC650 6-channel audio codec with SPDIF in/out
LAN
hRealtek RTL8201BL
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hM-ATX Form Factor: 24.4 cm x 23.0 cm
Mounting
h6 mounting holes.
Others
hSuspend to RAM/Disk (S3/S4)
hPC2001 compliant
hChassis Intrusion Detection

1-4
MD-5000 M-ATX Mainboard
Mainboard Layout
MD-5000 M-ATX Mainboard
DDR1
DDR2
AGP Slot
Top : mouse
Bottom: ke
y
board
T: RJ45 LAN
j
ack
B: USB ports
JSPDIF1
JCD1 JVEDIO1
SiS650
Audio Codec
REALTEK
RTL8201BL
AGERE
FW803
BATT
+
BIOS
Winbond
83697HF
SiS
963
SiS
648
IDE1
IDE2FDD1
PCI Slot 1
PCI Slot 2
PCI Slot 3
JAUDIO1
J7
J9
CPUFAN1
JPW1
ATX
PowerSupply
JUSB1
F_P1
JBAT1
6-Channel
Line-out
MIC
Line-in
To p : L P T
Bottom:
COM A
SPDIF in
SPDIF out
IEEE1394
Port
Mini IEEE
1394 Port

2-1
Hardware Setup
Chapter 2. Hardware
Setup
This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the jump-
ers on the mainboard. Also, it provides the instructions on con-
necting the peripheral devices, such as the mouse, keyboard,
etc.
While doing the installation, be careful in holding the com-
ponents and follow the installation procedures.
Hardware Setup

2-2
MD-5000 M-ATX Mainboard
Quick Components Guide
JUSB1, p.2-27
JSPDIF1, p.2-23
DDR DIMMs, p.2-7
CPU, p.2-3 CPUFAN1, p.2-17
FDD1, p.2-15
F_P1, p.2-17
IDE1 & IDE2
p.2-16
JAUDIO1, p.2-19
JBAT1, p.2-25
CONN1, p.2-9
AGP Slot, p.2-28
PCI Slots, p.2-28
Back Panel
I/O, p.2-10
JPW1, p.2-9
J9, p.2-26
J7, p.2-26
JCD1, p.2-25
JVEDIO1, p.2-17

2-3
Hardware Setup
Central Processing Unit: CPU
CPU Core Speed Derivation Procedure
If CPU Clock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHz x 14
= 1.4 GHz
The mainboard supports Intel®Pentium®4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a
heat sink and a cooling fan attached on the top to prevent overheating. If
you do not find the heat sink and cooling fan, contact your dealer to purchase
and install them before turning on the computer.
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, al-
ways make sure the cooling fan can work properly to protect
the CPU from overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power sup-
ply or unplug the power supply’s power cord from grounded
outlet first to ensure the safety of CPU.

2-4
MD-5000 M-ATX Mainboard
CPU Installation Procedures for Socket 478
1. Please turn off the power and
unplug the power cord before
installing the CPU.
2. Pull the lever sideways away
from the socket. Make sure
to raise the lever up to a 90-
degree angle.
3. Look for the gold arrow. The
gold arrow should point to-
wards the lever pivot. The
CPU can only fit in the correct
orientation.
4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation
procedures may cause
permanent damages to your
mainboard.
5. Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your fingers pressing
tightly on top of the CPU to
make sure the CPU is
properly and completely
embedded into the socket.
Open Lever
90 degree
Sliding
Plate
Close
Lever
Press down
the CPU
Gold arrow
Gold arrow
Gold arrow
Correct CPU placement
Incorrect CPU placement
X
O

2-7
Hardware Setup
Memory
DDR DIMM Slots
(DDR 1~2)
The mainboard provides 2 slots for 184-pin DDR SDRAM DIMM
(Double In-Line Memory Module) modules and supports the memory size up
to 2GB. You can install DDR200/266/333 modules on the DDR DIMM slots
(DIMM 1~2).

2-8
MD-5000 M-ATX Mainboard
DIMM Module Combination
Install at least one DIMM module on the slots. You can install either
single- or double-sided modules in any order to meet your own needs.
Memory modules can be installed in any combination as follows:
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The mod-
ule will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in until the golden finger on the memory module is deeply in-
serted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
MSI Reminds You...
You can barely see the golden finger if the module is properly
inserted in the socket.
Volt Notch
S: Single Side D: Double Side
Slot Memory Module Total Memory
DIMM 1
(Bank 0 & 1) S/D 64MB~1GB
DIMM 2
(Bank 2 & 3) S/D 64MB~1GB
Maximum System Memory Supported 64MB~2GB
