MSI MS-6567 User manual

i
MSI
Version 1.0
G52-MA00545
MS-6567 (v1.X) ATX Mainboard
645E Max2 Series
MICRO-STAR INTERNATIONAL
MS6567_Preface_uk.p65 07.05.2002, 15:291

ii
Manual Rev: 1.0
Release Date: Mar. 2002
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-Star International MS-6567
Tested to comply
with FCC Standard
For Home or Office Use
MS6567_Preface_uk.p65 07.05.2002, 15:292

iii
Edition
Mar. 2002
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
Intel®and Pentium®are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows®95/98/2000/NT/ME/XP are registered trademarks of Microsoft
Corporation.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
1.0 First Release Mar. 2002
MS6567_Preface_uk.p65 07.05.2002, 15:293

iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged
zLiquid has penetrated into the equipment
zThe equipment has been exposed to moisture
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged
zIf the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGETEMPERATUREABOVE 600 C (1400F), IT
MAY DAMAGE THE EQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
MS6567_Preface_uk.p65 07.05.2002, 15:294

Getting Started
1-1
Chapter 1. Getting Started
TOPICS
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
Thank you for purchasing 645E Max2 (MS-6567) series ATX
motherboard. The 645E Max2 (MS-6567) series is a superior computer
mainboard based on SiS 645DX & 961B chipsets for optimal system
efficiency. Designed to fit the advanced Intel®Pentium®4 processors in the
478 pin package, the motherboard provides a high performance and profes-
sional desktop platform solution.
1
Getting Started

Chapter 1
1-2
CPU
* Supports Socket 478 for P4 processors (Willimate 478 and Northwood 478)
* FSB @ 400/533 MHz (100/133 MHz QDR)
* Supports 1.3GHz, 1.4GHz, ... 2.4GHz and up
Chipset
* SiS 645DX chipset (702 BGA)
- Supports 64-bit P4 processors at 533MHz
- Supports 32-bit AGP 4x/2x slot
- Supports 64-bit high performance DDR333 / DDR266 memory controller
- Supports bi-directional 16-bit data bus with 533MHz bandwidth MuTIOL
* SiS 961B chipset (371 BGA)
- Supports Dual-IDE ATA 66/100/133
- AC’97 link controller
- Low pin count interface for SIO
Main Memory
* Three 184-pin DDR DIMM sockets
* Maximum memory size up to 3GB without ECC
Slots
* One AGP (2x/4x) universal slot
* Five 32-bit Master PCI slots (PCI v2.2)
* One CNR (Communication Network Riser) slot
On-Board IDE
* Dual IDE controllers integrated in SiS 961B
* Supports PIO, Bus Master, Ultra DMA 66/100/133 operation
* Can connect up to 4 IDE devices
On-Board Peripherals
External:
- PS2 Keyboard + PS2 Mouse
- USB x 2
- Parallel + Serial 2
- Game port + Audio (Mic-in, Line-in, Line-out)
- RJ45 (LAN)
Internal:
- Front Panel (2 x 5) w/ Intel pin definition
- Front USB (2 x 5) w/ Intel pin definition * 2
- Front Audio (2 x 5) w/ Intel pin definition
Mainboard Specification

Getting Started
1-3
- Front IR (2 x 5) w/ Intel pin definition
- IDE x 2, Floppy, ATX power connector
- CPU Fan, System Fan, Audio (CD-in)
Audio
* AC97 link controller integrated in SiS 961B
* 6-channel S/W audio codec ALC 650 (optional)
- Compliance w/ AC97 v2.2 spec.
- Meets PC2001 audio performance requirement
- Supports SPDIF I/O
BIOS
* 2Mb AMI BIOS w/ PnP, ACPI, SMBIOS 2.3, Green and Boot Block
* Provides DMI2.0, WfM2.0, WOR and SMBus for system management.
Dimension
* ATX Form Factor: 30.5 cm (L) x 23 cm (W)
Mounting
* 6 mounting holes
Ethernet Controller Features
* Ethernet Controller chip: Realtek RTL 8101L
* Supports 10 Mb/s and 100 Mb/s N-way Autonegotiation operation
* PCI local bus single-chip Fast Ethernet controller
- Compliant to PCI Revision 2.2
- Supports ACPI, PCI power management
* Compliant to PC99/PC2001 standard
* Supports Wake-On-LAN (WOL) signals (active high, active low, positive pulse,
and negative pulse)
* Half/Full duplex capability
Others
Vcore adjustable
STR support
PC2001 compliant
Supports S-Bracket (optional)
Supports 533MHz FSB
Supports LAN

Chapter 1
1-4
Mainboard Layout
645E Max2 (MS-6567) series ATX Mainboard

Getting Started
1-5
Quick Components Guide
Component Function
DDR1~3 Installing DDR SDRAM modules
Socket 478 Installing CPU
CPUFA Connecting to CPUFAN
SYSFA Connecting to SYSTEM FAN
ATX Power Supply Installing power supply
JPW1 Connecting to 12V power connector
IDE1 & IDE2 Connecting to IDE hard disk drive
FDD1 Connecting to floppy disk drive
JUSB1 Connecting to USB interfaces
PCI Slot 1~5 Installing expansion cards
AGP Slot Installing AGP cards
CNR Slot Installing CNR cards
JBAT1 Clearing CMOS data
JFP1/2 Connecting to case
JIR1 Connecting to IR module
JAUD1 Connecting to audio connector
JDB1 Connecting to D-Bracket™ (optional)
JSP3 Connecting to SPDIF interface (optional
S-Bracket)
JCD1 Connecting to CD-ROM audio connector

Chapter 1
1-6
S-Bracket (Optional)
S-Bracket is a bracket which provides 2 SPDIF jacks for digital audio
transmission and 2 analog Line-Out connectors for additional 4-channel ana-
log audio output. With the S-Bracket, your system will be able to perform 6-
channel audio operation for wonderful surround sound effect, or connect to
Sony & Philips Digital Interface (SPDIF) speakers for audio transmission with
better quality.
The S-Bracket offers two types of SPDIF connectors: one for optical
fiber and the other for coaxial connection. Select the appropriate one to meet
your own need. For more information on S-Bracket, refer to Appendix A: Using
4- or 6-Channel Audio Function.
S-Bracket
SPDIF jack (optical)
SPDIF jack (coaxial)
Analog Line-Out jacks

Hardware Setup
2-1
Chapter 2. Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the compo-
nents and follow the installation procedures. For some components, if you
install in the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.
TOPICS
Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7
Back Panel 2-8
Connectors 2-13
Jumpers 2-22
Slots 2-23
2
Hardware Setup

Chapter 2
2-2
Central Processing Unit: CPU
The mainboard supports Intel®Pentium®4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sink and a cooling fan attached on the top to prevent overheating. If you do not
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
3. Hold the CPU down firmly, and
then close the lever to com-
plete the installation.
CPU Installation Procedures
Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.
WARNING!
2. Look for the gold arrow. The
gold arrow should point to-
wards the lever pivot. The
CPU will only fit in the correct
orientation.
Open Lever
Gold Arrow
Sliding
Plate
Close
Lever
Dot

Hardware Setup
2-3
Installing the CPU Fan
As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly important. To dissi-
pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:
2. Position the heatsink onto the reten-
tion mechanism.
1. Locate the CPU and its retention
mechanism on the motherboard.
3. Mount the fan on top of the heatsink.
Press down the fan until its four clips
get wedged in the holes of the reten-
tion mechanism.
4. Press the two levers down to fasten
the fan. Each lever can be pressed
down in only ONE direction.
retention mechanism
levers

Chapter 2
2-4
CPU Core Speed Derivation Procedure
If CPU Clock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHz x 14
= 1.4GHz
5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector
on the board.
fan power cable
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is
not recommended. We do not guarantee the damages or
risks caused by inadequate operation or beyond product
specifications.
WARNING!

Hardware Setup
2-5

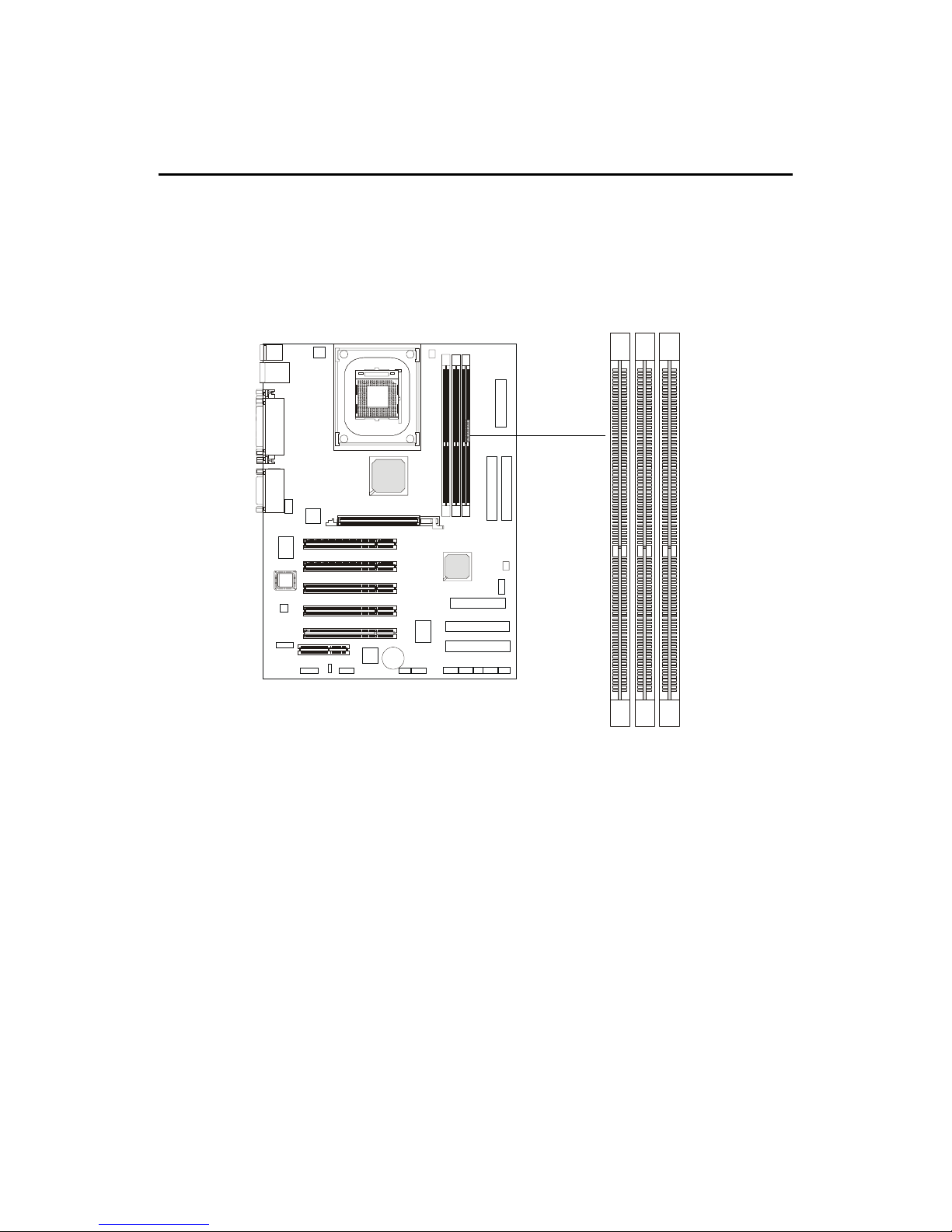

The mainboard provides 3 sockets for 184-pin DDR SDRAM DIMM
(Double In-Line Memory Module) modules and supports the memory size up
to 3GB. You can install PC2700/DDR333, PC2100/DDR266 or PC1600/DDR200
DRAM modules on the DDR DIMM slots (DIMM 1~3).
Memory
DDR DIMM Slots
(DIMM 1~3)
Introduction to DDR SDRAM
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod-
ules rather than 168-pin DIMM modules used by SDR SDRAM. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta-
tions and servers.

Chapter 2
2-6
Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double-
sided modules to meet your own needs.
Memory modules can be installed in any combination as follows:
Slot Memory Module Total Memory
DIMM 1
(Bank 0 & 1)
S/D 64MB~1GB
DIMM 2
(Bank 2 & 3)
S/D 64MB~1GB
DIMM 3
(Bank 4 & 5)
S/D 64MB~1GB
Maximum System Memory Supported 64MB~3GB
DIMM Module Combination
S: Single Side D: Double Side

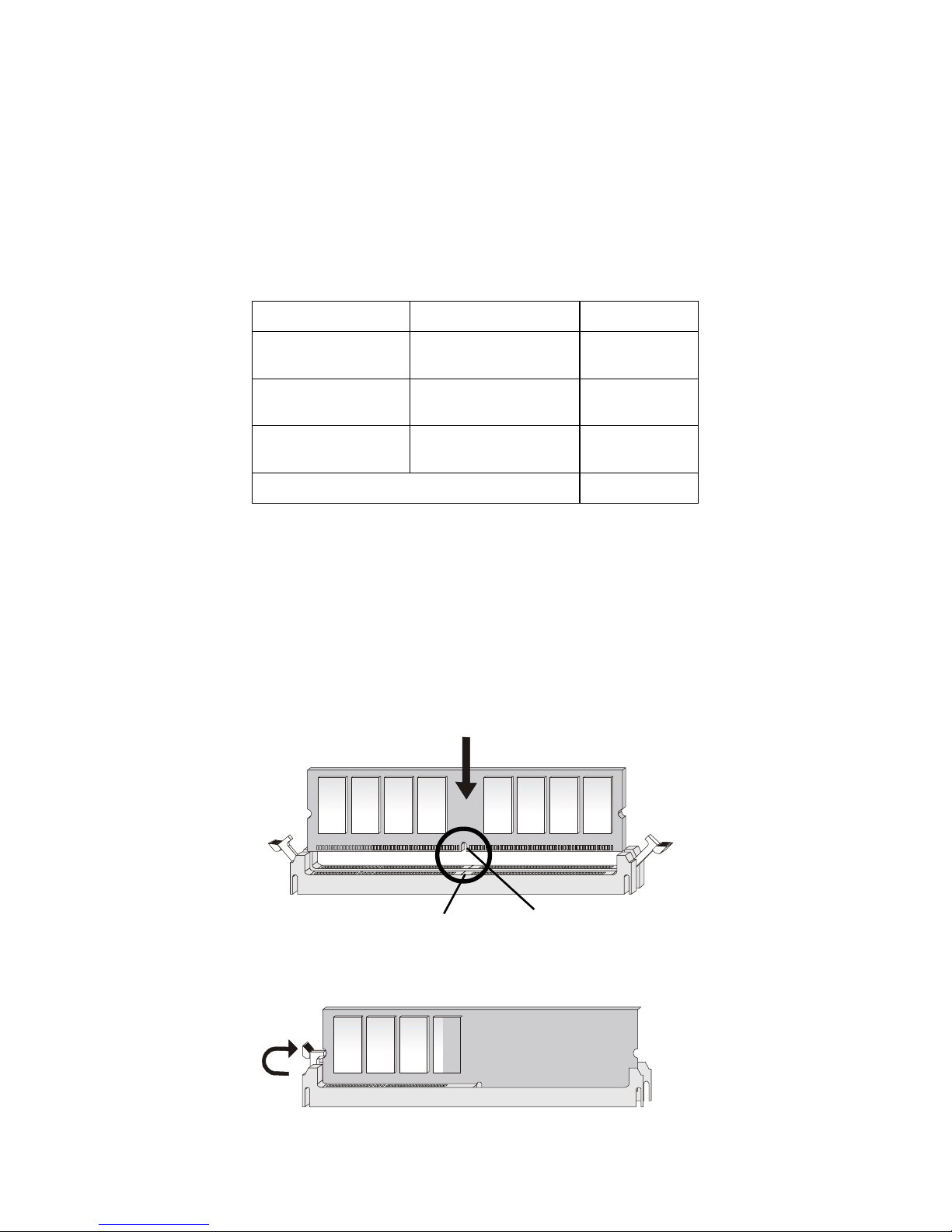

1. Insert the DIMM memory module vertically into the DIMM slot. Then push
it in.
2. The plastic clip at each side of the DIMM slot will automatically close.
Installing DIMM Modules
Volt notch
The DDR DIMM has only one notch on the center of the module. The
module will only fit in the right orientation.

Hardware Setup
2-7
Power Supply
ATX 20-Pin Power Connector: CONN1
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.
The mainboard supports ATX power supply for the power system. Be-
fore inserting the power supply connector, always make sure that all compo-
nents are installed properly to ensure that no damage will be caused.
CONN1
10
1
20
11
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
CONN1 Pin Definition
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
JPW1 Pin Definition
JPW1
1
3
2
4

Chapter 2
2-8

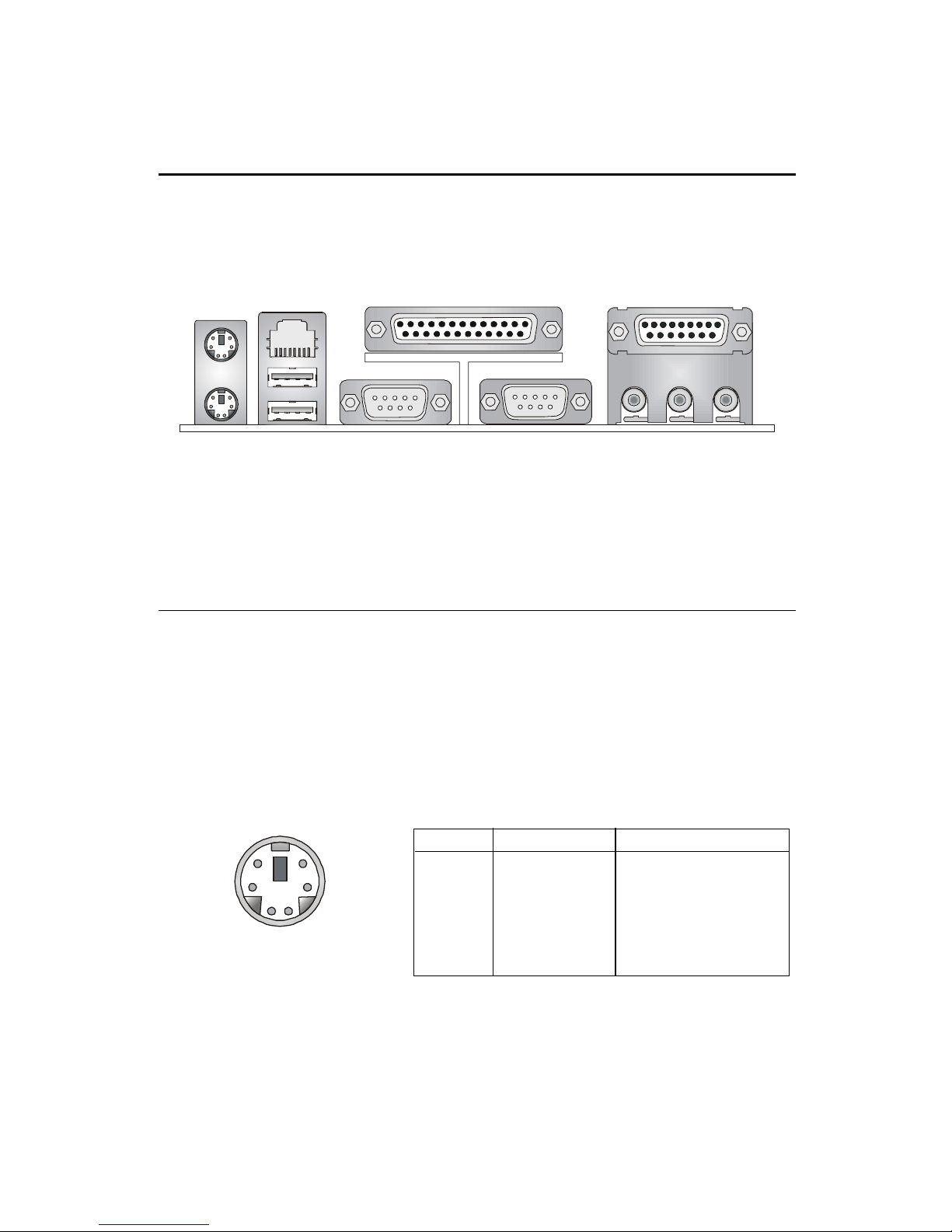

The Back Panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2®mouse mini DIN connector for
attaching a PS/2®mouse. You can plug a PS/2®mouse directly into this
connector. The connector location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Mouse (6-pin Female)
21
3
4
5
6
Mouse
Keyboard USB
Parallel
COM A COM B L-out L-in MIC
Midi/Joystick
LAN
(Optional)

Hardware Setup
2-9
Keyboard Connector
The mainboard provides a standard PS/2®keyboard mini DIN connector
for attaching a PS/2®keyboard. You can plug a PS/2®keyboard directly into
this connector.
USB Connectors
The mainboard provides a OHCI (Open Host Controller Interface) Uni-
versal Serial Bus root for attaching USB devices such as keyboard, mouse or
other USB-compatible devices. You can plug the USB device directly into the
connector.
PIN SIGNAL DESCRIPTION
1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
PIN SIGNAL DESCRIPTION
1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
Pin Definition
USB Port Description
USB Ports
1 2 3 4
5 6 7 8
PS/2 Keyboard (6-pin Female)
21
3
4
5
6

Chapter 2
2-10

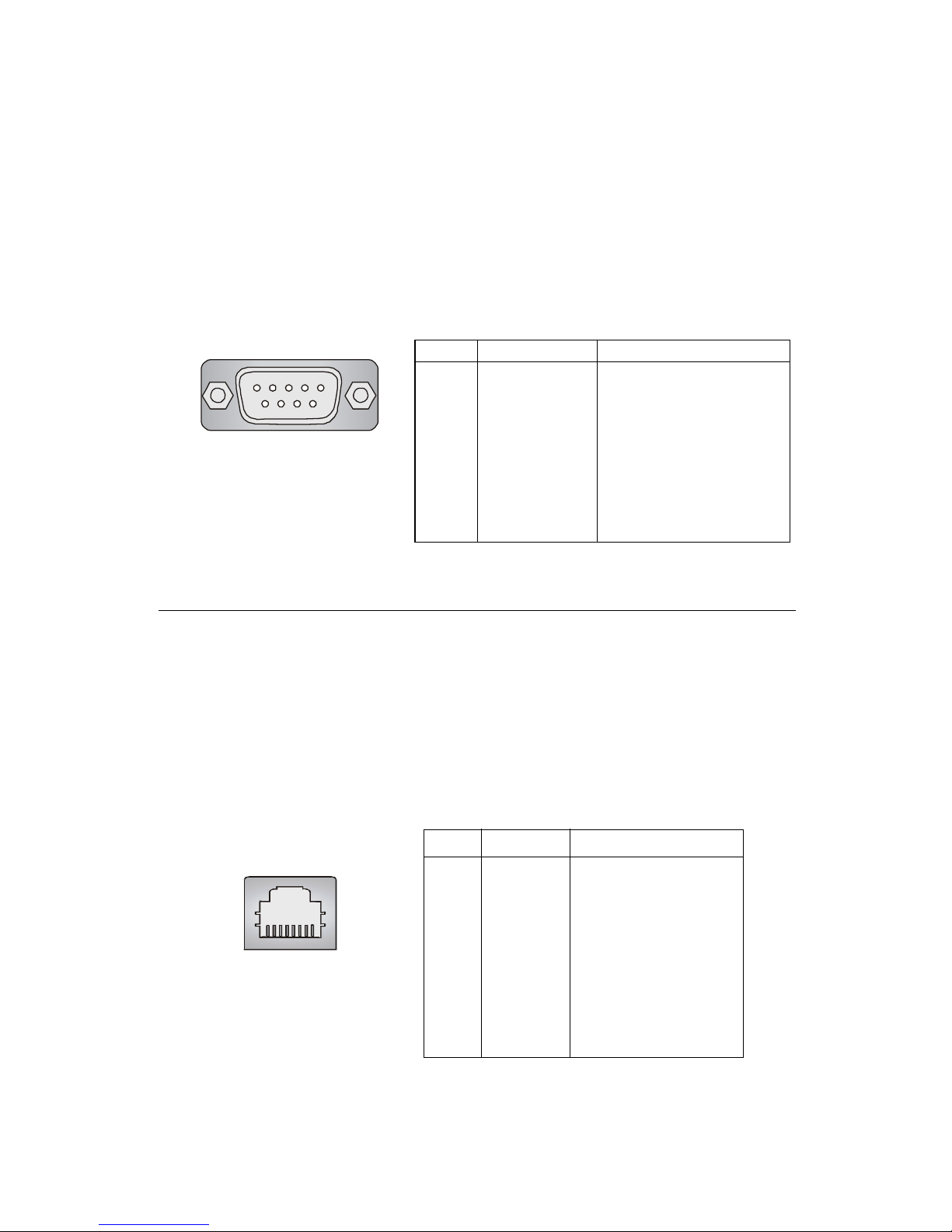

Serial Port Connectors: COM A & COM B
The mainboard offers two 9-pin male DIN connectors as serial port COM
A & COM B. The ports are 16550A high speed communication ports that send/
receive 16 bytes FIFOs. You can attach a serial mouse or other serial devices
directly to the connectors.
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
Pin Definition
9-Pin Male DIN Connector
1 2 3 4 5
6 7 8 9
LAN (RJ-45) Jack (Optional)
The mainboard optionally provides one standard RJ-45 jack for connec-
tion to Local Area Network (LAN). You can connect a network cable to the
LAN jack.
Pin Definition
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
RJ-45 LAN Jack
