MSI MS-7042 User manual

1-1
Getting Started
Chapter 1. Getting
Started
Thank you for purchasing the MS-7042 v1.X M-ATX
mainboard. The MS-7042 is based on VIA®PT800 & VIA®8237
chipsets for optimal system efficiency. Designed to fit the ad-
vanced Intel®Pentium 4 processor in the 478-pin package, MS-
7042 delivers a high performance and professional desktop plat-
form solution.
Getting Started

1-2
MS-7042 M-ATX Mainboard
Mainboard Specifications
CPU
hSupports Socket 478 for Intel®Pentium 4 (Socket 478) processor
hSupports Socket 478 for Intel®Northwood/Prescott processor
hSupports up to 3.6 GHz P4 processor
Chipsets
hVIA®PT800 chipset
- Supports AGP 8x/4x.
- Supports FSB 800/533/400MHz.
- Supports DDR 400/333/266 memory interface.
hVIA®8237 chipset
- High Bandwidth V-link Client Controller.
- Integrated Faster Thernet LPC.
- AC’97 controller.
- Supports 8 USB 2.0/1.1 ports.
MainMemory
hSupports four memory banks using two 184-pin unbuffered DIMM.
hSupports DDR SDRAM 400/333/266.
hMax memory size is 2GB without ECC.
Slots
hThree 32-bit Master PCI Bus slot
hOne AGP(Accelerated Graphic Port) slot
On-BoardIDE
hAn IDE controller on the VIA®8237 chipset provides IDE HDD/CD-ROM
with PIO, Bus Master and Ultra DMA66/100/133 operation modes.
hCan connect up to four IDE devices.
On-Board Peripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88
Mbytes.
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0 / 1.1 ports (Rear*4 / Front*8)

1-3
Getting Started
- 1 RJ45 connector
- 1 Rear 1394 port (6 Pins)
- 1 SPDIF-In / 1 SPDIF-Out
- 3 Line-Out / 1 Line-In / 1 MIC
- 1 game port (internal)
Audio
hS/W C-Media 9761 5.1 channel with SPDIF in/out.
LAN
hVIA®VT 8237 MAC + VIA®VT6103 PHY
IEEE1394
hVIA®VT6307
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hM-ATX Form Factor: 24.5 cm (L) x 23 cm (W)
Mounting
h9 mounting holes
Others
hSupport STR/STD
hPC 2001 compliant

1-4
MS-7042 M-ATX Mainboard
Mainboard Layout
MS-7042 v1.X M-ATX Mainboard
BATT
+
VIA
8237
DIMM2
DIMM1
JAUD1
ATX
PowerSupply
JBAT1
JFW1
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 2
FDD1
IDE1
FANCP U1
AGP Slot
JGP1
JPW1
Codec
JL_IN1
VIA
VT6103
Winbond
W83697HF
JFP1
VIA
PT800
T: m o u s e
B: keyboard
T: R S
Out
B:
Out
M:C/S
Line-Out
T: S P D I F
B:Line-In
-Out
M:MIC
JVID1
JUSB1 JUSB2
VT6307

2-1
Hardware Setup
Chapter 2. Hardware
Setup
This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the jump-
ers on the mainboard. Also, it provides the instructions on
connecting the peripheral devices, such as the mouse, keyboard,
etc.
While doing the installation, be careful in holding the com-
ponents and follow the installation procedures.
Hardware Setup

2-2
MS-7042 M-ATX Mainboard
BATT
+
BIOS
Quick Components Guide
JPW1, p.2-9
CPU, p.2-3
Back Panel
I/O, p.2-10
FANCPU1, p.2-14
IDE1, p.2-15
DDR DIMMs, p.2-7
IDE2, p.2-15
JFW1, p.2-18
PCI slots, p.2-20
JFP1, p.2-18
ATX1, p.2-9
FDD1, p.2-14
JUSB1, JUSB2,
p.2-18
JAUD1, p.2-16
JL_IN1, p.2-17
JVID1, p.2-17
AGP slot, p.2-20
JBAT1, p.2-19
JGP1, p.2-17

2-3
Hardware Setup
Central Processing Unit: CPU
The mainboard supports Intel®Pentium®4 Northwood/Prescott proc-
essor in the 478 pin package. The mainboard uses a CPU socket called PGA478
for easy CPU installation. When you are installing the CPU, make sure the
CPU has a heat sink and a cooling fan attached on the top to prevent
overheating. If you do not find the heat sink and cooling fan, contact your
dealer to purchase and install them before turning on the computer.
Example of CPU Core Speed Derivation Procedure
If CPU Clock = 133MHz
Core/Bus ratio = 23
then CPU core speed = Host Clock x Core/Bus ratio
= 133MHz x 23
= 3.06 GHz

2-4
MS-7042 M-ATX Mainboard
1. Please turn off the power and
unplug the power cord before
installing the CPU.
2. Pull the lever sideways away
from the socket. Make sure
to raise the lever up to a 90-
degree angle.
3. Look for the cut edge. The cut
edge should point towards the
lever pivot. The CPU can only
fit in the correct orientation.
4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation pro-
cedures may cause permanent
damages to your mainboard.
5. Press the CPU down firmly into
the socket and close the lever.
As the CPU is likely to move
while the lever is being closed,
always close the lever with
your fingers pressing tightly
on top of the CPU to make sure
the CPU is properly and com-
pletely embedded into the
socket.
CPU Installation Procedures for Socket 478
Open Lever
Sliding
Plate
Dot / Cut edge
Close
Lever
Press down
the CPU
90 degree
Dot / Cut edge
Correct CPU placement
Dot / Cut edge
Incorrect CPU placement
X
O

2-5
Hardware Setup

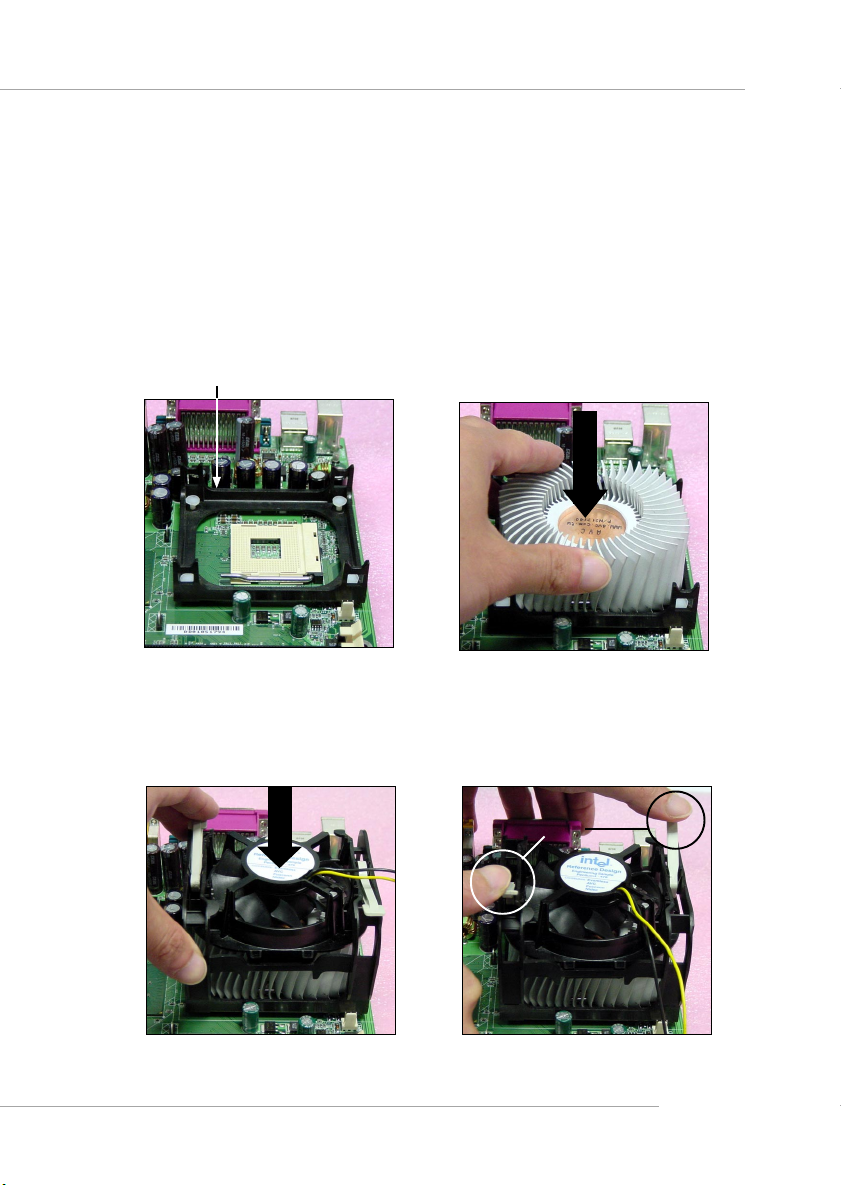

Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance,
thermal management becomes increasingly important. To dissipate heat, you
need to attach the CPU cooling fan and heatsink on top of the CPU. Follow the
instructions below to install the Heatsink/Fan:
2. Position the heatsink onto the reten-
tion mechanism.
1. Locate the CPU and its retention
mechanism on the motherboard.
3. Mount the fan on top of the heatsink.
Press down the fan until its four clips
get wedged in the holes of the reten-
tion mechanism.
4. Press the two levers down to fasten
the fan. Each lever can be pressed
down in only ONE direction.
retention mechanism
levers

2-6
MS-7042 M-ATX Mainboard
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, al-
ways make sure the cooling fan can work properly to protect
the CPU from overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power supply
or unplug the power supply’s power cord from grounded outlet
first to ensure the safety of CPU.
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to toler-
ate such abnormal setting, while doing overclocking. Any at-
tempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks
caused by inadequate operation or beyond product
specifications.
5. Connect the fan power cable from the mounted fan to the 3-pin fan power connec-
tor on the board.
fan power cable

2-7
Hardware Setup
The mainboard provides 2 slots for 184-pin DDR SDRAM DIMM (Double
In-Line Memory Module) modules and supports the memory size up to 2GB.
You can install DDR400/DDR333/DDR266 modules on the DDR DIMM slots
(DDR1~2).
Memory
Introduction to DDR SDRAM
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.6 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod-
ules rather than 168-pin DIMM modules used by SDR SDRAM. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta-
tions and servers.
DDR DIMM Slots
(DIMM 1-2)

2-8
MS-7042 M-ATX Mainboard
DDR Module Combination
Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double-sided
modules to meet your own needs.
Memory modules can be installed in any combination as follows:
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module
will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in until the golden finger on the memory module is deeply inserted
in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
MSI Reminds You...
You can barely see the golden finger if the module is properly
inserted in the socket.
Volt Notch
S: Single Side D: Double Side
Slot Memory Module TotalMemory
DDR 2
(Bank 2 & 3) S/D 64MB~1GB
Maximum System Memory Supported 64MB~2GB
DDR 1
(Bank 0 & 1) S/D 64MB~1GB

2-9
Hardware Setup
Power Supply
The mainboard supports ATX power supply for the power system. Be-
fore inserting the power supply connector, always make sure that all compo-
nents are installed properly to ensure that no damage will be caused.
ATX 20-Pin Power Connector: ATX1
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
ATX1 Pin Definition
PIN SIGNAL
1 GND
2 GND
312V
412V
JPW1 Pin Definition
JPW1
MSI Reminds You...
Power supply of 300 (and up) watt is highly recommended for
system stability.
ATX1
10
1
20
11
13
4
2

2-10
MS-7042 M-ATX Mainboard
The back panel provides the following connectors:
Back Panel
Keyboard
Mouse
SPDIF-Out
MIC
Line-In
COM Port
LAN
6 Channel
Line-Out
IEEE1394
Port
USB Ports
SPDIF-In
Parallel Port
Keyboard Connector
The mainboard provides a standard PS/2®keyboard mini DIN connector
for attaching a PS/2®keyboard. You can plug a PS/2®keyboard directly into
this connector.
Mouse Connector
The mainboard provides a standard PS/2®mouse mini DIN connector for
attaching a PS/2®mouse. You can plug a PS/2®mouse directly into this
connector.
PS/2 Keyboard (6-pin Female)
PS/2 Mouse (6-pin Female)
21
3
4
5
6PIN
1
2
3
4
5
6
Pin Definition
SIGNAL
Mouse DATA
(or Keyboard DATA)
NC
GND
VCC
Mouse Clock
(or Keyboard Clock)
NC
DESCRIPTION
Mouse DATA
(or Keyboard DATA)
No connection
Ground
+5V
Mouse clock
(or Keyboard Clock)
No connection

2-11
Hardware Setup
USB Connectors
The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
the connector.
PIN SIGNAL DESCRIPTION
1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
USB Port Description
USB Ports
1 2 3 4
5 6 7 8
RJ-45 LAN Jack
The mainboard provides a RJ-45 connector that allows your computer
to be connected to a network environment.
IEEE1394 Port
The mainboard provides a rear IEEE 1394 port. The
standard IEEE1394 port connects to IEEE1394 devices with-
out external power. The IEEE1394 high-speed serial bus
complements USB by providing enhanced PC connectiv-
ity for a wide range of devices, including consumer elec-
tronics audio/video (A/V) appliances, storage peripherals,
other PCs, and portable devices.
IEEE1394
Port
(Standard)
LAN Jack
(RJ-45)
Pin Signal Description
1 TDP Transmit differential pair
2 TDN Transmit differential pair
3 RDP Receive differential pair
4 NC Not used
5 NC Not used
6 RDN Receive differential pair
7 NC Not used
8 NC Not used

2-12
MS-7042 M-ATX Mainboard
Serial Port Connector: COM Port
The mainboard offers one 9-pin male DIN connectors as serial port COM
port. This port is a 16550A high speed communication port that sends/receives
16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to
this connector.
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
Pin Definition
9-Pin Male DIN Connector
1 2 3 4 5
6 7 8 9
Audio Port Connectors
This mainboard supports 6-channel audio operation with 2 SPDIF ports.
To have correct audio operation, please connect the speakers to the proper
connectors as illustrated below.
SPDIF-In
SPDIF-Out
MIC
Line-In
Center/ Subwoofer Out
Rear Speaker Out
Line-Out

2-13
Hardware Setup
Parallel Port Connector: LPT1
The mainboard provides a 25-pin female centronic connector as LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.
PIN SIGNAL DESCRIPTION
1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE PaperEnd
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground
Pin Definition
13 1
14
25

2-14
MS-7042 M-ATX Mainboard
The mainboard provides connectors to connect to FDD, IDE HDD, case,
LAN, USB Ports, IR module and CPU/System/Power Supply FAN.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
Fan Power Connectors: FANCPU1
The FANCPU1 (processor fan) supports system cooling fan with +12V. It
supports three-pin head connector. When connecting the wire to the
connectors, always take note that the red wire is the positive and should be
connected to the +12V, the black wire is Ground and should be connected to
GND. If the mainboard has a System Hardware Monitor chipset on-board, you
must use a specially designed fan with speed sensor to take advantage of the
CPU fan control.
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.
FANCPU1
SENSOR
+12V
GND

2-15
Hardware Setup
MSI Reminds You...
If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for
jumper setting instructions.
Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA33/66/100
function. You can connect up to four hard disk drives, CD-ROM, 120MB Floppy
(reserved for future BIOS) and other devices. These connectors support the
provided IDE hard disk cable.
IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can connect a
Master and a Slave drive. You must configure second hard drive to Slave mode
by setting the jumper accordingly.
IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.
IDE1 IDE2

2-16
MS-7042 M-ATX Mainboard
Front Panel Audio Connector: JAUD1
The JAUD1 front panel audio connector allows you to connect front
panel audio devices if available.
PIN SIGNAL DESCRIPTION
1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel
JAUD1 Pin Definition
JAUD1
1
210
9
MSI Reminds You...
If you don’t want to connect to the front audio
header, pins 1 & 2, 3 & 4 have to be jumpered in
order to have signal output directed to the rear
audio ports. Otherwise, the Line-Out connector on
the back panel will not function.
5
10
9
6
