MSI PRO H610M-C EX User manual

PRO H610M-C EX
Motherboard
User Guide
󻺞󼒛󻡷󻼎
Manuel d’utilisation
Benutzerhandbuch

󱣎󵭡󳩿󱱧
󱣎󵭡󳩿󱱥
󲀮󾉣󸔆󴃬󴉩

1
Thank you for purchasing the MSI® motherboard. This User Guide gives
information about board layout, component overview, BIOS setup and software
installation.
Contents
Safety Information........................................................................................................ 2
Specifications................................................................................................................ 3
Special Features........................................................................................................... 6
Back Panel Connectors ............................................................................................... 7
LAN Port LED Status Table .................................................................................... 8
Overview of Components............................................................................................. 9
CPU Socket ........................................................................................................... 10
DIMM Slots............................................................................................................ 11
PCI_E1~3 & PCI1: PCIe & PCI Expansion Slots ................................................... 12
JFP1, JFP2: Front Panel Connectors................................................................... 12
M2_1: M.2 Slot (Key M)......................................................................................... 13
SATA5~8: SATA 6Gb/s Connectors....................................................................... 13
CPU_PWR1, ATX_PWR1: Power Connectors....................................................... 14
JAUD1: Front Audio Connector ............................................................................ 15
CPU_FAN1, SYS_FAN1: Fan Connectors............................................................. 15
JCI1: Chassis Intrusion Connector....................................................................... 16
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 16
JUSB2: USB 3.2 Gen 1 Connector ........................................................................ 17
JUSB1 & JUSB3: USB 2.0 Connectors................................................................. 17
JTPM1: TPM Module Connector........................................................................... 18
JLPT1: Parallel Port Connector ........................................................................... 18
JCOM1: Serial Port Connector ............................................................................. 19
EZ Debug LED....................................................................................................... 19
Installing OS, Drivers & MSI Center.......................................................................... 20
UEFI BIOS.................................................................................................................... 21
BIOS Setup............................................................................................................ 22
Resetting BIOS...................................................................................................... 23
Updating BIOS....................................................................................................... 23

2
Safety Information
The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
Hold the motherboard by the edges to avoid touching sensitive components.
It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
If you need help during any installation step, please consult a certified computer
technician.
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
Keep this user guide for future reference.
Keep this motherboard away from humidity.
Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
All cautions and warnings on the motherboard should be noted.
If any of the following situations arises, get the motherboard checked by service
personnel:
• Liquid has penetrated into the computer.
• The motherboard has been exposed to moisture.
• The motherboard does not work well or you can not get it work according to user
guide.
• The motherboard has been dropped and damaged.
• The motherboard has obvious sign of breakage.
Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Specifications
CPU
Supports 12th Gen Intel® Core™ Processors
Processor socket LGA1700
* Please go to www.msi.com to get the newest support status as new processors
are released.
Chipset Intel® H610 Chipset
Memory
2x DDR5 memory slots, support up to 64GB*
Supports 1R 4800 MHz (by JEDEC & POR)
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
* Please go to www.msi.com for more information on compatible memory.
Expansion Slots
1x PCIe x16 slot (From CPU)
• Supports up to PCIe 4.0 x16
2x PCIe x1 slots (From H610 chipset)
• Supports PCIe 3.0 x1
1x PCI slot (From H610 chipset)
Onboard Graphics
1x HDMI 2.1 with HDR port, supporting a maximum
resolution of 4K 60Hz*/**
1x VGA port, supporting a maximum resolution of
2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x DisplayPort 1.4 port, supporting a maximum resolution
of 4K 60Hz*/**
1x DVI-D port, supporting a maximum resolution of
1920x1200 60Hz
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
SATA Ports 4x SATA 6Gb/s ports (From H610 chipset)*
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot
1x M.2 slot (Key M, from H610 chipset)*
• Supports up to PCIe 3.0 x4
• Supports up to SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Continued on next page

4
Continued from previous page
LAN 1x Realtek® RTL8111H 1 Gbps LAN controller
Power Connectors 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
Internal USB
Connectors
1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
• Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 connectors (From H610 chipset)
• Supports additional 4 USB 2.0 ports
Fan Connectors 1x 4-pin CPU fan connector
1x 4-pin system fan connector
System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x parallel port connector
1x serial port connector
Jumpers 1x Clear CMOS jumper
LED Features 4x EZ Debug LED
Back Panel
Connectors
1x mouse port
1x keyboard port
1x VGA port
1x DVI-D port
1x Serial port
1x DisplayPort port
1x HDMI port
2x USB 2.0 Type-A ports (From H610 chipset)
2x USB 3.2 Gen 1 5Gbps Type-A ports (From H610 chipset)
1x LAN (RJ45) jack
3x audio jacks
I/O Controller NUVOTON NCT6687 Controller Chip
Continued on next page

5
Continued from previous page
Hardware Monitor
CPU/ System/ Chipset temperature detection
CPU/ System fan speed detection
CPU/ System fan speed control
Form Factor M-ATX Form Factor
9.6 in. x 8.7 in. (24.4 cm x 22 cm)
BIOS Features
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
Software
Drivers
MSI Center
Intel Extreme Tuning Utility
CPU-Z MSI GAMING
Google Chrome™, Google Toolbar, Google Drive
Norton™ Internet Security Solution

6
Special Features
MSI Center Features
• Frozr AI Cooling
• User Scenario
• True Color
• Live Update
• Hardware Monitoring
• Super Charger
• Devices Speed Up
• Smart Image Finder
• MSI Companion
• System Diagnosis
Audio
• Audio Boost
Cooling
• Smart Fan Control
LED
• EZ DEBUG LED
Performance
• Memory Boost
• Core Boost
• Lightning Gen 4 PCI-E Slot
Protection
• PCI-E Steel Armor
Experience
• Click BIOS 5
• MSI Center
• EZ M.2 Clip

7
Back Panel Connectors
Item Description
1 VGA port
2 Serial port
3 Mouse port
4 USB 2.0 Type-A ports (From H610 chipset)
5 1 Gbps LAN port
6 Line-in port
7 Line-out port
8 DVI-D port
9 DisplayPort port
10
11 Keyboard port
12 USB 3.2 Gen 1 5Gbps Type-A ports (From H610 chipset)
13 Mic-in port
2
134
5
8 9 10 11 12 13
6
7

8

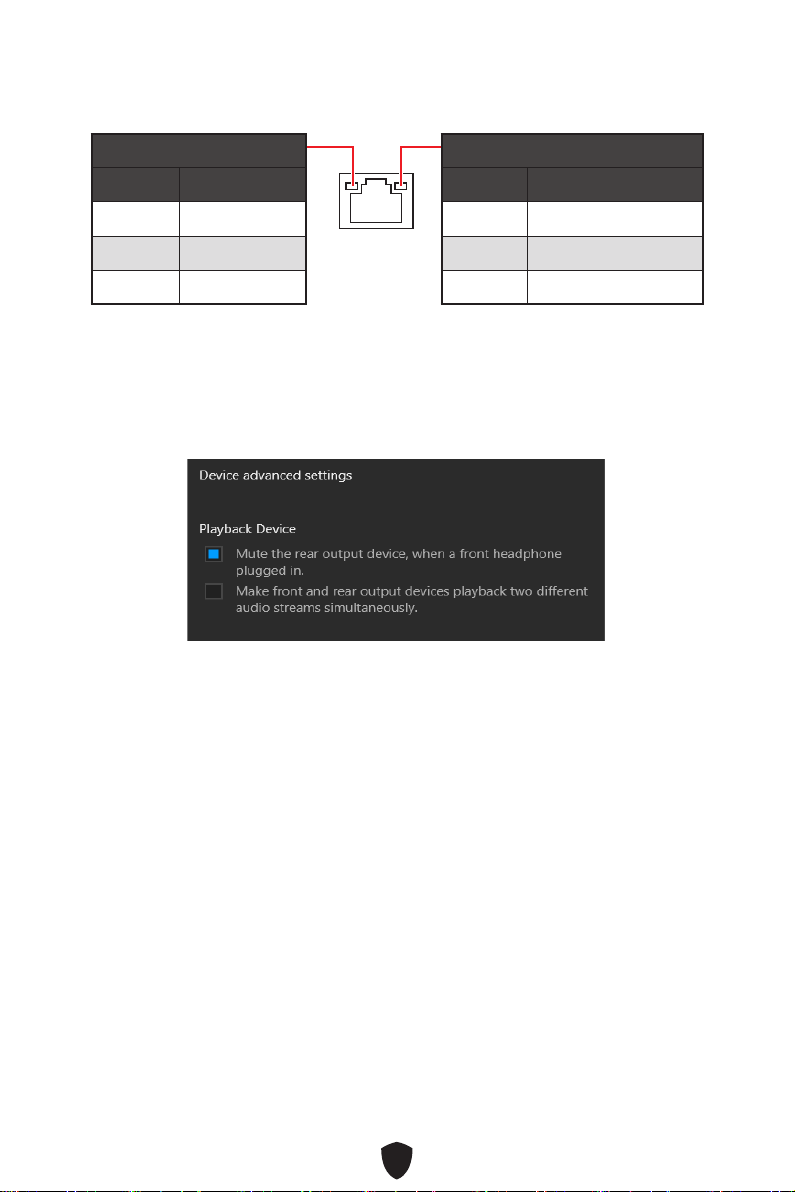

LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Speed
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device is
current connected.

9
BAT1
JUSB3
JUSB2
ATX_PWR1
SYS_FAN1
CPU_FAN1
SATA6
SATA8
SATA7 SATA5
Processor
Socket
CPU_PWR1
JFP2
JFP1
JTPM1 JCOM1 JLPT1
JBAT1
JUSB1 JAUD1
PCI_E2
PCI_E3
PCI1
PCI_E1
JCI1
M2_1
DIMMB1
DIMMA1
Overview of Components
