MSI XPOWER GAMING TITANIUM X99A User manual

1
Unpacking
Unpacking
Thank you for buying the MSI®X99A XPOWER GAMING TITANIUM motherboard. Check
to make sure your motherboard box contains the following items. If something is
missing, contact your dealer as soon as possible.
SATA Cable x10
SLI Bridge 102mm Cable (short) x2
SLI Bridge 140mm Cable (long) x2
Drivers & Utilities
Disc Motherboard User
Guide
I/O Shield
Door Hanger
Quick Guide
Motherboard
SATA Cable Labels
V-Check Cable x6
RGB LED Extension Cable 40cm x1
RGB LED Extension Cable 80cm x1
Case Badge
Antenna x2

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Quick Start
Intel®LGA 2011-3 CPU
DDR4 Memory
Graphics Card
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
Chassis
Power Supply Unit
CPU Fan Thermal Paste
Quick Start

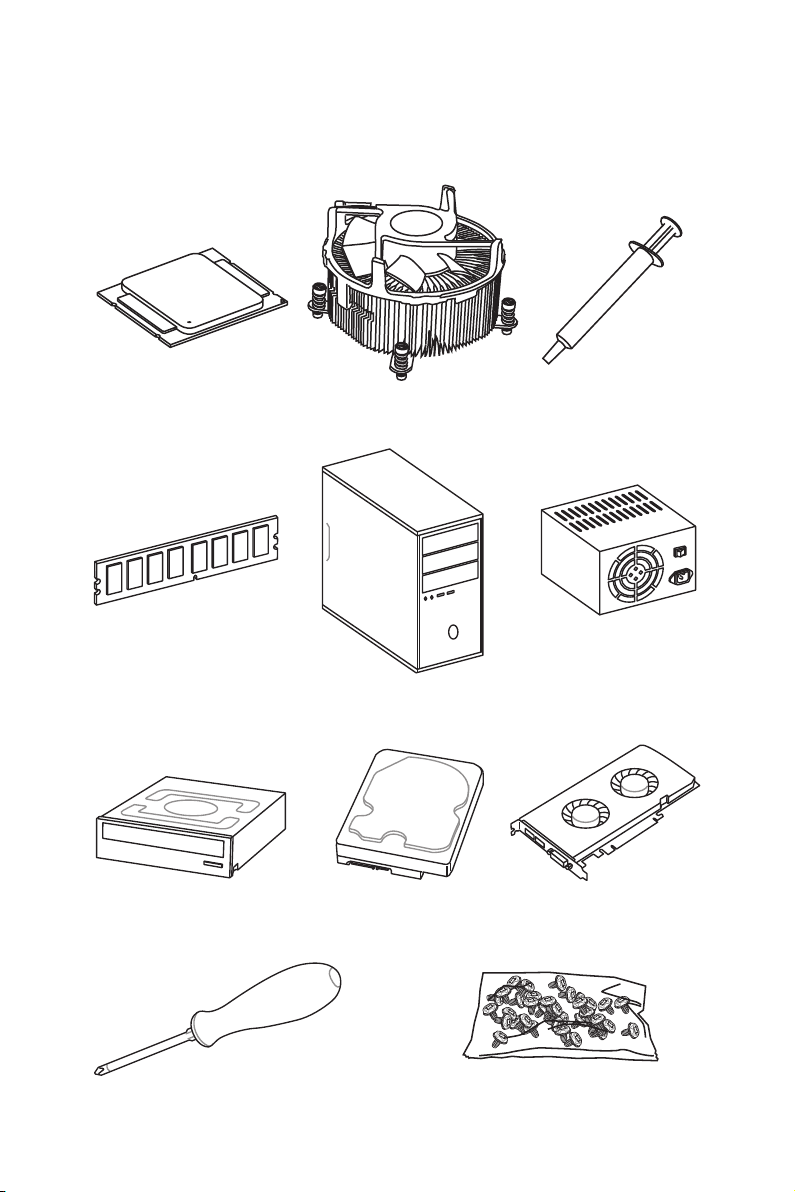

Preparing Tools and Components

4Quick Start
Installing a Processor
1
2
3
6
4
5
789
https://youtu.be/QnwHWBx3NnE
10
11
12
13

5
Quick Start

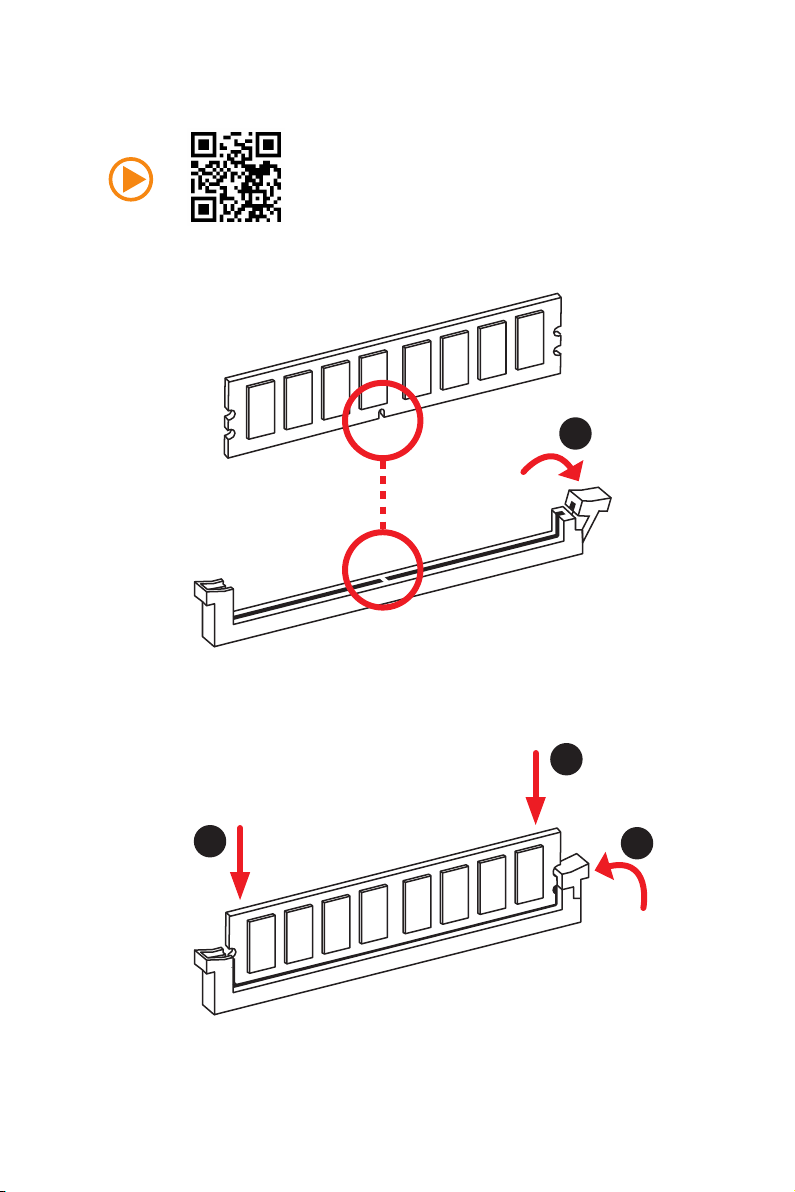

Installing DDR4 memory
http://youtu.be/T03aDrJPyQs
1
2
2
3

6Quick Start
Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

7
Quick Start
Installing the Motherboard
1
2

8Quick Start

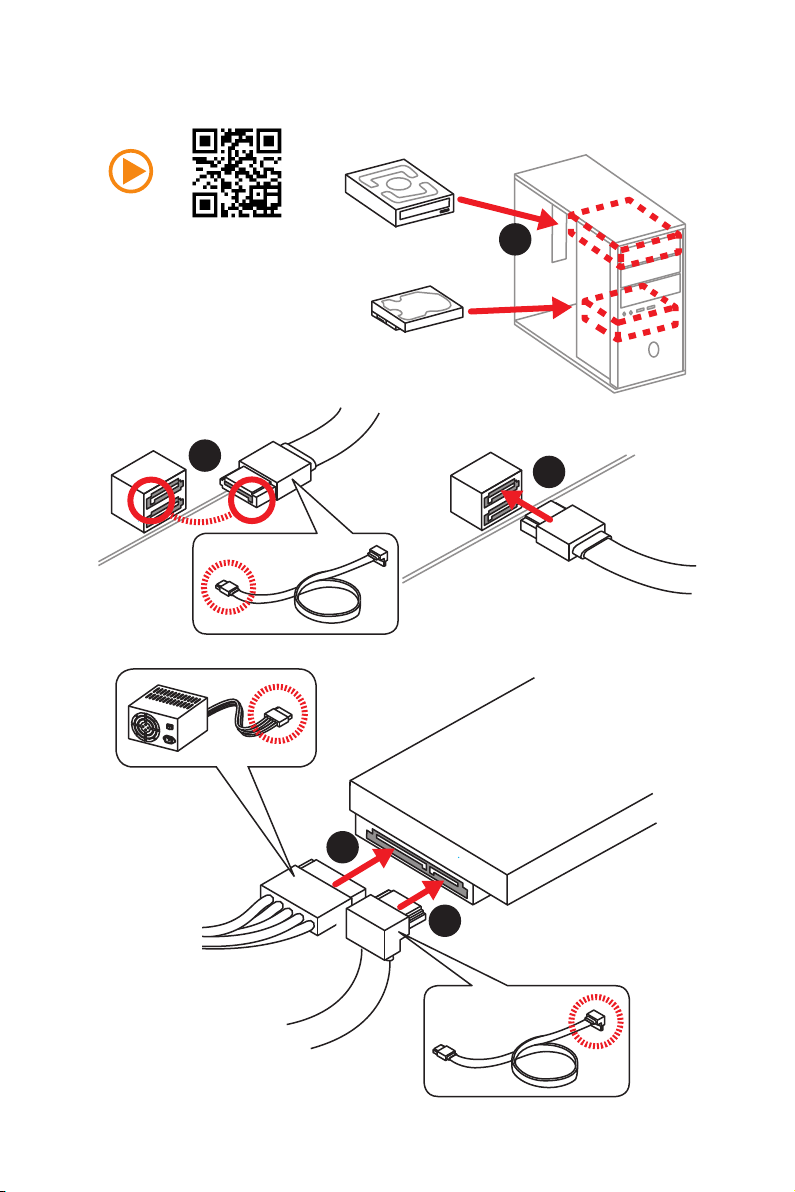

Installing SATA Drives
http://youtu.be/RZsMpqxythc
1
23
4
5

9
Quick Start
1
4
5
Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
2
3

10 Quick Start
Connecting Peripheral Devices

11
Quick Start

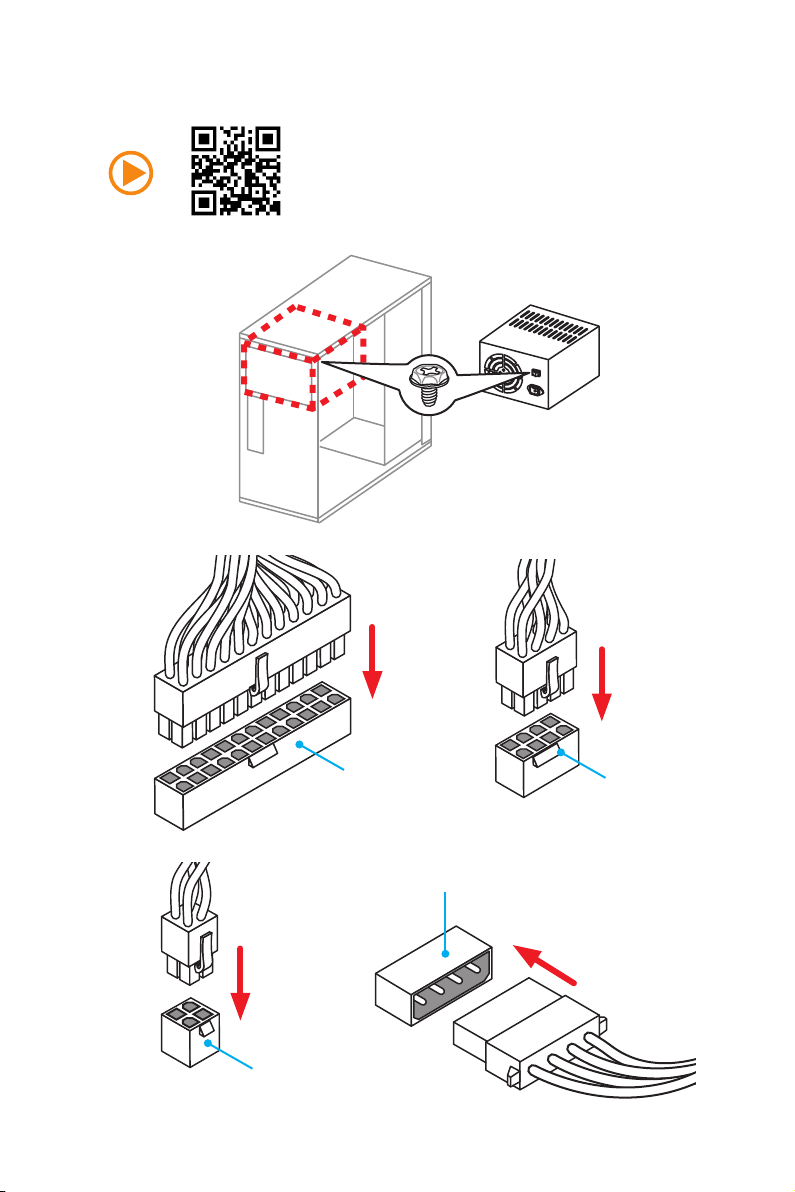

Connecting the Power Connectors
http://youtu.be/gkDYyR_83I4
JPWR1 JPWR3
JPWR4
JPWR2

12 Quick Start

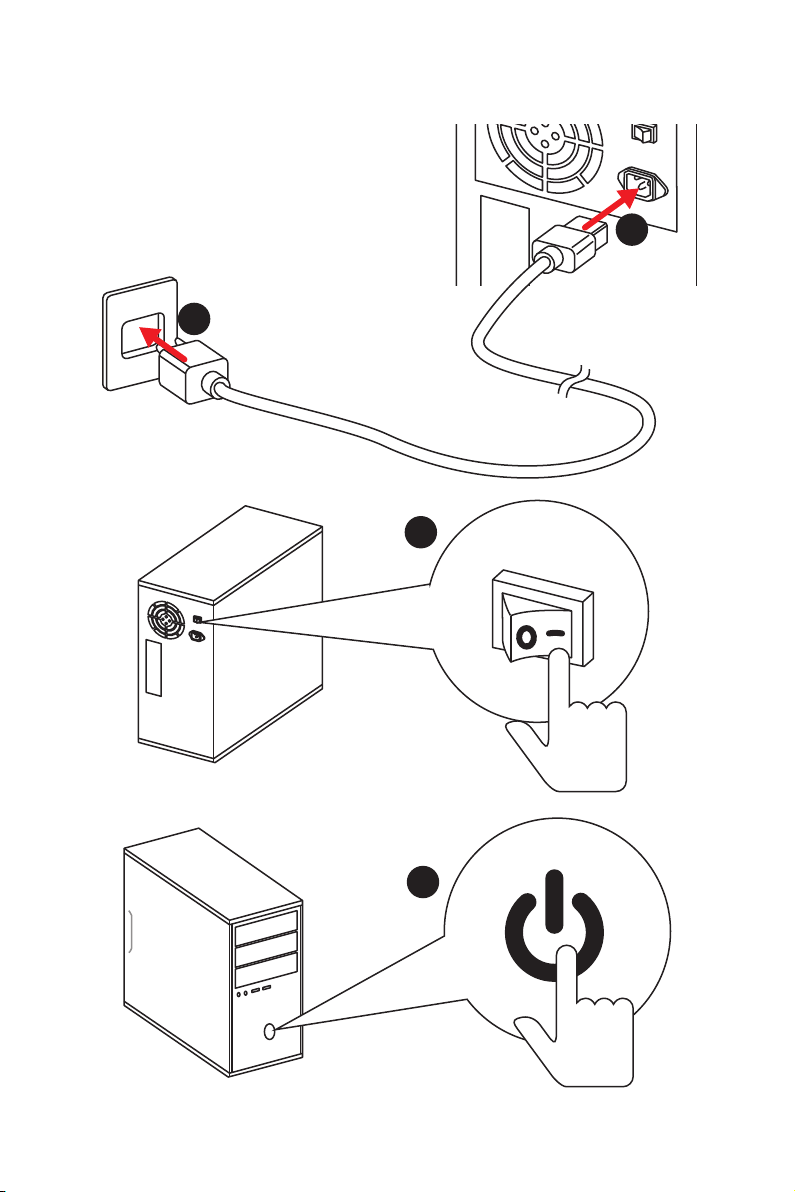

Power On
1
4
2
3

13
Contents
Contents
Unpacking .............................................................................................................. 1
Safety Information................................................................................................. 2
Quick Start ............................................................................................................. 3
Preparing Tools and Components.......................................................................... 3
Installing a Processor............................................................................................. 4
Installing DDR4 memory ........................................................................................ 5
Connecting the Front Panel Header....................................................................... 6
Installing the Motherboard..................................................................................... 7
Installing SATA Drives............................................................................................. 8
Installing a Graphics Card ...................................................................................... 9
Connecting Peripheral Devices............................................................................ 10
Connecting the Power Connectors....................................................................... 11
Power On............................................................................................................... 12
Specifications....................................................................................................... 16
Block Diagram .................................................................................................... 23
Rear I/O Panel ..................................................................................................... 24
LAN Port LED Status Table................................................................................... 24
Audio Ports Configuration.................................................................................... 24
Realtek HD Audio Manager .................................................................................. 25
Installing Antennas............................................................................................... 27
Overview of Components .................................................................................... 28
CPU Socket ........................................................................................................... 30
DIMM Slots............................................................................................................ 31
PCI_E1~6: PCIe Expansion Slots.......................................................................... 33
PEGSW1: PCIe CeaseFire Switch ......................................................................... 35
SATA1~10: SATA 6Gb/s Connectors ..................................................................... 36
SE1_65: SATAe Connectors .................................................................................. 36
M2_1: M.2 Slot (Key M)......................................................................................... 37
U2_1: U.2 Connector............................................................................................. 38
SE_USB_SW1: SE USB Switch ............................................................................. 39
OC1: GAME BOOST Knob ..................................................................................... 42
SLOW_1, JSLOW_1: Slow Mode Booting Switch/ Jumper ................................... 43
JPWR1~4: Power Connectors............................................................................... 44
JFP1, JFP2: Front Panel Connectors ................................................................... 45
JUSB3~4: USB 3.1 Gen1 Connectors ................................................................... 45
USB5: USB 3.1 Gen1 Type-C Connector............................................................... 46

14 Contents
JUSB1~2: USB 2.0 Connectors............................................................................. 47
JTPM1: TPM Module Connector........................................................................... 47
CPUFAN1,SYSFAN1~3, OPTFAN1~2, PUMPFAN1: Fan Connectors .................... 48
FV1: V-Check Points Connectors ......................................................................... 49
JAUD1: Front Audio Connector ............................................................................ 50
JCI1: Chassis Intrusion Connector....................................................................... 50
BIOS_SW1: Multi-BIOS Switch............................................................................. 51
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 52
DISCH1: Discharge Button ................................................................................... 52
FLASHB1: BIOS FLASHBACK+ Button................................................................. 53
POWER1, RESET1: Power Button, Reset Button ................................................. 53
SW-TACT1~2, BLKOC_SEL1: Plus, Minus Button, BCLK-Ratio Switch.............. 53
OC_RT1, OC_FS1 : OC Retry Button, OC Force Enter BIOS Button ..................... 54
JLED1: RGB LED connector ................................................................................. 54
LED Status Indicators.......................................................................................... 55
LED Status Table................................................................................................... 55
Debug Code LED Table ......................................................................................... 56
BIOS Setup ........................................................................................................... 57
Entering BIOS Setup............................................................................................. 57
Resetting BIOS...................................................................................................... 58
Updating BIOS....................................................................................................... 58
EZ Mode ................................................................................................................ 60
Advanced Mode .................................................................................................... 62
SETTINGS.............................................................................................................. 63
Advanced............................................................................................................... 63
Boot....................................................................................................................... 69
Security................................................................................................................. 69
Save & Exit............................................................................................................ 70
OC.......................................................................................................................... 71
M-FLASH .............................................................................................................. 81
OC PROFILE.......................................................................................................... 82
HARDWARE MONITOR.......................................................................................... 83
Software Description........................................................................................... 84
Installing Windows®7/ 8.1/ 10.............................................................................. 84
Installing Drivers .................................................................................................. 84
Installing Utilities ................................................................................................. 84
COMMAND CENTER ............................................................................................. 85
LIVE UPDATE 6...................................................................................................... 89
GAMING APP......................................................................................................... 91

15
Contents
M-CLOUD.............................................................................................................. 95
RAMDISK............................................................................................................... 98
USB SPEED UP..................................................................................................... 99
GAMING LAN MANAGER .................................................................................... 100
Nahimic 2............................................................................................................ 102
XSplit Gamecaster V2 ......................................................................................... 106
Intel®Extreme Tuning Utility.............................................................................. 110
Intel®Turbo Boost Max Technology 3.0 Application / Driver ............................ 111
DRAGON EYE ...................................................................................................... 113
RAID Configuration............................................................................................ 114
Using Intel®Rapid Storage Technology Option ROM ......................................... 114
Degraded RAID Array ......................................................................................... 117
Troubleshooting ................................................................................................ 119
Regulatory Notices............................................................................................ 120

16 Specifications
Specifications
CPU
ySupports New Intel®Core™ i7 Processor Extreme Edition
for LGA2011-3 Socket
ySupports Intel®Turbo Boost Max Technology 3.0*
* This function will be supported depend on the CPU.
Chipset Intel®X99 Chipset
Memory
y8x DDR4 memory slots, support up to 128GB*
Supports DDR4 3466(OC) /3400(OC)/ 3333(OC)/ 3200(OC)/
3000(OC)/ 2933(OC)/ 2800(OC) / 2666(OC)/ 2600(OC)/
2400/ 2200(OC)/ 2133 MHz
yQuad channel memory architecture
ySupports non-ECC, un-buffered memory
ySupports Intel®Extreme Memory Profile (XMP)
ySupports RDIMM 1Rx8 memory module (Operates in non-
ECC mode)
* For the latest information about memory, please visit http://www.msi.com
Expansion Slots
y5x PCIe 3.0 x16 slots (PCI_E1~PCI_E4 & PCI_E6*), support
up to 4-way mode.
1-way mode: x16/x0/x0/x0/x0
2-way mode: x16/x0/x0/x16/x0**, x16/x0/x0/x8/x0***
3-way mode: x16/x0/x0/x16/x8** x8/x8/x0/x8/x0***
4-way mode: x8/x8/x0/x16/x8**, x8/x8/x0/x8/x4***
y1x PCIe 2.0 x1 slot (PCI_E5)
* PCI_E6 slot, U.2 port and M.2 PCIe 3.0 x4 share the same bandwidth. Please
refer to page 33 for PCIe bandwidth tables.
** For the CPU that supports 40 PCIe lanes
*** For the CPU that supports 28 PCIe lanes
Multi-GPU ySupports 4-Way AMD®CrossFire™ Technology
ySupports 4-Way NVIDIA®SLI™ Technology
Storage
Intel®X99 Chipset
y10x SATA 6Gb/s ports (2 ports from SATAe port)
y1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
y1x U.2 port*
Supports PCIe 3.0 x4 NVMe storage
y1x SATAe port (compatible with 2 SATA ports)**
Supports up to PCIe 2.0x2
ySupports Intel®Smart Response Technology***
* The U.2 port will be unavailable when installing the PCIe device in PCI_E6
slot.
** SATAe port is backward compatible with SATA.
*** This function will be supported depend on the CPU.
Continued on next page

17
Specifications
Continued from previous page
RAID
Intel®X99 Chipset
ySATA1~6 ports support RAID 0, RAID1, RAID 5 and RAID 10
ySATA7~10 ports only support IDE mode and AHCI mode.
USB
yASMedia®ASM1142 Chipset
2x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1
Type-A port and 1 Type-C port on the board)
2x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal JUSB4 connector.
yVIA®VL805 Chipset
4x USB 3.1 Gen1 (SuperSpeed USB) ports on the back
panel
yIntel®X99 Chipset
5x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A
ports on the back panel, 1 internal Type-C port on the
board, 2 ports available through the internal JUSB3
connector)
7x USB 2.0 (High-speed USB) ports (3 ports on the
back panel, 4 ports available through the internal USB
connectors)
Audio
yRealtek®ALC1150 Codec
y7.1-Channel High Definition Audio
ySupports S/PDIF output
LAN 1x Intel I218-V Gigabit LAN controller
WLAN & Bluetooth®
yWi-Fi/ Bluetooth®expansion module with Intel®Dual Band
Wireless-AC 8260 chip
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,
5GHz) up to 867 Mbps speed.
Supports Dual Mode Bluetooth®2.1, 2.1+EDR, 3.0, 4.0,
BLE, 4.2
Back Panel
Connectors
y1x PS/2 keyboard/ mouse combo port
y3x USB 2.0 ports
1x BIOS FLASHBACK+ port
y1x Clear CMOS button
y1x USB 3.1 Gen2 port
y1x USB 3.1 Gen2 Type-C port
y6x USB 3.1 Gen1 ports
y1x LAN (RJ45) port
y1x Optical S/PDIF OUT connector
y5x OFC audio jacks
Continued on next page

18 Specifications
Continued from previous page
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y1x 4-pin ATX 12V power connector
y1x flat 4-pin ATX 12V power connector*
y10x SATA 6Gb/s connectors
y2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
y2x USB 3.1 Gen1 connectors (supports additional 4 USB
3.1 Gen1 ports)
y1x USB 3.1 Gen1 Type-C port
y1x 4-pin CPU fan connector
y1x 4-pin Water Pump connector
y2x 4-pin OPT fan connectors
y3x 4-pin system fan connectors
y1x Front panel audio connector
y1x RGB LED connector
y1x TPM module connector
y1x OC retry button
y1x OC force enter BIOS button
y2x Front panel connectors
y1x Chassis Intrusion connector
* Provides additional power to PCIe x16 slots
Buttons
y1x GAME BOOST button
y1x Power button
y1x Reset button
y1x BCLK+/ Ratio+ button
y1x BCLK-/ Ratio- button
y1x BIOS FLASHBACK+ button
Switches
y1x Multi-BIOS switch
y1x PCIe CeaseFire switch
y1x Slow mode booting switch
y1x BCLK-Ratio switch
y1x SE_USB switch*
* Please refer to page 39 for SE USB switch with examples of various
combination possibilities.
Jumpers y1x Slow mode booting jumper
y1x Clear CMOS jumper
Continued on next page

19
Specifications
Continued from previous page
Debug LED y1x 2-Digit Debug Code LED
I/O Controller NUVOTON NCT6792D Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yEATX Form Factor
y12.0 in. x 10.7 in. (30.5 cm x 27.2 cm)
BIOS Features
y2x 128 Mb flash
yUEFI AMI BIOS
yACPI 5.0, PnP 1.0a, SM BIOS 2.8
yMulti-language
Software
yDrivers
yCOMMAND CENTER
yLIVE UPDATE 6
yFAST BOOT
ySUPER CHARGER
yGAMING APP
ySMART UTILITIES
yM-CLOUD
yRAMDISK
yUSB SPEED UP
yGAMING LAN MANAGER
yNahimic 2
yXSplit Gamecaster V2
yIntel®Extreme Tuning Utility
yNorton™ Internet Security Solution
yGoogle Chrome™ ,Google Toolbar, Google Drive
ySteelSeries Engine 3
yCPU-Z
yDRAGON EYE
yIntel®Turbo Boost Max Technology 3.0
Continued on next page

20 Specifications
Continued from previous page
Enthusiast GAMING
Features
yAUDIO BOOST 3
Isolated Audio PCB
EMI Shielding
Dual Headphone Amplifiers
High Quality Audio Capacitors
Golden Audio Connectors
yGAME BOOST
Easy Overclocking
7 Gear Clock Change
yGAMING LAN
Intel®Gigabit Ethernet
GAMING Network Manager power by cFos
Electric Wave Surge
yGAMING APP
System Mode Switching: OC/Gaming/Silent
Gaming Hotkey
Gaming Mouse Control
Gaming LED Control
yOptimized Thermal Design
Heat-pipe Direct Touch Technology
Enhanced Choke Thermal Design
yNahimic 2
Sound Tracker
HD Audio Recorder 2
Expert Mode
Sound Effect Equalizer
Microphone Noise Reduction
yXSplit
XSplit GAMECASTER V2
XSplit BROADCASTER V2
yGAMING CERTIFIED
yWTFast GPN*
2-Month Premium License
Multi-Server Network Optimization
Advanced Lag Spike & Disconnect Reduction
* This offer is valid for a limited period only, for more information please visit
www.msi.com
Continued on next page
