MSI Z370 GAMING PLUS User manual

1
Unpacking
Unpacking
Thank you for buying the MSI®Z370 GAMING PLUS motherboard. Check to make sure
your motherboard box contains the following items. If something is missing, contact
your dealer as soon as possible.
SATA Cable x2
Drivers & Utilities
Disc Motherboard User
Guide
I/O Shield
Motherboard

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on the
PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place anything
over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Quick Start
Intel®LGA 1151 CPU
DDR4 Memory
Graphics Card
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
Chassis
Power Supply Unit
CPU Fan Thermal Paste
Quick Start
Preparing Tools and Components

4Quick Start
http://youtu.be/bf5La099urI
Installing a Processor
1
2
3
6
45
7
8
9

5
Quick Start
1
1
2
2
3
3
Installing DDR4 memory
http://youtu.be/T03aDrJPyQs
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1

6Quick Start
Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

7
Quick Start
BAT1
Installing the Motherboard
1
2

8Quick Start
Installing SATA Drives
http://youtu.be/RZsMpqxythc
1
23
4
5

9
Quick Start
1

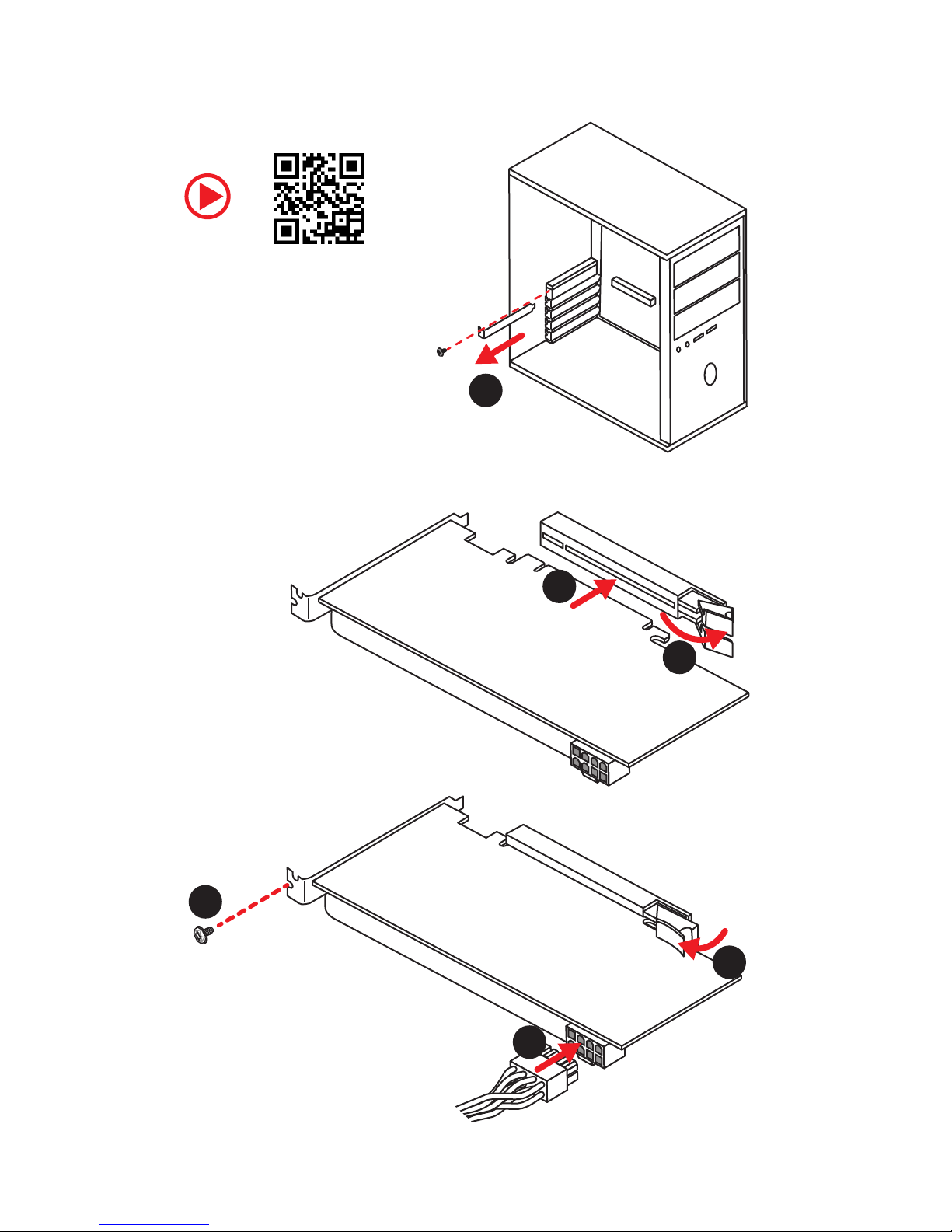

Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
2
3
4
5
6

10 Quick Start
Connecting Peripheral Devices

11
Quick Start
Connecting the Power Connectors
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

12 Quick Start
Power On
1
4
2
3

13
Contents
Contents
Unpacking .............................................................................................................. 1
Safety Information................................................................................................. 2
Quick Start ............................................................................................................. 3
Preparing Tools and Components.......................................................................... 3
Installing a Processor............................................................................................. 4
Installing DDR4 memory ........................................................................................ 5
Connecting the Front Panel Header....................................................................... 6
Installing the Motherboard..................................................................................... 7
Installing SATA Drives............................................................................................. 8
Installing a Graphics Card ...................................................................................... 9
Connecting Peripheral Devices............................................................................ 10
Connecting the Power Connectors....................................................................... 11
Power On............................................................................................................... 12
Specifications....................................................................................................... 16
Block Diagram .................................................................................................... 21
Rear I/O Panel ..................................................................................................... 22
LAN Port LED Status Table................................................................................... 22
Audio Ports Configuration.................................................................................... 22
Realtek HD Audio Manager .................................................................................. 23
Overview of Components .................................................................................... 25
CPU Socket ........................................................................................................... 27
DIMM Slots............................................................................................................ 28
PCI_E1~6: PCIe Expansion Slots.......................................................................... 29
M2_1: M.2 Slot (Key M) ......................................................................................... 30
SATA1~6: SATA 6Gb/s Connectors ....................................................................... 31
JFP1, JFP2: Front Panel Connectors ................................................................... 31
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 32
JCOM1: Serial Port Connector ............................................................................. 32
JUSB1~2: USB 2.0 Connectors............................................................................. 33
JUSB3~4: USB 3.1 Gen1 Connectors ................................................................... 33
CPU_FAN1,SYS_FAN1~4, PUMP_FAN1: Fan Connectors.................................... 34
JAUD1: Front Audio Connector ............................................................................ 35
JCI1: Chassis Intrusion Connector....................................................................... 35
JTPM1: TPM Module Connector........................................................................... 36
JLPT1: Parallel Port Connector ........................................................................... 36
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 37

14 Contents
EZ Debug LED....................................................................................................... 37
JRGB1: RGB LED connector................................................................................. 38
PCIe x16 slot LEDs................................................................................................ 38
BIOS Setup ........................................................................................................... 39
Entering BIOS Setup............................................................................................. 39
Resetting BIOS...................................................................................................... 40
Updating BIOS....................................................................................................... 40
EZ Mode ................................................................................................................ 41
Advanced Mode .................................................................................................... 43
SETTINGS.............................................................................................................. 44
Advanced............................................................................................................... 44
Boot....................................................................................................................... 50
Security................................................................................................................. 51
Save & Exit............................................................................................................ 52
OC.......................................................................................................................... 53
M-FLASH .............................................................................................................. 61
OC PROFILE.......................................................................................................... 62
HARDWARE MONITOR.......................................................................................... 63
Software Description........................................................................................... 64
Installing Windows®10......................................................................................... 64
Installing Drivers .................................................................................................. 64
Installing Utilities ................................................................................................. 64
APP MANAGER ..................................................................................................... 65
LIVE UPDATE 6...................................................................................................... 66
COMMAND CENTER ............................................................................................. 68
GAMING APP......................................................................................................... 72
X-BOOST ............................................................................................................... 77
MYSTICLIGHT........................................................................................................ 79
MSI SMART TOOL ................................................................................................. 81
RAMDISK............................................................................................................... 83
GAMING LAN MANAGER ...................................................................................... 84
DRAGON EYE ........................................................................................................ 86
SteelSeries Engine 3 ............................................................................................ 87
Intel®Extreme Tuning Utility................................................................................ 89
CPU-Z.................................................................................................................... 90
TriDef VR............................................................................................................... 91
TriDef SmartCam.................................................................................................. 94
RAID Configuration.............................................................................................. 95

15
Contents
Using Intel®Rapid Storage Technology Option ROM ........................................... 95
Degraded RAID Array ........................................................................................... 98
Intel®Optane™ Memory Configuration ............................................................ 100
System Requirements ....................................................................................... 100
Installing the Intel®Optane™ memory .............................................................. 100
Removing the Intel®Optane™ memory ............................................................. 102
Troubleshooting.................................................................................................. 103
Troubleshooting ................................................................................................ 104
Regulatory Notices............................................................................................ 105

16 Specifications
Specifications
CPU ySupports 8th Gen Intel®Core™processors, and Intel®
Pentium®and Celeron®processors for Socket LGA1151
Chipset Intel® Z370 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB
ySupports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/
3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)
/ 2800(OC)/ 2667/ 2400/ 2133 MHz*
yDual channel memory architecture
ySupports non-ECC UDIMM memory
ySupports Intel®Extreme Memory Profile (XMP)
*Please refer to www.msi.com for more information on compatible memory.
Expansion Slots y2x PCIe 3.0 x16 slots
y4x PCIe 3.0 x1 slots
Onboard Graphics
y1x VGA port, supports a maximum resolution of
2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
y1x DVI-D port, supports a maximum resolution of
1920x1200@60Hz
y1x DisplayPort, supports a maximum resolution of
4096x2304@24Hz, 3840x2160@60Hz, 1920x1200@60Hz
Multi-GPU ySupports 2-Way AMD®CrossFire™Technology
Storage
Intel®Z370 Chipset
y6x SATA 6Gb/s ports*
y1x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
Intel®Optane™ Memory Ready**
* The SATA1 port will be unavailable when M.2 SATA SSD has been installed in
M.2 slot.
** Please refer to page 100 for Intel®Optane™ Memory Configuration.
Continued on next page

17
Specifications
Continued from previous page
RAID
Intel®Z370 Chipset
ySupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
USB
yIntel®Z370 Chipset
8x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A
ports on the back panel, 4 ports available through the
internal USB connectors)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB connectors)
Audio yRealtek®ALC892 Codec
y7.1-Channel High Definition Audio
LAN 1x Intel®I219-V Gigabit LAN controller
Back Panel
Connectors
y1x PS/2 mouse / keyboard combo port
y2x USB 2.0 ports
y1x VGA port
y1x DVI-D port
y1x DisplayPort port
y1x LAN (RJ45) port
y4x USB 3.1 Gen1 Type-A ports
y6x OFC audio jacks
Continued on next page

18 Specifications
Continued from previous page
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y6x SATA 6Gb/s connectors
y2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1
Gen1 ports)
y2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
y1x 4-pin CPU fan connector
y1x 4-pin water pump fan connector
y4x 4-pin system fan connectors
y1x Front panel audio connector
y2x Front panel connectors
y1x RGB LED connector
y1x TPM module connector
y1x Chassis Intrusion connector
y1x Parallel port connector
y1x Serial port connector
y1x Clear CMOS jumper
I/O Controller NUVOTON NCT6795 Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
From Factor yATX Form Factor
y12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 6.0, SM BIOS 2.8
yMulti-language
Continued on next page

19
Specifications
Continued from previous page
Software
yDrivers
yAPP MANAGER
ySUPER CHARGER
yCOMMAND CENTER
yLIVE UPDATE 6
ySMART TOOL
yRAMDISK
yDPC Latency Tuner
yFAST BOOT
yX-BOOST
yDRAGON EYE
yGAMING APP
yMYSTIC LIGHT
yGAMING LAN MANAGER
yOpen Broadcaster Software
yTridef®VR & Smart Cam
ySteelSeries Engine 3
yWTFast*
yCPU-Z MSI GAMING
yIntel®Extreme Tuning Utility
yNorton™Internet Security Solution
yGoogle Chrome™, Google Toolbar, Google Drive
* This offer is valid for a limited period only, for more information please visit
www.msi.com
Continued on next page

20 Specifications
Continued from previous page
Special Features
yAudio
Audio Boost
yNetwork
GAMING LAN with Gaming LAN Manager
yStorage
Turbo M.2
yFan
Pump Fan
Smart Fan Control
yLED
Mystic Light
Mystic Light Extension (RGB)
Mystic light SYNC
EZ DEBUG LED
yProtection
PCI-E Steel Armor
yPerformance
Multi GPU – CrossFire Technology
DDR4 Boost
yStability
Military Class 5
yVR
VR Ready
yGamer Experience
GAMING HOTKEY
GAMING MOUSE Control
yBIOS
Click BIOS 5
yCertification
Quadro Ready
SteelSeries Certified
