MSI MS-98D7 User manual

i
MS-98D7
COM Express Compact Module

ii
Preface
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR INTER-
NATIONAL. We take every care in the preparation of this document, but no guar-
antee is given as to the correctness of its contents. Our products are under con-
tinual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
MSI®is a registered trademark of Micro-Star Int’l Co.,Ltd.
NVIDIA®is a registered trademark of NVIDIA Corporation.
AMD®is a registered trademark of AMD Corporation.
Intel®is a registered trademark of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
AMI®is a registered trademark of Advanced Micro Devices, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
Realtek®is a registered trademark of Realtek Semiconductor Corporation.
Revision History
Revision Date
V1.0 2014/05
Technical Support
If a problem arises with your system and no solution can be obtained from the
user’s manual, please contact your place of purchase or local distributor. Alterna-
tively, please try the following help resources for further guidance.
Visit the MSI website for technical guide, BIOS
updates, driver updates, and other information:
http://www.msi.com/service/download/
Contact our technical sta󰘯 at:
http://support.msi.com/
￭
￭
￭
￭
￭
￭
￭
￭

iii
COM Express Compact Module
Safety Instructions
Always read the safety instructions carefully.
Keep this User’s Manual for future reference.
Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
Always Unplug the Power Cord before inserting any add-on card or mod-
ule.
All cautions and warnings on the equipment should be noted.
Never pour any liquid into the opening that could damage or cause electrical
shock.
If any of the following situations arises, get the equipment checked by ser-
vice personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according
to User’s Manual.
The equipment has dropped and damaged.
The equipment has obvious sign of breakage.
DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDI-
TIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF), IT MAY DAM-
AGE THE EQUIPMENT.
警告使用者:
這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這種情
況下，使用者會被要求採取某些適當的對策。
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
￭
◯
◯
◯
◯
◯
◯
￭

iv
Preface
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at:
http://www.msi.com/html/popup/csr/evmtprtt_pcm.html
Battery Information
European Union:
Batteries, battery packs, and accumulators should not be
disposed of as unsorted household waste. Please use the
public collection system to return, recycle, or treat them in
compliance with the local regulations.
Taiwan:
For better environmental protection, waste batteries should
be collected separately for recycling or special disposal.
California, USA:
The button cell battery may contain perchlorate material and requires special
handling when recycled or disposed of in California.
For further information please visit:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.

v
COM Express Compact Module
CE Conformity
Hereby, Micro-Star International CO., LTD declares that this device
is in compliance with the essential safety requirements and other
relevant provisions set out in the European Directive.
FCC-A Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to
correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and AC power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
this device may not cause harmful interference, and
this device must accept any interference received, including interference that
may cause undesired operation.
WEEE Statement
Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2002/96/EC, which takes effect on
August 13, 2005, products of “electrical and electronic equipment”
cannot be discarded as municipal waste anymore and manufacturers
of covered electronic equipment will be obligated to take back such products at
the end of their useful life. MSI will comply with the product take back require-
ments at the end of life of MSI-branded products that are sold into the EU. You
can return these products to local collection points.
1)
2)

vi
Preface
Contents
Copyright Notice............................................................................................ ii
Trademarks ................................................................................................... ii
Revision History ............................................................................................ ii
Technical Support.......................................................................................... ii
Safety Instructions.........................................................................................iii
Chemical Substances Information ............................................................... iv
Battery Information....................................................................................... iv
CE Conformity............................................................................................... v
FCC-A Radio Frequency Interference Statement ......................................... v
WEEE Statement .......................................................................................... v
1. Overview.......................................................................................1-1
Specifications.............................................................................................1-2
Layout ........................................................................................................1-4
Block Diagram............................................................................................1-5
2. Hardware Setup ...........................................................................2-1
Memory ......................................................................................................2-3
Connector...................................................................................................2-4
Hardware Installation ...............................................................................2-10
3. BIOS Setup...................................................................................3-1
Entering Setup ...........................................................................................3-2
The Menu Bar ............................................................................................3-4
Main ...........................................................................................................3-5
Advanced ...................................................................................................3-6
Boot..........................................................................................................3-13
Security ....................................................................................................3-14
Chipset.....................................................................................................3-19
Power .......................................................................................................3-21
Save & Exit...............................................................................................3-23

1-1-1
Thank you for choosing the MS-98D7, an excellent COM (computer-on-
module) Express Compact Module. Integrating core CPU and memory
functionality, it is the entry-level model for applications looking to transition
from other small form factor solutions to COM Express®and offers full
PCI Express, USB, SATA, audio, graphics and network support.
1Overview

1-2
Overview
Specications
Processor (Optional)
Intel Embedded Mobile Core i7/ i5/ i3/ Celeron Processor
Core i7-3615QE/ i7-3612QE/ i7-3555LE/ i7-3517UE
Core i5-3610ME
Core i3-3120ME/ i3-3217UE
Celeron
■
-
-
-
-
Chipset
Intel QM77 chipset■
Memory
1 DDR3/DDR3L 1066/1333/1600 MHz SO-DIMM slot
Supports non-ECC, unbuffered DDR3/DDR3L SO-DIMMs only
Supports the maximum of 8GB
■
■
■
LAN
PCH Integrated Gigabit LAN controller
Intel 82579LM Gigabit Fast Ethernet controller
■
■
Graphics
Graphics integrated in Intel processor■
EC
IT 8518 controller chip providing all PC-compatible I/O■
SATA
Supports 4 Serial ATA interfaces
2 SATA 6Gb/s ports, 2 SATA 3Gb/s ports
Integrated Advanced Host Controller Interface (AHCI) controller
■
-
-
USB
Supports 8 internal Universal Serial Bus (USB) ports (including one for Mini
PCIe card)
USB 3.0_Port 0, 1, 2, 3
USB 2.0_Port 0, 1, 2, 3, 4, 5, 6, 7
■
-
-
Digital Display Interface (DDI)
HDMI
DVI
DisplayPort
■
■
■

1-3
COM Express Compact Module
PCI Express Interface
PCIe x1
PCIe x16
■
■
Form Factor
COM Express Compact: 95mm x 95mm■
Environmental
Operating Temperature: 0oC ~ 60oC
Storage Temperature: -20oC ~ 80oC
Humidity: 5% ~ 90% RH, Non-Condensing
■
■
■

1-4
Overview
Layout
CPU
SO-DIMM Slot CPU Fan Connector

1-5
COM Express Compact Module
Block Diagram

2-2-1
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the com-
ponents and follow the installation procedures. For some components, if
you install in the wrong orientation, the components will not work prop-
erly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.
2Hardware Setup

2-2
Hardware Setup
Components Reference Guide
Memory..............................................................................................2-3
Connector..........................................................................................2-4
Fan Power Connector: CPUFAN1..............................................................2-4
COM Express Connectors .........................................................................2-5

2-3
COM Express Compact Module
Memory
The SO-DIMM slot is intended for memory modules.
1. Locate the SO-DIMM slot. Align
the notch on the DIMM with the
key on the slot and insert the
DIMM into the slot.
2. Push the DIMM gently
downwards until the slot levers
click and lock the DIMM in
place.
3. To uninstall the DIMM, flip the slot levers outwards and the DIMM will be
released instantly.
Important
You can barely see the golden finger if the DIMM is properly inserted in the
DIMM slot.

2-4
Hardware Setup
Connector

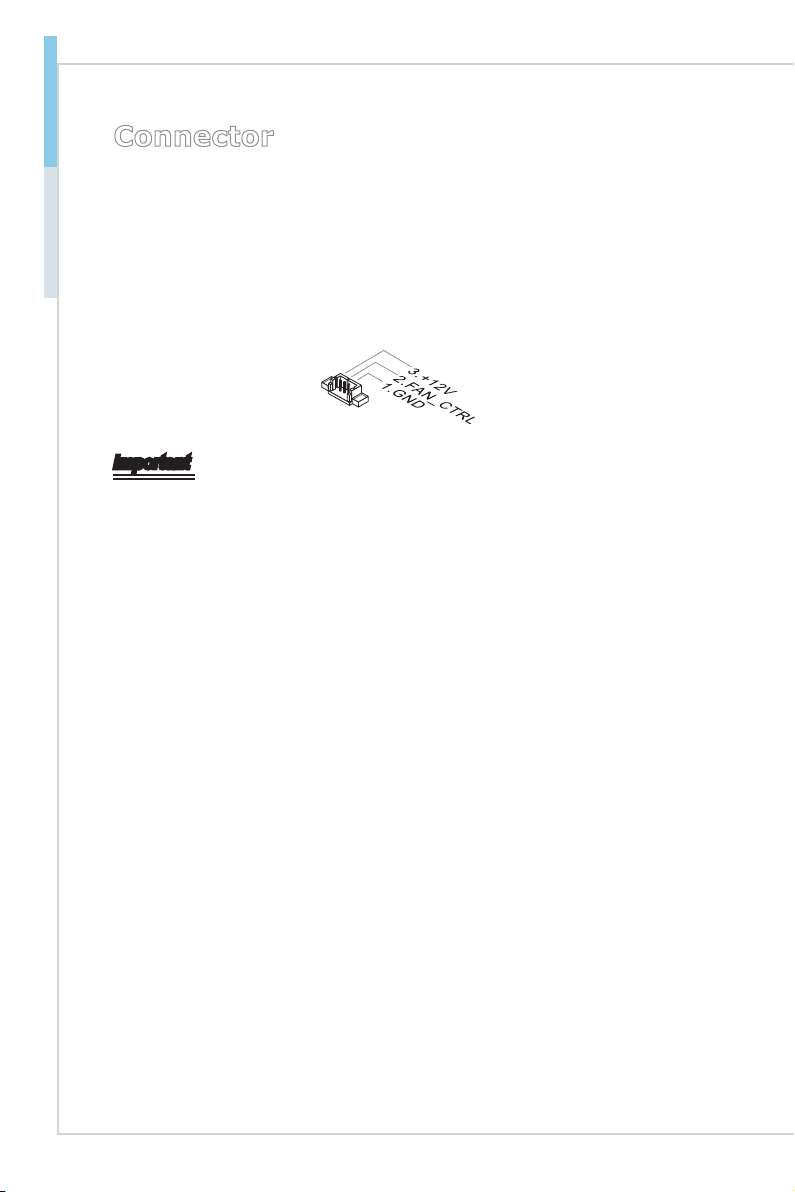

Fan Power Connector: CPUFAN1
The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to
GND. If the motherboard has a System Hardware Monitor chipset onboard, you
must use a specially designed fan with speed sensor to take advantage of the
CPU fan control.
Important
Please refer to the recommended CPU fans at processor’s o󰘲cial website or
consult the vendors for proper CPU cooling fan.

2-5
COM Express Compact Module
COM Express Connectors
The COM Express connectors are used to interface the COM Express module
board to a carrier board. Connect the COM Express connectors located on
the solder side of the module board (as indicated below) to the COM Express
connectors on the carrier board.
D110
C110
B110
A110
D1
C1
B1
A1

2-6
Hardware Setup
Row A Row B Row C Row D
A1 GND (FIXED) B1 GND (FIXED) C1 GND (FIXED) D1 GND (FIXED)
A2 GBE0_MDI3- B2 GBE0_ACT# C2 GND D2 GND
A3 GBE0_MDI3+ B3 LPC_FRAME# C3 USB_SSRX0- D3 USB_SSTX0-
A4 G B E 0 _
LINK100#
B4 LPC_AD0 C4 USB_SSRX0+ D4 USB_SSTX0+
A5 G B E 0 _
LINK1000#
B5 LPC_AD1 C5 GND D5 GND
A6 GBE0_MDI2- B6 LPC_AD2 C6 USB_SSRX1- D6 USB_SSTX1-
A7 GBE0_MDI2+ B7 LPC_AD3 C7 USB_SSRX1+ D7 USB_SSTX1+
A8 GBE0_LINK# B8 LPC_DRQ0# C8 GND D8 GND
A9 GBE0_MDI1- B9 LPC_DRQ1# C9 USB_SSRX2- D9 USB_SSTX2-
A10 GBE0_MDI1+ B10 LPC_CLK C10 USB_SSRX2+ D10 USB_SSTX2+
A11 GND (FIXED) B11 GND (FIXED) C11 GND (FIXED) D11 GND (FIXED)
A12 GBE0_MDI0- B12 PWRBTN# C12 USB_SSRX3- D12 USB_SSTX3-
A13 GBE0_MDI0+ B13 SMB_CK C13 USB_SSRX3+ D13 USB_SSTX3+
A14 GBE0_CTREF B14 SMB_DAT C14 GND D14 GND
A15 SUS_S3# B15 SMB_ALERT# C15 DDI1_PAIR6+ D15 DDI1_C T R L -
CLK_AUX+
A16 SATA0_TX+ B16 SATA1_TX+ C16 DDI1_PAIR6- D16 D D I 1 _ C T R L -
DATA_AUX-
A17 SATA0_TX- B17 SATA1_TX- C17 RSVD D17 RSVD
A18 SUS_S4# B18 SUS_STAT# C18 RSVD D18 RSVD
A19 SATA0_RX+ B19 SATA1_RX+ C19 PCIE_RX6+ D19 PCIE_TX6+
A20 SATA0_RX- B20 SATA1_RX- C20 PCIE_RX6- D20 PCIE_TX6-
A21 GND (FIXED) B21 GND (FIXED) C21 GND (FIXED) D21 GND (FIXED)
A22 SATA2_TX+ B22 SATA3_TX+ C22 PCIE_RX7+ D22 PCIE_TX7+
A23 SATA2_TX- B23 SATA3_TX- C23 PCIE_RX7- D23 PCIE_TX7-
A24 SUS_S5# B24 PWR_OK C24 DDI1_HPD D24 RSVD
A25 SATA2_RX+ B25 SATA3_RX+ C25 DDI1_PAIR4+ D25 RSVD
A26 SATA2_RX- B26 SATA3_RX- C26 DDI1_PAIR4- D26 DDI1_PAIR0+
A27 BATLOW# B27 WDT C27 RSVD D27 DDI1_PAIR0-
A28 ATA_ACT# B28 AC_SDIN2 C28 RSVD D28 RSVD
A29 AC_SYNC B29 AC_SDIN1 C29 DDI1_PAIR5+ D29 DDI1_PAIR1+
A30 AC_RST# B30 AC_SDIN0 C30 DDI1_PAIR5- D30 DDI1_PAIR1-
A31 GND (FIXED) B31 GND (FIXED) C31 GND (FIXED) D31 GND (FIXED)
A32 AC_BITCLK B32 SPKR C32 DDI2_C T R L -
CLK_AUX+
D32 DDI1_PAIR2+
A33 AC_SDOUT B33 I2C_CK C33 DDI2_C T R L -
DATA_AUX-
D33 DDI1_PAIR2-
A34 BIOS_DIS0# B34 I2C_DAT C34 D D I 2 _ D D C _
AUX_SEL
D34 DDI1_DDC_
AUX_SEL

2-7
COM Express Compact Module
A35 THRMTRIP# B35 THRM# C35 RSVD D35 RSVD
A36 USB6- B36 USB7- C36 DDI3_C T R L -
CLK_AUX+
D36 DDI1_PAIR3+
A37 USB6+ B37 USB7+ C37 DDI3_C T R L -
DATA_AUX-
D37 DDI1_PAIR3-
A38 USB_6_7_
OC#
B38 USB_4_5_
OC#
C38 DDI3_DDC_
AUX_SEL
D38 RSVD
A39 USB4- B39 USB5- C39 DDI3_PAIR0+ D39 DDI2_PAIR0+
A40 USB4+ B40 USB5+ C40 DDI3_PAIR0- D40 DDI2_PAIR0-
A41 GND (FIXED) B41 GND (FIXED) C41 GND (FIXED) D41 GND (FIXED)
A42 USB2- B42 USB3- C42 DDI3_PAIR1+ D42 DDI2_PAIR1+
A43 USB2+ B43 USB3+ C43 DDI3_PAIR1- D43 DDI2_PAIR1-
A44 USB_2_3_
OC#
B44 USB_0_1_
OC#
C44 DDI3_HPD D44 DDI2_HPD
A45 USB0- B45 USB1- C45 RSVD D45 RSVD
A46 USB0+ B46 USB1+ C46 DDI3_PAIR2+ D46 DDI2_PAIR2+
A47 VCC_RTC B47 E X C D 1 _
PERST#
C47 DDI3_PAIR2- D47 DDI2_PAIR2-
A48 E X C D 0 _
PERST#
B48 E X C D 1 _
CPPE#
C48 RSVD D48 RSVD
A49 E X C D 0 _
CPPE#
B49 SYS_RESET# C49 DDI3_PAIR1- D49 DDI2_PAIR3+
A50 LPC_SERIRQ B50 CB_RESET# C50 DDI3_PAIR3- D50 DDI2_PAIR3-
A51 GND (FIXED) B51 GND (FIXED) C51 GND (FIXED) D51 GND (FIXED)
A52 PCIE_TX5+ B52 PCIE_RX5+ C52 PEG_RX0+ D52 PEG_TX0+
A53 PCIE_TX5- B53 PCIE_RX5- C53 PEG_RX0- D53 PEG_TX0-
A54 GPI0 B54 GPO1 C54 TYPE0# D54 P E G _ L A N _
RV#
A55 PCIE_TX4+ B55 PCIE_RX4+ C55 PEG_RX1+ D55 PEG_TX1+
A56 PCIE_TX4- B56 PCIE_RX4- C56 PEG_RX1- D56 PEG_TX1-
A57 GND B57 GPO2 C57 TYPE1# D57 TYPE2#
A58 PCIE_TX3+ B58 PCIE_RX3+ C58 PEG_RX2+ D58 PEG_TX2+
A59 PCIE_TX3- B59 PCIE_RX3- C59 PEG_RX2- D59 PEG_TX2-
A60 GND (FIXED) B60 GND (FIXED) C60 GND (FIXED) D60 GND (FIXED)
A61 PCIE_TX2+ B61 PCIE_RX2+ C61 PEG_RX3+ D61 PEG_TX3+
A62 PCIE_TX2- B62 PCIE_RX2- C62 PEG_RX3- D62 PEG_TX3-
A63 GPI1 B63 GPO3 C63 RSVD D63 RSVD
A64 PCIE_TX1+ B64 PCIE_RX1+ C64 RSVD D64 RSVD
A65 PCIE_TX1- B65 PCIE_RX1- C65 PEG_RX4+ D65 PEG_TX4+
A66 GND B66 WAKE0# C66 PEG_RX4- D66 PEG_TX4-
A67 GPI2 B67 WAKE1# C67 RSVD D67 GND
A68 PCIE_TX0+ B68 PCIE_RX0+ C68 PEG_RX5+ D68 PEG_TX5+

2-8
Hardware Setup
A69 PCIE_TX0- B69 PCIE_RX0- C69 PEG_RX5- D69 PEG_TX5-
A70 GND (FIXED) B70 GND (FIXED) C70 GND (FIXED) D70 GND (FIXED)
A71 LVDS_A0+ B71 LVDS_B0+ C71 PEG_RX6+ D71 PEG_TX6+
A72 LVDS_A0- B72 LVDS_B0- C72 PEG_RX6- D72 PEG_TX6-
A73 LVDS_A1+ B73 LVDS_B1+ C73 GND D73 GND
A74 LVDS_A1- B74 LVDS_B1- C74 PEG_RX7+ D74 PEG_TX7+
A75 LVDS_A2+ B75 LVDS_B2+ C75 PEG_RX7- D75 PEG_TX7-
A76 LVDS_A2- B76 LVDS_B2- C76 GND D76 GND
A77 LVDS_VDD_
EN
B77 LVDS_B3+ C77 RSVD D77 RSVD
A78 LVDS_A3+ B78 LVDS_B3- C78 PEG_RX8+ D78 PEG_TX8+
A79 LVDS_A3- B79 LVDS_BKLT_
EN
C79 PEG_RX8- D79 PEG_TX8-
A80 GND (FIXED) B80 GND (FIXED) C80 GND (FIXED) D80 GND (FIXED)
A81 LVDS_A_CK+ B81 LVDS_B_CK+ C81 PEG_RX9+ D81 PEG_TX9+
A82 LVDS_A_CK- B82 LVDS_B_CK- C82 PEG_RX9- D82 PEG_TX9-
A83 LVDS_I2C_CK B83 LVDS_BKLT_
CTRL
C83 RSVD D83 RSVD
A84 LV D S _ I 2 C _
DAT
B84 VCC_5V_SBY C84 GND D84 GND
A85 GPI3 B85 VCC_5V_SBY C85 PEG_RX10+ D85 PEG_TX10+
A86 KBD_RST# B86 VCC_5V_SBY C86 PEG_RX10- D86 PEG_TX10-
A87 K B D _
A20GATE
B87 VCC_5V_SBY C87 GND D87 GND
A88 PCIE0_CK_
REF+
B88 BISO_DIS1# C88 PEG_RX11+ D88 PEG_TX11+
A89 PCIE0_CK_
REF-
B89 VGA_RED C89 PEG_RX11- D89 PEG_TX11-
A90 GND (FIXED) B90 GND (FIXED) C90 GND (FIXED) D90 GND (FIXED)
A91 SPI _POWER B91 VGA_GRN C91 PEG_RX12+ D91 PEG_TX12+
A92 SPI_MISO B92 VGA_BLU C92 PEG_RX12- D92 PEG_TX12-
A93 GPO0 B93 VGA_HSYNC C93 GND D93 GND
A94 SPI_CLK B94 VGA_VSYNC C94 PEG_RX13+ D94 PEG_TX13+
A95 SPI_MOSI B95 VGA_I2C_CK C95 PEG_RX13- D95 PEG_TX13-
A96 GND B96 VGA_I2C_DAT C96 GND D96 GND
A97 TYPE10# B97 SPI_CS# C97 RSVD D97 RSVD
A98 RSVD B98 RSVD C98 PEG_RX14+ D98 PEG_TX14+
A99 RSVD B99 RSVD C99 PEG_RX14- D99 PEG_TX14-
A100 GND (FIXED) B100 GND (FIXED) C100 GND (FIXED) D100 GND (FIXED)
A101 RSVD B101 RSVD C101 PEG_RX15+ D101 PEG_TX15+
A102 RSVD B102 RSVD C102 PEG_RX15- D102 PEG_TX15-
A103 RSVD B103 RSVD C103 GND D103 GND
