Operator’s Manual
Hydrostatic
Garden Tractor
Model GT2550
(14A9816K790)
(Shown with optional bumper kit)
IMPORTANT: Read Safety Rules and Instructions carefully
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,
brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply
on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTD LLC, P.O. Box 361131 Cleveland, Ohio 44136-0019

2
TABLE OF CONTENTS
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new lawn tractor. It will help you assemble, prepare and
maintain the unitfor best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate under the
seat of the tractor and copy the information in the space provided below.A sample model plate is
also given below. This information will be necessary to use the manufacturer’s web site and/or
help from the Customer Support Department or an authorized service dealer.
CUSTOMER SUPPORT
Please do NOT return the unit to the retailer from where it was purchased, without first contacting Customer Support.
If you have difficulty assembling this productor have any questions regarding the controls, operation or
maintenance of this unit, you can seek help from the experts. Choose from the options below:
Visit whiteoutdoor.com for many useful suggestions. Click on Customer Support button and
you will get the four options reproduced here. Click on the appropriate button and help is
immediately available.
To reach the Customer Support Line, please call 1(800) 949-4483.
The engine manufacturer is responsible for all engine-related issues with regards to
performance, power-rating,specifications, warranty and service. Please refer to the engine
manufacturer’s Owner’s/Operator’s Manual, at the end of this manual, for more information.
Content Page
Important Safe Operation Practices 3
Tractor Set-Up 7
Know Your Garden Tractor 10
Operating Your Garden Tractor 13
Making Adjustments 16
Maintaining Your Garden Tractor 18
Service 19
Off-Season Storage 23
Attachments & Accessories 24
Troubleshooting 25
Illustrated Parts List 26*
Warranty Back
Content Page
* Engine manual is included after the Illustrated Parts List in this manual.
Copy the model number here:
Copy the serial number here:
DEALER LOCATOR PHONE NUMBER: 800-949-4483
MTD LLC
P. O. BOX 361131
CLEVELAND,OH 44136
www.whiteoutdoor.com
The answer you are
looking for could be just
a mouse click away!
The answer you are
looking for could be just
a mouse click away!
Engine
Manual

3
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
General Operation
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place
for future and regular reference and for ordering
replacement parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
4. Neverallowadults tooperate thismachine withoutproper
instruction.
5. To help avoid blade contact or a thrown object injury,
keep bystanders, helpers, children and pets at least 75
feet from the machine while it is in operation. Stop
machine if anyone enters the area.
6. Thoroughly inspectthe areawhere theequipment isto be
used. Remove all stones, sticks, wire, bones, toys, and
other foreign objects which could be picked up and
thrown by the blade(s). Thrown objects can cause
serious personal injury.
7. Plan your mowing pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction
which may cause discharged material to ricochet back
toward the operator.
8. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
9. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Loose fitting clothes and jewelry can be
caught in movable parts. Never operate this machine in
bare feet or sandals.
10. Be aware of the mower and attachment discharge
direction and do not point it at anyone. Do not operate the
mower without the discharge cover or entire grass
catcher in its proper place.
11. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade(s) can amputate
hands and feet.
12. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
13. Stop the blade(s) when crossing gravel drives, walks, or
roads and while not cutting grass.
14. Watch for traffic when operating near or crossing
roadways. This machine is not intended for use on any
public roadway.
15. Do not operate the machine while under the influence of
alcohol or drugs.
16. Mow only in daylight or good artificial light.
17. Never carry passengers.
18. Disengage blade(s) before shifting into reverse. Back up
slowly. Always look down and behind before and while
backing to avoid a back-over accident.
19. Slow down before turning. Operate the machine
smoothly. Avoid erratic operation and excessive speed.
20. Disengage blade(s), set parking brake, stop engine and
wait until the blade(s) come to a complete stop before
removing grass catcher, emptying grass, unclogging
chute, removing any grass or debris, or making any
adjustments.
21. Never leave a running machine unattended. Always turn
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.
22. Use extra care when loading or unloading the machine
into a trailer or truck. This unit should not be driven up or
down ramp(s), because the unit could tip over, causing
serious personal injury. The unit must be pushed
manually on ramp(s) to load or unload properly.
23. Muffler and engine become hot and can cause a burn. Do
not touch.
24. Check overhead clearances carefully before driving
under low hanging tree branches, wires, door openings
etc., where the operator may be struck or pulled from the
unit, which could result in serious injury.
25. Disengage all attachment clutches, depress the brake
pedal completely and shift into neutral before attempting
to start engine.
26. Your machine is designed to cut normal residential grass
of a height no more than 10”. Do not attempt to mow
WARNING: This symbol points out important safety instructions which, if not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions in this manual
before attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symbol—heed its warning.
DANGER: This machine was built to be operated according to the rules for safe operationin this manual.
As with any type of power equipment, carelessness or error on the part of the operator can result in serious
injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the
following safety instructions could result in serious injury or death.
WARNING: Engine exhaust, some of its constituents, and certain vehiclecomponents contain or
emit chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.

4
through unusually tall, dry grass (e.g., pasture) or piles of
dry leaves. Dry grass or leaves may contact the engine
exhaust and/or build up on the mower deck presenting a
potential fire hazard.
27. Use only accessories and attachments approved for this
machine by the machine manufacturer. Read,
understand and follow all instructions provided with the
approved accessory or attachment.
28. Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-
related injuries. These operators should evaluate their
ability to operate the riding mower safely enough to
protect themselves and others from serious injury.
29. If situations occur which are not covered in this manual,
use care and good judgment. Contact an authorized
Service Dealer for assistance.
Slope Operation
Slopes are a major factor related to loss of control and tip-
over accidents which can result in severe injury or death. All
slopes require extra caution. If you cannot back up the slope
or if you feel uneasy on it, do not mow it.
For your safety, use the slope gauge included as part of this
manual to measure slopes before operating this unit on a
sloped or hilly area. If the slope is greater than 15 degrees as
shown on the slope gauge, do not operate this unit on that
area or serious injury could result.
Do:
1. Mow up and down slopes, not across. Exercise extreme
caution when changing direction on slopes.
2. Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
3. Use slow speed. Choose a low enough speed setting so
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear
when going down slopes to take advantage of engine
braking action.
4. Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability.
5. Use extra care with grass catchers or other attachments.
These can change the stability of the machine.
6. Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which
could cause serious injury.
7. Avoid starting or stopping on a slope. If tires lose traction,
disengage the blade(s) and proceed slowly straight down
the slope.
Do Not:
1. Do not turn on slopes unless necessary; then, turn slowly
and gradually downhill, if possible.
2. Do not mow near drop-offs, ditches or embankments.
The mower could suddenly turn over if a wheel is over the
edge of a cliff, ditch, or if an edge caves in.
3. Do not try to stabilize the machine by putting your foot on
the ground.
4. Do not use a grass catcher on steep slopes.
5. Do not mow on wet grass. It may cause sliding.
6. Do not shift to neutral and coast downhill. Over-speeding
may cause the operator to lose control of the machine
resulting in serious injury or death.
7. Do not tow heavy attachments (e.g. loaded dump cart,
lawn roller, etc.) on slopes greater than 5 degrees. When
going down hill, the extra weight tends to push the tractor
and may cause you to loose control. (e.g. tractor may
speed up, braking and steering ability may be reduced,
attachment may jack-knife and tractor may overturn).
Children
1. Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. They do not
understand the dangers. Never assume that children will
remain where you last saw them.
a. Keep children out of the mowing area and in
watchful care of a responsible adult other than the
operator.Be alert and turn machine off if a child
enters area.
b. Before and while backing, look behind and down
for small children.
c. Never carry children, even with the blade(s) shut
off. They may fall off and be seriously injured or
interfere with safe machine operation.
d. Use extreme care when approaching blind
corners, doorways, shrubs, trees or other objects
that may block your vision of a child who may run
into the machine.
e. Disengage the cutting blade(s) before shifting in
reverse. The “No-Cut-In Reverse” feature is a
reminder not to cut in reverse and to help avoid
back over accidents. Do not defeat it.
f. Keep children away from hot or running engines.
They can suffer burns from a hot muffler.
g. Remove key when machine is unattended to
prevent unauthorized operation.
8. Never allow children under 14 years to operate the
machine. Children 14 years old and over should read and
understand the operation and safety rules in this manual
and should be trained and supervised by a parent.
Towing
1. Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point.
2. Follow the manufacturers recommendation for weight
limits for towed equipment and towing on slopes.
3. Never allow children or others in or on towed equipment.
4. On slopes, the weight of the towed equipment may cause
loss of traction and loss of control.
5. Travel slowly and allow extra distance to stop.
6. Do not shift to neutral and coast downhill.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use
extreme care in handling gasoline. Gasoline is

5
extremely flammable and the vapors are explosive.
Serious personal injury can occur when gasoline is
spilled on yourself or your clothes which can ignite. Wash
your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Never fill containers inside a vehicle or on a truck
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.
c. When practical, remove gas-powered equipment
from the truck or trailer and refuel it on the ground.
If this is not possible, then refuel such equipment
on a trailer with a portable container, rather than
from a gasoline dispenser nozzle.
d. Keep the nozzle in contact with the rim of the fuel
container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
e. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
f. Never fuel machine indoors.
g. Never remove gas cap or add fuel while the
engine is hot or running. Allow engine to cool at
least two minutes before refueling.
h. Never over fill fuel tank. Fill tank to no more than
½ inch below bottom of filler neck to allow space
for fuel expansion.
i. Replace gasoline cap and tighten securely.
j. If gasoline is spilled, wipe it off the engine and
equipment. Move unit to another area. Wait 5
minutes before starting the engine.
k. To reduce fire hazards, keep machine free of
grass, leaves, or other debris build-up. Clean up
oil or fuel spillage and remove any fuel soaked
debris.
l. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
as on a water heater, space heater, furnace,
clothes dryer or other gas appliances.
m. Allow a machine to cool at least 5 minutes before
storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an
odorless, and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain
the blade(s) and all moving parts have stopped.
Disconnect the spark plug wire and ground against the
engine to prevent unintended starting.
3. Periodically check to make sure the blades come to
complete stop within approximately (5) five seconds after
operating the blade disengagement control. If the blades
do not stop within the this time frame, your unit should be
serviced professionally by an authorized Service Dealer.
4. Check brake operation frequently as it is subjected to
wear during normal operation. Adjust and service as
required.
5. Check the blade(s) and engine mounting bolts at
frequent intervals for proper tightness. Also, visually
inspect blade(s) for damage (e.g., excessive wear, bent,
cracked).
Replace the blade(s) with the original equipment
manufacturer’s (O.E.M.) blade(s) only, listed in this
manual. “Use of parts which do not meet the original
equipment specifications may lead to improper
performance and compromise safety!”
6. Mower blades are sharp. Wrap the blade or wear gloves,
and use extra caution when servicing them.
7. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
8. Never tamper with the safety interlock system or other
safety devices. Check their proper operation regularly.
9. Afterstrikinga foreignobject,stop theengine,disconnect
the spark plug wire(s) and ground against the engine.
Thoroughly inspect the machine for any damage. Repair
the damage before starting and operating.
10. Never attempt to make adjustments or repairs to the
machine while the engine is running.
11. Grass catcher components and the discharge cover are
subject to wear and damage which could expose moving
parts or allow objects to be thrown.
For safety protection, frequently check components and
replace immediately with original equipment
manufacturer’s (O.E.M.) parts only, listed in this manual.
“Use of parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!”
12. Do not change the engine governor settings or over-
speed the engine. The governor controls the maximum
safe operating speed of the engine.
13. Maintain or replace safety and instruction labels, as
necessary.
14. Observe proper disposal laws and regulations for gas,
oil, etc. to protect the environment.
Your Responsibility
• Restrict the use of this power machine to persons who
read, understand and follow the warnings and
instructions in this manual and on the machine.
TO REDUCE THE RISK OF INJURY, DO NOT
OPERATE UNLESS DISCHARGE COVER OR
GRASS CATCHER IS IN ITS PROPER PLACE.
IF DAMAGED, REPLACE IMMEDIATELY.
KEEP HANDS AND FEET AWAY FROM ROTATING PARTS.
REMOVE OBJECTS THAT CAN BE THROWN BY THE
BLADE IN ANY DIRECTION. WEAR SAFETY GLASSES.
DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.
NEVER CARRY CHILDREN EVEN WITH BLADES OFF.
USE EXTRA CAUTION ON SLOPES. DO NOT MOW SLOPES
GREATER THAN 10° MOW UP AND DOWN, NOT ACROSS.
AVOID SUDDEN TURNS, USE LOW GEAR.
MAX10°
READ OPERATOR'S MANUAL. KEEP SAFETY DEVICES IN PLACE AND WORKING.
AVOID SERIOUS INJURY OR DEATH
S30536
x

6
SECTION 2: SLOPE GAUGE
15°
SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
A POWER POLE
A CORNER OF A BUILDING
OR A FENCE POST
FOLD ONDOTTED LINE,REPRESENTING A15°SLOPE
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower
could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain
your footing and you could slip, resulting in serious injury.
Operate RIDING mowers up and down slopes, never across the face of slopes.
WARNING

7
SECTION 3: SETTING UP THE TRACTOR
NOTE: Any reference here to the RIGHT or LEFT side
of the tractoris observed from the operator’s position.

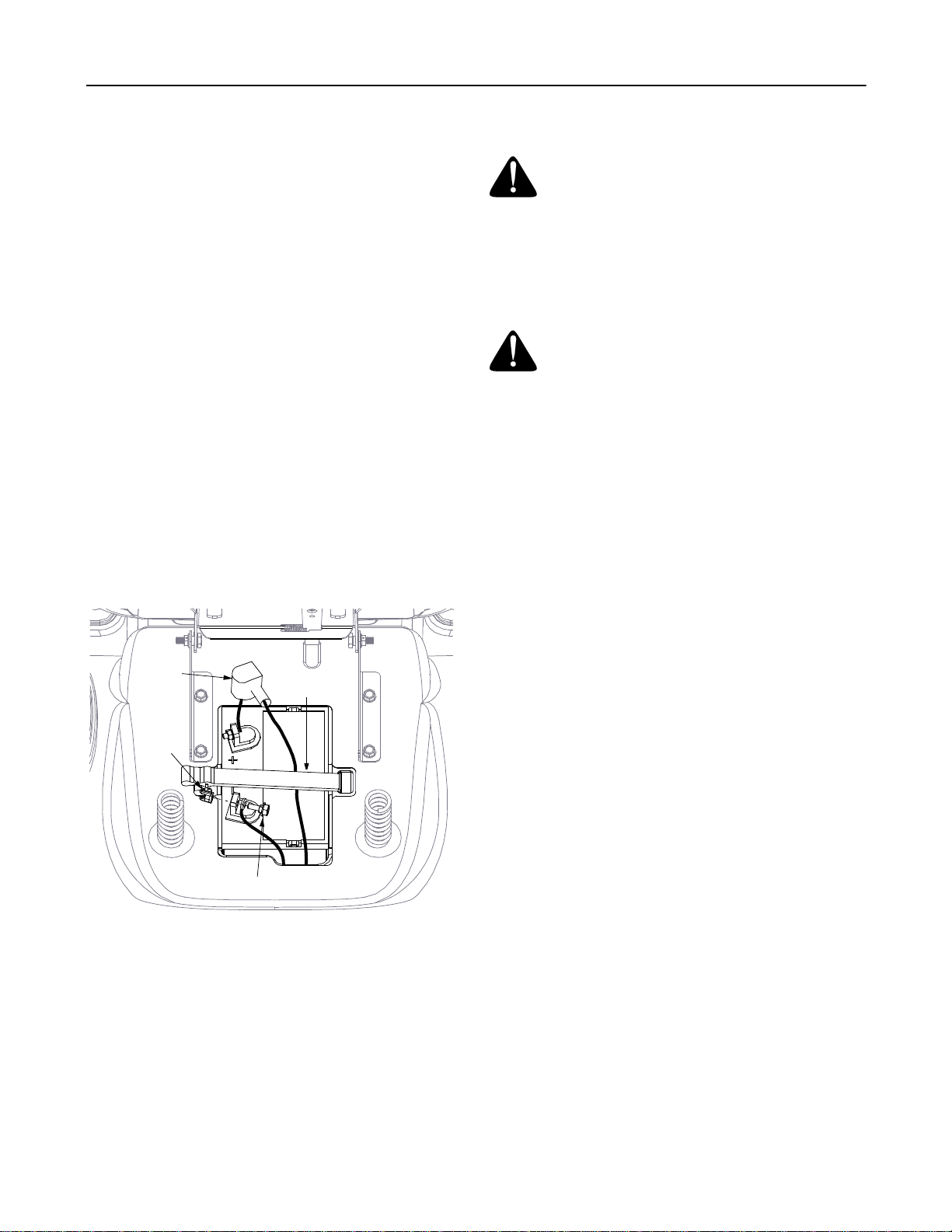

Attaching the Battery Cables
NOTE: The positive battery terminal is marked Pos. (+).
The negative battery terminal is marked Neg. (–).
• The positive cable (heavy red wire) is secured to
the positive battery terminal (+) with a hex bolt and
hex nut at the factory. Make certain that the rubber
boot covers the terminal to help protect it from
corrosion.
• Remove the hex bolt and wing nut from the
negative cable.
• Remove the black plastic cover, if present, from the
negative battery terminal and attach the negative
cable (heavy black wire) to the negative battery
terminal (–) with the bolt and wing nut.
• Make certain the hold-down strap is in position over
the battery, securing it in place.
NOTE: If the battery is put into service after the date
shown on top of battery, charge the battery as
instructed on page 23 of this manual prior to operating
the tractor.
Figure 1
Gas and Oil Fill-Up
The gasoline tank is located under the hood and has a
capacity of either two or three gallons. Do not overfill.
Service the engine with gasoline and oil as instructed in
the engine manual.
IMPORTANT: Your tractor is shipped with motor oil in
the engine. However, you must check the oil level
before operating. Be careful not to overfill.
Attaching the Deck
• Adjust the deck roller height so that the clevis pins
are inserted in the second hole (from the top)of
both the left-hand deck roller bracket and the right-
hand deck roller bracket. See Figure 3 or refer to
Deck Roller Height Adjustment on page 9 for more
detailed instructions.
• Raise the deck lift arms up and out of the way by
placing the deck lift lever in the top notch on the
right fender.
• Gently slide the cutting deck beneath the tractor
from the right side.
• Move the cutting deck into position so that the
hooks found on the front end of the deck fit snugly
around the deck stabilizer rod.
NOTE: The stabilizer rod may be secured to the tractor
frame with a plastic cable tie for shipping reasons. If so,
carefully cut the cable tie before mounting the front of
the cutting deck.
• Lower the deck lift arms by placing the lift lever in
the bottom notch on the right fender.
• Pull the deck support pin (on the left side of the
deck) outward.
• Align it with the hole on the rear of the left deck lift
arm before releasing the pin to lock it in place as
shown in Figure 4.
• Repeat on the right side.
Hex Bolt
Wing
Nut
Rubber
Boot Hold-Down
Strap
WARNING: Use extreme care when
handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Never
fuel machine indoors or while the engine is hot
or running. Extinguish cigarettes, cigars, pipes,
and other sources of ignition.
WARNING: Before attaching the cutting
deck, engage the parking brake, turn the
ignitionkeytothe OFF positionandremovethe
key from the switch to avoid accidental starting.

8
Figure 2

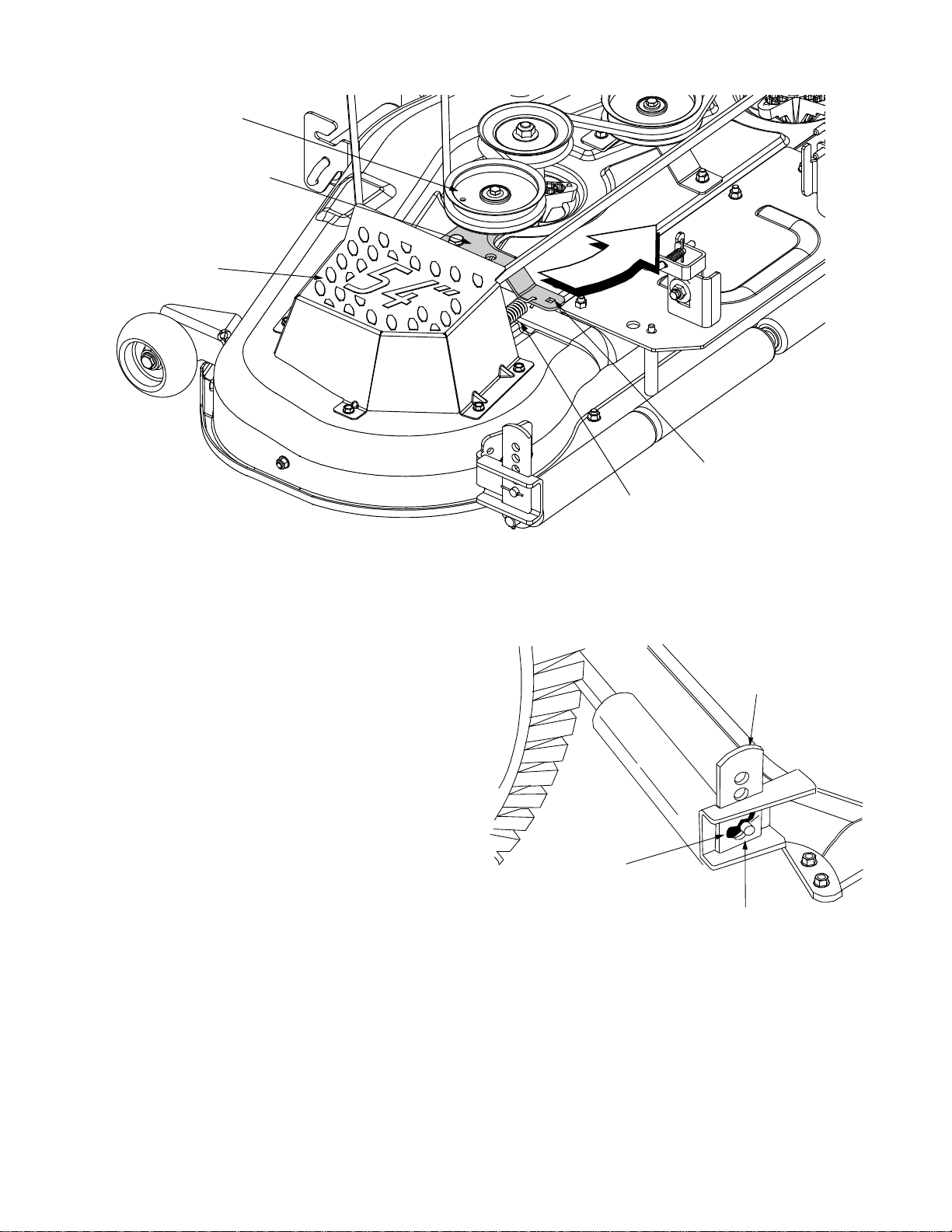

Installing the PTO/Deck Belt
• Make certain that the PTO/Deck belt is routed
around the spindle pulleys (found beneath the belt
guards) and both idler pulleys as illustrated in
Figure 3 before proceeding.
• Insert a 3/8” drive ratchet wrench (set to “loosen”)
into the hole on the idler bracket and pivot the
wrench handle counterclockwise. See Figure 3.
This will relieve tension on the deck idler.
IMPORTANT: Be certain that the flat side of the PTO/
deck belt contacts the deck idler pulleys.
• With the tension relieved,carefully route the belt
around the electric PTO clutch.

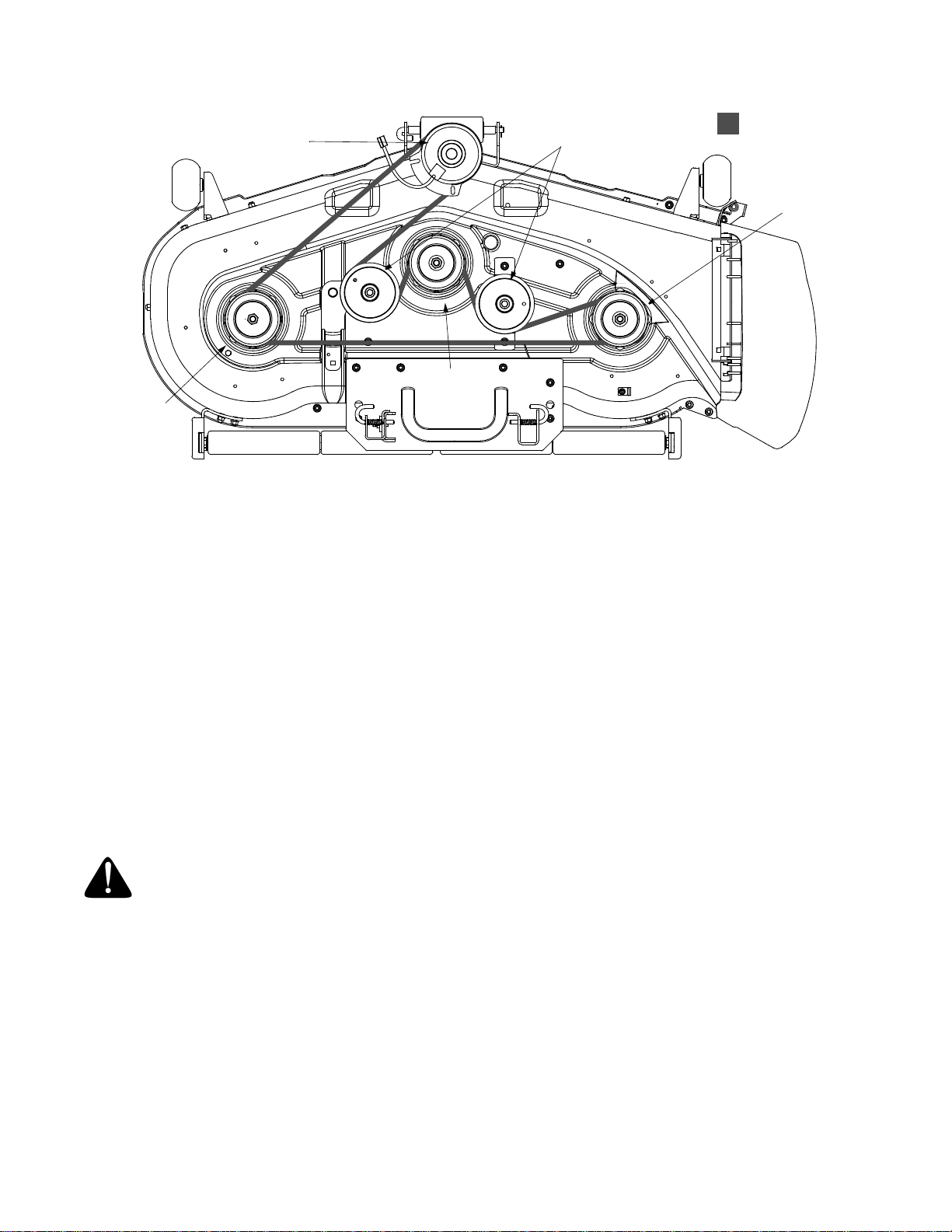

NOTE: If necessary, refer to the decal on the deck’s
surface or on page19of this manual for a detailed belt-
routing diagram.
Deck Support Pins
Deck Stabilizer Bracket
Deck Stabilizer Rod
Deck Lift Arms
Electric PTO Clutch
Deck Idler Pulleys
Front of Tractor
NOTE: Many tractor components not shown for clarity.
PTO / Deck Belt
Deck Lift Assembly
Lift Lever
Notches
Fender
Lift Cables
Discharge Chute
Belt Guard
Belt Guard
Deck Roller Bracket

9
Figure 3
Deck Roller Height Adjustment
To adjust the height of the rollers found on the rear of
the mowing deck upward or downward, proceed as
follows:
• Place the deck lift lever in the bottom notch (lowest
position).
• Remove the clevis pins and hairpin clips from the
deck roller brackets on the left and right sides of the
cutting deck. See Figure 4.
• Position the deck roller brackets up or down
through the slots on the rear of the deck until
desired position is reached, then re-attach with the
clevis pins and hairpin clips just removed. See
Figure 4.
IMPORTANT: Be certain that the left roller bracket and
the right roller bracket are set in the same position.
IMPORTANT: After mounting the cutting deck, perform
any adjustments on the deck, if necessary, prior to
operating the tractor. Refer to page 16 for instructions. Figure 4
Left-hand Idler Bracket
3/8” Square Hole
Spring
Belt Guard
Idler Pulley
Hairpin Clip
Clevis pin
Deck Roller Bracket

10
SECTION 4: KNOW YOUR GARDEN TRACTOR
Figure 5
A Systems Indicator/Hour Meter H Ignition Switch
B PTO (Power Take-off) Knob I Brake Pedal
C Choke Control J Drive Pedal
D Cup Holder K Cargo Net (not shown)
E Throttle Control Lever L Deck LiftLever
F Parking Brake Button M Seat Adjustment Lever
G Cruise Control Button
H
E
A
C
G
F
D
L
J
I
M
NOTE: Steering Wheel not shown for clarity.
P
1/10
P
+
B
K

11
Throttle Control Lever
The throttle control lever is
located on the right side of the
tractor’s dash panel. This lever
controls the speed of the engine.
When set in a given position, the
throttle will maintain a uniform
engine speed.
IMPORTANT: When operatingthe
tractor with the cutting deck
engaged, be certain that the
throttle lever is always in the
FAST (rabbit) position.
Choke Control
The choke control is located on
theleftsideofthedashpaneland
is activated by pulling the knob
outward. Activating the choke
control closes the choke plate on
the carburetor and aids in starting the engine. Refer to
page 13 of this manual for detailed starting instructions.
Brake Pedal
The brake pedal is located on the
right front side of the tractor
above the drive pedal along the
running board. The brake pedal
can be used for sudden stops or
setting the parking brake.
NOTE: Brake pedal must be fully depressed to activate
the safety interlock switch when starting the tractor.
Ignition Switch
Tostarttheengine,insertthekey
into the ignition switch and turn
clockwise to the START position.
Release the key into the ON
position once engine has fired.
Refer to page 13 for detailed
starting instructions.
Theignitionswitchisalsousedto
operate the tractor’s headlights.
•To turn on: Turn the key counterclockwise to the
On/Lights position of the ignition switch.
•To turn off: Turn the key either to the ON position
(toleavethe enginerunning)ortheOFFposition(to
shut the engine off)
Drive Pedal
The drive pedal is located below
the brake pedal on the right front
side of the tractor along the
running board. Depress the
upper portion of the drive pedal
forward to cause the tractor to
travelforward.Depress thelower
portion of the drive pedal with the
ball of your right foot (not your
heel)tocausethetractortotravel
in reverse. Ground speed is also controlled with the
drivepedal.The furtherforwardor rearwardthepedalis
pivoted, the faster the tractor will travel. The pedal will
return to its original position when it is not depressed.
IMPORTANT: Always set the parking brake when
leaving the tractor unattended.
Cup Holder
The tractor’s cup holder is located on the fender to the
left of the seat, just to the rear of the parking brake
lever.

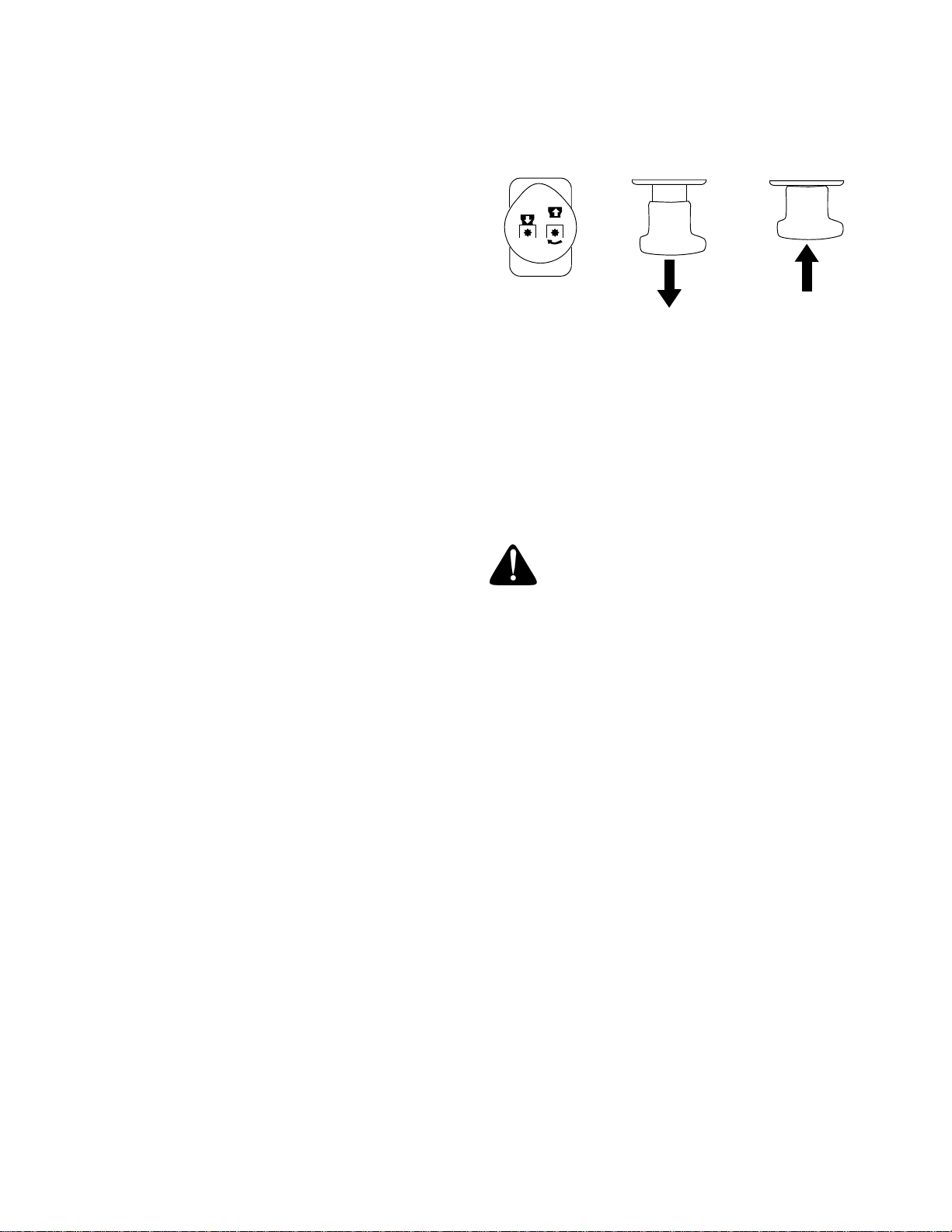

Electric PTO (Blade Engage) Knob
To engage power to the cutting
deck or other (separately
available) attachments, pull
outward on the PTO knob. Push
the PTO knob inward to
disengage (Blade Stop position)
power to the cutting deck.
NOTE: The PTO knob must be in the disengaged
(OFF) position when starting the engine, when traveling
in reverse and if the operator leaves the seat.
Seat Adjustment Lever
To adjust the seat forward or backward, slide the seat
adjustment lever to the left and reposition the seat to
the desired position. Once a comfortable position is
found, release the seat adjustment lever to lock the
seat in place. Refer to Seat Adjustment on page 16 of this
manual for more detailed instructions.
Deck Lift Lever
Located on your tractor’s right fender, the deck lift lever
is used to change the height of the cutting deck.To use,
move the lever to the left, then place in the notch best
suited for your application.
Parking Brake Button
To set the parking brake, fully
depress the brake pedal and
push the parking brake button in.
Hold the button in while taking
your foot off the brake pedal.
Both the parking button and the
brake pedal will then stay
depressed. To release the
WARNING: Never leave a running machine
unattended. Always disengage PTO, move
shift lever into neutral position, set parking
brake, stop engine and remove key to prevent
unintended starting.
Slow
Fast
Off
Start
On
On/Lights
P

12
parking brake, depress the brake pedal slightly. The
parking brake button will then return to its original
position.
NOTE: The parking brake must be set if the operator
leaves the seat with the engine running or the engine
will automatically shut off.
IMPORTANT: Always set the parking brake when
leaving the tractor unattended.
Cruise Control Button
The cruise control button is
located on the tractor dash panel
to the left of the ignition switch.
Push the cruise control button
while traveling forward at a
desired speed. While holding the
button in, release pressure from
the drive pedal. This will engage
the cruise control and allow the
tractor to remain at that speed
without applying pressure to the
drive pedal. Depress the brake pedal or the drive pedal
to deactivate cruise control. Refer to Operations section
in this manual for detailed instructions.
NOTE: Cruise control cannot be engaged at the
tractor’s fastest ground speed. If the operator should
attempt to do so, the tractor will automatically
decelerate to the fastest optimal mowing ground speed.
Systems Indicator Monitor / Hour Meter
Yourtractorisequippedwith four indicator lightsandan
hour meter located on the left side of the dash panel.
See Figure 6.
If the brake light or PTO light illuminates when
attempting to start the unit, proceed as follows:
It is normal for the oil light and the battery light to
illuminate while the engine is cranking, but if either
illuminates while the engine is running, follow the
steps below as per indication:
The hour meter operates whenever the engine is
running and records the actual hours of tractor
operation.
Figure 6
Cargo Net
Conveniently located on the tractor’s dash panel, the
cargo net can be used to store personal items while
operating the lawn tractor.
Indication Remedy
Brake light on Engage the parking brake.
PTO light on Move PTO knob to
disengaged (Blade Stop).
Indication Remedy
Oil light on Stop the tractor immediately
and check thecrankcase oil
level as instructed in the
engine manual. Add oil as
required.
Battery light on Indicates that the battery is in
need of a charge or that the
engine’s charging system is
not generating sufficient
amperage. Refer to Battery on
page 19 of this manual for
charging procedure or have
the engine’s charging system
checked by anauthorized
Briggs & Stratton dealer.
1/10
P
+
Battery
PTO
Oil
Brake
Hour
Meter

13
SECTION 5: OPERATING YOUR GARDEN TRACTOR
Safety Interlock Switches
This tractor is equipped with a safety interlock system
for the protection of the operator. If the interlock system
should ever malfunction, do notoperate the tractor.
Contact an authorized service dealer. The safety
interlock system prevents the engine from cranking or
starting unless the parking brake is engaged, and the
PTO knob is in the disengaged (OFF) position.
The engine will automatically shut off if:
1. The operatorleaves the seat before engaging the
parking brake;
2. The operator leaves the tractor’s seat with the PTO
knob in the engaged (ON) position, regardless of
whether the parking brake is engaged; and
3. The PTO knob is moved to engaged (ON) position
with the drive pedal in position for reverse travel.
Setting the Cutting Height
• Select the height position of the cutting deck by
placing the deck lift lever in any of the six different
cutting height notches on the right side of the
fender.
• Adjust the deck wheels so that they are between ¼-
inch and ½-inch above the ground when the tractor
is on a smooth, flat surface such as a driveway.
NOTE: The deck wheels are an anti-scalp feature of the
deck and are not designed to support the weight of the
cutting deck.
Refer to Leveling the Deck on page 16 of this manual for
more detailed instructions regarding various deck
adjustments.
Starting the Engine
Refer to page 7 of this manual for gasoline and oil fill-up
instructions.
• Insert the tractor key into the ignition switch.
• Place the PTO knob in the disengaged (OFF)
position.
• Engage the tractor’s parking brake.
• Place the throttle control in the FAST (rabbit)
position.
• Pull the choke control outward.
• Turn the ignition key clockwise to the START
position. After the engine starts, release the key. It
will return to the ON position.
IMPORTANT: Donot holdthekeyintheSTART position
for longer than ten seconds at a time. Doing so may
cause damage to your engine’s electric starter.
• Aftertheengine starts,deactivatethechokecontrol
and place the throttle control in the FAST position.
NOTE: Do not leave the choke control on while
operating the tractor. Doing so will result in a "rich" fuel
mixture and cause the engine to run poorly.
Stopping the Engine
• If the blades are engaged, place the PTO knob in
the disengaged (OFF) position.
• Turn the ignition key counterclockwise to the OFF
position.
• Remove the key from the ignition switch to prevent
unintended starting.
Driving The Tractor
IMPORTANT: Avoid sudden starts, excessive speed and
sudden stops.
• Briefly depress the brake pedal to release the
parkingbrake.Movethethrottleleverintothe FAST
(rabbit) position.
WARNING: Do not operate the tractor if the
interlock system is malfunctioning. This system
was designed for your safety and protection.
WARNING: Keep hands and feet away from
the discharge opening of the cutting deck.
AVOID SERIOUS INJURY OR DEATH
• GO UP AND DOWN SLOPES, NOT ACROSS.
• AVOID SUDDEN TURNS.
• DO NOT OPERATE THE UNIT WHERE IT COULD SLIP OR TIP.
• IF MACHINE STOPS GOING UPHILL, STOP BLADE(S) AND BACK
DOWNHILL SLOWLY.
• DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.
• NEVER CARRY CHILDREN, EVEN WITH BLADES OFF.
• LOOK DOWN AND BEHIND BEFORE AND WHILE BACKING.
• KEEP SAFETY DEVICES (GUARDS, SHIELDS, AND SWITCHES) IN
PLACE AND WORKING.
• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE(S).
• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.
• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE PLAC-
ING HANDS OR FEET NEAR BLADE(S).
• BEFORE LEAVING OPERATOR’S POSITION, DISENGAGE
BLADE(S), PLACE THE drive pedal IN NEUTRAL, ENGAGE BRAKE
LOCK, SHUT ENGINE OFF AND REMOVE KEY.
READ OPERATOR’S MANUAL
WARNING
WARNING: If you strike a foreign object,
stop the engine, disconnect the spark plug
wire(s) and ground against the engine.
Thoroughly inspect the machine for any
damage. Repair the damage before restarting
and operating.

14

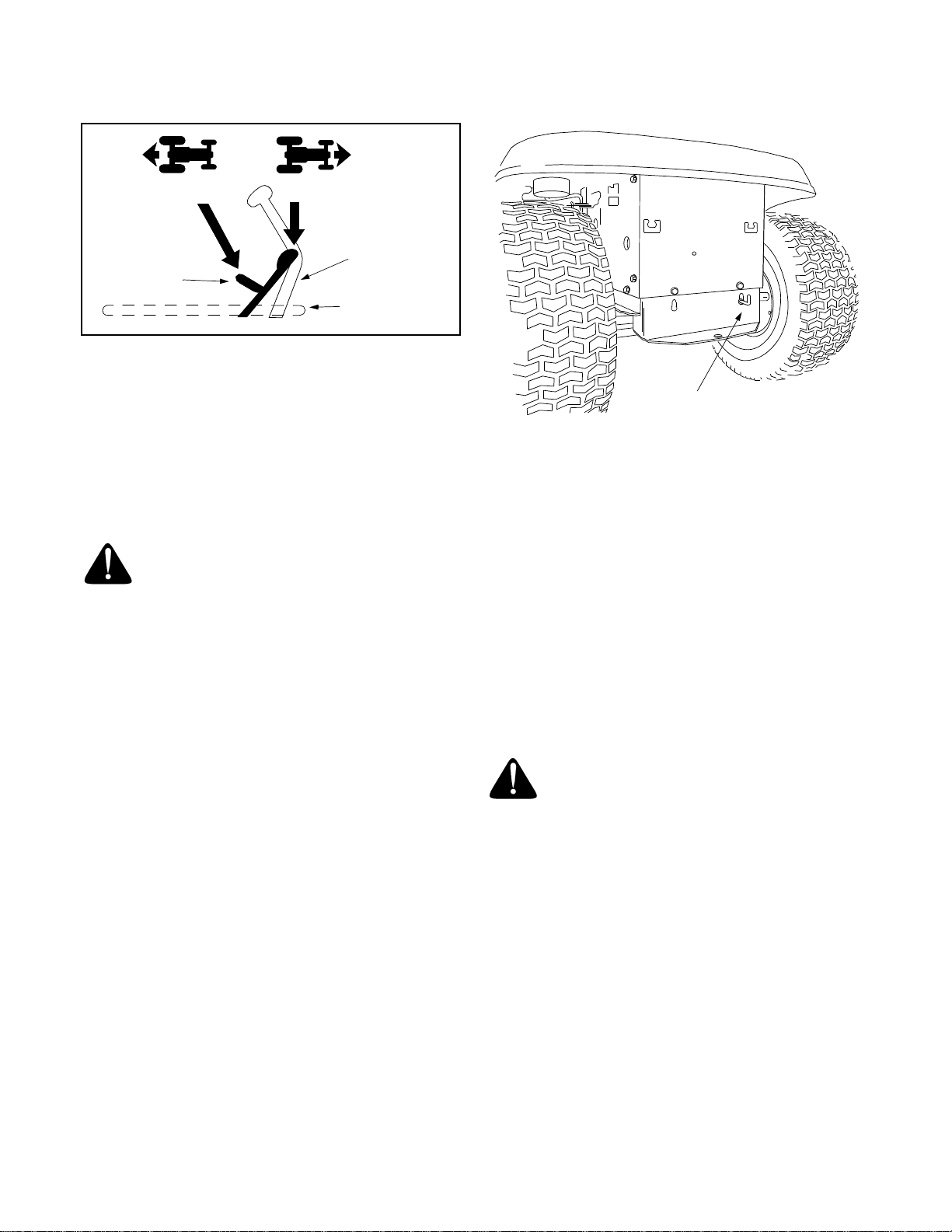

•To travel forward: Slowly depress the upper
portion of the drive pedal forward until the desired
speed is achieved. See Figure 7.
Figure 7
•To travel in reverse: Check that the area behind is
clear, then slowly depress the lower portion of the
drive pedal with the ball of your foot (not your heel)
until the desired speed is achieved.See Figure 7.
IMPORTANT: Do not attempt to change the direction of
travel when the tractor is in motion.Always bring the
tractor to a complete stop before pivoting the drive
pedal from forward to reverse or vice versa.
Engaging the Parking Brake
To engage the parking brake:
• Fully depress the brake pedal and hold it there
while gently pushing the parking brake button
inward.
• Hold the parking brake button in while removing
your foot from the brake pedal.
• Once engaged, the parking brake button and the
brake pedal will lock in the DOWN position.
To disengage the parking brake:
• Slightly depress the brake pedal.
NOTE: The parking brake must be engaged if the
operator leaves the seat with the engine running or the
engine will automatically shut off.
Moving the Tractor Manually
Your tractor’s transmission is equipped with a relief
valve for occasions when it is necessary to move the
tractor manually. Activating this valve forces the
transmission fluid to bypass its normal route, allowing
the rear tires to "freewheel." To engage the relief valve,
proceed as follows:
• Locate the hydrostatic bypass rod in the rear of the
tractor.See Figure 8.
Figure 8
• Pull the hydrostatic bypass rod outward, then up, to
lock it in place.
NOTE: The transmission will NOT engage when the
hydrostatic bypass rod is pulled out. Return the rod to
its normal position prior to operating the tractor.
IMPORTANT: Never attemptto move the tractor
manually without first engaging the relief valve. Doing
so will result in damage to the tractor’s transmission.
Driving On Slopes
Refer to the Slope Gauge on page 6 to help determine
slopes where you may operate the tractor safely.
• Mow up and down slopes, never across.
• Exercise extreme caution when changing direction
on slopes.
• Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
• Avoid turns when driving on a slope. If a turn must
be made, turn downwards on the slope. Turning
upwards on a slope greatly increases the chance of
a roll over.
• Avoid stopping when driving up a slope. If it is
necessary to stop while driving up a slope, start up
smoothly and carefully to reduce the possibility of
flipping the tractor over backward.
WARNING: Do not leave the seatof the
tractor without first placing the PTO knob in the
disengaged (OFF) position, depressing the
brake pedal and engaging the parking brake. If
leaving the tractor unattended, also turn the
ignition key off and remove the key.
Reverse Forward
Drive Pedal Fender /
Brake Pedal
Running Board
WARNING: Do not mow on inclines with a
slope in excess of 15 degrees (a rise of
approximately 2-1/2 feet every 10 feet).The
tractor could overturn and cause serious injury.
Hydrostatic
Bypass Rod

15
Setting the Cruise Control
NOTE: The cruise control feature should only be
utilized while traveling in the forward direction.
Engaging Cruise Control
• Place the drive pedal in the FORWARD position,
thenslowlydepressthedrivepedaluntilthe desired
speed is achieved.
• Lightly depress the cruise control button.
• While continuing to hold the cruise button in, lift
your foot from the drive pedal (you should feel the
cruise latch engage).
• Once engaged, the cruise control button and the
drive pedal will lock in the DOWN position, and the
tractor will maintain the same forward speed.
NOTE: Cruise control cannot be engaged at the
tractor’s fastest ground speed. If the operator should
attempt to do so, the tractor will automatically
decelerate to the fastest optimal mowing ground speed.
Disengaging Cruise Control
Choose one of the following two methods:
1. Depress the brake pedal to disengage the cruise
control and stop the tractor.
2. Lightly depress the drive pedal.
Changing to Reverse when Cruise Control is Engaged
• Depress the brake pedal to disengage the cruise
control and bring the tractor to a complete stop.
• Depress the lowerportion of the drive pedal with
the ball of your foot to travel in reverse.
Using the Deck Lift Lever
To raise the cutting deck, move the deck lift lever to the
left, then place it in the notch best suited for your
application. Refer to Setting The Cutting Height earlier in
this section.
Engaging the PTO
Engaging the PTO transfers power to the cutting deck
or other (separately available) attachments. To engage
the PTO, proceed as follows:
• Move the throttle control lever to the FAST (rabbit)
position.
• Pull the PTO knob outward into the engaged (ON)
position. See Figure 9.
Figure 9
• Keep the throttle lever in the FAST (rabbit) position
for the most efficient use of the cutting deck or other
(separately available) attachments
IMPORTANT: The electric PTO clutch will automatically
shut off if the PTO is engaged with the drive pedal in
position for reverse travel. Refer to Safety Interlock
Switches on page 13.
Mowing
• Do not mow at high ground speed, especially if a
mulch kit or grass collector is installed.
• For best results it is recommended that the first two
laps be cut with the discharge thrown towards the
center. After that reverse the direction to throw the
discharge to the outside for the balance of cutting.
• Do not cut the grass too short. Short grass invites
weed growth and yellows quickly in dry weather.
• Mowing should always be done with the engine at
full throttle.
WARNING: To help avoid blade contact or a
thrown object injury, keep bystanders, helpers,
children and pets at least 75 feet from the
machinewhileitis inoperation.Stopmachineif
anyone enters the area.
WARNING: Plan your mowing pattern to
avoid discharge of materials toward roads,
sidewalks, bystanders and the like. Also, avoid
discharging material against a wall or
obstruction which may cause discharged
material to ricochetback toward the operator.
ON OFF
Front View Pull Out Push In

16
SECTION 6: MAKING ADJUSTMENTS
Parking Brake
Adjust the brake if:
1. The tractor does not stop completely when the
brake pedal is completely depressed; or
2. The tractor’s rear wheels roll even when the
parking brake is applied.
Locate the brake disc on right of the transmission in the
rear of the tractor and adjust as follows:
• Looking at the transmission from the right side of
the tractor, locate the compression spring and
brake disc.
• Carefully remove the cotter pin from the crown nut
on the right side of the brake assembly.
• Using a feeler gauge, set the gap between the
brake disc and the brake puck at .011 inches.
• Tighten the crown nut till the proper gap is reached,
and insert a replacement cotter pin.
Seat
• To adjust the position of the seat, move the seat
adjustment lever to the left and slide the seat
forward or rearward. Make sure seat is locked into
position before operating the tractor.
Steering
Adjust the steering drag links if:
1. The tractor turns tighter in one direction than the
other; or
2. While the ball joints are being replaced.
Adjust the drag links so that equal lengths are threaded
into the ball joints on the left and the right respectively.

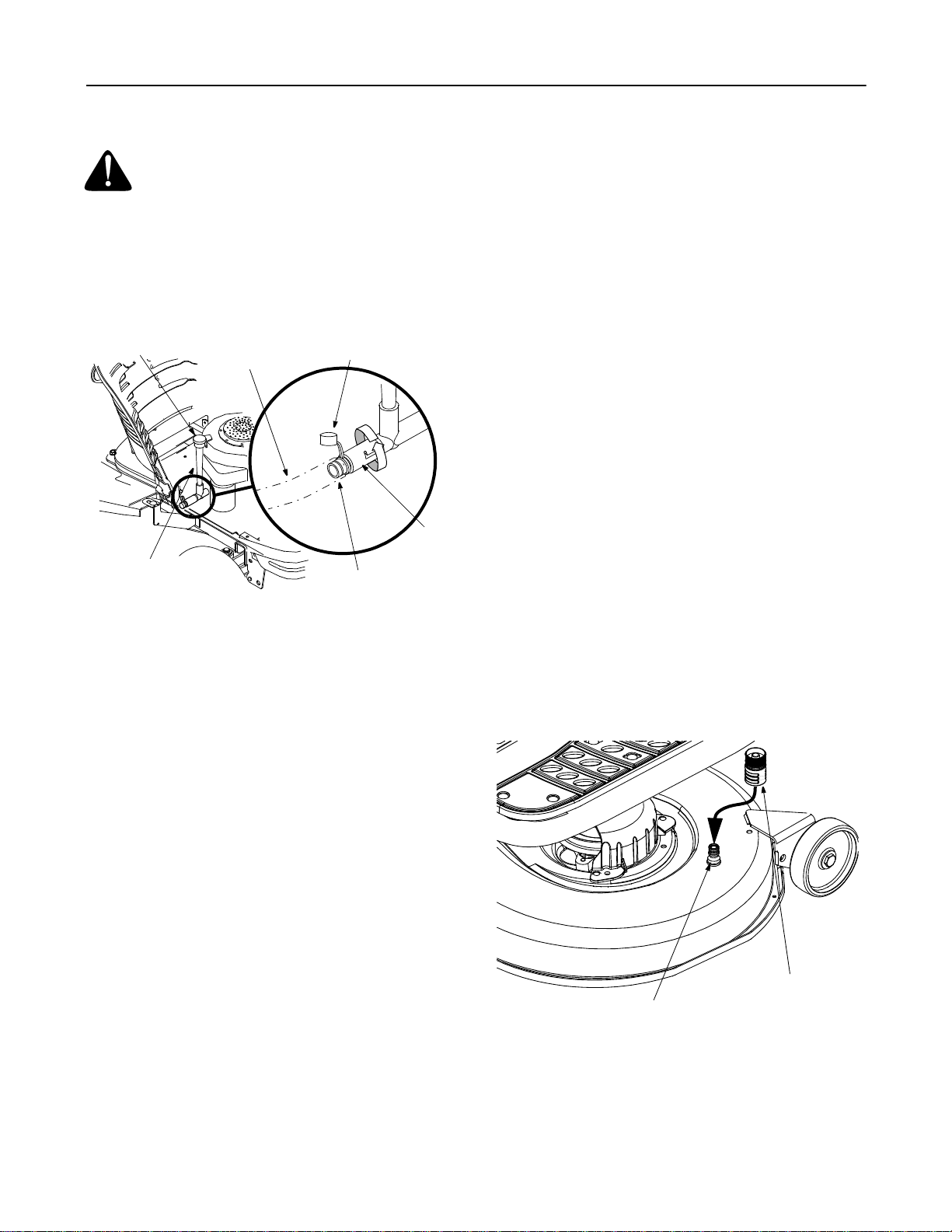

• Loosen the jam nut found on the drag link at the
rear of the ball joint. See Figure 10.
Figure 10
• Remove the hex nut and lock washer on top of the
ball joint. See Figure 10.
• Thread the ball joint towards the jam nut to shorten
the drag link; threadaway from the jam nut to
lengthen the drag link.
• Replace hex nut and lock washer and retighten the
jam nut after proper adjustment is reached.
NOTE: Threading the ball joints too far onto the drag
links will cause the front tires to "toe-in" too far. Proper
toe-in is between 1/16" and 5/16".
Front tire toe-in canbe measured as follows:
• Place the steering wheel in position for straight
ahead travel.
• In front of the axle, measure the distance
horizontally from the inside of the left rim to the
inside of the right rim. Note the distance.
• Behind the axle, measure the distance horizontally
from the inside of the left rim to the inside of the
right rim. Note the distance.
• The measurement taken in front of the axle should
be between 1/16" and 5/16" less than the
measurement taken behind the axle. Adjust if
necessary.
Leveling the Deck
NOTE: Check the tractor’s tire pressure before
performing any deck leveling adjustments. Refer to
Tires on page 21 for information regarding tire pressure.
Front To Rear
The front of the cutting deck is supported by a stabilizer
barthatcan adjustedtolevelthedeck from fronttorear.
The front of the deck should be between 1/4-inch and
3/8-inch lower than the rear of the deck. Adjust if
necessary as follows:
WARNING: Never attempt to make any
adjustments while the engine is running,
except where specified in the manual.
WARNING: Disconnect the spark plug
wire(s) and ground against the engine before
performing any adjustments, repairs or
maintenance.
WARNING: Never attempt to adjust the
brakes while the engine is running. Always
disengage PTO, move drive pedal into neutral
position, stop engine and remove key to
prevent unintended starting.
WARNING: Before operating this machine,
make sure the seat is engaged in the seat stop,
stand behind the machine and pull backon
seat until fully engaged into stop.
Drag Link
Ball Joint
Axle
Pivot Bar
Hex Nut and
Jam Nut
Lock Washer

17

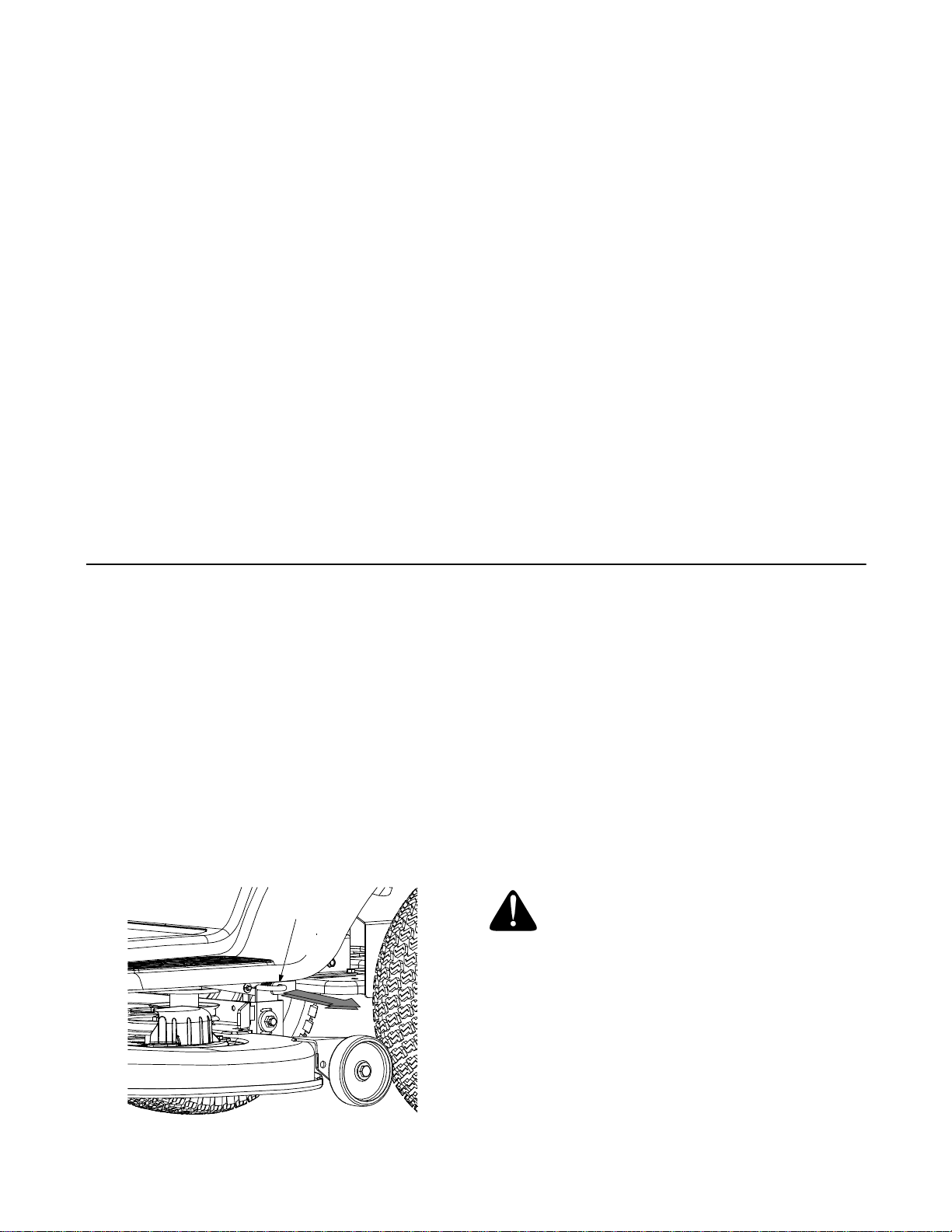

Figure 11
• With the tractor parked on a firm, level surface,
place the deck lift lever in the top notch (highest
position)androtatethebladenearestthedischarge
chute so that it is parallel with the tractor.
• Measure the distance from front of the blade tip to
the ground and rear of the blade tip to the ground.
• The first measurement taken should be between
1/4" and 3/8" less than the second measurement.
Determine the approximate distance necessary for
proper adjustment and proceed to the next step.
• Locate the two lock nuts on the opposite side of the
stabilizer bracket. See Figure 11A. Tighten the lock
nuts to raise the front of the deck; loosen to lower
the front of the deck.
Side to Side
If the cutting deck appears to be mowing unevenly, a
side to side adjustment can be performed. Adjust if
necessary as follows:
• With the tractor parked on a firm, level surface,
place the deck lift lever in the top notch (highest
position) and rotate both blades so that they are
perpendicular with the tractor.
• Measure the distance from the outside of the left
blade tip to the ground and the distance from the
outside of the right blade tip to the ground. Both
measurements taken should be equal. If they’re
not, proceed to the next step.
• Loosen, but do not remove, the hex cap screw on
the left deck hanger bracket. See Figure 11B.
• Balance the deck by using a wrench to turn the
adjustmentgear(found immediatelybehindthehex
cap screw just loosened) clockwise/up or
counterclockwise/down.
• The deck is properly balanced when both blade tip
measurements taken earlier are equal.
• Retighten the hex cap screw on the left deck
hanger bracketwhen proper adjustment is
achieved.
Deck Roller Height
To adjust the heightof the rollers on the rear of the
mowing deck, proceed as follows:
• Place the deck lift lever in the bottom notch (lowest
position).
• Remove the clevis pins and hairpin clips from the
deck roller brackets on the left and right sides of the
cutting deck. See Figure 12.
• Position the deck roller brackets up or down
through the slots on the rear of the deck until
desired position is reached, then re-attach with the
clevis pins and hairpin clips just removed. See
Figure 12.
NOTE: Be certain that the left roller bracket and the
right roller bracket are set in the same position.
Figure 12
Deck
Stabilizer
Bracket
Lock
Nuts
Deck
A
Hex Cap Screw
Adjustment Gear
B
Hairpin
Clevis
Deck Roller
Clip
Bracket
Pin

18
SECTION 7: MAINTAINING YOUR GARDEN TRACTOR
Engine
Refer to the enginemanual for maintenance details.
• Check engine oil level before each use as
instructed in the engine manual.
Figure 13
Changing Engine Oil
NOTE: Depending on the engine model found on your
tractor, it may be necessary to remove the tractor’s side
panel in order to replace the oil filter (if so equipped).
• Unscrew oil fill cap and remove dipstick from the oil
fill tube. See Figure 13.
• Pop open the protective cap on the end of the oil
drain valve to expose the drain port. See Figure 13.
• Push the oil drain hose (packed with this manual)
onto the oil drain port. Route the opposite end of
the hose into an appropriate oil collection container
with a capacity great enough to collect the used oil
(approximately 64 oz.).
• Push the oil drain valve in slightly, then rotate
counterclockwise and pull outward to begin
draining oil. See Figure 13.
• Service the oil filter (if so equipped) as instructed
in the engine manual.
• Perform the above steps in the opposite order after
oil has finished draining.
• Refill the engine with new motor oil.
IMPORTANT: Refer to the engine manual for details
about quantity and proper weight of motor oil.
Air Cleaner
• Service the pre-cleaner, if so equipped, and
cartridge/air cleaner element as instructed in the
engine manual.
Spark Plugs
• Clean the spark plugs and reset the gap once a
season. Spark plug replacement is recommended
at the start of each mowing season. Refer to the
engine manual for correct plug type and gap
specifications.
Cleaning the Engine and Deck
• Promptly wipe off any fuel or oil spilled on the
machine.
• Do not allow grass, leaves, and dirt to accumulate
around the cooling fins of the engine or on any
other part of the machine, especially the pulleys
and other moving parts.
IMPORTANT: The use of a pressure washer to clean
yourtractoris not recommended. Directwaterpressure
on electrical components and the engine could reduce
life of the tractor and its serviceability.
Deck Wash System™
The tractor deck is equipped with a water port on its
surface as part of the Deck Wash System™. Use this to
rinse grass clippings from the deck’s underside and
prevent build-up of corrosive chemicals. Complete the
following steps after each mowing:
• Drive the tractor to a level, clear spot on your lawn,
near enough to a water sillcock (spigot) for your
garden hose to reach.
Figure 14
IMPORTANT: Make certain the tractor’s discharge chute
is directed away from your house, parked cars, etc.
• Disengage PTO, set the parking brake, and stop
the engine.
WARNING: Before performing any
maintenance or repairs, disengage PTO, set
parking brake, stop engine and remove key to
prevent unintended starting.
Protective Cap
Oil Drain Hose
Drain Port
Oil Fill Cap
Oil Fill Tube
Water Port Hose Coupler
(Shown without
Hose Attached)
Oil
Drain
Valve

19
• Thread the hose coupler (packaged with this
manual) onto the end of your garden hose.
• Attach the hose coupler to the water port on your
decks surface. See Figure 14.
• Turn the water on.
• While sitting in the operator’s position on the
tractor, re-start the engine and place the throttle
lever in the FAST (rabbit) position.
• Engage the tractor’s PTO.
•Remain in the operator’s position with the cutting
deck engaged fora minimum of two minutes,
allowing the underside of the cutting deck to
throughly rinse.
• Disengage the tractor’s PTO.
• Turn the tractor engine off.
• Turn the water off and detach the hose coupler
from the water port on your decks surface. Repeat
on the other side.
Lubrication
Engine
Lubricate the engine with motor oil as instructed in the
engine manual .
Pivot Points & Linkage
Lubricate all the pivot points on the drive system,
parking brake and lift linkage at least once a season
with light oil.
Rear Wheels
The rear wheels should be removed from the axles
once a season. Lubricate the axles and the rims well
with an all-purpose grease before re-installing them.
Front Wheels
Each of the front wheel axles is equipped with a grease
fitting. Lubricate with a grease gun after every 25 hours
of tractor operation.
Transmission
The hydrostatic transmission is sealed at the factory.
Oil level cannot be checked nor can the oil be changed.
SECTION 8: SERVICE
Cutting Deck Removal
To remove the cutting deck, proceed as follows:
• Place the PTO knob in the disengaged (OFF)
position and engage the parking brake.
• Lower thedeckby moving the deck liftleverinto the
bottom notch on the right fender.
• Remove the PTO belt from around the electric PTO
clutch. Refer to Figure 16.
• Looking at the cutting deck from the left side of the
tractor, locate the deck support pin on the rear left
side of the deck.
• Pull the deck support pin outward to release the
deck from the deck lift arm. See Figure 15.
Figure 15
• Rotate the pin slightly toward the rear of the tractor
and release the pin into the hole provided.
• Repeat the above steps on the tractor’s right side.
• Move the deck lift lever into the top notch on the
right fender to raise the deck lift arms up and out of
the way.
• Gently slide the cutting deck toward the front of the
tractor allowing the hooks on the deck to release
themselves from the deck stabilizer rod.
• Gently slide the cutting deck (from the right side)
out from underneath the tractor.
Changing the Deck Belt(s)
All belts on your tractor are subject to wear and should
be replaced if any signs of wear are present.
IMPORTANT: The V-belts on your tractor are specially
designed to engage and disengage safely.A substitute
(non-OEM) V-belt can be dangerous by not
disengagingcompletely.For aproperworkingmachine,
use factory approved belts.
Support Pin
WARNING: Be sure to shut the engine off,
remove ignition key, disconnect the spark plug
wire(s) and ground against the engine to
prevent unintended starting before removing
the belt(s).

20
Figure 16
To change or replace the deck belts on your tractor,
proceed as follows:
• Lower thedeckby moving the deck liftleverinto the
bottom notch on the right fender.
• Remove the belt guards by removing the self-
tapping screws thatfasten them to the deck.
• Remove the PTO belt from the electric PTO clutch
and from around the PTO idler pulley, if present.
• Grasp the deck idler pulley and pivot it toward the
left side of the deck to relieve tension on the belt.
• Remove the belt from around all spindle pulleys,
and deck idler pulley(s).
• Route the new belts as shown in Figure 16.
• Remount the belt guards removed earlier.
Changing the Transmission Drive Belt
All belts on your tractor are subject to wear and should
be replaced if any signs of damage are observed.
IMPORTANT: The V-belts on your tractor are specially
designed to engage and disengage safely. A substitute
(non-OEM) V-beltcan be dangerous by not
disengagingcompletely.For aproperworkingmachine,
use factory approved belts.
To change or replace the drive belt on your tractor,
proceed as follows:
• Remove the cutting deck as instructed earlier.
• After disconnecting the battery cables, remove the
battery and battery tray from beneath the seat.
IMPORTANT: When removing the battery, disconnect
the negative (black) wire from its terminal first, followed
by the positive (red) wire. Re-install in reverse order.
NOTE: Proper removal of the drive belt requires the
removal of several tractor components. Read through
the following procedure prior to attempting it; determine
if you can successfully complete it. Otherwise see your
White Outdoor dealer .
IMPORTANT: Note the routing of the lower drive belt
around all the pulleys and the belt keepers (if present)
before performing the following steps.
• Locate the fixed v-idler pulley found on the left
underside of the frame. See Figure 17.
• Grasp the belt on both sides of the pulley and
gently move it toward theleft frame railallowing it to
unseat itself from the fixed v-idler. See Figure 17.
• Pivot the double-idler bracket forward slightly
before removing the idler extension spring from the
stud and the double-idler bracket itself. Do not
discard the spring.
• Roll the drive belt out from around both the v-idler
pulley and the flat idler pulley found on the double-
idler bracket.
• Carefully unplug the tractor’s wire harness from the
connector on the electric PTO clutch.
• Remove the hex bolt from the center of the electric
PTO clutch and gently lower it off the engine
crankshaft. Be careful not to lose any washers or
spacers which may be on top of the electric PTO
clutch. See Figure 17.
NOTE: Belt covers not shown for clarity.
Left Hand
Pulley
Right Hand
Pulley
Center Pulley
Electric
Deck / PTO belt
Deck Idler Pulleys
PTO Clutch
WARNING: Be sure to shut the engine off,
remove ignition key, disconnect the spark plug
wire(s) and ground against the engine to
prevent unintended starting before removing
the belt(s).
