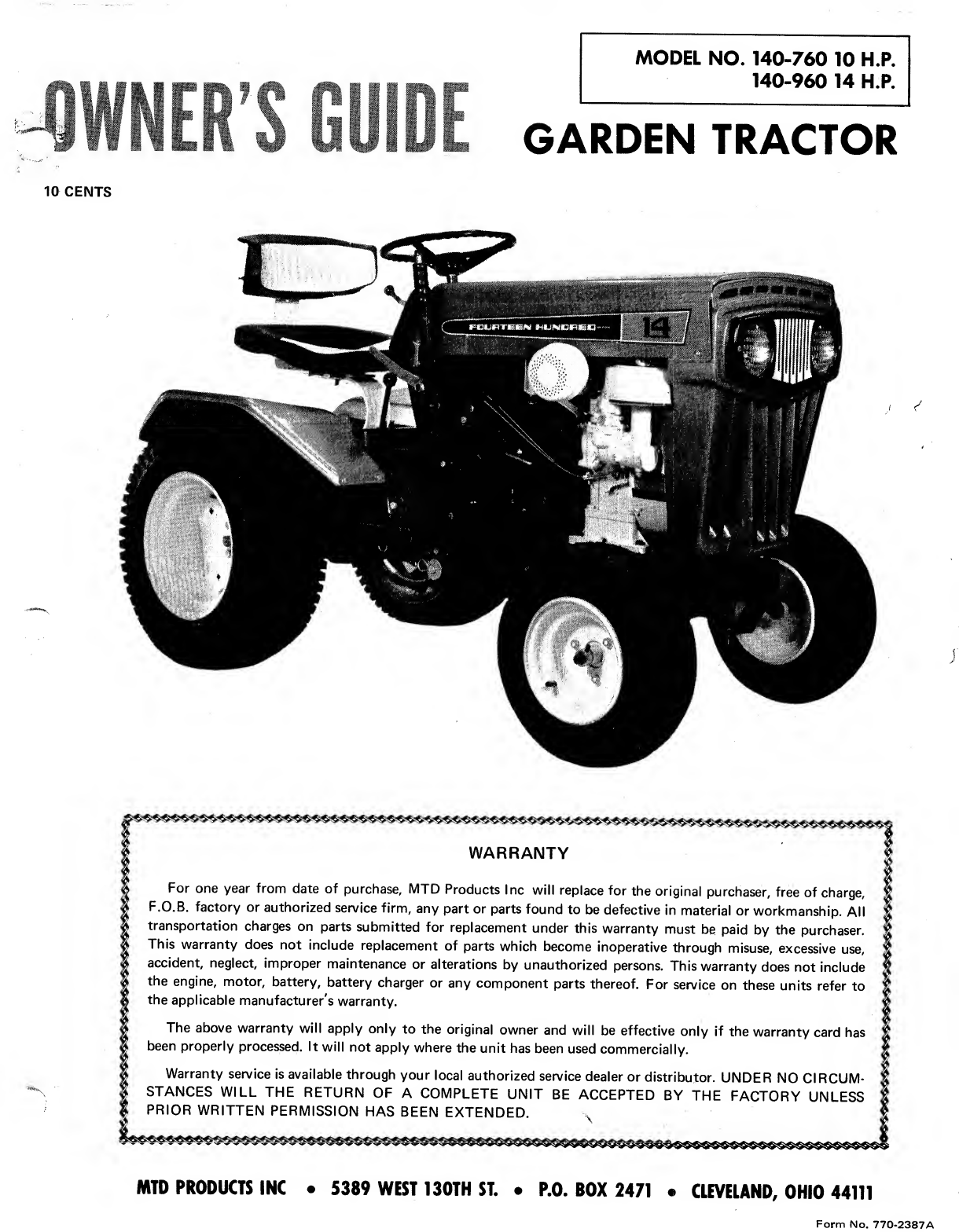

MTD 140-760 10 H.P. User manual

MODEL NO. 140-760 10 H.P.
140-960 14 H.P.
GARDEN TRACTOR
10 CENTS
WARRANTY
For one year from date of purchase, MTD Products Inc will replace for the original purchaser, free of charge,
F.O.B. factory or authorized service firm, any part or parts found to be defective in material or workmanship. All
transportation charges on parts submitted for replacement under this warranty must be paid by the purchaser.
This warranty does not include replacement of parts which become inoperative through misuse, excessive use,
accident, neglect, improper maintenance or alterations by unauthorized persons. This warranty does not include
the engine, motor, battery, battery charger or any component parts thereof. For service on these units refer to
the applicable manufacturer's warranty.
The above warranty will apply only to the original owner and will be effective only if the warranty card has
been properly processed. It will not apply where the unit has been used commercially.
Warranty service is available through your local authorized service dealer or distributor. UNDER NO CIRCUM¬
STANCES WILL THE RETURN OF A COMPLETE UNIT BE ACCEPTED BY THE FACTORY UNLESS
PRIOR WRITTEN PERMISSION HAS BEEN EXTENDED.
MTD PRODUCTS INC • 5389 WEST I30TH ST. • P.O. BOX 2471 • CLEVELAND, OHIO 44111
Form No. 770-2387A

KNOW YOUR MACHINE
PIS® 8
HOW TO CONTROL IT SMOOTHLY. AND HOW
TO STOP IT QUICKLY! AND-

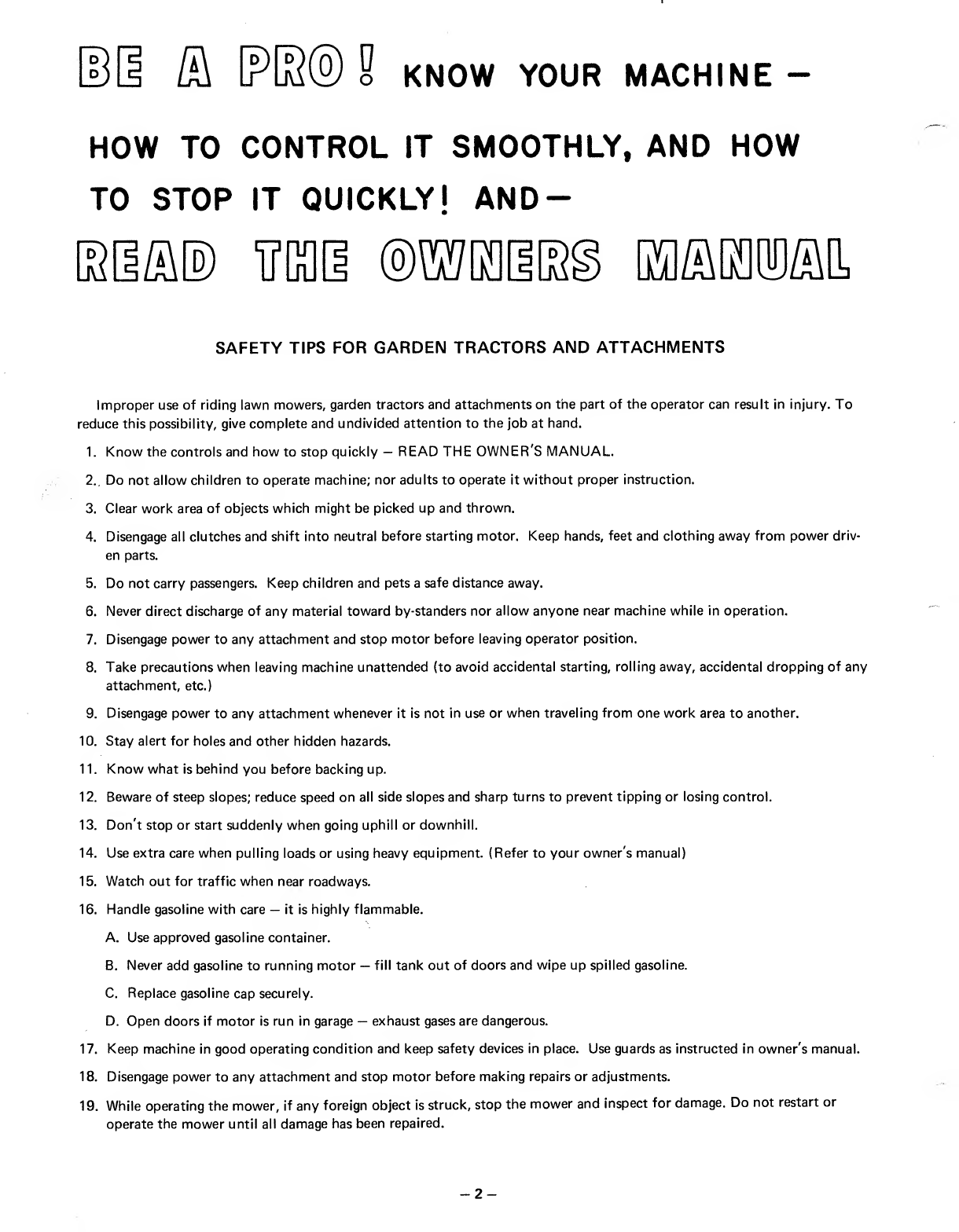

SAFETY TIPS FOR GARDEN TRACTORS AND ATTACHMENTS
Improper use of riding lawn mowers, garden tractors and attachments on the part of the operator can result in injury. To
reduce this possibility, give complete and undivided attention to the job at hand.
1. Know the controls and how to stop quickly — READ THE OWNER'S MANUAL.
2 . Do not allow children to operate machine; nor adults to operate it without proper instruction.
3. Clear work area of objects which might be picked up and thrown.
4. Disengage all clutches and shift into neutral before starting motor. Keep hands, feet and clothing away from power driv¬
en parts.
5. Do not carry passengers. Keep children and pets a safe distance away.
6. Never direct discharge of any material toward by-standers nor allow anyone near machine while in operation.
7. Disengage power to any attachment and stop motor before leaving operator position.
8. Take precautions when leaving machine unattended (to avoid accidental starting, rolling away, accidental dropping of any
attachment, etc.)
9. Disengage power to any attachment whenever it is not in use or when traveling from one work area to another.
10. Stay alert for holes and other hidden hazards.
11. Know what is behind you before backing up.
12. Beware of steep slopes; reduce speed on all side slopes and sharp turns to prevent tipping or losing control.
13. Don't stop or start suddenly when going uphill or downhill.
14. Use extra care when pulling loads or using heavy equipment. (Refer to your owner's manual)
15. Watch out for traffic when near roadways.
16. Handle gasoline with care — it is highly flammable.
A. Use approved gasoline container.
B. Never add gasoline to running motor — fill tank out of doors and wipe up spilled gasoline.
C. Replace gasoline cap securely.
D. Open doors if motor is run in garage — exhaust gases are dangerous.
17. Keep machine in good operating condition and keep safety devices in place. Use guards as instructed in owner's manual.
18. Disengage power to any attachment and stop motor before making repairs or adjustments.
19. While operating the mower, if any foreign object is struck, stop the mower and inspect for damage. Do not restart or
operate the mower until all damage has been repaired.
- 2 -

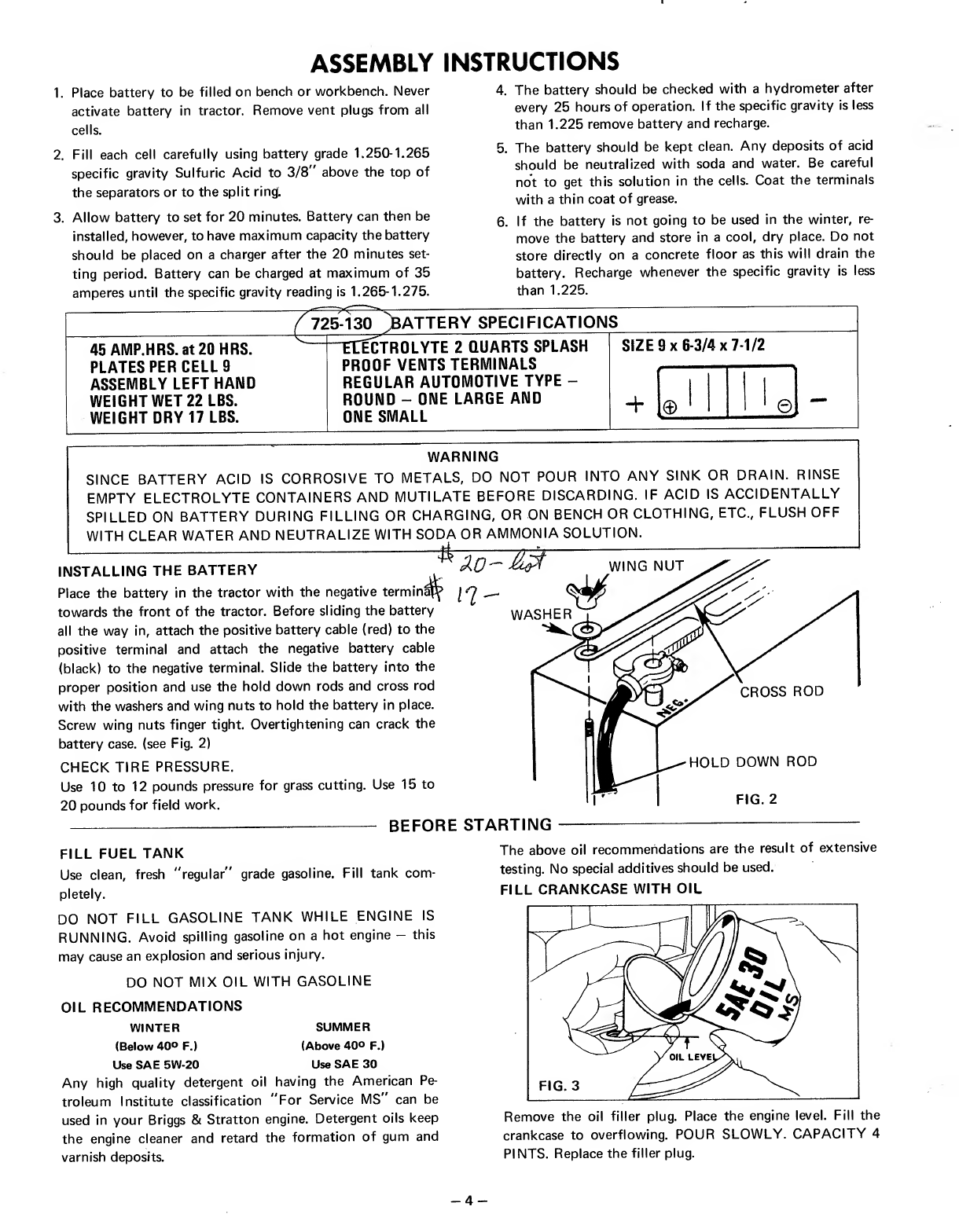

ASSEMBLY INSTRUCTIONS
1. Place battery to be filled on bench or workbench. Never
activate battery in tractor. Remove vent plugs from all
cells.
2. Fill each cell carefully using battery grade 1.250-1.265
specific gravity Sulfuric Acid to 3/8" above the top of
the separators or to the split ring^.
3. Allow battery to set for 20 minutes. Battery can then be
installed, however, to have maximum capacity the battery
should be placed on a charger after the 20 minutes set¬
ting period. Battery can be charged at maximum of 35
amperes until the specific gravity reading is 1.265-1.275.
4. The battery should be checked with a hydrometer after
every 25 hours of operation. If the specific gravity is less
than 1.225 remove battery and recharge.
5. The battery should be kept clean. Any deposits of acid
should be neutralized with soda and water. Be careful
not to get this solution in the cells. Coat the terminals
with a thin coat of grease.
6. If the battery is not going to be used in the winter, re¬
move the battery and store in a cool, dry place. Do not
store directly on a concrete floor as this will drain the
battery. Recharge whenever the specific gravity is less
than 1.225.
/ 7 25 ^ 13 ^>ATTERY SPECIFICATIoi^
^ I M n nun nn-n nni n on I
45 AMP.HRS. at 20 HRS.
PLATES PER CELL 9
ASSEMBLY LEFT HAND
WEIGHT WET 22 LBS.
WEIGHT DRY 17 LBS.
"ECECTROLYTE 2 QUARTS SPLASH
PRODF VENTS TERMINALS
REGULAR AUTOMOTIVE TYPE -
ROUND - ONE LARGE AND
ONE SMALL
SIZE 9 X 6-3/4 X 7-1/2
-t- ® ' ©
WARNING
SINCE BATTERY ACID IS CORROSIVE TO METALS, DO NOT POUR INTO ANY SINK OR DRAIN. RINSE
EMPTY ELECTROLYTE CONTAINERS AND MUTILATE BEFORE DISCARDING. IF ACID IS ACCIDENTALLY
SPILLED ON BATTERY DURING FILLING OR CHARGING, OR ON BENCH OR CLOTHING, ETC., FLUSH OFF
WITH CLEAR WATER AND NEUTRALIZE WITH SODA OR AMMONIA SOLUTION.
--^
INSTALLING THE BATTERY
Place the battery in the tractor with the negative termin
towards the front of the tractor. Before sliding the battery
all the way in, attach the positive battery cable (red) to the
positive terminal and attach the negative battery cable
(black) to the negative terminal. Slide the battery into the
proper position and use the hold down rods and cross rod
with the washers and wing nuts to hold the battery in place.
Screw wing nuts finger tight. Overtightening can crack the
battery case, (see Fig. 2)
CHECK TIRE PRESSURE.
Use 10 to 12 pounds pressure for grass cutting. Use 15 to
20 pounds for field work.
-- BEFORE STARTING
HOLD DOWN ROD
FILL FUEL TANK
Use clean, fresh "regular" grade gasoline. Fill tank com¬
pletely.
DO NOT FILL GASOLINE TANK WHILE ENGINE IS
RUNNING. Avoid spilling gasoline on a hot engine - this
may cause an explosion and serious injury.
DO NOT MIX OIL WITH GASOLINE
OIL RECOMMENDATIONS
WINTER SUMMER
(Below 400 F.) (Above 40° F.)
Use SAE 5W-20 Use SAE 30
Any high quality detergent oil having the American Pe¬
troleum Institute classification "For Service MS" can be
used in your Briggs & Stratton engine. Detergent oils keep
the engine cleaner and retard the formation of gum and
varnish deposits.
The above oil recommendations are the result of extensive
testing. No special additives should be used.
FILL CRANKCASE WITH OIL
Remove the oil filler plug. Place the engine level. Fill the
crankcase to overflowing. POUR SLOWLY. CAPACITY 4
PINTS. Replace the filler plug.
- 4 -

GENERAL INFORMATION
ENGINE AND DRIVE TRAIN
Engine — 10 or 14 HP Synchro-Balanced Briggs & Stratton
cast iron block with 12 volt electric starter.
Transaxle — Peerless with four forward speeds and reverse.
Creeper gear — 3/4 MPH at full throttle. Fourth gear 6-1/2
MPH at full throttle. All speeds variable with throttle.
Clutch — Five and one half inch double faced disc clutch.
ORIENTATION
Your tractor is right hand (R.H.) or left hand (L.H.) as you
operate it. Direction of rotation is clockwise (C W) and
counterclockwise (C C W) as observed from the operator's
position, looking down. (Turning the steering wheel C W
would turn the tractor to the right) C W and C C W on the
vertical plane would be observed facing the R H side of the
tractor.
CLUTCH-BRAKE PEDAL
This pedal is operated with your left foot. Depress half way
down to declutch, depress all the way down to declutch and
brake, coming to a complete stop. Always depress the pedal
when shifting gears. Release pedal slowly to engage clutch.
PARKING BRAKE
The brake is located on the low L H side of the tractor. To
operate, depress the clutch-brake pedal completely and lock
it by turning the parking brake knob C W until it tightens.
To release the brake, turn the knob C C W one complete re¬
volution. (see Fig. 5)
BE SURE GEAR SHIFT
I lP\/Pia IS ifvi lusLiTia/iL.
BEFORE START I IMG
EIMGIIME
DO IMOT SHIFT
WHILE ilM MOTIOIM
fiiPi BivifSJkfSBS CIT'f**!
IF ANY ATTACHMENT
CLOGGED OR JfAIViMEO
■ ■ C
R S ^
FIG. 4
GEAR SHIFT LEVER
The selection of the correct gear and throttle setting will be
determined by the attachment being used. Generally, any¬
thing that uses the tractor engine as a power source should
be run at full throttle with the ground speed determined by
the gear selection.
A lock is provided to prevent accidently engaging the
creeper (1st gear) gear, (see Fig. 4)
DASH PANEL CONTROLS
IGNITION
PARKING GEAR SHIFT
BRAKE LEVER
FIG. 5
LIFT LEVER
The lift lever is used to change the height of the attach¬
ments such as the cutting deck, tiller and plow. To operate,
depress the thumb button, move to the desired height and
release the button.
The plow hitch operates off the lift lever and does not have
to be disconnected when attaching the cutting deck or snow
blade, (see Fig. 1)
5 -

HOOD

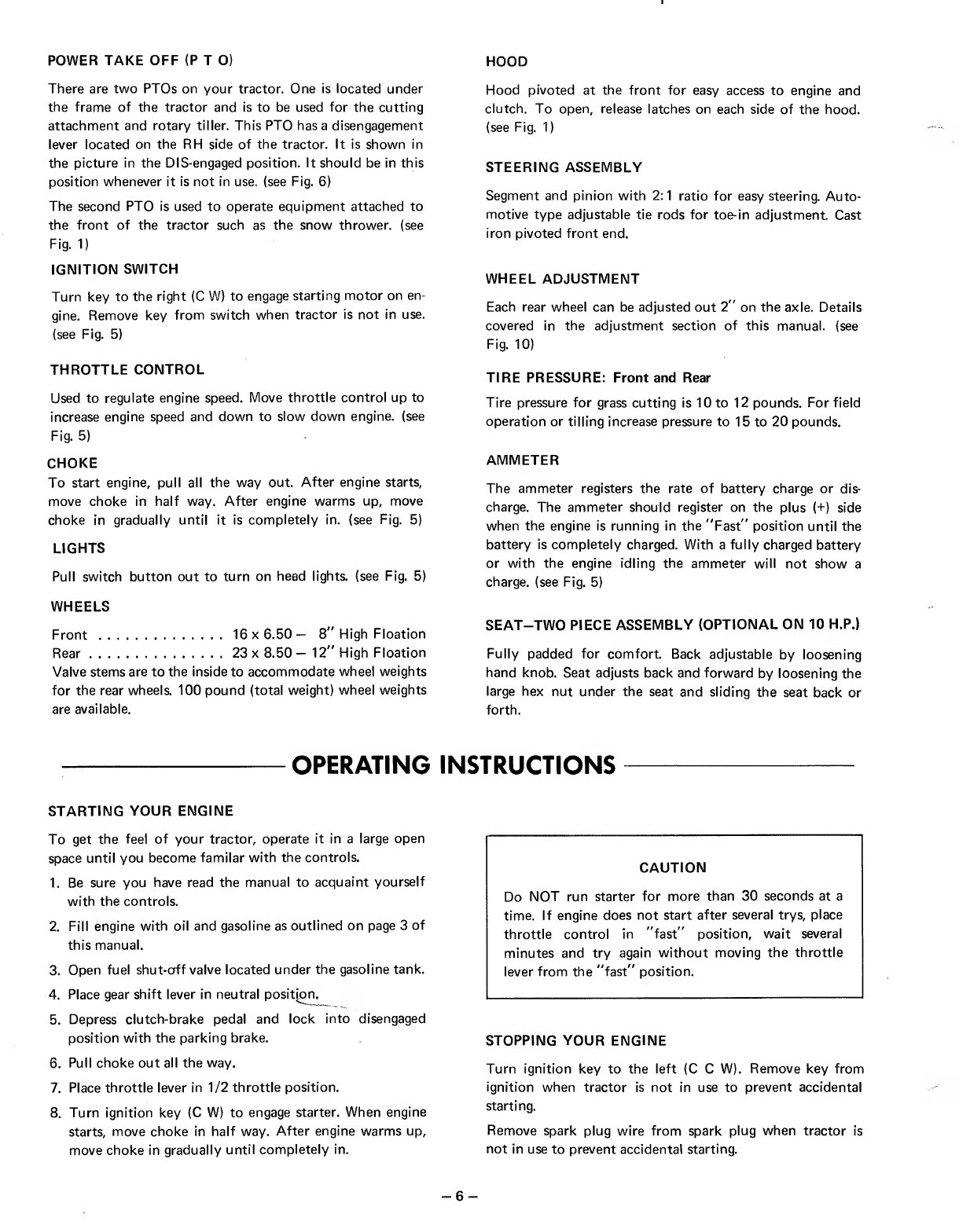

POWER TAKE OFF (P T O)
There are two PTOs on your tractor. One is located under
the frame of the tractor and is to be used for the cutting
attachment and rotary tiller. This PTO has a disengagement
lever located on the RH side of the tractor. It is shown in
the picture in the DIS-engaged position. It should be in this
position whenever it is not in use, (see Fig. 6)
The second PTO is used to operate equipment attached to
the front of the tractor such as the snow thrower, (see
Fig. 1)
IGNITION SWITCH
Turn key to the right (C W) to engage starting motor on en¬
gine. Remove key from switch when tractor is not in use.
(see Fig. 5)
THROTTLE CONTROL
Used to regulate engine speed. Move throttle control up to
increase engine speed and down to slow down engine, (see
Fig. 5)
CHOKE
To start engine, pull all the way out. After engine starts,
move choke in half way. After engine warms up, move
choke in gradually until it is completely in. (see Fig. 5)
LIGHTS
Pull switch button out to turn on head lights, (see Fig. 5)
WHEELS
Front. 1 6 x 6 .50— 8" High Floation
Rear. 23 x 8.50 - 12" High Floation
Valve stems are to the inside to accommodate wheel weights
for the rear wheels. 100 pound (total weight) wheel weights
are available.
Hood pivoted at the front for easy access to engine and
clutch. To open, release latches on each side of the hood,
(see Fig. 1)

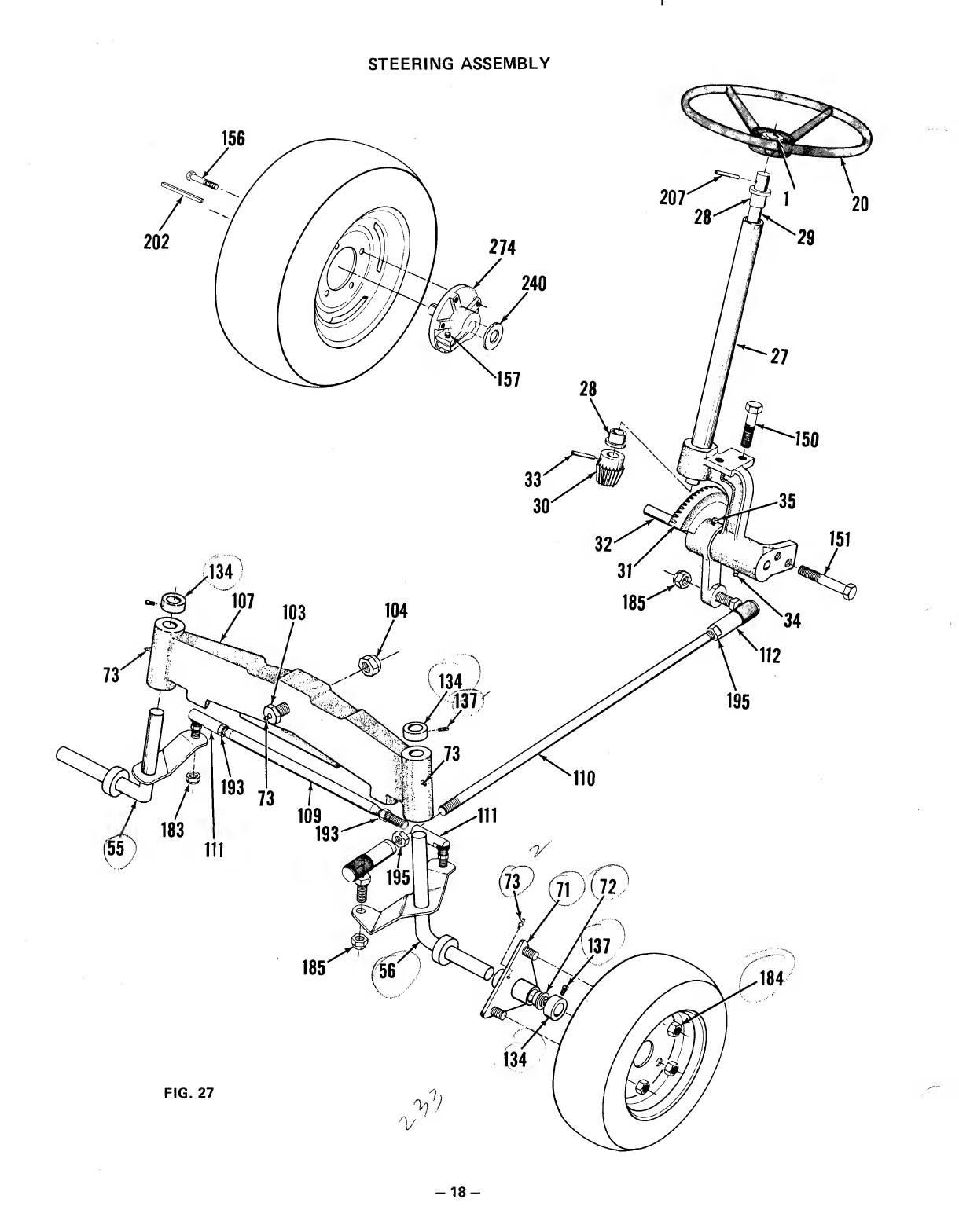

STEERING ASSEMBLY
Segment and pinion with 2:1 ratio for easy steering. Auto¬
motive type adjustable tie rods for toe-in adjustment. Cast
iron pivoted front end.
WHEEL ADJUSTMENT
Each rear wheel can be adjusted out 2 " on the axle. Details
covered in the adjustment section of this manual, (see
Fig. 10)
TIRE PRESSURE: Front and Rear
Tire pressure for grass cutting is 10 to 12 pounds. For field
operation or tilling increase pressure to 15 to 20 pounds.
AMMETER
The ammeter registers the rate of battery charge or dis¬
charge. The ammeter should register on the plus (+) side
when the engine is running in the "Fast” position until the
battery is completely charged. With a fully charged battery
or with the engine idling the ammeter will not show a
charge, (see Fig. 5)
SEAT-TWO PIECE ASSEMBLY (OPTIONAL ON 10 H.P.)
Fully padded for comfort. Back adjustable by loosening
hand knob. Seat adjusts back and forward by loosening the
large hex nut under the seat and sliding the seat back or
forth.
OPERATING INSTRUCTIONS
STARTING YOUR ENGINE
To get the feel of your tractor, operate it in a large open
space until you become familar with the controls.
1. Be sure you have read the manual to acquaint yourself
with the controls.
2. Fill engine with oil and gasoline as outlined on page 3 of
this manual.
3. Open fuel shut-off valve located under the gasoline tank.
4. Place gear shift lever in neutral positjon.
5. Depress clutch-brake pedal and lock into disengaged
position with the parking brake.
6. Pull choke out all the way.
7. Place throttle lever in 1/2 throttle position.
8. Turn ignition key (C W) to engage starter. When engine
starts, move choke in half way. After engine warms up,
move choke in gradually until completely in.
CAUTION
Do NOT run starter for more than 30 seconds at a
time. If engine does not start after several trys, place
throttle control in "fast" position, wait several
minutes and try again without moving the throttle
lever from the "fast" position.
STOPPING YOUR ENGINE
Turn ignition key to the left (C C W). Remove key from
ignition when tractor is not in use to prevent accidental
starting.
Remove spark plug wire from spark plug when tractor is
not in use to prevent accidental starting.
-6-

STOPPING YOUR TRACTOR
TO OPERATE THE TRACTOR
1. Move throttle control to 1/2 throttle position.
2. Place left foot on clutch-brake pedal and hold down
while you release the parking brake.
3. Place the gear shift lever in second gear. (Use a low gear
until you get the feel of your tractor.)
4. Slowly let out the clutch-brake pedal until it is com¬
pletely released.
NOTE
When operating attachments such as the cutting unit
or tiller that uses the tractor engine as source of
power, run the engine at near full or full throttle. Set
your ground speed by changing transmission gears.
CAUTION
Do not force the gear shift lever if the gears do not
immediately mesh. Release the clutch-brake pedal and
depress again until it shifts easily.
Do not shift while in motion.
Always release the clutch-brake pedal slowly.
Disengage the transmission by depressing the clutch-brake
pedal and shifting into neutral.
If you park the tractor, set the parking brake and leave the
transmission in gear. Before starting the engine again, place
gear shift lever in neutral.
POWER TAKE OFF (PTO)
The PTO should be in the "OFF" position (Handle Down)
when starting the engine and when attachments using the
PTO are not on the tractor. If, while using the cutting unit
or the rotary tiller, they become clogged and will not oper¬
ate, shut off the engine AND THE PTO before clearing the
attachment.
The PTO engagement lever should be engaged fast to pre¬
vent wear on the PTO belts.
The cutting unit and the rotary tiller can be raised or low¬
ered while they are operating under full power. For ex¬
ample, the rotary tiller can be lifted from the ground with
the left lever in order to turn the tractor around without
shutting off the PTO.
MAINTENANCE
BELTS
PTO BELT REMOVAL - To remove the belt: (see Fig. 6)
1. Set the engagement lever in the ENGAGED position.
2. Remove the spring.
3. Remove the belt guard on the PTO by removing 2
bolts and lock-washers.
4. Remove hex bolts (Ref. No. 151) and lock washers
(Ref. No. 239).
5. Remove hex nut (Ref. No. 191) and lock washer (Ref.
No. 246) and hex bolt (Ref. No. 282).
6. Push the entire clutch back as far as it will go by hand
and remove the belt between the yoke and clutch.
7. ALWAYS replace both belts at the same time.
NOTE
If the lower belt guard is too far away from the PTO belts it
will not "trap-out" the belt on the yoke and the belts will
continue to rotate slowly. Adjust the belt guard for mini¬
mum clearance (not touching) when the PTO handle is in
the engaged position.
FIG. 6

TRANSMISSION BELT:
1
Adjustment — The tension of the belt is increased by
UNSCREWING the leveler screw until you obtain a 1/2”
deflection on the belt when you apply 10 pounds of
force midway between the transmission pulley and the
pulley. Lock leveler in place by tightening the lock nut.
Removal — Screw the leveler screw all the way in until the
idler is loose and remove the belt, (see Fig. 8)
LEVELER SCREW LOCK NUT
FIG. 8
POWER TAKE OFF (PTO) (see Fig. 7)
Adjustment - If the PTO creeps when it is in the disengaged
position the belt should be adjusted. To adjust:
1. Set the engagement lever in the ENGAGED position.
2. Remove the cotter-pin on the PTO adjusting rod.
3. Remove the rod from the bracket and unscrew it 3
complete turns and insert back into the bracket.
4. Replace the cotter-pin.
STARTER-GENERATOR BELT
If the starter-generator turns over and the engine does not
turn over or there is a high pitched squeel when the starter-
generator is turned on, it is an indication of a loose belt.
Adjustment — To tighten, loosen the bolt in the bracket
slightly, loosen the bolt in the adjusting strap and swing
the starter-generator away from the engine until the belt
is tight. (Belt should deflect 1/4” when depressed with
your thumb.) Tighten all bolts, (see Fig. 9)
Removal — Follow same procedure as above except when
the bolts on the bracket and adjusting strap are loose,
swing the starter-generator towards the engine until the
old belt can be removed and replaced. Follow the above
procedure for tightening the new bolt, (sed Fig. 9)
FIG. 9
WHEEL TREAD ADJUSTMENT
The tread on the rear wheels is adjustable from 29” to 35”
by loosening the hex nut on the rear hub and sliding the
hub out. Do not extend the hub beyond the 3 inches. Tight¬
en the hex nut. Both wheels should be in the same relative
position on the axle, (see Fig. 10)
HEX NUT
REAR AXLE
REAR HUB
FIG. 7
-8
FIG. 10

LIFT LEVER LOCKOUT
The lift lever can be locked out so it is free floating and the
rachet does not engage. This is done by depressing the
thumb button on top of the lift lever and moving the lock¬
out in the direction of the arrow, (see Fig. 11)

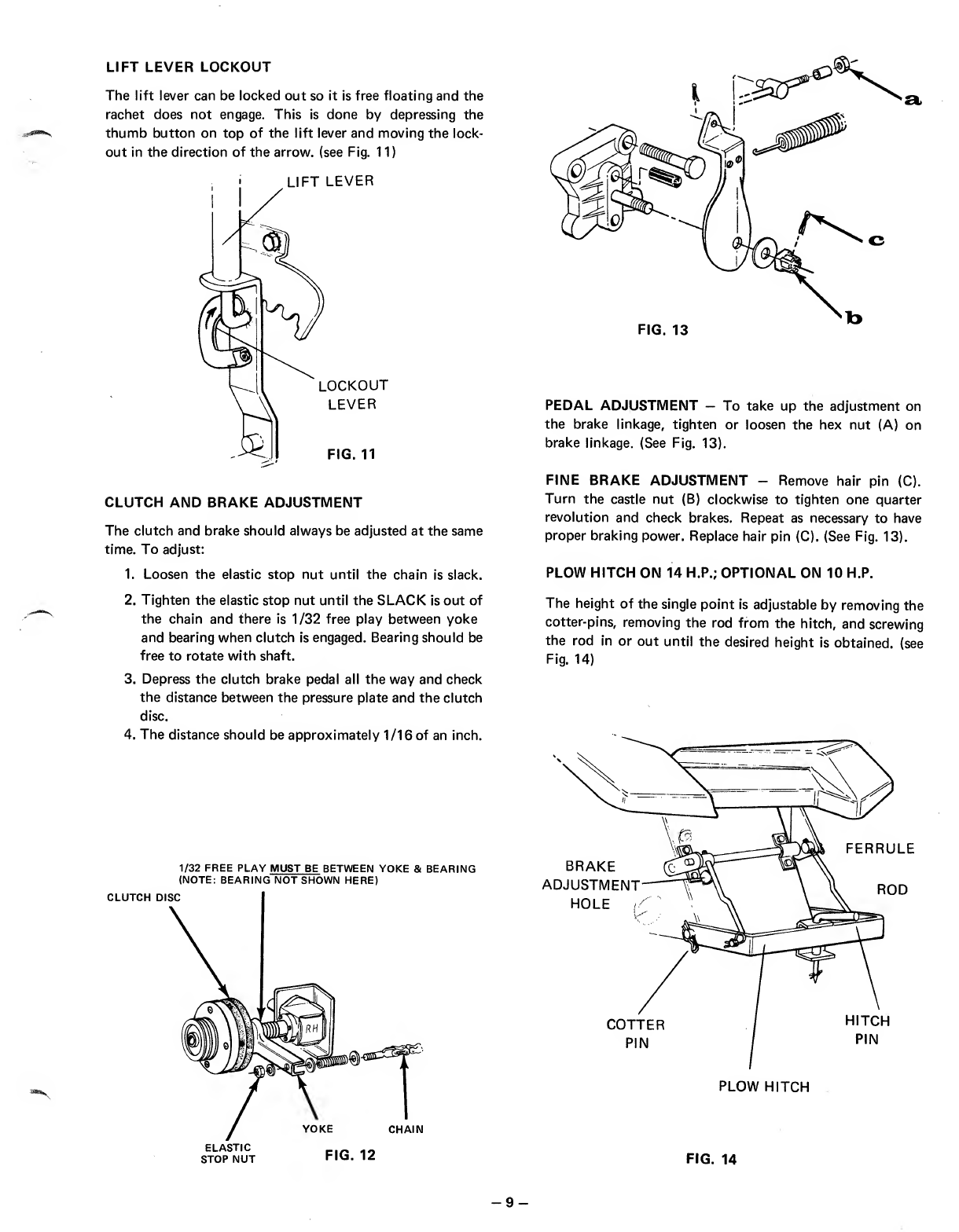

CLUTCH AND BRAKE ADJUSTMENT
The clutch and brake should always be adjusted at the same
time. To adjust:
1. Loosen the elastic stop nut until the chain is slack.
2. Tighten the elastic stop nut until the SLACK is out of
the chain and there is 1/32 free play between yoke
and bearing when clutch is engaged. Bearing should be
free to rotate with shaft.
3. Depress the clutch brake pedal all the way and check
the distance between the pressure plate and the clutch
disc.
4. The distance should be approximately 1/16 of an inch.
1/32 FREE PLAY MUST BE BETWEEN YOKE & BEARING
{NOTE: BEARING NOT SHOWN HERE)
SL
PEDAL ADJUSTMENT — To take up the adjustment on
the brake linkage, tighten or loosen the hex nut (A) on
brake linkage. (See Fig. 13).
FINE BRAKE ADJUSTMENT - Remove hair pin (C).
Turn the castle nut (B) clockwise to tighten one quarter
revolution and check brakes. Repeat as necessary to have
proper braking power. Replace hair pin (C). (See Fig. 13).
PLOW HITCH ON 14 H.P.; OPTIONAL ON 10 H.P.
The height of the single point is adjustable by removing the
cotter-pins, removing the rod from the hitch, and screwing
the rod in or out until the desired height is obtained, (see
Fig. 14)
ELASTIC
STOP NUT
FIG. 12
FIG. 14

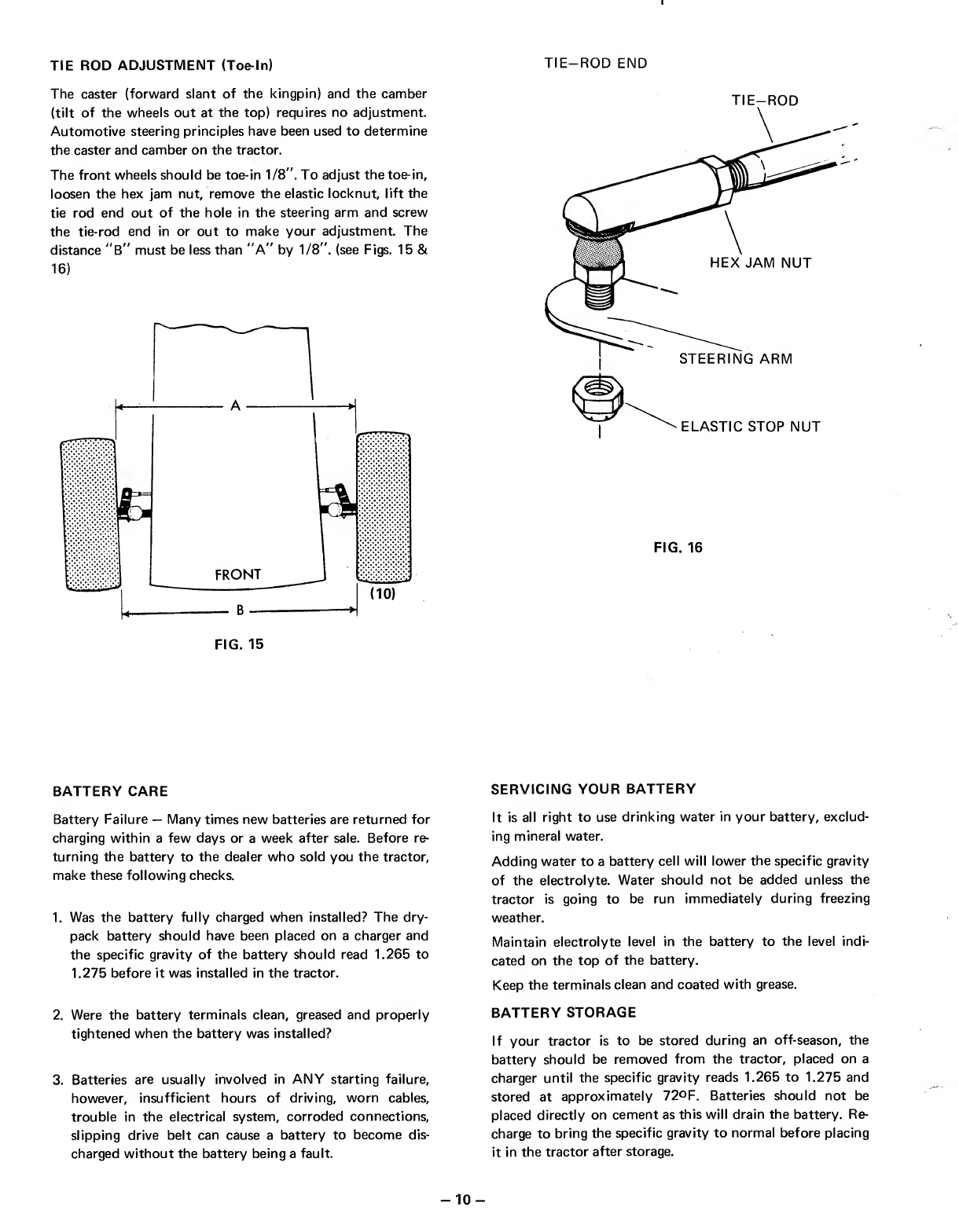

TIE ROD ADJUSTMENT (Toe-In)
TIE-ROD END
The caster (forward slant of the kingpin) and the camber
(tilt of the wheels out at the top) requires no adjustment.
Automotive steering principles have been used to determine
the caster and camber on the tractor.
The front wheels should be toe-in 1/8”. To adjust the toe-in,
loosen the hex jam nut, remove the elastic locknut, lift the
tie rod end out of the hole in the steering arm and screw
the tie-rod end in or out to make your adjustment. The
distance ”B” must be less than ”A” by 1/8”. (see Figs. 15 &
16)
BATTERY CARE
Battery Failure — Many times new batteries are returned for
charging within a few days or a week after sale. Before re¬
turning the battery to the dealer who sold you the tractor,
make these following checks.
1. Was the battery fully charged when installed? The dry-
pack battery should have been placed on a charger and
the specific gravity of the battery should read 1.265 to
1.275 before it was installed in the tractor.
2. Were the battery terminals clean, greased and properly
tightened when the battery was installed?
3. Batteries are usually involved in ANY starting failure,
however, insufficient hours of driving, worn cables,
trouble in the electrical system, corroded connections,
slipping drive belt can cause a battery to become dis¬
charged without the battery being a fault.
TIE-ROD
FIG. 16
SERVICING YOUR BATTERY
It is all right to use drinking water in your battery, exclud¬
ing mineral water.
Adding water to a battery cell will lower the specific gravity
of the electrolyte. Water should not be added unless the
tractor is going to be run immediately during freezing
weather.
Maintain electrolyte level in the battery to the level indi¬
cated on the top of the battery.
Keep the terminals clean and coated with grease.
BATTERY STORAGE
If your tractor is to be stored during an off-season, the
battery should be removed from the tractor, placed on a
charger until the specific gravity reads 1.265 to 1.275 and
stored at approximately 720F. Batteries should not be
placed directly on cement as this will drain the battery. Re¬
charge to bring the specific gravity to normal before placing
it in the tractor after storage.
- 10

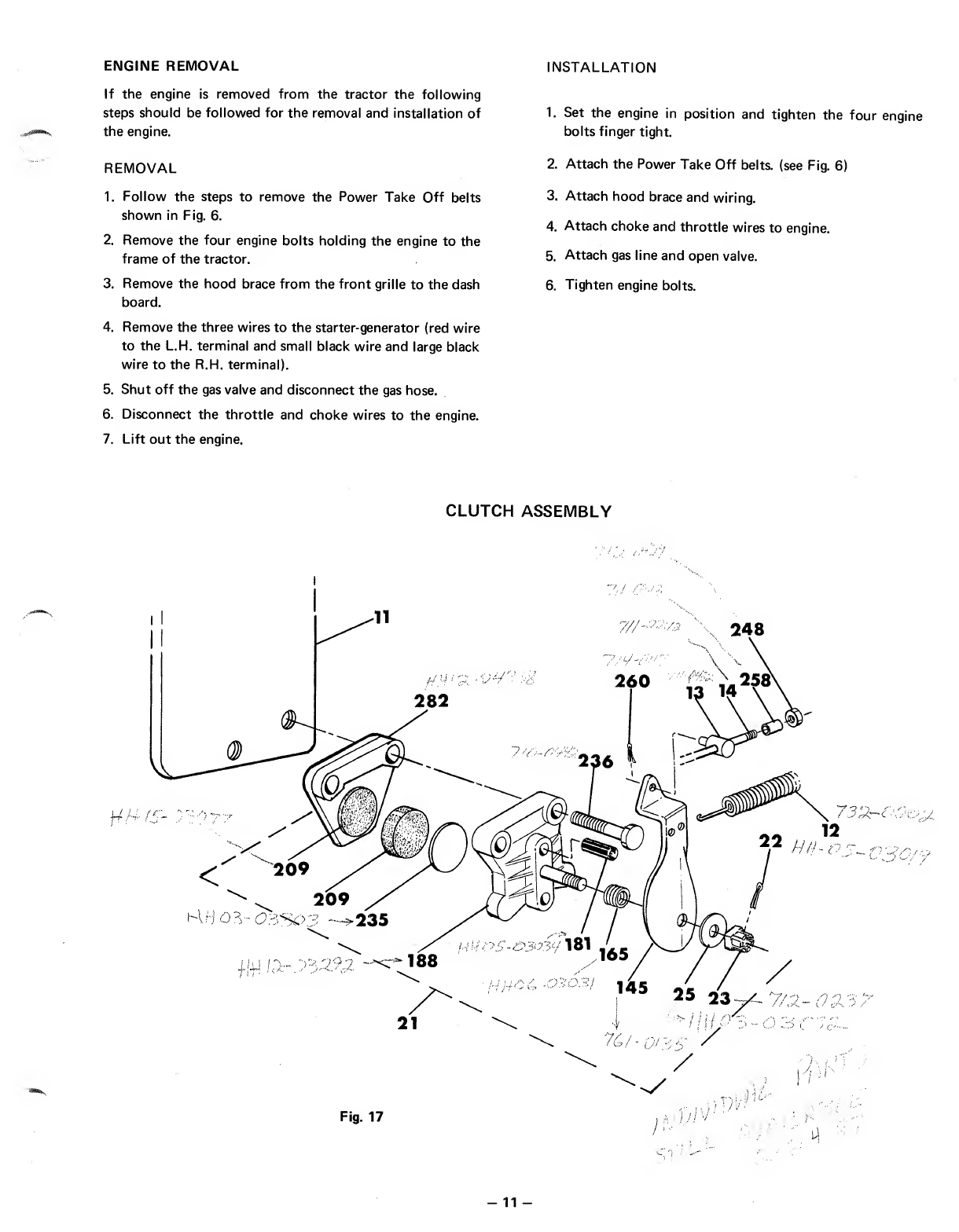

ENGINE REMOVAL
INSTALLATION
If the engine is removed from the tractor the following
steps should be followed for the removal and installation of 1. Set the engine in position and tighten the four engine
the engine. bolts finger tight.
REMOVAL Attach the Power Take Off belts, (see Fig. 6)
1. Follow the steps to remove the Power Take Off belts 3. Attach hood brace and wiring,
shown in Fig. 6.
4. Attach choke and throttle wires to engine.
2. Remove the four engine bolts holding the engine to the
frame of the tractor. 5. Attach gas line and open valve.
3. Remove the hood brace from the front grille to the dash 6. Tighten engine bolts,
board.
4. Remove the three wires to the starter-generator (red wire
to the L.H. terminal and small black wire and large black
wire to the R.H. terminal).
5. Shut off the gas valve and disconnect the gas hose.
6. Disconnect the throttle and choke wires to the engine.
7. Lift out the engine.
CLUTCH ASSEMBLY
- 11 -

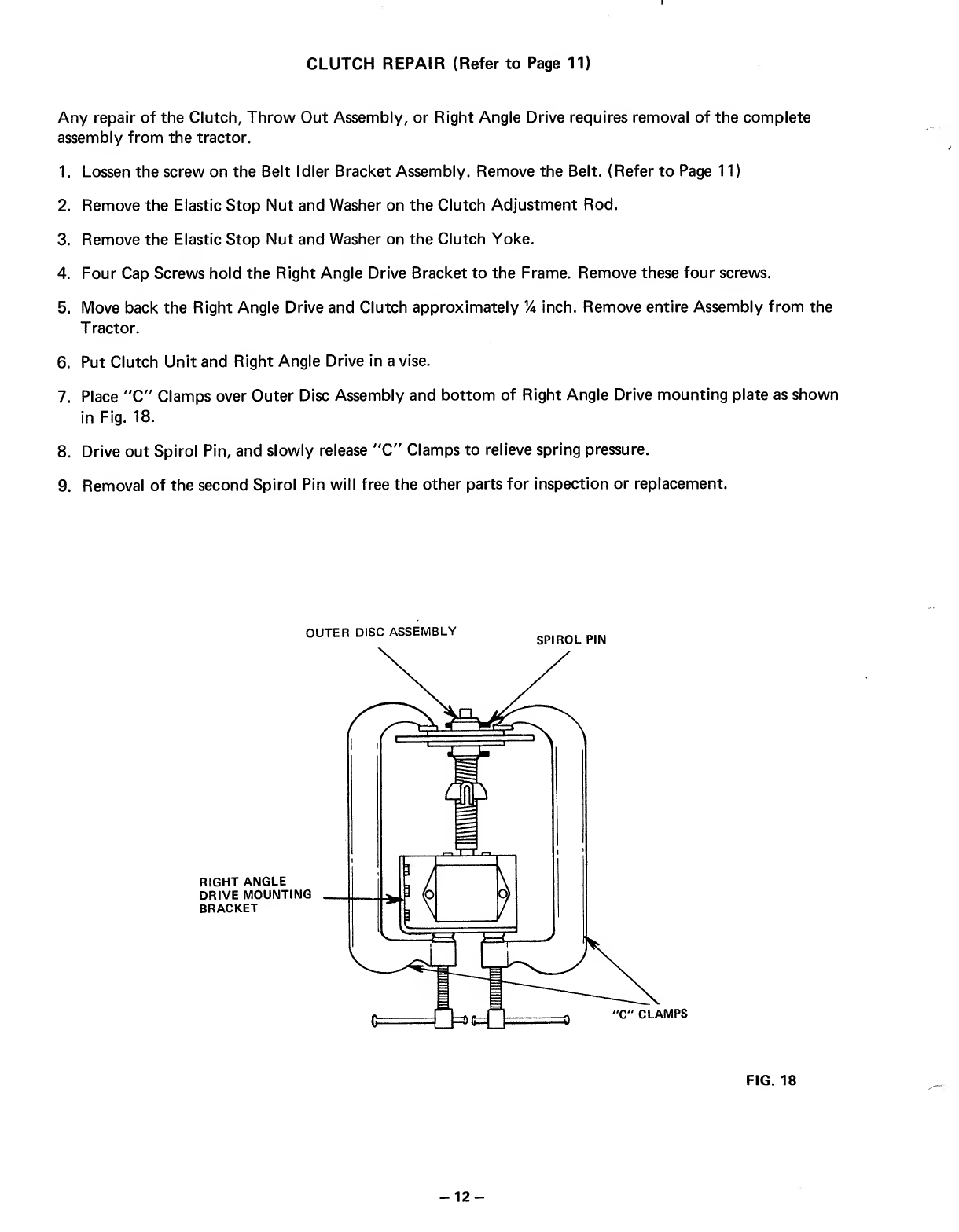

CLUTCH REPAIR (Refer to Page 11)
Any repair of the Clutch, Throw Out Assembly, or Right Angle Drive requires removal of the complete
assembly from the tractor.
1. Lossen the screw on the Belt Idler Bracket Assembly. Remove the Belt. (Refer to Page 11)
2. Remove the Elastic Stop Nut and Washer on the Clutch Adjustment Rod.
3. Remove the Elastic Stop Nut and Washer on the Clutch Yoke.
4. Four Cap Screws hold the Right Angle Drive Bracket to the Frame. Remove these four screws.
5. Move back the Right Angle Drive and Clutch approximately % inch. Remove entire Assembly from the
T ractor.
6. Put Clutch Unit and Right Angle Drive in a vise.
7. Place “C" Clamps over Outer Disc Assembly and bottom of Right Angle Drive mounting plate as shown
In Fig. 18.
8. Drive out Spirol Pin, and slowly release "C" Clamps to relieve spring pressure.
9. Removal of the second Spirol Pin will free the other parts for inspection or replacement.
OUTER DISC ASSEMBLY
SPIROL PIN
RIGHT ANGLE
DRIVE MOUNTING
BRACKET
FIG. 18
-12-

CLUTCH INSTALLATION
1. To reassemble the Clutch Assembly, reverse preceding instructions.
2. Mount Clutch Assembly In Tractor. Assemble the Clutch Yoke to the Pivot Bracket and fasten with
Shoulder Bolt, Washer and Elastic Stop Nut. Tighten Elastic Stop Nut and then back off one half turn.
Clutch Yoke should then move freely.
3. When fastening Right Angle Drive Bracket to Frame, position to obtain correct Spring clearance on
Clutch Yoke. Spring should be centrally located in Clutch Yoke, free from all contact with the formed
edge. It should remain this way In either Engaged or Disengaged position and with the Engine running.
4. Install the Belt and unscrew the Leveler Screw until you obtain a Va" deflection on the Belt when you
apply a 10 pound force midway between the Transaxle Pulley and the Right Angle Drive Pulley.
5. Adjust the Clutch and Brake as shown on Page 9 of this manual
FIG. 19
13-

LUBRICATION
Your tractor has been engineered to give you years of
trouble-free service, however, by following these simple lub¬
rication procedures, you can greatly extend the life of your
tractor.
Ref.
No.
LUBRICATION CHART

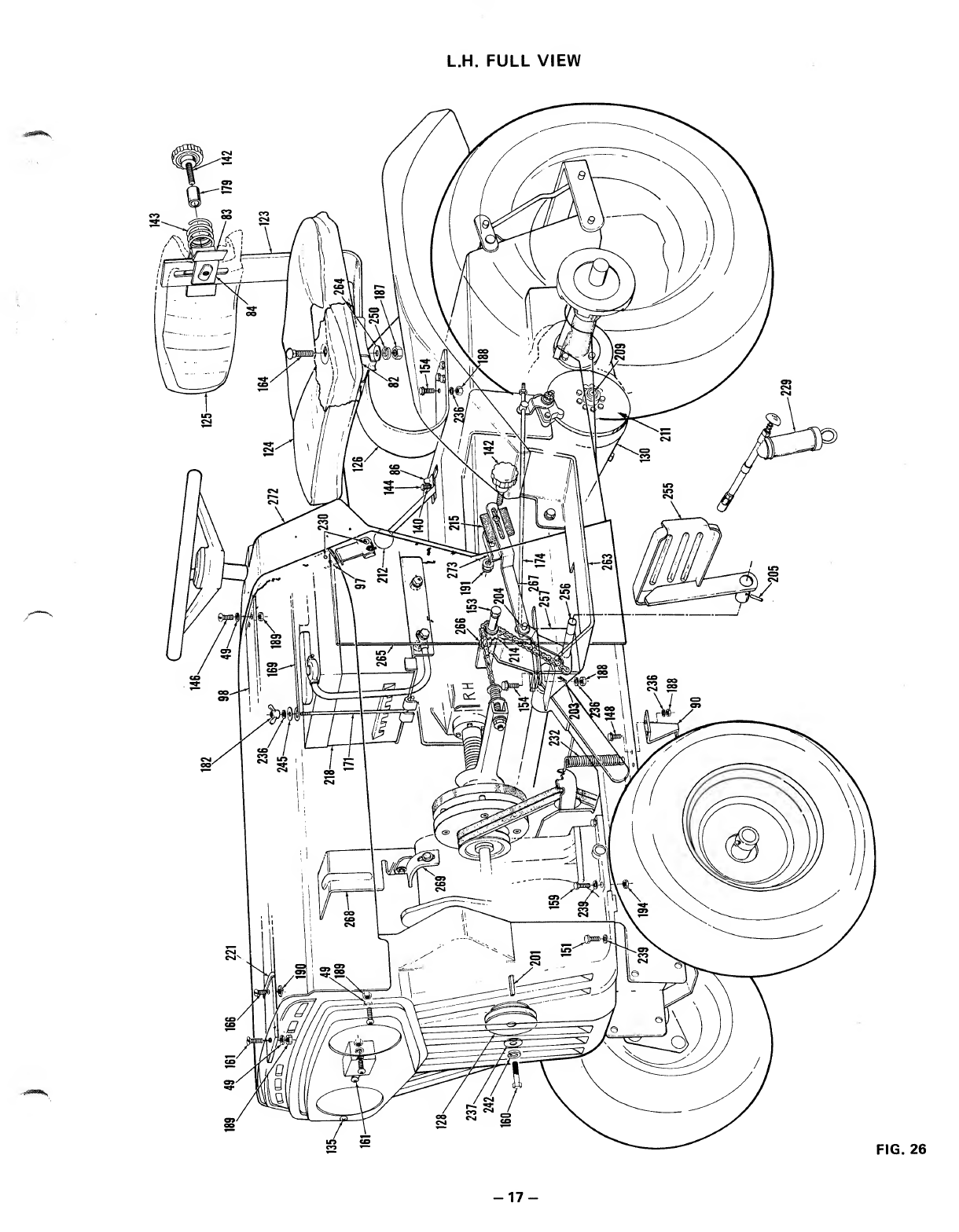

(SEE FIG. 23-27)
25
Hours
50
Hours
Once
a
Season
1
Engine — Oil Recommendations. *
Winter Summer
(Below 40OF) (Above 40OF)
SAE5W-20 SAE30
X
2
Transaxle — Lubricated with 4
pints of SAE E.P. 90 oil. Refill if
below upper plug level.
X
3
Right Angle Drive — Lubricated
with 6 oz. of E.P.G. Lithium
#
Grease.
GREASE FITTINGS { ) No. of Fittings
Use automotive multi-purpose grease
4
Pivot Bolt (1)
X
5
Wheel Bearings (2)
X
6
King Pins (2)
X
7
Deck Pivot Bar (2)
X
8 Steering Arm (1)
X
9
Clutch (1) +
X
10
Power Take Off (1)
X
APPLY GREASE
Use automotive multi-purpose grease
11
Steering and Segment Gears
X
12
Power Take Off Idler Brkt.
X
13
Power Take-Off Lever
X
OIL THESE PARTS
Use Engine Oil
14
Lift Lever
X
15
Chain (on Clutch not shown)
X
16
Plow Hitch
X
17
Clutch Pivot Point
X
Oil all other pivot points once a season.
* Change oil after the first five hours of operation and
every 25 hours thereafter. Use any high quality detergent,
oil.
-t-To lubricate the clutch, rotate the clutch housing until
you can see the grease fitting. Depress the clutch-brake
pedal and set the parking brake.
Lubricate with 3 squirts (1/2 oz.) of grease with the grease
gun provided with your tractor or the equivalent. DO NOT
OVER-LUBRICATE. Too much grease will go beyond the
bearing and on to the face of the clutch.
# Check lubricant level only if the drive train is removed
from the tractor for repair or if grease leaks from the right
angle drive. Remove the four screws holding the cover and
fill with E.P.G. Lithium grease so it just covers the spline
shaft (6 oz.) See figures 17 and 20.
The following parts are sealed and require no further lub¬
rication:
Idler Bearings:
Power Take Off
Transaxle Belt
Tie Rod and Drag Link Ends
3
CLUTCH FIG. 20
BOTTOM FIG. 21
OF
TRACTOR
- 14-

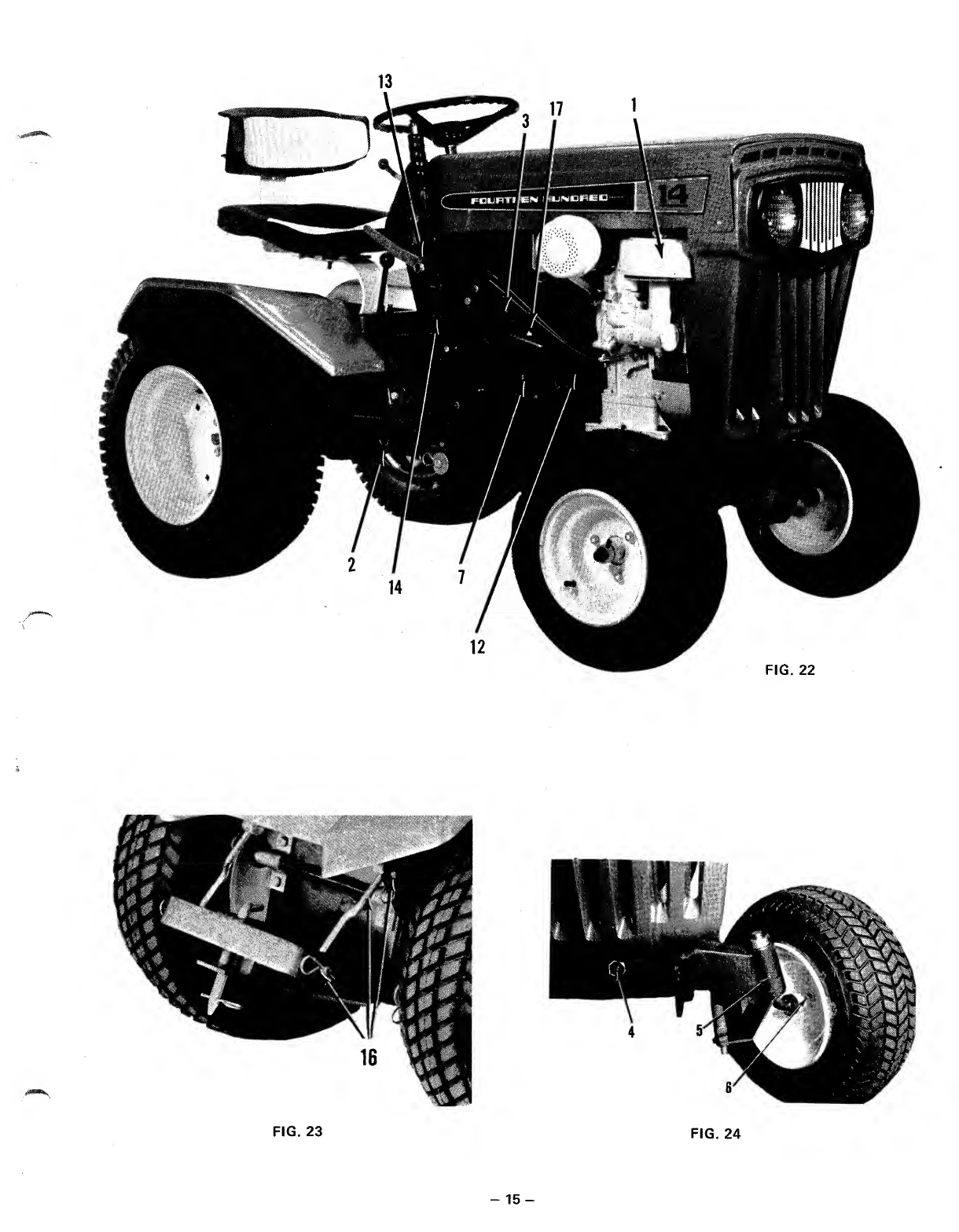

FIG. 24
FIG. 22
FIG. 23
-15-

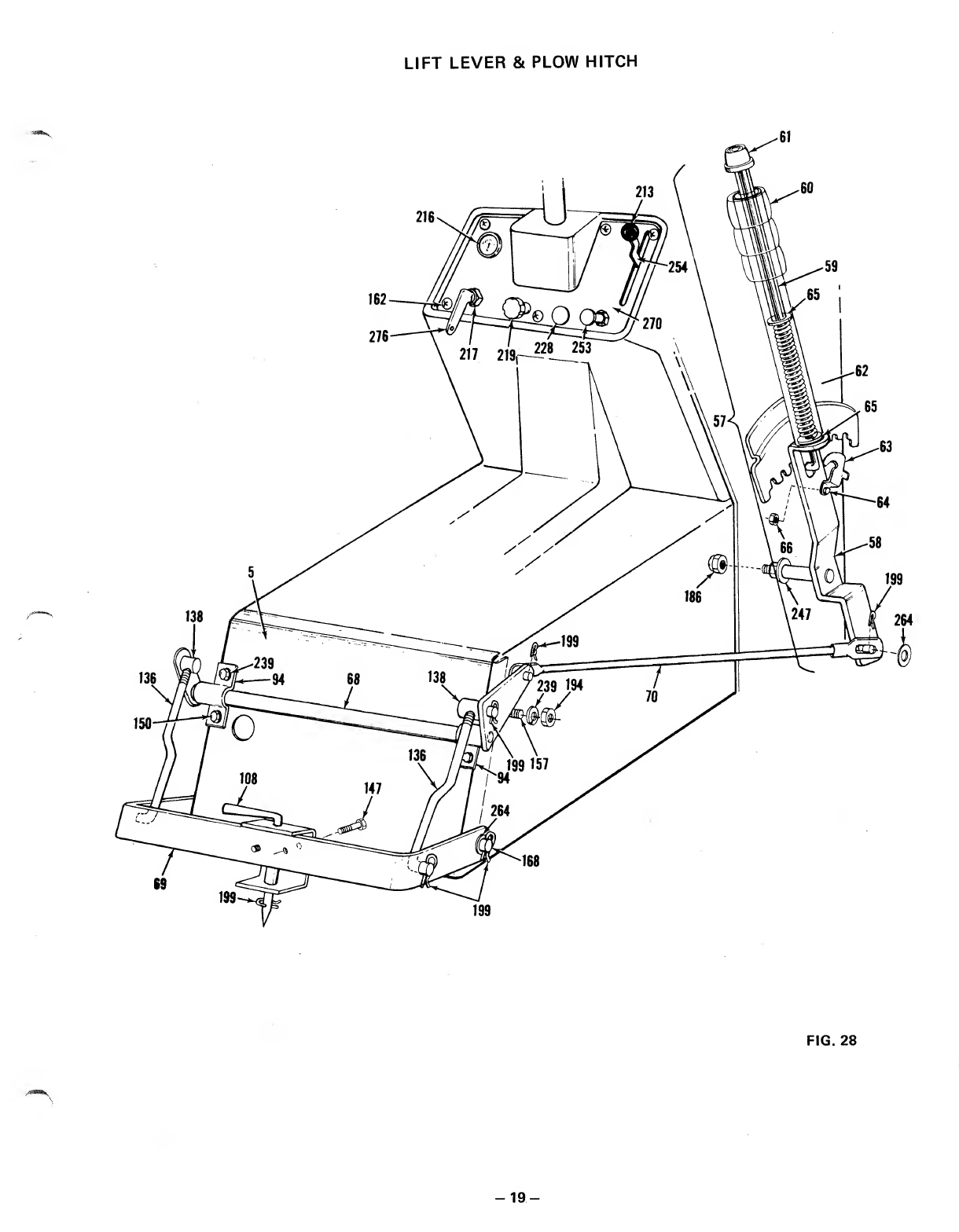

LIFT LEVER & PLOW HITCH
