MTU 12V2000G65 User manual

Operating Instructions
Diesel engine
12V2000G65, G65-TB
16V2000G65, G65-TB
18V2000G65, G65-TB
Application group 3A
MS15018/03E

Engine model kW/cyl. Application group
12V2000G65 42.9 kW/cyl. 3A, continuous operation, unrestricted
12V 2000 G65-TB 42.9 kW/cyl. 3A, continuous operation, unrestricted
16V2000G65 40.9 kW/cyl. 3A, continuous operation, unrestricted
16V 2000 G65-TB 40.9 kW/cyl. 3A, continuous operation, unrestricted
18V2000G65 40.0 kW/cyl. 3A, continuous operation, unrestricted
18V 2000 G65-TB 40.0 kW/cyl. 3A, continuous operation, unrestricted
Table 1: Applicability
© 2016 Copyright MTU Friedrichshafen GmbH
This publication is protected by copyright and may not be used in any way, whether in whole or in part, without the prior writ-
ten consent of MTU Friedrichshafen GmbH. This particularly applies to its reproduction, distribution, editing, translation, micro-
filming and storage or processing in electronic systems including databases and online services.
All information in this publication was the latest information available at the time of going to print. MTU Friedrichshafen GmbH
reserves the right to change, delete or supplement the information provided as and when required.

Table of Contents
1 Safety
1.1 Important provisions for all products 5
1.2 Correct use for all products 6
1.3 Personnel and organizational requirements 7
1.4 Safety regulations for startup and operation 8
1.5 Safety precautions when working on the
engine 10
1.6 Fire prevention and environmental
protection, fluids and lubricants, auxiliary
materials 13
1.7 Standards for safety notices in the text 15
2 Transport
2.1 Transportation 16

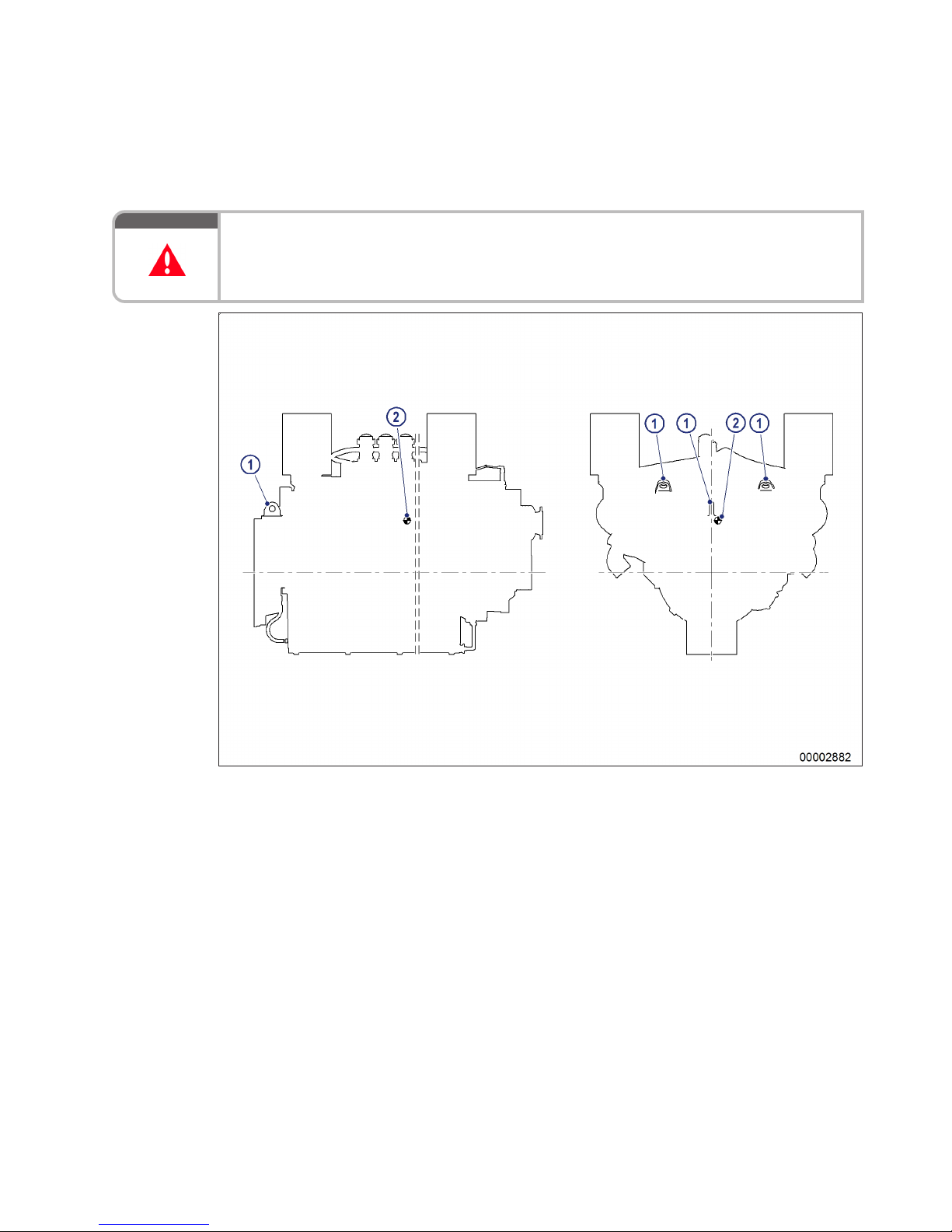

2.2 Lifting requirements 17
3 General Information

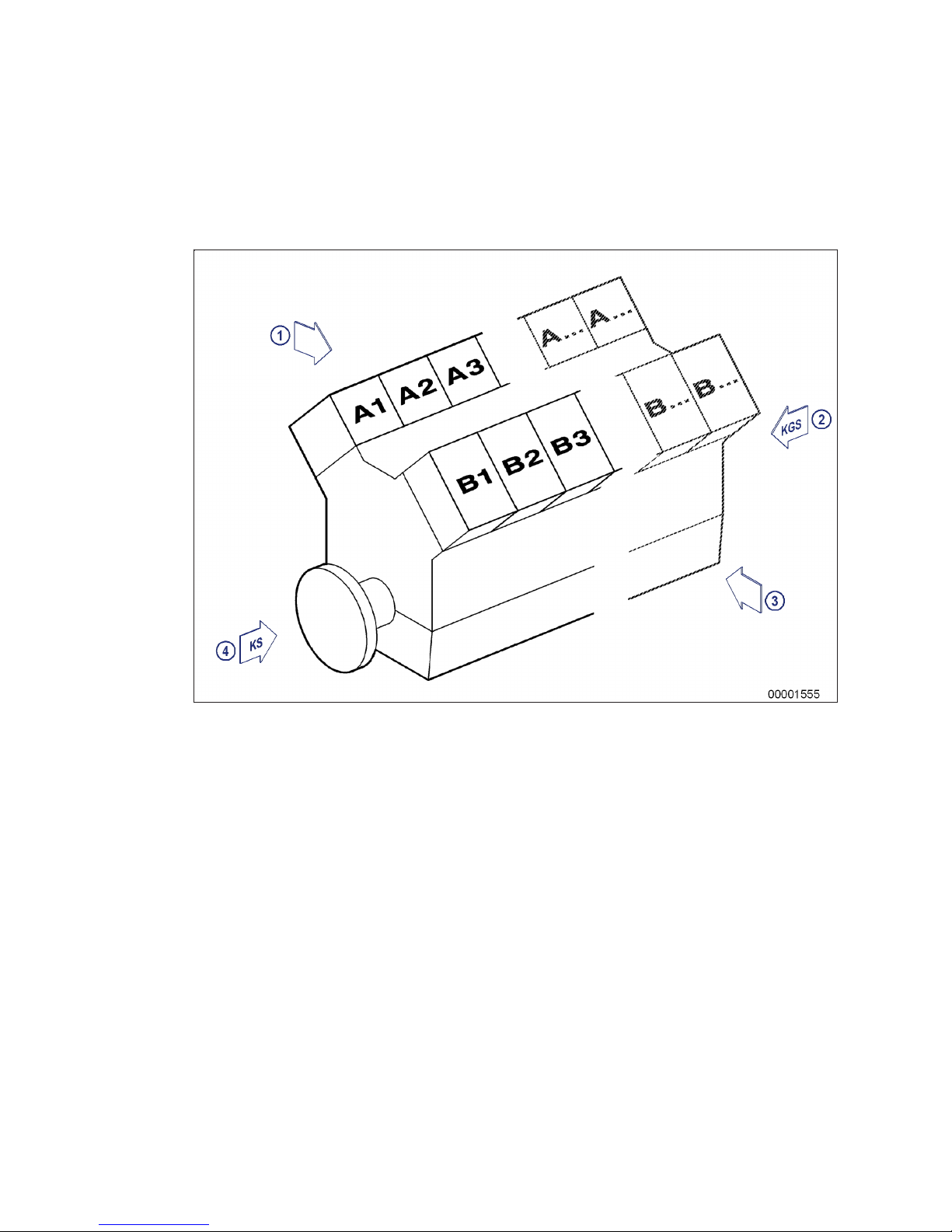

3.1 Engine side and cylinder designations 18

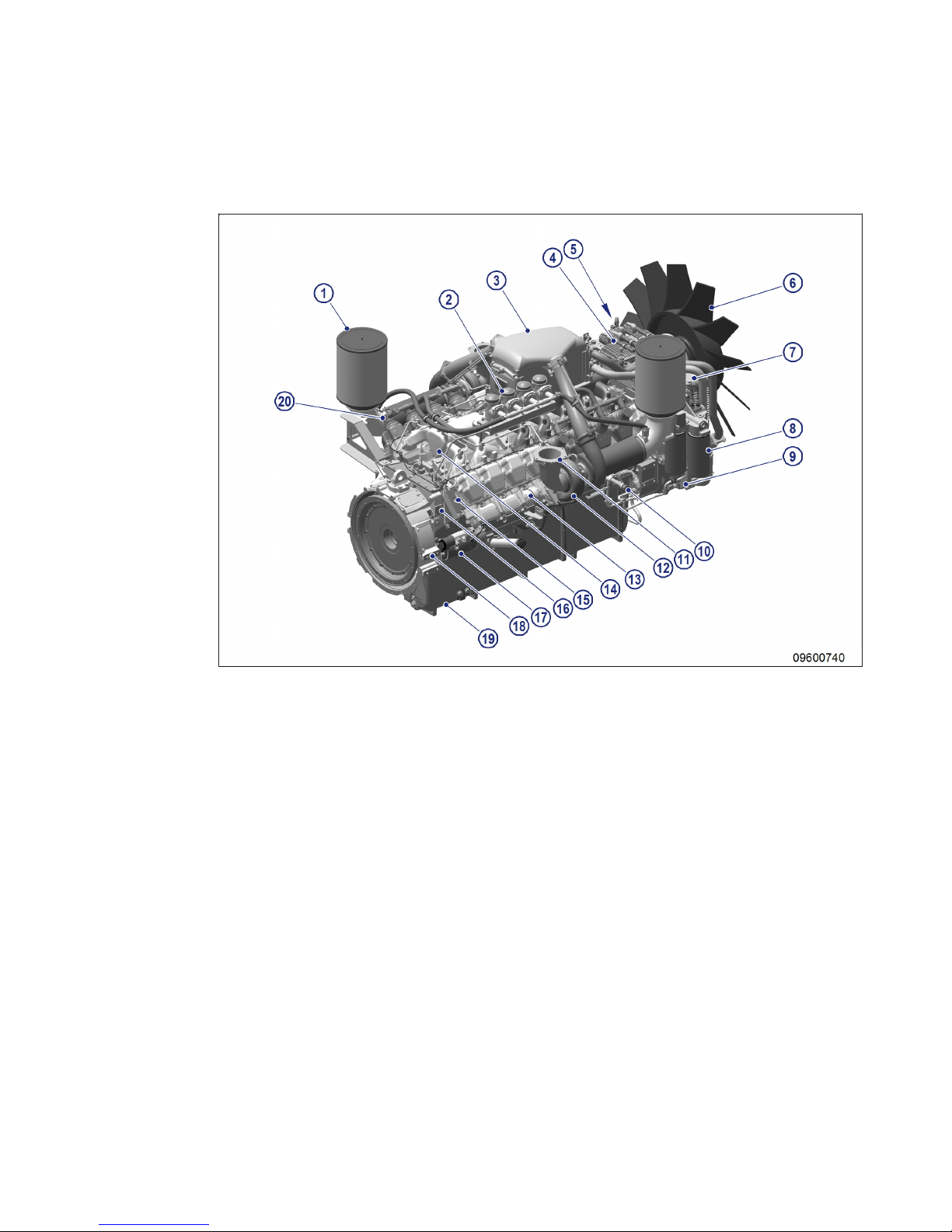

3.2 Engine overview 19
3.3 Sensors and actuators – Overview 21
4 Technical Data
4.1 12/16/18V2000G65 engine data, fuel
optimized 23
4.2 12/16/18V2000G65-TB engine data, fuel
optimized 27
4.3 Firing order 31
4.4 Engine – Main dimensions 32
5 Operation
5.1 Putting the engine into operation after
extended out-of-service periods (>3 months) 33
5.2 Putting the engine into operation after
scheduled out-of-service-period 34
5.3 Engine – Starting in manual mode (test run) 35
5.4 Safety system – Override 36
5.5 Operational monitoring 37
5.6 Engine – Stopping in manual mode (test
run) 38
5.7 Engine – Emergency stop 39
5.8 After stopping the engine – Engine remains
ready for operation 40
5.9 After stopping the engine – Putting the
engine out of operation 41
6 Maintenance
6.1 Maintenance task reference table [QL1] 42
7 Troubleshooting
7.1 Fault indication on SAM display – Genset
applications 43
7.2 Troubleshooting 67
8 Task Description
8.1 Engine 70
8.1.1 Engine – Barring manually 70
8.1.2 Engine – Barring with starting system 71
8.1.3 Engine – Test run 72
8.2 Cylinder Liner 73
8.2.1 Cylinder liner – Endoscopic examination 73
8.2.2 Instructions and comments on endoscopic and
visual examination of cylinder liners 75
8.3 Crankcase Breather 77
8.3.1 Crankcase breather – Wire mesh cleaning 77
8.3.2 Crankcase breather – Oil separator
replacement, diaphragm check and
replacement 78
8.4 Valve Drive 80
8.4.1 Valve clearance – Check and adjustment 80
8.4.2 Cylinder head cover – Removal and
installation 83
8.5 Injection Pump / HP Pump 84
8.5.1 Injection pump – Replacement 84
8.5.2 Injection pump – Removal and installation 85
8.6 Injection Valve / Injector 88
8.6.1 Injector – Replacement 88
8.6.2 Injector – Removal and installation 89
8.7 Fuel System 94
8.7.1 Fuel injection line – Pressure pipe neck
replacement 94
8.7.2 Fuel – Draining 97
8.7.3 Fuel pressure relief valve – Removal and
installation 99
8.7.4 Fuel system – Venting 100
8.8 Fuel Filter 102
8.8.1 Fuel filter – Replacement 102
8.8.2 Fuel prefilter – Differential pressure gage
check and adjustment of gage 103
8.8.3 Fuel prefilter – Draining 104
8.8.4 Fuel prefilter – Flushing 106
8.8.5 Fuel prefilter – Cleaning 108
8.8.6 Fuel prefilter – Filter element replacement 109
MS15018/03E 2016-02 | Table of Contents | 3
DCL-ID: 0000019467 - 005

8.9 Charge-Air Cooling General, Left-Hand Side 111
8.9.1 Intercooler – Checking condensate drain for
coolant discharge and obstructions 111
8.10 Air Filter 112
8.10.1 Air filter – Replacement 112
8.10.2 Air filter – Removal and installation 113
8.11 Air Intake 114
8.11.1 Service indicator – Signal ring position check 114
8.12 Starting Equipment 115
8.12.1 Air starter – Manual operation 115
8.13 Lube Oil System, Lube Oil Circuit 116
8.13.1 Engine oil – Level check 116
8.13.2 Engine oil – Change 117
8.14 Oil Filtration / Cooling 118
8.14.1 Engine oil filter – Replacement 118
8.15 Coolant Circuit, General, High-Temperature
Circuit 119
8.15.1 Engine coolant – Level check 119
8.15.2 Engine coolant – Change 120
8.15.3 Engine coolant – Draining 121
8.15.4 Engine coolant – Filling 122
8.15.5 Coolant pump – Relief bore check 124
8.16 Low-Temperature Circuit 125
8.16.1 Charge-air coolant – Filling 125
8.16.2 Charge-air coolant – Draining 127
8.16.3 Charge-air coolant – Change 128
8.16.4 Charge-air coolant – Level check 129
8.17 Coolant System 130
8.17.1 Cooler – Checking cooler elements externally
for dirt 130
8.17.2 Cooler – Cleaning cooler elements 131
8.18 Battery-Charging Generator 132
8.18.1 Battery-charging generator drive – Drive-belt
check and adjustment 132
8.18.2 Battery-charging generator drive – Drive belt
replacement 134
8.19 Fan Drive 135
8.19.1 Fan drive – Drive-belt check and adjustment 135
8.19.2 Fan drive – Drive belt replacement 138
8.20 Wiring (General) for Engine/Gearbox/Unit 139
8.20.1 Engine cabling – Check 139
8.21 Accessories for (Electronic) Engine
Governor / Control System 140
8.21.1 Engine governor and connector – Cleaning 140
8.21.2 Engine governor plug connections – Check 141
8.21.3 Engine governor ECU 7 – Removal and
installation 142
9 Appendix A
9.1 Abbreviations 143
9.2 MTU Contact/Service Partners 146
10 Appendix B
10.1 Special Tools 147
10.2 Index 154
4 | Table of Contents | MS15018/03E 2016-02
DCL-ID: 0000019467 - 005

1 Safety
1.1 Important provisions for all products
Nameplate
The product is identified by nameplate, model designation or serial number and must match with the infor-
mation on the title page of this manual.
Nameplate, model designation or serial number can be found on the product.
All EU-certified engines delivered by MTU come with a second nameplate. When operating the machine in the
EU: The second nameplate must be affixed in a prominent position as described in the accompanying specifi-
cations.
General information
This product may pose a risk of injury or damage in the following cases:
• Incorrect use
• Operation, maintenance and repair by unqualified personnel
• Modifications or conversions
• Noncompliance with the safety instructions and warning notices
Emission regulations and emission labels
Responsibility for compliance with emission regulations
Modification or removal of any mechanical/electronic components or the installation of additional compo-
nents including the execution of calibration processes that might affect the emission characteristics of the
product are prohibited by emission regulations. Emission control units/systems may only be maintained, ex-
changed or repaired if the components used for this purpose are approved by the manufacturer.
Noncompliance with these regulations will invalidate the design type approval issued by the emissions regu-
lation authorities. The manufacturer does not accept any liability for violations of the emission regulations.
The maintenance schedules of the manufacturer must be observed over the entire life cycle of the product.
Replacing components with emission labels
On all MTU engines fitted with emission labels, these labels must remain on the engine throughout its opera-
tional life.
Engines used exclusively in land-based, military applications other than by US government agencies are ex-
cepted from this proviso.
Please note the following when replacing components with emission labels:
• The relevant emission labels must be affixed to the spare part.
• Do not transfer the emission labels from the replaced part to the spare part.
• Remove the emission labels from the replaced part and destroy them.
MS15018/03E 2016-02 | Safety | 5
TIM-ID: 0000040530 - 008

1.2 Correct use for all products
Correct use
The product is intended for use in accordance with its contractually-defined purpose as described in the rele-
vant technical documents only.
Intended use entails operation:
• Within the permissible operating parameters in accordance with the (→ Technical data)
• With fluids and lubricants approved by the manufacturer in accordance with the (→ Fluids and Lubricants
Specifications of the manufacturer)
• With preservation approved by the manufacturer in accordance with the (→ Preservation and Represerva-
tion Specifications of the manufacturer)
• With spare parts approved by the manufacturer in accordance with the (→ Spare Parts Catalog/MTU con-
tact/Service partner)
• In the original as-delivered configuration or in a configuration approved by the manufacturer in writing (in-
cluding engine control/parameters)
• In compliance with all safety regulations and in adherence with all warning notices in this manual
• In compliance with the maintenance work and intervals specified in the (→ Maintenance Schedule)
throughout the useful life of the product
• In compliance with the maintenance and repair instructions contained in this manual, in particular with
regard to the specified tightening torques
• With the exclusive use of technical personnel trained in commissioning, operation, maintenance and re-
pair
• By contracting only workshops authorized by the manufacturer to carry out repair and overhaul
The product shall not be operated in explosive atmospheres unless the necessary approval has been grant-
ed.
Any other use, particularly misuse, is considered as being contrary to the intended purpose. Such improper
use increases the risk of injury and damage when working with the product. The manufacturer shall not be
held liable for any damage resulting from improper, non-intended use.
The specifications of the manufacturer will be amended or supplemented as necessary. Prior to operation,
make sure that the latest version is used. The latest version can be found on the websites:
• For drive systems: http://www.mtu-online.com
• For power generation: http://www.mtuonsiteenergy.com
Modifications or conversions
Unauthorized changes to the product represent a contravention of its intended use and compromise safety.
Changes or modifications shall only be considered to comply with the intended use when expressly author-
ized by the manufacturer. The manufacturer shall not be held liable for any damage resulting from unauthor-
ized changes or modifications.
6 | Safety | MS15018/03E 2016-02
TIM-ID: 0000065671 - 001

1.3 Personnel and organizational requirements
Organizational measures of the user/manufacturer
This manual must be issued to all personnel involved in operation, maintenance, repair, assembly, installa-
tion, or transportation.
Keep this manual handy in the vicinity of the product such that it is accessible to operating, maintenance,
repair, assembly, installation, and transport personnel at all times.
Personnel must receive instruction on product handling and maintenance based on this manual with a spe-
cial emphasis on safety requirements and warnings.
This is important in the case of personnel who only occasionally perform work on or around the product.
These personnel must be instructed repeatedly.
Personnel requirements
All work on the product shall be carried out by trained and qualified personnel only:
• Training at the Training Center of the manufacturer
• Technical personnel from the areas mechanical engineering, plant construction, and electrical engineering
The operator must define the responsibilities of the personnel involved in operation, maintenance, repair, as-
sembly, installation, and transport in writing.
Personnel shall not report for duty under the influence of alcohol, drugs or strong medication.
Clothing and personal protective equipment
Always wear appropriate personal protective equipment, e.g. safety shoes, ear protectors, protective gloves,
goggles, breathing mask. Follow the instructions concerning personal protective equipment in the descrip-
tions of the individual activities.
MS15018/03E 2016-02 | Safety | 7
TIM-ID: 0000040531 - 008

1.4 Safety regulations for startup and operation
Safety regulations for startup
Install the product correctly and carry out acceptance in accordance with the manufacturer's specifications
before putting the product into service. All necessary approvals must be granted by the relevant authorities
and all requirements for initial startup must be fulfilled.
Whenever the product is subsequently taken into operation ensure that:
• All personnel is clear of the danger zone surrounding moving parts of the machine.
Electrically-actuated linkages may be set in motion when the Engine Control Unit (governor) is switched
on.
• All maintenance and repair work has been completed.
• All loose parts have been removed from rotating machine components.
• All safety equipment is in place.
• No persons wearing pacemakers or any other technical body aids are present.
• The service room is adequately ventilated.
• In the first few hours of operation, the product emits gases as a result of smoldering e.g. lacquers or oil.
These gases may be hazardous to health. Always wear respiratory protection in the operating room during
this period.
• The exhaust system is leak-tight and that the gases are vented to atmosphere.
• Protect battery terminals, generator terminals or cables against accidental contact.
• Check that all connections have been correctly allocated (e.g. +/- polarity, direction).
Immediately after putting the product into operation, make sure that all control and display instruments as
well as the signaling and alarm systems work properly.
Smoking is prohibited in the area of the product.
Safety regulations during operation
The operator must be familiar with the control and display elements.
The operator must be familiar with the consequences of any operations performed.
During operation, the display instruments and monitoring units must be permanently observed with regard to
present operating status, violation of limit values and warning or alarm messages.
Malfunctions and emergency stop
Practice emergency procedures, especially emergency stopping, at regular intervals.
The following steps must be taken if a malfunction of the system is detected or reported by the system:
• Inform supervisor(s) in charge.
• Analyze the message.
• Respond by taking any necessary emergency action, e.g. emergency stop.
Operation
Do not remain in the operating room when the product is running for any longer than absolutely necessary.
Keep a safe distance away from the product if possible. Do not touch the product unless expressly instructed
to do so following a written procedure.
Do not inhale the exhaust gases of the product.
The following requirements must be fulfilled before the product is started:
• Wear ear protection.
• Mop up any leaked or spilled fluids and lubricants immediately or soak up with a suitable binder agent.
Operation of electrical equipment
Parts of the electrical equipment are live, i.e. under voltage/high tension, during operation.
8 | Safety | MS15018/03E 2016-02
TIM-ID: 0000040533 - 012

Follow the applicable warning instructions pertaining to such devices.
MS15018/03E 2016-02 | Safety | 9
TIM-ID: 0000040533 - 012

1.5 Safety precautions when working on the engine
Safety regulations prior to maintenance and repair work
Have maintenance or repair work carried out by qualified and authorized personnel only.
Allow the product to cool down to less than 50 °C (risk of explosion for oil vapors, fluids and lubricants, risk
of burning).
Relieve pressure in fluid and lubricant systems and compressed-air lines which are to be opened. Use suita-
ble collecting vessels of adequate capacity to catch fluids and lubricants.
When changing the oil or working on the fuel system, ensure that the service room is adequately ventilated.
Never carry out maintenance and repair work with the product in operation, unless:
• It is expressly permitted to do so following a written procedure.
• The product is running in the low load range and only for as long as absolutely necessary.
Lock-out the product to preclude undesired starting, e.g.
• Start interlock
• Key switch
• With hydraulic starting system: shut off supply line.
Attach “Do not operate” sign in the operating area or to control equipment.
Disconnect the battery cables or actuate the battery isolating switch, if fitted. Lock out circuit breakers.
Close the main valve on the compressed-air system and vent the compressed-air line when pneumatic start-
ers are fitted.
Disconnect the control equipment from the product.
Use the recommended special tools or suitable equivalents when instructed to do so.
Elastomer components (e.g. engine mounts, damping elements, couplings and V-belts) must not be painted.
They may only be installed after painting the engine or must be covered before painting work is carried out.
The following applies to starters with copper-beryllium alloy pinions:
• Wear a respirator mask (filter class P3). Do not blow out the interior of the flywheel housing or the starter
with compressed air. Clean the flywheel housing inside with a class H dust extraction device.
• Observe the safety data sheet.
Safety regulations during maintenance and repair work
Take special care when removing ventilation or plug screws from the product.
Release residual pressure before removing or replacing a component in the supply line. To depressurize pres-
surized lines, shut off the lines first, then release the residual pressure.
Use only proper and calibrated tools. Observe the specified tightening torques during assembly or disassem-
bly.
Carry out work only on assemblies or plants which are properly secured.
Make sure components or assemblies are placed on stable surfaces. Adopt suitable measures to avoid that
components/tools fall down. Use the specified lifting equipment for all components.
Never use the product as a climbing aid.
When working high on the equipment, always use suitable ladders and work platforms. Never work on en-
gines or components that are held in place by lifting equipment.
Keep fuel injection lines and connections clean.
Carry out appropriate cleaning procedures to clean and inspect components requiring special cleanness (e.g.
components carrying oil, fuel, or air).
Always seal connections with caps or covers if a line is removed or opened.
Fit new seals when re-installing lines.
10 | Safety | MS15018/03E 2016-02
TIM-ID: 0000040535 - 012

Never bend lines and avoid damaging lines, particularly the fuel lines.
Ensure that all retainers and dampers are installed correctly.
Ensure that O-rings are not installed in a slanted/twisted condition.
Ensure that all fuel injection and pressurized oil lines are installed with enough clearance to prevent contact
with other components. Do not place fuel or oil lines near hot components.
Do not touch elastomeric seals (e.g. Viton sealing rings) with your bare hands if they have a carbonized or
resinous appearance.
Note cooling time for components which are heated for installation or removal (risk of burning).
Pay particular attention to cleanliness at all times.
Remove any condensate from components which were chilled before assembly. If necessary, coat the com-
ponents with a suitable corrosion inhibitor.
Safety regulations following maintenance and repair work
Before barring the engine, make sure that nobody is standing in the danger zone of the product.
Check that all access ports/apertures which have been opened to facilitate working are closed again.
Check that all safety equipment has been installed and that all tools and loose parts have been removed
(especially the barring gear).
Ensure that no unattached parts have been left in/on the product (e.g. including rags and cable straps).
Ensure that the grounding system is properly connected.
Welding work
Welding operations on the product or mounted units are not permitted. Cover the product when welding in
its vicinity.
Before starting welding work:
• Switch off the power supply master switch.
• Disconnect the battery cables or actuate the battery isolating switch.
• Separate the electrical ground of electronic equipment from the ground of the unit.
No other maintenance or repair work must be carried out in the vicinity of the product while welding is going
on. Risk of explosion or fire due to oil vapors and highly flammable process materials.
Do not use product as ground terminal.
Never position the welding power supply cable adjacent to, or crossing cabling harnesses of the product. The
welding current may otherwise induce an interference voltage in the cabling harnesses which could conceiv-
ably damage the electrical system.
Remove components (e.g. exhaust pipe) from the product before performing necessary welding work.
Hydraulic installation and removal
Check satisfactory function and safe operating condition of tools, jigs and fixtures to be used. Use only the
specified jigs and fixtures for hydraulic removal/installation procedures.
Observe the max. permissible force-on pressure specified for the jig/fixture.
Do not attempt to bend or exert force on H.P. lines.
Before starting work, pay attention to the following:
• Vent the installation/removal device, the pumps and the pipework at the relevant designated points.
• During the installation procedure, screw on device with pushed-in plunger.
• During the removal procedure, screw on device with retracted plunger.
For a hydraulic installation/removal device with central expansion pressure supply, screw spindle into shaft
end until correct sealing is established.
MS15018/03E 2016-02 | Safety | 11
TIM-ID: 0000040535 - 012

During hydraulic installation/removal of components, ensure that no persons are in the direct vicinity of the
component being pressed.
Working with batteries
Observe the safety instructions of the battery manufacturer when working with batteries.
Gases released from the battery are explosive. Avoid sparks and naked flames.
Do not allow battery acids to come into contact with skin or clothing.
Wear protective clothing, goggles and protective gloves.
Do not place objects on the battery.
Before connecting the cable to the battery, check the battery polarity. Battery pole reversal may lead to in-
jury through the sudden discharge of acid or bursting of the battery body.
Working on electrical and electronic assemblies
Always obtain the permission of the person in charge before commencing maintenance and repair work or
switching off any part of the electronic system required to do so.
De-energize the appropriate areas prior to working on assemblies.
Do not damage cabling during removal work. When reconnecting, ensure that cabling cannot be damaged
during operation by:
• Contact with sharp edges
• Chafing on components
• Contact with hot surfaces.
Do not secure cables on lines carrying fluids.
Do not use cable straps to secure cables.
Always use connector pliers to tighten union nuts on connectors.
Subject the device as well as the product to a functional testing on completion of all repair work. Check cor-
rect execution of the emergency stop function in particular.
Store spare parts properly prior to replacement, i.e. protect them against moisture in particular. Package
faulty electronic components or assemblies properly before dispatching for repair:
• Moisture-proof
• Shock-proof
• Wrapped in antistatic foil if necessary.
Work with laser devices
Work with laser devices shall be carried out by trained and qualified personnel only. Follow the safety in-
structions in the manufacturer's user manual when working with laser equipment.
Wear special laser safety glasses when working with laser equipment (danger of concentrated radiation).
Laser devices must be equipped, in accordance with their class and usage, with protective devices for ensur-
ing safe operation.
Measuring component dimensions
Workpieces, components and measuring equipment lie in the specified tolerance range at a reference tem-
perature of 20 °C.
12 | Safety | MS15018/03E 2016-02
TIM-ID: 0000040535 - 012

1.6 Fire prevention and environmental protection, fluids and
lubricants, auxiliary materials
Fire prevention
Flames, naked light and smoking are prohibited.
When working with combustible indirect materials, e.g. cleaning agent, ensure area is well ventilated. The
resultant steam/air mixture must be sufficiently diluted to prevent a potentially explosive atmosphere.
Rectify any fuel or oil leaks immediately. Oil or fuel on hot components can cause fires – therefore always
keep the product in a clean condition. Do not leave rags saturated with fluids and lubricants on the product.
Do not store combustible materials near the product.
Do not carry out welding work on pipes and components carrying oil or fuel. Before welding, clean with a
nonflammable fluid.
When starting the engine with an external power source, connect the ground lead last and remove it first. To
avoid sparks in the vicinity of the battery, connect the ground lead from the external power source to the
ground lead of the engine or to the ground terminal of the starter.
Always have a suitable extinguishing agent (fire extinguisher) on hand and familiarize yourself fully with its
handling.
Noise
Noise can lead to an increased risk of accidents if acoustic signals, warning shouts or sounds indicating dan-
ger are drowned.
Wear ear protectors in workplaces with a sound pressure level in excess of 85 dB (A).
Environmental protection and disposal
Dispose of used fluids, lubricants and filters in accordance with local regulations.
Within the EU, batteries can be returned free of charge to the manufacturer where they will be properly recy-
cled.
Auxiliary materials
Process materials may also be hazardous or toxic. When using consumables and auxiliary materials as well
as other chemical substances, observe the information contained in the safety data sheet for the product.
The safety data sheet may be obtained from the relevant manufacturer or from MTU.
Take special care when using hot, chilled or caustic materials.
Used oil
Used oil contains combustion residues that are harmful to health.
Wear protective gloves!
Wash relevant areas after contact with used oil.
Lead
• Adopt suitable measures to avoid the formation of lead dust.
• Switch on extraction system.
• When working with lead or lead-containing compounds, avoid direct contact to the skin and do not inhale
lead vapors.
• Wash relevant areas after contact with lead or lead-containing substances.
MS15018/03E 2016-02 | Safety | 13
TIM-ID: 0000040536 - 010

Compressed air
Observe special safety precautions when working with compressed air:
• Unauthorized use of compressed air, e.g. forcing flammable liquids (hazard class AI, AII and B) out of con-
tainers, risks causing an explosion.
• Wear goggles when blowing dirt off workpieces or blowing away swarf.
• Blowing compressed air into thin-walled containers (e.g. containers made of sheet metal, plastic or glass)
for drying purposes or to check for leaks risks bursting them.
• Pay special attention to the pressure in the compressed air system or pressure vessel.
• Assemblies or products which are to be connected must be designed to withstand this pressure. Install
pressure-reducing or safety valves set to the admissible pressure if this is not the case.
• Hose couplings and connections must be securely attached.
• Provide the snout of the air nozzle with a protective disk (e.g. rubber disk).
• Release residual pressure before removing or replacing pneumatic equipment in the supply line. To de-
pressurize compressed-air lines, shut off the lines first, then release the residual pressure.
• Carry out leak test in accordance with the specifications.
Painting
• Observe the relevant safety data sheet for all materials.
• When carrying out painting work outside the spray stands provided with fume extraction systems, ensure
that the area is well ventilated. Make sure that neighboring work areas are not adversely affected.
• There must be no naked flames in the vicinity.
• No smoking.
• Observe fire-prevention regulations.
• Always wear a mask providing protection against paint and solvent vapors.
Liquid nitrogen
• Observe the relevant safety data sheet for all materials.
• Work with liquid nitrogen may be carried out only by qualified personnel.
• Store liquid nitrogen only in small quantities and always in specified containers without fixed covers.
• Avoid body contact (eyes, hands).
• Wear protective clothing, protective gloves, closed shoes and safety goggles.
• Make sure that working area is well ventilated.
• Avoid knocking or jolting the containers, valves and fittings or workpieces in any way.
Acids/alkaline solutions/urea (AdBlue®, DEF)
• Observe the relevant safety data sheet for all materials.
• When working with acids and alkaline solutions, wear goggles or face mask, gloves and protective cloth-
ing.
• Do not inhale vapors.
• If urea solution is swallowed, rinse out mouth and drink plenty of water.
• Remove any wet clothing immediately.
• After contact skin, wash body areas with plenty of water.
• Rinse eyes immediately with eyedrops or clean tap water. Seek medical attention as soon as possible.
14 | Safety | MS15018/03E 2016-02
TIM-ID: 0000040536 - 010

1.7 Standards for safety notices in the text
DANGER In the event of immediate danger.
Consequences: Death, serious or permanent injury!
• Remedial action.
WARNING In the event of a situation involving potential danger.
Consequences: Death, serious or permanent injury!
• Remedial action.
CAUTION In the event of a situation involving potential danger.
Consequences: Minor or moderate injuries!
• Remedial action.
NOTICE In the event of a situation involving potentially adverse effects on the product.
Consequences: Material damage!
• Remedial action.
• Additional product information.
Warning notices
1. This manual with all safety instructions and safety notices must be issued to all personnel involved in opera-
tion, maintenance, repair, assembly, installation, or transportation.
2. The higher level warning notice is used if several hazards apply at the same time. Warnings related to person-
al injury shall be considered to include a warning of potential damage.
MS15018/03E 2016-02 | Safety | 15
TIM-ID: 0000040578 - 005

2 Transport
2.1 Transportation
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Crossbeam T80092210 1
DANGER Suspended load.
Danger to life!
• Use appropriate lifting devices and appliances.
• Never stand beneath a suspended load.
Transportation
1. Use lifting eyes provided for transporting the engine (→ Page 17).
2. Only use suitable transportation and lifting equipment.
3. The engine must only be transported in installation position: Max. admissible diagonal pull 10°. (→ Page 17)°
4. Remove any loose parts on engine.
5. Always raise/lower engine slowly. The lifting ropes or chains must not rub against the engine or its compo-
nents during the lifting procedure. Readjust lifting tackle as necessary.
6. For special packaging with aluminum foil: Attach engine to lifting eyes of bearing pedestal or transport with
means of transportation device suitable for the load (forklift truck).
7. Secure engine against tilting during transportation. Secure such as to preclude slipping and tipping when
driving up or down inclines and ramps.
Placement after transportation
1. Only set down engine on a firm, level surface.
2. Make sure that the consistency and load-bearing capacity of the ground or support surface is adequate.
3. Never set engine down on oil pan unless expressively authorized to do so by MTU on a case-to-case basis.
16 | Transport | MS15018/03E 2016-02
TIM-ID: 0000067353 - 001

2.2 Lifting requirements
Lifting requirements
DANGER Suspended load.
Danger to life!
• Use appropriate lifting devices and appliances.
• Never stand beneath a suspended load.
1 Lifting eye 2 Center of gravity
Take note of the engine center of gravity
See Installation/Arrangement drawings for details on engine center of gravity.
MS15018/03E 2016-02 | Transport | 17
TIM-ID: 0000067354 - 001

3 General Information
3.1 Engine side and cylinder designations
1 Left engine side (A-side)
2 Engine free end in accord-
ance with DIN ISO 1204
(KGS = Kupplungsgegen-
seite)
3 Right engine side (B-side)
4 Engine driving end in ac-
cordance with
DIN ISO 1204 (KS = Kup-
plungsseite)
Engine sides are always designated (in accordance with DIN ISO 1204) as viewed from driving end (4).
For cylinder designation (in accordance with DIN ISO 1204), the letter "Ax" refers to the cylinders on the left-
hand side of the engine (1) and letter "Bx" refers to the cylinders on the right-hand side (3). The cylinders of
each bank are numbered consecutively, starting with x=1 at driving end (4).
The numbering of other engine components also starts with 1 at driving end (4).
18 | General Information | MS15018/03E 2016-02
TIM-ID: 0000002185 - 013

3.2 Engine overview
Engine with water-to-air charge-air cooling TB
1 Air filter
2 Oil separator
3 Intercooler
4 Engine governor
5 Fuel filter
6 Fan drive
7 Oil heat exchanger
8 Oil filter
9 Coolant pump
10 Fuel priming pump
11 Air outlet
12 Exhaust turbocharger
13 Exhaust elbow
14 Charge-air manifold
15 Cylinder head
16 Flywheel housing
17 Starter
18 Storage
19 Oil pan
20 Crankcase breather
Figure also applies similarly to 12V/16V/18V2000Gxy
MS15018/03E 2016-02 | General Information | 19
TIM-ID: 0000009973 - 005

Engine with air-to-air charge-air cooling TD
1 Air filter
2 Oil separator
3 Air outlet
4 Engine governor
5 Fuel filter
6 Fan drive
7 Oil heat exchanger
8 Oil filter
9 Coolant pump
10 Fuel priming pump
11 Exhaust turbocharger
12 Oil pan
13 Exhaust elbow
14 Charge-air manifold
15 Cylinder head
16 Flywheel housing
17 Storage
18 Crankcase breather
Figure also applies similarly to 12V/16V/18V2000Gxy
Engine type designation
Explanation of engine type designation 12V/16V/18V2000Gxy
12/16/18 Number of cylinders
V Cylinder arrangement: V engine
2000 Series
G Application
x Application segment (2, 4, 6, 8)
y Design status (0, 1, 2,...)
20 | General Information | MS15018/03E 2016-02
TIM-ID: 0000009973 - 005
