Multi-Mover S12 User manual

MULTI-MOVER S12 1
USER MANUAL and PARTS LIST
MULTI MOVER S12
Transport
Keep the S12 always in an upright position to avoid oil escaping.
* Only use stable loading surfaces with sufficient loading capacity (see section 2.2).
* Secure the MULTI-MOVER S12 against tilting or sliding.
* It is prohibited to;
- get under the MULTI-MOVER S12 while lifting
- remain within the tilting range of the MULTI-MOVER S12 during unloading

MULTI-MOVER S12 2
Contents
Chapter 1 INTRODUCTION / WARRANTY / DEFINITIONS /
SAFETY SYMBOLS 3
Chapter 2 TECHNICAL DESCRIPTION 4
2.1 Designation, identification and description 4
2.2 Technical information and dimensions 4
2.3 Packaging, loading / unloading, towing, recycling 5
Chapter 3 SAFETY REGULATIONS 6
Chapter 4 PREPARATION 9
4.1 Application 9
4.2 Operator 10
4.3 Responsibility operator 10
4.4 Inspection prior to putting into operation 10
Chapter 5 USE 10
5.1 General 10
5.2 Regulations for use 11
5.3 Operation 13
5.4 Batteries 15
5.5 Coupling trailer(s) 18
Chapter 6 MAINTENANCE 18
6.1 Inspection 18
6.2 Lubrication and maintenance diagram 19
6.3 Cleaning 19
6.4 Taking out of operation 19
6.5 Annual maintenance 19
Chapter 7 ENVIRONMENT 20
Chapter 8 FAILURES 21
Chapter 9 PARTS 21
Chapter 10 DECLARATION OF CONFORMITY 22
AppendixI Electrical circuit diagram
Appendix II User manual battery charger
Appendix III Part List (on request)
Multi-Mover Europe B.V.
www.multi-mover.eu
T [phone] F [phone]

MULTI-MOVER S12 3
1 INTRODUCTION / WARRANTY / DEFINITIONS / SAFETY SYMBOLS
You have made the right decision, by purchasing the Multi-Mover S12.
You are now in the possession of an excellent tool that has been constructed and produced with the
greatest care.
You will profit the most from this investment, if you carefully observe the safety,
user and maintenance instructions provided in this user manual.
The user manual should be made available to the user of the Multi-Mover S12 and must be present
at the Multi-Mover S12 when it is being used. The user manual must have been read by anyone
working with/at the Multi-Mover S12, and the instructions must be observed.
Warranty
Multi-Mover Europe BV will not assume responsibility for the goods it produced and the services it
supplied. Warranty can only be claimed if the client has made an immediate complaint and Multi-
Mover Europe BV has been given the opportunity to investigate the complaints and correct possible
faults. Multi-Mover Europe BV provides a warranty on its products in relation to materials and
construction defects. In case of defects as described above, Multi-Mover Europe BV shall undertake
to provide the parts manufactured by them for free, within the period of one year after delivery.
To occasions, different warranty conditions apply. Multi-Mover Europe BV will not be liable for
damage and indirect damage as a result of natural disasters, operational errors, lack of skilful
maintenance and any other use than described below.
The liability of Multi-Mover Europe BV will also terminate as soon as you or a third party performs
work, such as adaptations or extensions, to the machine, without our written permission.
The warranty conditions only apply if a defect, after investigation by the manufacturer, is recognized
as such.
At Multi-Mover Europe BV we continuously try to improve our products and service. That is why we
reserve the right to change the specifications stated in this user manual at any required moment and
without prior notice.
Definitions
In this user manual we use the following definitions:
Operator: The person who drives, controls and supervises the operation of the
Multi-Mover S12 and is able to start and stop it, etc.
It is the company's responsibility to make sure that the operator is
sufficiently trained.
Dangerous areas: The area surrounding the Multi-Mover S12 where people may get injured.
Maintenance mechanic: The person who is completely familiar with the Multi-Mover S12, is able
to adjust the safety devices and to maintain the Multi-Mover S12.
The maintenance mechanic is familiar with the functionalities, safety
standards and was trained to maintain the Multi-Mover S12. It is the
company's responsibility to make sure that maintenance staff has been
sufficiently educated and trained.

MULTI-MOVER S12 4
Safety symbols
On various places on the Multi-Mover S12 you will find standardized safety symbol stickers
as displayed to the right.
The upper part warns against a general or particular hazard.
The lower part indicates what type of hazard is being warned against and will explain what
you must do.
2 TECHNICAL DESCRIPTION

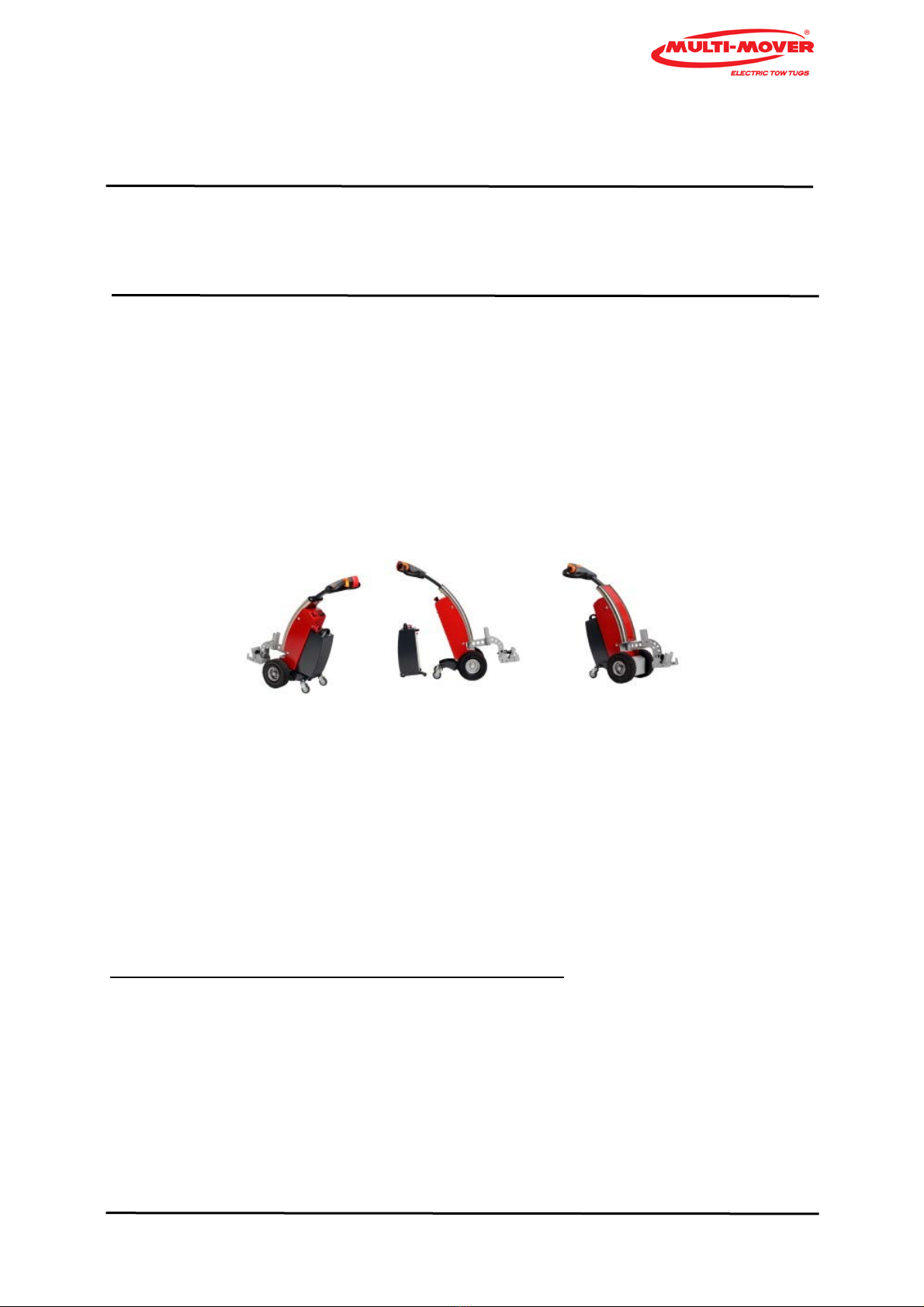

2.1 Designation, identification and description
Designation : MULTI-MOVER S12
Identification : type plate on the encasing
Description : vehicle on two drive wheels and a swivel wheel
: suitable as towing device, optionally provided with an upward and downward
moving coupling point, for instance, in order to couple the pole of a trailer and
possibly to lift it.
: drive while walking, by using the driving switches on the steering handle
Accessories
The following parts are delivered separately with the vehicle:
The vehicle's operation manual
Manuals for possible options
Example type plate Model S12 from 2015:
2.2 Technical information and dimensions
_____________________________________________________________________
PUSH AND PULL FOTCE 1,200 KG
-Weight 110 kg
-Length 94 cm (with normal coupling)
-Width 42 cm
-Height 99 cm
-Engine power 2 x 300 watts (600 watts) 24 VDC,
-maintenance-free
-Electronic differential
-2 x 12-volt 26 Ah gel battery pack, easily replaceable,
-maintenance-free
-Charger 24 volts 5A, internal
-Push and Pull 1,200 kg, 900 newton horizontal traction
-Solid rubber tyres Continental SC10 10 cm width, 4-inch

MULTI-MOVER S12 5
-rims, normal profile
-2 Solid-rubber swivel castors, ∅125 mm
-Ergonomic tiller head with emergency stop, belly button

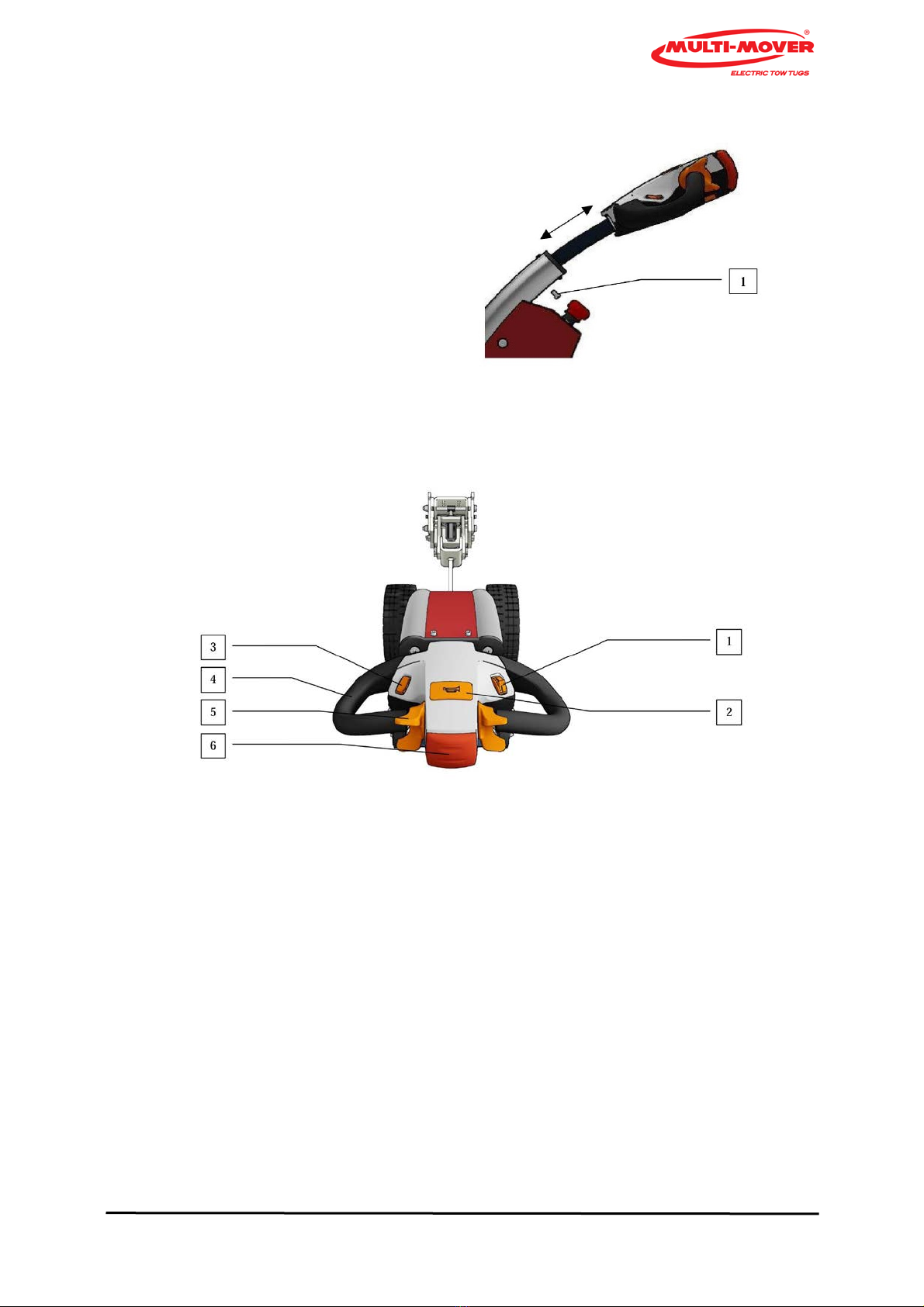

-Tiller head position is adjustable
-Potentiometer for continuously adjustable maximum speed
-to 5 km/h
-Battery display
-Charging display
-Emergency stop switch on the housing
-Horn
-Minimum speed is 0.3 km/h
-Hydraulic coupling, continuous
-Work area: 3 to 4 km
-Operating time: 1-2 workdays

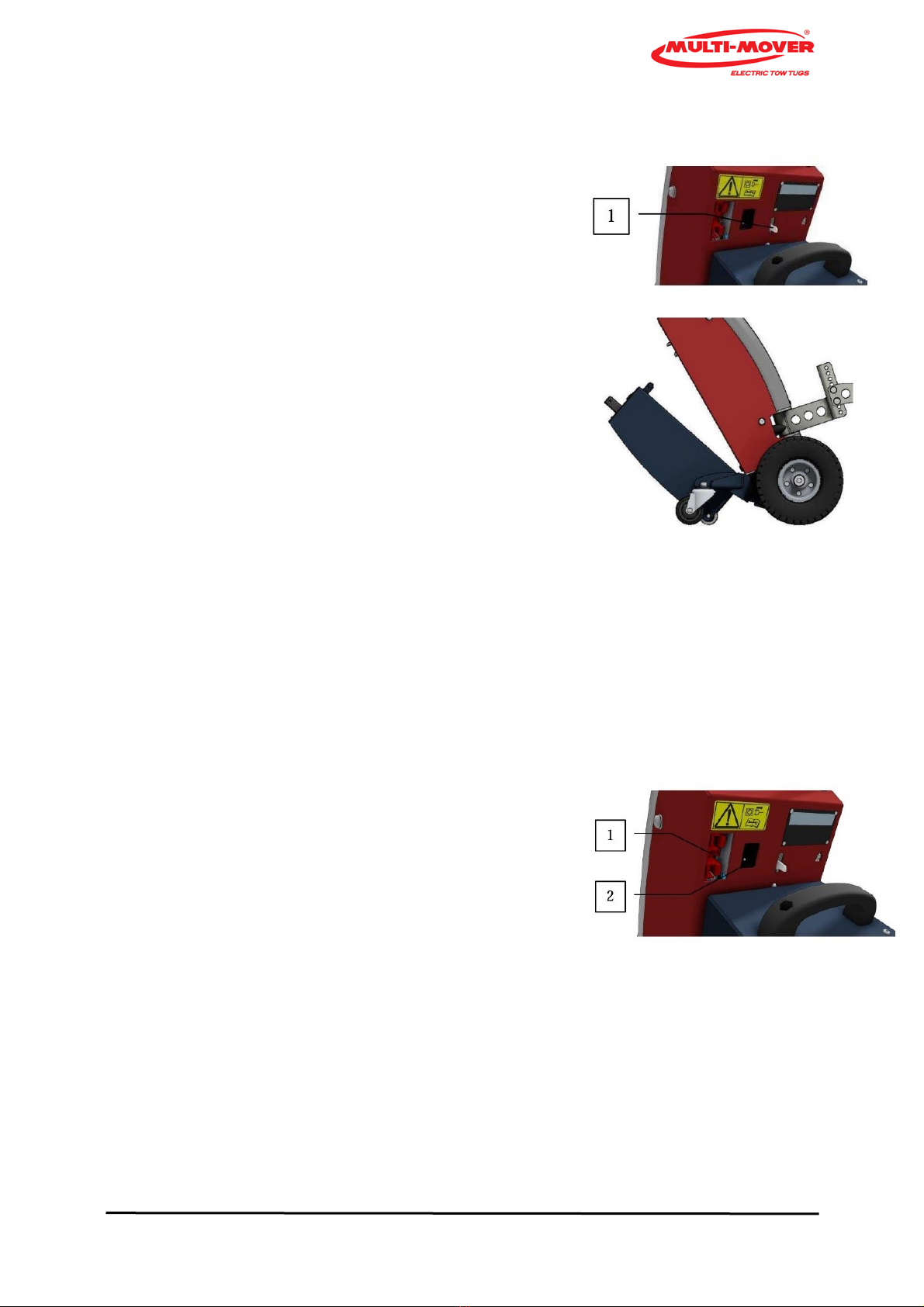

Always supplied with interchangeable battery pack, internal charger and coupling.
2.3 Packaging, loading / unloading, towing, recycling
Packaging
The Multi-Mover S12 is secured with straps on support beams on a pallet, surrounded by a protective
cardboard box.
Removing the packaging
Remove the clamping strips at the wheels.
Avoid injury and damage as a result of incorrect placement of the lift truck's lift forks.
Loading and unloading
If the Multi-Mover S12 has to be moved by means of a lift truck, the lift forks must be placed at the
heaviest part at the rear of the Multi-Mover S12, between the 2 large wheels.
Recycling of the packaging
Save the packaging for possible future transportations.
If you want to remove the packaging, you must observe the local and national regulations concerning
plastic waste processing.

MULTI-MOVER S12 6
3 SAFETY REGULATIONS.
Only use the Multi-Mover S12 for the purpose for which it was designed.

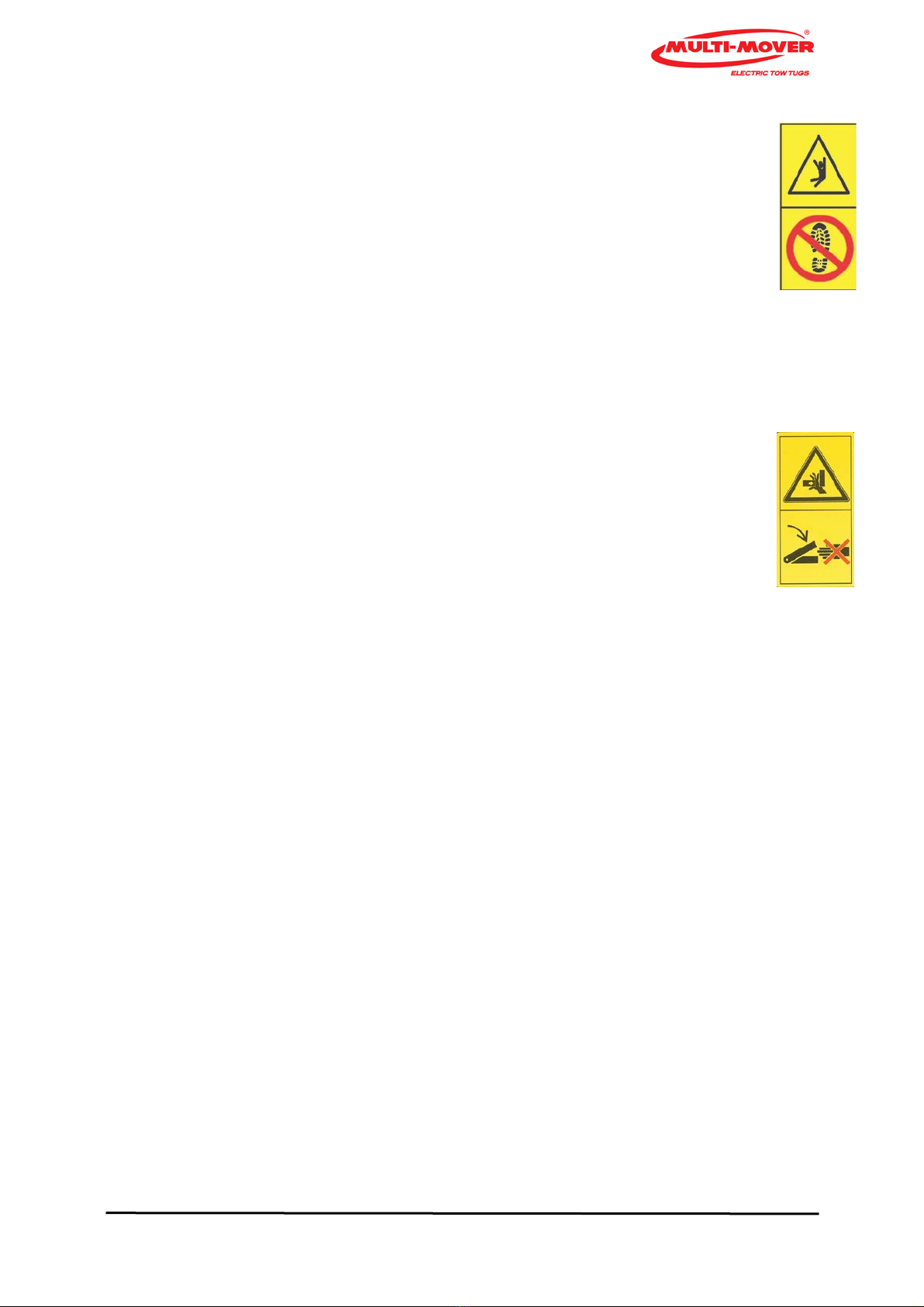

The symbols displayed below have been attached to your Multi-Mover S12.
Get to know these symbols and make sure you know what they mean.3.1
Caution! Hazard of serious injury.
Carefully read the user manual of the Multi-Mover S12, so you will know exactly how to use
the switches before you start driving it.
3.2
Caution! Hazard of injury during maintenance work.
Switch off the ignition and remove the ignition key, disconnect the charging plug and press
the emergency stop.
Consult the user manual.
You will prevent dangerous situations that might arise if the Multi-Mover S12 starts to move
unexpectedly.
Also consider the possibility that the vehicle is switched on by a third party, a coincidence or
misunderstanding that could occur if the ignition key is still in the ignition.
3.3
Caution! Hazard of serious injury due to getting jammed or a collision.
Make sure that nobody can get jammed, also not at the trailer(s) that are being towed.
Particularly when riding along on the Multi-Mover S12 or the trailer(s) to be towed, there will be a
risk of getting jammed or having a collision.
3.4
Caution! Hazard of serious injury on slopes due to tipping over.
The Multi-Mover S12 was constructed for driving on flat, dry, metalled and sufficiently supportive
terrain.
The maximum slope angle that can be driven on, strongly depends on;
- the weight to be towed
- the driving style of the operator
-driving circumstances, and the strength of the terrain.
Caution! Hazard of serious injury due to unwanted movements on slopes as result of
insufficient traction force and brake force of the Multi-Mover S12.
Never drive onto a slope at an angle or crosswise.
Only ever drive on and off a slope at a right angle.
The Multi-Mover S12 with trailer(s) may also tip over if the bends are taken at a speed that is too
high.
3.5
As the trailers may limit the operator's view and because the
Multi-Mover S12 and trailer(s) may swerve out, there will be a risk of collision, therefore:
Caution! Hazard of (serious) injury due to collisions.
Make sure that bystanders remain at least 10 metres outside of the driving area of the Multi-
Mover S12 and trailer(s).

MULTI-MOVER S12 7
3.6
Caution! Hazard of (serious) injury due to getting jammed or as a result of falling under the
Multi-Mover S12 or trailer(s).
Passengers may “never” drive along on the Multi-Mover S12 or the trailers.
3.7
Caution! Hazard of serious injury.
Adapt your speed to the circumstances while driving.
Always make sure you have the Multi-Mover S12 under control.
-Reduce speed on uneven floors/terrain and in sharp bends.
-Be particularly careful when manoeuvring and reversing.
3.8
Caution! Hazard of injury due to getting jammed when connecting and disconnecting the
trailer(s).
Keep your hands and fingers away from the coupling or pole eye.
3.9
Caution! Hazard of serious injury.
Before you start driving, make sure the walking/driving area is free and flat.
Avoid getting jammed between the Multi-Mover S12 and obstacles.
Prevent tripping and getting jammed under the Multi-Mover S12 and/or trailer.
Make sure the driving area and your shoes are free of dirt, in order to prevent accidents due to
slipping.
3.10
Caution! Hazard of serious injury due to overloading the Multi-Mover S12.
The load behind the Multi-Mover S12 may not be more than indicated at section 2.2 technical
data.
Make sure the trailer(s) has/have been loaded evenly and safely.
3.11
Caution!
Wear clothing that allows you to move freely and does not hinder your view on the Multi-Mover S12
plus trailer(s). Observe your company's safety regulations.
3.12
Caution! Hazard of injury. In case of an unusual noise;
Stop the Multi-Mover S12 immediately.
Check the electric system and the drive for damage.
Check the wheels and tyres for tension, damage and wear.
3.13
Caution! Avoid injury.
Regularly check whether there are any loose bolts and nuts.
Also see chapter 6 (Maintenance).

MULTI-MOVER S12 8
3.14
Caution! Avoid injury by checking the Multi-Mover S12 for damage or bends on a daily basis.
Pay particular attention to the tow eye with tow pen or coupling point and locking.
3.15
Caution! Hazard of injury.
Make sure the Multi-Mover S12 is properly and safely supported when performing cleaning or
maintenance work "under" the Multi-Mover S12.
3.16
Caution! Hazard while charging the battery.
Make sure there is assistance within the range of your voice and also make sure there is sufficient
soap and water nearby if you need to perform work near the battery.
Avoid short-circuit (sparks), make sure you do not make an electrical connection between the battery
poles. Make sure no metal objects can fall on the battery, as this could cause a short-circuit or a
spark and an explosion.
Remove personal objects such as rings, bracelets, necklaces and watches if you are performing work
near the battery. A short-circuit, for example, could melt a ring, resulting in serious burns.
3.17
Caution! Hazard of injury due to overheating of the electrical connection of the
battery charger.
Pay particular attention to cable diameter, earth and fuses.
3.18
Caution!
Serious injury can be received or caused if the Multi-Mover S12 is operated by;
- persons younger than 16 years of age
- persons who do not have any training and driving experience with the Multi-Mover XL35
- persons of whom it can be expected that they are not (sufficiently) aware of the dangers of the
Multi-Mover S12, temporary personnel for instance.
The MULTI-MOVER S12 may only be operated after the operator has thoroughly studied the user
manual and after the owner of the Multi-Mover S12 has provided a full training / instruction
concerning the operation and the safety regulations.
3.19
Caution! Hazard of serious injury.
Serious injury may be received or caused if the safety instructions are not provided to other
operators.
3.20
Caution! You are NOT allowed to use the public road with the Multi-Mover S12.
3.21
Caution!
Hazard of injury if the safety symbols are not clearly visible (any more).
Immediately replace damaged stickers.

MULTI-MOVER S12 9
3.22
Caution! Hazard of injury.
- maintenance and repair work may only be performed by a maintenance mechanic
who is recognized by Multi-Mover Europe BV.
- only original Multi-Mover Europe BV or CE certified parts may be used
in the Multi-Mover S12.
3.23
As the operator you will determine the limits for "safe driving / working" with the Multi-Mover
S12.
Do not take any risks.
Be particularly careful in case of obstacles or uneven terrain.
4PREPARATION
4.1 Application
The Multi-Mover S12 was developed for;
- moving trailers, caravans, trailers with or without goods, order picking, etc.
- driving over flat, dry, metalled or unmetalled terrain (e.g. warehouse, greenhouse, lawns etc.)
The Multi-Mover S12 is not suitable for transporting trailers with people.
The Multi-Mover S12 is not suitable for moving;
- goods containing toxic substances
- goods containing explosive substances
- goods containing hazardous substances
-combustible substances
-other liquids and hazardous substances than stated above
The Multi-Mover S12 does not have permission to be driven on public roads. It is not a vehicle
according to the law.
Only use the Multi-Mover S12 for the purpose for which it was designed.
For other applications, the CE mark does not apply.
The electric components and wiring have been made drip-proof. Therefore, the Multi-Mover S12
may not be used in the rain, and must be covered in case of sprinkling or spraying plants. The Multi-
Mover S12 must also be stored on a dry location.
Only the following "original" “Multi-Mover Europe BV” parts and accessories may be used for the
Multi-Mover S12.
Multi-Mover Europe BV is excluded from any liability for damages or consequential damages that are
caused by "original" parts that have not been supplied by us.

MULTI-MOVER S12 10
4.2 Operator
Only persons who have had a thorough (internal) theoretical and practical training for driving the
Multi-Mover S12, are allowed to drive with the Multi-Mover S12.
The training programme should cover:
-the application possibilities and the limitations
-the control and operating components
-the safety regulations
-daily and periodical maintenance
The operator must be fully familiar with the content of this user manual.
People could receive or cause serious injury, if the Multi-Mover S12 is operated by;
-unauthorized persons
-persons younger than 16 years of age
-persons of whom it may be expected that they are not (sufficiently) aware of the
dangers of the Multi-Mover S12
4.3 Responsibility of the operator
Operators must strictly observe the safety regulations, which are included in chapter 3, and the same
applies to the other rules of conduct elsewhere in this user manual.
4.4 Inspection prior to putting into operation
In addition to good maintenance, the operator of the Multi-Mover S12 must pay attention to the
following aspects after each work period.
- check whether there is any damage on the outside of the vehicle
- check the tow eye and tow pin or coupling point for bends or damage
- check whether the batteries are sufficiently charged
- drive forward and backward and check the operation of the brake.
- check, while driving slowly, the full manoeuvrability of the Multi-Mover S12
- check the jam safety on the steering handle by pressing the safety switch (2, fig. 2),
the Multi-Mover S12 should not start in that case.
If you establish a fault, or if you have any doubts concerning the operation of the Multi-Mover S12
you must immediately report this to your supervisor or the maintenance personnel.

MULTI-MOVER S12 11
5USE
5.1 General
Always keep an eye on bystanders, avoid collisions.
Keep as far to the right as possible and maintain distance.
Never overtake another vehicle driving in the same direction at crossings, in small passages or on
other dangerous places
- Make sure you keep a good view on the path that you are driving, keep an eye on traffic and
people and observe the safety regulations.
- Caution! Hazard of serious injury due to unwanted movements on slopes as result of
insufficient traction force and brake force of the Multi-Mover S12.
- Never drive onto a slope or another obstacle at an angle or crosswise.
- Only ever drive on and off a slope at a right angle.
- The Multi-Mover S12 may also tip over if the bends are taken at a speed that is too high.
# Maximum slope angle, with / without load 4% / 12 %
Passengers may not be taken along with the Multi-Mover S12 and towed vehicle.
When leaving the Multi-Mover S12, always remove the ignition keys.
(Let someone) check whether your Multi-Mover S12 is suitable (approved) for driving in your
environment, you could think of an environment with fire hazard or explosion hazard.
While driving, the generation of sparks may prevent switching on / off.
The traction batteries are filled with hazardous electrolyte that could cause serious burns.
However, the batteries are fully sealed and do not have to be refilled with distilled water.
In case of injury to people or damage to buildings, immediately contact your supervisor.
Never park at fire lanes, fire-extinguishers and stairwells.
5.2 Regulations for use
Observe the traffic regulations;
-in a normal traffic situation you will keep to the right
-maintain a safe distance, depending on your speed, you will maintain a safe speed
so you are able to maintain in complete control of your vehicle and trailer(s)
Make sure you keep a good overview of the area where you are driving and observe the safety
regulations.
At crossings and locations where there is no good view, lower your speed and (#) give a warning
signal. Drive slowly on narrow lanes.
Avoid bends if necessary and be careful on small hills, thresholds, etc.
Reduce speed in case of sharp bends.
The Multi-Mover S12 may only be driven at speeds that allow you to stop in time, e.g. if an obstacle

MULTI-MOVER S12 12
is standing in or entering the driving area.
Accelerating, stopping, steering, making turns should always be performed quietly, so that the
stability of the trailers to be towed is not endangered.
Your conduct while driving must be polite and safe.
Always be careful when the vehicle is driving on a limited slope or on slippery grounds.
Placement in /on a lift
Never manoeuvre the Multi-Mover S12 in/on a lift without permission; drive it slowly, place the
vehicle correctly in the centre of this space, switch off the vehicle with the ignition key. Make sure
there are no people on the lift when the vehicle is driven onto it.
Only transport safe and stable loads.
Make sure the weight of the load to be moved lies within the capacity of the Multi-Mover S12.
The maximum traction force is stated on the type plate.
5.3 Operation and function
Prior to putting the Multi-MoverS12 into operation, you must acquaint yourself with its possibilities.
Read the instructions in advance and check the function of the control units with the ignition key in
the OFF position.
1. Bolt, adjustable steering handle
2. Ignition lock
3. Battery indicator
4. Emergency stop
5. Battery package plug
6. Charger plug
7. Coupling
8. Type plate

MULTI-MOVER S12 13
9. Battery package lever
10. Battery package
Steering Handle (Tiller head)
1. Potentio meter, step less speed control
2. Horn
3. Lock coupling
4. Handle
5. Drive switch
6. Emergency stop
Steering handles (4)
The steering handle (1) with bar is a fixed part of the Multi-Mover S12, moving to the left means
driving to the left, and vice versa.
Safety switch (6)
When pressing the safety switch (risk of getting jammed), the Multi-Mover S12 will stop immediately.
In order to start again, the drive switch must first be placed in the neutral position.

MULTI-MOVER S12 14
Signal Horn (2)
Drive switches (5), left and right from the centre
By rotating the drive switch (5) to the front with your thumb, the
driving direction will first be switched on and then, when rotated
further, the Multi-Mover S12 will start to drive. The central
position is the neutral position.
By rotating it downwards, the Multi-Mover S12 will reverse.
Caution! Only switch to forward or reverse if the Multi-Mover
S12 is standing still.
5.4 Batteries
The batteries (battery package) of the S12 are interchangeable.
Process changing battery package:
1. Turn off the machine.
2. Take of the charger plug (if still connected) from the machine .
3. Take the handle of the battery package and move the lever (1)
upwards.
4. The battery package is now separated from the machine.
5. Connect a new battery package in the inverse order (as per
description above).
If the batteries have reached 30% of their capacity, the Multi-Mover S12 can still reach only 50% of the
normal speed.
Only when the BDI shows 70% or less, it will show after complete charging 100%. If the batteries are more
than 70% discharged and not being completely charged, the indicator will not be reset on 100%.
For a longer life span, it is better not to allow the battery to get completely empty. It is also not good
to continue charging a battery that is almost full.
If the Multi-Mover S12 is out of operation (for a longer period), we recommend keeping the battery
charger connected, it will automatically keep the battery in a charged condition.

MULTI-MOVER S12 15
The connection of the charger is located in a notch of the casing:
Procedure intern charging
1. Connector for the battery package. Here you plug in the battery
package-plug (1) 24VDC
2. Connection for the internal charger: wire included in delivery, it
goes in to the mains, 230 VAC
On the instrument panel of the S12 you will find:
-State of charge. Charging or being charged.
-Battery indicator full or empty.
The battery charger operates fully automatically, i.e. the charger is equipped with an electronic system
that will check the charging status and act accordingly.
Check whether the supply voltage to the battery charger corresponds with the voltage stated on the
battery charger.
Charging
1. Insert the red connection plug of the battery charger into the red connection plug of the battery
package.
2. Insert the connection plug of the battery charger into the mains.
3. The battery charger will switch off automatically.
If the green Led on the battery charger burns, the battery package is charged.
Charging location
The charging location must be well ventilated, because very explosive gases (detonating gas) are
continuously released during charging.
Avoid open fire or sparks at the charging location while charging. During charging, an explosive gas
may be released.
The battery charger (# optional) operates fully automatically, i.e. the charger is equipped with an
electronic system that will check the charging status and act accordingly.
Check whether the supply voltage to the battery charger corresponds with the voltage stated on the
battery charger.
Some instructions for battery use and maintenance.
Premature wear of the battery
If the batteries are used incorrectly, it is possible that they wear quickly. Premature wear is not an
error in production and is therefore not within the scope of the warranty arrangement.
Therefore, we would like to draw your attention to the following:
Excessive load of the battery
If the batteries are loaded excessively, this will strongly reduce the life span. This means that you will
have to adapt the load.

MULTI-MOVER S12 16
Discharging too deeply
We recommend not to discharge the batteries completely. If this happens often, it will also result in
premature wear. Keep a close eye on the battery indicator, connect the battery charger in time.
Adapted charger.
The batteries should be charged with a correct charger and during a specific period. If the charging
current is too low, or if the duration of the charging process is too short, the batteries will not be fully
charged and the capacity of the batteries will be too low for your application, resulting in premature
wear. If the charging current is too high, or if the duration of the charging process is too long, the
battery can be overcharged. As a result, the plates of your battery will overheat and may become
damaged.
Intermediate charging
If, for example, the batteries are empty for only 60% and are reconnected to the charger, the
batteries will not get the time to relax. The temperature of the batteries will increase, resulting in
premature wear. Also, the voltage of the battery will become higher than the actual energy
condition, which means that the discharge limiter will no longer work correctly.
Ambient temperature
The temperature of the battery may not get too high, as the acid will become more aggressive. Here,
we are thinking of greenhouses and other heated spaces.
Frequent use
If the batteries are used often they will also wear more quickly. When selecting batteries, it is
important to take into account the Multi-Mover S12’s frequency of use. If the batteries are used very
frequently and intensively, it will be necessary to select the 140AH/20h battery instead of the
standard 100AH/20h battery.
Sulphating
A battery will slowly discharge as a result of automatic discharge. If a battery remains in a discharged
condition, it will start to sulphate and become damaged beyond repair. We therefore recommend
recharging the stored Multi-Mover S12 every 2 months.
It is also possible, that there are still standby consumers in a switched off Multi-Mover S12 (key
ignition etc.), which will mean that the batteries will discharge more quickly.
In that case, regular recharging of the batteries is recommended.
Immediate recharging of an empty battery, significantly promotes a longer life span. Further
discharging than 20% has a negative effect on the life span.
The gases that are released while charging the battery are highly explosive (detonating gas).
Therefore, avoid fire and sparks near the charging location.
Charging may only take place in a well ventilated room.
Regularly check whether the battery charger stops automatically when the battery is full.
Never interrupt the charging process, make sure it is fully completed.
While charging the battery, never perform repair, cleaning or other work to the Multi-Mover S12.
Prior to disassembling the batteries, switch off all power consumers, because of the generation of

MULTI-MOVER S12 17
sparks.
When disassembling the batteries, first disconnect the mass cable (-)
When assembling, connect the mass cable as last.
Caution! Always plus ( + = red) to plus and minus (- = black) to minus
Battery fluid is a corrosive acid, avoid contact with clothing, skin and eyes.
Immediately wash off possible splashes on clothes or skin with water and soap, then rinse off with
plenty of water. Possible splashes of acid in the eyes, rinse with clean water for at least 5 minutes
and immediately consult a doctor.
When the battery is replaced, the old battery should be returned to your dealer or handed in at a
legally recognized collection point for batteries.
5.5 Coupling trolley/trailer(s) #
The Multi-over S12 is made with a standard coupling on the front side in the middle of the Multi-
Mover.
1 Slowly reverse the Multi-Mover S12 to the pole of the trailer.
2 Place the coupling of the S12 under the coupling point of the trailer.
# 3 Optionally you can open or close the coupling of the S12 hydraulic.
Only use the Multi-Mover S12 if you have thoroughly studied the previous pages and you have no
more questions.
# = for specific options or models different.
6 MAINTENANCE
When performing maintenance, you should always observe the safety regulations, (chapter 3).
During maintenance, always switch off the Multi-Mover S12 and remove the ignition key from the
ignition lock
In case of doubt, consult the user manual.
6.1 Inspection
The operator should perform the following inspections regularly, without trailer;
- it must be possible to rotate the steering handle (swivel wheel) smoothly to the left and
right, without jolts
- keep an eye on the wear of driven (air) tyres, if the wheels slip in case of sudden brakes, they
will have to be replaced
- when accelerating quietly, it must be possible to reach the maximum speed

MULTI-MOVER S12 18
If one of the above tests is not satisfactory, you must immediately report this to person who is
directly responsible for the maintenance of the Multi-Mover S12.
6.2 Lubrication and maintenance diagram
d = daily w = weekly m = monthly a = anually m = maintenance
r = replacements
# = only by qualified, trained, specialists m / rd / w /m/ a
__________________________________________________________________________________
1 inspection / cleaning bottom side Multi-Mover S12 - d
2 inspection battery charge, depending on intensity of use d -
3inspection wear drive wheels - w
4 lubricating nipples on bearings drive and swivel wheels # a
6.3 Cleaning
When used inside and outside, the bottom will become dirty with particles from the surroundings.
It is necessary to remove this dirt regularly, as contamination could
hinder the operation of the drive.
Do not use a high-pressure cleaner or a hard water jet for cleaning, as the electric and electronic
system is not water-tight and could be damaged.
6.4 Taking out of operation
If the Multi-Mover S12 is not used for a certain period, you will have to;
- connect the battery charger
- place the Multi-Mover S12 on blocks, so that the tyres do not touch the ground
Have maintenance and repairs performed by persons authorized by Multi-Mover Europe BV.
In case of doubt, always consult your supplier.
For the above-mentioned maintenance instructions, we assumed normal use.
In case of intensive use, or use under extreme conditions, maintenance will have to be performed
with shorter intervals.
6.5 Annual maintenance. ***
See 6.2 +
Check whether all bolts are still tight and check the rotation/hinge points and guides for wear and
play, replace or overhaul if necessary.
Check the carbon brushes for wear and have them replaced if necessary.
*** = only by qualified, trained specialists

MULTI-MOVER S12 19
7 ENVIRONMENT
7.1 General
Residues of lubrication oil, oil-stained cloths, batteries and possible cleaning agents must be disposed
of separately as chemical waste.
7.2 Consequences for the environment
Life span
The expected life span of the Multi-Mover S12 depend on maintenance, operating hours and
ambient conditions (dust, contamination, humidity etc.).
Good maintenance will be beneficial to the life span.
Disposal
Preferably, you should have the disposal and processing performed by a recognized dismantlement
or demolition contractor who has the necessary permits.
Appoint a competent responsible person to supervise its execution.
Sort disassembled materials according to material characteristics and contamination.
Separate all materials that full under the category of chemical waste, such as oil, lubricants, switching
material, batteries and certain electric components. Dispose them as chemical waste.
Offer residual materials to recognized waste processing companies who have the required permits.

MULTI-MOVER S12 20
8FAILURES
When removing a failure, ALWAYS switch off the Multi-Mover S12 and
remove the ignition key.
If a defect is established at the Multi-Mover S12, do not use it until the repair has been completed.
Failure Solution
A The Multi-Mover S12 does not drive.
1 Emergency stop has been pressed 1 Pull out
2 Battery empty 2 Charge battery
3 Battery clamps make poor contact 3 Clean, attach again
4 Direction switch defective 4 Replace switch
5 Other causes. 5 Consult your dealer
B The Multi-Mover S12 functions occasionally.
1 Loose wiring 1 Check wiring
2 Dirty or worn carbon brushes 2 Clean or replace if less than 1 cm. long
3 Dirty or worn collector motor 3 Clean, or have it overhauled, or replace it
4 Relay does not come "in" properly due to contamination or defect 4 Clean or replace
C Speed cannot be controlled (properly), or it drives at high speed immediately.
1 Speed controller defective 1 Replace
2 Relay defective 2 Replace
In case of a failure not mentioned in the list above, please contact your dealer.
Note: In the warranty period, it is absolutely prohibited to perform repairs, changes and
modifications or anything like that to the Multi
-Mover S12, the warranty will become invalid
automatically.
9 PARTS
001 Battery (state amperage) 009 Swivel wheel
002 Drive motor 010 Axle for benefit of drive wheels
011 Battery plug
004 Relay 012 Female plug for battery plug
005 Speed switch 013 Fuses, set
006 Ignition lock 014 Main fuse
007 Reverse switch forward - reverse 020 Symbol stickers
008 Drive wheel
