multicomp MC011362 User manual
www.element14.com
www.farnell.com
www.newark.com
Page <1> V1.011/03/19

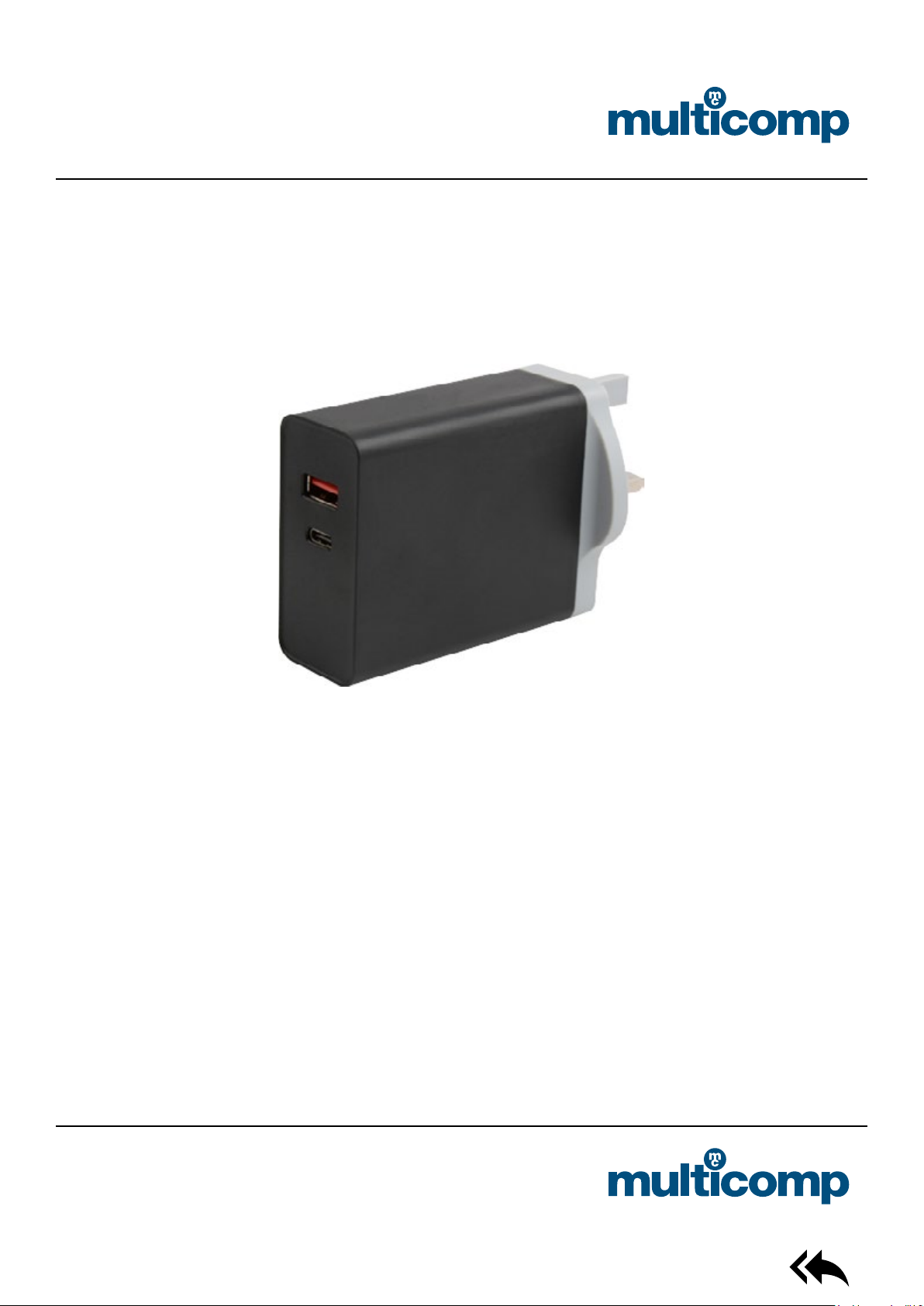

Dual USB Ports PD Smart Travel Charger
Table of Contents
1. Introduction..............................................................2
2. Features....................................................................2
3. Specications ..........................................................2
4. Package Contents ...................................................3
5. Operation..................................................................3
6. Connection Diagram ...............................................4
User Manual
www.element14.com
www.farnell.com
www.newark.com
Page <2> V1.011/03/19
1. Introduction
This product is a high-performance and fashionable design travel charger. It is equipped with two USB connectors for power.
This product allows two devices to be charged at the same time. The USB-A ports can convey up to 2.4A output, another USB-C
port is specially designed for Type-C notebook. This travel charger can provide total 51W output. It is suitable for Samsung,
Android mobile phones, iPad, MacBook and Chrome book. The unique design makes your life simpler and easier
2. Features
• Allows 100-240V AC of input voltage.
• Dual output ports provide maximum 42W in total:
• USB-A: 5V/2.4A, with intelligent IC detects output requirements of your device automatically, suitable for iPhone, Samsung
Galaxy phone, BlackBerry, Huawei, ZTE, etc.
• USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/2.6A
• Accurate limited current output.
• Over current protection with Auto-recovery.
• Overload protection and over voltage protection.
• Short circuit protection with Auto-recovery.
• Over temperature protection with Auto-recovery.
• Intelligent LED for PD charging.
• Select precision electrical components, re line version, and imported re plastic.
• Portable and convenient to use
3. Specications
Input/output
Input 100-240V AC 50/60Hz
Input Plug BS Plug(Default)
Output USB-A: 5 V/2.4A(smart)
USB-C:5V/3A,9V/3A,12V/3A,15V/2.6A
Protection
Over Current Protection Yes
Over Voltage Protection Yes
Over Load Protection Yes
Short Circuit Protection Yes
Over Temperature Protection Yes
Performance
Ripple And Noise ≤200mV
Efciency USB-A: ≥79.74%
USB-C: ≥81.36%(5V/3A);
≥86.26%(9V/3A);
≥87.04%(12V/3A);
≥87.55%(15V/2.6A);
Line Regulation ±3%
www.element14.com
www.farnell.com
www.newark.com
Page <3> V1.011/03/19
Mechanical
Colour Black
Size 74.5mm × 63.1mm × 30mm
Environmental
Operating Temperature 0 ~ 40°C
Storage Temperature -20°C ~ +85°C
Operating Humidity 30% ~ 90% RH
Storage Humidity 10% ~ 90%
Certication CE, FCC
User Manual English Version
4. Package Contents
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping
carton:
Main unit × 1
User Manual × 1
5. Operation
Operation Procedures
1. Plug the DC connector of power adapter into a socket.
2. Plug one USB connector of the cable into the interface of the charger and plug the other connector of the cable into the
electronic device (Apple Air, Google Chrome book, IPhone, Samsung mobile phone, MP3, PC, etc.)
3. Please pull the USB connector out after the electronic equipment’s fully charged.
Operation Notes
1. For optimum performance, please use the power station according to the user manual.
2. Please plug the power adapter into socket whose voltage range should be 100~240V AC.
3. Please unplug the power adapter after using.
Note: Our products have protection functions and the two tips above are suggestions just for safety.
4. Do not use the power station with an electronic product which is not in conformity with the specications, so as to avoid any
problems caused by specication mismatching.
5. It’s normal that power adapter and power station will be a little overheated in the use process.
6. When the power station stops working under over-current, over- temperature or short-circuit protection, please unplug the
device after it automatically returns to work, then you need to check whether the device is compatible with this charger.
7. Do not let the power station close to re, such as stove, candles and etc.
8. Do not let the power station soak into liquid, such as swimming pool, bathtub, etc.
9. Do not wash the power station with corrosive cleaner.
10. If the power station cannot work properly, please contact the store or distributor in your area.
www.element14.com
www.farnell.com
www.newark.com
Page <4> V1.011/03/19
Part Number
MC011362
6. Connection Diagram
Important Notice : This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell Limited 2016.
