PoINet ACP 3/5 Installation Manual
1) Installation/Safety Precautions
2) General lnformation
3) Powering Up
4) RJ-31X Walljack Wiring
5) Recommended RJ-31X Placement in Existing Wiring
A. Single Line
B. Two Line (RJ-14)
C. Key/PBX System Installation
6)
4/8 Series T-Connector
7) Verification of Proper Installation
8) Technical Specifications
9) FCC/DOC/Warranty

When using your telephone
equipment, basic safety
precautions should always be
followed to
reduce the risk of
fire, electric shock and
injury
to persons, including the
following:
1. Read and understand
all
instructions.
2. Follow all warnings and
instructions marked
on the
product.
3. Unplug this product from
4. Do not use this product
near water, for example,
near a bathtub, wash bowl,
kitchen sink, or laundry tub,
in a wet basement, or near
a swimming pool.
5. Do not place this product
the wall outlet
before
cleaning. Do not use liquid
cleaners or aerosol
cleaners. Use a damp cloth
for cleaning.
6
2
on an unstable cart, stand,
or table. The product may
fall, causing serious
damage to the product.
This product should never
be placed near or
over a
radiator or heat register.
This product should not be
placed
in a built-in
installation unless proper
ventilation
is provided.
7. This product should be
8.
operated only from the type
of power source indicated
on the marking label. If you
are not sure of the type of
power supply to your home,
consult your dealer or local
power company.
Do not allow anything to
rest on the power cord. Do
not
locate this product
where the
cord will be
abused by persons walking
on it.
9. Do not overload wall outlets
and extension
cords as this
can result
in the risk of fire
or electrical shock.
10. Never push objects of
any
kind into this product
through cabinet slots as
they may touch dangerous
voltage points or short out
parts that could result
in a
risk of fire or electric shock.
Never spill liquid of any
kind on this product.

11 .
To reduce the risk of
electric shock, do not
disassemble this product,
but take it to a qualified
serviceman when service
or repair work is required.
Opening or removing
covers may
expose you to
dangerous
voltages or
other risks. Incorrect
reassembly can cause
electric shock when the
appliance
is subsequently
used.
12. Unplug this product from
the
wall outlet and refer
servicing to qualified
service personnel under
the following conditions:
A.
B.
C.
D.
When the power
supply
cord or plug is
damaged or frayed.
If
liquid has been
spilled into the product.
If the product has been
exposed to rain or
water.
If the product does not
operate normally by
following the operating
instructions. Adjust
only those controls,
that are covered by the
operating instructions
because improper
adjustment of other
controls may result in
damage and will often
require extensive work
by a qualified
technician to restore
the product to normal
operation.
E. If the product has been
dropped or the cabinet
has been damaged.
F. If the product exhibits a
distinct
change in
performance.
13. Avoid using a telephone
(other than a cordless type)
during an electrical storm.
There may be a
remote risk
of electrical shock from
lightning.
14. Do not use the telephone to
report
a gas leak in the
vicinity of the leak.
SAVE’THESE INSTRUCTIONS!!!
INSTALLATION PRECAUTIONS
1. Never
install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is
specially designed for wet locations.
3. Never touch uninsulated telephone wires or terminals unless the
telephone line has
been disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
3

To simplify this installation products is identical
manual,
all graphical concerning interface
on the
representations of ACP
existing phone wiring. The ACP
product
in wiring schematics is designed to process and
are of the 3-port model.
You
route all incoming calls to data
may be installing
an ACP-5, and telephone equipment
which
is a 5-port device. The connected through the ACP to
installation procedure for both
the phone line.
WARNING
The key to proper operation of the ACP
is CORRECT
installation. It
is VITALLY IMPORTANT that you install the
ACP unit between the telephone wiring demarcation point
and
all station equipment (including KEY systems).
Before installing the ACP on
(supplied) and plug it into a 110
the telephone line, it
is a good VAC, 50-60 Hz electrical outlet.
idea to
check for functionality Next, plug the power line
by “powering up” the unit. Take
(attached to the transformer)
the AC power transformer into the rear of the ACP, here:
4

At this time, the LED on the be lit indicating that power is
front panel of the ACP should supplied.
To connect the ACP to the
phone line, a RJ-31X modular
walljack
will need to be
installed
on to the existing
telephone wiring
in front of all
telephone/data equipment.
The installation for the RJ-31X
will be identical to a standard
alarm system reporting
application. The following
diagram denotes the proper
wiring of telephone cable to the
RJ-31 X walljack.
RJ-31X Walljack Wiring Diagram
Series Modular
To ACP “Line/Phone” Device Port
5

WARNING
The “Tip” and "Ring" labeling is important when attaching
wire pairs to the numbered pins. There should be no
deviation from the diagram
on page 5. Any deviation would
result
in reverse polarity problems for the phone system
and data equipment
used on the ACP. The “shorting bars”
in the RJ-31 X walljack allow for continuation of voice service
to the phone system when the 8-wire line
cord is unplugged. If
the line cord is unplugged from the ACP and still left attached
to the walljack,
calls will not get through to the phone system.
In this section, we
will detail
the most common types of
wiring configurations found
in a
business location. The proper
installation point for the
RJ-31X walljack
in each wiring
configuration
is represented by
a black box labeled “31X”.
Installing the RJ-31X at that
point or
before on the incoming
phone line should guarantee
correct operation of the ACP
unit.

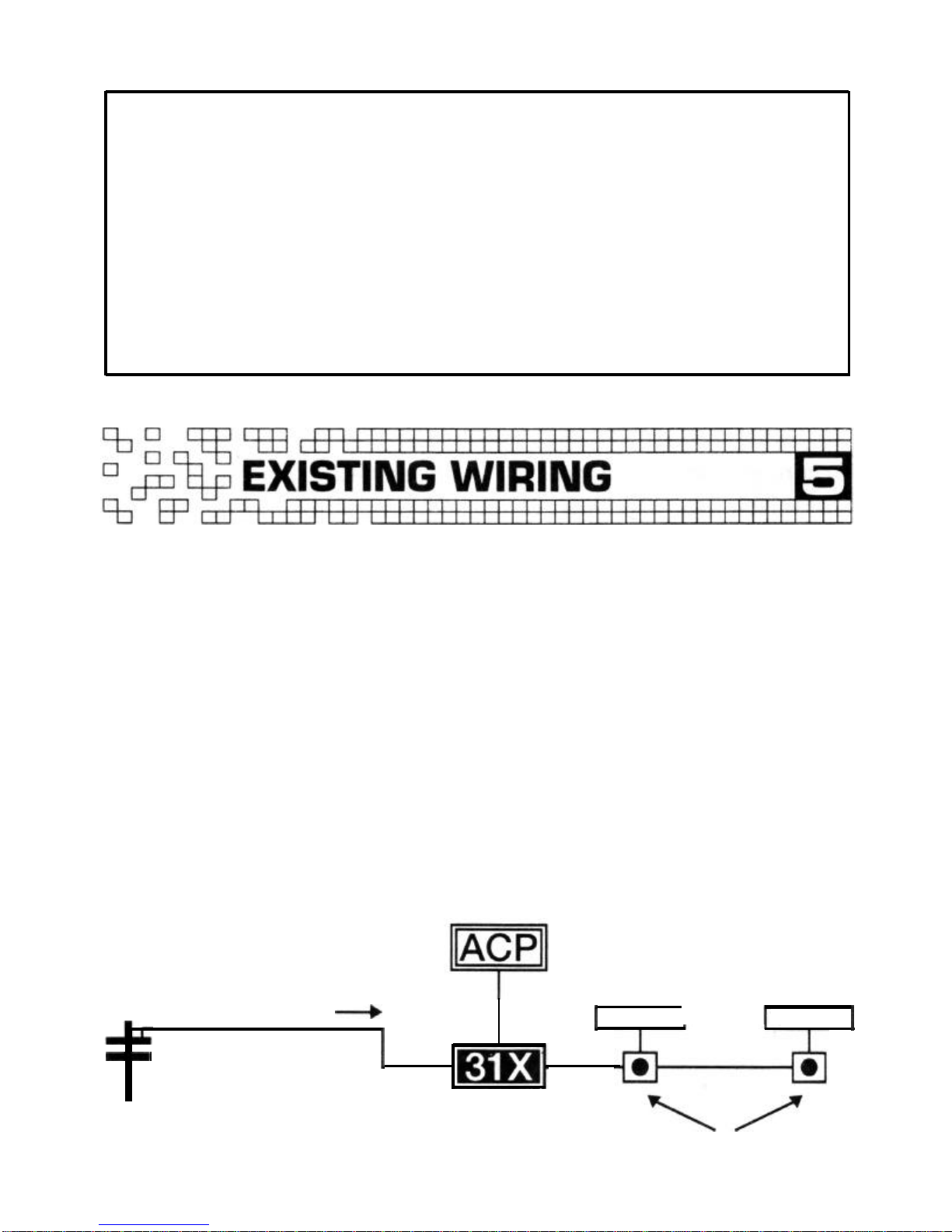

Single Line
Installation
RJ-31X placement in a single-
line wiring configuration occurs
before all existing phone
equipment. The wiring
config-
uration is characterized by a
single incoming phone line
with single or multiple
RJ-11
walljacks.
Incoming Phone Line +
II
1
1 PHONE PHONE
1
RJ-11 Walljacks

Two Line Installation
RJ-31X installation on a two
line phone system is basically
the
same as a single line
installation, but with a few
exceptions.
A) If “Rollover” is present,
install the RJ-31 X walljack
on the last line of the
“Rollover” sequence.
B) If the existing wiring
is in a
RJ-14 configuration, the two
phone lines
will need to be
separated for installation of
the RJ-31X walljack
on the
chosen line.
RJ-11 Walljacks
I
Last Line
of Rollover
53
piCq
KEY/PBX
two-line installations- install
System Installation
the RJ-31X walljack on the
This type of installation
is
simple and should be a rarity.
The same rule applies for
Key/PBX phone system
installation as with single and
incoming phone
line before all
telephones and telephone
equipment! In this case,
installation occurs on the trunk
side of the phone system.
To Phone Extensions
SYSTEM
I
I
Note: The RJ-31X is installed on the last íncoming line
of this diagram because of
“Rollover” sequence.
7

When installing the ACP on a This T-connector, when inserted
single phone line where only in a regular RJ-ll C jack, ex-
one RJ-11 walljack is present, it pands the interface to support
may be advantageous to use a
RJ-11 C/RJ-31 X modular
4-pin/8-pin series T-connector. connectors.
4/8 Series T-Connector Wiring Diagram
123456
--’
I
II
1 I
II
1
I ’
1 2 3 4 5'\6 71 0
123456
RJ-11C RJ-31X
~Shorting Bar
(Short Removed
on Plug Insertion)
By utilizing a 4/8 pin series
T-connector
on a regular
RJ-11 C walljack, the ACP can
be connected to the existing
phone line without installing a
RJ-31X walljack. The ACP line
cord
plugs into the 8-pin side of
the T-connector and the phone
can be plugged into the
4-pin
side.
Note:
If more than one RJ-11 C
jack
is present on the existing
phone wiring, the
4/8 pin series
T-connector should be inserted
8
on the first incoming walljack
on the phone line. The phone
line wire running to the next
walljack should be discon-
nected at the first walljack. This
will ensure that all incoming
calls will be routed through the
ACP. If the additional RJ-1 1C
walljacks are needed for phone
extensions, simply crimp
an
RJ-11 C modular plug on the
end of the disconnected line
and plug it in to the RJ-11 C
side of the 4/8 pin T-connector.

Listed below are part numbers them to another
manufacturer’s
for the
4/8 pin series T-connector. part number.
If your telephone accessories
retailer
does not have the part
numbers listed
in his catalogs,
ask him to cross reference
Part No.
AT 267 SB
304A
Manufacturer
Allen Tel
AT&T
Functions/
Operations Check
After installing the ACP on the
phone line, it
is wise to make a
“functions check” of the unit
and the phone system wiring.
To
check the phone system
wiring:
1. Check all telephones for dial
tone. If
none is present,
unplug the 8-wire line
cord
(which connects the ACP to
the phone line) from the
RJ-
31X walljack. If dial tone is
returned to the phones after
unplugging the line
cord,
check the line cord
connection at the
LINE/DEVICE
1” port of the
ACP 3/5. Reconnect the line
cord to the RJ-31X walljack.
Dial tone should be returned
to the phone system.
2. If dial tone
is present but you
can not dial out on the line,
the phone
line polarity may
need to be reversed. This
can be done by switching
the “tip and ring” wires
on
the incoming line at the RJ-
31 X walljack.
3. After connecting the
specified data equipment to
the
device ports at the rear
of the ACP (DEVICE
2/DEVICE 3 for the ACP
3-DEVICE
2/DEVICE
3/DEVICE 4/DEVICE 5 for
the ACP
5), the unit should
be tested for
call routing
capability. This can be done
by contacting the central
office or location that will be
polling such equipment and
give them the location phone
number and
device selection
codes (if known).
TO THE INSTALLER: If the
ACP 3 or 5 fails to operate at
any time after installation
please
contact the location
supervisor or corporate MIS
Manager.
9

Input Power Requirements:
At AC Transformer: 110-125 Volts AC Only, 50-60 Hz
At Power
Jack On ACP: 12-15 Volts AC Only
Power Consumption Idle: 8 Watts
Ringing A Device: 10 Watts
CO Interface:
REN 1.1B
DOC (Canada): Load No. 22.6
Input Ring Detection: 40-150
Volts AC, 15-68 Hz
Device Interface:
Battery: Nominal-45 Volt DC To All Ports.
Off-Hook Detection: 8-150 mA
Ringer Frequency: 33 Hz Pseudo-Sine Wave
Ringing No Load: Approximately 105 Volts AC
Ringing 8000 Ohm Impedance (REN 1.0): Approximately 76 VAC
Ringing 4000 Ohm Impedance (REN 2.0): Approximately 59 VAC
Ringing 2667 Ohm Impedance (REN 3.0): Approximately 45 VAC
Ringing Short Circuit: Current Limited to 30mA
(Impedances of
less than 2667 ohms not recommended)
DOC Registration
equipment. This certification
The Department of Communi-
cations
label identifies certified
means that the equipment
meets certain telecommunica-
tions network protective,
10

operational and safety require-
ments. The Department does
not guarantee the equipment
will operate to the user’s
satisfaction.
Before installing
this equipment, users should
ensure that it
is permissible to
be connected to the
facilities of
the local telecommunications
company. The equipment must
also be installed using an
accepted method of connection.
In some cases, the company’s
inside wiring associated with a
single
line individual service
may be extended by
means of
a
certified connector assembly
(telephone extension
cord). The
customer should be aware that
compliance with the
above
conditions may not prevent
degradation of service
in some
situations.
Repairs to certified equipment
should be made by
an author-
ized Canadian maintenance
facilitydesignated by the
supplier.
Any repairs or
alterations made by the
user to
this equipment, or equipment
malfunctions, may give the
telecommunications company
cause to request the
user to
disconnect the equipment.
Users should ensure for their
own protection that the
electrical ground connections
of the power
utility, telephone
lines and
internal metallic water
pipe system, if present, are
connected together. This
precaution may be particularly
important
in rural areas.
Caution: Users should not
attempt to make
such con-
nections themselves, but
should contact the appro-
priate electric inspection
authority, or electrician, as
appropriate.
The Load Number (LN)
assigned to each terminal
device denotes the percentage
of the total load to be
connected to a telephone loop
which is used by the device, to
prevent overloading. The
termination on a loop may
consist of any combination of
devices subject only to the
requirement that the total of
the Load Numbers of
all the
devices does not exceed 100.
Notice:
This product has been
tested and meets the Class B
limits for radio noise emissions
set out by the Radio
Inter-
ference Regulations of the
Canadian Department of
Communications.
FCC Registration
This equipment complies with
Part 68 of the FCC rules. On
the bottom of this equipment is
ll

a label that contains, among
other information, the FCC
Registration Number and
Ringer Equivalence Number
(REN) for this equipment. You
must, upon request, provide
this information to your
telephone company.
The
REN is used to determine
the quantity of devices
you
may connect to your telephone
line and
still have all of those
devices ring when your
telephone number
is called. In
most, but not
all areas, the
sum of the
RENs of all devices
connected to one line should
not exceed five (5.0). To be
certain of the number of
devices
you may connect to
your line, as determined by the
REN, you should contact your
local telephone company to
determine the maximum
REN
for your calling area.
If your telephone equipment
causes harm to the telephone
network, the telephone
company may discontinue your
service temporarily. If possible,
they
will notify you in advance.
But if advance
notice isn’t
practical,
you will be notified as
soon as possible.
You will be
informed of your right to
file a
complaint with the FCC.
Your telephone
company may
make
changes in its facilities,
equipment, operations or
procedures that could affect
the proper functioning of your
equipment. If they do,
you will
be notified in advance to give
you an opportunity to maintain
uninterrupted telephone
service.
If you experience trouble with
this telephone equipment,
please contact your
PolNet
dealer or Multi-Link, Inc. for
information
on obtaining
service or repairs. The
telephone company may ask
that
you disconnect this
equipment from the network
until the problem has
been
corrected or until you are sure
that the equipment is not
malfunctioning.
This equipment may not be
used on coin service provided
by the telephone company,
and
is not intended for use with
party line service. This
equipment is intended for use
only
on loop-start service, and
will not operate on a ground-
start central o
ffice line.
Limited Warranty
We warrant that if this PolNet
ACP 3/5 product, manu-
factured
by Multi-Link, Inc. and
purchased by
you, proves to
be
defective in material or
12

workmanship, we will provide retail seller’s original bill of sale,
without charge, for a period of your charge or credit receipt, or
two (2) years, the labor and the other satisfactory proof of the
parts necessary to remedy any date of the original retail
such
defect. Warranty period purchase of the product, to
any
commences on the date of of the authorized
PolNet
purchase by the original retail service centers.
consumer. Any
postage, insurance or
The duration of
any implied
warranty of merchantability,
fitness for a particular purpose,
or otherwise,
on this product
shall be limited to the duration
of the
applicable express
warranty set forth
above. In no
event
shall we be liable for any
loss, inconvenience or damage
whether
direct, incidental,
consequential or otherwise
resulting from
breach of any
express or implied warranty, of
merchantability, fitness for a
particular purpose, or other-
wise with
respect to this
product,
except as set forth
herein. Some states do not
allow limitations
on how long
an implied warranty lasts and
some states do not allow the
exclusion or limitation of
incidental or consequential
damages, so the above
limitations or exclusion may
not apply to
you.
To obtain service under this
warranty,
you must present or
send your ACP
3/5 product,
together with a copy of the
shipping
cost incurred in
presenting or sending your
ACP
3/5 product for service is
your responsibility. However,
Multi-Link will pay for normal
return freight expenses.
The AC adaptor used with this
product
is covered under this
warranty. This warranty
does
not cover damage which
results from
accident, misuse,
abuse, improper line voltage,
lightning strike, fire, flood or
damage resulting from repairs
or alterations performed other
than by
PolNet authorized
service stations. This warranty
gives you specific legal rights,
and
you may also have other
rights which vary from
state to
state.
Service Information
Your machine has been
registered with the Federal
Communications Commission,
and under this program,
in the
event of equipment malfunction,
all repairs will be performed by
13

Multi-Link, Inc. or a warranty
repair
center that we have
authorized. The owner is
restricted from performing any
maintenance operation other
than those specified within this
instruction manual.
If you require service, please
contact your Polnet dealer or
Multi-Link, Inc.
Multi-Link, Inc.
225 Industty Parkway
Nicholasville, KY 40356
[phone]
14

The PolNet ACP 3/5 contains patented and otherwise
proprietary circuits and software algorithms. This installation
manual describes the operation and function of
some of these
circuits and algorithms. Unauthorized duplication of this
manual
is a violation of U.S. and other copyright laws, and
unauthorized use of
all or part of this manual may result in
patent infringement. Therefore, THIS MANUAL IS TO BE USED
ONLY WITH OR ASA MARKETING TOOL FOR THE POLNET
ACP 3/5. Duplication of all or part of this manual without the
permission of Multi-Link, Inc.
is prohibited.
Printed in the U.S.A.
Multi-Link, Inc.
225 Industry Parkway
Nicholasville, KY 40356
[phone]
