Multiplex MB-8-2 User manual

Part Number 9291386 6/14
Blend-In-Cup (BIC)
BeverageSystem
Installation, Operation and Maintenance Manual
Original Instructions — This manual is updated as new information and models are released. Visit our website for
the
latestmanual. www.multiplexbeverage.com

Safety Notices
As you work on Multiplex equipment, be sure to pay close
attention to the safety notices in this manual. Disregarding
the notices may lead to serious injury and/or damage to the
equipment.
Throughout this manual, you will see the following types of
safety notices:
nWarning
Text in a Warning box alerts you to a potential personal
injury situation. Be sure to read the Warning statement
before proceeding, and work carefully.
,Caution
Text in a Caution box alerts you to a situation in which
you could damage the equipment. Be sure to read
the Caution statement before proceeding, and work
carefully.
Procedural Notices
As you work on Multiplex equipment, be sure to read the
procedural notices in this manual. These notices supply
helpful information which may assist you as you work.
Throughout this manual, you will see the following types of
procedural notices:
Important
Text in an Important box provides you with information
that may help you perform a procedure more efficiently.
Disregarding this information will not cause damage or
injury, but it may slow you down as you work.
NOTE: Text set off as a Note provides you with simple, but
useful, extra information about the procedure you are
performing.
Read These Before Proceeding:
,Caution
Proper installation, care and maintenance are essential
for maximum performance and trouble-free operation
of your Multiplex equipment. Read and understand
this manual. It contains valuable care and maintenance
information. If you encounter problems not covered
by this manual, do not proceed, contact Manitowoc
Foodservice. We will be happy to provide assistance.
Important
Routine adjustments and maintenance procedures
outlined in this manual are not covered by the warranty.
nWarning
PERSONAL INJURY POTENTIAL
Do not operate equipment that has been misused,
abused, neglected, damaged, or altered/modified from
that of original manufactured specifications.
NOTE: SAVE THESE INSTRUCTIONS.
We reserve the right to make product improvements at
any time. Specifications and design are subject to change
without notice.

Table of Contents
Part Number 9291386 6/14 3
Section 1
General Information
Read This Manual ...............................................................................................................5
About Blend-In-Cup ...........................................................................................................5
Unit Inspection ................................................................................................................... 5
Model Numbers..................................................................................................................5
Serial Number Location .....................................................................................................5
Warranty Information ........................................................................................................6
Specifications .....................................................................................................................7
Dimensions...............................................................................................................................................7
Capacity & Weight..................................................................................................................................7
Product Delivery Location...................................................................................................................8
Refrigerant Charge.................................................................................................................................8
R-290 Ice Maker.......................................................................................................................................8
R-404A Ice Maker....................................................................................................................................9
Electrical ................................................................................................................................................. 10
Air / CO2, Plain & Chilled Water Inlets .......................................................................................... 11
System Pressures ................................................................................................................................. 11
Drain Connections .............................................................................................................................. 11
Section 2
Installation
Step-by-Step Installation.................................................................................................13
Pre-installation Checklist.................................................................................................................. 13
Connections .......................................................................................................................................... 14
Installation Checklist.......................................................................................................................... 15
Start-Up & Cleaning............................................................................................................................ 15
Demonstrate ......................................................................................................................................... 16
Post Installation Checklist ................................................................................................................ 16
Section 3
Operation
Component Identification ...............................................................................................17
Sequence of Operation....................................................................................................17
Normal Operation ............................................................................................................................... 17
Ice Making.............................................................................................................................................. 18
Touch Screens...................................................................................................................19
Drink Selection Screen ...................................................................................................................... 19
Flavor Selection Screen..................................................................................................................... 20
Size Screen............................................................................................................................................. 21
Main Menu Screen .............................................................................................................................. 24
Manager’s Menu Screen.................................................................................................................... 25
Calibration Procedure........................................................................................................................ 27
Product Inventory Screen................................................................................................................. 29
Cleaning Screen................................................................................................................................... 31
Other Operations .............................................................................................................32
Loading Recipes................................................................................................................................... 32
Recommended Cups.......................................................................................................................... 32

4 Part Number 9291386 6/14
Table of Contents (continued)
Section 4
Maintenance
General Maintenance.......................................................................................................33
Door Gasket Maintenance ............................................................................................................... 33
Drain Maintenance - Inside Lower Cabinet................................................................................ 33
Refrigerators.......................................................................................................................................... 34
Stainless Steel Care & Cleaning ...................................................................................................... 34
Doors/Hinges........................................................................................................................................ 34
Preventing Blower Coil Corrosion ................................................................................................. 34
Daily Cleaning - Zone 1....................................................................................................35
Gather the Following Supplies....................................................................................................... 35
Blenders / Dispense Area Cleaning & Sanitizing...................................................................... 36
Weekly Cleaning - Zone 2 ................................................................................................40
Gather the Following Supplies....................................................................................................... 40
Product Line Cleaning & Sanitizing .............................................................................................. 41
Sanitizing Ice Bin & Water Nozzles (Optional)........................................................................... 43
Blenders / Dispense Area Cleaning & Sanitizing...................................................................... 45
Drain Cleaning (Optional) ................................................................................................................ 49
Monthly Cleaning - Zone 3 ..............................................................................................51
Gather the Following Supplies....................................................................................................... 51
Ice Maker Cleaning & Sanitizing..................................................................................................... 52
Other Monthly Tasks........................................................................................................................... 55
Biannual Descaling - Zone 3 ............................................................................................56
Turn ON Descaling .............................................................................................................................. 56
Gather the Following Supplies....................................................................................................... 57
Ice Maker / Bin Descaling, Cleaning & Sanitizing..................................................................... 58
Turn OFF Descaling............................................................................................................................. 62
Ice Machine Cleaning.......................................................................................................63
Tools Required...................................................................................................................................... 63
Unit Preparation................................................................................................................................... 63
Ice Machine Descaling....................................................................................................................... 63
Ice Machine Sanitizing....................................................................................................................... 64
Bin / Dispenser Descale, Clean, & Sanitize.................................................................................. 64
Descaling................................................................................................................................................ 64
Sanitizing................................................................................................................................................ 64
Full Disassembly Descale, Clean & Sanitize................................................................................ 65
Product Line Flush............................................................................................................66
Gather the Following Supplies....................................................................................................... 66
Annual Planned Maintenance.........................................................................................71
Section 5
Troubleshooting
Before Calling For Service Checklist ...............................................................................73
Procedure to Clear Blocked Line .....................................................................................75
How to Check Air/CO2Pressure .......................................................................................76
How to Check Plain Water Pressure ................................................................................77
Section 6
Tools & Cleaning Supplies
Cleaning Kits.....................................................................................................................79

Part Number 9291386 6/14 5
Read This Manual
Multiplex Beverage developed this manual as a reference
guide for the owner/operator and installer of this
equipment. Please read this manual before installation or
operation of the machine. A qualified service technician
must perform installation and start-up of this equipment.
Consult Section 5 within this manual for service assistance.
If you cannot correct the service problem, call your Service
Agent or Distributor. Always have your model and serial
number available when you call.
Your Service Agent _______________________________
Service Agent Telephone Number____________________
Your Local Distributor______________________________
Distributor Telephone Number ______________________
Model Number __________________________________
Serial Number ___________________________________
Installation Date _________________________________
About Blend-In-Cup
The Blend-In-Cup beverage system is a self-contained
dispensing unit that allows the operator to make flavor
combinations of blended and non-blended drinks. It holds
product flavoring in a refrigerated reach-in base enclosure,
has a refrigerated ice making machine and includes one or
two mixing modules.
The operator controls and accesses the unit using a lighted
touch screen. Icons on the drink selection screens
represent the primary flavor combinations for the drinks.
There are multiple drink size options. Menu changes and
additions are uploaded using a USB mass storage device
and the Menu Connect Software platform.
On-screen instructions also include operator procedures
for cleaning/sanitizing, checking inventory, replacing
product bags, selecting drink sizes and manually preparing
drinks. Managers and technicians have access to menu/
software updates, diagnostics and other service screens.
Unit Inspection
Thoroughly inspect the unit upon delivery. Immediately
report any damage that occurred during transportation to
the delivery carrier. Request a written inspection report
from a claims inspector to document any necessary claim.
See “Pre-installation Checklist” on page 13.
nWarning
Do not damage the refrigeration circuit when installing,
maintaining or servicing the unit.
nWarning
Do not operate equipment that has been misused,
abused, neglected, damaged, or altered/modified from
that of original manufactured specifications.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible
for their safety.
Model Numbers
This manual covers the following models:
Blend-In-Cup Beverage Systems
MB-8-1, MB-8-2, MB-8-1A, MB-8-2A, MB-8-1BF, MB-8-1D,
MB-8-2D, MB-8-1E, MB-8-2E, MB-8-1P, MB-8-2P,
MB-8-1PP, MB-8-1U, MB-8-2U

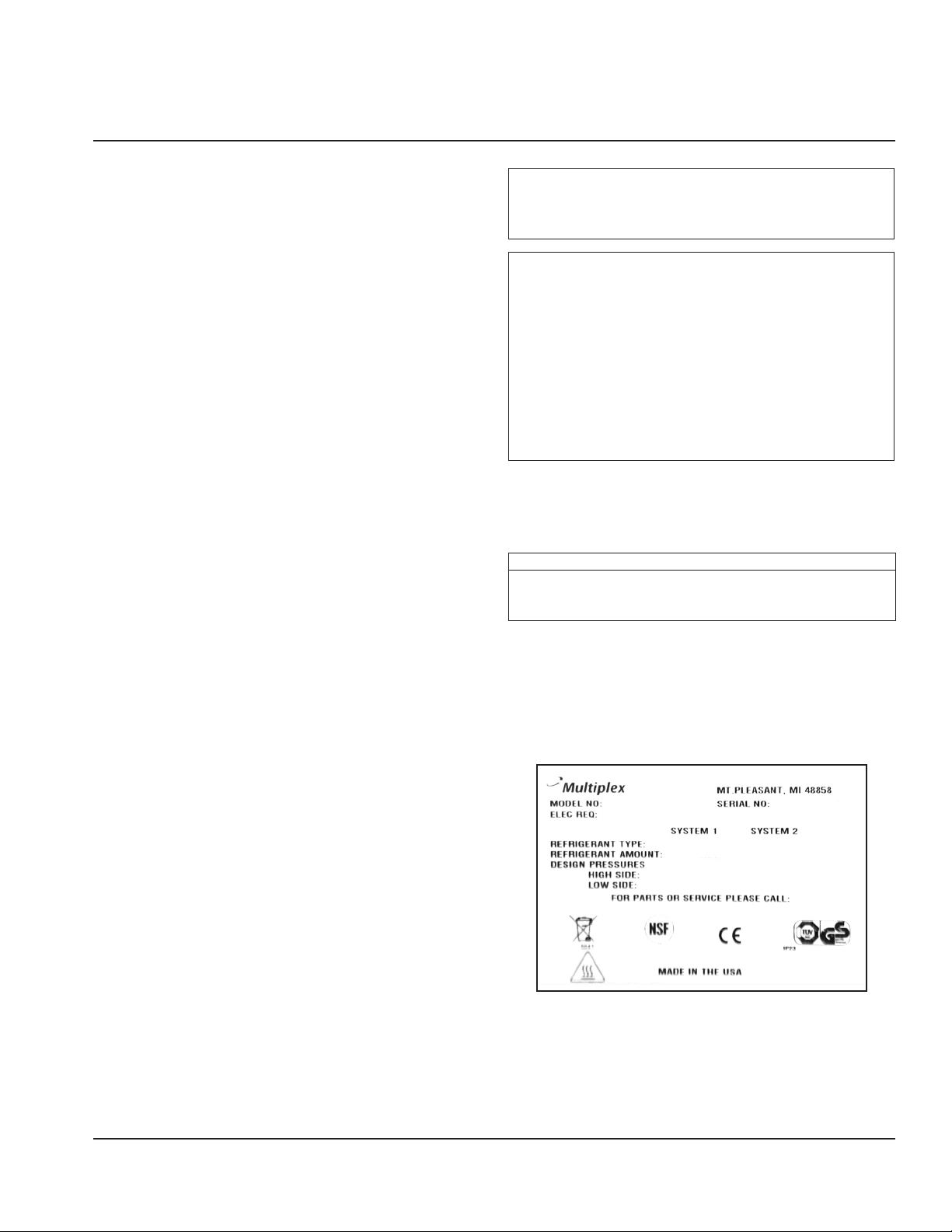

Serial Number Location
The Blend-In-Cup beverage system serial number is listed
on the serial number decal affixed to the middle of the
lower back panel. Another serial number decal is located on
the right side of the machine.
Sample Serial Tag
Section 1
General Information

6 Part Number 9291386 6/14
General Information Section 1
Warranty Information
Consult your local Service Agent or Representative for terms
and conditions of your warranty. Your warranty specifically
excludes all general adjustments, cleaning, accessories and
related servicing.
Your warranty card must be returned to activate the
warranty on this equipment. If a warranty card is not
returned, the warranty period can begin when the
equipment leaves the Multiplex Beverage factory.
No equipment may be returned to Multiplex Beverage
without a written Return Materials Authorization (RMA).
Equipment returned without an RMA will be refused at
Multiplex Beverage's dock and returned to the sender at
the sender’s expense.
Please contact your local distributor for return procedures.
Full explanation of the Limited Warranty for Multiplex
Blended Ice Machines can be found in the warranty
statement at the back of this manual.

Part Number 9291386 6/14 7
Section 1 General Information

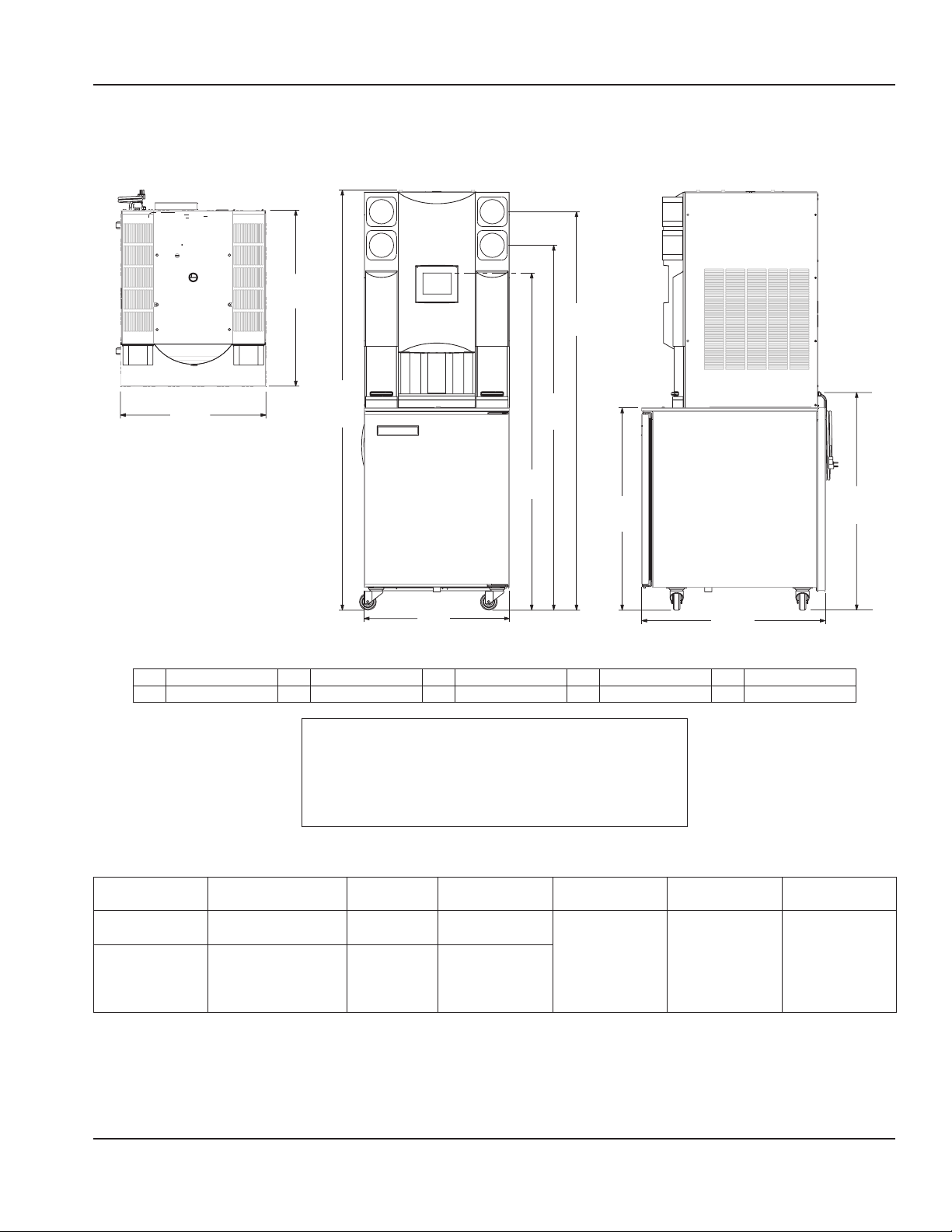

Specifications
DIMENSIONS
A 26.00" (66 cm) C 71.19" (181 cm) E 60.25" (153 cm) G 32.82" (83 cm) I 36.15" (92 cm)
B 32.82" (83 cm) D 65.19" (166 cm) F 26.00" (66 cm) H 75.07" (191 cm) J 39.09" (99 cm)
nWarning
To avoid instability the installation area must be capable
of supporting the weight of the equipment and a full
bin of ice. Additionally the equipment must be level side
to side and front to back.
CAPACITY & WEIGHT
Ice Capacity HP Max Product
BinLoad
Shipping
Weight
Empty Weight Full Weight
Lower Cabinet – 1/5 19.8 lbs
(9 kg)
606 lbs
(275 kg)
Crated
492 lbs
(223kg)
Unpacked
No Ice/
Product
656 lbs
(298kg)
WithIce/
Product
Ice Maker 310 lbs
(141 kg)/24 hr.
Bin Storage
30 lbs (14 kg)
1/2 –
G
I
F
H
E
D
C
A
B
J
Plan View
Elevation View Side View

8 Part Number 9291386 6/14
General Information Section 1
PRODUCT DELIVERY LOCATION
The location selected for the Blend-In-Cup Beverage System
must meet the following criteria.
• The air temperature must be at least 40°F (4°C), but
must not exceed 90°F (32°C), climate class 4.
• The location must not be near heat-generating
equipment or in direct sunlight and must be protected
from weather.
• Plain or Chilled Inlet Water Temperature:
min/max = 40°F / 90°F (4°C / 32°C).
• Always use the water supply line supplied when
installing this appliance. Never reuse an old supply line.
• Verify floor of install location is within 1/2" (1.3 cm) of
level front to back, side to side.
• Keep equipment area clear of combustible material.
nWarning
Carbon Dioxide (CO2) displaces oxygen. Exposure to a
high concentration of CO2gas causes tremors, which
are followed rapidly by loss of consciousness and
suffocation. If a CO2gas leak is suspected, particularly
in a small area, immediately ventilate the area before
repairing the leak. CO2lines and pumps must not be
installed in an enclosed space. An enclosed space can
be a cooler or small room or closet. This may include
convenience stores with glass door self serve coolers. If
you suspect CO2may build up in an area, venting of the
B-I-B pumps and / or CO2monitors must be utilized.
Clearances
Top 18" (46 cm)
Sides 6" (15 cm)
Back 6" (15 cm)
Front 30" (76 cm)
nWarning
Do not obstruct machine vents or openings.
Heat of Rejection
Model Heat of Rejection
BTU/h
All Single & Dual Spindle Base
(Cabinet 1)
2100
Ice Maker (Cabinet 2) 5150
REFRIGERANT CHARGE
Important
Due to continuous improvements, this information is
for reference only. Please refer to the serial number tag
to verify electrical data. Serial tag information overrides
information listed on this page.
R-290 Models R-404A Models
Lower Cabinet
(Cabinet 1)
4.75 oz.
(134.7 g)
12 oz.
(339 g)
Ice Maker
(Cabinet 2)
3.17 oz.
(90 g)
16 oz.
(454 g)
R290 ICE MAKER
Acceptable incoming water temperature range is 40°F (4°C)
to 90°F (32°C). Optimum Range is 45°F (7°C) to 50°F (10°C)
(Target 50°F [10°C], results based on ARI capacity testing @
70°F [21°C] air temperature).
Ice Production
Air Temperature/
Water Temperature
24 Hour Ice
Production
kWh/100 lbs
(45 kg)
70°/50°F
(21°/10°C)
410 lbs
(186 kg)
4.21
90°/70°F
(32°/21°C)
343 lbs
(156 kg)
5.24
110°/100°F
(43°/38°C)
270 lbs
(122 kg)
6.93
NOTE: If chilled water is being used, depending on the
incoming Water Temp, the use of a chiller can drive an
increase in ice capacity between 50 lbs (23 kg) and 125 lbs
(57 kg) per day.

Part Number 9291386 6/14 9
Section 1 General Information
R404A ICE MAKER
Acceptable incoming water temperature range is 40°F (4°C)
to 90°F (32°C). Optimum Range is 45°F (7°C) to 50°F (10°C)
(Target 50°F [10°C], results based on ARI capacity testing @
70°F [21°C] air temperature).
Ice Production
Air Temperature/
Water Temperature
24 Hour Ice
Production
kWh/100 lbs
(45 kg)
70°/50°F
(21°/10°C)
430 lbs
(195 kg)
4.927
90°/70°F
(32°/21°C)
325 lbs
(147 kg)
6.912
100°/90°F
(38°/32°C)
270 lbs
(122 kg)
8.568
NOTE: If chilled water is being used, depending on the
incoming Water Temp, the use of a chiller can drive an
increase in ice capacity between 50 lbs (23 kg) and 125 lbs
(57 kg) per day.

10 Part Number 9291386 6/14
General Information Section 1
ELECTRICAL
nWarning
All wiring must conform to local, state and national codes.
Minimum Circuit Ampacity
The minimum circuit ampacity is used to help select the
wire size of the electrical supply. (Minimum circuit ampacity
is not the Blend-In-Cup Beverage System’s running amp
load.) The wire size (or gauge) is also dependent upon
location, materials used, length of run, etc., so it must be
determined by a qualified electrician.
Voltage
A dedicated electrical circuit is required, a power cord
is provided with all units. Some models are available in
different voltages and may be equipped with a different
plug. Refer to Blend-In-Cup Beverage System Model/Serial
Plate for voltage/amperage specifications.
Minimum Circuit Amperage Chart
Important
Due to continuous improvements, this information is
for reference only. Please refer to the serial number tag
to verify electrical data. Serial tag information overrides
information listed on this page.
Model Voltage/Cycle/
Phase
Total Amps Breaker Size
(Max)
MB-8-1 120/60/1 16.0
20A
MB-8-2
MB-8-1A
220/50/1 8.7
MB-8-2A
MB-8-1D
MB-8-2D
MB-8-1E
MB-8-2E
MB-8-1P
MB-8-2P
MB-8-1U
MB-8-2U
MB-8-1BF 230/60/1 6.4
MB-8-1PP 230-240/50/1 6.4
Grounding Instructions
nWarning
The machine must be grounded in accordance with
national and local electrical codes.
This appliance must be grounded. In the event of
malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the
risk of electric shock. This appliance is equipped with a
cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
nWarning
When using electric appliances, basic precautions must
always be followed, including the following:
A. Read all the instructions before using the
appliance.
B. To reduce the risk of injury, close supervision
is necessary when an appliance is used near
children.
C. Do not contact moving parts.
D. Only use attachments recommended or sold by
the manufacturer.
E. Do not use outdoors.
F. For a cord-connected appliance, the following
must be included:
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• Unplug from outlet when not in use and
before servicing or cleaning.
• Do not operate any appliance with a
damaged cord or plug, or after the appliance
malfunctions or is dropped or damaged in
any manner. Contact the nearest authorized
service facility for examination, repair, or
electrical or mechanical adjustment.
G. Follow applicable lock out tag out procedures
before working on equipment.
H. Connect to a properly grounded outlet only. See
Grounding Instructions.

Part Number 9291386 6/14 11
Section 1 General Information

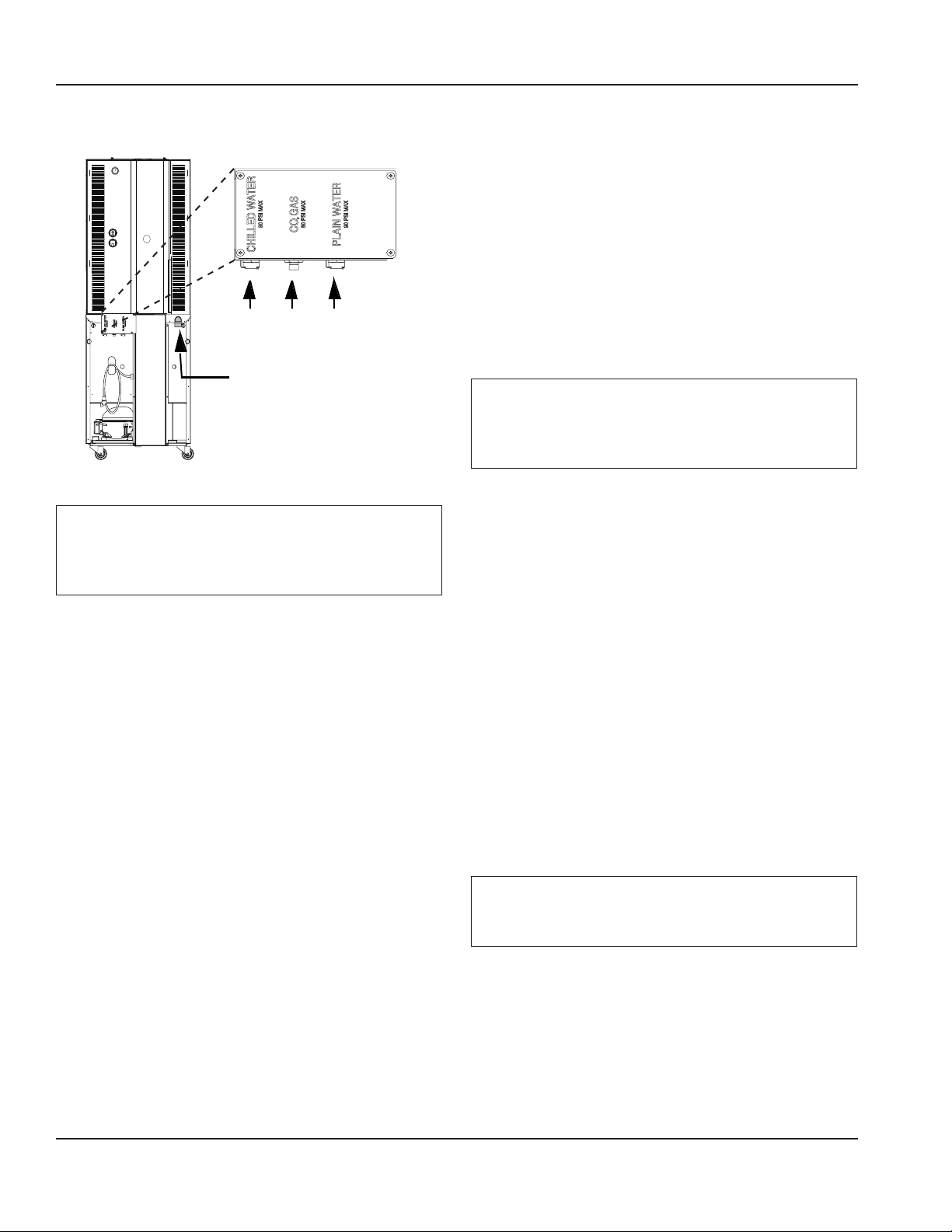

AIR / CO2, PLAIN & CHILLED WATER INLETS
Connections Drain
nWarning
Connect to a potable water supply only.
• Use supplied 3/8" (.95 cm) panel-mounted hose barb
and 6' (1.8 m) of beverage tubing to connect labeled
coupling body fitting(s) on back of unit for each supply
connection.
• Do not connect either water connection to a hot water
supply. Be sure all hot water restrictors installed for
other equipment are working. (Check valves on sink
faucets, dishwashers, etc.)
• Install a water shut-off valve in the water line at the rear
of the machine.
• Insulate water inlet lines to prevent condensation.
Hard Water
In areas where the water is highly concentrated with
minerals the water should be tested by a water treatment
specialist, and the recommendations of the specialist
regarding filtration and/or treatment should be followed.
SYSTEM PRESSURES
Plain & Chilled Water
Important
Requires the pressure measurement to be taken only
when rinse water is spraying (flowing conditions) in a
blender chamber.
• Plain Water Supply Pressure must be capable of
continuously suppling a minimum of 35 psi (241 kPa,
2.41 bar) during flowing conditions.
• If a separate chilled water source is used, the chilled
supply pressure needs to be a minimum of 35 psi
(241kPa, 2.41 bar) at no flow conditions.
Important
Water pressure affects the blender area cleaning, a
water booster may be required if pressure is too low.
Air / CO2
Important
Requires the pressure measurement to be taken only
when a product pump is being activated (product
pump during flow conditions).
• Supply must be capable of 35 psi (241 kPa, 2.41 bar)
minimum during flowing conditions, measured at
the unit Air/CO2regulator. See “How to Check Air/CO2
Pressure”on page 76.
• Supply to the unit not to exceed 50 / 80 psi (345 /
552 kPa, 3.45 / 5.52 bar) maximum during no flow
conditions.
DRAIN CONNECTIONS
• Connect supplied 1" ID hose to hose-barb connection
on machine.
• Drain lines must have a 1.5 inch drop per 5 feet of run
(2.5 cm per meter), and must not create traps.
• The floor drain must be large enough to accommodate
drainage from all drains.
• An air gap is included in the design of the machine for
backflow prevention. Plumb to local code.

12 Part Number 9291386 6/14
General Information Section 1
THIS PAGE INTENTIONALLY LEFT BLANK

Part Number 9291386 6/14 13
Step-by-Step Installation
These instructions are provided to assist the qualified
installer. Contact your Manitowoc Foodservice Service
Agent or call Manitowoc Foodservice for information
regarding start-up services.
Important
Failure to follow these installation guidelines may affect
warranty coverage.
PREINSTALLATION CHECKLIST
Keep product bags in a cooler at least 24 hours
prior to installation.
Any damage should be noted and reported to the
delivering carrier immediately.
Check the lower portion of the unit to be sure
casters are not bent.
Visually inspect the refrigeration package,
compressor compartment housing. Be sure lines
are secure and base is still intact.
Inspect installation location behind the BIC for
electrical outlet location, CO2, water hose fittings,
and shutoff.
Check voltage at outlet dedicated for BIC.
Verify floor of install location is within 1/2” (1.3 cm)
of level front to back, side to side and all casters are
touching the floor.
nWarning
The mass of this appliance will allow it to move
uncontrolled on an inclined surface. Adequate means
must be provided to prevent uncontrolled movement
at all times.
Remove the side panels from the unit to make the
board connections, Air/CO2and Water Regulator
gauges accessible.
Check that board connections are secure and did
not vibrate loose during shipment.
Remove steel top panel. Check that the black chute
cover is sitting securely on the chute. The ice maker
will not operate properly if it is out of place.
Check that both micro switches are in line with the
motor above the blenders.
Section 2
Installation

14 Part Number 9291386 6/14
Installation Section 2
CONNECTIONS
Important
Leave enough slack in the water/CO2/drain lines to allow
access to the rear of the machine without disconnecting
the lines.
Water
1. Connect the Plain and Chilled (if used) water lines quick
disconnect fittings and verify the water regulators
are set to 35 psi (241 kPa, 2.41 bar). The Plain Water
regulator is located on the left side of the unit and the
Chilled Water regulator is located at the rear top. Final
during-flow settings will be made once the unit is in
operation. See “Start-Up & Cleaning”on page 15.
Air/CO2
2. Connect Air/CO2line quick disconnect fitting. Verify the
Air/CO2regulator on the left side of the unit is set to
35psi (241 kPa, 2.41 bar). Final during-flow settings will
be made once the unit is in operation.
Important
Regulators are factory set but will need to be checked
and possibly adjusted under flowing conditions once
the unit is operational.
3. Confirm correct orientation of Water and Air/CO2
fittings.
4. Coil excess tubing and secure with tie straps.
Drain
5. Route drain line (minimum 1” ID) to drain, maintaining
a 2” (51 mm) air gap. Cut to proper length if needed (do
not leave loops in drain). See“Drain Connections”on
page 11.
Electrical
6. If all electrical and grounding requirements have
been followed (See “Electrical” on page 10 & See
“Grounding Instructions” on page 10) proceed to
insert electrical plug from BIC into wall receptacle.
7. Turn power and compressor switches, on the left-hand
side of the unit and the rear, to the ON position.
8. The touch screen should energize and inform the user
to perform Zone 2 & 3 cleaning before the unit can be
put into operation.
Important
Do not add product to the machine until cleaning and
sanitizing are complete.

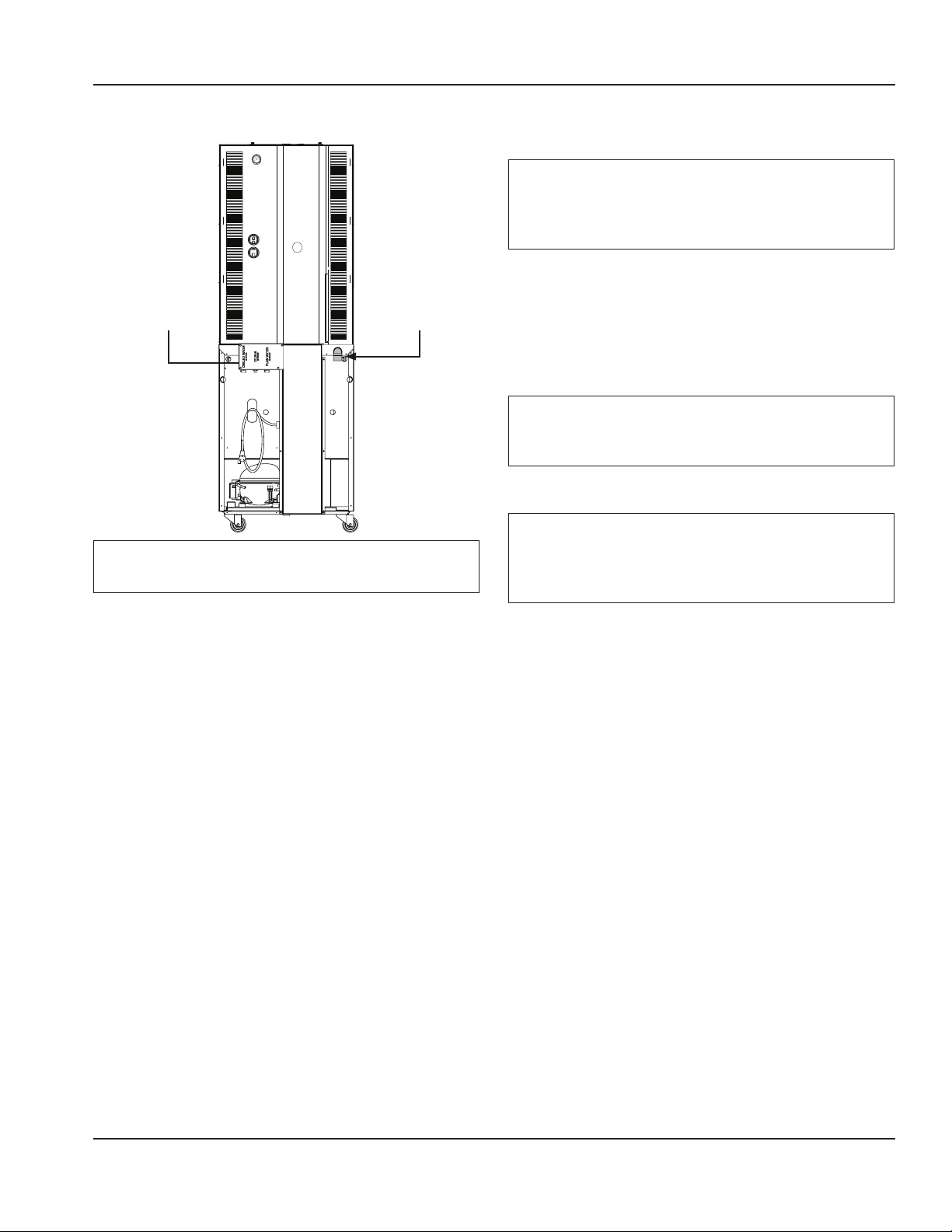

* Chilled
Water
IN
Air/
CO2
IN
Plain
Water
IN
Drain
OUT
* Chilled Water Inlet only
available on units with
this feature
Rear of the Unit

Part Number 9291386 6/14 15
Section 2 Installation
INSTALLATION CHECKLIST
Review before proceeding to Start-Up & Cleaning.
Has all of the internal packing been removed?
Have all of the electrical, water and CO2
connections been made?
Is there proper clearance around the machine for
air circulation?
Is the machine grounded / polarity correct?
Has the machine been installed where the
incoming water temperature will remain in the
range of 40°F / 90°F (4°C / 32°C)?
Have the regulators been set to 35 psi (241 kPa,
2.41 bar)?
Have the blender door(s) sensor position(s) been
checked?
Have the Compressor and Power switches been
turned to the ON position?
STARTUP & CLEANING
1. Clean and sanitize the Blend-In-Cup machine by
following the on-screen instructions.
Cleaning Touch Screen
See “Weekly Cleaning - Zone 2” on page 40, “Monthly
Cleaning - Zone 3”on page 51. By doing so, the
following will have been completed:
A. All beverage lines, ice maker, dispense area, and
blender chambers, cleaned and sanitized.
B. Water run through the drain to verify it is draining
properly.
C. Product bags retrieved from walk-in cooler,
installed into the product bins and placed
into their proper location in the cabinet. See
“Procedure to Install a Product Bag”on page 30
& “Assigning Flavors”on page 26.
D. All product lines primed and ready for use.
NOTE: During the cleaning process is an ideal time to verify
pressure regulator settings during flowing conditions.
E. Verify the Plain Water regulator is set correctly
during blend chamber cleaning, the regulator
should maintain 35 psi (241 kPa, 2.41 bar) under
flowing conditions.
F. Verify the Air/CO2regulator is set correctly during
product line cleaning, the regulator should
maintain 35 psi (241 kPa, 2.41 bar) under flowing
conditions.
NOTE: The Chilled Water Regulator needs to be a minimum
of 35 psi (241 kPa, 2.41 bar) at no flow conditions.

16 Part Number 9291386 6/14
Installation Section 2
Label
2. Add labels to product bins, put labels in correct place.
3. Add labels anywhere else on the unit required.
Software
4. Load recipes. See “Loading Recipes”on page 32.
5. Verify correct drinks and flavors are available.
Drink Selection Screen
(Drink choices will vary depending on loaded recipe file)
Calibrate
Important
Allow cabinet to reach operating temperature 36°F –
38°F (2°C – 3°C) before calibrating. Calibration will be
inaccurate if performed above operating temperatures.
6. Product calibration can be performed once operating
temperature has been reached. See“Calibration
Procedure”on page 27 for step-by-step calibration
instructions. Once completed, the Blend-In-Cup
machine is ready for use.
7. Reinstall top and side panels.
8. Push BIC into place.
9. Verify the unit is level and shim if necessary.
DEMONSTRATE
10. Demonstrate using the Interface. See “Touch Screens”
on page 19.
11. Demonstrate how to make drink. See “Procedure to
Make a Drink” on page 22.
12. Demonstrate Manager Menu options, using the
default password. (The password can be changed.) See
“Manager’s Menu Screen” on page 25.
13. Set date and time to activate warranty.
14. Complete start-up form, sign, and have store manager
sign form. (Fax to number on form.)
POST INSTALLATION CHECKLIST
Has the machine been properly sanitized?
Has each flavor been installed and primed?
Have the Air/CO2and Plain water regulators been
correctly set during flowing conditions?
Is the machine cycling ON/OFF on the temperature
control?
Has the owner/operator been instructed regarding
maintenance procedures?
Has the owner/operator completed the warranty
registration card?

Part Number 9291386 6/14 17

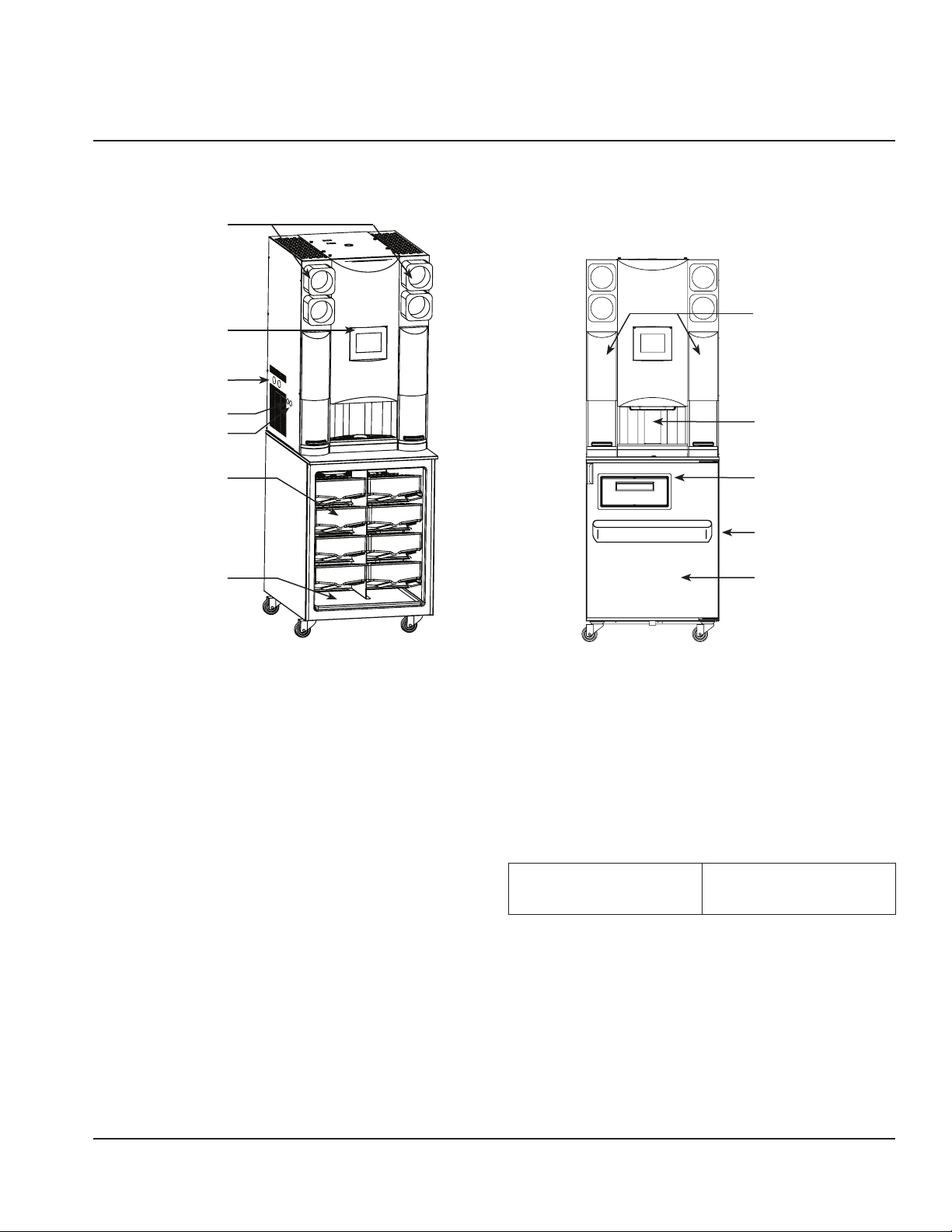

Component Identification
Blending
Station Doors
Cup Dispensers
Sequence of Operation
NORMAL OPERATION
Drink Selection screen appears after power-up of the unit.
Operator presses one of the drink type buttons on the Drink
Selection screen, and the Flavor Options screen appears.
Once a flavor is selected, the Size screen appears. See
“Procedure to Make a Drink” on page 22.
Next the drink preparation sequence commences. If add-ins
are required for the drink, the user will be prompted. Here,
according to the drink size selected and when initiated
through the touch screen, the machine dispenses product
and ice into the cup in the dispense area. The cup is then
placed into an available blend chamber.
With the blend chamber door closed and after“Start Mixer”
is selected on the touch screen, the machine blends the
drink for the correct time at the proper blender speed. If
add-ins are required for the drink after blending, the user
will be prompted.
After the drink is removed and the operator closes the
blend chamber door, the automatic rinse of the blender
initiates. The Drink Selection screen re-appears.
Default Temperature
ControlSetting
36°F/2°C set point
2°F/1°C differential
controlled by software
Section 3
Operation
Touch Screen
Plain Water & CO2
Regulator Gauges
USB Port
Power Switch
Product Bins
Pull Out Tray
Product
Dispense Area
Whip Cream Door
(Optional)
Syrup Rail & Dividers
(Optional)
Cabinet Door
(Can be configured for
Right- or Left-Hand)

18 Part Number 9291386 6/14
Operation Section 3
ICE MAKING

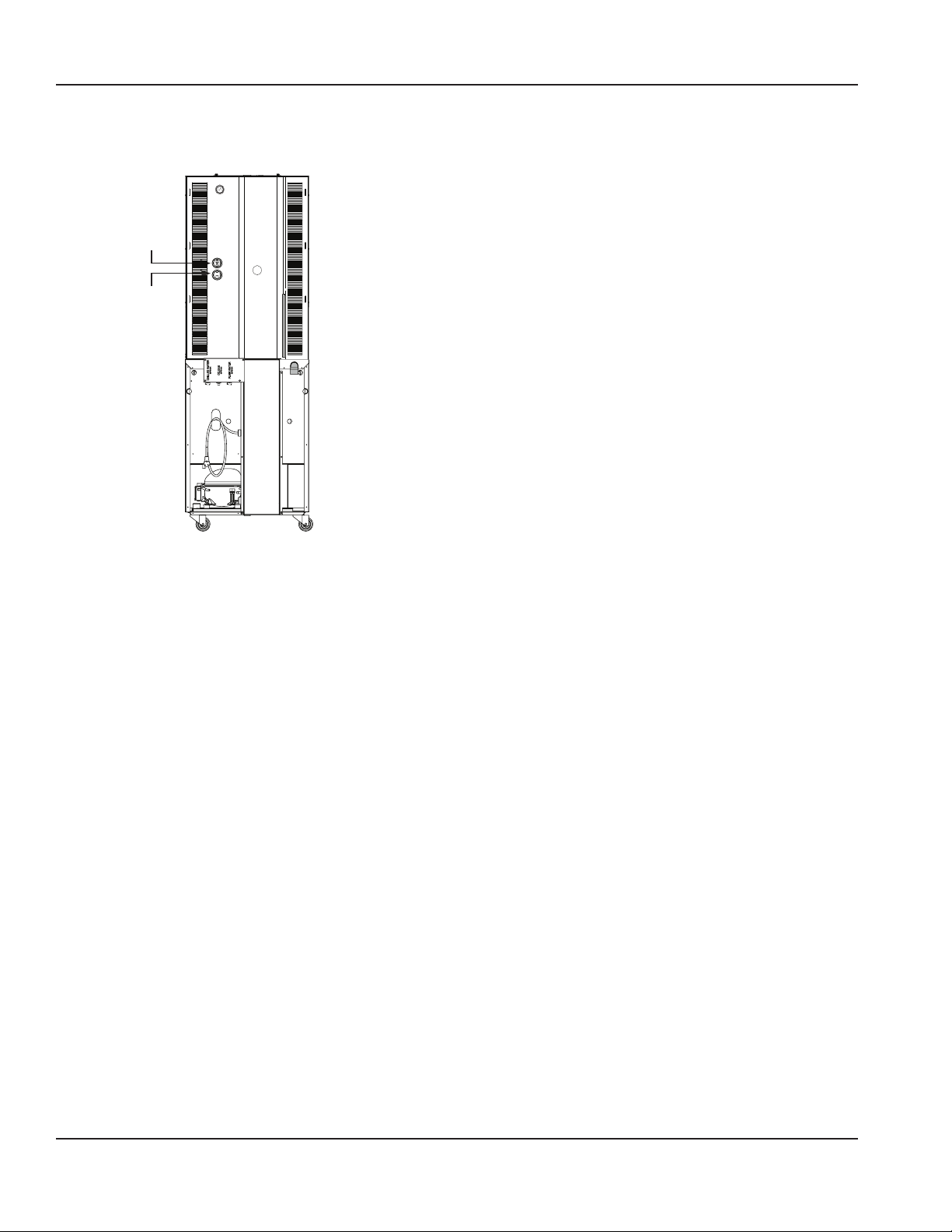

Ice Machine Switches - Rear of the Unit
Power
Switch
Compressor
Switch
The ice machine will not start until:
1. The compressor rocker switch is moved to “ON”.
2. Ice does not contact the bin level sensor.
3. The water reservoir is full of water.
With power supplied and the compressor rocker switch in
the ON position, the gear motor and refrigeration system
start. The float valve controls the water inlet valve and water
level. The freeze cycle ends when the ice contacts the ice
bin level sensor.
NOTE: Ice machines use an auger to remove ice from the
evaporator. Occasional noises (creaks, groans, squeaks, or
pops) are a normal part of the ice making process.

Part Number 9291386 6/14 19
Section 3 Operation
Touch Screens
The “easy ToUCH” screen has four selections. One is for the drink making procedure: Drink Selection displays by default at
start-up. The Manager’s Menu is for accessing the machine’s settings. Inventory is for product information and Cleaning is for
routine maintenance of the machine.

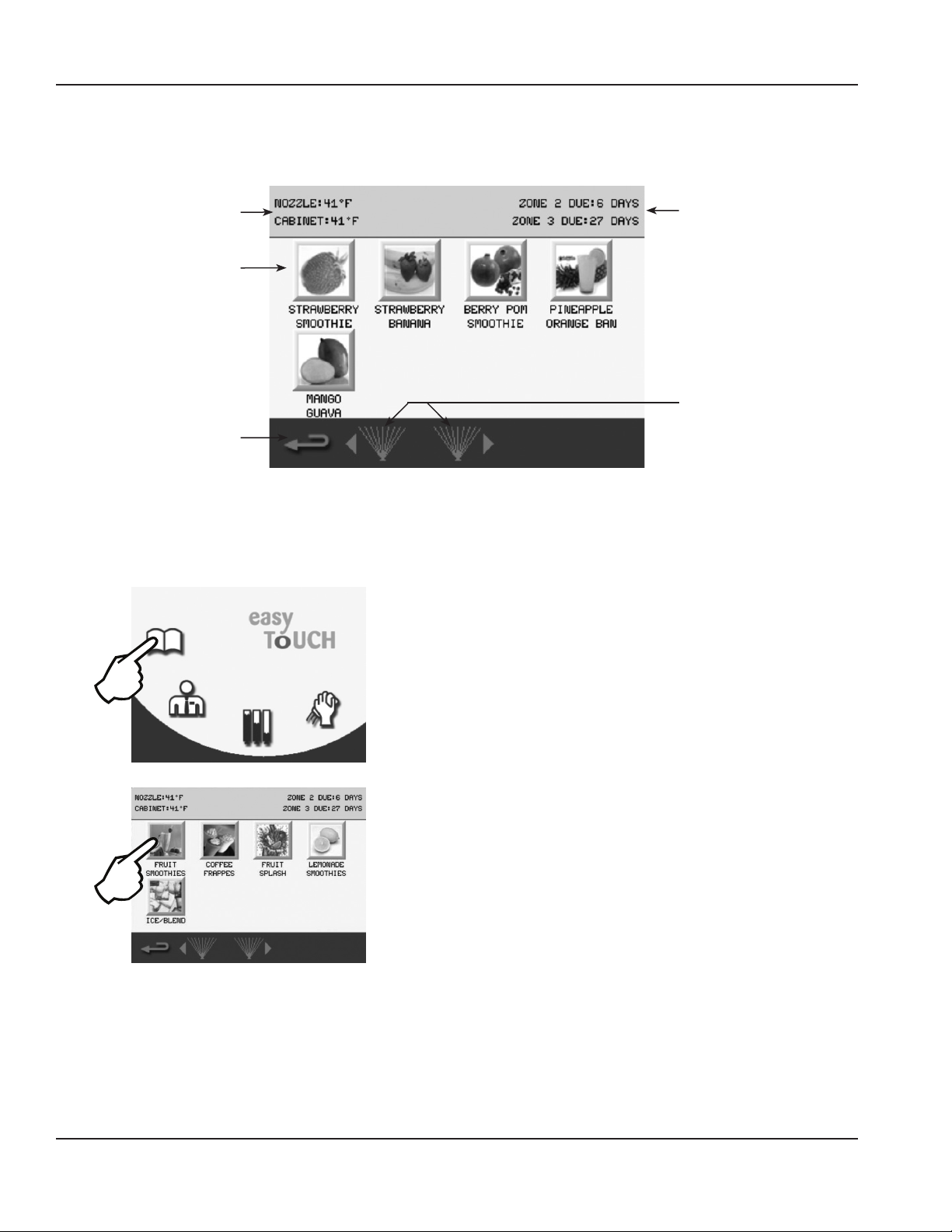

DRINK SELECTION SCREEN
The Drink Selection screen appears on power-up (except where clean/sanitize limitations have been exceeded, in which
case the Cleaning screen appears). See “Maintenance” on page 33 for Daily, Weekly and Monthly cleaning/sanitization. The
Drink Selection screen’s primary function is to select a drink to make or to access the Main Menu.
Cleaning
Reminders
Rinse Button(s)
Nozzle & Cabinet
Temperatures
Drink Categories
Go to Main
MenuScreen
How to Access
The Drink Selection screen displays by default unless
cleaning is required. This screen can also be accessed
through the main menu Book Icon.
Icon Button Descriptions
• NOZZLE & CABINET Temperatures
Displays the current temperature for dispense point
nozzle and the refrigeration cabinet. Unit of measure
can be changed in the Manager’s Menu.
• Drink Categories
The main product categories are displayed left to right
on the Drink Selection screen. Touching a category
will display the drink flavor options available for the
category.
NOTE: Available drink selections may vary depending on
the recipe file installed.
• Main Menu Arrow
Navigates to the Main Menu screen.
(See “Main Menu Screen” on page 24)
• Cleaning Reminders
Displays the time remaining in days until ZONE 2
(Weekly) and ZONE 3* (Monthly) cleaning is required.
* If equipped with this feature.
• Rinse Button
Press to rinse the left or right blender chambers. Blend
chamber door(s) must be closed.

20 Part Number 9291386 6/14
Operation Section 3
FLAVOR SELECTION SCREEN
The Flavor Selection screen appears after a Drink Selection has been made. Flavor options will vary depending on what
recipes are configured on the unit. This screen’s primary function is to select a drink flavor.
Cleaning
Reminders
Rinse Button(s)
Nozzle & Cabinet
Temperatures
Drink Flavor
Buttons
Go Back One
Screen
How to Access
The Flavor Selection screen displays after a drink selection
has been made from the Drink Selection screen.
Icon Button Descriptions
• NOZZLE & CABINET Temperatures
Displays the current temperature for dispense point
nozzle and the refrigeration cabinet. Unit of measure
can be changed in the Manager’s Menu.
• Drink Flavor Buttons
Flavor choices for the drink type that was selected.
• Yellow Border
If any of the drink’s ingredients will expire soon, the
yogurt has expired, or there is less than 10% left in
the product bag. Check the Product Inventory Screen
for exact amount of product remaining.
(See “Product Inventory Screen” on page 29)
• Red Border
Product expired, flavor selection unavailable. Will
need to replace product bag. (See “Procedure to
Install a Product Bag” on page 30)
NOTE: Available flavor selections may vary depending
on the recipe file installed.
• Back Arrow
Navigates to previous Drink Selection screen.
(See “Drink Selection Screen”on page 19)
• Cleaning Reminders
Displays the time remaining in days until ZONE 2
(Weekly) and ZONE 3* (Monthly) cleaning is required.
* If equipped with this feature.
• Rinse Button
Press to rinse the left or right blender chambers. Blend
chamber door(s) must be closed.
