MULTIQUIP MB25A Guide

OPERATION AND PARTS MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
MODEL MB25A
REBAR BENDER
(PORTABLE ELECTRIC)
Revision #3 (11/18/08)
Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on once of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, , Stow, Wacker, Sakai, Mi-T- M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, Barreto, EZ Trench, Bil-
Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD,
Koshin, Rice, CH&E, General Equipment, ,AMida, Coleman, NAC, Gradall, Square Shooter,
Kent, Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK,
Rol-Air, Small Line, Wanco, Yanmar

PAGE 2 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
TABLE OF CONTENTS
MB25A REBAR BENDER
Table of Contents .................................................... 2
Parts Ordering Procedures ..................................... 3
Safety ...................................................................... 4
Rules and Regulations ......................................... 5-6
Specifications .......................................................... 7
General Information ................................................ 8
Components ............................................................ 9
Operation ......................................................... 10-11
Maintenance..................................................... 12-13
Explanation of Codes in Remarks Column ........... 14
Suggested Spare Parts ......................................... 15
COMPONENT DRACOMPONENT DRA
COMPONENT DRACOMPONENT DRA
COMPONENT DRAWINGSWINGS
WINGSWINGS
WINGS
Nameplate and Decals ..................................... 16-17
Bender Assembly ............................................. 18-23
Housing Assembly ........................................... 24-27
Tool Box and Tools Assembly ........................... 28-29
Wiring Diagram ..................................................... 30
Terms and Conditions Of Sale — Parts ................ 31
Specification and part number are
subject to change without notice.
Go to Discount-Equipment.com to order your parts

PAGE 4 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
FOR YOUR SAFETY AND SAFETY OF OTHERS!
Safety precautions should be followed at all
times when operating this equipment. Fail-
ure to read and understand the Safety Mes-
sages and Operating Instructions could result
in injury to yourself and others.
This manual has been developed to
provide complete instructions for the
safe and efficient operation of this
equipment.
Before using this equipment ensure that the operating in-
dividual has read and understood all instructions in this
manual.
SAFETY MESSAGE ALERT SYMBOLS
The three Safety Messages shown below will inform you
about potential hazards that could injure you or others.
The Safety Messages specifically address the level of ex-
posure to the operator, and are preceded by one of three
words: DANGER, WARNING, or CAUTION.
DANGER
You WILL be KILLED or SERIOUSLY
INJURED
if you DO NOT follow these
directions.
WARNING
You CAN be KILLED or SERIOUSLY INJURED
if you DO NOT follow these directions.
CAUTION
You CAN be INJURED if you DO NOT follow
these directions.
HAZARD SYMBOLS
Potential hazards associated with the operation of this
equipment will be referenced with Hazard Symbols which
appear throughout this manual, and will be referenced in
conjunction with Safety Message Alert Symbols.
WARNING — Respiratory Hazards
ALWAYS wear approved respiratory
protection when required.
CAUTION — Equipment Damage Hazards
Other important messages are provided throughout this
manual to help prevent damage to your equipment,
other property, or the surrounding environment.
CAUTION — Accidental Starting Hazards
ALWAYS place the equipment ON/OFF
switch in the OFF position when the
equipment is not in use.
CAUTION — Eye and Hearing Hazards
ALWAYS wear approved eye and hearing
protection.
CAUTION — Rotating Parts Hazards
NEVER operate equipment with covers or
guards removed. Keep fingers, hands, hair
and clothing away from all moving parts to
prevent injury.
SAFETY
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 5
 DO NOT wear loose clothing or jewelry. Contain long
hair. Keep hair, clothing, and gloves away from moving
parts. Rotating parts can cause injury if contacted.
 ALWAYS keep work area clean and free of foreign matter
and debris. Also keep work area well lit.
 NEVER operate the equipment in an
explosive atmosphere or near combustible
materials. An explosion or fire could result
causing severe
bodily harm or even
death.
 DO NOT overreach. Keep proper footing and balance at
all times.
 NEVER leave the equipment unattended. When not is
use, before servicing, and when changing accessories,
always unplug the equipment from the power source.
 USE this equipment for its intended purpose only.
 KEEP equipment clean for better and safer performance.
Keep handles dry, clean, and free from oil and grease.
 INSPECT the equipment after each use. Replace any
damaged or worn parts immediately. Do not use
equipment if defective.
 If a malfunction occurs, immediately unplug the
equipment from the power source and correct the
problem. If problem cannot be corrected, contact the
nearest MQ service center.
 ALWAYS store the equipment in a clean, dry location
out of the reach of children.
RULES AND REGULATIONS
GENERAL SAFETY
 DO NOT operate or service this equipment
before reading this entire manual.
 This equipment should not be operated by
persons under 18 years of age.
 NEVER operate this equipment without proper protective
clothing, shatterproof glasses, steel-toed boots and other
protective devices required by the job.
 NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
 NEVER operate this equipment under the
influence of drugs or alcohol.
 NEVER use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
 Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
 Whenever necessary, replace nameplate, operation and
safety decals when they become difficult to read.
 ALWAYS check the equipment for loosened threads or
bolts before starting.
 MAINTAIN equipment is a safe operating condition at
all times.
 KEEP bystanders, children, and visitors away while
operating the equipment. Distractions can cause loss of
control.
WARNING — Read This Manual
Failure to follow instructions in this manual may lead to
serious injury or even
DEATH ! This equipment is to be
operated by trained and qualified personnel only! This
equipment is for industrial use only.
EMERGENCIES
 ALWAYS know the location of the nearest
fire extinguisher .
 ALWAYS know the location of the nearest
first aid kit .
 In emergencies, always know the location
of the nearest phone or keep a phone on the job site .
Also know the phone numbers of the nearest
ambulance , doctor and fire department . This
information will be invaluable in case of emergency.
Go to Discount-Equipment.com to order your parts

PAGE 6 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
RULES AND REGULATIONS

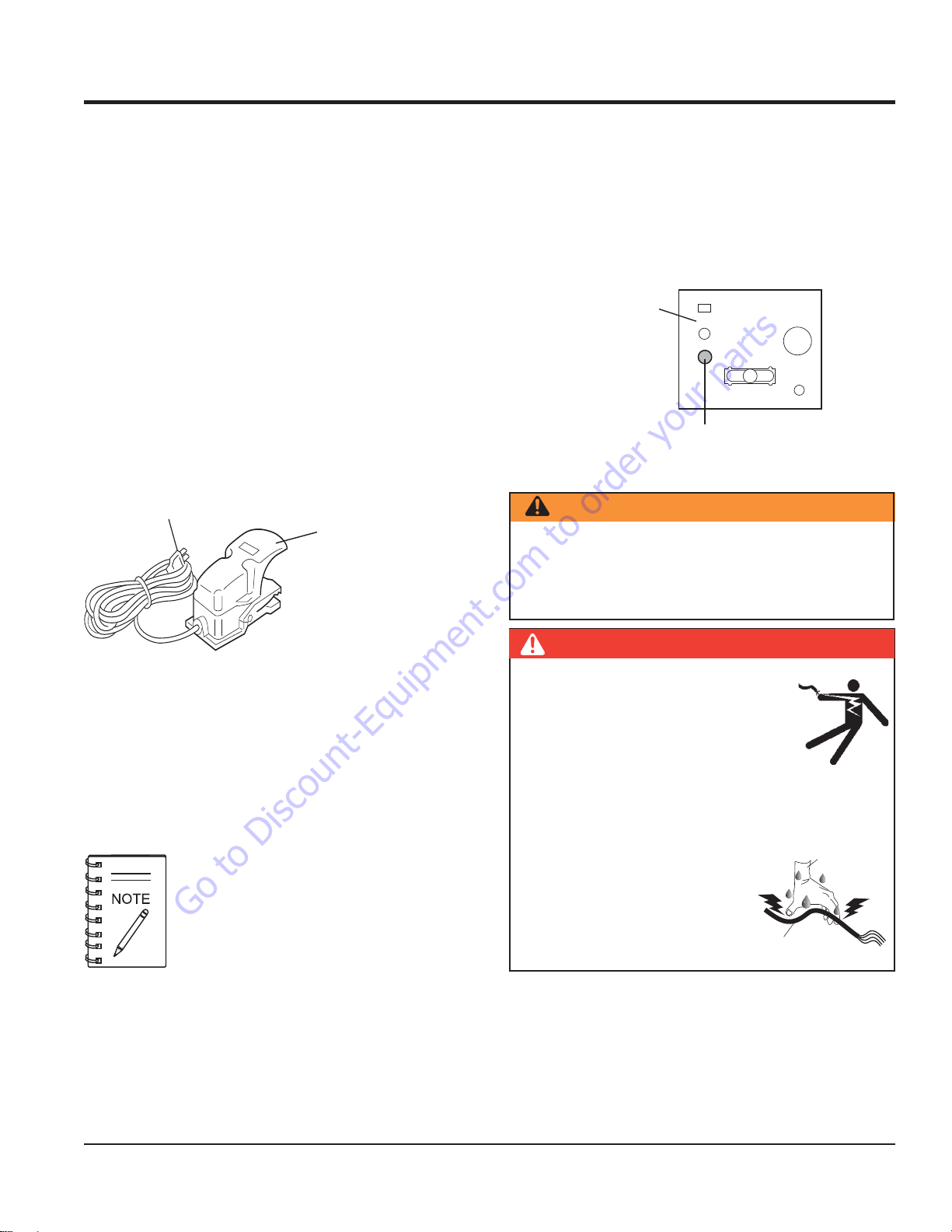

ELECTRICAL SAFETY
■ ALWAYS test the POWER switch on the equipment before
operating. The purpose of this switch is to shut down the
power.
■ NEVER use a extension cord that is frayed or damaged
where the insulation has been cut.
■ NEVER carry the equipment by its power cord or
disconnect it by yanking the cord from the power outlet.
■ ALWAYS make certain that the proper extension cord
has been selected for the job. See Extension Cord
Gauge Selection Table.
■ NEVER allow power cord to lay in wate r.
■ NEVER stand in water while operating the equipment.
■ When connecting the unit to a power receptacle, make
sure the receptacle circuit is connected to either a GFCI
receptacle or a receptacle protected by a 20 amp circuit
breaker.
■ When plugging the unit into a power receptacle, check
the nameplate for the correct operating voltage.
Operating the rebar bender at the wrong voltage will
damage the electrical components. ALWAYS read the
nameplate before applying power.
■ This unit is equipped with a 3-prong male power plug.
DO NOT use a 2-prong adapter when plugging into a
wall outlet. This will defeat the purpose of the ground
circuit. If the plug does not fit into the receptacle, contact
a qualified electrician to install a 3-conductor wall
receptacle (outlet).
■ Avoid body contact with grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an
increased risk of electrical shock if your body is
grounded.
■ DO NOT expose the hydraulic power unit to rain or wet
conditions. Water entering the power unit will increase
the risk of electrical shock.
■ When operating the unit outdoors, be sure to use the
appropriate outdoor extension cord. This type of
extension cord reduces the risk of electrical shock.
■ ALWAYS remove the AC power cord from the power
source before performing any service or maintenance
on the unit. This preventative safety measure reduces
the possibility of accidental starting.
 When operating near an arc welder, it is important the
both the unit and the welding equipment be connected
to the same earth ground. If they are not, server damage
to the unit, particularly to the power cord could occur.
Personal injury may also occur.
noitceleSeguaGdroCnoisnetxE
erepmA
gnitaR
egnaR
stloV teeFnidroCfohtgneL
V511 .tF52 .tF05 .tF001 .tF051 .tF002 .tF052 .tF003 .tF004 .tF005
V032 .tF05 .tF001 .tF002 .tF003 .tF004 .tF005 .tF006 .tF008 .tF0001
2-0 81 81 81 61 61 41 41 21 21
3-2 81 81 61 41 41 21 21 01 01
4-3 81 81 61 41 21 21 01 01 8
5-4 81 81 41 21 21 01 01 8 8
6-5 81 61 41 21 01 01 8 8 6
8-6 81 61 21 01 01 8 6 6 6
01-8 81 41 21 01 8 8 6 6 4
21-01 61 41 01 8 8 6 6 4 4
41-21 61 21 01 8 6 6 6 4 2
61-41 61 21 01 8 6 6 4 4 2
81-61 41 21 8 8 6 4 4 2 2
02-81 41 21 8 6 6 4 4 2 2
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 7

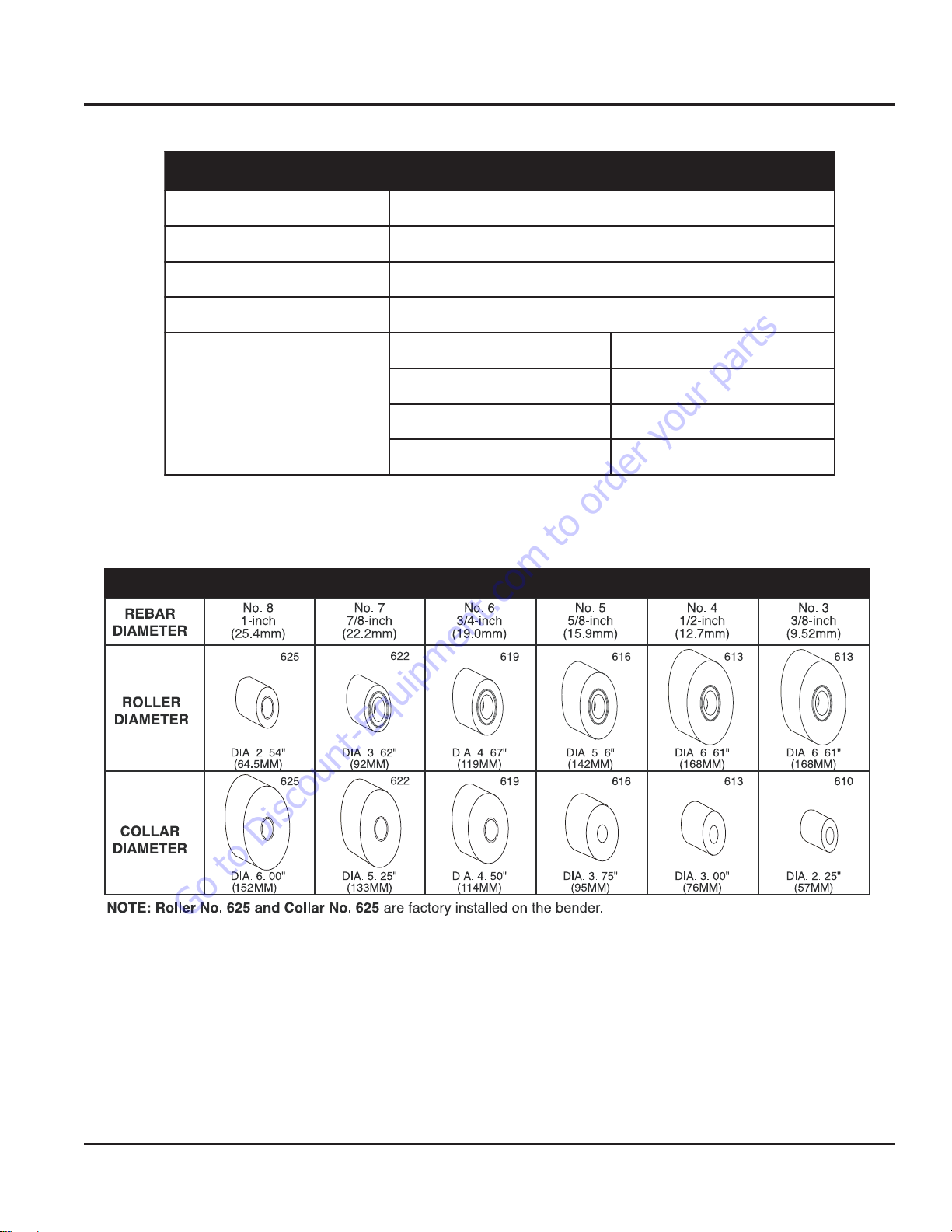

SPECIFICATIONS
SNOITACIFICEPS.1ELBAT
ledoMA52BM
yticapaC8.oN-2.oN,)"1(52Ø-)"4/1(6Ø
sdneBfoegnaR°081-°0
rotoMA31,zH06,V511,esahPelgniS
dradnatS
tnempiuqE
5-relloR2-hcnerWnellA
6-ralloC1-hcnerWdnE-nepO
1-revoCfoorpretaW1-revirdwercS
1-xoBlooT1-hctiwStooF
TABLE 2. SIZE OF ROLLERS AND COLLARS
Go to Discount-Equipment.com to order your parts

PAGE 8 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
GENERAL INFORMATION
GENERAL INFORMATION
The MQ MB25A Rebar Bender is designed to be used
as a portable on-site rebar bender, capable of bending in-
place rebar to approved American Concrete Institute (ACI)
radius. Labor time and injuries are greatly reduced from
manually bending rebar. The MB25A is capable of bends
up to 180°.
The MB25A comes with 5 rollers and collars which can be
used in different combinations to match the diameter of
the rebar to be bent.
The MB25A comes with a foot switch which can start the
bending procedure with a push of the pedal instead of
pressing the start button.
An emergency button is available to immediately stop the
machine when something goes wrong during bending.The
roller then returns to the starting position.
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 9
COMPONENTS
Figure 1. MB25A Components
Figure 1 shows the components of the MB25A Rebar
Bender. These components are described below.
1. Table - Holds the roller, collar, stopper and the rebar
to be bended.
2. Roller - Works in combination with the collar depending
on the diameter of the rebar to bend.
3. Collar -Works in combination with the roller depending
on the diameter of the rebar to bend.
4. Stopper - Holds the rebar in place when bending.
5. Panel A - Holds the different controls for the rebar
bender.
6. Power Switch - Turns the power of the rebar bender
on or off.
7. Start Switch - Starts the bending process.
8. Emergency Stop Switch - Stops the rebar bending
and moves the roller back to the starting position.
9. Angle Adjusting Knob - Used to "fine tune" the angle
after trial bends of a few pieces of rebar.
10. Angle Select Dial - Sets the angle that the rebar is
going to be bent.
11. Connector (for foot switch) - Connects to the foot
switch to start the machine with a push of the pedal.
12. Handle - Used to lift the rebar bender.
Go to Discount-Equipment.com to order your parts

PAGE 10 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
OPERATION
SELECTION AND INSTALLATION OF ROLLER AND
COLLAR
1. Select the roller and corresponding collar to match the
diameter of the rebar to be bent. See Table 2 for the
different combinations.
2. Apply multi-purpose grease to the roller.

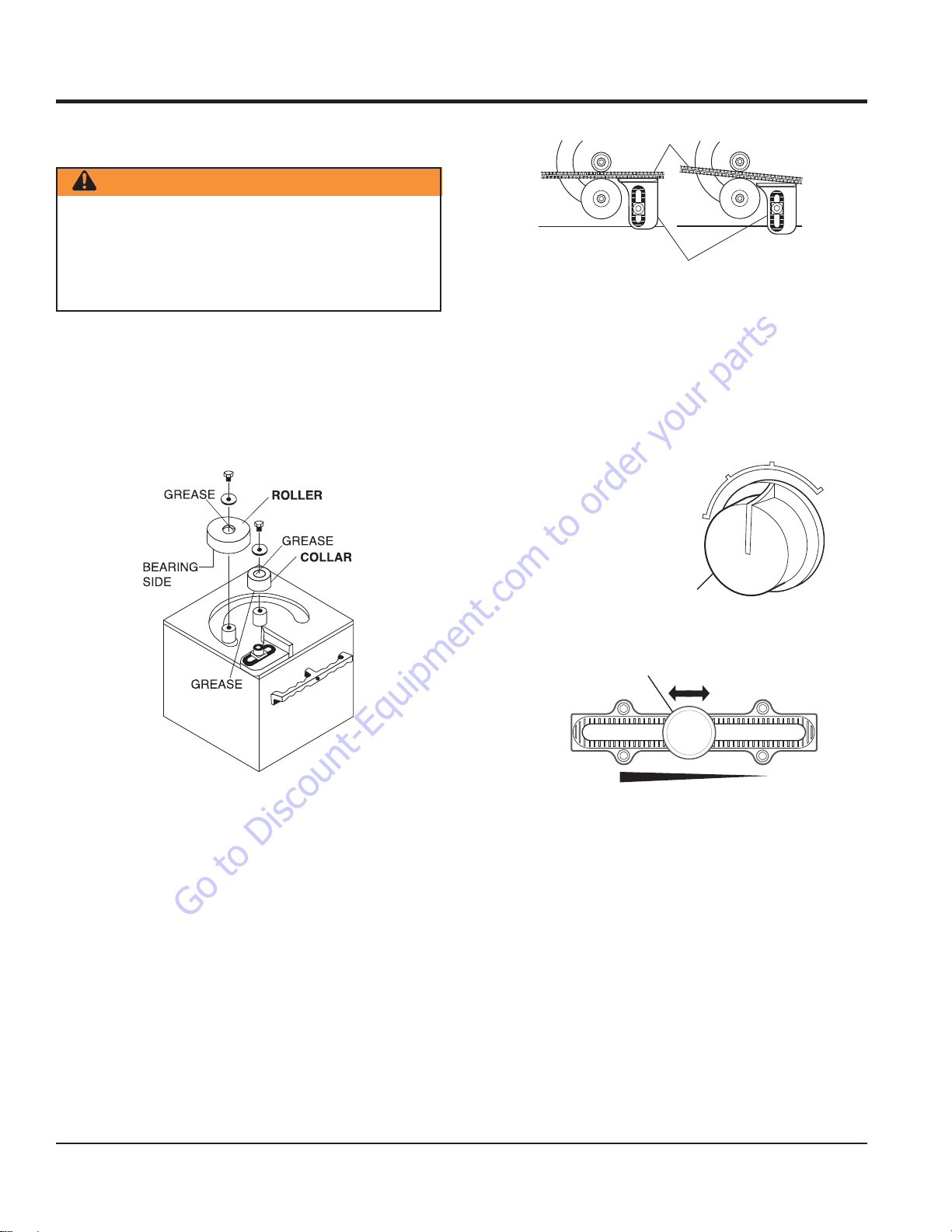

3. Install the collar and the roller as shown in Figure 2.
4. When using a roller with a bearing, bearing must face
downward.
5. When using a collar with a bearing, bearing must face
downward.
6. To prevent the roller and the collar from coming off,
attach the washer securely with the bolt.
7. Position the stopper so that rebar to be bent is parallel
to the front of the stopper and tighten the rebar securely
in place. If the rebar is not parallel to the front, the
bending angle will be incorrect. See Figure 3.
8. Rotate the Angle Select Dial to the desired angle that
the rebar is to be bent (Figure 4). If the selected angle
cannot be obtained by the Angle Select Dial, "fine tune"
the angle by using the Angle Adjusting Knob (Figure 5).
9. Plug the power cord into a proper single-phase power
source. Make sure that the rebar bender is properly
grounded.
10. Turn the power switch on.
11. Hold the rebar firmly and press the Start Switch. This
will engage the clutch and the roller to bend the rebar.
12. After the rebar is bent to the desired angle, the roller
will automatically spring back to the starting position.
REBAR
STOPPER
CORRECT WRONG
Figure 3. Stopper Position
90º
135º
180º
45º
ANGLE SELECT DIAL
Figure 4. Selecting the Bending Angle
(-) (+)
ANGLE ADJUSTING KNOB
Figure 5. Fine Tuning the Bending Angle
WARNING
Keep fingers from the bending area. Moving parts can
cause serious injury.
Do not drop anything into the machine from the bending
area as this may damage the machine.
Figure 2. Roller and Collar Installation
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 11
USING THE ANGLE ADJUSTING KNOB
Depending on the diameter of the rebar and its tensile
strength, it may be necessary to "fine tune" the angle us-
ing the Angle Adjusting Knob after trial bends of a few
pieces of rebar.
1. The Angle Adjusting Knob is automatically locked when
released. Unlock the knob by pulling it hard and sliding
the knob to the right or left to adjust the angle.
2. When the desired angle is selected, release the knob.
The knob will now be automatically locked.
USING THE FOOT SWITCH
Instead of the Start Switch, the Foot Switch can be used
to start the bending process. See Figure 6.
1. Insert the plug of the foot switch to the Foot Switch
Connector on the front panel of the rebar bender.
2. Press the pedal on the foot switch to start bending.
3. When the bending angle is achieved, the roller will
automatically spring back to the start position.
OPERATION
PLUG TO CONNECTOR
ON FRONT PANEL PUSH PEDAL
TO START BENDING
Figure 6. Starting with the Foot Switch
EMERGENCY STOP SWITCH
1. To stop the rebar bender immediately in case anything
goes wrong in the bending process, press the
Emergency Stop Button (Figure 7). The roller on the
rebar bender will immediately stop and return to the
start position.
It is not necessary to press the pedal con-
tinuously while bending. Once the pedal is
pressed bending will start and pedal can
be released.
EMERGENCY STOP SWITCH
Front Panel
Figure 7. Emergency Stop Switch
POWER
CORD
(POWER ON)
WET
HANDS
DANGER
During operation of this rebar bender,
there exists the possibility of
electrocution, electrical shock or burn,
which can cause severe bodily harm or
even DEATH!
To avoid these hazards:
NEVER use damaged or worn cables when plugging
the rebar bender into an AC power
receptacle.
NEVER grab or touch a live power
cord with wet hands.
NEVER stand in water and touch a
live power cord.
WARNING
The roller goes back to start position very quickly after
bending because of the spring mechanism. Keep away
from the machine until the roller is completely back in
the start position to prevent any injury.
Go to Discount-Equipment.com to order your parts

PAGE 12 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
MAINTENANCE

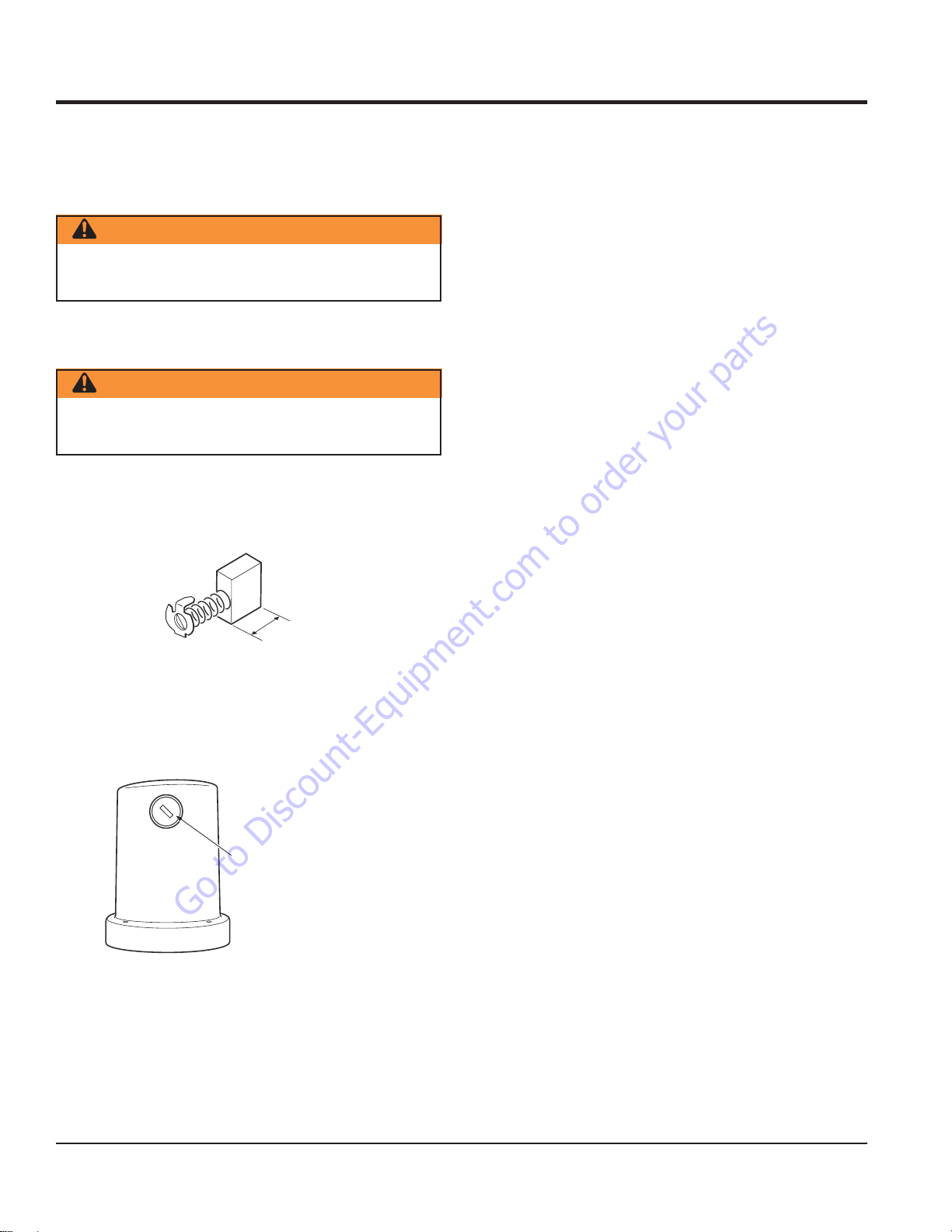

CARBON BRUSH CAP
Figure 9. Replacing Carbon Brushes
5-6 mm
(1/4 inch)
Figure 8. Carbon Brush Size
REMOVING STEEL DEBRIS
1. To remove steel debris from the machine, tilt it and
clear all debris from the outlet.
REPLACING CARBON BRUSHES
When the carbon becomes less than 5 or 6 mm (1/4 inch)
the motor force deteriorates because of low rectification
(Figure 8). The carbon brushes need to be replaced.
1. Make sure that the power plug is not connected to the
power source.
2. Remove the rear panel and the bottom plate of the
machine so that the outer frame of the motor is visible
(Figure 9).
3. Remove the carbon brush cap of the motor outer frame
using a standard screwdriver.
4. Replace the carbon brushes with new ones.
5. Put back the cap and reinstall the rear and end panels
of the machine.
WARNING
Unplug unit from power source before replacing carbon
brushes.
WARNING
Do not let debris or rust accumulate inside the machine
as this could lead to malfunction of the machine.
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 13
MAINTENANCE
GNITOOHSELBUORT.4ELBAT
MOTPMYSMELBORPELBISSOPNOITULOS
dnetonlliwrableetS
hctulcfoesuaceb
.gnippils
?tuonrowhctulcsI.hctulcecalpeR
?pordegatlovlamronbanaerehtsI .pordegatlovlamronbafoesuackcehC
?drahootsrableetserA .ssendrahtcerrochtiwsrableetsesU
odhctulcdnarotoM
ehtelihwkrowton
.nositnerruc
hctiwstengamnostisopedtsuderA
?tcatnoc .hctiwstengamhsiloP
?tuonrowtcatnochctiwstengamsI.hctiwstengamecalpeR
?detcennocsideriwdaelsI.eriwdaeltcennoC
?evitcefedrokaewrotomcirtcelesI.rotomriaperroecalpeR
gnidnebniytiralugerrI
.selgna
rodenoitisopylreporpmireppotsehtsI
?hguonedenethgitton .reppotsfossenthgitdnagninoitisoptcerroC
rableetsehtniytiralugerrinaerehtsI
?ssendrah .ssendrahtcerrochtiwsrableetsesU
morfesionlamronbA
.rotom
ronekorbsenavgniloocerutamraerA
?demrofed
stidnaerutamraevitcefedaecalpeR
.sgniraeb
?tuonrowsgniraeberutamraerA.sgniraebwenhtiwecalpeR
?ecnalabfotuoerutamrasI .erutamrawenahtiwecalpeR
sirotomtuptuorewoP
.tneiciffuston
?tuonrowsehsurbnobracerA.senowenhtiwecalpeR
?nekorbsliocfonoitalusnisI.rotomroerutamraecalpeR
?egatlovnipordaerehtsI .pordegatlovehtfoesuacehtkcehC
WARNING
Unplug unit from power source before troubleshooting.
Go to Discount-Equipment.com to order your parts

PAGE 14 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
EXPLANATION OF CODE IN REMARKS COLUMN
The contents and part numbers listed in the parts section are
subject to change
without notice . Multiquip does not
guarantee the availibility of the parts listed.
When ordering a part that has more than one
item number listed, check the remarks column for
help in determining the proper part to order.
The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the help
numbers found on the back page of the manual if there are any
questions.
NO. Column
Unique Symbols - All items with same unique symbol
(*, #, +, %, or >) in the number column belong to the same
assembly or kit, which is indicated by a note in the “Remarks”
column.
Duplicate Item Numbers - Duplicate numbers indicate
multiple part numbers are in effect for the same general
item, such as different size saw blade guards in use or a
part that has been updated on newer versions of the same
machine.
Sample Parts List:
NO. PART NO. PART NAME QTY.REMARKS
1 12345 BOLT ...................... 1 ......INCLUDES ITEMS W/*
2*WASHER, 1/4 IN. ............. NOT SOLD SEPARATELY
2*12347 WASHER, 3/8 IN. ... 1 ...... MQ-45T ONLY
3 12348 HOSE ................... A/R ....MAKE LOCALLY
4 12349 BEARING ............... 1 ...... S/N 2345B AND ABOVE
PART NO.Column
Numbers Used - Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a part
that has not been assigned a formal part number at time of
publication.
A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will be
clarified in the “Remarks” Column.
QTY.Column
Numbers Used - Item quantity can be indicated by a
number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other parts
that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold
separately. Other entries will be clarified in the “Remarks”
Column.
REMARKS Column
Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed to
describe the item can also be shown.
Assembly/Kit - All items on the parts list with the same
unique symbol will be included when this item is purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
Serial Number Break - Used to list an effective serial
number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”
Specific Model Number Use - Indicates that the part is
used only with the specific model number or model number
variant listed. It can also be used to show a part is NOT
used on a specific model or model number variant.
Indicated by:
“XXXXX ONLY”
“NOT USED ON XXXX”
“Make/Obtain Locally” - Indicates that the part can be
purchased at any hardware shop or made out of available
items. Examples include battery cables, shims, and certain
washers and nuts.
“Not Sold Separately” - Indicates that an item cannot be
purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available for
sale through Multiquip.
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 15
SUGGESTED SPARE PARTS
MB25A REBAR BENDER
1 to 3 Units
Qty. P/N Description
2 ....... 6402520 ........ HOLDER CAP
2 ....... 6402510 ........ CARBON BRUSH
Go to Discount-Equipment.com to order your parts

PAGE 16 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
MB25A — NAMEPLATE AND DECALS
NAMEPLATE AND DECALS
Moving parts can crush
and cut.
Keep hands clear while
machine is operating.
Pinch Point
DANGER
ELECTRICAL
SHOCK
HAZARD
During operation of this equipment, there
exists the possibility of ,
, which can cause
or even
electrocution
electrical shock or burn
severe bodily harm DEATH!
Toavoid these hazards:
NEVER use a worn or damaged power
cord. Replace defective cords immediately.
NEVER grab or touch a live power cord
with wet hands.
NEVER let power cords lay in water.
NEVER stand in water and touch a live
power cord.
ALWAYS connectpower cord to a grounded
outlet.
NEVER operate this equipment in damp or
wet conditions.
Always wear safety goggles
and a full face shield when
bending.
Eye Hazard
DO NOT lift or move
without assistance.
Lifting Hazard
Lift with one person at
each end of the machine
using lift handles.
8010780
1. Read owner’s manual
before operating.
2. Keep unauthorized and
untrained people away
from machine during operation.
3. Keep fingers away from bending
area during operating.
4. Before bending, rebar must rest fully
within bending area (between roller
and collar).
5. If rebar is too brittle or defective, it
may be broken during bending.
stand near the working
roller side of the rebar bender.
DO NOT
6. considerthe safety of others
when bending.
ALWAYS
7. disconnectAC plug from
power source when changing
accessories, such as rollers and
collars or machine inspection.
ALWAYS
8. wear loose clothing or
jewelry. They can be caught in
moving parts.
DO NOT
9. operate machine under the
influence of alcohol or drugs.
NEVER
10. operate this equipment when
not feeling well due to fatigue, illness
or taking medicine.
NEVER
11. Use only that does not
exceed the bending capacity of the
machine.
graded rebar
SAFETY INSTRUCTIONS
1
2
6
3
4
5
MODEL
SERIAL NO.
* Position the stopper (A) so that the rebar (B) to be bent is parallel to the
front of stopper
A
B
RIGHT WRONG
B
A
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 17
MB25A — NAMEPLATE AND DECALS
NAMEPLATE AND DECALS
NO. PART NO. PART NAME QTY.REMARKS
1 8010780 SAFETY WARNING DECAL 1
2 NAMEPLATE ........................................................ 1 ......... CONTACT MQ PARTS DEPT.
3 8010750 ROLLER AND COLLAR DECAL 1
4 8005070 STOPPER INSTALLATION DECAL 2
5 8010770 ROLLER AND COLLAR INSTALLATION DECAL 1
6 8010760 ROLLER, COLLAR, AND TOOLS DECAL 1
Go to Discount-Equipment.com to order your parts

PAGE 18 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
MB25A — BENDER ASSEMBLY
BENDER ASSEMBLY
1
1
2
2
34
5
55
8
9
10
7
66
13
14
15
11
12
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
34
33
35
36
37
38 39
41 42
43
44
44
45
40
46
47
47
48
49
50
51
52
53
54
55 70
71
72
73
73
74
75
76
77
78
79
80
80
81 82
82
83
84
85
86
86
87
88
88
90
90
89
91
C
C
1
NOTES:
INCLUDED WITH ITEM 46.
56
57
58
59
59
60
60
61
62
63
64
65
66
67
68
69
A
1
1
Go to Discount-Equipment.com to order your parts

MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08) — PAGE 19
BENDER ASSEMBLY
NO. PART NO. PART NAME QTY.REMARKS
1 M5SB122000 HEX HEAD BOLT 12 X 20 2
2 M5T4273800 WASHER A 2
3 9008090 ROLLER 625 1
3 9008080 ROLLER 622 1
3 9008070 ROLLER 619 1
3 9008060 ROLLER 616 1
3 9008050 ROLLER 613 1
3 9008040 ROLLER 610 ........................................................ 1 ......... OPTIONAL
4 9008130 COLLAR 625 1
4 9008120 COLLAR 622 1
4 9008110 COLLAR 619 1
4 3510370 COLLAR 616 1
4 3510360 COLLAR 613 1
4 3510350 COLLAR 610 1
5 7550050 ALLEN HEAD SCREW 10X25 12
6 7514000 ALLEN HEAD SCREW 8X15 4
7 9009580 TABLE 1
8 H5HB103000 ALLEN HEAD SCREW 10X30 1
9 4500380 SHOCK ABSORBER 1
10 M5B2050000 ALLEN HEAD BOLT 20X50 1
11 M5T4267800 SQUARE NUT 1
12 3502090 STOPPER PLATE 1
13 H5HB082000 HEX HEAD SCREW 8X20 4
14 3251620 STOPPER 1
15 M5K1008500 STOPPER KEY 1
16 3510260 OUTPUT SHAFT 1
17 7410130 STOP RING RTW 100 1
18 7103180 BEARING 6309DDU 1
19 7411320 SNAP RING IRTW 55 1
20 C5BTAFI385 NEEDLE BEARING HMK4530 1
21 3510270 ROLLER SHAFT 1
22 3510250 ARM 1
23 7651300 WASHER, FLAT M 14 1
24 7516200 ALLEN HEAD SCREW 14X40 1
25 7200090 NEEDLE BEARING HMK3230 1
26 7103190 BEARING 6218DDU 1
27 6601090 PIN ø13 X13 2
28 M5B6205Z00 BEARING 6205Z 1
29 3252160 FRAME 1
30 3600180 GEAR WHEEL 1
MB25A — BENDER ASSEMBLY
Go to Discount-Equipment.com to order your parts

PAGE 20 — MB25A REBAR BENDER • OPERATION AND PARTS MANUAL — REV. #3 (11/18/08)
BENDER ASSEMBLY
MB25A — BENDER ASSEMBLY
1
1
2
2
34
5
55
8
9
10
7
66
13
14
15
11
12
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
34
33
35
36
37
38 39
41 42
43
44
44
45
40
46
47
47
48
49
50
51
52
53
54
55 70
71
72
73
73
74
75
76
77
78
79
80
80
81 82
82
83
84
85
86
86
87
88
88
90
90
89
91
C
C
1
NOTES:
INCLUDED WITH ITEM 46.
56
57
58
59
59
60
60
61
62
63
64
65
66
67
68
69
A
1
1
Go to Discount-Equipment.com to order your parts
