MULTIQUIP Mikasa Series Guide

Revision #0 (06/07/06)
SERIES
MODEL MVH-306DS2
REVERSIBLE PLATE COMPACTOR
(YANMAR DIESEL ENGINE)
THIS MANUAL MUST ACCOMPANYTHE EQUIPMENT AT ALL TIMES.
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
OPERATION AND PARTS MANUAL

PAGE 2 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)

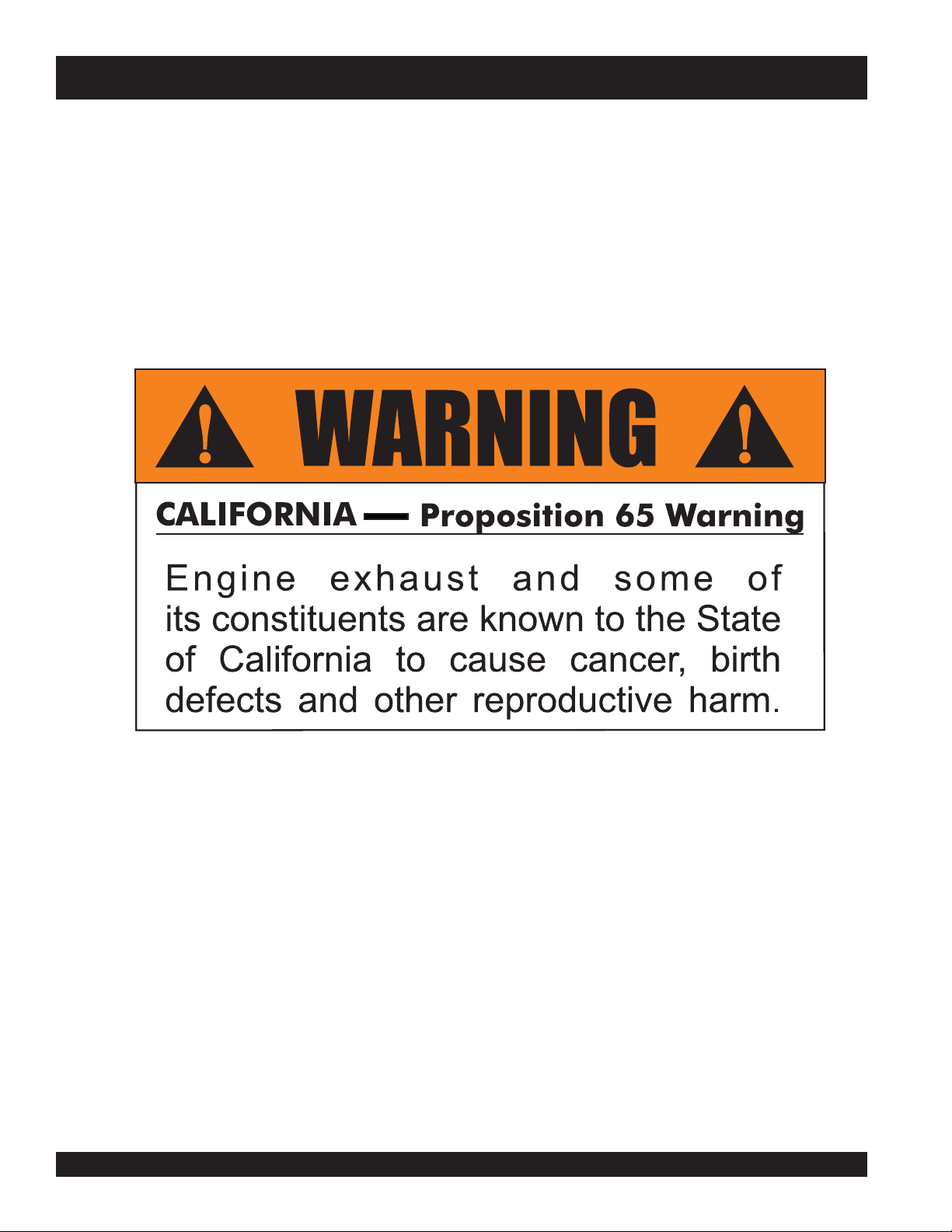

MVH-306DS2 PLATE COMPACTOR — PROPOSITION 65 WARNING

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 3
NOTE PAGE

PAGE 4 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
TABLE OF CONTENTS
Specification and part
number are subject to change
without notice.
NOTE
MIKASA MVH-306DS2-
REVERSIBLE PLATE
COMPACTOR
Proposition 65 Warning ..............................................2
Here's How To Get Help .............................................3
Table Of Contents ...................................................... 4
Parts Ordering Procedures ........................................5
Safety Message Alert Symbols .............................. 6-7
Rules for Safe Operation ....................................... 8-9

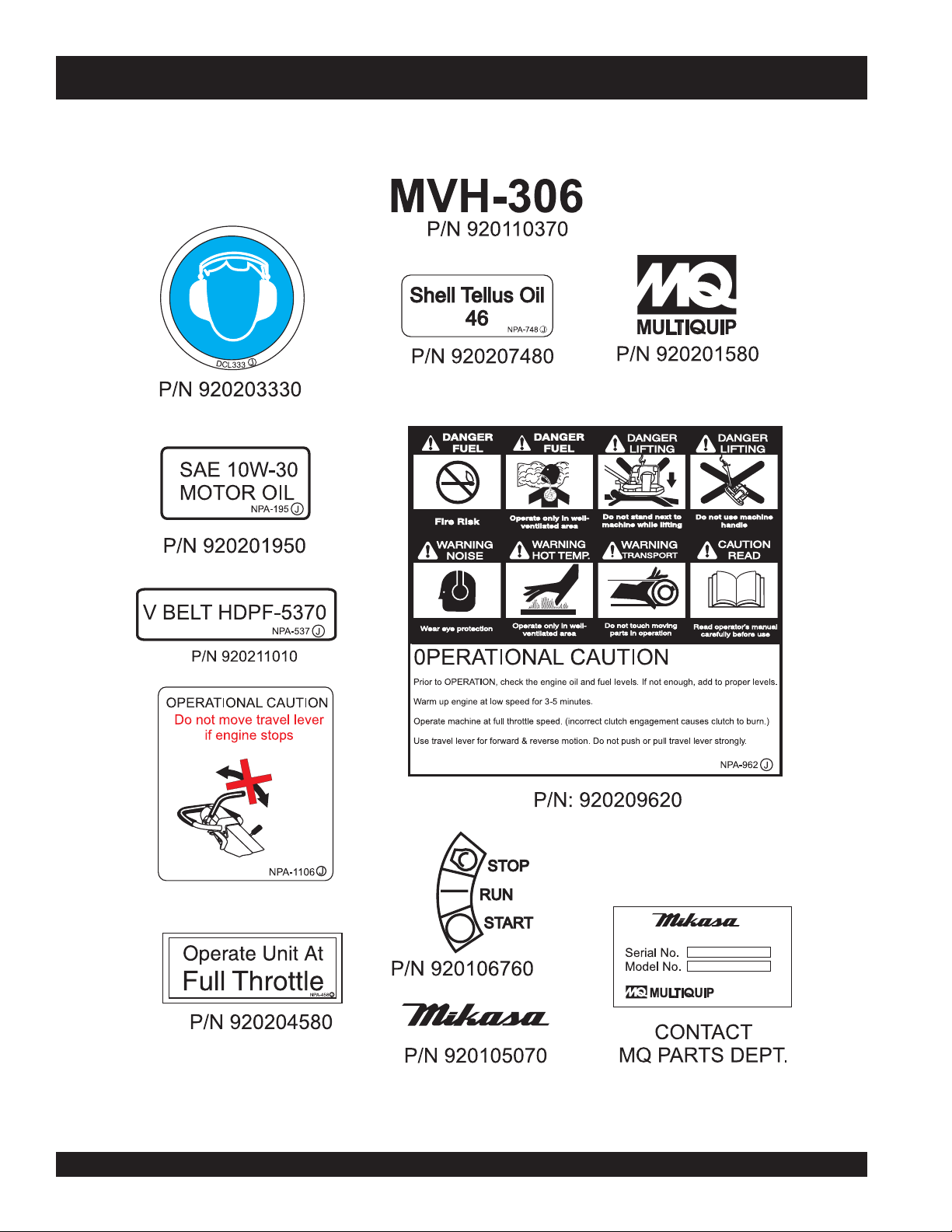

Operation and Safety Decals ...................................10
Specifications ...........................................................11
Dimensions ..............................................................12
Features ...................................................................13

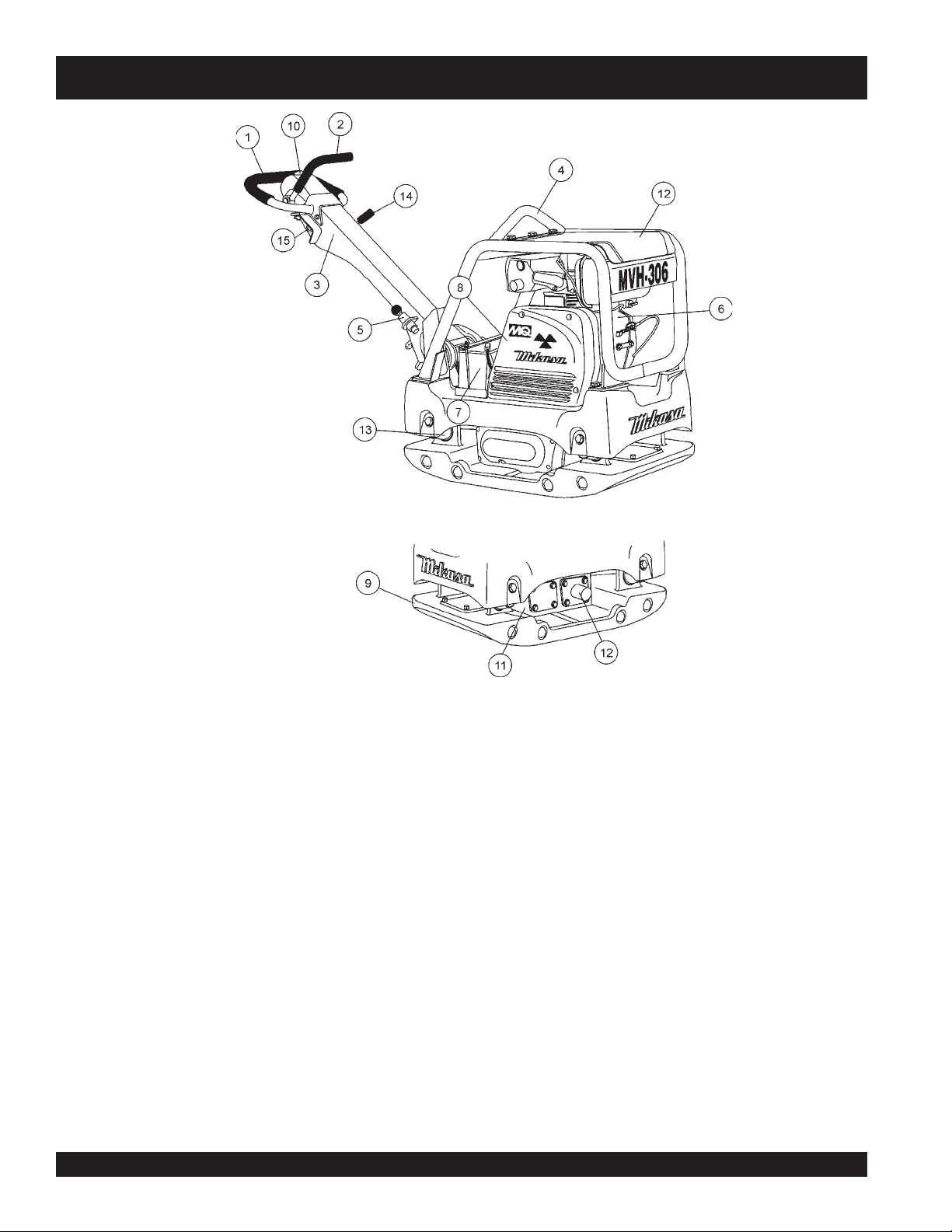

Plate Compactor Components .................................14

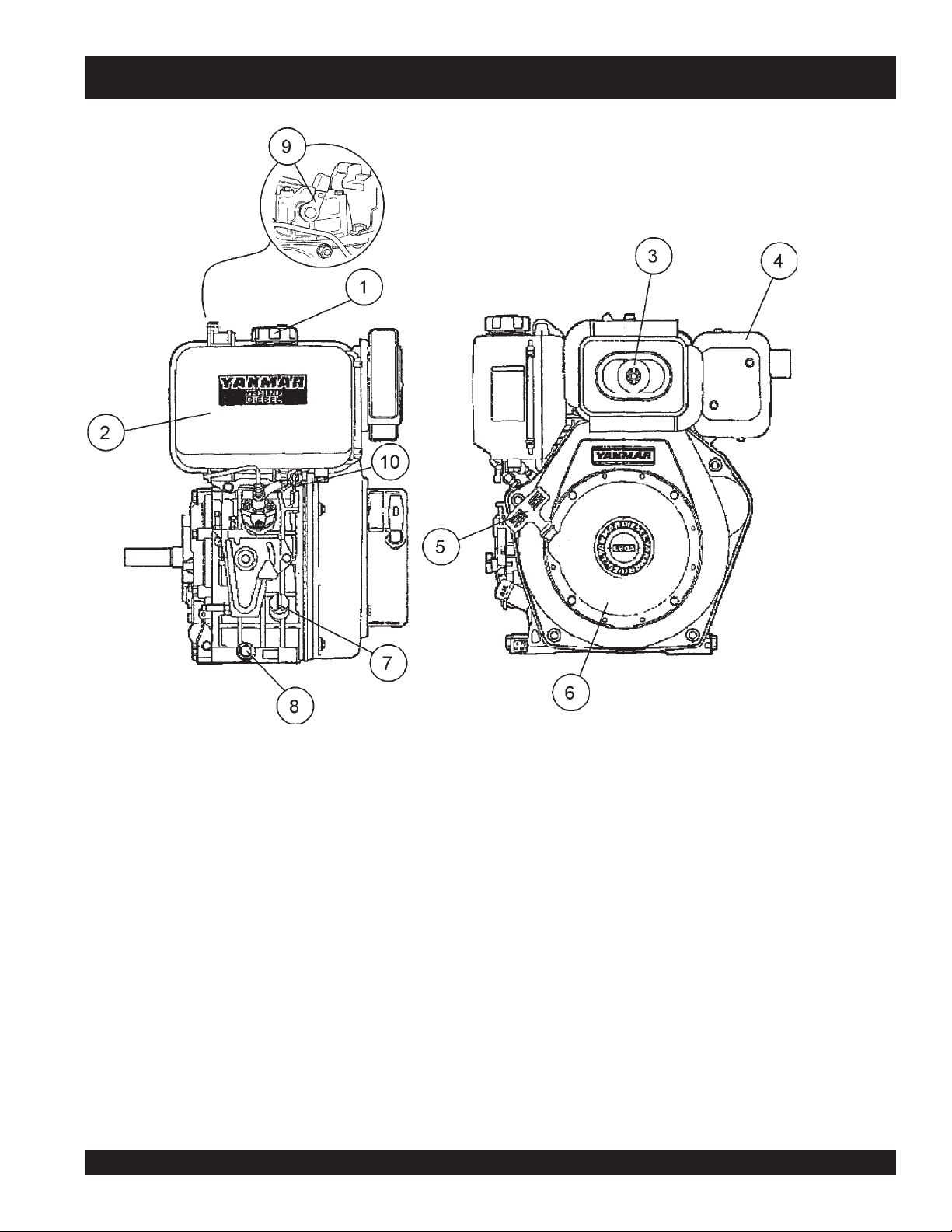

Engine Components ................................................15

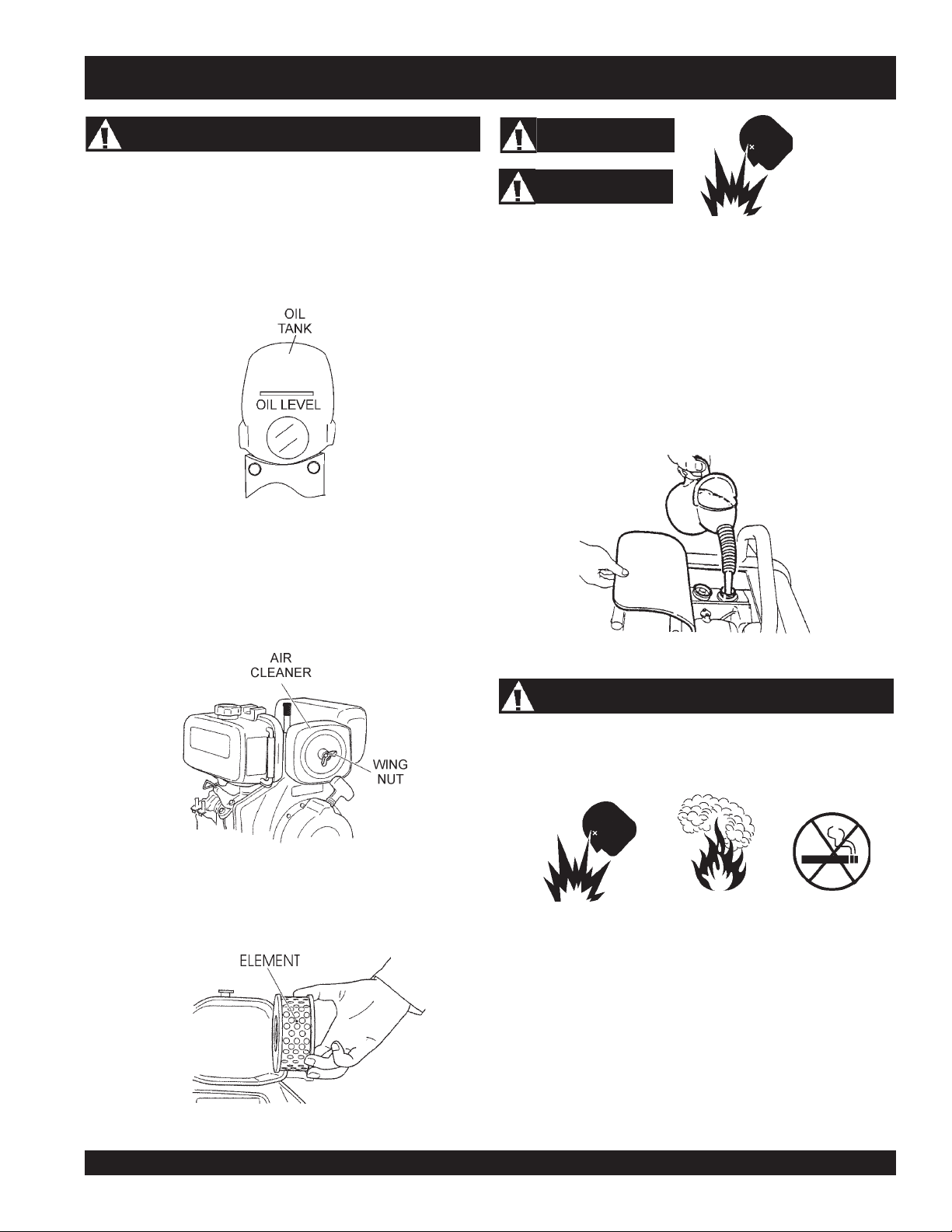

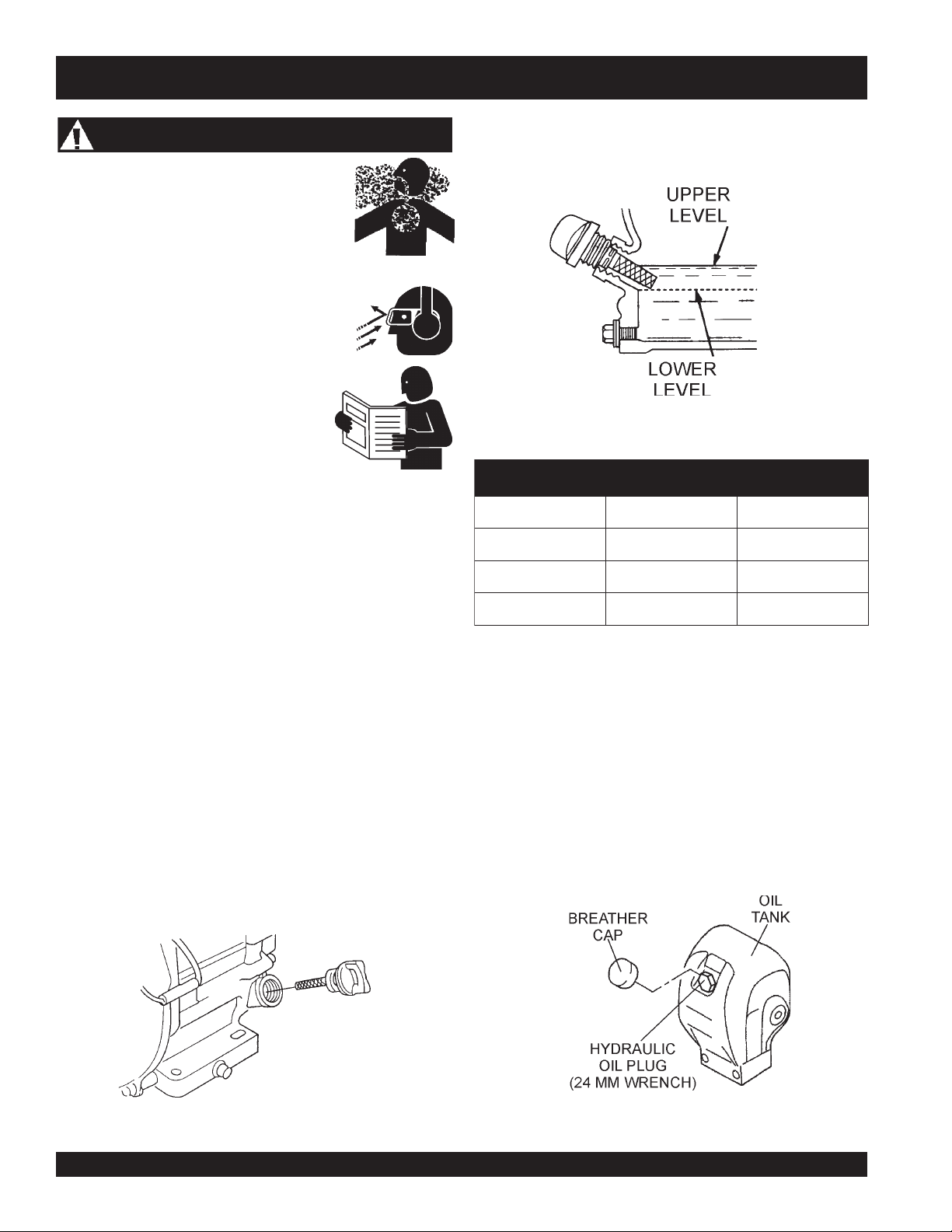

Pre-Inspection .................................................... 16-17

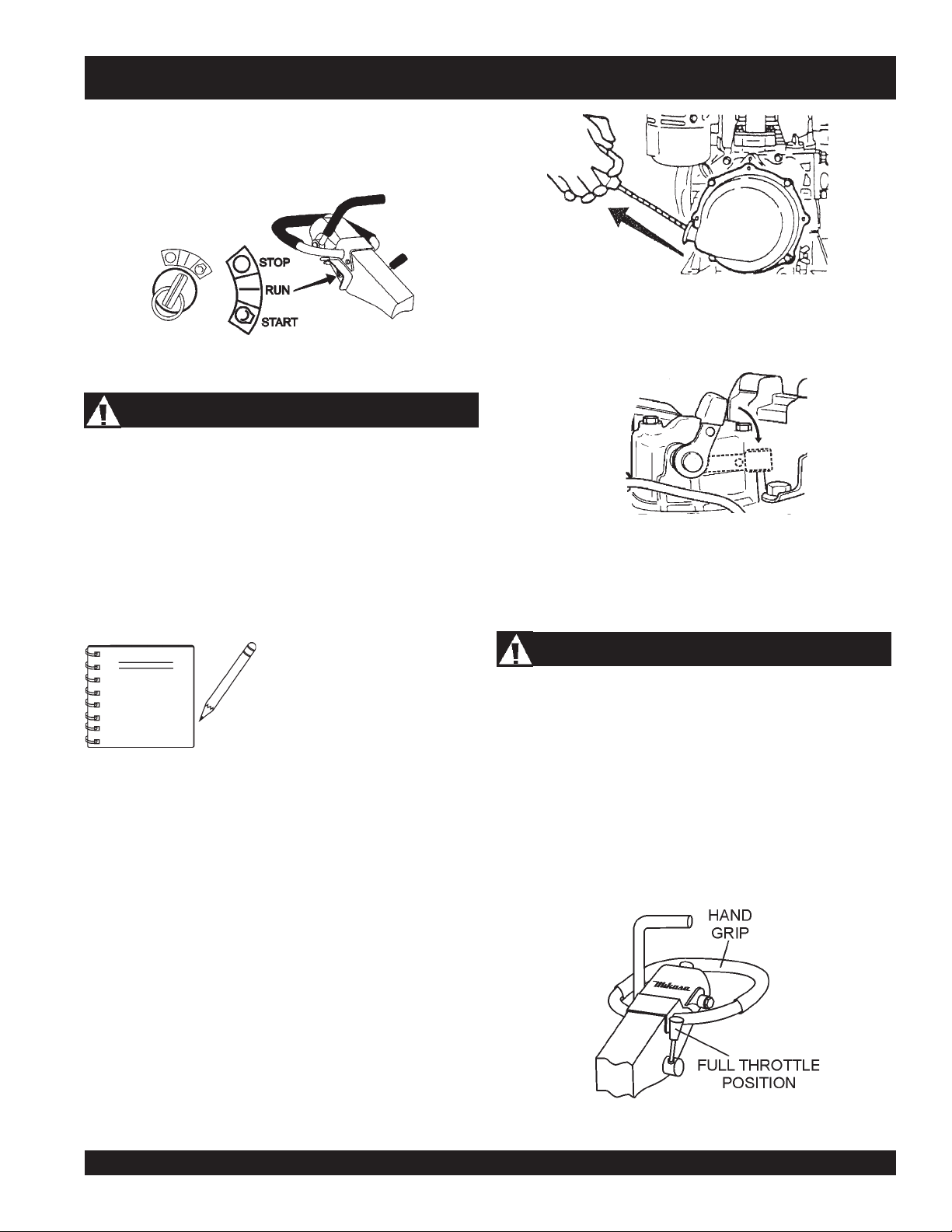

Operation ........................................................... 18-21
Maintenance ...................................................... 22-25
Troubleshooting (Engine) .........................................26
Troubleshooting (Compactor) ..................................27
PARTS ILLUSTRATIONS
Explanation Of Code In Remarks Column ...............28
Suggested Spare Parts ............................................29
Nameplate and Decals....................................... 30-31
Vibrating Plate Assembly ................................... 32-33
Base and Engine Assembly ............................... 34-37
Vibrator Assembly .............................................. 38-39
Control Handle Assembly .................................. 40-43
Battery Assembly ............................................... 44-45
Electric Device.................................................... 46-47
YANMAR L70V6GJ1R1AAS5
ENGINE
Cylinder Block Assembly .................................... 48-49
Cylinder Head Assembly .................................... 50-51
Air Cleaner Assembly ......................................... 52-53
Muffler Assembly ............................................... 54-55
Crankshaft and Camshaft Assembly ................. 56-57
Piston Assembly ................................................. 58-59
Lub. Oil Pump and Governor Assembly ............. 60-61
Cooling and Starting Device Assembly .............. 62-63
Fuel Injection Pump Assembly ........................... 64-65
Fuel Tank and Fuel Line Assembly .................... 66-67
Starting Motor and Dynamo Assembly .............. 68-69
Tools, Labels and Gasket Set Assembly............ 70-71
Terms and Conditions Of Sale — Parts .................. 72

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 5
PARTS ORDERING PROCEDURES
www.multiquip.com
Ordering parts has never been easier!
Choose from three easy options:
WE ACCEPT ALL MAJOR CREDIT CARDS!
When ordering parts, please supply:
❒❒
❒❒
❒ Dealer Account Number
❒❒
❒❒
❒ Dealer Name and Address
❒❒
❒❒
❒ Shipping Address (if different than billing address)
❒❒
❒❒
❒ Return Fax Number
❒❒
❒❒
❒ Applicable Model Number
❒❒
❒❒
❒ Quantity, Part Number and Description of Each Part
❒❒
❒❒
❒ Specify Preferred Method of Shipment:
✓ Fed Ex/UPS ✓DHL
■ Priority One ✓ Tr uck
■ Ground
■Next Day
■ Second/Third Day
Unless otherwise indicated by customer, all orders are treated as Standard Orders and will ship
within24hours. Wewillmake every effortto ship AirShipments thesame day theorder is received,
if received prior to 2PM PST. Stock Orders must be noted on fax or web order form.
If you have an MQ Account, to obtain a
Username and Password, E-mail us at:
[email protected].
To obtain an MQ Account, contact your
District Sales Manager for more information.
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specification Information
Note: Discounts Are Subject To Change
Go to www.multiquip.com and click on
Order Parts to log in and save!
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Fax your order in and qualify for a 3% Discount
on Standard orders for all orders which include
complete part numbers.*
Order via Phone: Domestic (US) Dealers Call:
1-800-427-1244
Best Deal!
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
Note: Discounts Are Subject To Change
NOTE
Effective: June 1st, 2005

PAGE 6 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
MVH-306DS2 PLATE COMPACTOR — SAFETY MESSAGE ALERT SYMBOLS
This Owner's Manual has
been developed to provide
complete instructions for the
safe and efficient operation
of the Multiquip Model
MVH-306DS2 Reversible
Plate Compactor.
Refer to the engine manufacturer’s instructions for data
relative to its safe operation.
Before using this reversible plate compactor,ensure that
the operating individual has read and understands all
instructions in this manual.
HAZARD SYMBOLS
NOTE
Safety precautions should be followed
at all times when operating this
equipment. Failure to read and
understand the Safety Messages and
Operating Instructions could result in
injury to yourself and others.
FOR YOUR SAFETY AND THE SAFETY OF OTHERS!
SAFETY MESSAGE ALERT SYMBOLS
The three (3) Safety Messages shown below will inform you
about potential hazards that could injure you or others. The
Safety Messages specifically address the level of exposure
to the operator, and are preceded by one of three words:
DANGER, WARNING, or CAUTION.
Potential hazards associated with the operation of an
MVH-306DS2 Reversible Plate Compactor will be
referenced with Hazard Symbols which appear throughout
this manual, and will be referenced in conjunction with Safety
Message Alert Symbols.
Engine exhaust gases contain
poisonous carbon monoxide. This gas
is colorless and odorless, and can
cause death if inhaled. NEVER operate
this equipment in a confined area or
enclosed structure that does not provide
ample free flow air.
WARNING - Lethal Exhaust Gases
Diesel fuel is extremely flammable, and
its vapors can cause an explosion if ignited.
DO NOT start the engine near spilled fuel
or combustible fluids.
DO NOT fill the fuel tank while the engine is running or
hot. DO NOT overfill tank, since spilled fuel could ignite if
it comes into contact with hot engine parts or sparks from
the ignition system. Store fuel in approved containers, in
well-ventilated areas and away from sparks and flames.
WARNING - Explosive Fuel
Engine components can generate extreme
heat. To prevent burns, DO NOT touch
these areas while the engine is running or
immediately after operations. Never
operate the engine with heat shields or heat
guards removed.
WARNING - Burn Hazards
ALWAYS wear approved respiratory
protection when required.
CAUTION - Respiratory Hazard
You WILL be KILLED or SERIOUSLY INJURED
if you DO NOT follow these directions.
DANGERDANGER
DANGERDANGER
DANGER
You CAN be KILLED or SERIOUSLY INJURED if
you DO NOT follow these directions.
WARNINGWARNING
WARNINGWARNING
WARNING
You CAN be INJURED if you DO NOT follow
these directions.
CAUTICAUTI
CAUTICAUTI
CAUTION

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 7
This reversible plate compactor,
other property, or the surrounding
environment could be damaged
if you do not follow instructions.
NOTE
Other important messages are provided throughout this
manual to help prevent damage to your compactor, other
property, or the surrounding environment.
ALWAYS place the ON/OFF switch in
the OFF position, when the compactor
is not in use.
ALWAYS wear approved eye and
hearing protection.
NEVER operate equipment with covers,
or guards removed. Keep fingers, hands,
hair and clothing away from all moving
parts to prevent injury.
CAUTION - Rotating Parts
CAUTION - Accidental Starting
CAUTION - Sight and Hearing Hazards
CAUTION - Equipment Damage Messages
MVH-306DS2 PLATE COMPACTOR — SAFETY MESSAGE ALERT SYMBOLS

PAGE 8 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)

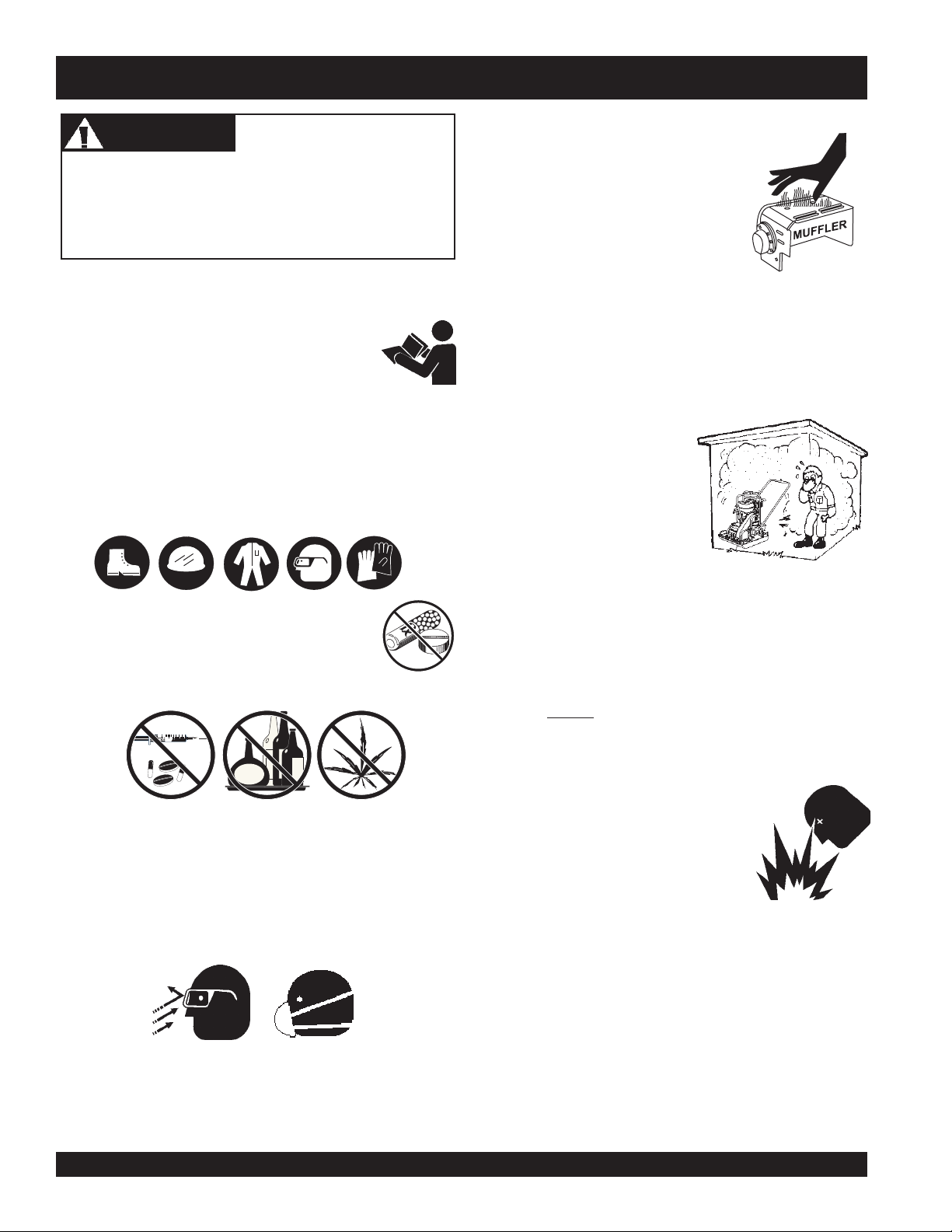

■ ALWAYS refuel in a well-ventilated area, away from sparks
and open flames.
■ ALWAYS use extreme caution when working with flammable
liquids. When refueling, stop the engine and allow it to cool.
DO NOT smoke around or near the machine. Fire or explosion
could result from fuel vapors, or if fuel is spilled on a hot
engine.
■ NEVER operate the equipment in an
explosive atmosphere or near
combustible materials. An explosion or fire
could result causing severe
bodily harm
or even death.
■ Topping-off to filler port is dangerous, as it
tends to spill fuel.
■ Refer to the Engine Owner's Manual for engine technical
questions or information.
■ NEVER use accessories or attachments, which are not
recommended by Multiquip for this equipment. Damage to
the equipment and/or injury to user may result.
■ Manufacturer does not assume responsibility for any accident
due to equipment modifications.
■ NEVER touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to
cool before servicing engine or plate
compactor.
■ HighTemperatures – Allow the engine to cool before adding
fuel or performing service and maintenance functions. Contact
with
hot components can cause serious burns.
The following safety guidelines should always be used when
operating the
compactor :
GENERAL SAFETY
■ DO NOT operate or service this equipment before
reading this entire manual.
■ This equipment should not be operated by persons under 18
years of age.
■ NEVER operate this equipment without proper protective
clothing, shatterproof glasses, steel-toed boots and other
protective devices required by the job.
■ NEVER operate this equipment when not feeling
well due to fatigue, illness or taking medicine.
■ NEVER operate this equipment under the influence or drugs or
alcohol.
■ Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
■ ALWAYS check the machine for loosened threads or bolts
before starting.
■ ALWAYS wear proper respiratory (mask) hearing and eye
protection equipment when operating the compactor.
DANGERDANGER
DANGERDANGER
DANGER
Failure to follow instructions in this manual may lead to
serious injury or even death! This equipment is to be
operated by trained and qualified personnel only! This
equipment is for industrial use only.
MVH-306DS2 PLATE COMPACTOR — RULES FOR SAFE OPERATION
■ The engine of this compactor requires an adequate free
flow of cooling air. NEVER! operate the compactor in any
enclosed or narrow area
where free flow of the air is
restricted. If the air flow is
restricted it will cause serious
damage to the compactor or
engine and may cause injury
to people and property.
Remember the engine gives
off DEADLY gases.

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 9
MVH-306DS2 PLATE COMPACTOR — RULES FOR SAFE OPERATION
Maintenance Safety:
■ NEVER lubricate components or attempt service on a
running machine.
■ ALWAYS allow the machine a proper amount of time to
cool before servicing.
■ Keep the machinery in proper running condition.
■ Fix damage to the machine immediately and always replace
broken parts.
■ Dispose of hazardous waste properly. Examples of
potentially hazardous waste are used motor oil, fuel and
fuel filters.
■ DO NOT use food or plastic containers to dispose of
hazardous waste.
■ DO NOT pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
Loading and Unloading (Crane):
■ Before lifting, make sure that machine parts (hook and vibration
insulator) are not damaged and screws are not loosened or
lost.
■ Always make sure crane or lifting device has been properly
secured to the hook of guard frame on compactor.
■ NEVER lift the machine while the engine is running.
■ Use adequate lifting cable (wire or rope) of sufficient strength.
■ Use one point suspension hook and lift straight upwards.
■ NEVER allow any person or animal to stand underneath the
machine while lifting.
■ Try not to lift machine to unnecessary heights.
TRANSPORTING
■ ALWAYS shutdown engine before transporting.
■ Tighten fuel tank cap securely and close fuel cock to prevent
fuel from spilling.
■ Drain fuel when transporting compactor over long distances
or bad roads.
■ ALWAYS tie down the compactor during transportation by
securing the compactor's guard frame with rope.

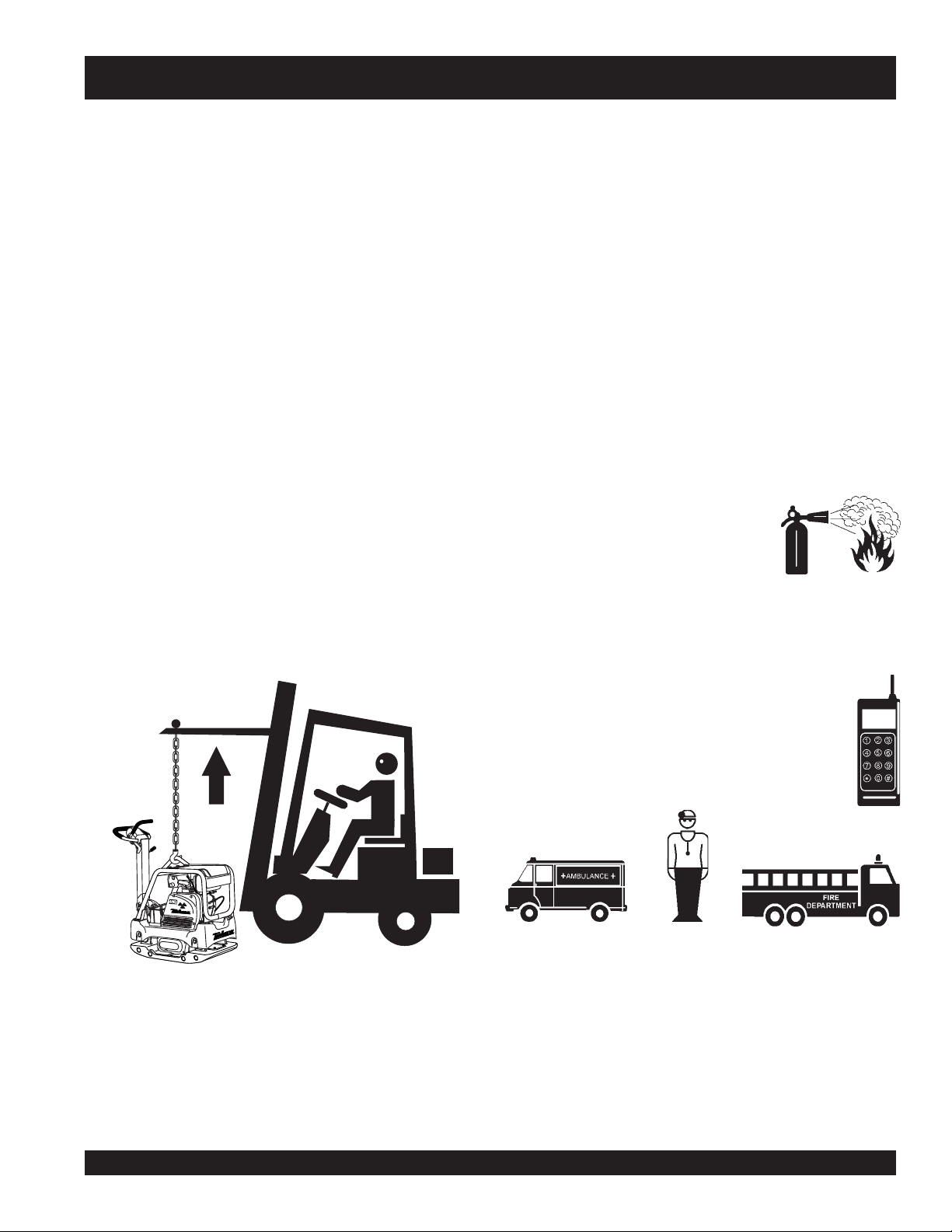

Figure 18. Lifting the Compactor
Emergencies
■ ALWAYS know the location of the
nearest
fire extinguisher .
■ ALWAYS know the location of the nearest first aid kit .
■ In emergencies always know the location of the
nearest phone or
keep a phone on the job site .
Also know the phone numbers of the nearest
ambulance , doctor and fire department . This
information will be invaluable in case of an
emergency.
MVH-200DA2
LIFT

PAGE 10 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
MVH-306DS2 — OPERATION AND SAFETY DECALS
Figure 2. Operation and Safety Decals
Figure 2 displays the operation and safety decals as they appear on the reversible plate compactor. Should any of these decals
become damaged or unreadable, contact the Multiquip Parts Department for a replacement set.

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 11
MVH-306DS2 —SPECIFICATIONS
.2ELBATSNOITACIFICEPSENIGNE
ekaMenignERAMNAY
ledoMenignE5SAA1R1JG6V07L
epyTenignE enignEleseiDelcyc-4delooc-riA
ekortSXeroBrednilyC )mm4
6x87(ni15.2x70.3
tnemecalpsiDmc603(zolf43.01
3
)
tupuOmumixaMMPR006,3@PH5.6
yticapaCknaTleuF )sretil13.3(strauq5.3
yticapaCliO )sretil01.1(strauq61.1
SD/Dd
ohteMgnitratScirtcelE/lioceR
cirtcelE/lioceRthgieWteNyrD )gk83(.sbl77.38/)gk33(.sbl57.27
)HxWxL(snoisnemi
D )mm054x124x483(ni17.71x75.61x11.51
etalPelbisreveR2SD603-HVM.1elbaT
snoitacificepSrotcapmoC
ecroFlagufirtneC)gk395,4(.sbl521,01
ycneuqerFnoitarbiV)zH07(mpv004,4
deepSgnilevarT )nim/m32ot0(nim/tf57ot
0
)WxL(eziSetalP )mc63.68x27.54(ni43x81
)WxL(eziSetalPlanretxE )mc63.68x69.06(ni43x42
)snoisnetxeon(noitcapmoCfoaerA.xaM )sretem.qs750,2(.tf.qs057,6
htgneLllarevO)mm0751(ni8.16
htdiWllarevO)mm754(ni0.81
)eldnahhtiw(thgieHllarevO)mm0211(ni1.44
)eldnahtuohtiw(thgieHllarevO)mm508(ni7.13
thgieWgnitarepO).gk313(.sbl296
)setalpnoisnetxe(thgieWgnitarepO).gk823(.sbl527
esaCnoitarbiVniliOgnitacirbuL)cc0051(.zo.lf7.05

PAGE 12 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
MVH-306DS2 — DIMENSIONS
Figure 3. MVH-306DS2 Reversible Plate Compactor Dimensions
SNOISNEMID.3ELBAT
.FERSNOISNEMID
A).mc6.431(.ni35
B).mc64(.ni81
C).mc68(.ni43
D).mc261(.ni8.36
E).mc5.28(.ni5.23

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 13
MVH-306DS2— FEATURES
Plate Compactor
The Mikasa MVH-306DS2 is a walk behind, reversible plate
compactor designed for the compaction of sand, clay and
asphalt. This plate compactor is a powerful compacting tool
capable of applying a tremendous force in consecutive high
frequency vibrations to a soil surface. Its applications include
soil compacting for road, embankments and reservoirs as well
as backfilling for gas pipelines, water pipelines and cable
installation work.
Vibratory Plates
The vibratory plates of the MVH-306DS2 produce low amplitude
high frequency vibrations, designed to compact granular soils.
The resulting vibrations cause forward motion.The engine and
handle are vibration isolated from the vibrating plate.The heavier
the plate, the more compaction force it generates.
Reversible Vibratory Plates
Reversible vibratory plates have two eccentric weights that allow
a smooth transition for forward and reverse travel, plus increased
compaction force as the result of dual weights.
Due to their weight and force, reversible plates are ideal for
semi-cohesive soils.
Frequency/Speed
The compactor's vibrating plate maximum frequency is 4400
vpm (vibrations per minute).The forward and reverse travel speed
of the compactor is approximately 75 ft./minute (23 meters/
minute).
Engine
The Mikasa MVH-306DS2 Plate Compactor is equipped with a
YANMAR L70V6GJ1R1AAS5 ENGINE diesel engine.
Controls
Before starting the MVH-306DS2 Plate Compactor, identify and
understand the function of the controls and components.

PAGE 14 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
MVH-306DS2— PLATE COMPACTOR COMPONENTS
Figure 4. MVH-306DS2 Reversible Plate
Compactor Components
Figure 4 illustrates the location of the major components for the
MVH-306DS2 Reversible Plate Compactor.The function of each
component is described below:
1. Hand Grip – When operating the compactor use this hand
grip to maneuver the compactor.
2. Forward & Reverse Lever –
Push the lever forward, the
compactor will move in a forward direction,
pull the lever
backwards, the compactor will move in backwards direction.
Placing the lever in the middle (midway) will cause the
compactor not to move (neutral).
3. Handle Bar – When operating the compactor, this handle
is to be in the downward position. When the compactor is
to be
stored , move the handle bar to the upright position.
4. Guard Hook - Used to lift the machine with crane or other
lifting device.
5. Stopper - Locks the handle in place in the upward position
for stowing.
6. Engine – This plate compactor uses a YANMAR L-70V6
diesel engine. Refer to the owner’s manual for engine
information and related topics.
7. Battery (Option) - This unit uses a 12-volt battery. See
maintenance of this manual for proper care of battery.
8. Belt Cover – Remove this cover to gain access to the V-
belts. NEVER run the compactor without the V-belt cover. If
the V-belt cover is not installed, the possibility exist that
your hand may get caught between the V-belt and clutch,
thus causing serious injury and bodily harm.
9. Base Plate – Designed to compact sand, clay, and asphalt.
10. Oil Reservoir – Fill with Shell Tellus Oil 46 or equivalent
grade hydraulic oil.
11. Vibration Case – Encloses the eccentric, gears and
counter weights.
12. Hydraulic Cylinder – Activated by moving the travel lever.
The cylinder controls the direction of movement by the plate
compactor.
13. Shock Absorber – Protects plate compactor from damage
by absorbing vibration during operation.
14. Throttle Lever – Controls speed of the plate compactor.
Place straight vertically to start, push fully counterclockwise
for full throttle and fully clockwise to stop plate compactor.
14. Ignition Switch (Option) – Provided for electric start
models only

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 15
ENGINE COMPONENTS
Figure 5 illustrates the location of the major lever components of
the engine. Each component is described below:
1. Fuel Filler Cap – Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tighten securely.
DO NOT over fill.
2. Fuel Tank – Capacity is 3.5 quarts (3.31 liters) of diesel
fuel.
3. Air Cleaner – Prevents dirt and other debris from entering
the fuel system. Remove wing-nut on top of air filter
cannister to gain access to filter element.
4. Muffler – Used to reduce noise and emissions.
5. Recoil Starting Handle (pull rope) – Type of engine
starting method. Alternate type would be electric start
(ignition key).
MVH-306DS2— ENGINE COMPONENTS
Figure 5. MVH-306DS2 Engine Components
6. Recoil Starter– Manual-starting method. Pull the starter
grip until resistance is felt, then pull briskly and smoothly.
7. Oil Filler Cap / Dipstick – Remove this cap to add oil to the
engine crankcase. Read dipstick to determine if oil level is
low. DO NOT over fill.
8. Oil Drain Plug – Unscrew plug to drain oil from engine
crankcase. Dispose of oil in a safe manner.
9. Decompression Lever– Press down before starting
engine.To prevent damage to engine, DO NOT use for any
other purpose.
10. Fuel Cock– Controls the flow of diesel fuel to the carburetor.
Must be in the ON position when starting and running the
engine.

PAGE 16 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
MVH-306DS2 — PRE-INSPECTION
Checking Engine Oil Level
1. To check the engine oil level, place the compactor on secure
level ground with the engine stopped.
2. Remove the dipstick from the engine oil filler hole (Figure 6)
and wipe it clean.
3. Insert and remove the dipstick without screwing it into the
filler neck. Check the oil level shown on the dipstick.
NEVER operate the compactor in a confined
area or enclosed area structure that does not
provide ample
free flow of air .
ALWAYS wear approved eye and hearing
protection before operating the compactor.
Before Starting
1. Read safety instructions at the beginning
of manual.
2. Familiarize yourself with the operating
and control elements of the machine
and the working environment. This includes obstacles in
the working area, bearing capacity of the ground and the
necessary safety provisions.
3. Check the air filter for dirt and dust. If air filter is dirty, replace
air filter with a new one as required.
4. Check fastening nuts and bolts for tightness. Loose threads
may cause damage to the machine when vibrating.
5.Understand the geographical features and regulations of
the job site.
6. Clean the compactor, removing dirt and dust. Particularly,
the bottom of the plate, engine cooling air inlet.
Figure 6. Engine Oil Dipstick Removal
4. If the oil level is low (Figure 7), fill to the edge of the oil filler
hole with the recommended oil type (Table 4).Maximum oil
capacity is 1.16 quarts (1.10 liters).
epyTliO.4elbaT
nosaeS erutarepmeT epyTliO
remmuS rehgiHroC°52 03-W01EAS
llaF/gnirpS C°01~C°52 02/03-W01EAS
retniW rewoLroC°0 01-W01EAS
Checking the Hydraulic Oil Level
1. To check the engine oil level, place the compactor on secure
level ground with the engine stopped.
2. Remove the hydraulic oil breather cap located at the top of the
hydraulic oil tank (Figure 8).
3. Using a 24 mm wrench, remove the hydraulic oil filler plug.
3. Visually inspect to determine if hydraulic oil level is low. If oil
level is low add Shell Tellus 46 hydraulic oil or equivalent
through the hand pump oil filler port.
Figure 8. Hydraulic Oil Filler Plug Removal
CAUTION
Figure 7. Engine Oil Level

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 17
Checking The Fuel
1. Remove the fuel cap located on top of fuel tank.
2. Visually inspect to see if fuel level is low. If fuel is low, replenish
with diesel fuel (Figure 12).
3. When refueling, be sure to use a strainer for filtration. DO NOT
top-off fuel. Wipe up any spilled fuel.
Figure 12. Refueling
Fuel spillage on a hot engine can cause a fire or explosion .
If fuel spillage occurs, wipe up the spilled fuel completely to
prevent fire hazards. NEVER! smoke around or near the
compactor.
Explosive Fuel
Diesel fuel is highly flammable and can be dangerous if
mishandled. DO NOT smoke while refueling. DO NOT attempt
to refuel the compactor if the engine is
hot! or running .
DANGER
MVH-306DS2 — PRE-INSPECTION
4. When adding hydraulic oil, only fill to the specified oil level as
marked on the front of the hydraulic oil tank (Figure 9). DO
NOT overfill
Checking the Air Cleaner
1. To check the engine oil level, place the compactor on secure
level ground with the engine stopped.
2. Loosen the wing nut (Figure 10), remove the air cleaner
cover.
3. Remove the air cleaner element (Figure 11) and inspect it
for signs of wear or dirt. If air cleaner element is dirty, clean
or replace element.
Figure 11. Air Cleaner Element
Figure 9. Oil Tank (Front View)
Figure 10. Air Cleaner Element
DANGER
DO NOT overfill hydraulic oil tank. This could cause oil leaks
and sluggish operation. Clean cap and surrounding area before
opening to prevent dirt from entering oil tank.
CAUTION

PAGE 18 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
Adjusting Handle Height
The height of the handle is adjustable for your comfort .
1. Loosen the butterfly screw (Figure 14).
2. Turn the grip clockwise to raise the handle or counterclock-
wise to lower the handle.
3. When the handle is raised to the desired height, tighten the
butterfly screw.
MVH-306DS2 — OPERATION
Figure 14. Handle Adjustment
2. Place the throttle lever (Figure 16) in the START position
(center). Place the
travel lever in the neutral position
(center)
Figure 15. Open Fuel Cock
Figure 16. Travel/Throttle Lever (Start Positions)
STARTING THE ENGINE
Electric Start (Option)
1. Open the fuel cock (Figure 15).
3. Insert the ignition key into the ignition switch and turn it to
the RUN position (Figure 17).The buzzer should sound at
this time.
4. Turn the ignition key further to the right to the START
position to start the engine. Buzzer stops sounding and the
engine starts.
DO NOT attempt to operate the compactor
until the Safety, General Information and
Inspection sections of this manual have
been
read and thoroughly understood .
This section is intended to assist the
operator with the
initial start-up of the
compactor. It is extremely important that this section be read
carefully before attempting to use the compactor in the field.
Refer to Figure 3 for the location of controls and components.
Releasing the Handle
1. Pull the handle release pin, (Figure 13) then push down on
the hand grip to release the handle.
Figure 13. Handle Release Pin
CAUTION

MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06) — PAGE 19
While the engine is running, never try to turn the ignition key to
the START position.
6. After starting the engine, continue to warm up the engine
for about 3 to 10 seconds especially in cold weather.
7. If the buzzer does not stop sounding after the engine has
started, shutdown engine immediately and check engine
oil level. The buzzer functions as a engine oil level alarm
warning device.
Figure 17. Starter Switch (Option)
Recoil Start
1. Open the fuel cock (Figure 15).
2. Move the throttle lever to the START position (Figure 16).
3. Grasp the starter grip (Figure 18) and slowly pull it out.The
resistance becomes the hardest at a certain position,
corresponding to the compression point. Pull the starter
grip briskly and smoothly for starting.
Figure 18. Engine Start Handle
4. Push down decompression lever (Figure 19) and
release.
When starting a unit with an electric
start capability, a decompressor is not
normally required. However, when
ambient temperature or battery
charger level is low, use of a
decompressor will help make the
start-up easier.
NOTE
TRAVELING
Figure 19. Decompression Lever
5. If the engine does not start, repeat steps 4 and 5.
Make sure to follow all safety rules referenced in the safety section
of this manual before operating compactor. Keep work area
clear of debris and other objects that could cause damage to the
compactor or bodily harm.
Figure 20. Throttle Lever (Fast)
1. Grasp the compactor's hand grip (Figure 20), and move the
engine throttle lever (Figure 20) quickly to the
fast position.
2. With the throttle lever in the fast position, the engine speed
should be around 3,600 RPM, therefore engaging the cen-
trifugal clutch
CAUTION
CAUTION
5. If the engine fails to start, DO NOT continue to rotate the
ignition key for more than 5 seconds. Return the key to the
RUN position and wait 10 seconds before starting again
MVH-306DS2 — OPERATION

PAGE 20 — MVH-306DS2 PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (06/07/06)
STOWING THE HANDLE
1. Push up the handle upward (Figure 24) until the handle locks
in place.
Figure 24. Stowing the Handle
Normal Shutdown
1. Return the throttle lever to the START position (Figure 16).
Allow the machine to cool down for 2 to 3 minutes.
2. Place the travel lever in the NEUTRAL position.
3. Place the throttle lever in the STOP position (Figure 22) to stop
the engine. If using an electric start unit, return the key switch to
the STOP position (Figure 23) as soon as the engine stops.
4. Close the fuel cock (Figure 15).
Figure 22. Throttle Lever (Stop)
Figure 23. Starter Switch (STOP)
Emergency Shutdown
1. For a recoil start type engine, move the throttle lever quickly
to the
STOP position.
2. For a electric start type engine, place the engine
IGNITION
switch in the OFF position.
MVH-306DS2—OPERATION
NOTE
ALWAYS move the throttle lever
quickly without hesitation, because
increasing the engine speed
slowly causes the clutch to slip.
Figure 21. Travel Lever
3. To make the compactor move in the forward direction push
the travel lever ( Figure 21) forward.
4. To make the compactor move in the reverse direction pull the
travel lever ( Figure 21) backwards.
5. Firmly gasp the compactor's hand grip, the compactor will
begin moving in the desired position when the direction lever
has been placed in the desired position.
6. Slowly walk behind the compactor and be on the lookout for
any large objects or foreign matter that might cause damage
to the compactor or bodily injury.
7. If travel lever is placed in the neutral position, the machine will
vibrate in place.
8. To move the compactor laterally, hold the hand grip firmly and
swing compactor. DO NOT swing compactor while gripping
the travel lever.
