MULTIQUIP Mikasa Series Guide

OPERATION AND PARTS MANUAL
Revision #0 (05/11/06)
SERIES
MODEL MVC-64E/EW
PLATE COMPACTOR
(ROBIN GASOLINE ENGINE)
THIS MANUAL MUST ACCOMPANYTHE EQUIPMENT AT ALLTIMES.
To find the latest revision of this
publication, visit our website at:
www.multiquip.com

l
PAGE 2 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)

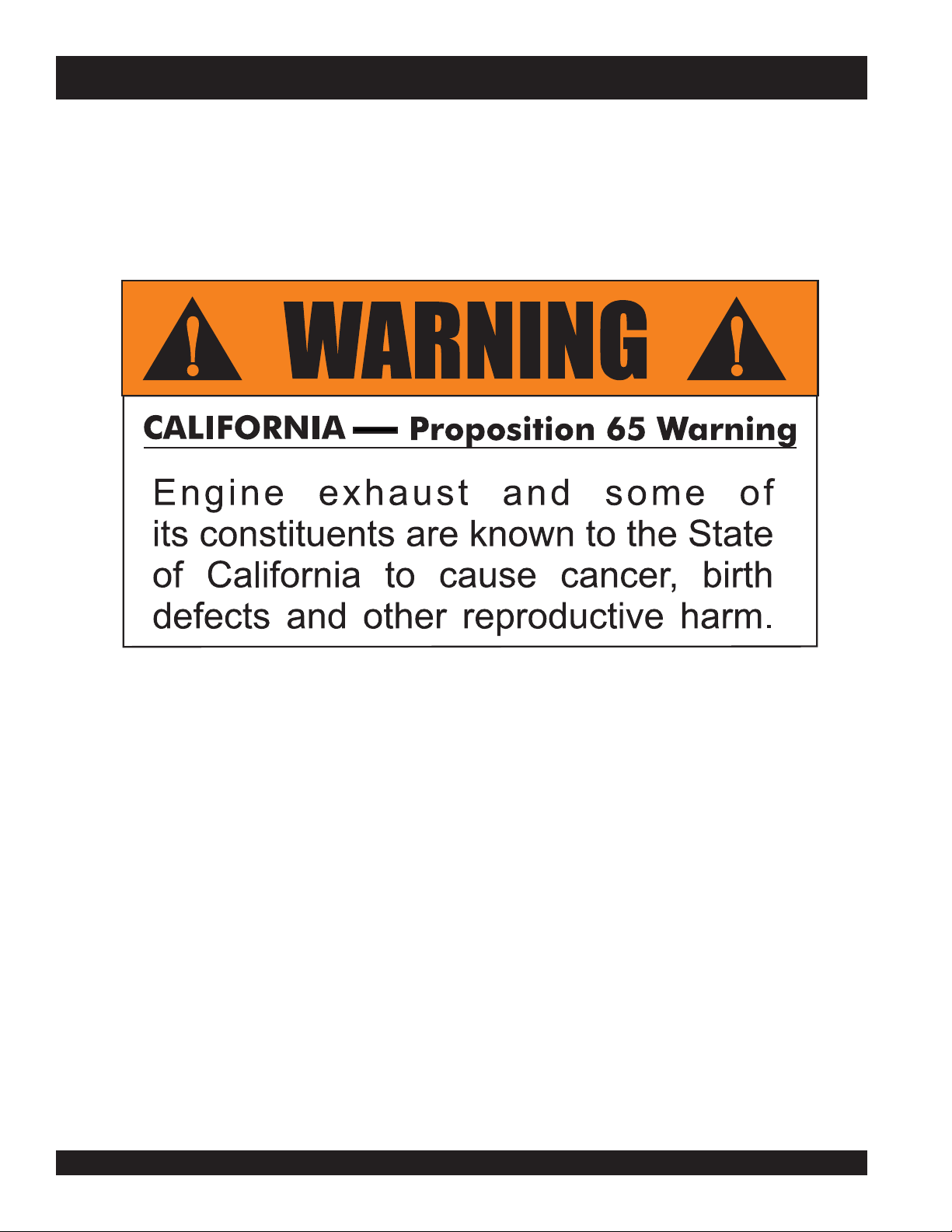

MVC-64E/EW — PROPOSITION 65 WARNING

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 3
NOTE PAGE

l
PAGE 4 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
MVC-64E/EW — TABLE OF CONTENTS
ROBIN EX130D40040
Engine (EPA)
Air Cleaner Assembly.........................................38-39
Camshaft Assembly ...........................................40-41
Carburetor Assembly .........................................42-43
Crankcase Assembly .........................................44-45
Crankshaft and Piston Assembly .......................46-47
Cylinder Head Assembly ....................................48-49
Fuel Tank Assembly ........................................... 50-51
Governor Assembly ........................................... 52-53
Ignition Coil and Flywheel Assembly ................54-55
Muffler Assembly ............................................... 56-57
Recoil Starter Assembly.....................................58-59
Terms and Conditions Of Sale — Parts .................. 60
Specifications and part
numbers are subject to
change without notice.
NOTE
Multiquip MVC-64E/EW
Plate Compactor
Proposition 65 Warning ............................................. 2
Table Of Contents ..................................................... 4
Parts Ordering Procedures ....................................... 5
Specifications ............................................................ 6
Dimensions ............................................................... 7
Safety Message Alert Symbols .............................. 8-9
Rules For Safe Operation.....................................10-11
Operation and Safety Decals .................................. 12
General Information ................................................ 13
Components (Plate Compactor) ............................. 14

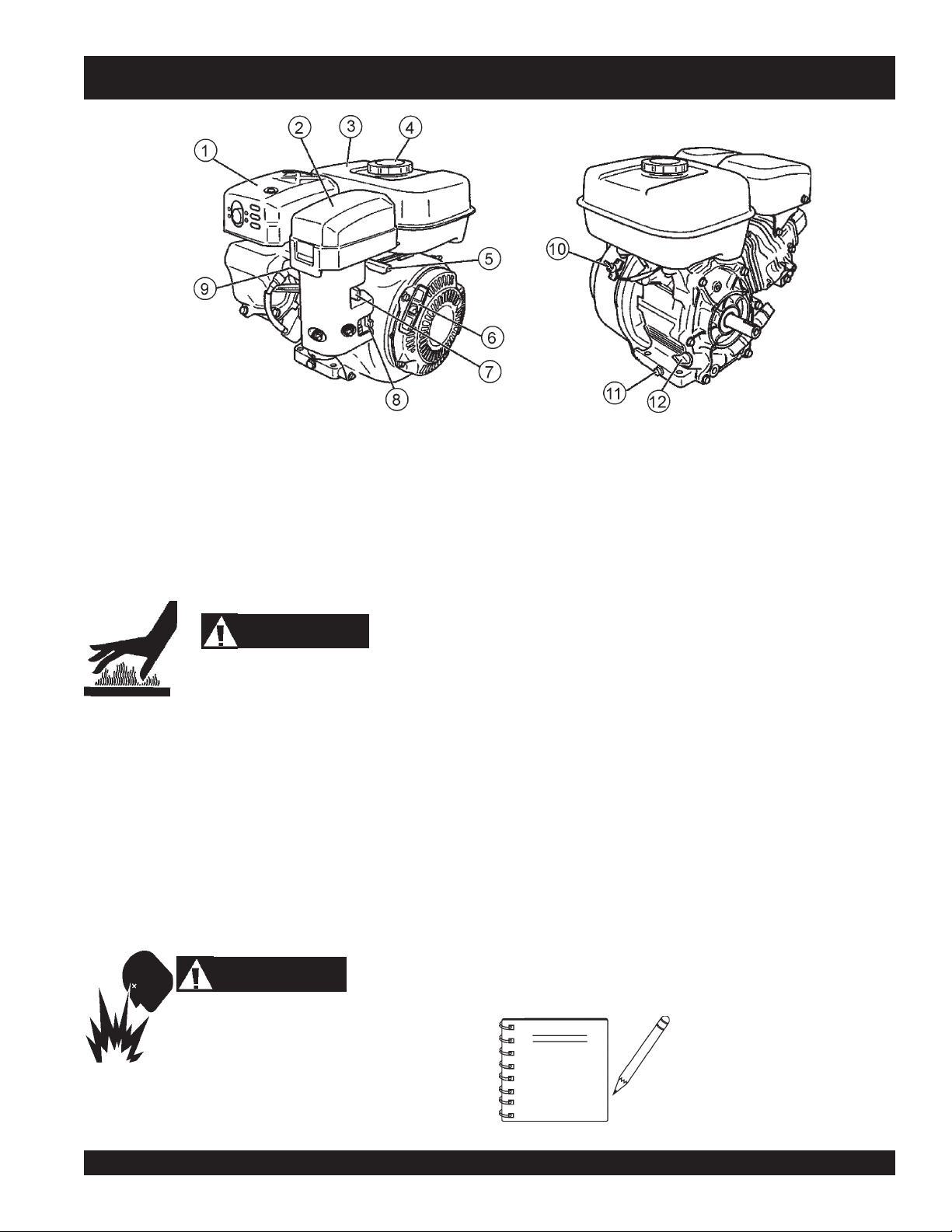

Components (Engine) ............................................. 15
Inspection ........................................................... 16-17

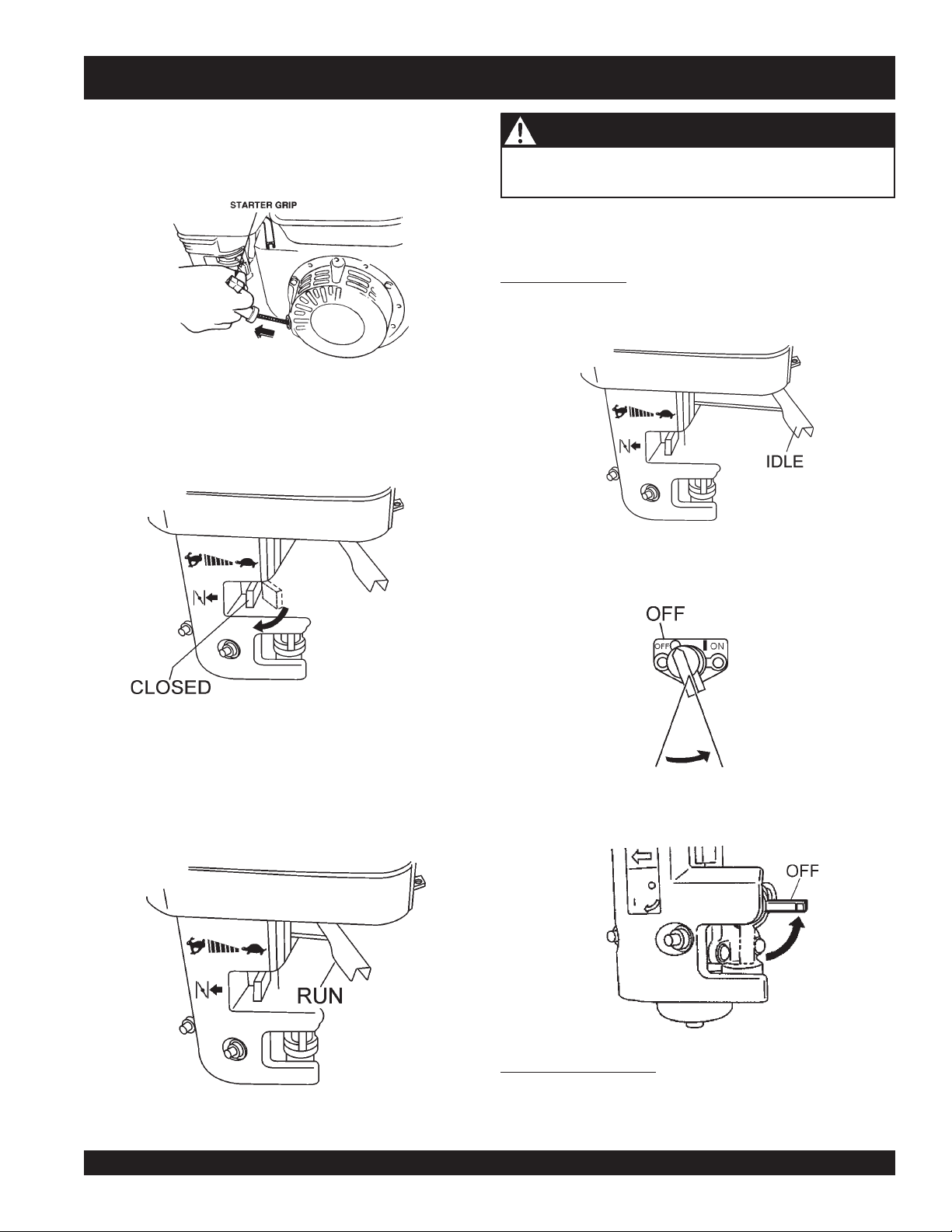

Initial Start-Up .................................................... 18-19
Operation ................................................................ 20
Maintenance ...................................................... 21-22
Preparation For Long Term Storage ....................... 23
Troubleshooting (Engine) ................................... 24-25
Troubleshooting (Plate Compactor) ........................ 26
Explanation Of Codes In Remarks Column ............ 28
Suggested Spare Parts ........................................... 29
Component Drawings
Name Plate and Decals ..................................... 30-31
Main Body Assembly .......................................... 32-33
Vibrator Assembly .............................................. 34-35
Water Tank ......................................................... 36-37

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 5
PARTS ORDERING PROCEDURES
www.multiquip.com
Ordering parts has never been easier!
Choose from three easy options:
WE ACCEPT ALL MAJOR CREDIT CARDS!
When ordering parts, please supply:
❒❒
❒❒
❒ Dealer Account Number
❒❒
❒❒
❒ Dealer Name and Address
❒❒
❒❒
❒ Shipping Address (if different than billing address)
❒❒
❒❒
❒ Return Fax Number
❒❒
❒❒
❒ Applicable Model Number
❒❒
❒❒
❒ Quantity, Part Number and Description of Each Part
❒❒
❒❒
❒ Specify Preferred Method of Shipment:
✓ Fed Ex/UPS ✓DHL
■ Priority One ✓ Tr uck
■ Ground
■Next Day
■ Second/Third Day
Unless otherwise indicated by customer, all orders are treated as Standard Orders and will ship
within24 hours.Wewillmake every efforttoship AirShipments the same daytheorder is received,
if received prior to 2PM PST. Stock Orders must be noted on fax or web order form.
If you have an MQ Account, to obtain a
Username and Password, E-mail us at:
[email protected].
To obtain an MQ Account, contact your
District Sales Manager for more information.
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specification Information
Note: Discounts Are Subject To Change
Go to www.multiquip.com and click on
Order Parts to log in and save!
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Fax your order in and qualify for a 3% Discount
on
Standard orders for all orders which include
complete part numbers.*
Order via Phone: Domestic (US) Dealers Call:
1-800-427-1244
Best Deal!
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
Note: Discounts Are Subject To Change
NOTE
Effective: June 1st, 2005

l
PAGE 6 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
MVC-64E/EW— SPECIFICATIONS
ELBATSNOITACIFICEPSROTCAPMOC.1
ledoMWE/E46-CVM
ecroFlagufirtneC)gk230,1(.sbl572,2
ycneuqerFnoitarbiV)zH39(mpv006,5
deepSdrawroFmumixaM)nim/
m52(nim/tf28
)WxL(eziSetalP )mm053x145(ni8.31x3.12
)HxWxL(snoisnemiDllarevO )mm688x053x978(ni9.43x8.31x6.
43
)knatretawhtiw(thgieWgnitarepO)gk57(.sbl561
)knatretawtuohtiw(thgieWgnitarepO)gk56(.sbl341
noitcapmoCfo
aerAmumixaM )rh/m.qs625(rh/tf.qs856,5
SNOITACIFICEPSENIGNE.2elbaT
enignE
ledoM04004D031XENIBOR
epyT
elgniS,ekorts4delooc-riA
daehrevO,rednilyC
enignEenilosaGtfahsmaC
tnemecal
psiD.cc621
tuptuOxaM.M.P.R000,4/.P.H3.4
tuptuOsuounitnoC.M.P.R006,3/.P.H0.3
yticapaCknaTleuF snollag.S.U17..
xorppA
)sretil7.2(
leuF elibomotuAdedaelnU
enilosaG
yticapaCliOebuL)sretil6.0(.stq436.
gulPkrapS SH6-RBKGN
)C6
8LRnoipmahC(
noisnemiD
)HxWxL(
.ni5.21x4.31x96.11
)mm813x143x792(
yrD
thgieWteN ).gK41(.sbl13

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 7
MVC-64E/EW— DIMENSIONS
SNOISNEMID.3ELBAT
RETTELECNEREFER NOITPIRCSED )mm(.nINOISNEMID
A)thgirpUeldnaH(thgieH )mm419(.nI63
BhtdiW )mm033(.nI31
C)thgirpUeldnaH(htgneL )mm536(.nI52
DhtgneLetalP )mm335(.nI12
E)derewoLeldnaH(htgneL )mm419(.nI63
F)ylnOrotcapmoC(thgieH )mm536(.nI52
snoisnemiDgnippihS .nI82x51x72
)117x183x686(

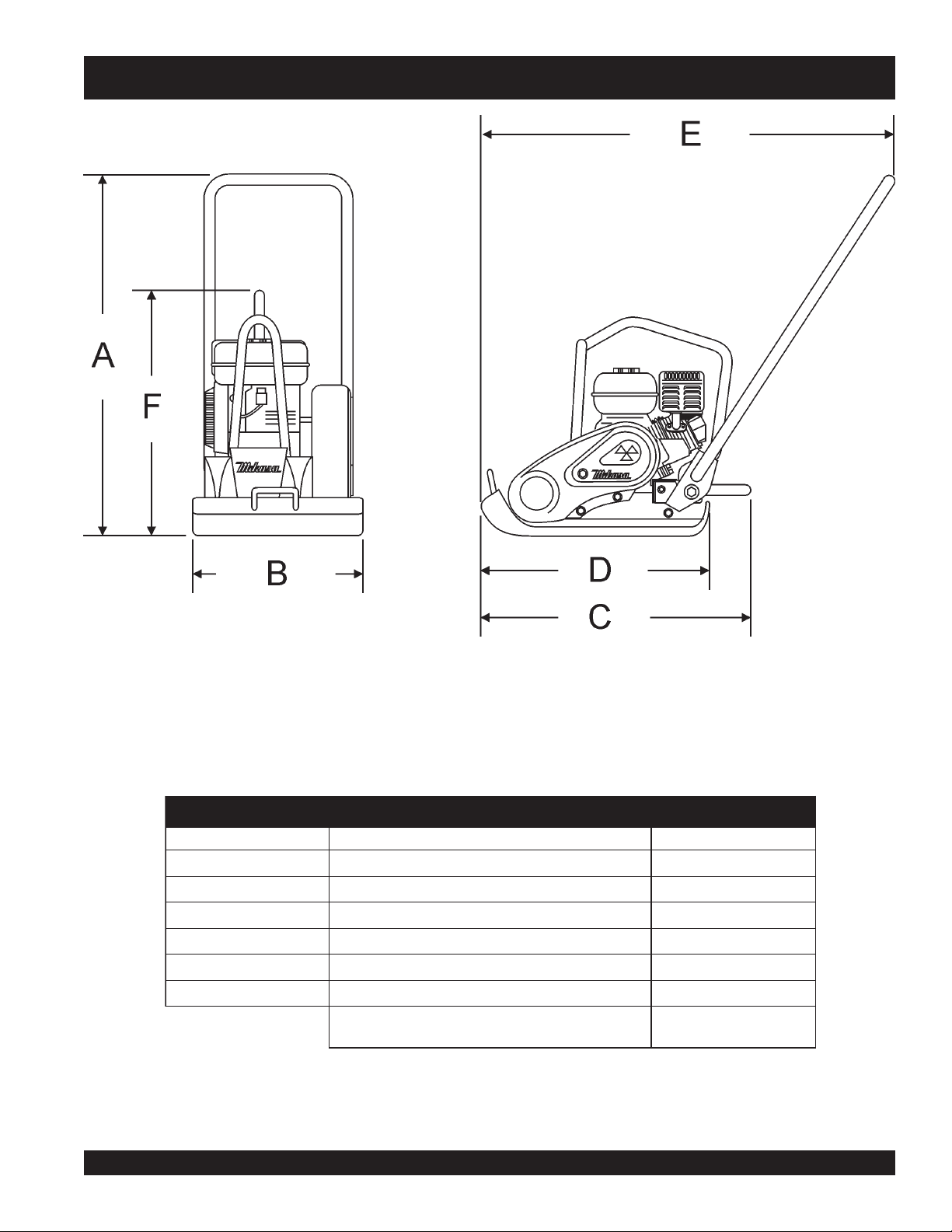

Figure 1. MVC-64E/EW Plate Compactor Dimensions

l
PAGE 8 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
Lethal Exhaust Gases
MVC-64E/EW— SAFETY MESSAGE ALERT SYMBOLS
Lethal Exhaust Gases
This Owner's Manual has been
developed to provide complete
instructions for the safe and
efficient operation of the
Multiquip Plate Compactor
MVC-64E/EW. Refer to the
engine manufacturer's instructions for data relative to its
safe operation.
Before using this plate compactor,ensure that the
operating individual has read and understands all
instructions in this manual.
HAZARD SYMBOLS
NOTE
Safety precautions should be followed
at all times when operating this
equipment. Failure to read and
understand the Safety Messages and
Operating Instructions could result in
injury to yourself and others.
FOR YOUR SAFETY AND THE SAFETY OF OTHERS!
SAFETY MESSAGE ALERT SYMBOLS
The three (3) Safety Messages shown below will inform you
about potential hazards that could injure you or others. The
Safety Messages specifically address the level of exposure
to the operator, and are preceded by one of three words:
DANGER, WARNING, or CAUTION.
You WILL be KILLED or SERIOUSLY injured if you DO
NOT follow directions.
You CAN be KILLED or SERIOUSLY injured if you DO
NOT follow directions.
You CAN be INJURED if you DO NOT follow directions.
DANGER
WARNING
CAUTION
Potential hazards associated with the operation of an
MVC-64E/EW Plate Compactor will be referenced with
Hazard Symbols which appear throughout this manual, and
will be referenced in conjunction with Safety Message Alert
Symbols.
Engine exhaust gases contain
poisonous carbon monoxide. This gas
is colorless and odorless, and can
cause death if inhaled. NEVER operate
this equipment in a confined area or
enclosed structure that does not provide
ample free flow air.
WARNING - Lethal Exhaust Gasses
Gasoline is extremely flammable, and its
vapors can cause an explosion if ignited.
DO NOT start the engine near spilled fuel
or combustible fluids.
DO NOT fill the fuel tank while the engine is running or
hot. DO NOT overfill tank, since spilled fuel could ignite if
it comes into contact with hot engine parts or sparks from
the ignition system. Store fuel in approved containers, in
well-ventilated areas and away from sparks and flames.
WARNING - Explosive Fuel
Engine components can generate extreme
heat. To prevent burns, DO NOT touch
these areas while the engine is running or
immediately after operations. Never
operate the engine with heat shields or heat
guards removed.
WARNING - Burn Hazards
ALWAYS wear approved respiratory
protection when required.
CAUTION - Respiratory Hazard

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 9
MVC-64E/EW— SAFETY MESSAGE ALERT SYMBOLS
This plate compactor, other
property, or the surrounding
environment could be damaged
if you do not follow instructions.
NOTE
Other important messages are provided throughout this
manual to help prevent damage to your plate compactor,
other property, or the surrounding environment.
ALWAYS place the power source, circuit
breakers or ON/OFF switch in the OFF
position, when the compactor is not in
use.
ALWAYS wear approved eye and
hearing protection.
NEVER operate equipment with covers,
or guards removed. Keep fingers, hands,
hair and clothing away from all moving
parts to prevent injury.
CAUTION - Rotating Parts
CAUTION - Accidental Starting
CAUTION - Sight and Hearing Hazards
CAUTION - Equipment Damage Messages

l
PAGE 10 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
MVC-64E/EW — RULES FOR SAFE OPERATION
The following safety guidelines should always be used when
operating the MQ Mikasa Model MVC-64E/EW Plate
Compactor.
GENERAL SAFETY
■ DO NOT operate or service this equipment before reading
this entire manual.
■ This equipment should not be operated by persons under
18 years of age.
■ NEVER operate this equipment without proper protective
clothing, shatterproof glasses, steel-toed boots and other
protective devices required by the job.
■ High Temperatures – Allow the
engine to cool before adding fuel or
performing service and maintenance functions. Contact
with hot! components can cause serious burns.
■ The engine section of this mixer requires an adequate
free flow of cooling air. NEVER operate the compactor
in any enclosed or narrow
area where free flow of the
air is restricted. If the air
flow is restricted it will
cause serious damage to
the compactor or engine
and may cause injury to
people. Remember the
plate compactor's engine
gives off
DEADLY carbon monoxide gas.
■ NEVER operate this equipment under the
influence of drugs or alcohol .
■ NEVER touch the hot exhaust
manifold, muffler or cylinder. Allow
these parts to cool before servicing
engine or mixer.
■ NEVER operate this equipment when not
feeling well due to fatigue, illness or taking
medicine.
■ Topping-off to filler port is dangerous, as it tends to spill
fuel.
■ Maintain this equipment in a safe operating condition at
all times.
■ ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children.
■ NEVER operate the plate compactor in
an explosive atmosphere or near
combustible materials. An explosion or
fire could result causing severe bodily
harm or even death.
■ ALWAYS refuel in a well-ventilated area, away from sparks
and open flames.
■ ALWAYS use extreme caution when
working with flammable liquids. When
refueling, stop the engine and allow it to
cool. DO NOT smoke around or near the
machine. Fire or explosion could result
from fuel vapors, or if fuel is spilled on a
hot engine.
Failure to follow instructions in this
manual may lead to serious injury or
even death! This equipment is to be
operated by trained and qualified
personnel only! This equipment is for
industrial use only.
CAUTION - Read Manual!

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 11
MVC-64E/EW— RULES FOR SAFE OPERATION
TRANSPORTING
■ ALWAYS shutdown engine before transporting.
■ Tighten fuel tank cap securely and close fuel cock to
prevent fuel from spilling.
■ Drain fuel when transporting compactor over long
distances or bad roads.
MAINTENANCE
■ NEVER lubricate components or attempt service on a
running compactor.
■ ALWAYS allow the plate compactor a proper amount of
time to cool before servicing.
■ Keep the compactor in proper running condition.
■ Fix damage to the plate compactor immediately and
always replace broken parts.
■ Dispose of hazardous waste properly. Examples of
potentially hazardous waste are used motor oil, fuel and
fuel filters.
■ DO NOT use food or plastic containers to dispose of
hazardous waste.

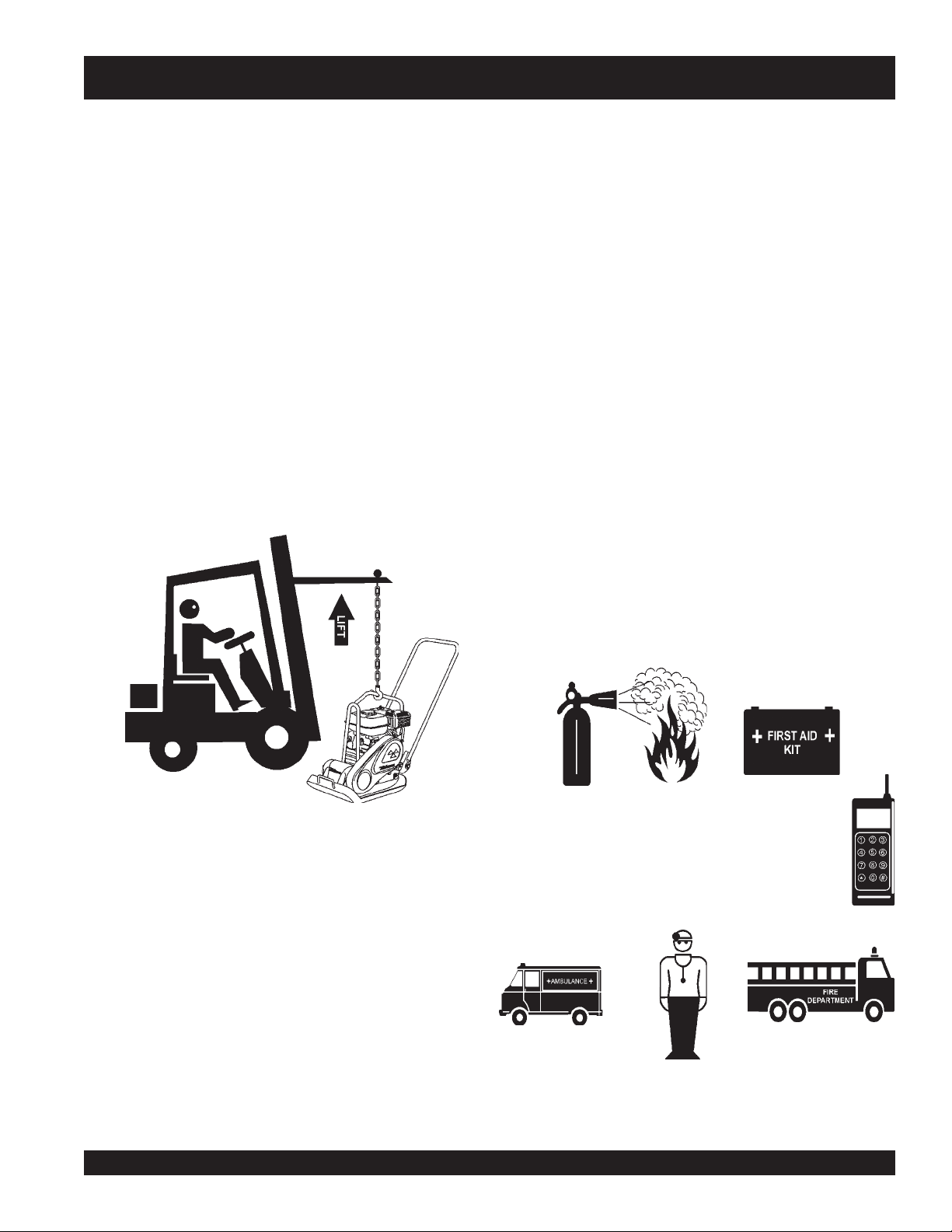

EMERGENCIES
■ ALWAYS know the location of the nearest fire
extinguisher and first aid kit.
■ In emergencies always know the location of the
nearest phone or keep a phone on the job site .
Also know the phone numbers of the nearest
ambulance , doctor and fire department . This
information will be invaluable in the case of an
emergency.
■ NEVER run engine without air filter. Severe engine damage
may occur.
■ ALWAYS service air cleaner frequently to prevent carburetor
malfunction.
■ ALWAYS be sure the operator is familiar with proper safety
precautions and operations techniques before using
compactor.
■ ALWAYS read, understand, and follow procedures in
Operator’s Manual before attempting to operate equipment.
■ Refer to the Robin Engine Owner's Manual for engine
technical questions or information.
Loading and Unloading (Crane)
■ Before lifting, make sure that machine parts (lifting bale and
vibration insulator) are not damaged and screws are not
loosened or lost.
■ ALWAYS make sure crane or lifting device has been properly
secured to the lifting bale on the compactor.
■ NEVER lift the compactor while the engine is running.
■ Use adequate lifting cable (wire or rope) of sufficient strength.
■ Use one point suspension hook and lift straight upwards.
■ NEVER allow any person or animal to stand underneath the
machine while lifting.
■ Try not to lift compactor to unnecessary heights.

l
PAGE 12 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
Machine Safety Decals
The MVC-64E/EW Plate Compactor is equipped with a number of safety decals.These decals are provided for operator safety and
maintenance information.The illustration below shows these decals as they appear on the machine. Should any of these decals
become unreadable, replacements can be obtained from your dealer.
MVC-64E/EW— OPERATION AND SAFETY DECALS
Figure 2. Operation and Safety Decals
"
"
"
"
READ OWNER’S SERVICE MANUAL BEFORE OPERATING OR
SERVICING THIS MACHINE.
ALWAYS KEEP UNAUTHORIZED, INEXPERIENCED,
UNTRAINED PEOPLE AWAY FROM THIS MACHINE.
MAKE SURE ALL SAFETY DEVICES ARE OPERATIONAL
BEFORE THIS MACHINE IS STARTED. BE SURE ENGINE
IS TURNED OFF AND SPARK PLUGS ARE DISCONNECTED
BEFORE SERVICING THE MACHINE OR COMING IN
CONTACT WITH ANY MOVING PART. IF EQUIPMENT IS
POWERED BY AN ELECTRIC MOTOR, DISCONNECT
ELECTRICAL PLUG.
NEVER LEAVE MACHINE UNATTENDED WHEN OPERATING.
ALWAYS STOP ENGINE AND ALLOW ENGINE TO COOL
BEFORE ADDING FUEL OR OIL.
CAUTION !
NPA-329 *
NPA-989 *
Serial No.
Model No.
CONTACT
PARTS DEPT.
P/N: 920203290
P/N 9202039890

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 13
MVC-64E/EW — GENERAL INFORMATION
Definition of Plate Compactor
The Mikasa MVC-64E/EW is a walk-behind, plate compactor
designed for the compaction of sand, mixed soils and asphalt.
This plate compactor is a powerful compacting tool capable of
applying a tremendous force in consecutive high frequency
vibrations to a soil surface. Its applications include compacting
for road, embankments and reservoirs as well as backfilling for
gas pipelines, water pipelines and cable installation work.
The MVC-64E/W is small and lightweight. It can be easily
handled by one person in confined areas. It has an accessible
front-mounted vibrator assembly. The sealed belt cover keeps
dirt and rocks away from the belt.
Vibratory Plate
The vibratory plate of the compactor produces low amplitude
high frequency vibrations, designed to compact granular soils
and asphalt.
The resulting vibrations cause forward motion.The engine and
handle are vibration isolated from the vibrating plate.
Frequency/Speed
The compactor's vibrating plate has a frequency of 5,600 vpm
(vibrations per minute). The travel speed of the compactor is
approximately 82 ft./minute (25 meters/minute).
Engine
The Mikasa MVC-64E/EW Plate Compactor is equipped with a
ROBIN EX130D40040 gasoline engine.
Controls
Before starting the MVC-64E/EW Plate Compactor identify and
understand the function of the controls and components as
indicated Figure 3.

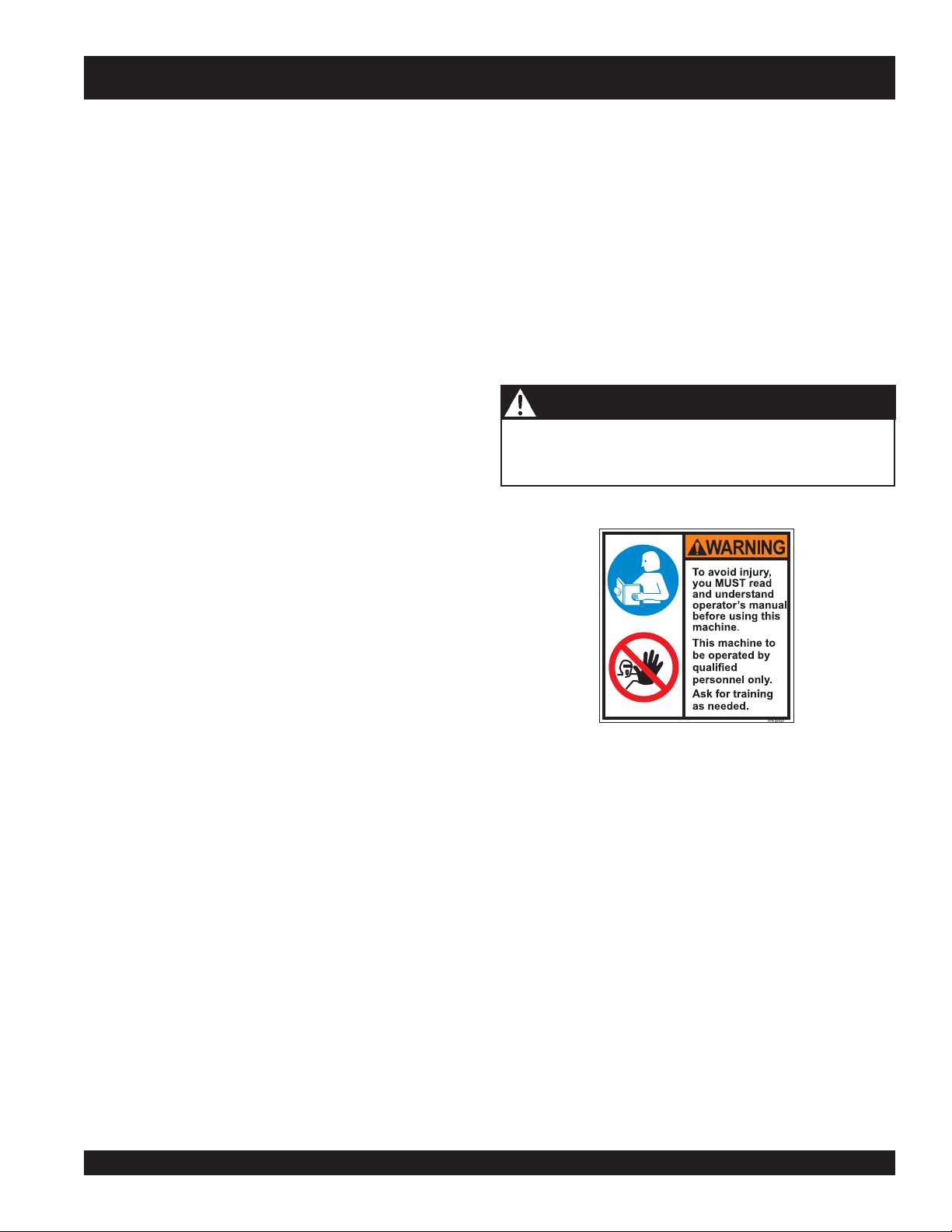

To avoid injuries and damage to the equipment, ALWAYS
read and understand contents of operation manual before
operating equipment.
WARNING

l
PAGE 14 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
MVC-64E/EW — COMPONENTS (PLATE COMPACTOR)
Figure 3. MVC-64E/EW Plate Compactor Components
Figure 3 shows the location of the components and general
maintenance parts. The function of each component is described
below:
1. Water Tank Cap (for MVC-64EW only) – Remove this
cap to add water to the water tank.
2. Fuel Tank Cap – Remove this cap to add fuel.
3. Lifting Bail – When lifting of the compactor is required
either by forklift, crane etc., tie rope or chain around this
lifting point.
4. Handle Bar – When operating the compactor use this
handle bar to maneuver the compactor.
5. Gasoline Engine – This plate compactor uses a ROBIN
EX130D40040 ROBIN engine. Refer to the ROBIN owner's
manual for engine information.
6. Belt Cover – Remove this cover to gain access to the V-
belts. NEVER run the compactor without the V-belt cover. If
the V-belt cover is not installed, the possibility exist that
your hand may get caught between the V-belt and clutch,
thus causing serious injury and bodily harm.
7. Vibrating Plate – A flat, open plate made of durable cast
iron construction used in the compacting of soil.
8. Vibration Case – Encloses the eccentric, gears and
counter weights.
9. Water Shut-Off Valve (for MVC-64EW only) – Turn this
valve downward to let water flow from the water tank to the
water tube.
10. Water Tank (for MVC-64EW only) – Holds 10.6 quarts
(10 liters) of water, removable no tools required.

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 15
MVC-64E/EW— COMPONENTS (ENGINE)
Figure 4. Engine Controls and Components
INITIAL SERVICING
The engine (Figure 4) must be checked for proper lubrication and
filled with fuel prior to operation. Refer to the ROBIN engine service
manual for instructions and details for proper operation and servicing.
1. Muffler – Used to reduce noise and emissions.
5. Throttle Lever – Used to adjust engine RPM speed (lever
advanced forward
SLOW , lever back toward operator
FAST ).
6. Recoil Starter (pull rope) – Manual-starting method. Pull
the starter grip until resistance is felt, then pull briskly and
smoothly.
7. Choke Lever – Used in the starting of a cold engine, or in
cold weather conditions. The choke enriches the fuel
mixture.
8. Fuel Valve Lever – OPEN to let fuel flow, CLOSE to stop
the flow of fuel.
9. Spark Plug – Provides spark to the ignition system. Set
spark plug gap to 0.6 - 0.7 mm (0.028 - 0.031 inch) Clean
spark plug once a week.
10. Engine ON/OFF Switch – ON position permits engine
starting, OFF position stops engine operations.
11. Oil Drain Plug – Remove this plug to drain engine oil from
the crankcase.
12. Oil Dipstick/ Filler Cap– Remove the filler cap dipstick
when checking the engine oil level. Add engine oil through
this filler port. See Table 5 for recommended type engine
oil.
DANGER
Adding fuel to the tank should be done only when
the engine is stopped and has had an opportunity to
cool down. In the event of a fuel spill, DO NOT attempt to start the
engine until the fuel residue has been completely wiped up, and the
area surrounding the engine is dry.
WARNING
Engine components can generate extreme heat.
To prevent burns, DO NOT touch these areas
while the engine is running or immediately after operating. NEVER
operate the engine with the muffler removed.
2. Air Cleaner – Prevents dirt and other debris from entering
the fuel system. Remove wing-nut on top of air filter
cannister to gain access to filter element.
3. Fuel Tank – Holds unleaded gasoline. For additional
information refer to ROBIN engine owner's manual.
4. Fuel Filler Cap – Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tightened
securely. DO NOT over fill.
Operating the engine without an air
filter, with a damaged air filter, or a
filter in need of replacement will
allow dirt to enter the engine,
causing rapid engine wear.
NOTE

l
PAGE 16 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
MVC-64E/EW — INSPECTION
Before Starting
1. Read safety instructions at the beginning of manual.
2. Clean the compactor, removing dirt and dust.Particularly, the
bottom of the plate, engine cooling air inlet, carburetor and
air cleaner.
3. Check the air filter for dirt and dust.If the air filter is dirty, blow
through the air filter cartridge from the inside, moving a jet of
dry compressed air up and down until all dust is removed.
Otherwise replace air filter with a new one.
4. Check carburetor for external dirt and dust. Clean with dry
compressed air.
5. Check fastening nuts and bolts for tightness. Loosened
screws or bolts due to vibration, could lead to unexpected
accident.
Engine Oil Check
1. To check the engine oil level, place the plate compactor on
secure level ground with the engine stopped.
2. Remove the filler cap/dipstick from the engine oil filler hole
(Figure 5) and wipe it clean.
Figure 5. Engine Oil Dipstick
3. Insert andremove the dipstick withoutscrewing it into thefiller
neck. Check the oil level shown on the dipstick.
4. If the oil level is low (Figure 6), fill to the edge of the oil filler
hole with the recommended oil type (Table 4).
Figure 6. Engine Oil Dipstick
The Oil Alert system will
automatically stop the engine
before the engine falls below safe
limits. Always be sure to check
the engine oil level prior to starting
the engine.
Gasoline Check
1. Remove the gasoline cap located on top of fuel tank.
2. Visually inspect to see if fuel level is low. If fuel is low, replenish
with unleaded fuel.
3. When refueling, be sure to use a strainer for filtration. DO
NOT top-off fuel. Wipe up any spilled fuel.
Vibrator Oil Check
1. Place the MVC-64E/W plate compactor horizontally on a flat
surface. Make sure the compactor is level when checking the
oil in the vibrator assembly.
2. Check vibratoroillevelbyremoving theplug (vibrator oilgauge)
as shown in Figure 7. The oil level should be up to the oil plug.
If oil is required, replace using only SAE 10W-30 motor oil.
UPPER LIMIT
LOWER LIMIT
epyTliO.4elbaT
nosaeS erutarepmeT epyTliO
remmuS rehgiHroC°52 03-W01EAS
llaF/gnirpS C°01~C°52 02/03-W01EAS
retniW rewoLroC°0 01-W01EAS
Figure 7.Vibrator Oil Plug
NOTE

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 17
2. The V-belt tension is proper if the V-belt bends 10 to 15 mm
(Figure 10) when depressed with finger at midway between
the clutch and vibration pulley shafts.
MVC-64E/EW — INSPECTION
CLUTCH
PULLEY
VIBRATOR
PULLEY
V-Belt Check
NEVER attempt to check theV-belt with the engine running.
Severe injury can occur of your hand (Figure 8) gets caught
between theV-belt and the clutch.Always use safety gloves.
Figure 8.V-Belt Hazard
1. To check theV-belt tension, remove the bolts that secure the
belt cover to the frame as shown in Figure 9.
Figure 9.V-Belt Cover Removal
3. A loose V-belt will decrease the power transmission output,
causing reduced compaction and premature wear of the
belt.
4. If the V-belt becomes worn or loose, replace it .
Figure 10.V-Belt Tension
CAUTION

l
PAGE 18 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)

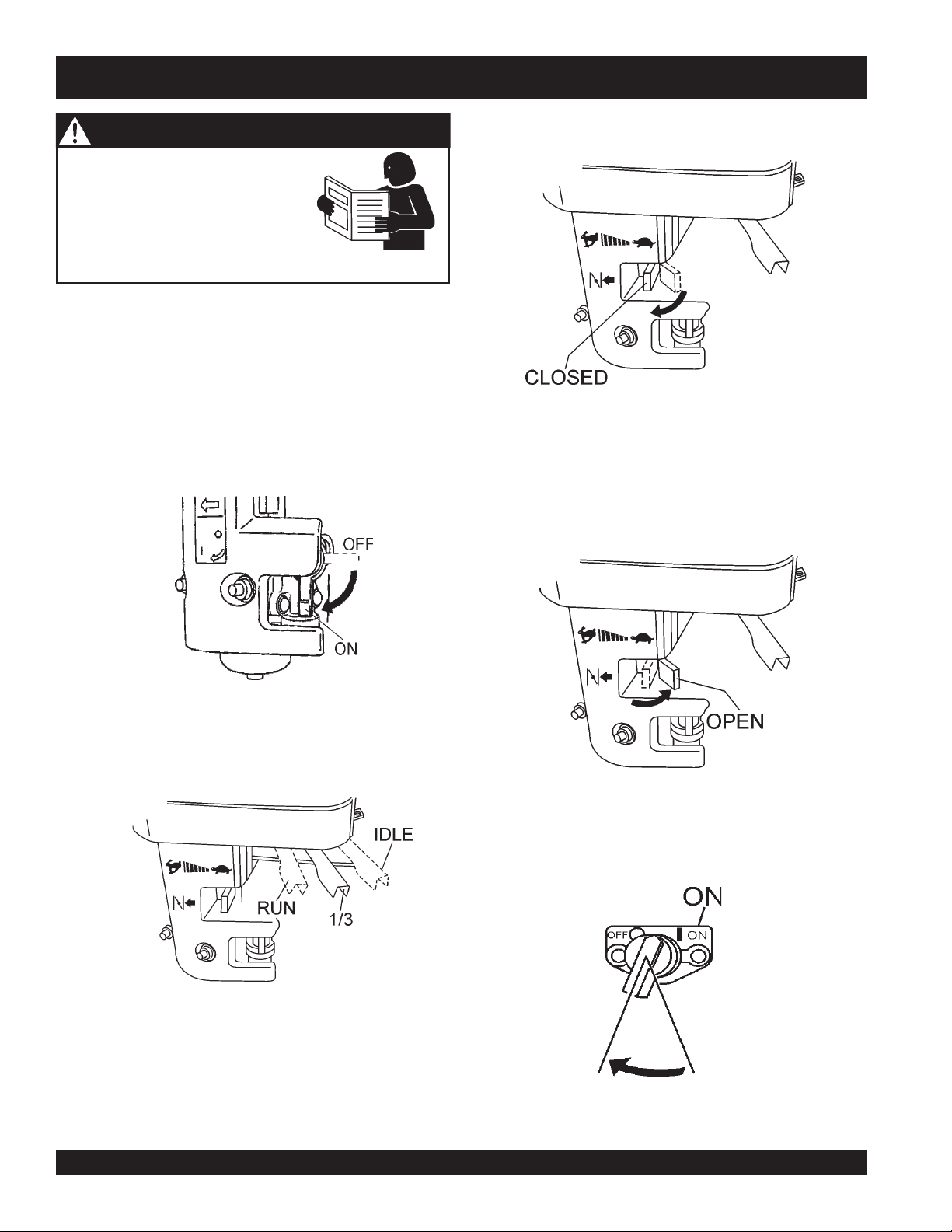

MVC-64E/EW — INITIAL START-UP
Starting the Engine
1. Place the engine
fuel valve lever (Figure 11) to the "ON"
position.
DO NOT attempt to operate the
equipment until the Safety, General
Information and Inspection sections of
this manual have been
read and
thoroughly understood
.
2. Move the
throttle lever (Figure 12) away from the slow
position, about 1/3 of the way toward the fast position.
Figure 11. Engine Fuel Valve Lever (ON Position)
Figure 12. Throttle Lever (1/3 Start Position)
3. Place the
choke lever (Figure 13) in the " CLOSED " position
if starting a
cold engine.
4. Place the
choke lever (Figure 14) in the " OPEN " position
if starting a
warm engine or the temperature is warm.
Figure 13. Engine Choke Lever (Closed)
Figure 14. Engine Choke Lever (Open)
5. Place the
engine ON/OFF switch (Figure 15) in the " ON "
position.
Figure 15. Engine ON/OFF Switch (ON Position)
This section is intended to assist the operator with the
initial
start-up
of the equipment. It is extremely important that this
section be read carefully before attempting to use the equipment
in the field.
CAUTION

MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06) — PAGE 19
MVC-64E/EW— INITIAL START-UP
6. Grasp the starter grip (Figure 16) and slowly pull it out.The
resistance becomes the hardest at a certain position, corre-
spondingto the compression point.Pull the starter gripbriskly
and smoothly for starting.
7. If the engine has started, slowly return the choke lever
(Figure 17) to the
“OPEN” position. If the engine has not
started repeat steps 1 through 6.
Figure 16. Starter Grip
8. Before the equipment is placed into operation, run the engine
for several minutes. Check for fuel leaks, and noises that
would associate with a lose component.
9. To begin operation, place the throttle lever (Figure 18) in the
"
RUN" position .
Figure 17. Choke Lever (Open)
Figure 18. Throttle Lever (Run)
Stopping The Engine
Normal Shutdown
1. Move the throttle lever to the IDLE position (Figure 19) and
run the engine for three minutes at low speed.
Figure 19.Throttle Lever (Idle)
2. After the engine
cools , turn the engine ON/OFF switch to the
“OFF” position (Figure 20).
3. Place the
fuel shut-off lever (Figure 21) in the OFF
position.
Figure 20. Engine ON/OFF Switch (OFF)
Figure 21. Fuel Valve Lever (OFF)
Emergency Shutdown
1. Move the throttle lever quickly to the IDLE position, and place
the engine ON/OFF switch in the
OFF position.
ALWAYS run engine at full speed while operating
equipment.
CAUTION

l
PAGE 20 — MVC-64E/EW PLATE COMPACTOR — OPERATION & PARTS MANUAL — REV. #0 (05/11/06)
MVC-64E/EW— OPERATION
Operation
1. Once the engine has started, move the engine throttle lever
quickly to the
fast position.
2. With the throttle lever in the fast position, the engine speed
should be around 2,300 RPM, therefore engaging the cen-
trifugal clutch.
Always move the throttle lever
quickly without hesitation, because
increasing the engine speed slowly
causes the clutch to slip.
3. Firmly gasp the compactor's handle bar with both hands , the
compactor will begin moving forward.
4. Slowly walk behind the compactor and be on the lookout for
any large objects or foreign matter that might cause damage
to the compactor or bodily injury.
Make sure to follow all safety rules referenced in the safety
section of this manual before operating compactor. Keep
work area clear of debris and other objects that could cause
damage to the compactor or bodily injury.
5. Compactor traveling speed may drop on soils which contain
clay, however there may be cases where traveling speed
drops because the compaction plate does not leave the
ground surface easily due to the composition of the soil.To
rectify this problem do the following:
z Check the bottom plate to see if clay or
equivalent material has been lodged in the plate
mechanism. If so, wash with water and remove.
z Remember the compactor does not work as
efficiently on clay or soils that have a high
moisture content level.
z If the soil has a high moisture level, dry soil to
appropriate moisture content level or carry out
compaction twice.
NOTE
CAUTION
