MUC-W9
CL04630 ~ CL04635
Universal Fancoil DC
Service manual
CL04640 ~ CL04645

1
1. Features .......................................................................................................................................2
2. External Appearance....................................................................................................................2
3. Standard with a variety of control functions .................................................................................2
4. Standard PCB compatible with more functions ...........................................................................2
5. Products Lineup............................................................................................................................3
6. Nomenclature ...............................................................................................................................3
7. Specifications ...............................................................................................................................4
8. Dimensions.................................................................................................................................13
9. Sound Levels..............................................................................................................................15
10. Service Spaces...........................................................................................................................52
11. Wiring Diagrams.........................................................................................................................53
12. Installation ..................................................................................................................................33
Content
Universal Fancoil DC MUC-W9 series

2
1. Features
Flexible for installation, designed for horizontal/vertical, concealed/cabinet application
Ceiling Installation
Floor Installation
Concealed Installation
High efficiency and low operating sound level
Due to the DC fan motor, the unit operates in lower power consumption and lower operating sound level.
Meet CE certification requirements
T
he unit can meet the lates
t CE certification requirements
for using DC f
an motor.
2. External Appearance
Cased Type (CE Series)
Uncased Type (SE Series)
3. Standard with a variety of control functions
Seven fan speed control
Seven Fan speed control function must used the new controller (KJRP-75A/BK-E) and only with W9 series
indoor unit.
KJRP-75A/BK-E (Code LC04630)
Centralized control and Modbus
The centralized control function can be connected through the network module whereas the Modbus can be
connected through the reserve port.
4. Standard PCB compatible with more functions
Forced fan running function
With/without forced fan on can be set by PCB switch, field adjustable.
Universal Fancoil DC MUC-W9 series

3
Hysteresis temperature setting
Hysteresis temperature can be set in heating and cooling mode by PCB switch, field adjustable.
0-10V wired control
Voltage output of controller
Fan speed
1
İ
voltage
˘
3
1
3
İ
voltage
˘
4
2
4İvoltage
˘
5
3
5
İ
voltage
˘
6
4
5
İ
voltage
˘
7
5
7
İ
voltage
˘
8
6
8
İ
voltage
˘
10
7
5. Products Lineup
Model Air volume
(CFM) External static pressure
Power supply
150
CE models: 0Pa.
SE models: 12Pa.
220~240V
-1Ph-
50Hz
250
350
500
700
800
6. Nomenclature
Universal Fancoil DC MUC-W9 series
MUC-05-W9/SE
MUC-05-W9/CE
MUC-08-W9/SE
MUC-08-W9/CE
MUC-11-W9/SE
MUC-11-W9/CE
MUC-16-W9/SE
MUC-16-W9/CE
MUC-19-W9/SE
MUC-19-W9/CE
MUC-24-W9/SE
MUC-24-W9/CE
SE: Uncased type
CE: Cased type
7: 7th series
9: 9th series
W: 2 pipes FCU DC fan motor
Rated capacity (kBTU)
P: Wall type
CS : Cassette type
C: Ceiling & floor type (universal)
CM: Medium pressure duct type
MUNDOCLIMA
MU - 24 - 9 / SEWC 9

4
7. Specifications
Universal Fancoil DC MUC-W9 series

Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
255/170/150
255/210/150
400/315/190
425/300/190
CFM
150/100/88 150/124/88
235/185/112
250/176/112
External static pressure
Pa 12
Cooling
Sensible Capacity(H/M/L)
kW
1.14/0.77/0.66
1.42/1.19/0.85
1.79/1.44/0.86
2.06/1.51/0.96
Capacity (H/M/L)
kW
1.50/1.06/0.92
1.95/1.66/1.21
2.35/1.94/1.19
2.85/2.13/1.41
Water flow rate
m
3
/h
0.26/0.18/0.16
0.33/0.28/0.21
0.40/0.34/0.21
0.49/0.37/
0.24
Water pressure drop
kPa
13.9/8.21/6.16
27.2/20.88/12.2
13.3/9.98/4.59
26/15.06/7.41
Heating
Capacity (H/M/L)
kW
1.57/1.07/0.92
2.05/1.75/1.25
2.60/2.11/1.34
2.95/2.15/1.42
Water flow rate
m
3
/h
0.27/0.19/0.16
0.35/0.30/0.22
0.45/0.37/0.23
0.51/0.3
7/0.24
Water pressure drop
kPa
15.1/7.63/5.84
25.3/19.65/10.25
14.3/10.33/4.5
24.4/13.65/6.64
Power input (H/M/L)
W 15/9/8 20/14/9 17/12/7 20/11/8
Rated current
A 0.18 0.21 0.20 0.22
Sound pressure level
(H/M/L)
dB(A) 34/24/21 39/33/25
29/24/
18 32/23/19
Sound power level
(H/M/L)
dB(A) 47/36/34 52/46/38 43/37/29 46/37/29
Fan motor
Type
Low noise DC fan motor
Quantity
1 1 1 1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
1 1 2 2
Coil
Row
3 4 3 4
Max. working pressure
MPa
1.6 1.6 1.6 1.6
Diameter
mm Φ7.94
Φ7.94
Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H
)
mm
455×200×637
455×200×637
455×200×867
455×200×867
Packing size (W×
D×H) mm
555×255×755
555×255×755
555×255×985
555×255×985
Net weight
kg 11.8 12.1 13.9 14.8
Gross weight
kg 16.1 16.4 19.4 20.3
Water inlet/outlet pipe
inch
G3/4 G3/4 G3/4 G3/4
Drain pipe
mm ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air temperature 27ćDB/19ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć
, Entering air temperature 20
ćDB/15ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level
is tested in a
semi-anechoic room.
6.
Test with conceal tooling.
MUC-05-W9/SE (none) MUC-08-W9/SE (none)

5
Universal Fancoil DC MUC-W9 series

Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
595/470/340
595/450/310
790/580/410
800/600/420
CFM
350/276/200
350/265/182
488/359/253
471/353/247
External
static pressure Pa 12
Cooling
Sensible Capacity(H/M/L)
kW
2.65/2.14/1.57
2.90/2.35/1.72
3.25/2.56/1.91
3.63/2.85/2.08
Capacity (H/M/L)
kW
3.50/2.89/2.22
3.90/3.20/2.43
4.30/3.48/2.71
4.85/3.92/2.93
Water flow rate
m
3
/h
0.60/0.50/0.38
0.67/0.55/0.42
0.
74/0.60/0.47
0.83/0.67/0.51
Water pressure drop
kPa
34.1/24.63/15.39
37.4/25.91/15.37
54.2/36.22/22.78
54.3/36.81/21.77
Heating
Capacity (H/M/L)
kW
3.80/3.10/2.35
4.00/3.22/
2.50
4.70/3.70/2.81
5.25/4.09/3.04
Water flow rate
m
3
/h
0.65/0.53/0.40
0.70/0.
56/
0.43
0.81/0.64/0.48
0.91/0.71/0.53
Water pressure drop
kPa
35.1/24.41/14.82
36.5/25.34/14.22
54.3/36.87/22.32
53.4/36.54/20.47
Power input (H/M/L)
W 26/17/10 29/17/11 50/25/14 52/28/15
Rated current
A 0.26 0.28 0.49 0.51
Sound pressure level
(H/M/L
) dB(A) 38/32/23 40/34/30
46/38/30
45/39/30
Sound power level
(H/M/L)
dB(A) 52/44/36 52/45/36 59/51
/43
59/51/43
Fan motor
Type
Low noise DC fan motor
Quantity
1 1
1
1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
2 2 2 2
Coil
Row
3 4 3 4
Max. working pressure
MPa
1.6 1.6 1.6 1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H
)
mm
455×200×1087
455×200×1087
455×200×1087
455×200×1087
Packing size (W×
D×H)
mm
555×255×1205
555×255×1205
555×255×1205
555×255×1205
Net weight
kg 17.3
18.2
17.3 18.2
Gross weight
kg 24.0 24.9 24.0 24.9
Water inlet/outlet pipe
inch
G3/4 G3/4 G3/4 G3/4
Drain pipe
mm
ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air temperature 27ćDB/19ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć
, Entering air temperature 20
ćDB/15ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level
is tested in a
semi-anechoic room.
6.
Test with conceal tooling.
MUC-11-W9/SE (none) MUC-16-W9/SE (none)

6
Universal Fancoil DC MUC-W9 series

Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
1190/855/505
1190/875/530
1360/1015/685
1300/980/680
CFM
700/503/297
700/515/312
800/597/403
765/576/400
External static pressure
Pa 12
Cooling
Sensible Capacity(H/M/L)
kW
4.62/3.60/2.43
4.98/3.98/2.68
5.87/4.74/3.45
6.12/4.82/3.42
Capacity (H/M/L)
kW
5.60/4.47/3.14
6.35/5.19/3.62
7.35/6.12/4.57
8.25/6.65/4.84
Water flow rate
m
3
/h
0.96/0.77/0.54
1.09/0
.90/0.63
1.27/1.05/0.79
1.43/1.14/0.83
Water pressure drop
kPa
50.7/33.38/17.73
32.8/21.75/11.43
44.1/33.7/19.41
71.4/46.17/25.39
Heating
Capacity (H/M/L)
kW
6.00/4.77/3.36
7.05/5.61/3.83
8.05/6.46/4.71
8.70/6.81/
4.85
Water flow rate
m
3
/h
1.04/0.83/0.
59
1.22/0.98/0.67
1.39/1.12/0.82
1.51/1.18/
0.83
Water pressure drop
kPa
55.5/37.66/19.27
37.6/25.47/12.5
46.9/31.9/18.16
62.6/41.06/21.68
Power input (H/M/L)
W 96/44/17 92/46/19 113/53/22 102/49/22
Rated current
A 0.85 0.79 0.95 0.87
Sound pressure level
(H/M/L)
dB(A) 50/42
/31
50/43/31 51/44/33 50/43/33
Sound power level
(H/M/L)
dB(A) 64/56
/45
62/56/46 63/58/49 63/57/47
Fan motor
Type
Low noise DC fan motor
Quantity
1 1 1 1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
3 3 3 3
Coil
Row
3 4 3 4
Max. working pressure
MPa
1.6 1.6 1.6 1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H
)
mm
455×200×1207
455×200×1207
550×200×1207
550×200×1207
Packing size (W×
D×H) mm
555×255×1325
555×255×1325
650×255×1325
650×255×1325
Net weight
kg 19.6 20.8 23.1 24.3
Gross weight
kg 26.4 27.6 30.2 31.4
Water inlet/outlet pipe
inch
G3/4
G3/4
G3/4 G3/4
Drain pipe
mm ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air temperature 27ć DB/19ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć, Entering air temperature 20ćDB/15ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level is tested in a semi-anechoic room.
6.
Test with conceal tooling.
MUC-19-W9/SE (none) MUC-24-W9/SE (none)

7
Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
255/170/150
255/210/150
400/315/190
425/300/190
CFM
150/100/88
150/124/88
235/185/112
250/176/112
External static pressure
Pa 0
Cooling
Sensible Capacity(H/M/L)
kW
1.14/0.77/0.66
1.42/1.19/0.85
1.79/1.44/0.86
2.06/1.51/0.96
Capacity (H/M/L)
kW
1.50/1.06/0.92
1.95/1.66/1.21
2.35/1.94/1.19
2.85/2.13/1.41
Water flow rate
m
3
/h
0.26/0.18/0.16
0.33/0.28/0.21
0.40/0.34/0.21
0.49/0.37/
0.24
Water pressure drop
kPa
13.9/8.21/6.16
27.2/20.88/12.2
13.3/9.98/4.59
26/15.06/7.41
Heating
Capacity (H/M/L)
kW
1.57/1.07/0.92
2.05/1.75/1.25
2.60/2.11/1.34
2.95/2.15/1.42
Water flow rate
m
3
/h
0.27/0.19/0.16
0.35/0.30/0.22
0.45/0.37/0.23
0.51/0.3
7/0.24
Water pressure drop
kPa
15.1/7.63/5.84
25.3/19.65/10.25
14.3/10.33/4.5
24.4/13.65/6.64
Power input (H/M/L)
W 15/9/8 20/14/9 17/12/7 20/11/8
Rated current
A 0.18 0.21 0.20 0.22
Sound pressure level
(H/M/L)
dB(A) 34/24/21 39/33/25 29/24/18 32/23/19
Sound power level
(H/M/L)
dB(A) 47/36/34 52/46/38 43/37/29 46/37/29
Fan motor
Type
Low noise DC fan motor
Quantity
1 1 1 1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
1
1
2 2
Coil
Row
3 4 3
4
Max. working pressure
MPa
1.6 1.6 1.6 1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H) mm
495×200×790
495×200×790
495×200×1020
495×200×1020
Packing size (W×
D×H) mm
595×300×895
595×300×895
595×300×1125
595×300×1125
Net weight
kg 18.0 18.5 21.5 22.0
Gross weight
kg 23.5 24.0 27.5 28.0
Water inlet/outlet pipe
inch
G3/4 G3/4 G3/4 G3/4
Drain pipe
mm ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air temperature 27ćDB/19ć WB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć, Entering air temperature 20ćDB/15ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.

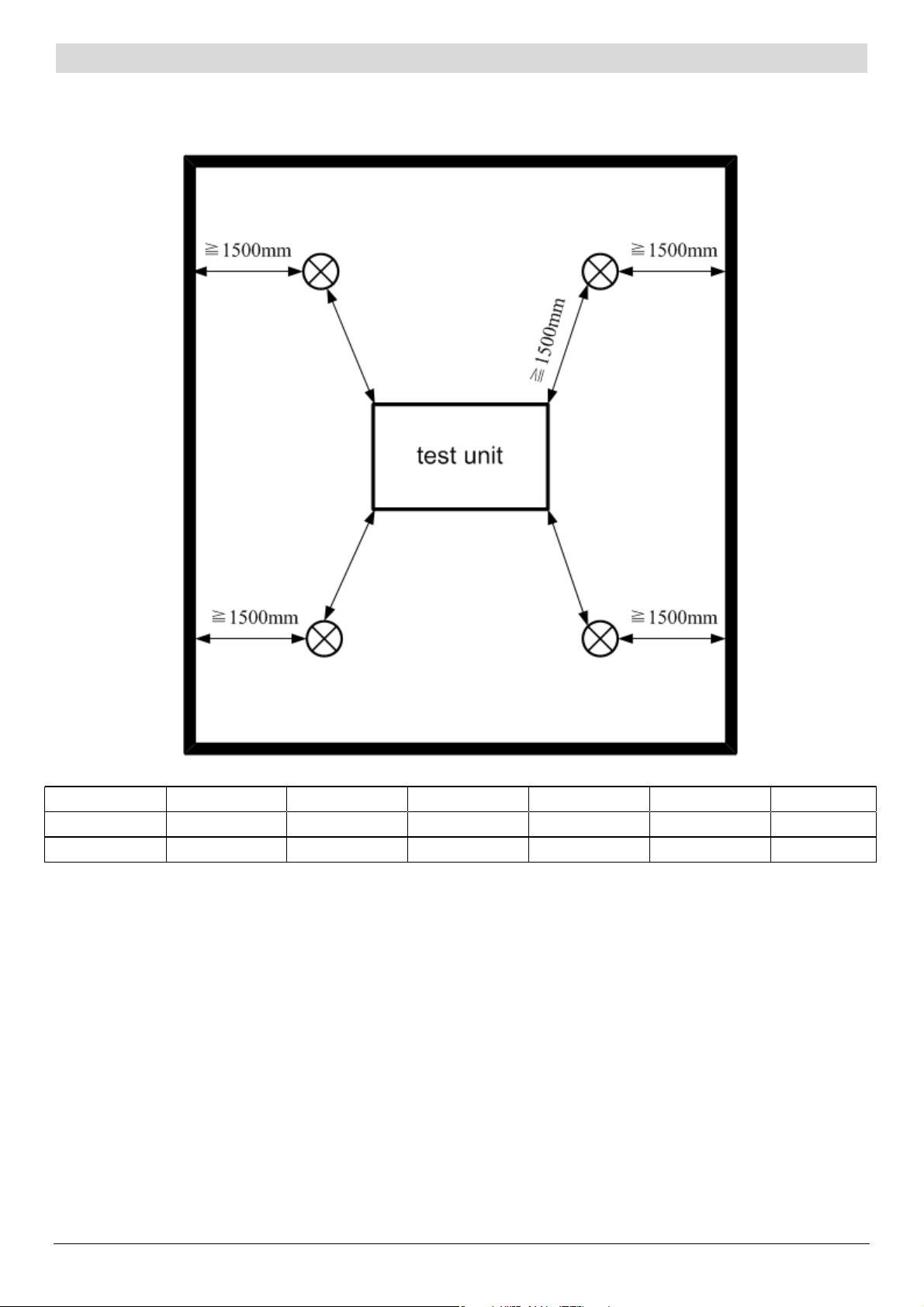

Sound pressure level is tested in a semi-anechoic
room
.
Universal Fancoil DC MUC-W9 series
MUC-05-W9/CE (none) MUC-08-W9/CE (none)

8
Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
595/470/340
595/450/310
790/580/410
800/600/420
CFM
350/276/200
350/265/182
488/359/253
471/353/247
External static pressure
Pa 0
Coolin
g
Sensible Capacity(H/M/L)
kW
2.65/2.14/1.57
2.90/2.35/1.72
3.25/2.56/1.91
3.63/2.85/2.08
Capacity (H/M/L)
kW
3.50/2.89/2.22
3.90/3.20/2.43
4.30/3.48/2.71
4.85/3.92/2.93
Water flow rate
m
3
/h
0.60/0.50/0.38
0.67/0.55/0.42
0.74/0.60/0.47
0.83/0.67/0.51
Water pressure drop
kPa
34.1/24.63/15.39
37.4/25.91/15.37
54.2/36.22/22.78
54.3/36.81/21.77
Heating
Capacity (H/M/L)
kW
3.80/3.10/2.35
4.00/3.22/
2.50
4.70/3.70/2.81
5.25/4.09/3.04
Water flow rate
m
3
/h
0.65/0.53/0.40
0.70/0.56/
0.43
0.81/0.64/0.48
0.91/0
.71/0.53
Water pressure drop
kPa
35.1/24.41/14.82
36.5/25.34/14.22
54.3/36.87/22.32
53.4/36.54/20.47
Power input (H/M/L)
W 26/17/10 29/17/11 50/25/14 52/28/15
Rated current
A 0.26 0.28 0.49 0.51
Sound pressure level
(H/M/L)
dB(A) 38/32/
23
40/34/30 46/38/30 45/39/30
Sound power level
(H/M/L)
dB(A) 52/
44/36
52/45/36 59/51/43 59/51/43
Fan motor
Type
Low noise DC fan motor
Quantity
1 1 1 1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
2 2 2 2
Coil
Row
3 4 3 4
Max. working pressure
MPa
1.6 1.6 1.6 1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H
)
mm
495×200×1240
495×200×1240
495×200×1240
495×200×1240
Packing size (W×
D×H
)
mm
595×300×1345
595×300×1345
595×300×1345
595×300×1345
Net weight
kg
25.5 26.5 25.5 26.5
Gross weight
kg 32.5 33.5 32.5 33.5
Water inlet/outlet pipe
inch
G3/4 G3/4 G3/4 G3/4
Drain pipe
mm ODΦ18.5 ODΦ18.5 ODΦ18.5
ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air
temperature 27
ćDB/19ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć, Entering air temperature 20ć
DB/15
ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level is tested in a
semi
-anechoic room.
Universal Fancoil DC MUC-W9 series
MUC-11-W9/CE (none) MUC-16-W9/CE (none)

9
Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
1190/855/505
1190/875/530
1360/1015/685
1300/980/680
CFM
700/503/297
700/515/312
800/597/403
765/576/400
External static pressure
Pa 0
Cooling
Sensible Capacity(H/M/L)
kW
4.62/3.60/2.43
4.98/3.98/2.68
5.87/4.74/3.45
6.12/4.82/3.42
Capacity (H/M/L)
kW
5.60/4.47/3.14
6.35/5.19/3.62
7.35/6.12/4.57
8.25/6.65/4.84
Water flow rate
m
3
/h
0.96/0.77/0.54
1.09/0.90/0.63
1.27/1.05/0.79
1.43/1
.14/0.83
Water pressure drop
kPa
50.7/33.38/17.73
32.8/21.75/11.43
44.1/33.7/19.41
71.4/46.17/25.39
Heating
Capacity (H/M/L)
kW
6.00/4.77/3.36
7.05/5.61/3.83
8.05/6.46/4.71
8.70/6.81/
4.85
Water flow rate
m
3
/h
1.04/0.83/0.59
1.22/0.98/0.67
1.39/1.12/0.82
1.51/1.18/
0.83
Water pressure drop
kPa
55.5/37.66/19.27
37.6/25.47/12.5
46.9/31.9/18.16
62.6/41.06/21.68
Power input (H/M/L)
W 96/44/17 92/46/19 113/53/22 102/49/22
Rated current
A 0.85 0.79 0.95 0.87
Sound pressure level
(H/M/L)
dB(A) 50/42/31 50/43/31 51/44/33 50/43/33
Sound power level
(H/M/L)
dB(A) 64/56/45 62/56/46 63/58/49
63
/57/47
Fan motor
Type
Low noise DC fan motor
Quantity
1
1
1 1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
3 3 3 3
Coil
Row
3 4 3 4
Max. working pressur
e
MPa
1.6
1.6
1.6 1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H
)
mm
495×200×1360
495×200×1360
591×200×1360
591×200×1360
Packing size (W×
D×H) mm
595×300×1465
595×300×1465
695×300×1465
695×300×1465
Net weight
kg 28.5
29.5
32.5 34.5
Gross weight
kg 36.0 37.0 41.0 42.5
Water inlet/outlet pipe
inch
G3/4 G3/4 G3/4 G3/4
Drain pipe
mm ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air temperature 27ć
DB/19
ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć, Entering air temperature 20ćDB/15ć
WB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level is tested in a semi-anechoic room.
Universal Fancoil DC MUC-W9 series
MUC-19-W9/CE (none) MUC-24-W9/CE (none)

10
Universal Fancoil DC MUC-W9 series

Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
245/160/135
245/180/130
380/245/140
380/240/110
CFM
144/94/79
144/106/76
224/144/82
2
24/141/65
External static pressure
Pa 0
Cooling
Sensible Capacity(H/M/L)
kW
1.09/0.74/0.63
1.36/1.14/0.81
1.70/1.36/0.81
1.84/1.35/0.85
Capacity (H/M/L)
kW
1.44/1.01/0.88
1.87/1.59/1.16
2.23/1.84/1.13
2.55/1.90/1.26
Water flow rate
m
3
/h
0.25/0.17/0.15
0.32/0.27/0.2
0.38/0.32/0.19
0.44/0.33/0.22
Water pressure drop
kPa
13.4/7.9/6.0
26.1/20.1/11.8
12.7/9.5/4.4
23.2/13.5/6.6
Heating
Capacity (H/M/L)
kW
1.50/1.02/0.88
1.97/1.68/1.20
2.47/2.00/1.27
2.63/1.92/1.27
Water flow rate
m
3/h
0.26/0.17/0.15
0.
34/0.29/0.21
0.42/0.34/0.22
0.45/0.33/0.22
Water pressure drop
kPa
14.5/7.3/5.6
24.0/18.8/9.9
13.6/9.8/4.3
21.8/12.2/5.9
Power input (H/M/L)
W 19/15/10 20/16/11
20/13/10
21/12/8
Rated current
A 0.20 0.21 0.21 0.22
Sound pressure level
(H/M/L)
dB(A) 34/23/21 39/33/26 30/22/14 33/26/17
Sound power level
(H/M/L)
dB(A) 47/36/34 52/46/39
43/35/27
46/38/30
Fan motor
Type
Low noise DC fan motor
Quantity
1 1
1
1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
1 1 2 2
Coil
Row
3 4 3 4
Max. wor
king pressure
MPa
1.6 1.6 1.6 1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H) mm
495×211×790
495×211×790
495×211×1020
495×211×1020
Packing size
(W×D×H
)
mm
595×300×895
595×300×895
595×300×1125
595×300×1125
Net weight
kg
18.0
18.5 21.5 22.0
Gross weight
kg 23.5 24.0
27.5
28.0
Water inlet/outlet pipe
inch
G3/4 G3/4 G3/4 G3/4
Drain pipe
mm ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Enterin
g water 7ć, leaving water 12ć, Entering air temperature 27ćDB/19ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć, Entering air temperature 20ćDB/15ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level is tested in a semi-anechoic room.
(none) (none) (none) (none)

11
Universal Fancoil DC MUC-W9 series

Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
580/435/310
580/430/300
780/550/380
780/560/390
CFM
341/256/182
341/253/176
459/324/224
45
9/329/229
External static pressure
Pa 0
Cooling
Sensible Capacity(H/M/L)
kW
2.58/2.08/1.53
2.83/2.29/1.67
3.21/2.52/1.88
3.54/2.77/2.02
Capacity (H/M/L)
kW
3.41/2.81/2.16
3.80/3.11/2.36
4.25/3.43/2.67
4.73/3.82/2.85
Water flow rate
m
3
/h
0.58/0.48/0.37
0.65/0.53/0.40
0.73/0.59/0.46
0.81/0.65/0.49
Water pressure drop
kPa
33.4/24.0/15.0
36.5/25.3/15.0
53.5/35.8/24.1
53.0/35.9/21.2
Heating
Capacity (H/M/L)
kW
3.70/3.02/2.29
3.90/3.13/2.43
4.64/3.65/2.77
5.12/3.98/2.96
Water flow rate
m
3
/h
0.63/0.52/0
.39
0.67/0.54/0.40
0.80/0.63/0.47
0.88/0.68/0.51
Water pressure drop
kPa
34.2/23.8/14.5
35.6/24.7/13.9
53.6/36.4/22.0
52.0/35.6/20.0
Power input (H/M/L)
W 27/18/11 30/18/12 50/26/15 52/28/15
Rated current
A 0.26 0.28 0.49 0.51
Sound pressure level
(H/
M/L) dB(A) 39/32/24 39/32/24 46/39/30 46/39/30
Sound power level
(H/M/L)
dB(A) 52/45/37 52/45/37 59/52/43 59/52/43
Fan motor
Type
Low noise DC fan motor
Quantity
1 1 1 1
Fan
Type
Centrifugal, forward
-
curved Blades
Quantity
2 2 2 2
Coil
Row
3 4 3 4
Max. working pressure
MPa
1.6 1.6
1.6
1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H
)
mm
495×211×1240
495×211×1240
495×211×1240
495×211×1240
Packing size (W×
D×H) mm
595×300×1345
595×300×1345
595×300×1345
595×300×1345
Net weight
kg 25.5 26.5 25.5 26.5
Gross weight
kg 32.5 33.5 32.5 33.5
Water inlet/outlet pipe
inch
G3/4
G3/4
G3/4 G3/4
Drain pipe
mm ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air temperature 27ć DB/19ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć, Entering air temperature 20ćDB/15ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level is tested in a semi-anechoic room.
(none) (none) (none) (none)

12
Universal Fancoil DC MUC-W9 series

Model
Power supply
V/Ph/Hz
220-240/1/50
Air flow (H/M/L)
m3
/h
1050/750/450
1050/770/460
1150/850/570
1150/860/600
CFM
618/441/265
618/453/271
676/500/335
676/506/353
External static pressure
Pa 0
Cooling
Sensible Capacity(H/M/L)
kW
4.08/3.17/2.14
4.39/3.51/2.36
4.75/4.00/2.91
5.41/4.26/3.02
Capacity (H/M/L)
kW
4.94/3.94/2.77
5.60/4.58/3.19
6.21/5.17/3.86
7.30/5.88/4.28
Water flow rate
m
3
/h
0.85/0.68/0.47
0.96/0.79/0.55
1.06/0.89/0.66
1.25/1.
01/0.73
Water pressure drop
kPa
44.7/29.5/15.6
28.9/19.2/10.1
37.3/28.5/16.4
63.0/40.8/22.5
Heating
Capacity (H/M/L)
kW
5.29/4.20/2.96
6.22/4.95/3.37
6.80/5.46/3.98
7.70/6.02/4.29
Water flow rate
m
3
/h
0.91/0.72/0.51
1.07/0.85/0.58
1.17/0.94/0.68
1.32/
1.03/0.74
Water pressure drop
kPa
49.0/33.2/17.0
33.2/22.5/11.0
39.7/27.0/15.4
55.0/36.4/19.2
Power input (H/M/L)
W 98/45/18 99/50/20 105/50/24 105/50/23
Rated current
A 0.85 0.85 0.9 0.9
Sound pressure level
(H/M/L)
dB(A) 52/43/32 52/42/33 53/46/36 53/46/36
Sound power level
(H/M/L)
dB(A) 65/57/45 65/56/46 66/59/49 65/59/49
Fan motor
Type
Low noise DC fan motor
Quantity
1 1 1
1
Fan
Type
Centrifugal, forward-curved Blades
Quantity
3 3 3 3
Coil
Row
3 4 3 4
Max. working pressure
MPa
1.6 1.6 1.6 1.6
Diameter
mm Φ7.94 Φ7.94 Φ7.94 Φ7.94
Body
Net dimensions (W×
D×H
)
mm
495×211×1360
495×211×1360
591×211×1360
591×211×1360
Packing size (W×
D×H)
mm
595×300×1465
595×300×1465
695×300×1465
695×300×1465
Net weight
kg 28.5
29.5
32.5 34.5
Gross weight
kg 36.0 37.0 41.0 42.5
Water inlet/outlet pipe
inch
G3/4 G3/4 G3/4 G3/4
Drain pipe
mm
ODΦ18.5 ODΦ18.5 ODΦ18.5 ODΦ18.5
Notes:
1. H: High fan speed; M: Medium fan speed; L: Low fan speed.
2. Cooling conditions: Entering water 7
ć, leaving water 12ć, Entering air temperature 27ćDB/19ćWB.
3. Heating conditions: Entering water 45
ć, leaving water 40ć
, Entering air temperature 20
ćDB/15ćWB.
4.
Sound power level is tested in a reverberation chamber.
5.
Sound pressure level
is tested in a
semi-anechoic room.
(none) (none) (none) (none)

13
8. Dimensions
Cased type (CE)
Dimensions (unit: mm)
Universal Fancoil DC MUC-W9 series
47 D
128 C
247
277 E
22
45 F
MODEL
A
B
C
D
E
F
MUC-05-W9
790
495
534
375
123
93
MUC-08-W9
1020
495
764
375
123
93
MUC-11-W9
1240
495
984
375
123
93
MUC-16-W9
1240
495
984
375
123
93
MUC-19-W9
1360
495
1104
375
123
93
MUC-24-W9
1360
591
1104
391
219
102
G
H
628
455
858
455
1078
455
1078
455
1198
455
1198
551

14
Uncased type (SE)
Dimensions (unit: mm)
Universal Fancoil DC MUC-W9 series
MODEL
A
B
C
D
E
F
MUC-05-W9
790
495
534
375
123
93
MUC-08-W9
1020
495
764
375
123
93
MUC-11-W9
1240
495
984
375
123
93
MUC-16-W9
1240
495
984
375
123
93
MUC-19-W9
1360
495
1104
375
123
93
MUC-24-W9
1360
591
1104
391
219
102
G
H
628
455
858
455
1078
455
1078
455
1198
455
1198
551
247
277 E
22
200
G
H
C 71

15
9. Sound Levels
Sound Power Level:
Model
47/36/34
43/37/29
52/44/36
59/51/36
64/56/45
63/58/49
47/36/34
43/37/29
52/44/36
59/51/36
64/56/45
63/58/49
Universal Fancoil DC MUC-W9 series
W9/CE (H/M/L)
W9/SE (H/M/L)
MUC-05 MUC-08 MUC-11 MUC-16 MUC-19 MUC-24

16
Sound Pressure Level:
Universal Fancoil DC MUC-W9 series
Model
W9/CE (H/M/L)
W9/SE (H/M/L)
MUC-05 MUC-08 MUC-11 MUC-16 MUC-19 MUC-24
34/24/21
29/24/18
38/32/23
46/38/30
50/42/31
51/44/33
34/24/21
29/24/18
38/32/23
46/38/30
50/42/31
51/44/33

17

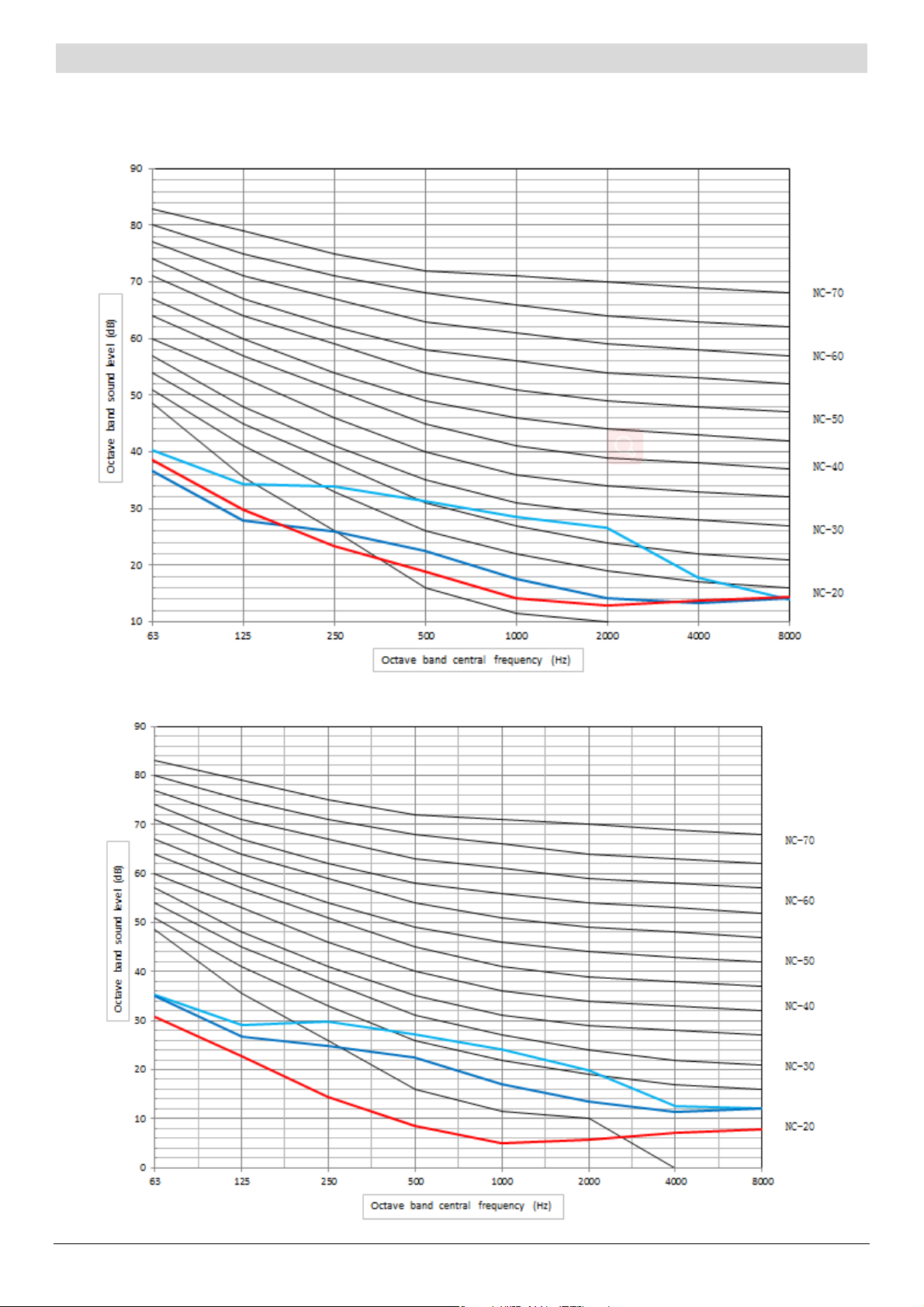

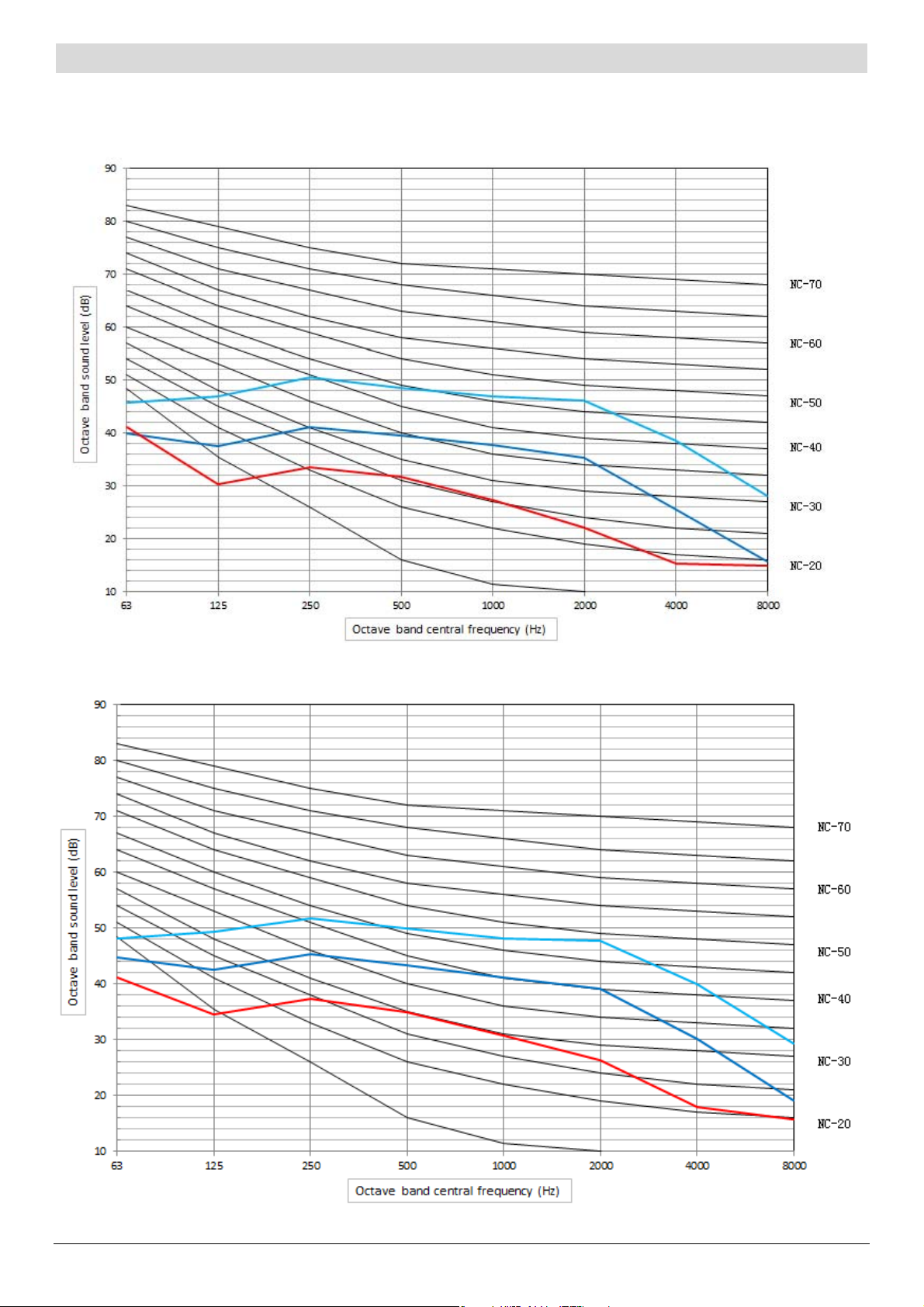

NC Noise Curve:
Universal Fancoil DC MUC-W9 series
(none)
(none)

18
Universal Fancoil DC MUC-W9 series
(none)
(none)

19
Universal Fancoil DC MUC-W9 series
(none)
(none)
