Thank you for selectiong super quality Air Conditiones. To ensure satisfactory operation for many ears to come,
this manual should be read carefully before the installation and before using the air conditioner. After reading,
store it a safe place. Please refer to the manual for questions on use or in the event that any irregularities occur.
This Air Conditioner should be used for hosehold use.
This unit must be installed by a professional according CE 795/2010.
The power supply must be SINGLE-PHASE (one phase (L) and one neutral (N)) with his grounded power (GND)
and his manual switch. Any breach of these specifications involve a breach of the warranty conditions provided by
the manufacturer.
In line with the company's policy of continual product improvement, the aesthetic and dimensional characteristics,
technical data and accessories of this appliance may be changed without notice.
IMPORTANT:
WARNING:
NOTE:
Remote Controller ................................................ ......... 14 ........................

Bried Introduction
1
This mobile air conditioner is a new generation air conditioner which is
designed for being used in bedroom, study room, lobby, office, meeting room,
warehouse, attics, sports hall and other entertainment room. Its characteristic
of flexibility characteristic enable easy adjustment to desirable room
temperature and humidity. Besides, the built-in filter can remove floating dust,
purify air to create a healthy working environment.
It is designed under novelty, practicality and convenience principles to
satisfy the needs for convenient, efficient and mobile small-sized air
conditioner. It features easy using, no need for complicated installation
and convenient maintenance. Besides, the double control system (remote
control /manual control optional ) simplifies its operation.
The unit is highly competitive to other cooling capable products.
With tidy structure, multiple functions, auto-drain function and reasonable
ventilation design, the unit minimizes noise and power consumption.
Aiming at harmonizing human life, our company adopts human factors into
design, and produces this high efficiency mobile air conditioner.

2
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly.Justalittlepreventivecareonyourpartcansaveyouagreatdealoftime
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips.If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
Read This Manual
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
the appliance. Cleaning and user maintenance shall not be made by children without
supervision. ( be applicable for the European Countries )
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or
the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. (be applicable for other countries except the
European Countries )
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Donot operateyour air conditioner in a wet room such as a bathroom or laundry room.
The appliance with electric heatershallhave atleast 1 meter space to the combustible
materials.
Contact
Safety Precaution
CAUTION
This symbol indicates the possibility of death
or serious injury.
This symbol indicates the possibility of injury
or damage to properties only.
!WARNING
!
Your safety and safety of others are very important. We have provided
many important safety message in this manual and on your appliance.
Always read and obey all safety message.
!WARNING
!WARNING

3
CAUTION
!
Don’t apply the cold air to the body for a long time. It will
deteriorate your physical conditions and cause health
problems.
Clean the air conditioner with a piece of soft and dry cloth.
Don’t use these stuffs for cleaning: chemical solvent,
insecticide,inflammable spraying materials which will damage
the appearance of air conditioner .Don’t sprinkle water directly
on the indoor unit.
Close the windows and doors, otherwise,the cooling or heating
capacity will be weakened.
If the air filter is very dirty, the cooling or heating capacity will
be weakened.Please clean the air filter regularly .

4
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C
Parts Description

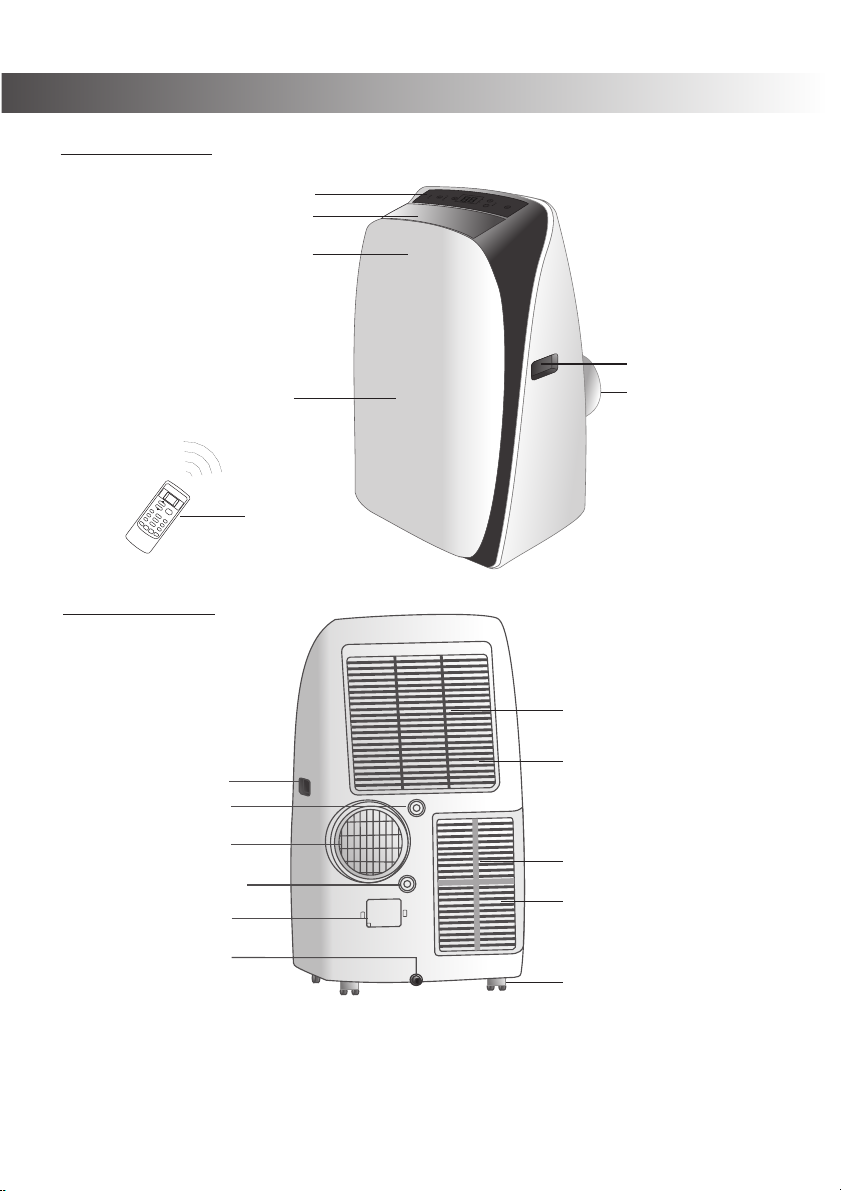

FRONT VIEW
Handle recess
Signal receiver
windows
Truckle
SET TEMPERATUR(℃)
自动 自动自动
制冷 制冷制冷
除湿 除湿除湿
制热 制热制热
SET
ON/OFF
MODE
CLEAN
SPEED
SLEEP
LOCK
HEATER
SWING DUST
SWING 2
HEALTH
FUNGUSPROOF
SCREEN
TIMER
AUTO FAN
COOL HIGH
DRY MID
HEAT LOW
Note:
* The descriptions in this user manual are text and figures may have slightly
difference to the promotion information and actual appliance. Please refer to
the real appliance purchased, Thank you.
* The woking temperature range of the air conditioner is 16~35℃ under cooling
mode; 5~27℃ under heating mode .
Control panel
Air outlet
Front panel
REAR VIEW
Handle recess
Air outlet
Upper air filter(Behind
the grille)
(disabled)
Drain outlet
Power cord outlet
Bottom tray
drain outlet
Upper air intake
Lower air filter(Behind
the grille)
Lower air intake
Air outlet
Remote
controller
Drain outlet
(by gravity)

5

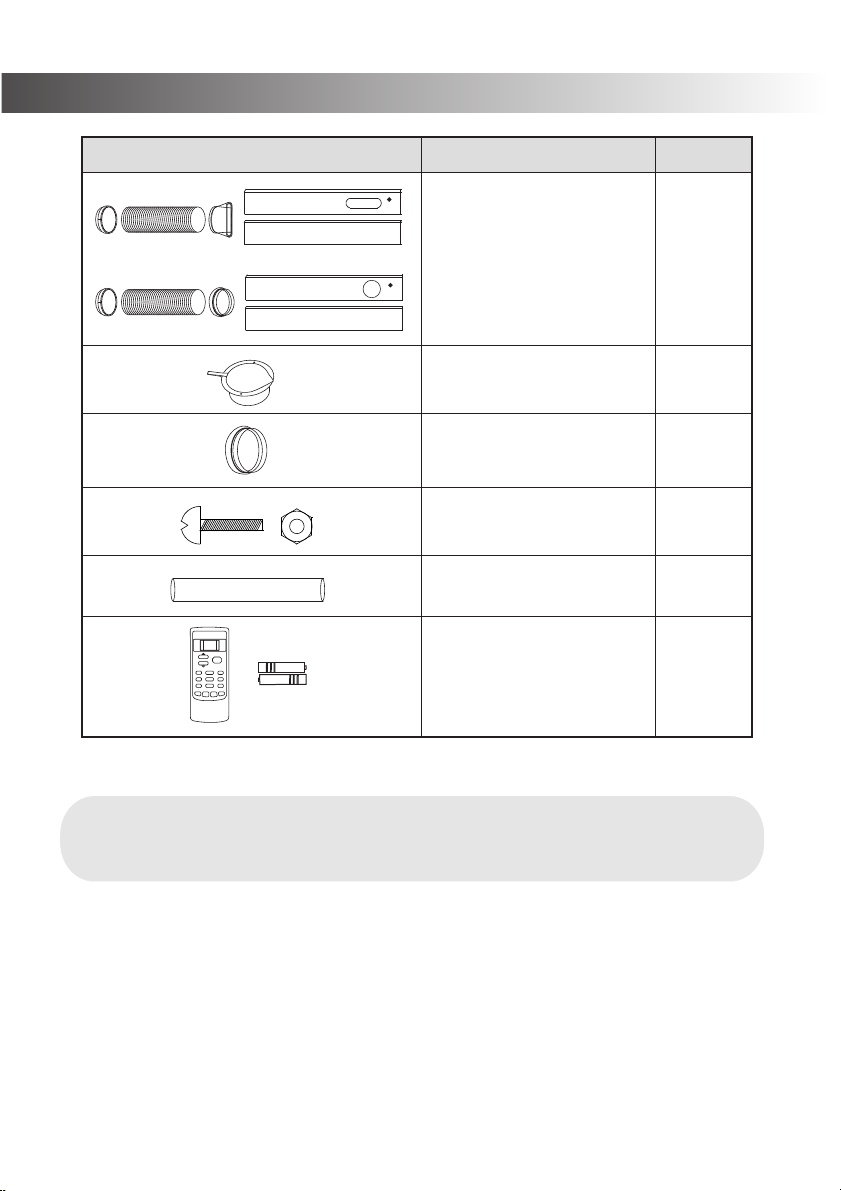

Accessories
Parts Parts name Quantity
Exhaust hose Adaptor and
Adaptor B (flat mouth or
round mouth: depending
on models )
Window Slider Kit and bolt
Remote controller
and Battery
1set
1pc
Bolt and Nut
NOTE:
of remote controller .
Please select button on the remote controller according to the related functions
on the display, the other buttons are invalid
SET TEMPERATUR(℃)
自动 自动自 动
制冷 制冷制 冷
除湿 除湿除 湿
制热 制热制 热
SET
ON/OFF
MODE
CLEAN SPEED
SLEE P
LOCK
HEATER
SWING DUST SWING 2
HEALTH FUNGUSPROOF SCREEN TIMER
AUTO FAN
COOL HIGH
DRY MID
HEAT LOW
Drain hose (#)
Wall Exhaust Adaptor A(#)
Adaptor B(round mouth)(#)
.NOTE: # ), some models withoutOptional parts (
1pc
or
1pc
1pc
1pc

6
1. button
Press this button to make the unit run or stop.
2. or button
Press or button to make the room setting temperature increase or decrease.
3. button
Each time you press this button, a mode is selected in a sequence that goes from
COOL, DRY , HEAT and FAN.
4. button
This button is used for setting fan speed in the sequence that goes from LOW,MID,
to HIGH, then back to LOW.
Function buttons
Note :1. Timer, Sleep, Swing function, “Auto”mode and “ Auto”fan speed can
be selected by remote controller not by control panel.
2. Other functions on control panel are as same as remote controller's.
HIGH
MID
LOW HEAT
DRY
FAN
COOL TIMER
SLEEP
SWING
F
C

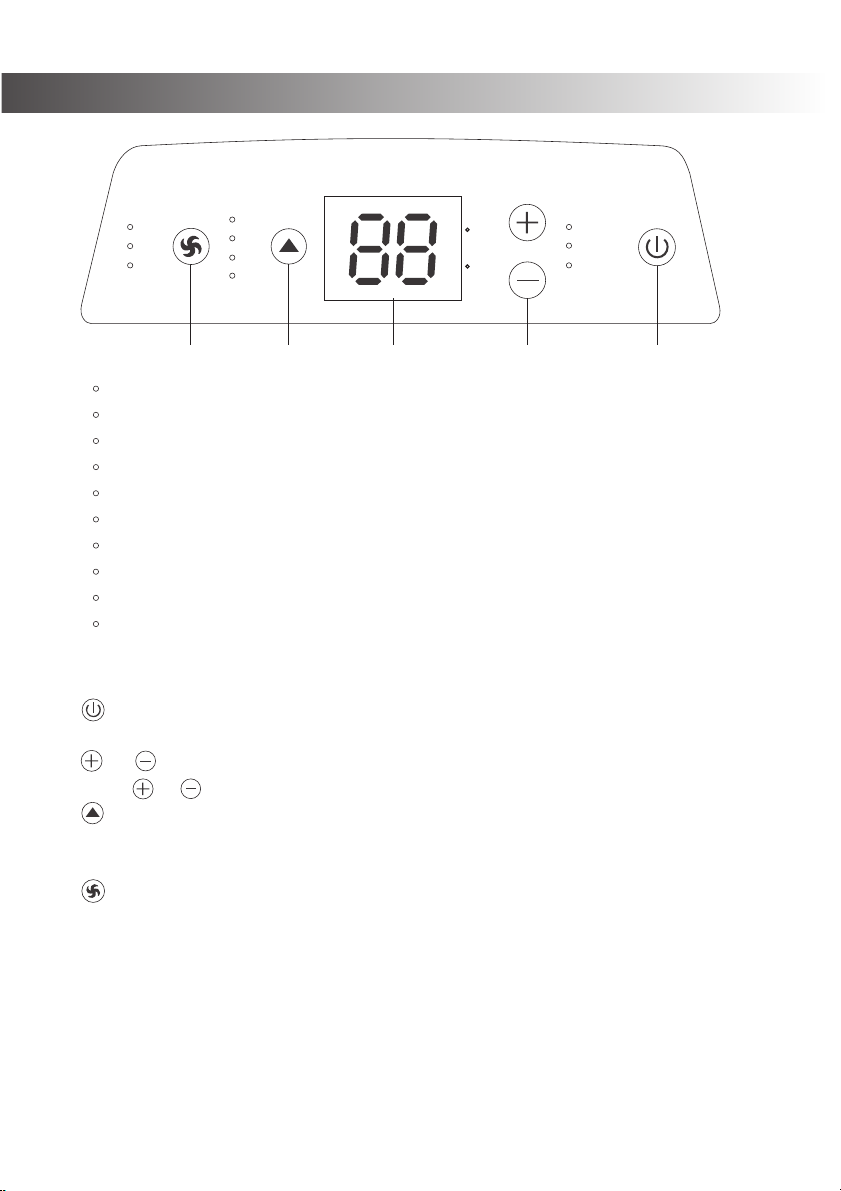

Control Panel
1
2
3
4
HIGH-High speed indicator
MID-Mid speed indicator
LOW-Low speed indicator
COOL-Cool indicator
DRY-Dry indicator
HEAT-Heating indicator
FAN-Fan indicator
TIMER-Time indicator
SLEEP-Sleep indicator
SWING-Swing indicator
TEMP. indicator

7
Circulation operation mode
1. Press MODE button in a sequence until the fan display is lighted.
2. Press the FAN button to select the fan speed.
3. Press the ON/OFF button to start the unit and press it again to stop.
Timer operation
1. Press the TIMER button .
2. Press the “+” and “-”button to adjust your timer time.
Drying operation mode
1. Press the MODE button in a sequence until the dry display is lighted.
2. The fan will run at a fixed speed at this operation mode.
3. Close windows and doors for the best dehumidifying effect.
4. Press ON/OFF button to start the unit and press it again to stop.
Before starting the unit
1. Select a suitable location, make sure the unit is near to an electrical outlet.
2. Install the flexible exhaust hose and the adjustable window slider kit.
3. Plug the unit into a right outlet.
4. Turn the unit on.
Cooling operation mode
1. Press the MODE button in a sequence until the cool is lighted.
2. Press the “+”and “-”button to set your desired setting temperature.
3. Press FAN button to select the fan speed.
4. Press ON/OFF button to start the unit and press it again to stop.
display
Heating operation mode
1. Press the MODE button in a sequence until the heat display is lighted.
2. Press the “+”and “-”button to setting your desired setting temperature.
3. Press FAN button to select the fan speed.
4. Press ON/OFF button to start the unit and press it again to stop.
Note: “Time off ”
“Time on ” is effective only when the air-conditioner is stopped.
is effective only when the air-conditioner is running.
Operation
Failure to follow the below precaution could result in electrical shock,
fire or personal injury.
1.The plug must be plugged into an outlet that is properly installed and
grounded.
2.Do not use an extension cord or plug adaptor with this unit.
WARNING

8
Installation

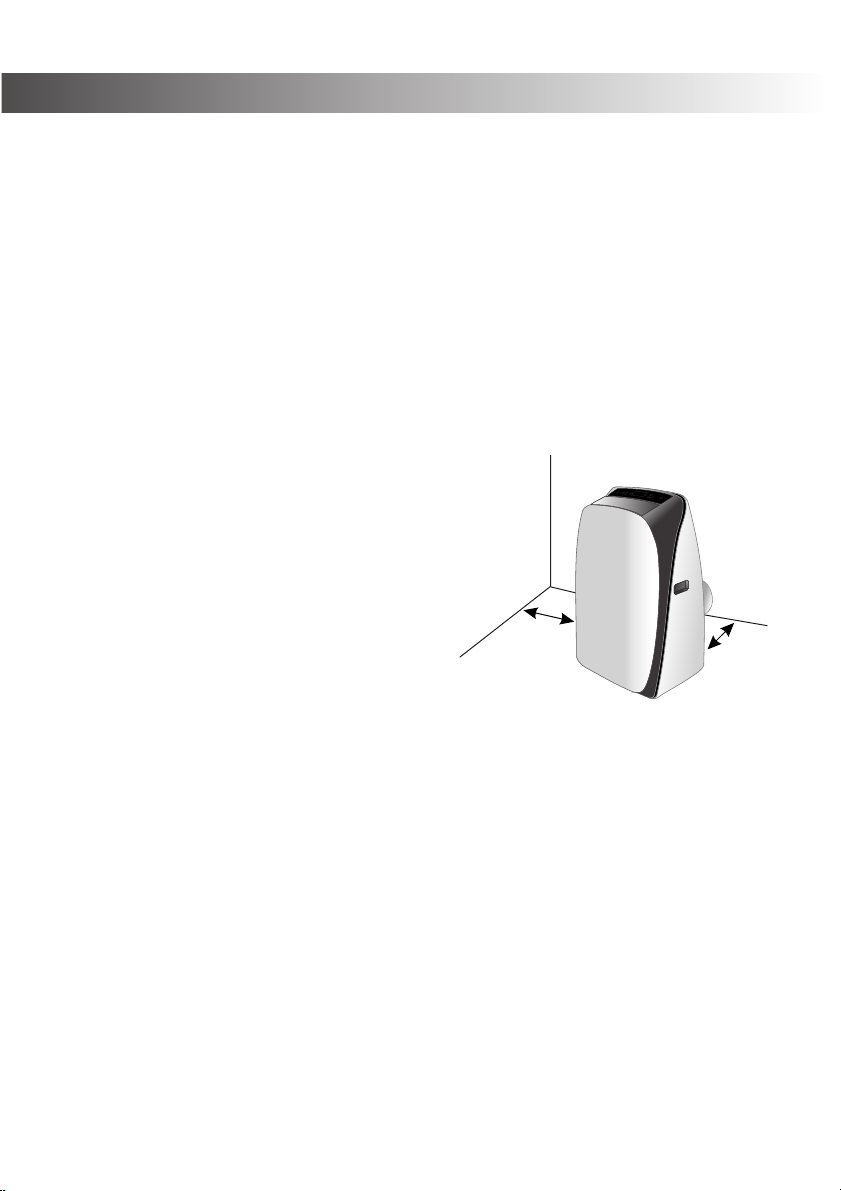

1.Install the mobile air conditioner in a flat
and spacious location where the air outlets
will not be obstructed.
2.A minimum clearance of 50cm from walls
or other obstacles should be kept.
3.The gradient can't be more than 10 degrees
with the horizontal plane， while putting
and using the utensil
Note: 1.The air conditioner shall not be
used in the laundry.
2.The plug shall be accessible after the unit is positioned.
●The customer should have a qualified power supply coincident with that
printed on the tag of the air conditioner. Its voltage should be in the range
of 220~240V.
●Must use special circuit and efficient grounding outlet matching with
the plug of the air conditioner.
●If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
●The appliance should be installed in accordance with national wiring
regulation.
●The plug should be easily accessible after installation.
●If the fuse of unit on PCB is broken, please change it with the type of
F3.15A/250V.
Mor e than 50cm
Select a best location
Guide of customer
Mor e than 50cm
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C

9
When the water level of the bottom tray reaches
predetermined level, the digital display area
shows”P1”.
Carefully move the unit to a drain location,
remove the bottom drain plug and let the water
drain away .Reinstall the bottom drain plug and
restart the machine until the P1 symbol disappears.
Drain outlet
NOTE: Be sure to reinstall the bottom drain
plug before using the unit
*
NOTE: Make sure the hose is secure and there are no leaks. Direct the hose toward
the drain , making sure that there are no kinks that will stop the water
flowing. Place the end of the hose into the drain and make sure the end of
the hose is down to let the water flow smoothly. Do never let it up.
*
Water drainage
Drain outlet
(by gravity)
Remove the cap from the drain outlet (gravity) on the back. Anchor the hose
emptying the hole. Place the other end of the hose into the drain hose have
negative inclination.
The unit is capable of removing condensate itself, so it is not necessary to connect the drain,
however, if using the dehumidification mode or high humidity in the environment, it is recommended
to connect the equipment a drain of the opposite when the condensate tank is full the unit will stop
and shows "P1".
Drain connection:

10
Note: 1.The duct can be compressed to 450mm minimum and extended to
1800mm maximum. It is better to keep the duct length to a minimum.
2.Stretching or bending the duct excessively will affect the cooling
efficiency.
1. Put the side of duct to the exhaust air outlet
of mobile air conditioner. Fix it with unit
correspondingly, then turn right. Push it
downwards, make sure that it is fixed
thoroughly.
Adaptor
Duct mount instruction
(As the following fig. Shows)
3. Put the adaptor subassembly to a nearby window.
2. Put the other side of the duct to adaptor.
Do not! Yes!
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C
1
2

11
Cleaning Air Filter
If the air filter is covered by dust, the cooling capability will be decreased.
Please clean the air filter every two weeks.
1. Turn off and cut the
2. Pull out the filter cover and remove the
filter from cover.
3. Wash air filter in warm soap water.
Do not put air filter in the dishwasher or
use any chemical cleaners. And dry filter
completely before replacing.
4. Attach the air filter to the filter cover
using the attachment hooks on the inner
surface of the cover. Put the filter cover
back to its place.
the air conditioner off power supply.
Maintenance
Your new air conditioner is designed to give you the dependable service for many
years. This section tells you how to clean and care for your air conditioner properly.
Call your local authorized dealer for an annual checkup. Remember the cost of
this service call is your responsibility.
Window kit installation
Your window kit has been designed to fit most standard vertical and horizontal
window applications. However, it may be necessary for you to improve or
modify some aspects of the installation procedure for certain types of window.
Please refer to fig. A &fig. B for minimum and maximum window openings.
Vertical
window
Window slide kit
minimum:67.5cm
maximum:125cm
Horizontal window
Window slide kit
minimum:67.5cm
maximum:125cm
Fig. A Fig. B
Fig. C
Note:The bolt and nut are used to fix window fixing board.
Nut
Bolt
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C
HIGH
MID
LOW
HEAT
DRY
FAN
COLL
TIMER
SLEEP
SWING
F
C

12
To save of a service call, please try the suggestions below to see if
you can solve your problem without outside help.
the cost
Causes Solutions
●The power switch is released.
●Power supply failure.
●The fuse is burnt.
●It doesn't reach the setting time for
starting up.
■Switch on the power.
■Wait for the recovery of power supply.
■Replace the fuse.
■Wait or eliminate the original setting.
Causes Solutions
Unit Doesn't Start When Pressing ON/OFF Button
●It is not three minutes after switch off.
●Room temperature is lower than the
setting temperature.
■Wait three minutes.
■Reset the temperature.
Troubleshooting
Air Condition Will Not Operate
2.Wipe the unit with dry cloth .
3.If the unit is very dirty, please wipe with
wet cloth dipped by cold water .
※Never use hot water over 40 (104 )to clean the air filter. ℃℉
※Do not use gasoline ,benzene ,thinner or any other chemicals, or any liquid
insecticide on the air conditioner, as these substances may cause flaking off of
the paint ,cracking or deformation of plastic parts .
※Never attempt to clean the unit by pouring water directly over any of the
surface areas, as this will cause deterioration of electrical components and
wiring insulation.
Note: if you don’ t use the unit for a long
please pull out the rubber plug to drain
the inside water out referring to right figure.
time,
air conditioner and cut off the power supply .
1.For the purpose of safety, please turn off the
Cleaning The Unit
WARNING

Disposal
13
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of
such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can be
disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free
of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge
to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food chain.
Causes Solutions
The Wind Blowing Out, But The Cooling Effect Is Bad
●Mistakes in temperature setting.
●The air filter is blocked by dust.
●The air inlet or outlet of machine is
blocked.
●Cooling capacityis insufficient .
●The doors or windows are open.
■Set a proper temperature, setting
temperature should be lower than
ambient temperature.
■Clean the air filter.
■Remove the obstruction.
■Reconfirm the required cooling
capacity with your dealer.
■Close the doors and windows.
Causes Solutions
●The ground is not level or not flat
enough.
■Place the unit on a flat, level ground
if possible.
Noise or vibration

REMOTE CONTROLLER
14
●
●
Read this instructions carefully so that
you can use the air-conditioner safely and
correctly.
Take good care of the instructions so
that it can be referre d to at any time.
“ ”
“ ”
FRESH, DUST, STRONG and HEALTH buttons don't have effect in this portable air conditioner.
*Atention:
SET TEMPERATURE( )
׶ ׶׶
Ö ÖÖ
ł łł
ÖČ ÖČÖČ
SET
ON/OFF
MODE CLEAN SPEED
SLEEP FRESH STRONG
SWING DUST FEELING
HEALTH FUNGUSPROOF SCREEN TIMER
AUTO FAN
COOL HIGH
DRY MID
HEAT LOW
ºC
*
*
*
*

15
Buttons description
自动 自 动自动
制冷 制 冷制冷
除湿 除 湿除湿
制热 制 热制热
SET
ON/OFF
MO DE CLEAN SPEED
SLEEP FRESH STRONG
SWING DUST FEELING
HEALTH FUNGUSPRO OF SCREEN TIMER
AU TO FAN
COO L H IG H
DRY MID
HEAT LOW
19
11
1 3
3
2
4
5
6
7
8
15
14
12
10
FEELING
TIMER
SPEED
T RAN SM I T O N/OFF
ROOM
SE T
TIME R O N OFF
DIGITAL
RUN NING
MODE
RUNN ING
MO DE
LCD displays instruction
ON/OFF display:
when the remote controller is
the on sta te, th e LC D w ill be
displays otherwise will not be
display.
Digital display:
Under the state of normal
working. It displays se t
temperature, while the fee ling
function is start. It will displays
room tempera ture, and under
the state of timer mode. It will
displays set timer.
1. button“ ”ON/OFF
You can start the air-conditioner by pressing this button
and stop its operation by pressing it again.
2. button“ ”FRESH
3.“ ”SPEED button
You can select fan speed show as the follow:
High
Low Auto
Mid
This button is inva lidation.
4. STRONG button“ ”
This button is inva lidation.

16
Press this button can be used to set the feeling function.
The LCD sho ws the actual room temperature when the
function set and it shows the setting temperature when the
function cancelled. This function is invalid when the
appliance at the Fan mode.
5. button“ ”FEELING
When it displays button“ ”FEELING :
6. button“ ”DUST
7. button“ ”TIMER
This button is invalidation.
Setting the ON timer time“ ” ：
“ ”
“ ”
“ ” “ ”
“ ”
a. When remote controller is at off state, press TIMER
button , the LCD dis plays TIMER ON and the ti mer
time, the range of setting time is 0.5h to 24h.
b. You can press the or bu tton to adjust the
timer time, eac h touch will be set time t o increase or
reduce 0.5h be fore 10 hou rs ago, after ten hours will be
set time to increase or reduce 1h per pressing, to enables
your required timer.
c. Pre ss TIMER button again, to set the timer on function.
d. You can set another function to insure the suitable state
after air co nditioner turn on (including mode, temperature,
swing, fan speed and etc). The LCD will displ ays all your
setting and keep it, w hen the timer reach to the set time,
the air conditioner will be working according to your set
automatically.
Setting the OFF timer time“ ” ：
“ ”
“ ”
“ ” “ ”
“ ”
a. When remote controller is at on state, pr ess TIMER
button , the LCD dis plays TIMER OFF and the timer
time, the range of setting time is 0.5h to 24h.
b. You can press the or bu tton to adjust the
timer time, eac h touch will be set time t o increase or
reduce 0.5h be fore 10 hou rs ago, after ten hours will be
set time to increase or reduce 1h per pressing, to enables
your required timer.
c. Pre ss TIMER button again, to set the timer off function.
8. button“ ”SCREEN
You can let the LCD displays working or not by pressing this
button.

17
Press the
16 to 32 ,Display will change as you touch
the button.
“ ” “ ”
℃ ℃
+ or - button,you can set the temperature
range from
9. or button“ ”“ ”
10. button“ ”CLEAN
a. When remo te controlle r is at the off state, press clean
button, the wind guiding ba rs turn to initial p ostio ns for
cooling, the A/C runs clean function with max duration
35mins.Th e purpose of its function is to clean dust o n
evaporator and dry the inside water of evaporato r and
to prevent the evaporator g oing moldy due to water
deposition and boastin g strange smell.
b. After setting clean function, press c lean button
again to cancel clean function or press ON/OFF
button to cancel clean function and start A/C.
c. The cle an function will be no working after 35 minutes
running working without an y op eration.
“ ”
“ ”
“ ” “ ”
“ ” “ ”
“ ”
Note: clean function can be set in parallel with
time start function; in thi s case , time start
function will be executed after clea n function.
“ ”
“ ” “ ”
“ ”
11.“ ”MODE button
AUTO COOL DRY HEAT FAN AUTO→ → → → →
Remark: cold wind type has no heating function.
Which enables you to select different operation mode,
after each pressing, the operation mode will be changed. It
shows in the following display.
12.“ ”SLEEP button
1.press the SLEEP button, the sleeping indicator light of
indoor unit flashes on.
2.after the setting of sleeping mode, the cooling operation
enables the set temperature to increase 1 after 1hour
and another 1 automati cally after 1 hour.
3.after the setting of sleeping mode, the he ating operation
enables the set temperature to drop 2 after 1hour and
another 2 automatically after 1 hour.
4.the air-conditioner runs in sleeping mode for 7 hours and
stops automatically.
℃
℃
℃
℃
Remark: press the MODE or ON/OFF button, the remote
controller clears sleeping mode away.

18
13.“ ”SWING button
Press this button, the horizontal wind direction vanes can
rotate automatically, when you have the desired vertical
wind direction, press it again, the horizontal wind direction
vanes will be stopped at the situation of your choice.
14.“ ”HEALTH button
15.“ ”FUNGUSPROOF button
This A/C has special dry and anti-mold function which
has yes tw o selections. This function is
controlled by the remote controller under cooling, dry and
auto (cooling and dry) modes, the horizontal wind g uiding
bars are at the initial position for cooling. T he A/C runs
under heating mode(the cooling only A/C only runs under
fan mode), the interna l fan runs for three minutes with w eak
wind before stop. The purpose of this fu nction i s to dry the
inside of the evaporator and to prevent the evaporator from
going mouldy due to water deposition and thus dispersing
strange smell.
“ ” “ ”or no
Note:
1.This function has not been set in the factory. You ma y
freely set and cancel this function. The set ting method
is: under off status of th e A/C a nd the remote
controlle r, point the remote controller toward t he A/C
and contin uously press pus hbutton
for one time, the buzzer keep beeps five times again
after fiv e times beeps, indicating that this func tion is
ready. In case this function has been set, unless the
whole A/C is powered off or the function is manua ll y
cancelled, the A/C then has this function as a default;
2.To cancel the function: 1. Power off the whole A/C; 2.
Under off status of th e A/C a nd the remote
controlle r, point the remote controller toward t he A/C
and contin uously press pus hbutton
for one time, the buzzer keep beeps three times again
after fiv e times beeps, indicating that this func tion has
been cancelled;
3.When this function is on, it is suggested not to restart
the A/C before it is completely stop;
4.This function will not run in case of time stop or slee p
stop.
“ ”
“ ”
“ ”
“ ”
FUNGUSPROOF
FUNGUSPROOF
This button is inva lidation.
