Murdock GRT75-PF Series Installation and operating instructions

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
INSTALLATION/MAINTENANCE INSTRUCTIONS
PET FOUNTAIN
7020-967-001 Date: 04/19/21
COMPLIES WITH
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
1.800.591.9360
Technical Assistance Fax: [phone]
Murdock™ assumes no responsibility for use
of void or superseded data. © Copyright
Murdock Mfg., City of Industry, CA Member of
Morris Group International. Please visit
www.murdockmfg.com for most current
specifications.
GRT75-PF & GRT75-PF-RFS Series
Outdoor Pet Fountain
GRT75-PF SHOWN
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP, -FRA” WILL
DIFFER FROM STANDARD! REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS PRIOR TO
ROUGH-IN AND FIXTURE INSTALL FOR -FRU, -NP, -FRA SERIES OPTIONS. FOR ADDITIONAL INFORMATION
VISIT: OR CONTACT YOUR LOCAL SALES REPRESENTATIVE.www.MurdockMfg.com/Resources
Murdock warrants that its products are free from defects in material or workmanship under normal use and service for a period of
one year from date of shipment from the factory. Murdocks’s liability under this warranty shall be discharged solely by repair or
replacement of defective material, provided Murdock is notified in writing within the time periods described above.
LIMITED WARRANTY - UNITED STATES & CANADA
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
LIMITED EXPORT WARRANTY - One year on parts only.
This warranty does not cover installation or labor charges and does not apply to materials, which have been damaged by other
causes such as mishandling or improper care or abnormal use. The repair or replacement of the defective materials shall
constitute the sole remedy of the Buyer and the sole remedy of Murdock under this warranty. Murdock shall not be liable under
any circumstances for incidental, consequential or direct charges caused by defects in the materials, or any delay in the repair or
replacement thereof. This warranty is in lieu of all other warranties expressed or implied. Product maintenance instructions are
issued with each unit and disregard or non-compliance with these instructions will constitute an abnormal use condition and void
the warranty. Stainless steel must be protected on jobsite during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdocks’s limited warranty is void.
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP, -FRA” WILL
DIFFER FROM STANDARD! REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS PRIOR TO
ROUGH-IN AND FIXTURE INSTALL FOR -FRU, -NP, -FRA SERIES OPTIONS. FOR ADDITIONAL INFORMATION
VISIT: OR CONTACT YOUR LOCAL SALES REPRESENTATIVE.www.MurdockMfg.com/Resources
LIMITED EXPORT WARRANTY - One year on parts only.
This warranty does not cover installation or labor charges and does not apply to materials, which have been damaged by
other causes such as mishandling or improper care or abnormal use. The repair or replacement of the defective materials
shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this warranty. Murdock shall not be
liable under any circumstances for incidental, consequential or direct charges caused by defects in the materials, or any
delay in the repair or replacement thereof. This warranty is in lieu of all other warranties expressed or implied. Product
maintenance instructions are issued with each unit and disregard or non-compliance with these instructions will constitute
an abnormal use condition and void the warranty. Stainless steel must be protected on jobsite during construction and must
be properly maintained after the water has been introduced into the water cooler or drinking fountain, or Murdocks’s limited
warranty is void.
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
Murdock warrants that its products are free from defects in material or workmanship under normal use and service for a
period of one year from date of shipment from the factory. Murdocks’s liability under this warranty shall be discharged solely
by repair or replacement of defective material, provided Murdock is notified in writing within the time periods described
above.
LIMITED WARRANTY - UNITED STATES & CANADA
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP, -FRA” WILL
DIFFER FROM STANDARD! REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS PRIOR TO
ROUGH-IN AND FIXTURE INSTALL FOR -FRU, -NP, -FRA SERIES OPTIONS. FOR ADDITIONAL INFORMATION
VISIT: OR CONTACT YOUR LOCAL SALES REPRESENTATIVE.www.MurdockMfg.com/Resources
LIMITED WARRANTY - UNITED STATES & CANADA
Murdock warrants that its products are free from defects in material or workmanship under normal use and service for a period of
one year from date of shipment from the factory. Murdocks’s liability under this warranty shall be discharged solely by repair or
replacement of defective material, provided Murdock is notified in writing within the time periods described above.
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
This warranty does not cover installation or labor charges and does not apply to materials, which have been damaged by other
causes such as mishandling or improper care or abnormal use. The repair or replacement of the defective materials shall
constitute the sole remedy of the Buyer and the sole remedy of Murdock under this warranty. Murdock shall not be liable under
any circumstances for incidental, consequential or direct charges caused by defects in the materials, or any delay in the repair or
replacement thereof. This warranty is in lieu of all other warranties expressed or implied. Product maintenance instructions are
issued with each unit and disregard or non-compliance with these instructions will constitute an abnormal use condition and void
the warranty. Stainless steel must be protected on jobsite during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdocks’s limited warranty is void.
LIMITED EXPORT WARRANTY - One year on parts only.
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP, -FRA” WILL
DIFFER FROM STANDARD! REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS PRIOR TO
ROUGH-IN AND FIXTURE INSTALL FOR -FRU, -NP, -FRA SERIES OPTIONS. FOR ADDITIONAL INFORMATION
VISIT: OR CONTACT YOUR LOCAL SALES REPRESENTATIVE.www.MurdockMfg.com/Resources
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
This warranty does not cover installation or labor charges and does not apply to materials, which have been damaged by other
causes such as mishandling or improper care or abnormal use. The repair or replacement of the defective materials shall
constitute the sole remedy of the Buyer and the sole remedy of Murdock under this warranty. Murdock shall not be liable under
any circumstances for incidental, consequential or direct charges caused by defects in the materials, or any delay in the repair or
replacement thereof. This warranty is in lieu of all other warranties expressed or implied. Product maintenance instructions are
issued with each unit and disregard or non-compliance with these instructions will constitute an abnormal use condition and void
the warranty. Stainless steel must be protected on jobsite during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdocks’s limited warranty is void.
LIMITED WARRANTY - UNITED STATES & CANADA
Murdock warrants that its products are free from defects in material or workmanship under normal use and service for a period of
one year from date of shipment from the factory. Murdocks’s liability under this warranty shall be discharged solely by repair or
replacement of defective material, provided Murdock is notified in writing within the time periods described above.
LIMITED EXPORT WARRANTY - One year on parts only.
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP, -FRA” WILL
DIFFER FROM STANDARD! REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS PRIOR TO
ROUGH-IN AND FIXTURE INSTALL FOR -FRU, -NP, -FRA SERIES OPTIONS. FOR ADDITIONAL INFORMATION
VISIT: OR CONTACT YOUR LOCAL SALES REPRESENTATIVE.www.MurdockMfg.com/Resources
LIMITED EXPORT WARRANTY - One year on parts only.
Murdock warrants that its products are free from defects in material or workmanship under normal use and service for a
period of one year from date of shipment from the factory. Murdocks’s liability under this warranty shall be discharged solely
by repair or replacement of defective material, provided Murdock is notified in writing within the time periods described
above.
LIMITED WARRANTY - UNITED STATES & CANADA
This warranty does not cover installation or labor charges and does not apply to materials, which have been damaged by
other causes such as mishandling or improper care or abnormal use. The repair or replacement of the defective materials
shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this warranty. Murdock shall not be
liable under any circumstances for incidental, consequential or direct charges caused by defects in the materials, or any
delay in the repair or replacement thereof. This warranty is in lieu of all other warranties expressed or implied. Product
maintenance instructions are issued with each unit and disregard or non-compliance with these instructions will constitute
an abnormal use condition and void the warranty. Stainless steel must be protected on jobsite during construction and must
be properly maintained after the water has been introduced into the water cooler or drinking fountain, or Murdocks’s limited
warranty is void.
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP, -FRA” WILL
DIFFER FROM STANDARD! REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS PRIOR TO
ROUGH-IN AND FIXTURE INSTALL FOR -FRU, -NP, -FRA SERIES OPTIONS. FOR ADDITIONAL INFORMATION
VISIT: OR CONTACT YOUR LOCAL SALES REPRESENTATIVE.www.MurdockMfg.com/Resources
Murdock warrants that its products are free from defects in material or workmanship under normal use and service for a period of
one year from date of shipment from the factory. Murdocks’s liability under this warranty shall be discharged solely by repair or
replacement of defective material, provided Murdock is notified in writing within the time periods described above.
LIMITED WARRANTY - UNITED STATES & CANADA
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
This warranty does not cover installation or labor charges and does not apply to materials, which have been damaged by other
causes such as mishandling or improper care or abnormal use. The repair or replacement of the defective materials shall
constitute the sole remedy of the Buyer and the sole remedy of Murdock under this warranty. Murdock shall not be liable under
any circumstances for incidental, consequential or direct charges caused by defects in the materials, or any delay in the repair or
replacement thereof. This warranty is in lieu of all other warranties expressed or implied. Product maintenance instructions are
issued with each unit and disregard or non-compliance with these instructions will constitute an abnormal use condition and void
the warranty. Stainless steel must be protected on jobsite during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdocks’s limited warranty is void.
LIMITED EXPORT WARRANTY - One year on parts only.
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP” WILL DIFFER
FROM STANDARD! REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS PRIOR TO
ROUGH-IN AND FIXTURE INSTALL FOR -FRU, -NP SERIES OPTIONS. FOR ADDITIONAL INFORMATION VISIT:
www.MurdockMfg.com/Resources OR CONTACT YOUR LOCAL SALES REPRESENTATIVE.
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
LIMITED WARRANTY - UNITED STATES & CANADA
Murdock warrants that its products are free from defects in material or workmanship under normal use and service for a period
of one year from date of shipment from the factory. Murdocks’s liability under this warranty shall be discharged solely by repair
or replacement of defective material, provided Murdock is notified in writing within the time periods described above.
This warranty does not cover installation or labor charges and does not apply to materials, which have been damaged by
other causes such as mishandling or improper care or abnormal use. The repair or replacement of the defective materials
shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this warranty. Murdock shall not be liable
under any circumstances for incidental, consequential or direct charges caused by defects in the materials, or any delay in the
repair or replacement thereof. This warranty is in lieu of all other warranties expressed or implied. Product maintenance
instructions are issued with each unit and disregard or non-compliance with these instructions will constitute an abnormal use
condition and void the warranty. Stainless steel must be protected on jobsite during construction and must be properly
maintained after the water has been introduced into the water cooler or drinking fountain, or Murdocks’s limited warranty is
void.
LIMITED EXPORT WARRANTY - One year on parts only.
Member of 15125 Proctor Ave, City of Industry,
CA, 91746 U.S.A.
Phone [phone]
626-336-4561
Fax [phone]
www.murdockmfg.com
Date: 04/19/21
7020-967-001
Federal
Public Law
111-380
(No Lead)

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
INSTALLATION/MAINTENANCE INSTRUCTIONS
PET FOUNTAIN
7020-967-001 Date: 04/19/21
Page 2 of 7
5. Completely flush water supply lines of all foreign debris,
before connecting to the fixture.
PRIOR TO INSTALLATION:
3. Provide mounting surface, sufficient to support the fixture
and loads on the fixture, concrete is recommended.
INSTALLATION:
1. Read all installation instructions carefully, before
proceeding.
4. Thoroughly flush supply inlet prior to making up supply
connections. Make up 1/2” supply inlet connection to Y-
Strainer with 1/4” NCT x 4” Long Tube inlet. Y-Strainer
includes 1/4” OD push-in fitting on the “OUT” side
connection. Follow the water flow directional arrow
indicated on the Y-Strainer.
2. Carefully remove fixture from packaging, preventing
scratching or damage.
4. Provide rough-ins as shown on the roughing-in and
dimensional drawing, including water supply and drain
pipe.
1. Remove basin from fixture by removing screw at center of
drain and separate from fixture housing (See DETAIL A).
2. Use dimensional information below or use fixture as a
template to locate and mark floor and wall anchoring. Floor
anchors are provided. Wall anchors are provided by the
installer. Do not fix to wall and floor at this time.
3. Stub-out 1-1/4” Wall Waste outlet extending waste tube
3-3/4” minimum. Align waste tube with elbow compression
nut, push to wall aligning with floor anchoring locations and
hand tighten through opening in pedestal.
5. Secure fixture to wall and floor using hardware provided by
the installer and/or hardware provided. Secure basin to
fixture. Test for leaks and proper operation. See Flow
Adjustment detail.
OPERATION INSTRUCTIONS:
Foot operation: Press and hold button using foot. When
finished, cease pressing the button and allow the self-
closing button to return to the closed position.
9"
[229]
13
8" [35]
4
2
3
31
2
[89]
2"
"
75
8
[194]
"61
4
[159]
"
1
2"
[13] 25
8
[67]
"
4"
[102]
6"
[152]
[51]
4
1
2
3
73
4
[200]
"13"
[330]
10"
[254]
6"
[152]
21
8
[54]
"
3
1
2. 1/2” SUPPLY INLET
1. 1-1/4” OD CLOSE ELBOW WASTE OUTLET
GENERAL NOTES:
3. Ø7/16” HOLE PUNCHING FOR MOUNTING
HARDWARE BY OTHERS
4. (2) 1/2” - 13 UNC FLOOR ANCHORS (PROVIDED)

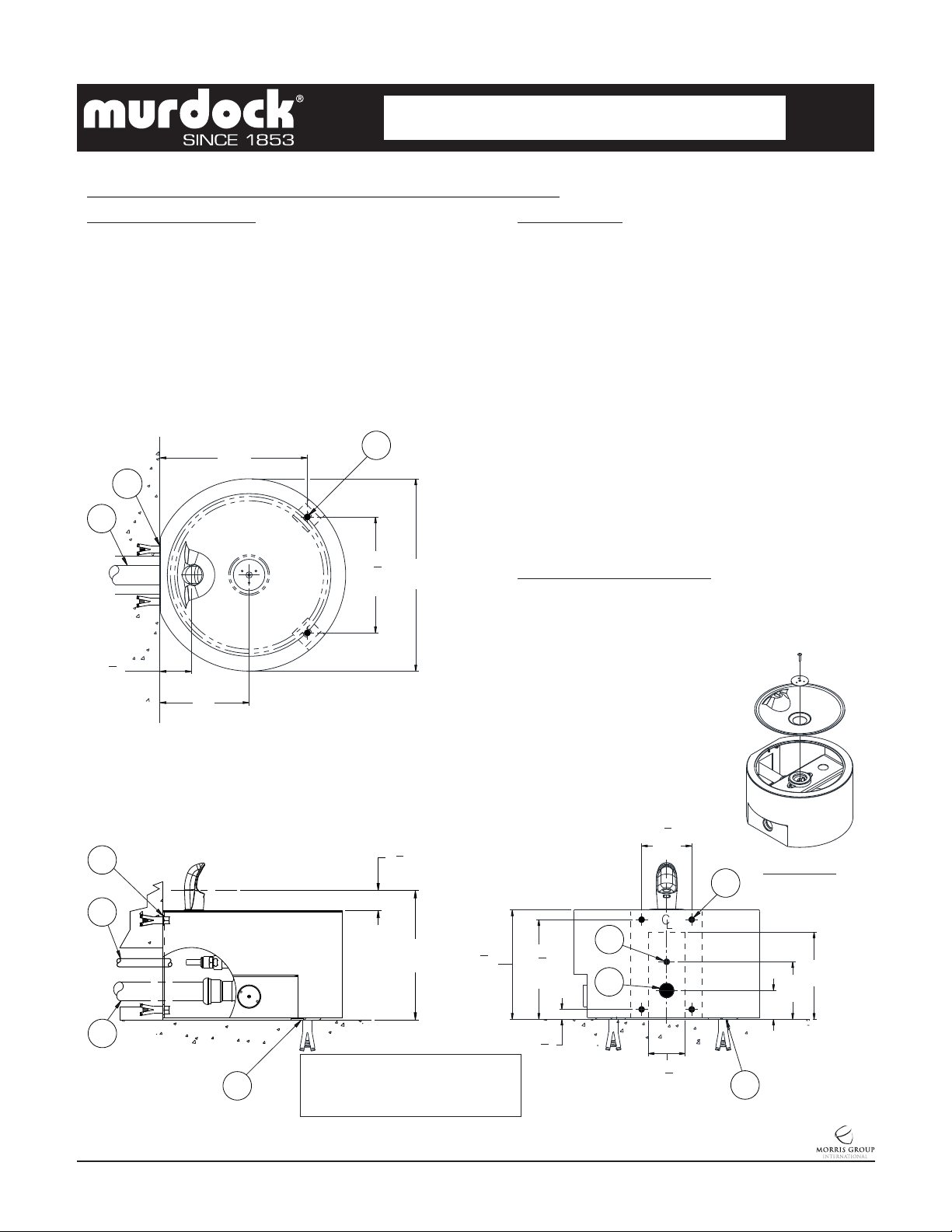

GRT75-PF ROUGH-IN AND INSTALLATION:
DETAIL A
* Valve specifications:
Minimum/Maximum Pressure
30 to 100 psi.
1
4

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
INSTALLATION/MAINTENANCE INSTRUCTIONS
PET FOUNTAIN
7020-967-001 Date: 04/19/21
Page 3 of 7
4"
2" PVC DWV
RECOMMENDED
MINIMUM 3 CUBIC FEET OF
POROUS GRAVEL FILL
GRAVEL
EARTH
GRAVEL
WATER
SUPPLY
FROST LINE
3/8” OD x 4" LONG
COPPER TUBE
30" x 30"
CONCRETE PAD
Ø9
16
"
Ø6"
PUSHBUTTON
ORIENTATION
73
4"
TYP
MOUNTING BASE DETAIL
BUBBLER
ORIENTATION
Ø13"
Ø11"
*4"
IMPORTANT: INSTALLATION AND SITE PREP FOR FREEZE RESISTANT OPTIONS “-FRU, -NP” WILL
DIFFER FROM STANDARD. REFER TO DESIGNATED FREEZE RESISTANT INSTALLATION DETAILS.
GRT75-PF-RFS FREE STANDING ROUGH-IN AND INSTALLATION:
* Valve specifications:
Minimum/Maximum Pressure
30 to 100 psi.
3. Stub-out 1-1/4” x 3-1/2” Floor Waste outlet extending to 2”
DWV waste.
1. Remove basin from fixture by removing screw at center of
drain and separate from fixture housing (See DETAIL A).
2. Use dimensional information below or use fixture as a
template to locate and mark floor anchoring. Floor anchors
are provided. Do not fix to floor at this time.
PRIOR TO INSTALLATION:INSTALLATION:
Important: Read all instructions and refer to local codes prior
to installation.
lRefill trench and hole, compacting back fill as required.
Leave sufficient depth in hole to accommodate concrete
pour.
lLocal soil conditions may require more gravel for
drainage.
lPrepare the slab area surrounding fountain spreading
and compacting gravel as necessary. Prepare form
approximately 6" diameter to protect supply and waste
stub outs. NOTE: Refer to local codes for sufficient
concrete pad depth height.
lIt is recommended to include a supply stop appropriately
located on the supply line.
lPrepare trench for water supply line and waste line (if
required). At fountain location prepare hole to trench
depth and large enough for a person to work. Lay supply
and waste into trench allowing extra length to be trimmed
during hook-up. Depending on code and design
requirements, drain may be open, French or sanitary
connection. For French drain, place a minimum of three
cubic feet of gravel under drain opening. Local soil
conditions may require more gravel drainage.
5. Secure fixture to floor using 1/2” concrete floor anchoring
hardware (Provided) following manufacturer’s installation
recommendations. Secure basin to fixture. Test for leaks
and proper operation. See Flow Adjustment detail.
4. Thoroughly flush supply inlet prior to making up supply
connections. Make up 1/2” supply inlet connection to Y-
Strainer with 1/4” NCT x 4” Long Tube inlet. Y-Strainer
includes 1/4” OD push-in fitting on the “OUT” side
connection. Follow the water flow directional arrow
indicated on the Y-Strainer.
l A water filter should be installed on the supply line if
sediment or mineral content is a problem.
lAn in-line PRV installed on the supply line is
recommended to ensure a working water pressure of 40-
60 psi.
lProvide 30" x 30" concrete pad and allow to cure before
completing installation.
3. (4) 1/2” - 13 UNC FLOOR ANCHORS (PROVIDED)
GENERAL NOTES:
2. 1/2” SUPPLY INLET
1. 1-1/4” OD WASTE OUTLET
DETAIL A
1
2
3

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
INSTALLATION/MAINTENANCE INSTRUCTIONS
PET FOUNTAIN
7020-967-001 Date: 04/19/21
Page 4 of 7
,MAINTENANCE:
vTo remove pushbutton assembly remove bowl from
housing. From inside of the housing, remove inlet and
outlet lines from push-in ports of valve body. Using a
spanner wrench remove pushbutton and retaining ring.
vTo access bubbler, remove bowl from housing
assembly. Remove bubbler plug with a spanner wrench
and remove nut holding bubbler in place.
vTo replace regulator, use a spanner wrench to
remove pushbutton and retaining ring from the flange
collar. Use a spanner wrench to remove retainer from the
inside of the flange collar. Remove regulator, insert new
regulator and align ports to new regulator with mating
ports of valve body then replace retaining ring.
vRe-assemble in reverse order. When replacing inlet
and outlet lines, ensure to insert supply line into valve port
labeled “IN”. Ensure plastic lines are not kinked when
fountain is reassembled.
All normal maintenance is done from above ground.
vProtect exposed valve assembly, tubing and tube
openings to prevent damage to equipment or to prevent
tubes from becoming filled with soil or debris.
vAlways shut off water supply when doing any
maintenance.
FLOW ADJUSTMENT
Ø3/16"
Hole
Slotted
Screwdriver
Increase
Flow
Decrease
Flow
GRT75-PF AND GRT75-PF-RFS MAINTENANCE:
REGULATOR
VALVE BODY
FLOW REGULATOR
CARTRIDGE
VALVE RETAINING
NUT
BRASS RETAINER
RING
PUSHBUTTON
FIBER RING
RUBBER GASKET

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
INSTALLATION/MAINTENANCE INSTRUCTIONS
PET FOUNTAIN
7020-967-001 Date: 04/19/21
Page 5 of 7
GRT75-PF AND GRT75-PF-RFS PARTS BREAKDOWN:
8
17
2
1
18
19
20
11
13
14
12
4
5
15
6
3
7
16
10
9
21
ITEM # PART NUMBER DESCRIPTION
1 0112-008-000 #10-32 x 1" S/S HEX SCREW
2 0304-013-000 THK FLAT WASHER
3 0332-013-000 7/16-20 UNF STEEL HEX NUT
4 0411-022-000 FIBER RING 1-3/4" x 1-1/4"
5 0431-222-000 RUBBER GASKET
6 1895-451-000 1/4" OD NYLON NUT W/PLASTIC GRIPPER
7 7000-006-000 FLAT DRAIN ADAPTER GASKET
8 7000-012-000 SOLID BUBBLER, S/S
9 7000-017-001 ELBOW, ORING x 1-1/4" (GRT75-PF-RFS ONLY)
10 7000-021-001 "Y" STRAINER, 1/4 NPT x 3/8" OD COPPER
11 7000-050-000 REGULATOR VALVE BODY
12 7000-051-000 RETAINING NUT, VALVE
13 7000-053-199 JAM NUT, 1-1/4"
14 7000-060-000 FLOW REGULATOR CARTRIDGE (0.5 GPM)
15 7000-063-199 BRASS RETAINTER RING
16 7000-091-001 RECESSED PUSH BUTTON W/ HEX ASSY
17 7000-097-000 BUBBLER SPACER
18 7007-008-199 DRAIN STRAINER
19 7007-009-001 PET FOUNTAIN BASIN
7007-620-010 PET FTN ASSY (GRT75-PF SHOWN)
7007-610-002 STANDALONE PET FTN ASSY (GRT75-PF-RFS)
21 7100-113-001 1-1/4" x 2.75" DRAIN ASSY (GRT75-PF ONLY)
20

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
INSTALLATION/MAINTENANCE INSTRUCTIONS
PET FOUNTAIN
7020-967-001 Date: 04/19/21
Page 6 of 7
PUSH-IN FITTING INSTALLATION
NOTE: FITTINGS AND TUBE SHOULD BE KEPT
CLEAN, BAGGED AND UNDAMAGED PRIOR TO
INSTALLATION.
2. Pull on the fitted tubing to ensure it is secure. Tube
should not come free from the fitting. Water test the
connection assembly prior to leaving the site to ensure
there are no leaks.
DISCONNECTING THE TUBE:
To disconnect the tube from the fitting ensure that the
water line is depressurized. Push collet square towards
the push-in fitting body and hold. While holding the collet
in, pull on the PE tubing to remove from the push-in fitting.
TO CUT TUBE:
Cut to fit length of 1/4” PE tubing and remove any burrs
or sharp edges. Ensure that the outside diameter is free
from score marks. Tube ends should be square.
INSERTING THE TUBE:
1. Firmly and fully insert the tubing end into the push-in
fitting up to the tube stop located approximately ½”
deep.
COLLET
COLLET
O-RING
O-RING
TUBE STOP
COLLET
COLLET
COLLET

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
CONTEMPORARY WATER COOLERS
INSTALLATION/MAINTENANCE INSTRUCTIONS
PET FOUNTAIN
7020-967-001 Date: 04/19/21
Page 7 of 7
STANDARD PUSH PAD / PUSH BUTTON DRINKING FOUNATIN
CONDITION: SOLUTION:
NO WATER FLOW:
WATER DRIPS / WILL NOT
SHUT OFF:
REDUCED WATER FLOW:
1.4 Replace valve cartridge.
1.1 Check water main supply - open.
1.3 Inspect in-line strainer for debris - clean.
1.2 Inspect stop (by others) - open & no debris.
2.1 For push pad activated drinking fountains only: Open
fixture and move valve bracket assembly further back
from push pad.
2.2 Replace valve cartridge.
3.3 Inspect stop (by others) - open & no debris.
3.1 Adjust the valve flow rate. See appropriate fixture
installation instructions.
3.5 Inspect bubbler for debris - clean.
3.6 Inspect all tubing for twists or kinks.
3.2 Check water main supply for 20 PSIG minimum flow
pressure.
3.4 Inspect in-line strainer for debris - clean.
3.7 Replace valve cartridge.
