LUMI4COB
PORTABLE LED WASHER-SET
LUMI 4 COB

All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be
reproduced in any form or by any means for any commercial use.
In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it
REV.002-07/17

1
LUMI 4COB
Packing content • LUMI4COB
• Carrying case
• Tripod stand
• Footswitch
• Power cord
• User manual
TABLE OF CONTENTS Safety
General instructions
Warnings and installation precautions
1 Introduction
1. 1 Description
1. 2 Technical specications
1. 3 Operating elements and connections
2 Installation
2. 1 Mounting
3 Functions and settings
3. 1 Operation
3. 2 Basic
3. 3 Menu structure
3. 4 Automatic
3. 5 Sound active
3. 6 Master/Slave mode
3. 7 Linking
3. 8 DMX operation
3. 9 DMX addressing
3. 10 Connection of the DMX line
3. 11 Construction of the DMX termination
3. 12 DMX control
4 Footswitch operation
4. 1 Footswitch functions
5 Maintenance
4. 1 Maintenance and cleaning the unit
4. 2 Trouble shooting
2
2
3
3
5
6
7
7
8
8
8
9
9
9
9
10
10
11
12
13
13

LUMI 4COB
2
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places subject to vibrations or bumps;
- in places with a temperature of over 40°C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Don’t connect the device to a dimmer pack.

3
LUMI 4COB
- 1 - INTRODUCTION
1.1 DESCRIPTION
LUMI4COB is a plug&play portable LED wash light set for lighting mobile stages and clubs. LUMI4COB is
composed of a lighting bar with 4 LED projectors based, the special optics reectors in combination with
15W COB (chip-on-board) LED give LUMI4COB an unprecedented light output capable of impressing and
dazzling the audience. LED technology allows these luminaires to create striking eects with dynamic
colour changes, powerful and synchronised operations.
1.2 TECHNICAL SPECIFICATIONS
LIGHT SOURCE
• Source: 4x15W COB RGB LEDs
• Lux: 363lux @3m full
• Source life expectancy: >50.000 h
OPTICS
• Beam angle: 31°
• Field angle: 42°
COLOUR SYSTEM
• Colour mixing: RGB/FC
• Macros: several pre-build pixel macros with adjustable speed
DYNAMIC EFFECTS
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment
• Sound mode: music activation through internal microphone and sensitivity control
BODY
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black
CONTROL
• Control units: Footswitch mode: 3 buttons controller with pedals
• Protocols: DMX512
• DMX channels: 3/15 channel
• Pixel control: pixel2pixel control
• Display: LED display user interface
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Strobe / shutter: 1-28 Hz, electronic
• Operating temperature: -20° ~ +45°
• Flicker: icker free operation
ELECTRICAL
• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 61W
• Power consumption (at 120V): 64W
PHYSICAL
• Cooling: natural cooling of the peculiar chassis and to absence of fans
• Sospension and xing: 360° adjustable hanging bracket - Stand
• Signal connection: XLR 3p IN/OUT connectors

LUMI 4COB
4
• Power connection: IEC IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 749x285x135mm
• Weight: 4.7kg
749
135
285

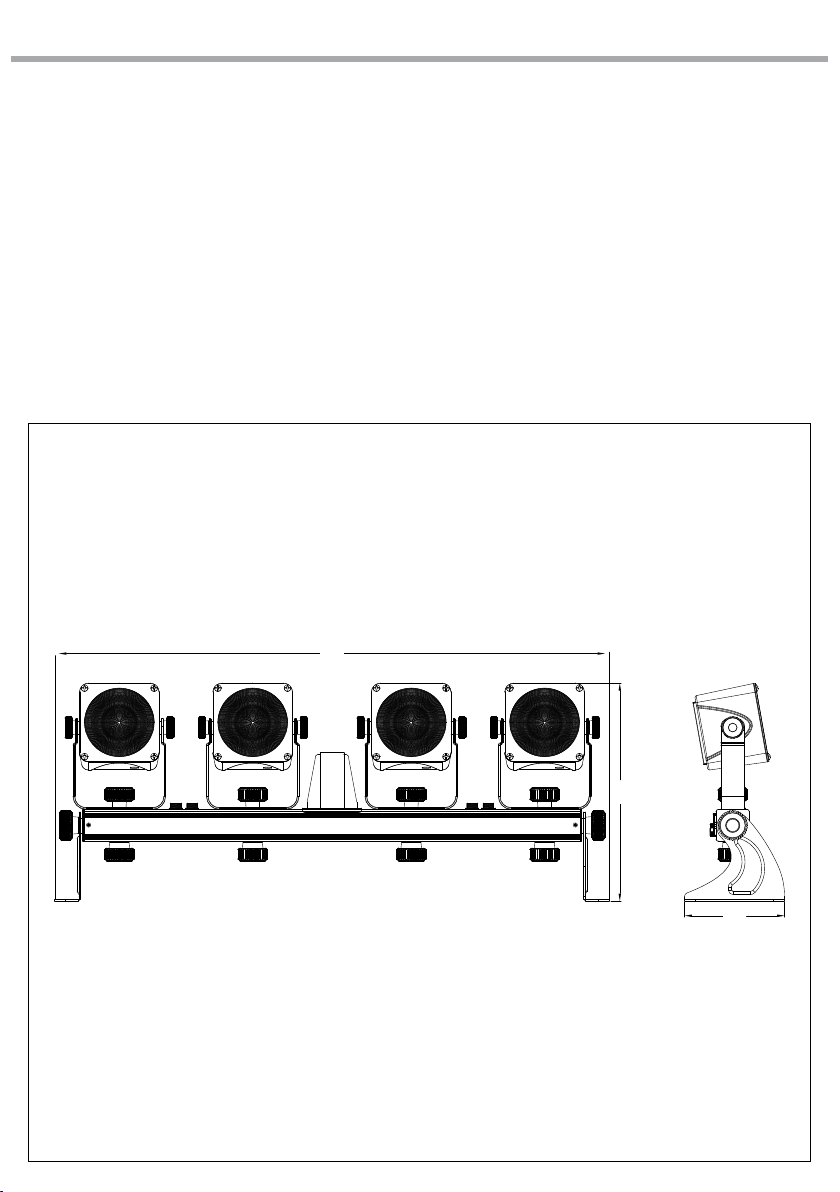

Technical drawing Fig.1

5
LUMI 4COB
1.3 OPERATING ELEMENTS AND CONNECTIONS
1. POWER OUT
2. POWER IN mains plug for connection to a
socket (100-240V 50/60Hz) via the supplied
mains cable. The support for the mains fuse
is located near the mains plug. Only replace a
blown fuse by one of the same type.
3. DMX IN (3-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +
4. DMX OUT (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +
5. Input connector for FOOTSWITCH
6. CONTROL SENSITIVITY for the sensitivity of
response in case of music control via the
internal microphone.
7. MICROPHONE to control the show by the
external audio signal.
8. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
9. POWER OUT

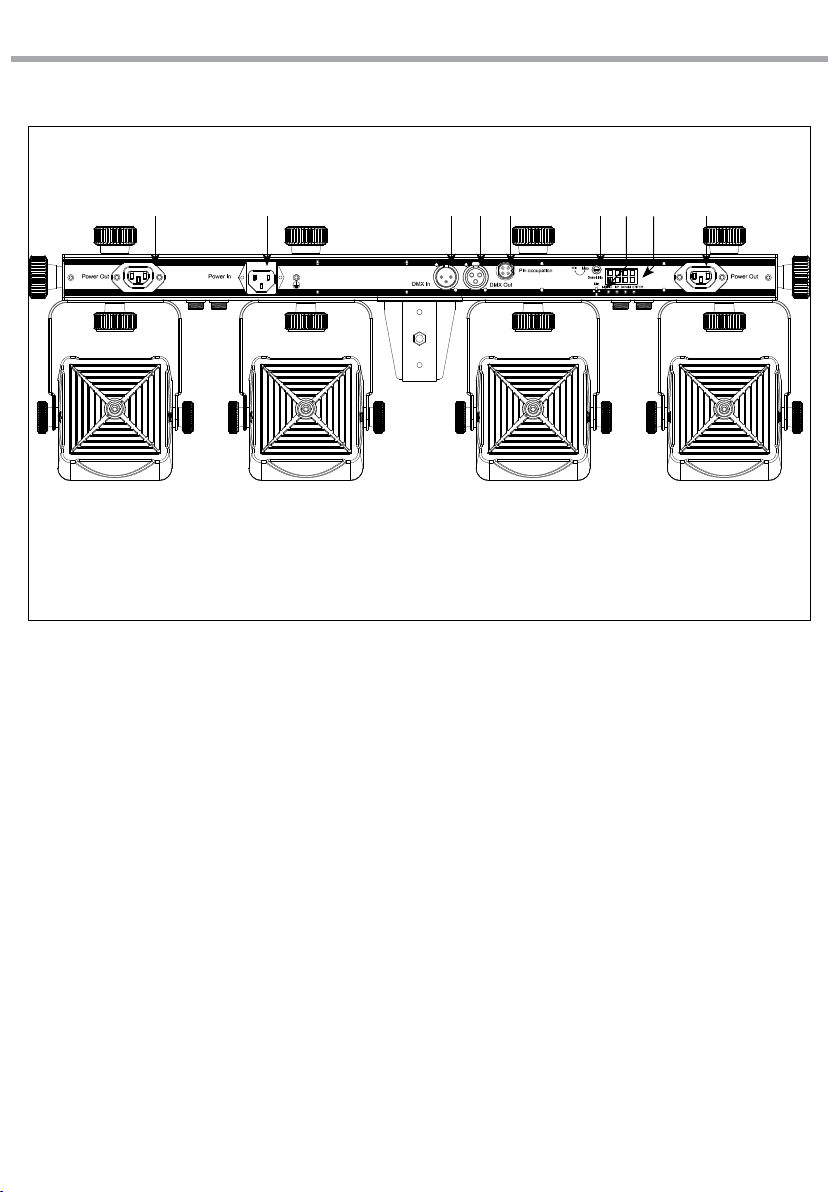

Fig.2
Rear panel
1 2 3 4 5 6 7 98

LUMI 4COB
6
- 2 - INSTALLATION
2.1 MOUNTING
This xture may be mounted on the included tripod stand, in any location, provided there is adequate
room for ventilation. There are two methods of mounting this xture:
• Using the included tripod stand (g.3).
• Using a clamp on the two clamp hanging bolts.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
garding safety) currently in force in the country in which the xture’s being used. Adjust the angle of the
each of the four lights on the xture by loosening both knobs and tilting the xture. After nding the
desired position, retighten both knobs.
• When selecting installation location, take into consideration access and routine maintenance.
• Never mount in places where the xture will be exposed to rain, high humidity, extreme temperature
changes or restricted ventilation.
Fig.3
Light PAN angle
adjustment knob
Light TILT angle
adjustment knob
LUMI 4 COB

7
LUMI 4COB
MENU UP DOWN ENTER
Used to scroll through the current
operating mode, as well as back
out of the current menu option
Used to select an increasing
value
Used to select a decreasing
value
Used to activate a selection
and store it to memory
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Connect the supplied main cable to a socket (100-240 VAC-50/60 Hz). Then the unit is ready for operation
and can be operated via a DMX controller or it independently performs its show program in succession.
To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-
mended to connect the unit to a socket which can be switched on and o via a light switch.
3.2 BASIC

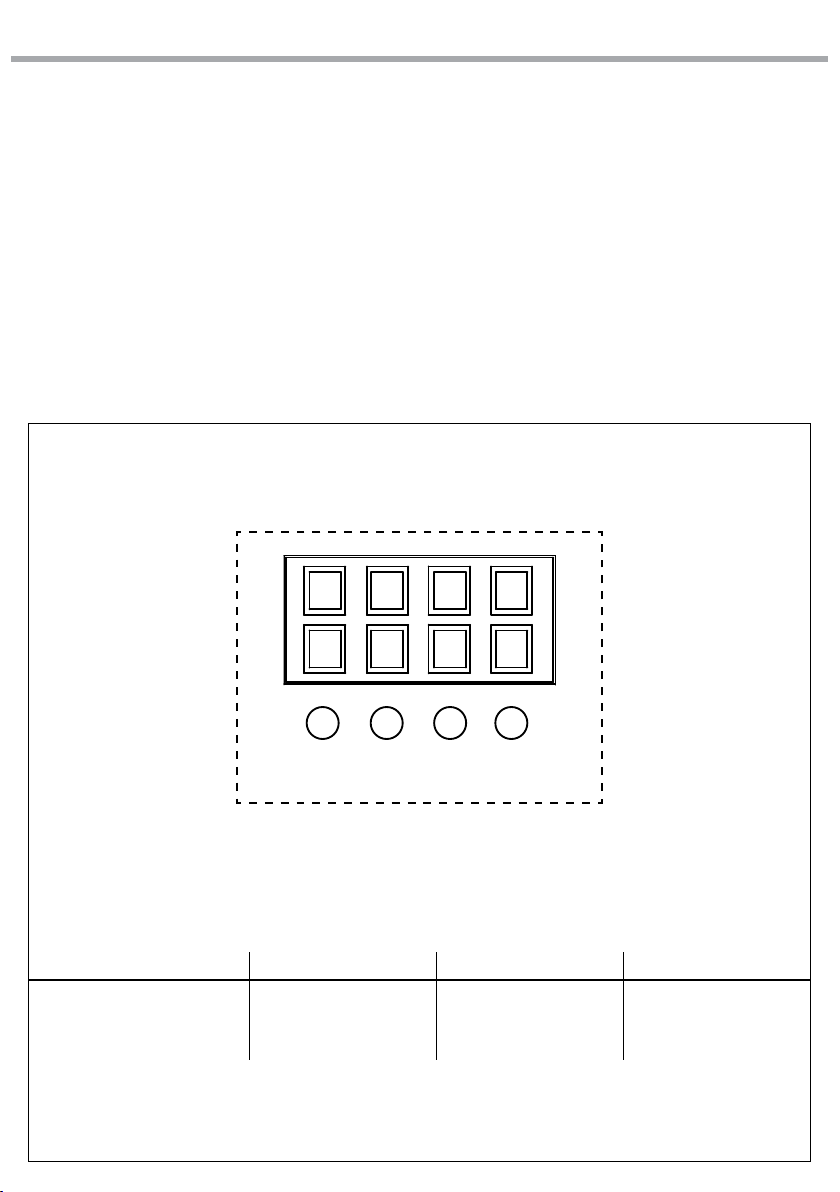

Access control panel functions using the four panel buttons located directly underneath the LED Display
(g.4).
Fig.4
MENU UP DOWN ENTER

LUMI 4COB
8
3.3 MENU STRUCTURE
STANDALONE
This xture has several options for operating without a DMX controller. Access these options via the con-
trol panel on the back of the xture.
3.4 AUTOMATIC
This xture has preprogrammed chases that may be triggered without a controller. Access these chases
via the control panel on the back of the xture.
• Remove any DMX controller from the xture.
• Press MENU button to select Auto Program [AUTO].
• Press ENTER button.
• Press MENU until [S--] appears on the LED screen.
• Press ENTER button.
• Using UP/DOWN button, select the desired run speed [S001 - S100] (slow~fast)
• Press the button ENTER to save the setting.
3.5 SOUND ACTIVE
• Press the button [MENU] so many times until the display shows [Snd], then press the button ENTER.
• Use the microphone sensitivity adjustment knob (6) to adjust the xture to react to the beat of the
music.
MAIN FUNCTION SELECTION1 SELECTION2 DESCRIPTION
DMX Mode
3 CH
d001 - d512 Select the DMX starting address
15 CH
Sound-active Snd Trigger the built-in program to the beat of the music, using the
internal microphone
Automatic Program AUTO Trigger the built-in programs
Automatic Speed S-- S001-S100 Adjust the speed of the automatic program

9
LUMI 4COB
3.6 MASTER/SLAVE MODE
This mode will allow for multiple LUMI4COB to be controlled with a single footswitch. This mode allows
a single unit, the master, to operate in one of the standalone modes, while one or more xtures, slaves,
synchronize their responses to the master.
MASTER SETTINGS
• Connect the xtures with DMX cables.
• Use any one of the standalone modes for the master unit.
SLAVE SETTINGS
• Set the same conguration and select the DMX start address [d1 - d512], then press the button ENTER.
3.7 LINKING
Several units may be interconnected in order to control all further slave units to the same eect of the
master unit.
1. Connect the DMX OUT of the master unit via 3-pole XLR cable to the DMX IN of the rst slave unit.
2. Connect the DMX OUT of the rst slave unit to the DMX IN of the second slave unit, etc. until all units
are connected in a chain.
3.8 DMX OPERATION
• Press the button [MENU] so many times until shows [3Ch - 15Ch], and press the button ENTER to conrm.
• Press the button UP/DOWN to select the desired DMX address [d1 - d512].
• Press ENTER to conrm.
3.9 DMX ADDRESSING
To able to operate the LUMI4COB with a light controller, adjust the DMX start address for the rst a DMX
channel. If e. g. address 33 on the controller is provided for controlling the function of the rst DMX chan-
nel, adjust the start address 33 on the LUMI4COB. The other functions of the light eect panel are then
automatically assigned to the following addresses. An example with the start address 33 is shown below:
Number of
DMX channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
15 33 33-47 48 63 78

LUMI 4COB
10
3.10 CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped-
ance and low capacity.

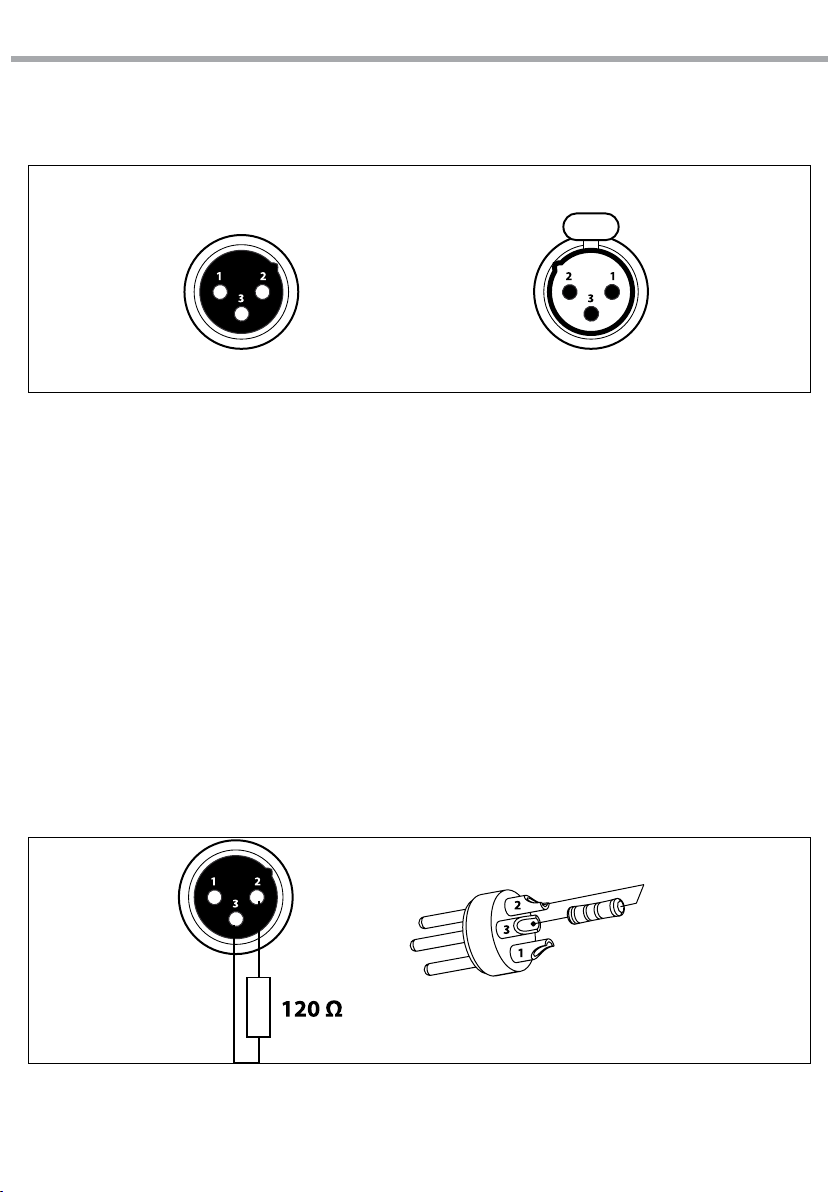

The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be connected to the system’s earth, as this would
cause faulty xture and controller operation.
Over long runs can be necessary to insert a DMX level matching amplier.
For those connections the use of balanced microphone cable is not recommended because it cannot
transmit control DMX data reliably.
• Connect the controller DMX input to the DMX output of the rst unit.
• Connect the DMX output to the DMX input of the following unit. Connect again the output to the input
of the following unit until all the units are connected in chain.
• When the signal cable has to run longer distance is recommended to insert a DMX termination on the
last unit.
3.11 CONSTRUCTION OF THE DMX TERMINATION
The termination avoids the risk of DMX 512 signals being reected back along the cable when they reach-
es the end of the line: under certain conditions and with certain cable lengths, this could cause them to
cancel the original signals.
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the 5-pin male
XLR connector, as shown in gure.una resistenza di 120Ω (minimo 1/4W) tra i terminali 2 e 3, così come
indicato in gura.
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Fig.5
Esempio:
connettore XLR a 3 pin Fig.6

11
LUMI 4COB
3.12 DMX CONTROL
CH15
CH3
CH Function in CH15 mode Value
1
CONTROL/OPERATING MODE
RGB color mixing mode
Automatic 1
Automatic 2
Automatic 3
Automatic 4
Automatic 5
Automatic 6
Automatic 7
Automatic 8
Automatic 9
Automatic 10
Automatic 11
Automatic 12
Sound-active
000 - 009
010 - 029
030 - 049
050 - 069
070 - 089
090 - 109
110 - 129
130 - 149
150 - 169
170 - 189
190 - 209
210 - 229
230 - 249
250 - 255
2
MASTER DIMMER
No Function
0% - 100%
000 - 009
010 - 255
3
STROBE/AUTO SPEED
No Function
0 - 100%
000 - 009
010 - 255
4RGB COLOR MIXING (POD1)
Red 0% - 100% 000 - 255
5RGB COLOR MIXING (POD1)
Green 0% - 100% 000 - 255
6RGB COLOR MIXING (POD1)
Blue 0% - 100% 000 - 255
7RGB COLOR MIXING (POD2)
Red 0% - 100% 000 - 255
8RGB COLOR MIXING (POD2)
Green 0% - 100% 000 - 255
9RGB COLOR MIXING (POD2)
Blue 0% - 100% 000 - 255
10 RGB COLOR MIXING (POD3)
Red 0% - 100% 000 - 255
11 RGB COLOR MIXING (POD3)
Green 0% - 100% 000 - 255
CH Function in CH3 mode Value
1RED
0% - 100% 000 - 255
2GREEN
0% - 100% 000 - 255
3BLUE
0% - 100% 000 - 255
CH Function in CH15 mode Value
12 RGB COLOR MIXING (POD3)
Blue 0% - 100% 000 - 255
13 RGB COLOR MIXING (POD4)
Red 0% - 100% 000 - 255
14 RGB COLOR MIXING (POD4)
Green 0% - 100% 000 - 255
15 RGB COLOR MIXING (POD4)
Blue 0% - 100% 000 - 255

LUMI 4COB
12
- 4 - FOOTSWITCH OPERATION
4.1 FOOTSWITCH FUNCTIONS
The included footswitch provides quick access to preset colors, color change programs, and triggering via
the on board microphone on the LUMI4COB. Please see the chart, along with the set of instructions, below
for further explanation.
• Power on the xture.
• Connect the footswitch to the LUMI4COB via the 4-pin connection cable with plug.
• Press pedal # 1 (Preset) to activate control. When this is operating properly, the LEDs on the LUMI4COB
will light white (rst function on pedal # 1).
In order to properly disconnect the footswitch, please follow these steps:
• Unplug the footswitch from the LUMI4COB.
• Turn the power to the xture o (unplug the power cable).
• Turn the power to the xture on again (plug in the power cable), and the xture will properly operate
on any one of the 3 modes.
NOTE - There is no need to modify any settings for the LUMI4COB before connecting the footswitch. It will
operate properly in any mode.
PEDAL SUB-OPTION FUNCTION
1
PRESET
Short Press
Long Press
White-Red-Green-Blue-Cyan-Yellow-Purple-Color
change every second-Color fade every 3 seconds
Color1-7 fading(3S)
2
SOUND ON
Short Press
Long Press
SOUND
SOUND STROBE (10 Hz)
3
BLACKOUT
Short Press
Long Press
BLACKOUT Switch O and On all LEDs
BLACKOUT Switch O and On all LEDs slowly (2S)

13
LUMI 4COB
- 5 - MAINTENANCE
5.1 MAINTENANCE AND CLEANING THE UNIT
To maintain optimum performance and minimize wear xtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, xtures should be
cleaned at least twice a month. Dust build up reduces light output performance and can cause overheat-
ing. This can lead to reduced lamp life and increased mechanical wear. Be sure to power o xture before
conducting maintenance. Unplug xture from power. Use a vacuum or air compressor and a soft brush
to remove dust collected on external vents and internal components. Clean all glass when the xture is
cold with a mild solution of glass cleaner or detergent liquid and a soft lint free cotton cloth or lens tissue.
Apply solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish opti-
cal surfaces until they are free of haze and lint. The cleaning of internal and external optical lenses and/or
mirrors must be carried out periodically to optimize light output. Clean the external optics at least every
20 days. Clean the internal optics at least every 30/60 days.
Warning: we strongly recommend internal cleaning to be carried out by qualied personnel!
5.2 TROUBLESHOOTING
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• All color faders set to 0
• Faulty LED
• Faulty LED board
• Check the power supply voltage
• Increase the value of the dimmer channels
• Increase the value of the color channels
• Replace the LED board
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
• Clean the xture regularly
• Install lens assembly properly
Fixture does not power up
• No power
• Loose or damaged power cord
• Faulty internal power supply
• Check for power on power outlet
• Check power cord
• Replace internal power supply
Fixture does not respond to DMX
• Wrong DMX addressing
• Damaged DMX cables
• Bouncing signals
• Check control panel and unit addressing
• Check DMX cables
• Install terminator as suggested
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.

REV.002-07/17
Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso.
La riproduzione - anche parziale - per propri scopi commerciali è vietata.
Al ne di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modicare, in
qualunque momento e senza preavviso, le speciche menzionate nel presente manuale di istruzioni.
Tutte le revisioni e gli aggiornamenti sono disponibili nella sezione 'Manuali' sul sito www.musiclights.it

3
LUMI 4COB
• LUMI4COB
• Borsa per il trasporto
• Supporto stand
• Controller a pedale
• Cavo di alimentazione
• Manuale utente
Contenuto dell'imballo:
INDICE Sicurezza
Avvertenze generali
Attenzioni e precauzioni per l’installazione
1 Introduzione
1. 1 Descrizione
1. 2 Speciche tecniche
1. 3 Elementi di comando e di collegamento
2 Installazione
2. 1 Montaggio
3 Funzioni e impostazioni
3. 1 Funzionamento
3. 2 Impostazione base
3. 3 Struttura menu
3. 4 Modalità automatica
3. 5 Modalità musicale
3. 6 Modalità Master/Slave
3. 7 Collegamento
3. 8 Modalità DMX
3. 9 Indirizzamento DMX
3. 10 Collegamenti della linea DMX
3. 11 Costruzione del terminatore DMX
3. 12 Tabella canali DMX
4 Funzionamento tramite controllo a pedale
4. 1 Funzioni pedale
5 Manutenzione
5. 1 Manutenzione e pulizia del sistema ottico
5. 2 Risoluzione dei problemi
4
4
5
5
7
8
9
9
10
10
10
11
11
11
11
12
12
13
14
15
15

LUMI 4COB
4
ATTENZIONE! Prima di effettuare qualsiasi operazione con l’unità, leggere con attenzione
questo manuale e conservarlo accuratamente per riferimenti futuri. Contiene informazioni
importanti riguardo l’installazione, l’uso e la manutenzione dell’unità.
SICUREZZA
Avvertenze generali
• I prodotti a cui questo manuale si riferisce sono conformi alle Direttive della Comunità Europea e per-
tanto recano la sigla .
• Il dispositivo funziona con pericolosa tensione di rete 230V~. Non intervenire mai al suo interno al di
fuori delle operazioni descritte nel presente manuale; esiste il pericolo di una scarica elettrica.
• È obbligatorio eettuare il collegamento ad un impianto di alimentazione dotato di un’eciente messa
a terra (apparecchio di Classe I secondo norma EN 60598-1). Si raccomanda, inoltre, di proteggere le
linee di alimentazione delle unità dai contatti indiretti e/o cortocircuiti verso massa tramite l’uso di
interruttori dierenziali opportunamente dimensionati.
• Le operazioni di collegamento alla rete di distribuzione dell’energia elettrica devono essere eettuate
da un installatore elettrico qualicato. Vericare che frequenza e tensione della rete corrispondono alla
frequenza ed alla tensione per cui l’unità è predisposta, indicate sulla targhetta dei dati elettrici.
• L’unità non per uso domestico, solo per uso professionale.
• Evitare di utilizzare l’unità:
- in luoghi soggetti a vibrazioni, o a possibili urti;
- in luoghi a temperatura superiore ai 40°C.
• Evitare che nell’unità penetrino liquidi inammabili, acqua o oggetti metallici.
• Non smontare e non apportare modiche all’unità.
• Tutti gli interventi devono essere sempre e solo eettuati da personale tecnico qualicato. Rivolgersi al
più vicino centro di assistenza tecnica autorizzato.
• Se si desidera eliminare il dispositivo denitivamente, consegnarlo
per lo smaltimento ad un’istituzione locale per il riciclaggio.
Attenzioni e precauzioni per l’installazione
• Se il dispositivo dovesse trovarsi ad operare in condizioni dierenti da quelle descritte nel presente
manuale, potrebbero vericarsi dei danni; in tal caso la garanzia verrebbe a decadere. Inoltre, ogni altra
operazione potrebbe provocare cortocircuiti, incendi, scosse elettriche, rotture etc.
• Prima di iniziare qualsiasi operazione di manutenzione o pulizia sull’unità togliere la tensione dalla rete
di alimentazione.
• È assolutamente necessario proteggere l’unità per mezzo di una fune di sicurezza. Nell’eseguire qual-
siasi intervento attenersi scrupolosamente a tutte le normative (in materia di sicurezza) vigenti nel
paese di utilizzo.
• Installare l’unità in un luogo ben ventilato.
• Mantenere i materiali inammabili ad una distanza di sicurezza dall’unità.
• I ltri, le lenti o gli schermi ultravioletti se danneggiati possono limitare la loro ecienza.
• I LED devono essere sostituiti se danneggiati o termicamente deformati.
• Non guardare direttamente il fascio luminoso. Tenete presente che i veloci cambi di luce possono pro-
vocare attacchi d’epilessia presso persone fotosensibili o epilettiche.
• Non collegare l’unità a un dimmer pack.

5
LUMI 4COB
- 1 - INTRODUZIONE
1.1 DESCRIZIONE
LUMI4COB è un set di cambiacolori LED portabile Plug‘n Play per la riproduzione di giochi di luce in stages
mobili e clubs. LUMI4COB si compone di speciali parabole ottiche unite in combinazione ai LED 15W COB
(chip-on-board), conferiscono al LUMI4COB un’emissione di luce in grado di impressionare ed abbagliare
il pubblico. L’impiego della tecnologia LED consente la riproduzione di eetti suggestivi con cambiamenti
di colore dinamici, sincronizzati e potenti.
1.2 SPECIFICHE TECNICHE
SORGENTE LUMINOSA
• Sorgente: 4x15W COB RGB LEDs
• Lux: 363lux @3m full
• Durata media sorgente: >50.000 h
OTTICA
• Angolo di proiezione: 31°
• Angolo di campo: 42°
SISTEMA COLORE
• Miscelazione del colore: RGB/FC
• Macros: pixel macro con controllo di velocità e intensità incorporate
EFFETTI DINAMICI
• Modalità colore statico: riproduzione statica di un colore
• Modalità colore manuale: regolazione manuale di un colore
• Auto mode: programmi integrati con regolazione della velocità di esecuzione
• Modalità audio: attivazione musicale tramite microfono interno e controllo sensibilità
CORPO
• Corpo: corpo in alluminio pressofuso ad alta resistenza
• Colore: nero
CONTROLLO
• Controllo unità: Footswitch mode: 3 buttons controller with pedals
• Protocolli: DMX512
• Canali DMX: 3/15 channel
• Pixel control: controllo pixel2pixel
• Display: display LED
• Aggiornamento rmware: si, con interfaccia USB-DMX (UPBOX1) non inclusa
ELETTRONICA
• Dimmer: 0~100% lineare, elettronico
• Strobo / shutter: 1-28 Hz, elettronico
• Temperatura d’esercizio: -20° ~ +45°
• Flicker: funzionamento senza sfarfallio
ALIMENTAZIONE
• Alimentazione elettrica: 100-240V – 50/60Hz
• Potenza assorbita (a 230V): 61W
• Potenza assorbita (a 120V): 64W
CARATTERISTICHE FISICHE
• Rareddamento: proiettore privo di ventole e struttura disegnata per una dissipazione a convezione
naturale
• Sospensione e ssaggio: staa regolabile 360° per la regolazione su asse x e y

LUMI 4COB
6
• Connessione di segnale: XLR 3p IN/OUT connectors
• Connessione di alimentazione:
• Grado IP: 20
• Dimensioni (LxAxP): 749x285x135mm
• Peso: 4.7kg
749
135
285
Disegno tecnico Fig.1
