musikelectronic geithain GmbH ME 801K1
Table of contents
1 Introduction 1
2 Disclaimer 2
3 System description 3
4 Basic information 4
4.1 Guidelines 4
4.2 Safety instructions 4
4.3 Unboxing 6
4.4 Delivery contents 6
4.5 Cleaning 6
4.6 Environmental conditions 6
4.7 Guarantee acknowledgements 6
5 Positioning 7
5.1 Positioning near walls 7
5.2 Stereo operation 8
5.3 Surround operation 9
6 Set-up the speakers 10
6.1 Connecting the ME 801K1 10
6.2 Cable connection 11
6.3 Adjustment controller 11
6.4 Status indication 11
6.5 LFE input 11
6.6 Bass extension 11
7 Specications 13
8 Acoustic measurements 15
9 Notes 16

INTRODUCTION 1
musikelectronic geithain GmbH ME 801K1
1 Introduction
Dear customer,
Thank you for the trust you have put in us by buying these speakers. You decided upon a quality
product that in regard to tonal and technical characteristics complies to the utmost expectations.
The usual burn-in period is not required, because the speakers are articially aged in-house.
Please read the technical description and manual to take advantage of the capabilities
of these speakers and ensure safe operation.

DISCLAIMER 2
musikelectronic geithain GmbH ME 801K1
2 Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions
excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered
by any person who relies either wholly or in part upon any description, photograph or statement
contained herein. Musikelectronic Geithain GmbH products are sold through authorized fulllers
and resellers only. Fulllers and resellers are not agents of Musikelectronic Geithain GmbH and
have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied
undertaking or representation. This manual is copyrighted. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, including photocopying and
recording, or by any information storage or retrieval system without the prior written permission of
Musikelectronic Geithain GmbH.
All rights reserved
Copyright © 2018 Musikelectronic Geithain GmbH

SYSTEM DESCRIPTION 3
musikelectronic geithain GmbH ME 801K1
3 System description
High level + large room = big loudspeaker? The ME 801K1 is about to rebut that. Longer reverb, larger
rooms and listening distances easily spoil the fun for the ambitious music listener. The ME 801K1
makes use of a few things out of the bag of tricks lled throughout the long history of the company
with much technical know how.
As well as the legendary RL 901K the ME 801K1 uses a 16-inch long-throw woofer. ME Geithain’s
typical cardioid dispersion behaviour in the lower frequency range from 25 Hz to 250 Hz minimizes
reections behind the speakers so positioning is less critical. A 6.5-inch high-performance midrange
cone driver and an array of three 1-inch dome tweeters are coaxially mounted in front of the low
range driver. This arrangement ensures the directivity that is needed in large rooms to minimize
reections and provides an irresistible spatiality. Their high sensitivity offer not only impressive level
and dynamic capabilities but also low distortion. The consequent use of the coaxial technology has
another undeniable advantage: the size of the speaker is obviously reduced. Thanks to housing the
amplier in its own cabinet the dimensions are further reduced. The electronic part consists of three
PWM ampliers and an analogue lter equipped with a room equalization lter to adjust the speaker
to the position in and the properties of the listening room. The ampliers deliver a power of 1000 W
in the low frequency channel and 500W each in the mid and treble channels. Therefore dynamical
limits of the whole system are no concern.
Despite all of these features the ME801K1 sticks to its roots and has all the virtues our customers
value: neutrality, homogeneity, low coloration and longevity.
An elegant stand for the ME801K1 is available upon request.

BASIC INFORMATION 4
musikelectronic geithain GmbH ME 801K1
4 Basic information
4.1 Guidelines
This product complies to requirements of current European and national guidelines (2004/108/EG
Electromagnetical Compatiblity). The conformity is ascertained, corresponding declarations and
records are deposited with the manufacturer.
Products built by us belong to B2C-class of the WEEE guidelines and must not
be disposed with domestic waste.
4.2 Safety instructions
Like using any other electrical device you should observe the following operation guidelines, safety
instructions and warning signs to ensure optimum functionality and safety of operation!
;Read these instructions carefully.
;Keep these instructions during the life cycle at a safe place. The instructions are an important
part of the product.
;Heed all warnings. Follow all instructions.
;The product may only be used in accordance with the information provided in the user manual.
Before and during the usage of the amplier please ensure that all recommendations, especially
the safety recommendations in the user manual, are adhered to.
;Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may
fall, causing serious injury, and damage to the product.
;The heat sink must not be blocked or covered. This product should not be installed unless
proper ventilation is provided or manufacturer‘s instructions have been adhered to.
;Do not install the device near any heat sources.
;Do not expose the device to direct sun radiation.
;Do not install the device in rooms with high humidity.
;Do not try to insert anything into device openings.
;The device shall not be exposed to dripping or splashing and no objects lled with liquids shall
be placed on the device.
;Clean only with dry or slightly moistened cloth.
;Protect the power cord from being walked on,pinched or damaged in any other way. Pay
particular attention to plugs and the point where they exit the device.

BASIC INFORMATION 5
musikelectronic geithain GmbH ME 801K1
;Do not attempt to service this product yourself as opening or removing cover may expose you
to dangerous voltage or other hazards.
;Refer all servicing to qualied service personnel.

BASIC INFORMATION 6
musikelectronic geithain GmbH ME 801K1
4.3 Unboxing
The speakers are shipped in proper condition. Unpack the speaker carefully and check for visible
damages. In case of damages report them to your retailer. Keep the packaging, in case the speaker
has to be transported in the future.
4.4 Delivery contents
;Speaker ME 801K1
;Amplier enclosure
;Speakon cable
;Mains cable
;Technical description and user manual
4.5 Cleaning
The speaker is made of real wood veneer and needs to be nurtured in the same way as furnishings.
We advise quality wax polish to ensure durability of the veneer. Surfaces can also be cleaned with
tidy, slightly damped, fuzz-free, smooth cloth.
4.6 Environmental conditions
Ensure the following environmental conditions in your listening room:
;Operating temperature +15 °C ... +35 °C (+59 °F ... +95 °F)
;Storage temperature range −25 °C ... +45 °C (−13 °F ... +113 °F)
;Relative humidity 45 % ... 75 %
4.7 Guarantee acknowledgements
Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of
destruction by overload, misuse or outside inuences there are no claims under guarantee.

POSITIONING 7
musikelectronic geithain GmbH ME 801K1
5 Positioning
Our speakers do not impose special requirements neither in stereo nor in multichannel set-ups.
Nonetheless speaker positioning has inuence on listening impression because every room is
individually designed and furnished. The following advices are just guidelines that ease proper
positioning. In addition we offer a measurement service to take advantage of the capabilities of your
listening environment.
5.1 Positioning near walls
When speakers are installed near walls sound quality is physically affected. Every customary speaker
behaves as a punctual sonic source in the low frequency range, with sonic waves spherical radiated
without any constructional measures. Back wall reections are unavoidable.
The speakers ME801K1 however utilize cardioid radiation characteristics with rearward attenuation
greater than 10dB. Because of this structural measurement installation near walls is considerably
less critical. For optimum listening experience a minimum distance of 20 cm (7.9″) to walls and
furniture should be ensured. Avoid corner installations because unwanted bass accentuation could
arise.
b
b
;Minimum distance to wall b ≥ 20 cm (7.9″)

POSITIONING 8
musikelectronic geithain GmbH ME 801K1
5.2 Stereo operation
The optimum position of the speakers in your listening environment is the so-called stereo triangle
(see gure). The base distance between the speakers and the distance to the hearing zone form
an equilateral triangle (stereo triangle). A distance less than 3 m (9′10″) or more than 6 m (19′8″)
should be avoided. For precise,spacial reproduction turn the speakers inside,directed to the hearing
zone.
a
a a
hearing zone
60°
;Distance between speakers and your listening position a = 3 m … 6 m (9′10″ … 19′8″)
;Adjust the speaker horizontally to the height of the ear at the listening position

POSITIONING 9
musikelectronic geithain GmbH ME 801K1
5.3 Surround operation
In surround operation the stereo triangle (see Stereo operation) is extended to a circle. The hearing
zone is the centre of this circle. Position all speakers in the same distance to the hearing zone. The
centre speaker is positioned in the middle between both front speakers. Pay attention to positioning
the front and rear speakers horizontally along one plane. The angle between centre and rear speakers
should be about 110° – 120°.
;Distance between speakers and your listening position a = 3 m … 6 m (9′10″ … 19′8″)
In case installation in the prescribed way is not possible in your listening room most decoding
devices allow adjustments of single speakers.
60°
110° ... 120°
a
a
a
aa
hearing zone

SET-UP THE SPEAKERS 10
musikelectronic geithain GmbH ME 801K1
6 Set-up the speakers
In this chapter we inform you how to connect your speakers to mains and your signal source. Ensure
that the mains switch on the backside is in position “OFF”. Only when your speaker is completely
connected (see chapters 6.1 and 6.2) you can take the device into operation by use of the mains
switch.
The speaker can be connected to every common pre-amplier (Ua= 1 V ... 5 V; Ri < 600 Ω).
6.1 Connecting the ME 801K1
The amplier of the ME 801K1 is housed in a separate enclosure. Every amplier is paired to exactly
one speaker by the same serial number. Ensure installation in pairs.
Ensure sufcient convection at the heatsink. Therefore the amplier should be used standing upright.
For a horizontal installation we recommend to use the RL-Amplier / RL-Amplier 2.
To connect the Speaker to the amplier use only the shielded Speakon cable that is part of the
delivery contents!
Ensure that the latch snaps audibly in place in the sockets of the speaker and the amplier by turning
the plug clockwise. Connect your signal source with the amplier through the XLR socket.
To release the connector cable from the speaker and the amplier,slide the latch on top of the
connector back and turn the connector anticlockwise.
Before start-up check the mains voltage state on the backside of the amplier. If your local mains
voltage does not match the specication of the device,please refer to your retailer or direct
distribution. When the stated and your local mains voltage comply connect the mains connector of
the amplier to the socket with the included mains cable.

SET-UP THE SPEAKERS 11
musikelectronic geithain GmbH ME 801K1
6.2 Cable connection
The input of the integrated amplier is electrically balanced. When your signal source also utilizes
balanced connectors, please use a cable wired as stated in the table:
Balanced connector
(amplier)
Balanced connector
(signalsource)
Unbalanced connector
(signalsource)
XLR XLR RCA
Earth Pin 1 Pin 1 Ring
Signal + Pin 2 Pin 2 Tip
Signal - Pin 3 Pin 3 Ring
When using a signal source with unbalanced outputs (RCA) you need to balance the connecting
cables. This avoids hum and other noise interferences. The table and the following gure show the
wiring.
6.3 Adjustment controller
The “Level” controller is used for level adjustment over the full frequency range.
6.4 Status indication
The two-coloured LED at the front of the speaker is used as status indicator of the device.
;LED green: indicates normal operation of the device
;LED red: indicates the operation of the overload protection circuit;
Output power limitation to protect the components from overloading
6.5 LFE input
The LFE input is useful if only the two lower woofers should exclusively reproduce the LFE channel.
6.6 Bass extension
The speaker enables the connection to a subwoofer from the BASIS series. Use the output connector
at the amplier to utilize this option. By the bass extension an acoustical power enhancement in the
lower frequency range is achieved and results in an even sound propagation especially in acoustically
less damped rooms.

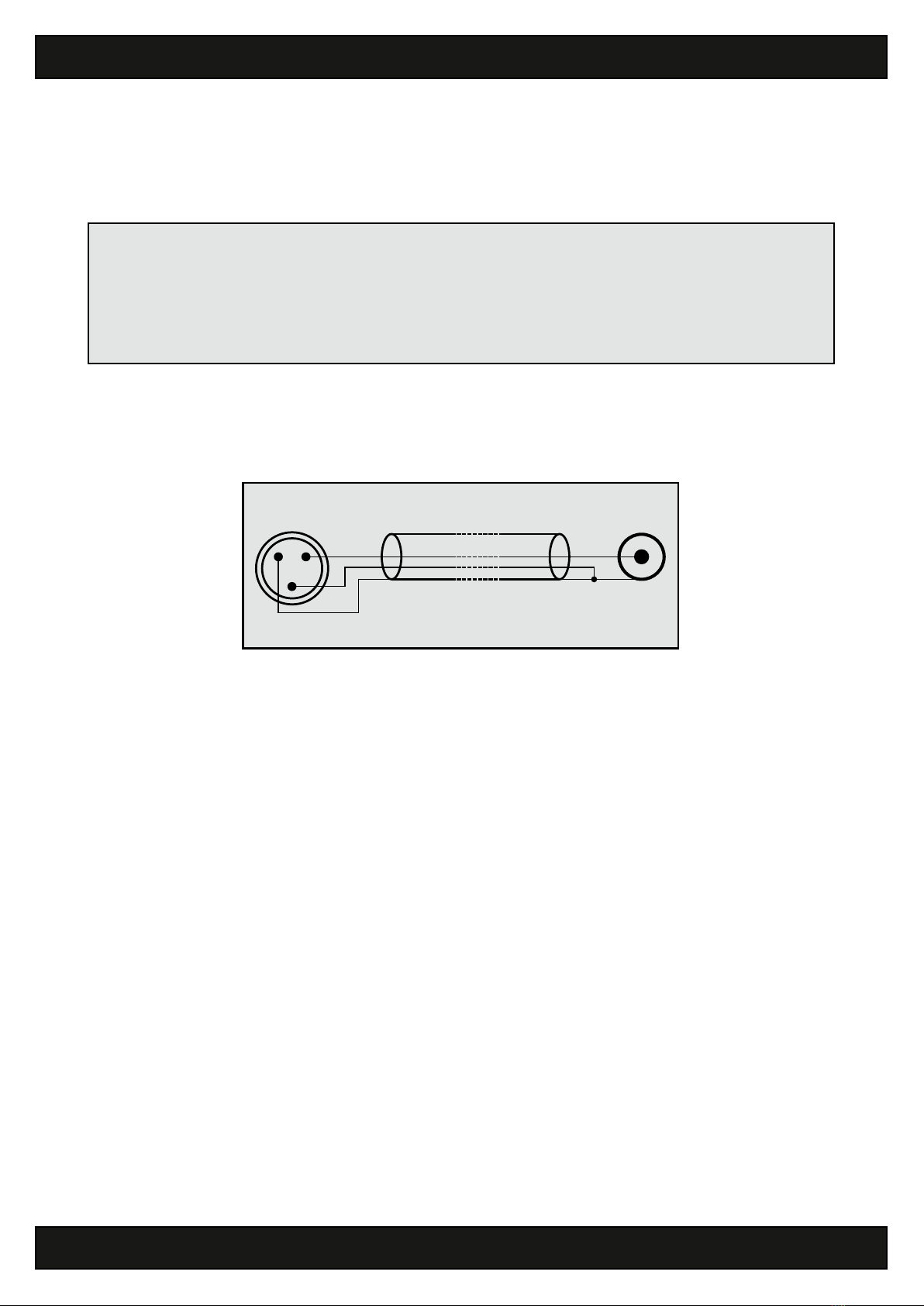

Unbalanced RCA to balanced XLR Connections
Loudspeaker (XLR-3M) Cable Source (RCA)
1 2
3

SET-UP THE SPEAKERS 12
musikelectronic geithain GmbH ME 801K1

SPECIFICATIONS 13
musikelectronic geithain GmbH ME 801K1
7 Specications
General Active 3-way coaxial loudspeaker for listening distances from
3 m (9′10″) and 6 m (19′8″)
Maximum SPL
to IEC 268-1
Programme material
≥117 dB
122 dB peak / r = 1 m (3′3″) (4 π)
Bandwidth 25 Hz ... 22 kHz −6 dB
Calibration:
Acoustic output level / PE= −14 dBu 90 dB / r = 1 m (3′3″)
Directivity index
from 100Hz ... 10 kHz increasing from 4dB to 13 dB
Inherent noise sound level ≤ 10 dB (A) / r = 1 m (3′3″)
Total harmonic distortion
measured at 100dBSPL / r = 1 m (3′3″)
from 100Hz ... 10 kHz ≤ −45 dB
Nominal input level +6 dBu (adjustable)
Input impedance ≥ 10 kΩRC balanced
Electronic crossover frequencies 550 Hz and 2.2 kHz
Nominal output power of the amplier
LF
MF
HF
1,000 W / 4 Ω
500 W / 4 Ω
500 W / 4 Ω
Input connector XLR 3F (programme input)
Output connector XLR 3M (bass extension)
Drive units
Woofer
Mid-range unit
Tweeter
1× 400 mm (16″) cone
1× 160 mm (6.5″) cone
1× 25 mm (1″) dome
Operation and clipping indicator LED on front
Power requirements 90 V ... 132 V, 55 Hz ... 65Hz
190 V ... 265 V, 45 Hz ... 55Hz
Power consumption 30 VA when idle
max. 1,000 VA at full load
Mains connection IEC power connector with RF lter
Environmental conditions
for use
for storage
humidity
+15°C ... +35 °C (+ 59 °F ... +95 °F)
−25 °C ... +45 °C (−13 °F ... +113 °F)
45 % ... 75 %
Connection cable
Loudspeaker – amplier enclosure
Speakon NLT8FX; shielded cable
Standard length 1.5 m (4′11″); other lengths on request
Dimensions (H × W × D)
Loudspeaker
Amplier enclosure
Stand
480 mm × 460 mm × 400 mm (18.9″ × 18.2″ × 15.8″)
495 mm × 330 mm × 220 mm (19.5″ × 13″ × 8.7″)
600 mm × 470 mm × 410 mm (23.7″ × 18.6″ × 16.2″)
Weight
Loudspeaker
Amplier enclosure
Stand
36.5 kg (80.5 lbs)
11 kg (24.3 lbs)
17 kg (37.5 lbs)

SPECIFICATIONS 14
musikelectronic geithain GmbH ME 801K1
Design of the cabinet
Loudspeaker MDF wood in ash black veneered; different veneers and colours on
request
Lateral mounting on request
Amplier enclosure Base plate in microstructure semi-gloss black
Stand on request
Fillable columns and top plate in polished stainless steel
Base plate in microstructure semi-gloss black

ACOUSTIC MEASUREMENTS 15
musikelectronic geithain GmbH ME 801K1
8 Acoustic measurements

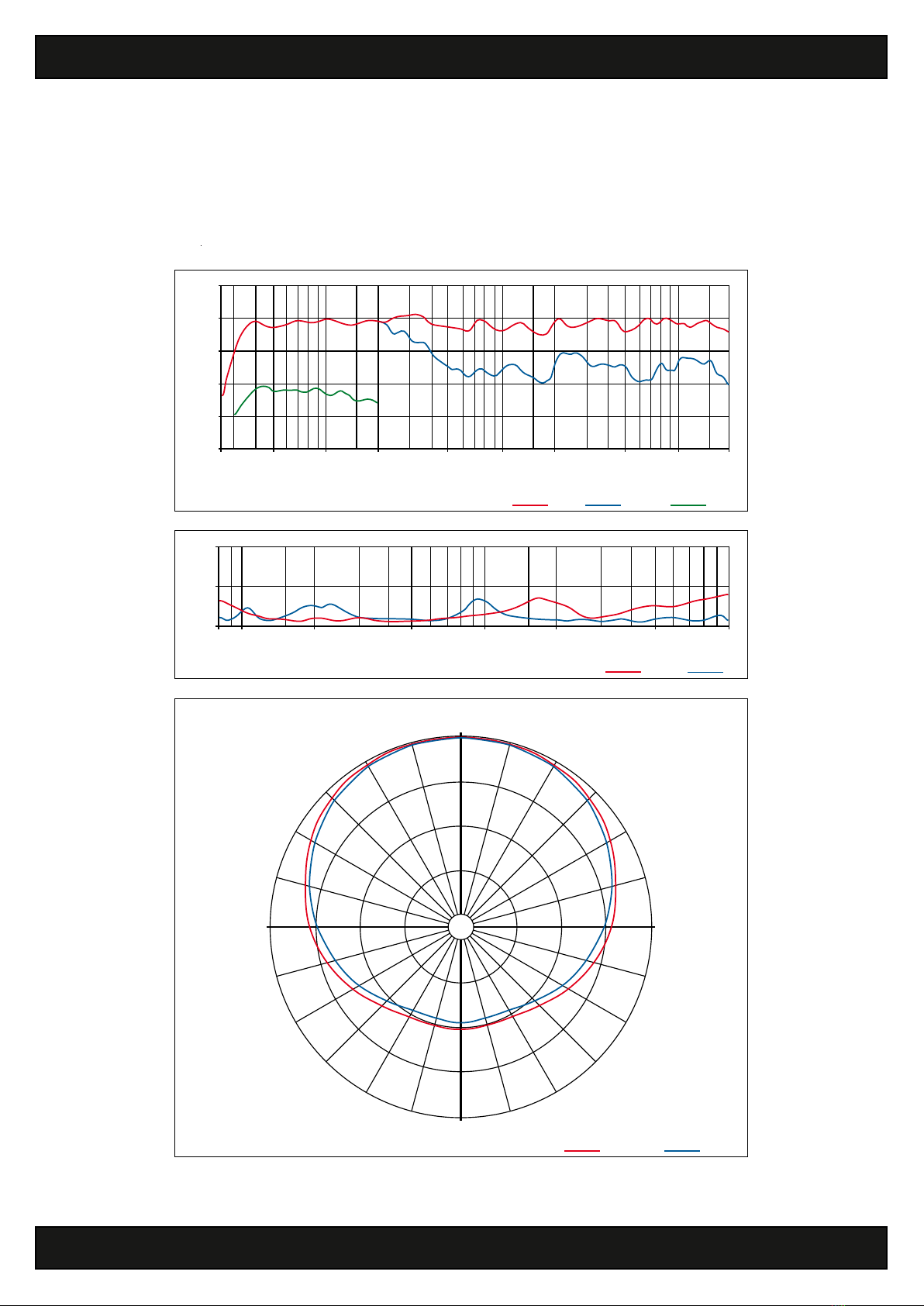

All acoustic measurements are carried out under anechoic conditions with 1 m (3′3″) distance.
20 50 100 200 500 1k 2k 5k 10k 20k
95
90
85
80
75
70
[dB]
[Hz]
FREE FIELD FREQUENCY RESPONSE 0° 45°h 180°h
-15 015
30
45
60
75
90
105
120
135
150
165
180
-165
-150
-135
-120
-105
-90
-75
-60
-45
-30
32 Hz 125 Hz
0 -5 -10 -15 -15 -10 -5 0
DIRECTIONAL CHARACTERISTIC
1
0.5
0
[%]
K2 K3
[Hz]
80 100 200 500 1k 2k 5k 10k
TOTAL HARMONIC DISTORTIONS PA= 100 dB

NOTES 16
musikelectronic geithain GmbH ME 801K1
9 Notes

NOTES 17
musikelectronic geithain GmbH ME 801K1

musikelectronic geithain gmbh
STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT
SYSTEMS SYSTEMS
Nikolaistraße 7
04643 Geithain / Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
www.me-geithain.de
BDA_ME 801K1_18.05.2018_ENV17
